Cross-linked rotatable antenna arrays set every antenna's orientation with one shared row angle and one shared column angle, cutting motors from 2MN to M+N while closely matching fully flexible rotation performance.

Reviewed by Pith at T0; open to challenge. T0 means a machine referee read the full paper against a public rubric. the ladder, T0–T4 →

Challenge this review Re-run · record.json Download PDF Read on arXiv ↗

A cross-linked rotatable antenna array, whose row and column tracks set each antenna's orientation, nearly matches fully flexible per-antenna rotation in simulated multiuser uplinks with only M+N motors instead of 2MN.

T0 review reviewed 2026-08-03 challenge →

load-bearing objection A clean single-user ULA equivalence result inside an otherwise overclaimed multiuser architecture paper; the central 'close to flexible' claim is only tested in a far-field regime where it isn't sharp. the 3 major comments →

arxiv 2601.04862 v2 pith:H46RUE4X submitted 2026-01-08 cs.IT math.IT

Wireless Communication with Cross-Linked Rotatable Antenna Array: Architecture Design and Rotation Optimization

Ailing Zheng , Qingqing Wu , Ziyuan Zheng , Qiaoyan Peng , Yanze Zhu , Honghao Wang , Wen Chen , Guoying Zhang This is my paper
classification cs.IT math.IT
keywords Rotatable antennaCross-linked RA arrayAntenna element-level rotationAntenna panel-level rotationArray directional gain patternMMSE beamformingGenetic algorithmSum-rate maximization
verification ladder T0 review T1 audit T2 compute T3 formal T4 reserved

The pith

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The reading

The paper sets out to show that a cross-linked rotatable antenna array, where each antenna's orientation is determined by one shared row angle and one shared column angle, can capture most of the benefit of fully independent antenna rotation at a fraction of the hardware cost. In a single-user linear-array case, the coupling costs nothing: the architecture provably matches the fully flexible design. In multi-user simulations, a carefully chosen row-column partition brings the CL-RA sum rate close to the flexible scheme, with 25% and 128% gains over panel-level rotation and fixed antennas. A reader should care because it turns antenna-orientation degrees of freedom from a per-element cost into a per-row and per-column cost, making rotatable arrays scalable.

Core claim

The central discovery is that rotational coupling need not be a performance killer. By mounting each antenna at the crossing of a shared horizontal and vertical track, the orientation of every antenna is governed by just two shared angles, α_m and β_n. The paper proves that for a 1×N uniform linear array in a single-user line-of-sight channel, these shared angles can still point every antenna exactly at the user, giving the same SNR as fully flexible rotation while using N+1 motors instead of 2N. For multi-user planar arrays, the paper's alternating optimization over MMSE beamforming and feasible-direction rotation updates shows, in simulation, that a good row-column partition lets the coupl

What carries the argument

The key object is the cross-linked rotation structure: an M×N array whose antennas sit at intersections of horizontal and vertical tracks, with one motor per row and one per column. The rotation of antenna (m,n) is the product R(α_m,β_n)=R_{α_m}R_{β_n}, so the pointing vector is f=R(α_m,β_n)[1,0,0]^T. This single identity makes the orientation of all MN antennas a function of only M+N angles. Proposition 2 is the load-bearing theoretical result: for a 1×N array it gives explicit α_m and β_n that align every antenna with the user, proving exact equivalence to fully flexible rotation. For panel-level rotation, the same coupling plus physical non-reflection and CPU-blockage constraints (Proposi

Load-bearing premise

The central premise is that the antenna gain really is G(ε)=G0 cos^{2p}(ε) for ε≤π/2 and zero otherwise, and that the dual-axis gimbal in Fig. 1 realizes exactly the product rotation R(α_m,β_n)=R_{α_m}R_{β_n}; since no prototype or measured pattern is reported, all 128%/25%/84% gains rest on this model.

What would settle it

Build an 8×8 CL-RA prototype with the proposed dual-axis gimbal, measure the directional gain pattern and single-user SNR against the cos^{2p} prediction of Eq. (38), and compare multi-user sum rates with the simulated 128%/25% gains; if the measured pattern differs or the gimbal couples the row and column axes, the equivalence in Proposition 2 and the simulated gains are not realized.

Watch this falsifier. Get emailed when new claim-graph text bears on it.

If this is right

  • Motor count falls from 2MN to M+N for an M×N element-level array, and further to (M+N)/√Q_b when antennas are grouped into rotatable panels.
  • For a single-user 1×N uniform linear array, the CL-RA design is exactly as good as fully flexible orientation, with closed-form row and column angles that align every antenna with the user.
  • In the multi-user simulation setup, element-level CL rotation beats panel-level CL rotation by 25% and fixed-direction antennas by 128%; a row-column partition of 2×32 nearly matches the flexible-orientation baseline.
  • Panel-level rotation has a smaller feasible angle set due to mutual-reflection and CPU-blockage constraints; a 2×1 panel partition still beats array-wise rotation by 17%, while finer partitions such as 2×2 can be worse.
  • With discrete angle sets of 15 levels per axis, a genetic algorithm recovers an 84% gain over fixed orientation, beating naive nearest-projection rounding by 15%.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The exact ULA result suggests a general design heuristic the paper does not state: coupling is harmless when each row contains a single element, so the best CL partition is one that keeps row width small while preserving enough column diversity; this could be tested by sweeping 2×32, 4×16, and 8×8 partitions.
  • The performance numbers assume an ideal gimbal. A natural robustness check is to add small random coupling between α_m and β_n and re-run the alternating-optimization algorithm; if the 128% gain persists, the architecture is mechanically forgiving.
  • Since the paper invokes uplink-downlink duality, its MMSE/feasible-direction machinery should transfer to downlink sum-rate maximization with power allocation; that extension is not simulated in the paper.
  • The panel feasible-range analysis implies a partition-design rule: for a given array footprint there is an optimal panel count that balances rotational degrees of freedom against physical constraints; a quantitative version could be formulated as an outer optimization over partition geometry.
Share X Bluesky LinkedIn Reddit HN

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit.

Referee Report

3 major / 6 minor

Summary. The paper proposes a cross-linked rotatable antenna (CL-RA) array in which M horizontal and N vertical tracks drive row- and column-level rotations, reducing the number of motors from 2MN to M+N (or to (M+N)/sqrt(Q) for panel grouping). It models an uplink multiuser system with distance- and orientation-dependent LoS/NLoS channels, formulates a sum-rate maximization over receive beamforming and coupled rotation angles, derives an exact single-user ULA equivalence (Prop. 2), and proposes alternating optimization with MMSE beamforming and a feasible-direction rotation update, plus a genetic algorithm for discrete rotations. Simulations claim that the CL-RA element-level scheme nearly matches the flexible orientation benchmark, exceeds panel-level rotation by 25%, and outperforms fixed orientation by 128%.

Significance. The architecture is a sensible and timely cost-reduction concept for rotatable-antenna systems. Proposition 2 and its proof in Appendix B are clean, first-principles results and constitute a genuine strength: for a 1xN ULA, the cross-linked structure can exactly match fully flexible orientation with N+1 motors. The paper contains no fitted parameters; the reported percentages are direct outputs of the stated channel and antenna-gain model. If the multiuser rotation update is corrected and the simulation regime is expanded to cases where per-antenna orientation diversity actually matters, the paper would provide a useful performance/complexity characterization of a new RA architecture. At present, however, the central 'quite close to flexible' claim rests on an approximation error in the algorithm derivation and on a simulation geometry that does not stress the row/column coupling.

major comments (3)
  1. [§IV-A2, Eq. (51)] The update identity R(u^{(t)}_{m,n}) = R(u^{(t-1)}_{m,n}) R(Δu_{m,n}) is not correct for the parameterization R(u)=R_α R_β. In fact R_{α+Δα} R_{β+Δβ} = R_α R_{Δα} R_β R_{Δβ}, whereas R_α R_β R_{Δα} R_{Δβ} is different; equality would require [R_{Δα}, R_β]=0, which is false for rotations about distinct axes. Consequently, the small-angle linearization in Eq. (53) is not the first-order variation of f_{m,n} with respect to (α_m, β_n), and the linear program (56) and constraint (54) are not valid tangent-plane approximations. The monotonicity/convergence argument in §IV-C therefore does not follow. Please replace this with an exact parameter-space gradient (e.g., finite differences of the true R(α+δα, β+δβ)) or prove that the approximation preserves feasibility and ascent up to a controlled error.
  2. [§VI, Table I and Figs. 6–7] The central claim that CL-RA is 'quite close' to flexible orientation is tested only in a quasi-far-field geometry. With an 8×8 array at Δ=λ/2 (aperture ≈0.34 m) and users at 50–70 m, the direction from different array elements to a user varies by at most ≈0.4°. For the cos^{2p} pattern with p=2 this yields negligible per-element orientation loss, so an array-wise orientation is nearly optimal and the comparison cannot discriminate between M+N and 2MN orientation DoFs. Proposition 2 is only for a ULA; no analytical bound or near-field/large-aperture simulation is provided for UPA. Please add a test where per-antenna orientation diversity matters (near-field, larger aperture, or strongly angle-dependent channel) or derive a scaling law for the loss caused by the row/column coupling. Otherwise the abstract's 'quite close to flexible' is an overgeneralization of a regime-specific observatio
  3. [§VI-C, Fig. 7] The partition comparison in Fig. 7 does not hold the number of motors fixed: the 2×32 partition uses M+N=34 motors, the 4×16 partition uses 20, and the 8×8 partition uses 16. The observation that 2×32 performs best may simply reflect its larger number of orientation DoFs rather than any property of row-column coupling. To support the conclusion about 'carefully designing the row-column partition,' the comparison should be normalized by motor count or accompanied by a complexity-penalized metric. This issue is secondary to the main claim but should be addressed in a revision.
minor comments (6)
  1. [Section V heading] The heading reads 'DISCRETE ROTATION ANGELS' — should be 'ANGLES'.
  2. [Throughout] Several typos: 'Armio' should be 'Armijo' (Algorithm 1), 'folowing' (Section II-B), 'th number' (Section II-C), and 'scatters' in Table I should be 'scatterers'.
  3. [Fig. 5] The abbreviation 'wo' is used in the legend but not defined in the caption; clarify that it means 'without' physical constraints.
  4. [Eq. (6)] The directional gain is defined for ε∈(0, π/2), but the boresight value at ε=0 is needed for the aligned case. Use [0,π/2) or explicitly define G(0)=G0.
  5. [Section II-A] Reference [43] (cross-linked movable antenna array) is closely related to the proposed architecture and should be discussed in the architecture section to clearly delineate novelty relative to that prior work.
  6. [Section V] The genetic algorithm is heuristic; this is acceptable, but the lack of any optimality or convergence guarantee for the discrete problem should be stated explicitly rather than implied by the continuous-algorithm convergence discussion.

Circularity Check

0 steps flagged

No significant circularity: the ULA equivalence is a constructive derivation and the simulation gains are model outputs, not fitted quantities.

full rationale

The paper's claimed derivation chain is self-contained rather than circular. Proposition 2, the only analytical equivalence result, is a constructive geometric proof: for the 1×N ULA case it exhibits explicit row and column angles (Eqs. 41–42) from the pointing condition f(u_m,n)=u_0 (Eq. 70), showing that the shared row angle α_1 plus per-column angles β_n can point every antenna at the user. This is a genuine first-principles derivation, not an assumption equivalent to the conclusion. The multi-user sum-rate results (25%, 128%, 84%, etc.) are outputs of the stated optimization problems under the stated channel and gain models; no parameter is fitted to reproduce these percentages, and the flexible baseline is the same model with fewer constraints. The only self-referential element is adoption of the directional gain model G(ε)=G0 cos^{2p}(ε) from prior rotatable-antenna work, some co-authored by the present authors, but that is an explicit modeling assumption used as an input, not a load-bearing 'prediction' or a uniqueness argument forced by self-citation. Any concern about validity in far-field-like simulation geometry is a correctness/generalization issue, not circularity.

Axiom & Free-Parameter Ledger

3 free parameters · 5 axioms · 1 invented entities

The architecture and all performance claims rest on the assumed cos^{2p} directional pattern, the field-response channel, and an asserted gimbal realization; no measurement, prototype, or code is supplied. The reported gains are therefore conditional on these assumptions; only the ULA pointing formulas (41)-(42) are assumption-light geometry.

free parameters (3)
  • Directivity factor p = 2 (Table I; varied in Fig. 8)
    The absolute and relative gains (25%, 128%, 84%) depend on how sharply the antenna pattern falls off; p is chosen, not derived from physics.
  • Maximum zenith rotation angle θ_max = π/6 default; π/12 used for the 128% headline
    Fig. 7 shows the RA gain over fixed orientation depends steeply on this mechanical bound; the headline number uses θ_max=π/12, not the default.
  • Row-column partition of the array = 4×16 or 2×32 recommended in Fig. 7
    The claim of near-flexible performance is only true under a favorable partition; 8×8 is 17% worse than 4×16, and the 2×2 panel partition is worse than array-wise. The partition is a design choice that the paper tunes to make the architecture look good.
axioms (5)
  • domain assumption Directional gain pattern G(ε)=G0 cos^{2p}(ε) for ε∈(0,π/2), 0 otherwise, with G0=2(2p+1) (Eq. 6)
    All channel gains and all performance numbers assume this antenna pattern and front-half-space cutoff; it is taken from RA literature, not experimentally validated here.
  • domain assumption LoS channel gain follows Friis β0 r^{-2} times directional gain, with phase e^{-j2π r/λ} (Eqs. 8-9)
    Field-response channel model; ignores mutual coupling, near-field effects, polarization, and orientation-dependent phase beyond distance.
  • domain assumption Bi-static scattering model with D clusters, RCS σ_d, and random phase χ_d (Eq. 11)
    NLoS term assumes point scatterers with specified RCS; no validation or measurement of cluster parameters.
  • ad hoc to paper Mechanical constraints (20c) and panel inequality constraints (32c),(32d) fully characterize physical feasibility and mutual-coupling avoidance
    Panel constraints are invented for this architecture; no hardware or prototype demonstrates they are sufficient or necessary.
  • ad hoc to paper Rotation matrices compose as R(u_{m,n})=R_{α_m}R_{β_n} and the cross-linked track/gimbal mechanism realizes independent α_m, β_n without mechanical coupling or backlash (Eq. 3, Fig. 1)
    Architecture feasibility is asserted, not prototyped; the small-angle update in Eqs. 51-53 also assumes a particular ordering of incremental rotations.
invented entities (1)
  • Cross-linked rotatable antenna (CL-RA) array with dual-axis gimbal and cardan shaft no independent evidence
    purpose: Reduce motor count from 2MN to M+N by coupling row and column rotations of multiple antennas
    No prototype, measured radiation pattern, or mechanical test is provided; all feasibility rests on Fig. 1 and simulation results.

reviewed 2026-08-03 · how reviews work

0 comments
Cite this review

Pith. "Pith review of Wireless Communication with Cross-Linked Rotatable Antenna Array: Architecture Design and Rotation Optimization." pith.science (2026). https://pith.science/paper/H46RUE4X

@misc{pith2026260104862,
  author       = {Pith},
  title        = {Pith review of: Wireless Communication with Cross-Linked Rotatable Antenna Array: Architecture Design and Rotation Optimization},
  year         = {2026},
  howpublished = {\url{https://pith.science/paper/H46RUE4X}},
  note         = {Machine review of arXiv:2601.04862}
}
Share X Bluesky LinkedIn Reddit HN
read the original abstract

Rotatable antenna (RA) technology can harness additional spatial degrees of freedom by enabling the dynamic three-dimensional orientation control of each antenna. Unfortunately, the hardware cost and control complexity of traditional RA systems is proportional to the number of RAs. To address the issue, we consider a cross-linked (CL) RA structure, which enables the coordinated rotation of multiple antennas, thereby offering a cost-effective solution. To evaluate the performance of the CL-RA array, we investigate a CL-RA-aided uplink system. Specifically, we first establish system models for both antenna element-level and antenna panel-level rotation. Then, we formulate a sum rate maximization problem by jointly optimizing the receive beamforming at the base station and the rotation angles. For the antenna element-level rotation, we derive the optimal solution of the CL-RA array under the single-user case. Subsequently, for two rotation schemes, we propose an alternating optimization algorithm to solve the formulated problem in the multi-user case, where the receive beamforming and the antenna rotation angles are obtained by applying the minimum mean square error method and feasible direction method, respectively. In addition, considering the hardware limitations, we apply the genetic algorithm to address the discrete rotation angles selection problem. Simulation results show that by carefully designing the row-column partition scheme, the performance of the CL-RA architecture is quite close to that of the flexible antenna orientation scheme. Moreover, the CL antenna element-level scheme surpasses the CL antenna panel-level scheme by 25% and delivers a 128% performance improvement over conventional fixed-direction antennas.

Figures

Figures reproduced from arXiv: 2601.04862 by Ailing Zheng, Guoying Zhang, Honghao Wang, Qiaoyan Peng, Qingqing Wu, Wen Chen, Yanze Zhu, Ziyuan Zheng.

Figure 2
Figure 2. Figure 2: An RA-enabled uplink system. collective motion of the corresponding vertical and horizontal tracks. For conventional RA arrays with antenna-wise independent rotation, the number of motors required for 2D rotation is at least twice the total number of antennas. For example, an M ×N 2D array with antenna rotation requires 2MN motors with the 2D rotation abilities. In contrast, the required number of motors f… view at source ↗
Figure 1
Figure 1. Figure 1: The considered CL-RA architecture. II. SYSTEM MODEL AND PROBLEM FORMULATION A. CL-RA Architecture We investigate a novel CL-RA array, as illustrated in [PITH_FULL_IMAGE:figures/full_fig_p003_1.png] view at source ↗
Figure 3

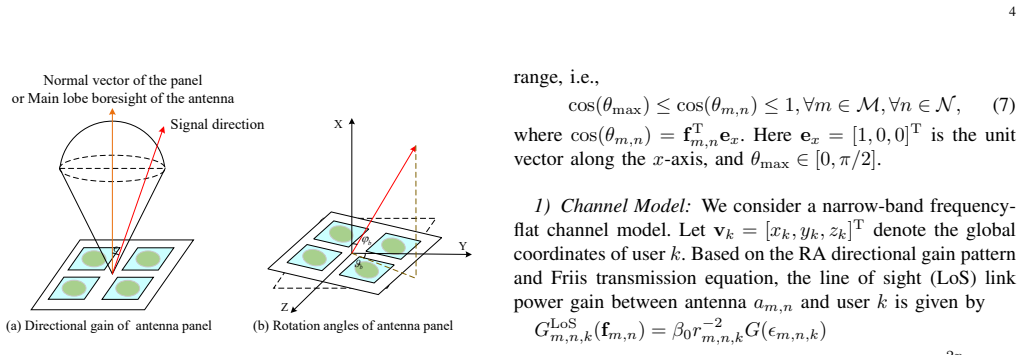

Figure 3. Figure 3: Illustration of directional gain and rotation angles of antenna [PITH_FULL_IMAGE:figures/full_fig_p004_3.png] view at source ↗
Figure 4
Figure 4. Figure 4: Convergence behavior of the proposed algorithms. [PITH_FULL_IMAGE:figures/full_fig_p009_4.png] view at source ↗
Figure 5
Figure 5. Figure 5: Sum rate vs. the maximum transmit power of each user. [PITH_FULL_IMAGE:figures/full_fig_p010_5.png] view at source ↗
Figure 9
Figure 9. Figure 9: Sum rate vs. the number of antennas. the antenna’s boresight direction and a narrower main lobe towards intended users. The performance gap between the flex￾ible antenna orientation and the proposed antenna algorithm widens with the increase of p. This is because the former can enhance directional gain for multiple users by exploiting the narrow main lobe and reducing mutual interference, thus achieving hi… view at source ↗
Figure 8
Figure 8. Figure 8: Sum rate vs. the directivity factor of each antenna. [PITH_FULL_IMAGE:figures/full_fig_p011_8.png] view at source ↗
Figure 10
Figure 10. Figure 10: Sum rate vs. the number of users. from the fact that the continuous solution space is inher￾ently larger and less constrained than its discrete counterpart, enabling more precise and globally optimal configurations. Moreover, compared with the nearest projection algorithm, the GA-based antenna algorithm achieves a 15% performance gain when Q = 100. This demonstrates the effectiveness of the GA in searchin… view at source ↗
