arxiv: 2606.21720 · v1 · pith:H6IXALZYnew · submitted 2026-06-19 · 🌌 astro-ph.IM · eess.SP· math-ph· math.MP· physics.comp-ph· physics.ins-det

Digital Beam Pattern Optimisation for the GRAO 32-m Telescope: A Comparative Analysis of FIR Filter Design Methods

Theophilus Ansah-Narh , Nia Imara , Benedicta Woode , Emmanuel Proven Adzri This is my paper

Pith reviewed 2026-06-26 12:54 UTC · model grok-4.3

classification 🌌 astro-ph.IM eess.SPmath-phmath.MPphysics.comp-phphysics.ins-det
keywords beam pattern optimizationFIR filtersGRAO telescopesidelobe suppressioncross-polar leakageJones fieldsradio astronomy instrumentation
0
0 comments X

The pith

FIR spatial filtering of GRAO telescope beam simulations reduces near-in sidelobes and cross-polar leakage below -30 dB at boresight.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper develops a finite-impulse-response spatial filtering method that treats beam optimisation as a digital signal processing task. It adapts window-based and Parks-McClellan filter designs to operate directly on simulated Jones fields by mapping angular position to spatial frequency. This suppresses high-frequency artefacts that produce sidelobes and polarisation mixing while leaving the main beam resolution unchanged. When applied to the GRAO 5 GHz model the approach lowers ripple, smooths the beam, and cuts cross-polar leakage below -30 dB, which the authors state improves calibration stability and polarimetric accuracy for VLBI, spectral-line work, and pulsar timing. The same framework is presented as a general, non-invasive technique usable on other single-dish and phased-array instruments.

Core claim

Reformulating beam pattern control as a classical FIR filter design problem on simulated Jones fields allows deliberate attenuation of high spatial-frequency components responsible for residual sidelobes and cross-polar leakage in the GRAO 32-m antenna at 5 GHz, yielding smoother beams, reduced ripple, and leakage below -30 dB at boresight while preserving diffraction-limited resolution.

What carries the argument

The FIR spatial filtering framework that maps angular displacement to spatial frequency and applies window or Parks-McClellan design directly to the simulated Jones vector fields.

If this is right

  • Improved calibration stability for VLBI observations with the GRAO antenna.
  • Higher polarimetric precision for spectral-line surveys and pulsar timing.
  • A computationally efficient, non-invasive complement to mechanical or optical beam optimisation.
  • Direct applicability of the same FIR approach to other single-dish and phased-array telescopes.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The method could be validated by feeding the filtered beam models into existing calibration pipelines and comparing residual errors against unfiltered cases.
  • Real-time digital correction using pre-computed FIR coefficients might be feasible if the telescope's pointing and frequency are stable enough.
  • Extension to wide-band or multi-frequency observations would require checking whether a single set of filter coefficients remains effective across the band.

Load-bearing premise

The electromagnetic simulations of the Jones fields already capture the telescope's real residual sidelobes, structural diffraction, and cross-polar leakage, so that filtering performed in simulation will produce corresponding gains on the sky.

What would settle it

On-sky 5 GHz beam maps of the GRAO telescope taken before and after applying the FIR coefficients, checked to see whether measured cross-polar leakage at boresight falls below -30 dB and near-in ripple decreases as predicted.

Figures

Figures reproduced from arXiv: 2606.21720 by Benedicta Woode, Emmanuel Proven Adzri, Nia Imara, Theophilus Ansah-Narh.

Figure 1

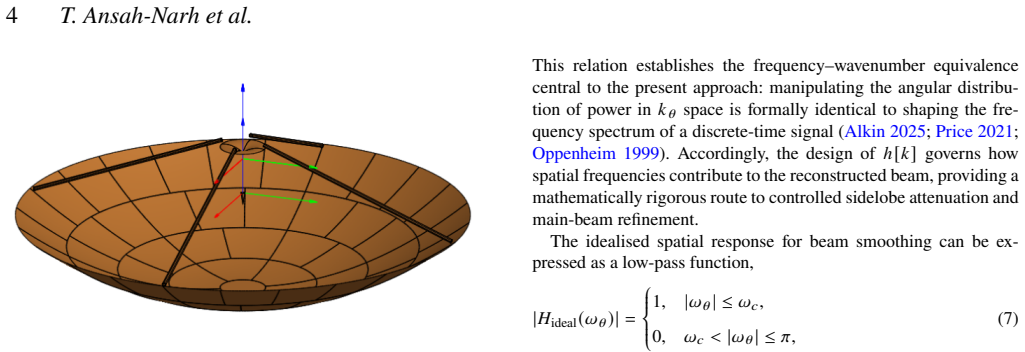

Figure 1. Figure 1: Geometrical model of a parabolic reflector antenna showing the segmented surface mesh and the primary feed support structure. The coordi￾nate systems (red, green, and blue axes) indicate the global and local phase centres for the optical analysis. input for the spatial weighting and filter-design analysis described in Section 3. In particular, the grid data serve as the “time￾domain” equivalent in our FIR … view at source ↗
Figure 2

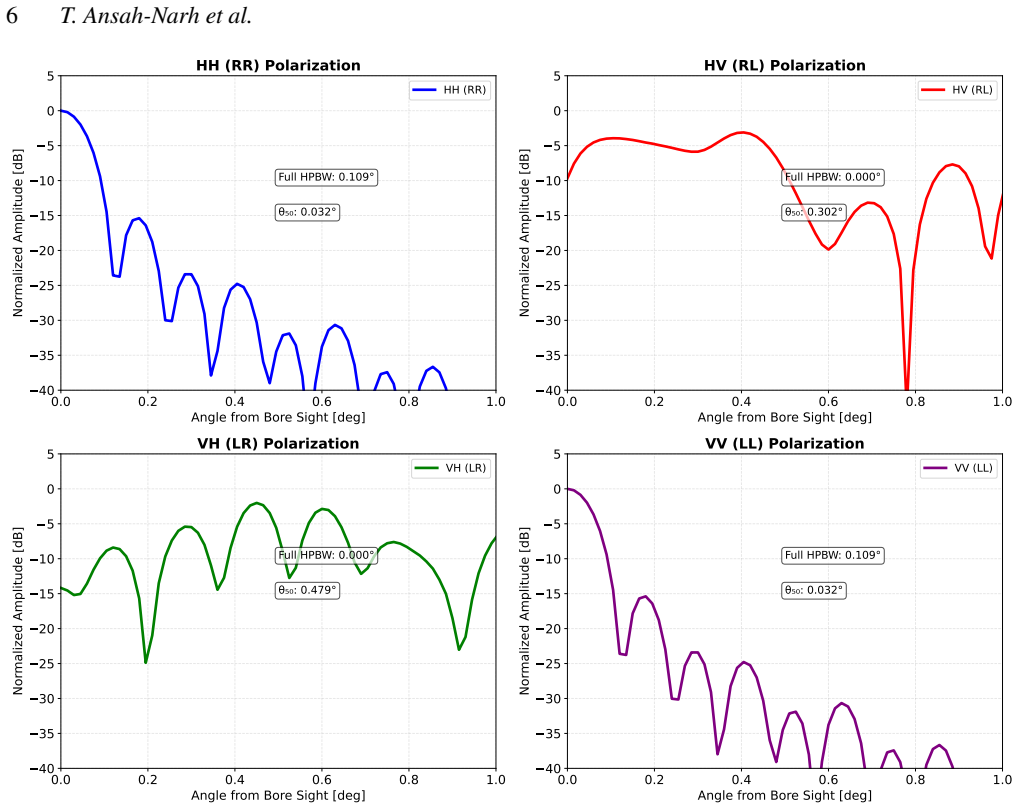

Figure 2. Figure 2: Baseline beam patterns of the GRAO 32-m telescope at 5 GHz obtained from GRASP simulations. Each panel shows the normalised amplitude response (in dB) as a function of angular displacement from boresight for the four Jones components: HH (RR), HV (RL), VH (LR), and VV (LL). The co-polar beams (HH, VV) display near-Gaussian profiles with HPBW ≈ 0.045◦ and first sidelobe levels of ∼ −18.8 dB, whereas the cro… view at source ↗
Figure 3

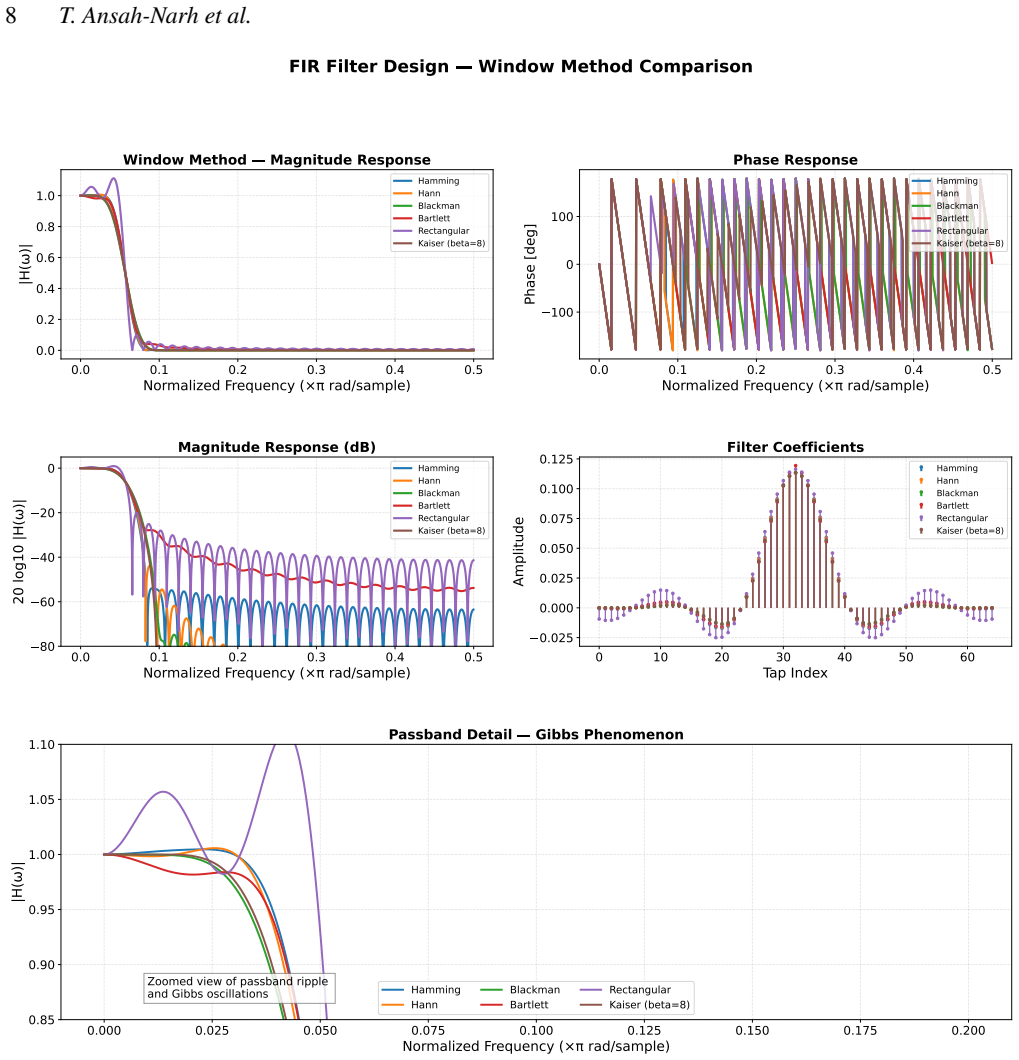

Figure 3. Figure 3: Comparative analysis of FIR window functions used in spatial filtering of the GRAO beam. The panels display the frequency responses, impulse responses, and resulting spatial-domain kernels for the Hamming, Hann, Blackman, Bartlett, Rectangular, and Kaiser (𝛽 = 8) windows. The trade-off between main-lobe width and sidelobe attenuation is clearly evident: rectangular windows yield the narrowest but least sup… view at source ↗
Figure 4

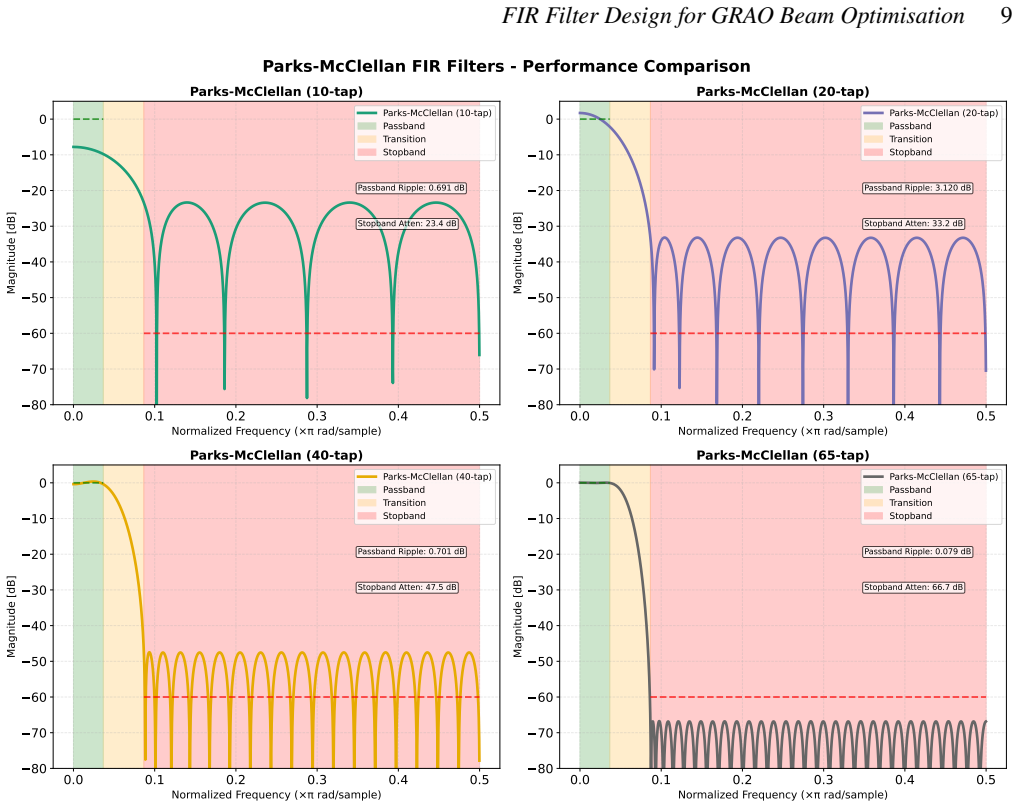

Figure 4. Figure 4: Magnitude responses of Parks–McClellan FIR filters designed with 10, 20, 40, and 65 taps. Each panel delineates the passband (green), transition (orange), and stopband (red) regions, illustrating the equiripple behaviour characteristic of Chebyshev-optimised filters. Longer filters achieve superior sidelobe attenuation and reduced passband ripple, enhancing suppression of high spatial frequency artefacts i… view at source ↗
Figure 5

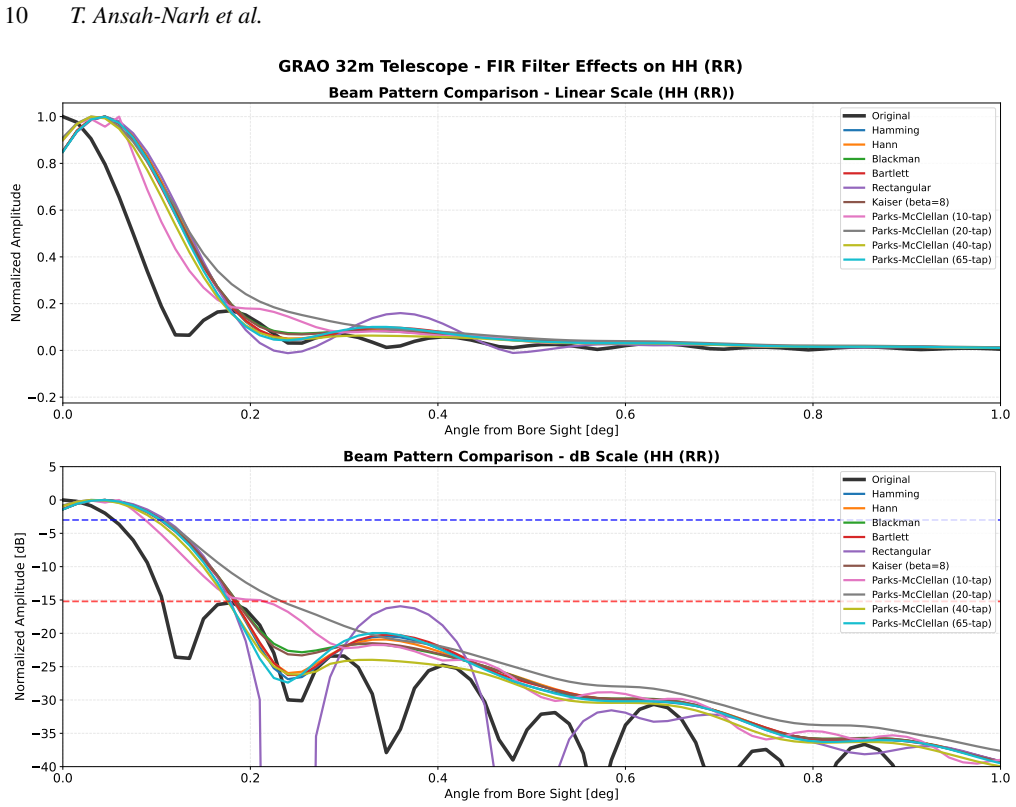

Figure 5. Figure 5: Filtered co-polar beam (𝐽𝑞ℎ; HH/RR) comparing window-based and Parks-McClellan FIR methods. All filters suppress high-frequency structure relative to the unfiltered beam. The blue dashed line marks the −3 dB half-power level used to assess HPBW, while the red dashed line indicates the telescope’s specified maximum sidelobe limit (≈ −15 dB). Windowed designs improve beam smoothness and efficiency at the cos… view at source ↗
Figure 6

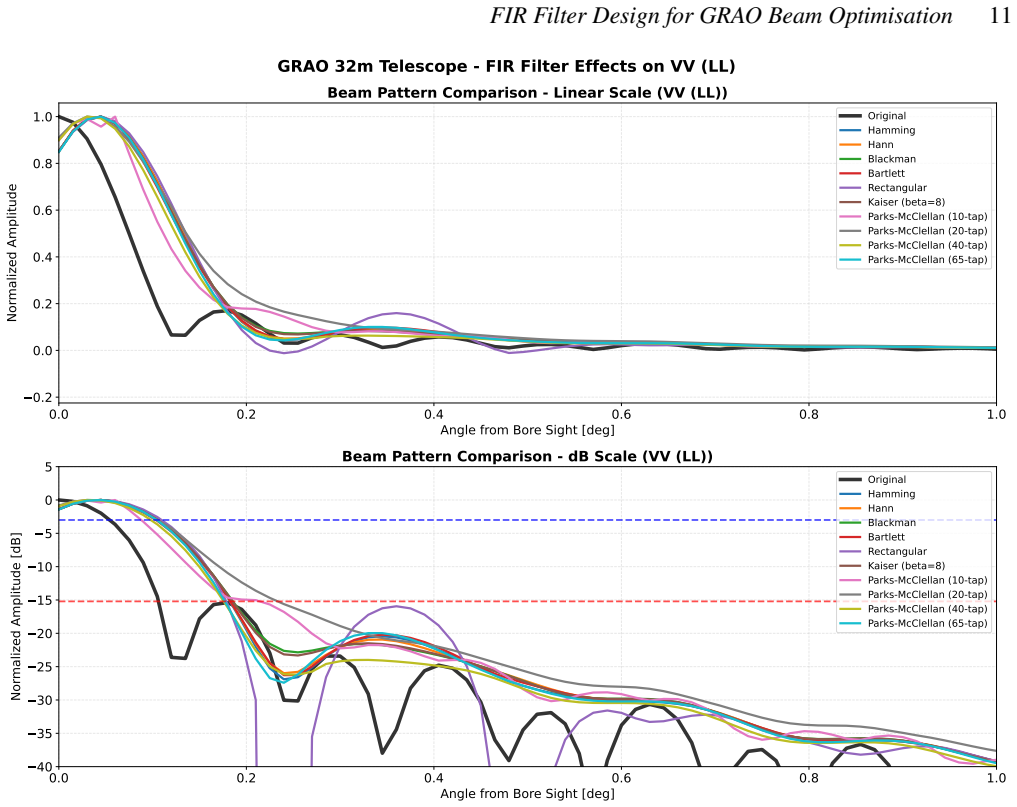

Figure 6. Figure 6: Filtered co-polar beam (𝐽𝑝𝑣; VV/LL), showing behaviour consistent with the horizontal polarization. The blue dashed line denotes the −3 dB half￾power reference, used for computing the effective beamwidth, and the red dashed line marks the nominal maximum sidelobe specification for the GRAO 32 m telescope. Window-based filters yield strong smoothing and improved efficiency, whereas the 40–65 tap Parks–McCle… view at source ↗
Figure 7

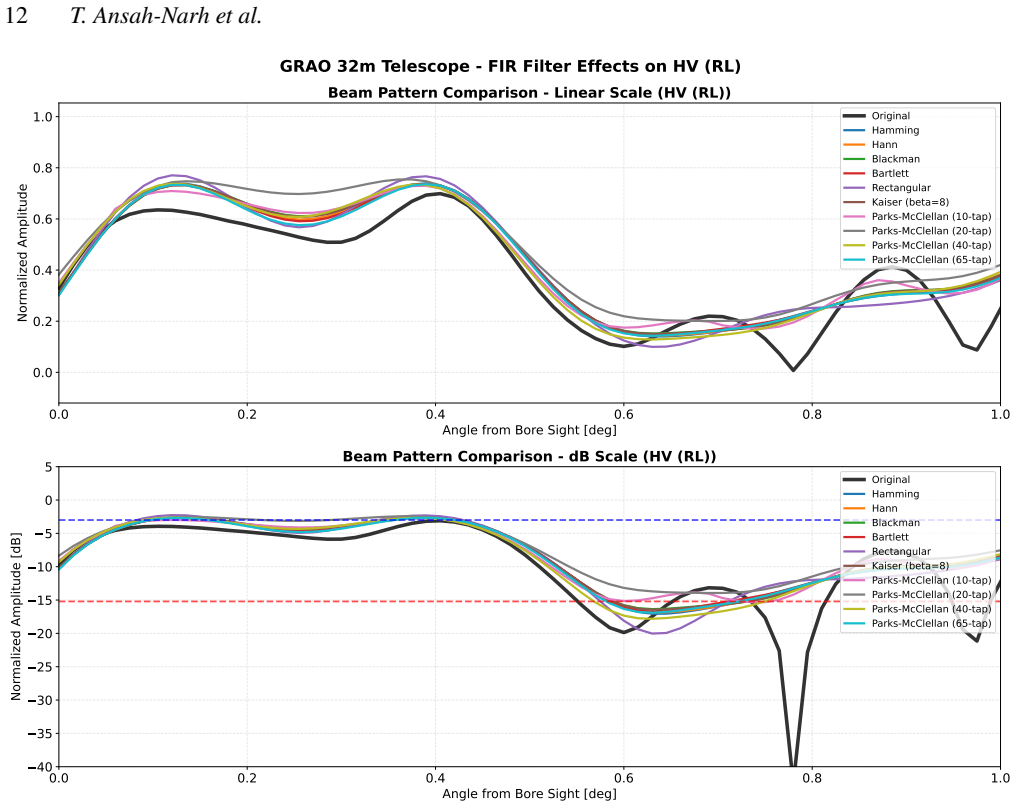

Figure 7. Figure 7: Filtered cross-polar beam (𝐽𝑞𝑣; HV/RL). Spatial filtering reduces oscillatory structure and suppresses irregular lobes, leading to smoother angular variation and more stable cross-polar behaviour. The blue dashed line indicates the −3 dB reference for main-beam comparison, and the red dashed line corresponds to the nominal sidelobe limit of the telescope. Among the designs, the Parks-McClellan filters prod… view at source ↗
Figure 8

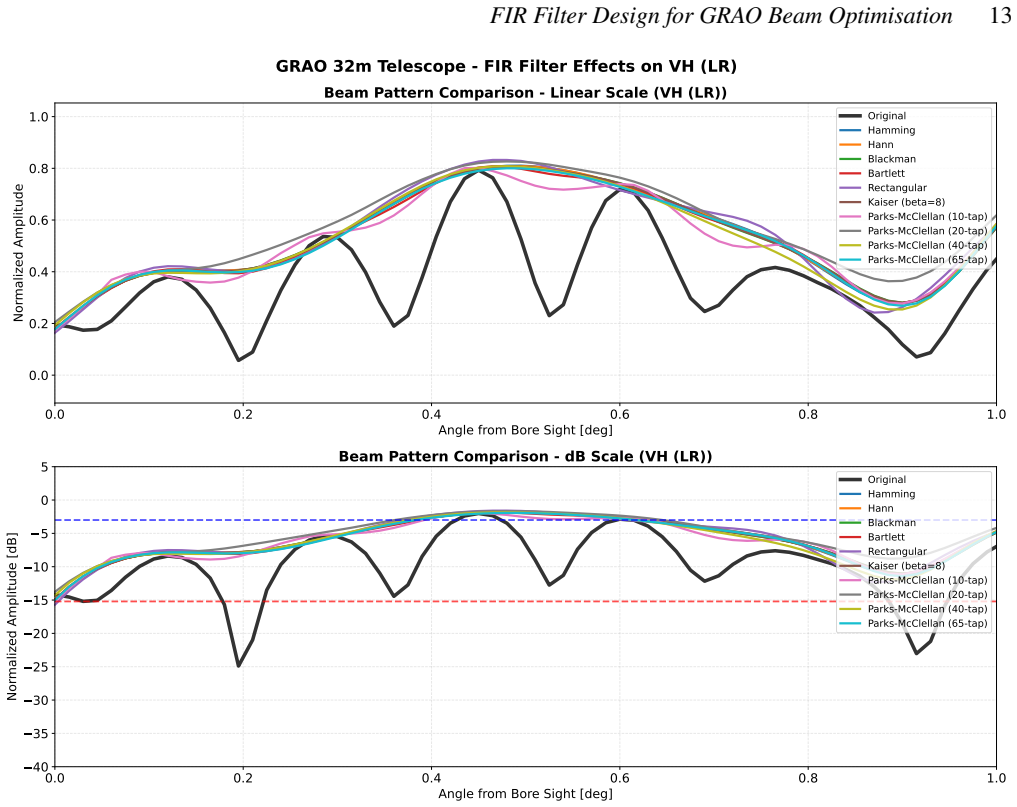

Figure 8. Figure 8: Filtered cross-polar beam (𝐽𝑝ℎ; VH/LR). All FIR designs mitigate high–spatial-frequency artefacts and asymmetries, strengthening cross-polar isolation. The blue dashed line marks the −3 dB half-power criterion, and the red dashed line denotes the telescope’s prescribed maximum sidelobe level. Efficiency improvements are most noticeable for the Blackman and Kaiser windows, while the 40-tap Parks-McClellan f… view at source ↗
read the original abstract

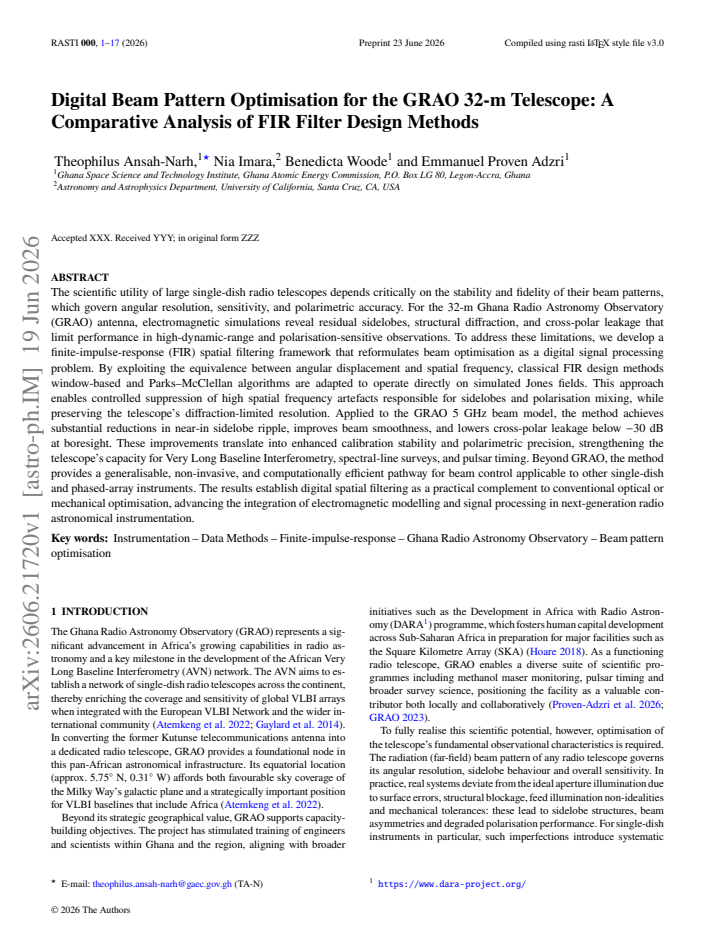

The scientific utility of large single-dish radio telescopes depends critically on the stability and fidelity of their beam patterns, which govern angular resolution, sensitivity, and polarimetric accuracy. For the 32-m Ghana Radio Astronomy Observatory (GRAO) antenna, electromagnetic simulations reveal residual sidelobes, structural diffraction, and cross-polar leakage that limit performance in high-dynamic-range and polarisation-sensitive observations. To address these limitations, we develop a finite-impulse-response (FIR) spatial filtering framework that reformulates beam optimisation as a digital signal processing problem. By exploiting the equivalence between angular displacement and spatial frequency, classical FIR design methods, window-based and Parks-McClellan algorithms are adapted to operate directly on simulated Jones fields. This approach enables controlled suppression of high spatial frequency artefacts responsible for sidelobes and polarisation mixing, while preserving the telescope's diffraction-limited resolution. Applied to the GRAO 5 GHz beam model, the method achieves substantial reductions in near-in sidelobe ripple, improves beam smoothness, and lowers cross-polar leakage below -30 dB at boresight. These improvements translate into enhanced calibration stability and polarimetric precision, strengthening the telescope's capacity for Very Long Baseline Interferometry, spectral-line surveys, and pulsar timing. Beyond GRAO, the method provides a generalisable, non-invasive, and computationally efficient pathway for beam control applicable to other single-dish and phased-array instruments. The results establish digital spatial filtering as a practical complement to conventional optical or mechanical optimisation, advancing the integration of electromagnetic modelling and signal processing in next-generation radio astronomical instrumentation.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 2 minor

Summary. The manuscript reformulates beam pattern optimization for the GRAO 32-m telescope as a digital FIR filtering problem applied to simulated Jones fields at 5 GHz. It adapts classical window-based and Parks-McClellan FIR design methods to suppress high-spatial-frequency artefacts in the simulated beams, reporting quantitative gains in sidelobe ripple reduction, beam smoothness, and cross-polar leakage below -30 dB at boresight, with claimed benefits for VLBI, spectral-line surveys, and pulsar timing. The approach is presented as a generalisable, non-invasive complement to optical or mechanical optimisation.

Significance. If the simulation-to-reality translation holds, the work demonstrates a computationally lightweight DSP-based pathway for mitigating residual sidelobes and polarisation leakage in single-dish antennas, potentially improving calibration stability without hardware changes. The explicit comparison of two standard FIR methods on the same simulated Jones fields provides a concrete benchmark that could be adopted by other facilities.

major comments (2)
  1. [Results / Discussion (implied by abstract claims)] The central quantitative claims (sidelobe ripple reduction, smoothness improvement, cross-polar leakage < -30 dB) rest entirely on post-filtering of the electromagnetic simulation; no section compares either the input simulated beam or the filtered output against measured on-sky maps, holography, or residual errors from actual GRAO observations. This leaves the translation to enhanced calibration stability and polarimetric precision dependent on an untested fidelity assumption about the model.
  2. [Abstract and concluding paragraphs] The manuscript states that the filtered beams 'translate into enhanced calibration stability and polarimetric precision' without providing error propagation, sensitivity analysis, or even a forward-model test showing how the reported leakage reduction would affect, e.g., Stokes parameter leakage in a typical observation.
minor comments (2)
  1. [Methods] Notation for the Jones vector components and the spatial-frequency mapping should be defined once in a dedicated subsection rather than introduced inline.
  2. [Figures] Figure captions should explicitly state whether the displayed beams are the raw simulation, the filtered result, or the difference, and include the filter order and cutoff values used.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the constructive comments on our simulation-based study. We address each major point below and will revise the manuscript accordingly to better qualify the scope and limitations.

read point-by-point responses

  1. Referee: [Results / Discussion (implied by abstract claims)] The central quantitative claims (sidelobe ripple reduction, smoothness improvement, cross-polar leakage < -30 dB) rest entirely on post-filtering of the electromagnetic simulation; no section compares either the input simulated beam or the filtered output against measured on-sky maps, holography, or residual errors from actual GRAO observations. This leaves the translation to enhanced calibration stability and polarimetric precision dependent on an untested fidelity assumption about the model.

    Authors: We agree that all quantitative results derive from the electromagnetic simulation of the GRAO 5 GHz Jones fields and that no on-sky, holography, or observational comparison is included. The work is presented as a DSP-based optimisation method applied to simulated fields. In revision we will explicitly state in the abstract, results, and discussion that the reported reductions are achieved within the simulated model, note the dependence on simulation fidelity, and add a forward-looking statement on the desirability of future validation against measured beams. revision: partial

  2. Referee: [Abstract and concluding paragraphs] The manuscript states that the filtered beams 'translate into enhanced calibration stability and polarimetric precision' without providing error propagation, sensitivity analysis, or even a forward-model test showing how the reported leakage reduction would affect, e.g., Stokes parameter leakage in a typical observation.

    Authors: The phrasing was intended to indicate expected downstream benefits from the demonstrated leakage reduction. We accept that no error propagation, sensitivity analysis, or forward-model test of Stokes leakage is provided. We will revise the abstract and concluding paragraphs to replace definitive statements with qualified language such as 'are expected to translate' and will insert a short paragraph noting that a full propagation study lies outside the present methods paper while the leakage reduction itself is quantified in the simulation. revision: yes

Circularity Check

0 steps flagged

No significant circularity; standard DSP applied to external EM simulations

full rationale

The paper applies classical window-based and Parks-McClellan FIR design methods to pre-existing simulated Jones fields from electromagnetic modeling of the GRAO telescope. Reported improvements (sidelobe ripple reduction, beam smoothness, cross-polar leakage < -30 dB) are computed directly within that simulation and do not reduce to any fitted parameter renamed as a prediction, self-definitional equivalence, or load-bearing self-citation chain. The derivation chain is self-contained against the external simulation benchmark; the translation to on-sky performance is an untested assumption but does not constitute circularity under the specified patterns.

Axiom & Free-Parameter Ledger

1 free parameters · 1 axioms · 0 invented entities

Central claim depends on the validity of mapping beam patterns to spatial frequency signals and on the fidelity of the input electromagnetic simulations; no new entities are postulated.

free parameters (1)
  • FIR filter order and cutoff frequencies
    Parameters in Parks-McClellan and window methods are selected to achieve desired sidelobe suppression on the simulated data.
axioms (1)
  • domain assumption Equivalence between angular displacement in the beam and spatial frequency for DSP filtering
    Invoked to justify reformulating beam optimization as a digital filtering problem.
