A comparison between Galactic magnetic field models and polarized synchrotron emission with C-BASS at 4.76 GHz and S-PASS at 2.3 GHz

Vasundhara Shaw , S. E. Harper , C. Dickinson , J. P. Leahy , Gabriel A. Hoerning , R. Cepeda-Arroita , Gilles Weymann-Despres , Mike Peel
show 4 more authors
Angela C. Taylor T. J. Pearson Jamie Leech Michael Jones
This is my paper

Pith reviewed 2026-05-25 03:54 UTC · model grok-4.3

classification 🌌 astro-ph.GA astro-ph.HE
keywords galactic magnetic fieldpolarized synchrotron emissionmicrowave frequenciesFaraday rotationpolarization anglespolarized intensitylocal structurestemplate fitting
0
0 comments X

The pith

Galactic magnetic field models match polarization angles but not intensity because local structures dominate the polarized sky.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper compares contemporary Galactic magnetic field models against polarized synchrotron observations from the S-PASS survey at 2.3 GHz and the C-BASS survey at 4.76 GHz. Pixels with potentially large Faraday rotation are excluded and small corrections are applied to the remainder before using a template fit to test how well each model reproduces observed polarization amplitudes and angles. Most models reproduce large-scale polarization angles reasonably well but fail to match the morphology of polarized intensity. The mismatch indicates that local foreground features such as the North Polar Spur and the Fan region shape a large portion of the polarized emission at microwave frequencies.

Core claim

Contemporary Galactic magnetic field models generally reproduce observed polarization angles on large scales but fail to match the morphology of polarized intensity. A significant fraction of the polarized sky is shaped by local foreground structures such as the North Polar Spur/Loop I and the Fan region. Accurate modeling of polarized synchrotron emission at microwave frequencies therefore requires incorporating these local structures.

What carries the argument

Template-fitting approach that compares each model's predicted polarization amplitudes and angles to the survey data after Faraday corrections.

If this is right

  • Most models reproduce polarization angles on large scales but not the morphology of polarized intensity.
  • There is a clear correlation between data and models for polarization angles but not for polarized intensity.
  • Local structures such as the North Polar Spur and the Fan region shape a large portion of the polarized sky.
  • Incorporating local structures is required for accurate modeling of polarized synchrotron emission at microwave frequencies.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • Global magnetic field models alone may be insufficient without explicit local additions to describe microwave polarization data.
  • This result could influence how polarized foregrounds are subtracted in analyses of the cosmic microwave background.
  • Repeating the template comparison at additional frequencies would test whether the mismatch with intensity persists.

Load-bearing premise

Excluding pixels with potentially large Faraday rotation and applying small corrections to the remainder does not introduce selection bias that affects the comparison between models and data.

What would settle it

A polarized intensity map at 4.76 GHz in which a global magnetic field model without added local structures matches the observed morphology as closely as a model that includes the North Polar Spur and Fan region would falsify the central claim.

Figures

Figures reproduced from arXiv: 2605.23489 by Angela C. Taylor, C. Dickinson, Gabriel A. Hoerning, Gilles Weymann-Despres, Jamie Leech, J. P. Leahy, Michael Jones, Mike Peel, R. Cepeda-Arroita, S. E. Harper, T. J. Pearson, Vasundhara Shaw.

Figure 1
Figure 1. Figure 1: The combined C-BASS and S-PASS polarized syn￾chrotron intensity map at 4.76 GHz shown in Galactic coordinates and rendered at HEALPix resolution Nside = 16 (G´orski et al. 2005a). the most complete and reliable reconstructed sky coverage currently possible at 4.76 GHz. 2.1 C-BASS North In this study we use the Data release 1 version of the C-Band All Sky Survey (C-BASS), an all-sky continuum survey mea￾sur… view at source ↗
Figure 2
Figure 2. Figure 2: The Base map and additional masked regions shown above in Galactic coordinates and rendered at HEALPix resolution Nside = 16. The grey areas in the mask indicate excluded regions: a circular region of radius 30◦ centred on the Galactic Centre, where strong Faraday rotation leads to significant depolarization; a symmetric Galactic latitude cut of ±10◦ to remove bright disc emission; and high-latitude pixels… view at source ↗
Figure 3
Figure 3. Figure 3: Polarized intensity (PI) synchrotron skymaps at 4.76 GHz, presented in Galactic coordinates at HEALPix resolution Nside = 16. The skymap in the top-left panel shows the combined C-BASS/S-PASS observational data, followed by synthetic PI maps generated from each GMF model. All maps have been processed using the same Base mask and have been rescaled by their respective fitted amplitudes obtained from fitting… view at source ↗
Figure 4
Figure 4. Figure 4: Residual polarized intensity maps at 4.76 GHz, shown in Galactic coordinates at HEALPix resolution Nside = 16 with the Base mask applied (masked regions appear in grey). For reference, the C-BASS data in the same units but with a different colour map are displayed in the top-left corner. The residuals are obtained by subtracting the modelled synchrotron intensity from the combined C-BASS/S-PASS observation… view at source ↗
Figure 5
Figure 5. Figure 5: Polarization angles (PA) skymaps at 4.76 GHz, presented in Galactic coordinates at HEALPix resolution Nside = 16. The skymap in the top-left panel shows the combined C-BASS/S-PASS observational data, followed by synthetic PA maps generated from each GMF model. All maps have been processed using the same Base mask and a cyclic colour scale is used across all maps to enable consistent visual comparison of th… view at source ↗
Figure 6

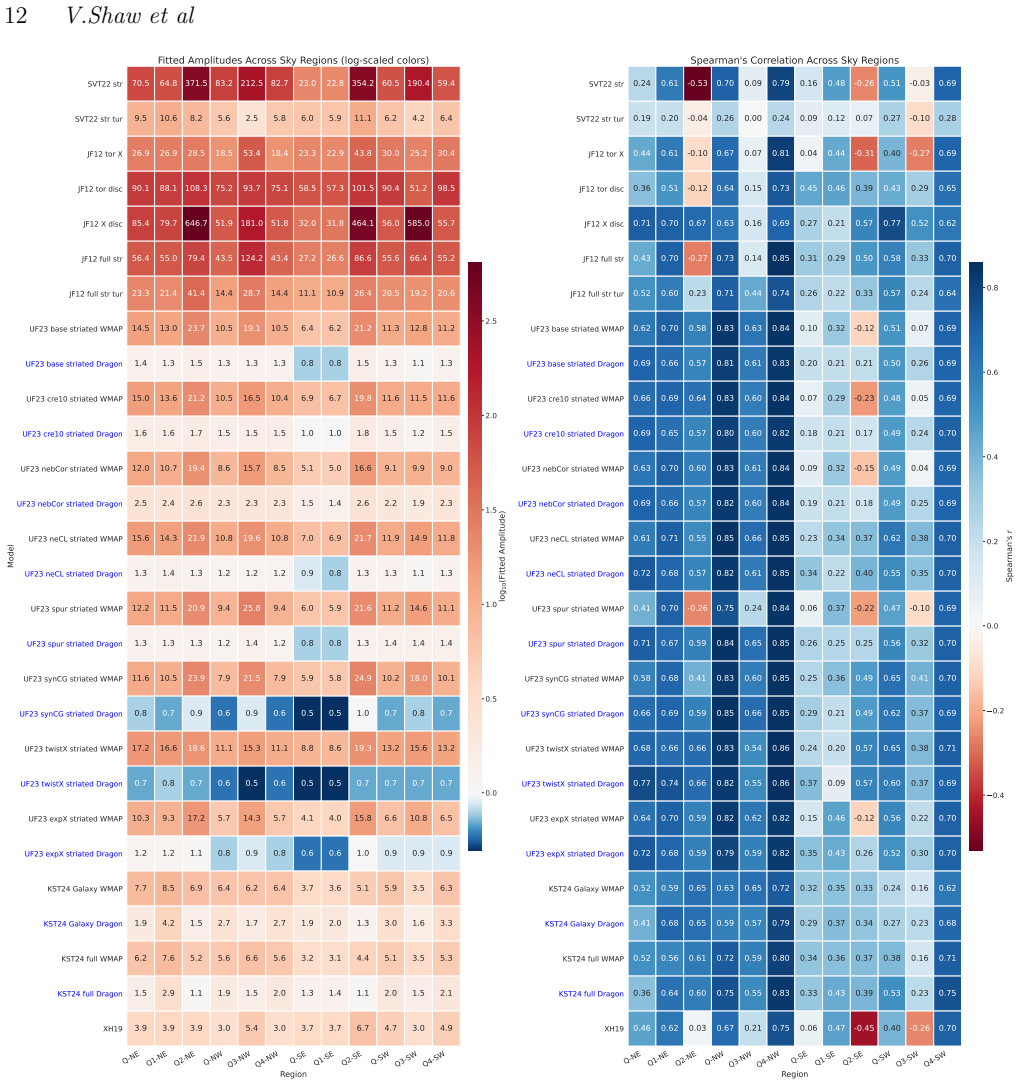

Figure 6. Figure 6: Heatmaps showing the fitted amplitude (left) and Spearman’s rank correlation coefficient (right) for each GMF model across selected small sky regions, evaluated at HEALPix resolution Nside = 16. The fitted amplitude represents the scaling factor obtained from the linear template fit required to match the modelled polarized intensity to the observed C-BASS/S-PASS data at 4.76 GHz. The Spearman’s correlation… view at source ↗
Figure 7
Figure 7. Figure 7: Heatmaps showing the fitted amplitude (left) and Spearman’s rank correlation coefficient (right) for each GMF model across selected hemispheric regions, evaluated at HEALPix resolution Nside = 16. The fitted amplitude represents the scaling factor obtained from the linear template fit required to match the modelled polarized intensity to the observed C-BASS/S-PASS data at 4.76 GHz. The Spearman’s correlati… view at source ↗
Figure 8

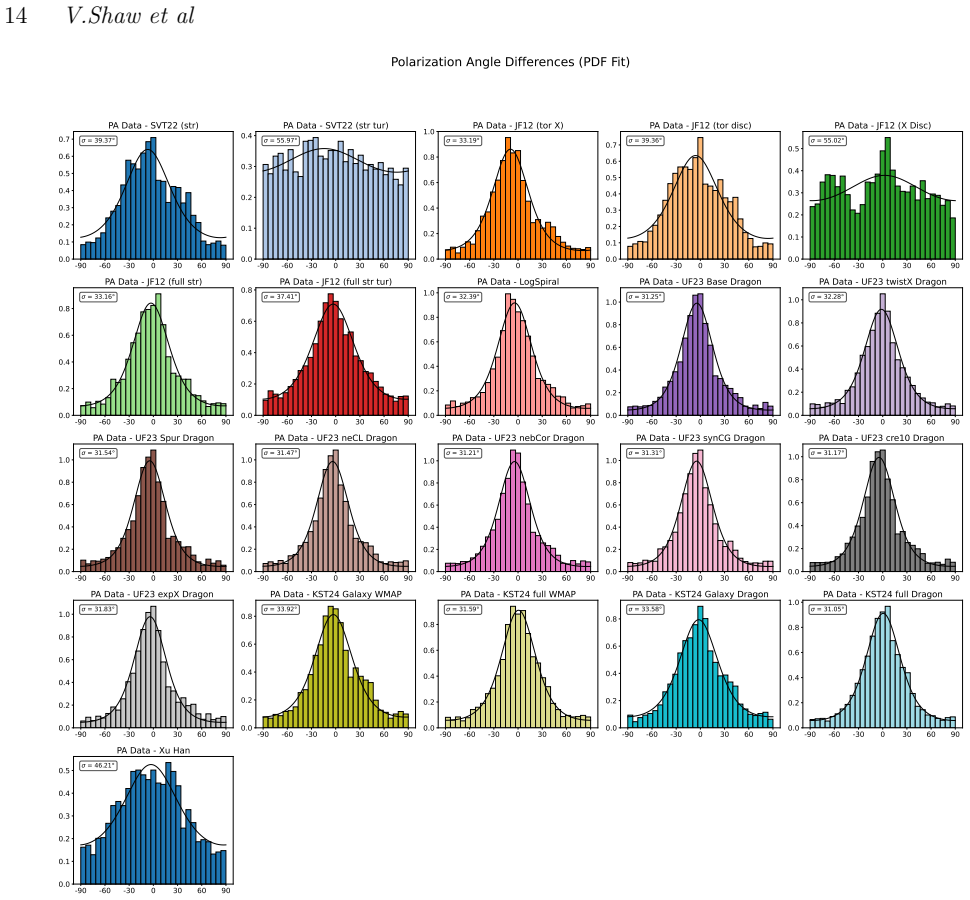

Figure 8. Figure 8: Histograms of polarization angle (PA) differences between the C-BASS/S-PASS data and each GMF model, computed at HEALPix resolution Nside = 16. The distributions are fitted using the position angle difference model described by Naghizadeh-Khouei & Clarke (1993), which accounts for the circular nature of angle measurements. The standard deviation of each distribution is reported in the legend, serving as a … view at source ↗
Figure 9
Figure 9. Figure 9: Polarization angle structure functions at NSIDE = 16 ( ≈ 3.7 ◦) for the North Polar Spur and high Galactic latitude regions of the reconstructed 4.76 GHz sky. The structure functions were calculated for the reconstructed 4.76 GHz sky and compared with polarization angles obtained from the JF12 full str tur, JF12 full str (Jansson & Farrar 2012a,b), SVT22 str tur, SVT22 str (Shaw et al. 2022), UF23 Base Dra… view at source ↗
Figure 10
Figure 10. Figure 10: Left : T-T plot comparison between the data and the KST24 full Dragon model for regionsQ-NE, Q-1-NE, Q-2-NE. Right: T-T plot between the data and the UF23 cre10 model for regionsQ-SW, Q-3-SW, Q-4-SW. ated with the Orion–Eridanus superbubble, while Booth et al. (2025) demonstrate that much of the observed Faraday sky within ∼1 kpc of the Sun can be described by a local magnetic field reversal geometry. Lar… view at source ↗
read the original abstract

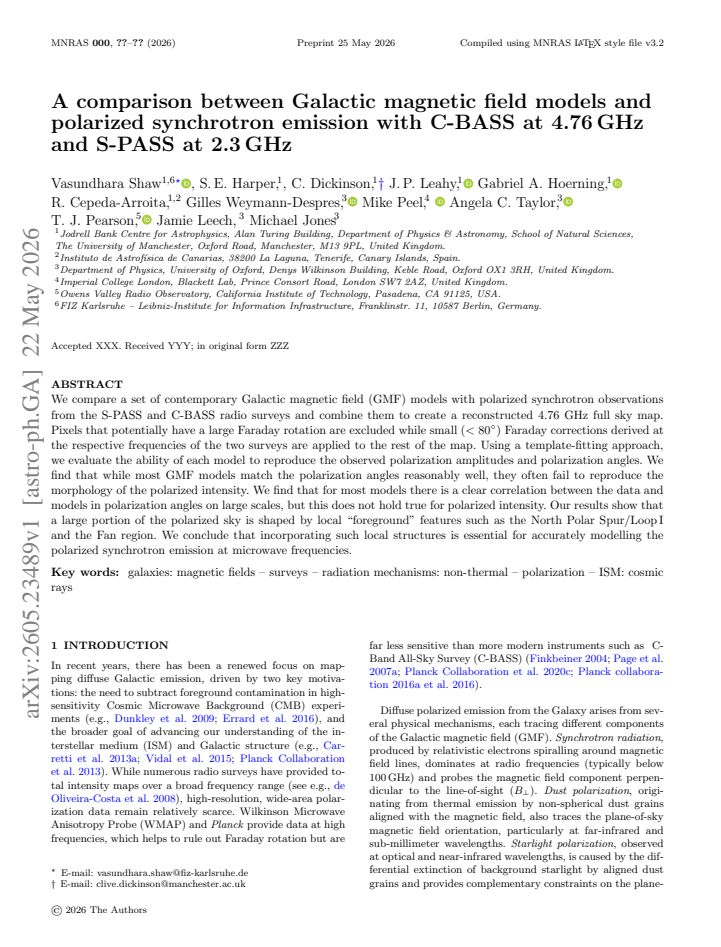

We compare a set of contemporary Galactic magnetic field (GMF) models with polarized synchrotron observations from the S-PASS and C-BASS radio surveys and combine them to create a reconstructed 4.76~GHz full sky map. Pixels that potentially have a large Faraday rotation are excluded while small ($< 80\degree$) Faraday corrections derived at the respective frequencies of the two surveys are applied to the rest of the map. Using a template-fitting approach, we evaluate the ability of each model to reproduce the observed polarization amplitudes and polarization angles. We find that while most GMF models match the polarization angles reasonably well, they often fail to reproduce the morphology of the polarized intensity. We find that for most models there is a clear correlation between the data and models in polarization angles on large scales, but this does not hold true for polarized intensity. Our results show that a large portion of the polarized sky is shaped by local ``foreground'' features such as the North Polar Spur/Loop\,I and the Fan region. We conclude that incorporating such local structures is essential for accurately modelling the polarized synchrotron emission at microwave frequencies.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 2 minor

Summary. The paper compares several contemporary Galactic magnetic field (GMF) models against polarized synchrotron emission from the S-PASS survey at 2.3 GHz and C-BASS at 4.76 GHz. Pixels with potentially large Faraday rotation are excluded and small (<80°) corrections are applied to the remainder; a template-fitting analysis then evaluates model performance on polarization angles and amplitudes. The authors report that most models reproduce large-scale polarization angles reasonably well but fail to match the morphology of polarized intensity, and conclude that local structures such as the North Polar Spur/Loop I and the Fan region must be incorporated into models for accurate reproduction of microwave polarized synchrotron emission. A combined 4.76 GHz full-sky map is also presented.

Significance. If the template-fit comparison after pixel selection is unbiased, the result would be significant for Galactic astrophysics and CMB foreground modeling: it would demonstrate that global GMF models are insufficient for polarized intensity at these frequencies and motivate inclusion of local features. The use of two independent surveys and published models (rather than internally fitted parameters) is a methodological strength.

major comments (2)
  1. [Abstract and Methods] Abstract and Methods (pixel exclusion and Faraday correction procedure): the description of excluding pixels with large Faraday rotation and applying corrections to the rest does not include a quantitative test (e.g., sky-fraction overlap or correlation statistics) of whether the retained pixels are biased away from the local structures (North Polar Spur/Loop I, Fan) invoked in the conclusion. This selection step is load-bearing for the central claim that global models fail on intensity morphology because of missing local features.
  2. [Results] Results section (template-fitting evaluation): the claims that models 'match the polarization angles reasonably well' but 'often fail to reproduce the morphology of the polarized intensity' are presented without reported quantitative statistics (correlation coefficients, reduced chi-squared values, or error budgets on the fits). This leaves the strength of the angle-intensity discrepancy unquantified and weakens support for the conclusion.
minor comments (2)
  1. [Abstract] The abstract states that a reconstructed 4.76 GHz map is created but does not specify the exact weighting or combination method used; this should be clarified in the main text for reproducibility.
  2. [Figures and Methods] Figure captions and text should explicitly state the number of pixels retained after exclusion and the sky fraction covered, to allow readers to assess the scope of the comparison.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for their constructive comments, which help clarify and strengthen the presentation of our results. We address each major comment below and will incorporate revisions to provide the requested quantitative support.

read point-by-point responses

  1. Referee: [Abstract and Methods] Abstract and Methods (pixel exclusion and Faraday correction procedure): the description of excluding pixels with large Faraday rotation and applying corrections to the rest does not include a quantitative test (e.g., sky-fraction overlap or correlation statistics) of whether the retained pixels are biased away from the local structures (North Polar Spur/Loop I, Fan) invoked in the conclusion. This selection step is load-bearing for the central claim that global models fail on intensity morphology because of missing local features.

    Authors: We agree that explicitly demonstrating the absence of selection bias is important for the robustness of our central claim. In the revised manuscript we will add a quantitative comparison of the retained pixel set against the full sky, including sky-fraction overlap statistics and spatial correlation measures specifically evaluated within the North Polar Spur/Loop I and Fan regions. This analysis will confirm that the local structures remain well represented after the Faraday-based selection and will be presented in an expanded Methods section. revision: yes

  2. Referee: [Results] Results section (template-fitting evaluation): the claims that models 'match the polarization angles reasonably well' but 'often fail to reproduce the morphology of the polarized intensity' are presented without reported quantitative statistics (correlation coefficients, reduced chi-squared values, or error budgets on the fits). This leaves the strength of the angle-intensity discrepancy unquantified and weakens support for the conclusion.

    Authors: We accept that the manuscript would benefit from explicit quantitative metrics. We will revise the Results section to report Pearson correlation coefficients and reduced chi-squared values for both the polarization-angle and polarized-intensity template fits, together with a brief error budget derived from the fit residuals. These statistics will be shown for each GMF model and will directly quantify the reported difference in performance between angles and amplitudes. revision: yes

Circularity Check

0 steps flagged

No significant circularity; comparison uses independent data and models

full rationale

The paper's central result follows from a template-fit comparison of published GMF models against independent S-PASS and C-BASS survey data after described pixel exclusions and Faraday corrections. No equations reduce any prediction to a fitted parameter defined inside the paper, no self-citation chain bears the load of the conclusion, and the mismatch in polarized intensity morphology is an empirical observation not forced by the inputs. The derivation is self-contained against external benchmarks.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 0 invented entities

Abstract supplies no explicit free parameters or invented entities; the only identifiable assumption is the accuracy of the applied Faraday corrections.

axioms (1)
  • domain assumption Faraday rotation corrections derived at the survey frequencies can be applied without introducing significant residual bias to the polarization comparison.
    Abstract states that small corrections are applied after excluding high-rotation pixels.
