Equatorial Circular Motion of Charged Test Particles in a Weakly Magnetized Taub--NUT Background

B.J. Bansawang , Tasrief Surungan This is my paper

Pith reviewed 2026-06-29 20:08 UTC · model grok-4.3

classification 🌀 gr-qc
keywords Taub-NUT spacetimecharged test particlesISCO radiusweak magnetic fieldcircular orbitsprograde and retrogradeNUT parameterManko-Ruiz parameter
0
0 comments X

The pith

A weak external magnetic field reduces the ISCO radius for charged test particles in a Taub-NUT spacetime, with the reduction depending on charge sign and motion direction.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper examines circular motion of charged test particles constrained to the equatorial plane of a Taub-NUT black hole placed in a weak external magnetic field. Because the spacetime lacks reflection symmetry across the equator when the NUT parameter is nonzero, the authors force orbits to remain equatorial by setting the polar coordinate and its time derivative to zero, then derive the conditions for circularity and marginal stability. They report that raising the magnetic field strength moves the innermost stable circular orbit inward for both prograde and retrograde cases, that the sign of the particle charge reverses which branch has the larger radius, and that an extra metric parameter produces only small shifts. These findings matter because they map how magnetic fields and spacetime twists change the radii at which stable orbits can exist, affecting predictions for particle dynamics near such objects.

Core claim

For constrained equatorial circular orbits of charged test particles in the weakly magnetized Taub-NUT background, increasing the magnetic field strength B decreases the ISCO radius monotonically. The sign of the particle charge splits the prograde and retrograde branches with the ordering of radii reversed between them, and the Manko-Ruiz parameter C contributes only subleading corrections to these radii.

What carries the argument

The effective potential for radial motion obtained after imposing the equatorial constraint x = ẋ = 0, from which the circularity condition (vanishing first derivative) and marginal-stability condition (vanishing second derivative) are extracted to locate the ISCO.

If this is right

  • Stronger magnetic fields move the ISCO inward for both prograde and retrograde motion.
  • Particle charge sign produces distinct ISCO radii for the two branches, with the relative ordering reversed when the direction of motion is switched.
  • The Manko-Ruiz parameter C shifts the ISCO only by small corrections.
  • The reported behavior applies to the constrained equatorial family rather than to the conical orbits permitted by the full metric.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The monotonic inward shift with B suggests that external fields could allow stable orbits at smaller radii in magnetized environments around twisted black holes.
  • Direct comparison of the constrained ISCO locations with those obtained from fully three-dimensional numerical orbits would quantify the approximation error introduced by the equatorial constraint.
  • Charge-dependent orbital radii could alter the structure of charged accretion flows or particle rings in models that include both magnetic fields and NUT-like twists.

Load-bearing premise

The stability properties extracted from orbits forced to the equator remain representative even though the metric lacks reflection symmetry when the NUT parameter is nonzero.

What would settle it

Numerical integration of the geodesic equations under the equatorial constraint that shows the ISCO radius increasing with magnetic field strength would contradict the reported monotonic decrease.

Figures

Figures reproduced from arXiv: 2605.26395 by B.J. Bansawang, Tasrief Surungan.

Figure 1

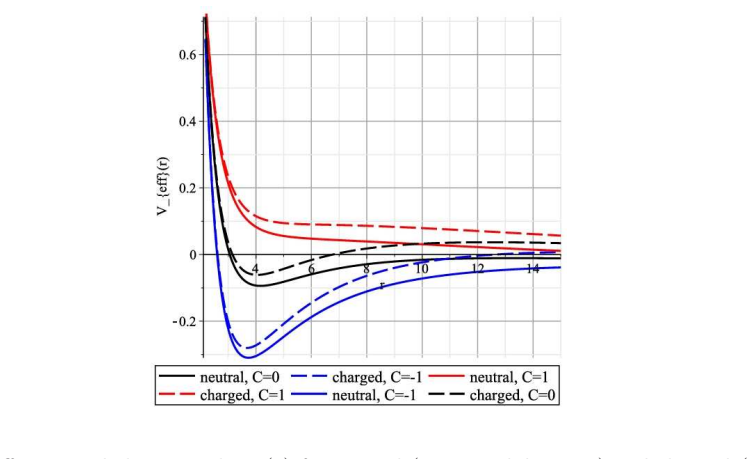

Figure 1. Figure 1: Effective radial potential Veff(r) for neutral (e = 0, solid curves) and charged (e = 0.8, dashed curves) massive test particles on the equatorial plane of the weakly magnetized Taub– NUT spacetime. Parameters: M = 1, l = 0.4, BM = 0.01, (E, L) = (0.96, 4.2). Colors encode the Misner–string gauge: black (C = 0), red (C = +1, string at south pole), blue (C = −1, string at north pole). Both the electromagnet… view at source ↗
Figure 2

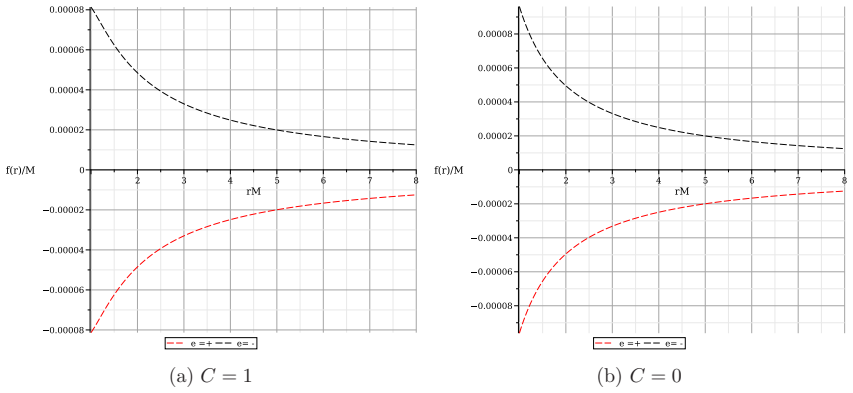

Figure 2. Figure 2: Radial Lorentz force f r as a function of r in the weakly magnetized Taub–NUT spacetime with l = 0.2. Panels (a)–(b) correspond to C = 1, 0. Red dashed curves: positively charged particles (e > 0); black dashed curves: negatively charged particles (e < 0). Eµˆ and Bµˆ components in the present work; an unambiguous tetrad analysis of the measured fields, including the residual electric component induced by … view at source ↗
Figure 3

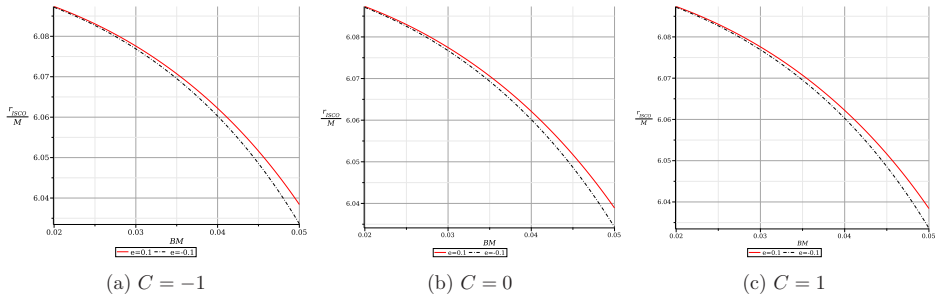

Figure 3. Figure 3: Prograde ISCO radius rISCO as a function of the external magnetic field strength B in the weakly magnetized Taub–NUT spacetime with l = 0.2. Panels (a)–(c) correspond to C = −1, 0, +1. Red solid curves: positively charged particles (e > 0); black dash-dotted curves: negatively charged particles (e < 0). Increasing B monotonically decreases rISCO; the charge sign produces a small but systematic splitting be… view at source ↗
Figure 4

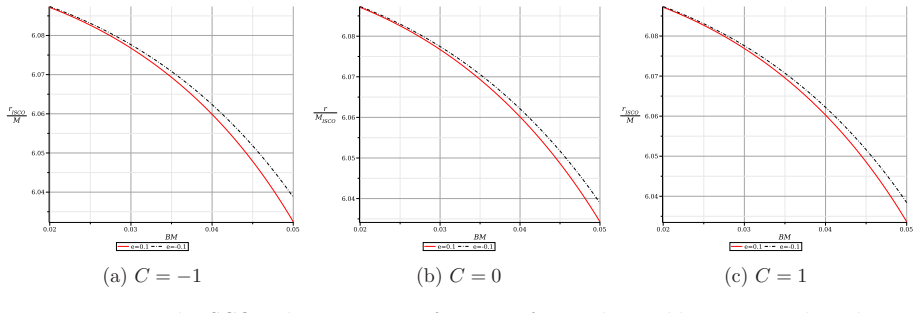

Figure 4. Figure 4: Retrograde ISCO radius rISCO as a function of B in the weakly magnetized Taub–NUT spacetime with l = 0.2. Panels (a)–(c) correspond to C = −1, 0, +1. Red solid curves: e > 0; black dash-dotted curves: e < 0. As in the prograde case, rISCO decreases monotonically with B, with a small charge-sign splitting; the dependence on C remains comparatively weak. (a) C = −1 (b) C = 0 (c) C = 1 [PITH_FULL_IMAGE:figur… view at source ↗
Figure 5

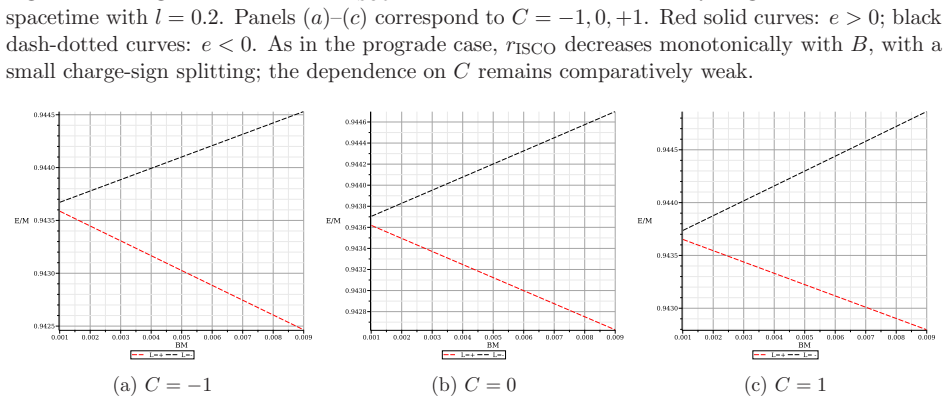

Figure 5. Figure 5: Energy (E) as a function of B in the weakly magnetized Taub–NUT spacetime with l = 0.2. Panels (a)–(c) correspond to C = −1, 0, +1 and e > 0. Red dash-dotted curves: L > 0; black dash-dotted curves: L < 0. Curve indicating the perturbative effect of the magnetic field on the stability of particle orbits . Furthermore, the relationship between angular momentum and the magnetic field can be ex￾pressed analyt… view at source ↗
Figure 6

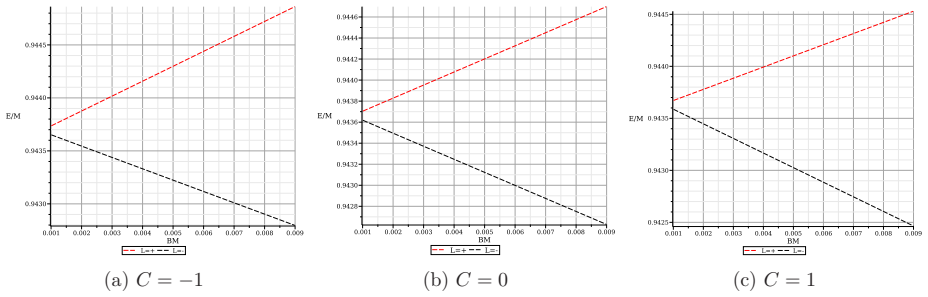

Figure 6. Figure 6: Energy (E) as a function of B in the weakly magnetized Taub–NUT spacetime with l = 0.2. Panels (a)–(c) correspond to C = −1, 0, +1 and e < 0. Red dash-dotted curves: L > 0; black dash-dotted curves: L < 0 . (a) C = −1 (b) C = 0 (c) C = 1 [PITH_FULL_IMAGE:figures/full_fig_p012_6.png] view at source ↗
Figure 7

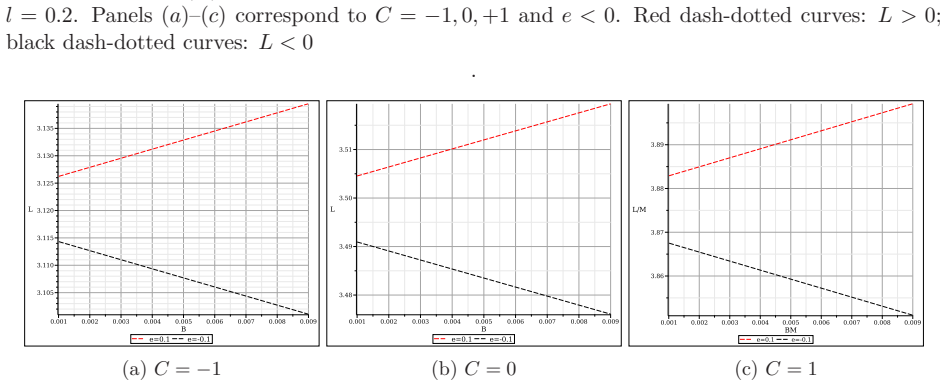

Figure 7. Figure 7: Angular momentum (L) as a function of B in the weakly magnetized Taub–NUT space￾time with l = 0.2. Panels (a)–(c) correspond to C = −1, 0, +1 . Red dash-dotted curves: e > 0; black dash-dotted curves: e < 0 . linearly. This behaviour remains consistent for all values C = −1, 0, 1, although a shift in the absolute values is observed due to the influence of C. These results indicate that the magnetic field c… view at source ↗
read the original abstract

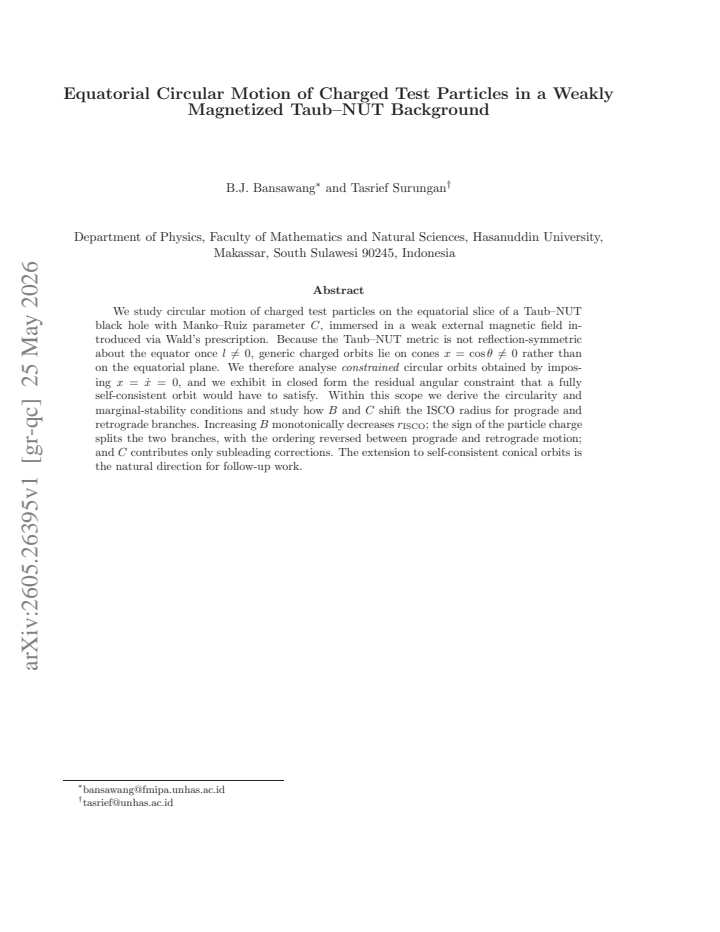

We study circular motion of charged test particles on the equatorial slice of a Taub--NUT black hole with Manko--Ruiz parameter $C$, immersed in a weak external magnetic field introduced via Wald's prescription. Because the Taub--NUT metric is not reflection-symmetric about the equator once $l\neq 0$, generic charged orbits lie on cones $x=\cos\theta\neq 0$ rather than on the equatorial plane. We therefore analyse \emph{constrained} circular orbits obtained by imposing $x=\dot x=0$, and we exhibit in closed form the residual angular constraint that a fully self-consistent orbit would have to satisfy. Within this scope we derive the circularity and marginal-stability conditions and study how $B$ and $C$ shift the ISCO radius for prograde and retrograde branches. Increasing $B$ monotonically decreases $r_{\mathrm{ISCO}}$; the sign of the particle charge splits the two branches, with the ordering reversed between prograde and retrograde motion; and $C$ contributes only subleading corrections. The extension to self-consistent conical orbits is the natural direction for follow-up work.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

1 major / 1 minor

Summary. The manuscript analyzes constrained equatorial circular orbits (imposed via x = ẋ = 0) of charged test particles around a Taub-NUT black hole with Manko-Ruiz parameter C in a weak external magnetic field (Wald prescription). It derives closed-form circularity and marginal-stability conditions from the equations of motion including the Lorentz force, then reports that increasing B monotonically decreases r_ISCO, with particle charge sign q splitting the prograde/retrograde branches (order reversed between them) while C contributes only subleading corrections. The residual angular constraint for self-consistent orbits is exhibited explicitly, with extension to conical orbits noted as future work.

Significance. The closed-form derivations of the circularity and marginal-stability conditions constitute a clear strength, permitting direct analytic tracking of B, q, and C dependence without numerical fitting or self-referential quantities. If the constrained-orbit results hold under the stated scope, they supply explicit, falsifiable predictions for ISCO shifts that can be compared against geodesic-plus-Lorentz integrations in this spacetime. This analytic control is useful for exploring charged-particle dynamics in non-reflection-symmetric magnetized geometries.

major comments (1)
  1. [marginal-stability analysis] Marginal-stability analysis (section deriving ISCO conditions): the radial effective-potential marginal-stability condition is obtained under the x = ẋ = 0 constraint, but the manuscript does not report the sign of the second derivative of the effective potential with respect to x at the quoted r_ISCO values. Because the Taub-NUT metric lacks equatorial reflection symmetry for l eq 0, a negative value would imply that the reported orbits are already unstable to infinitesimal heta-perturbations, rendering the B- and q-dependent shifts unrepresentative even within the constrained framework. A concrete test is to evaluate ∂^{2}V_eff/∂x^{2} at each reported r_ISCO(B, q) and state its sign.
minor comments (1)
  1. [title and abstract] Abstract and introduction: the phrasing 'equatorial circular motion' in the title and opening paragraphs could be clarified to emphasize 'constrained' from the outset, to avoid any initial misreading before the symmetry caveat is stated.

Simulated Author's Rebuttal

1 responses · 0 unresolved

We thank the referee for their careful reading of the manuscript and for the constructive comment on the marginal-stability analysis. We address the point below and will incorporate the requested check in the revised version.

read point-by-point responses

  1. Referee: [marginal-stability analysis] Marginal-stability analysis (section deriving ISCO conditions): the radial effective-potential marginal-stability condition is obtained under the x = ẋ = 0 constraint, but the manuscript does not report the sign of the second derivative of the effective potential with respect to x at the quoted r_ISCO values. Because the Taub-NUT metric lacks equatorial reflection symmetry for l eq 0, a negative value would imply that the reported orbits are already unstable to infinitesimal θ-perturbations, rendering the B- and q-dependent shifts unrepresentative even within the constrained framework. A concrete test is to evaluate ∂²V_eff/∂x² at each reported r_ISCO(B, q) and state its sign.

    Authors: We agree that, given the absence of equatorial reflection symmetry when l ≠ 0, it is necessary to verify the sign of ∂²V_eff/∂x² at the constrained r_ISCO loci to confirm that the orbits remain stable against infinitesimal vertical perturbations within the imposed x = ẋ = 0 framework. Although our analysis is explicitly restricted to radially marginal-stable constrained orbits (with the residual angular constraint exhibited in closed form), we acknowledge that a negative second derivative would limit the physical representativeness of the reported B- and q-dependent shifts. In the revised manuscript we will evaluate ∂²V_eff/∂x² at representative r_ISCO(B, q, C) values for both prograde and retrograde branches, state its sign explicitly, and discuss the implications for the domain of validity of the constrained-orbit results. revision: yes

Circularity Check

0 steps flagged

No circularity in derivation chain

full rationale

The paper derives circularity and marginal-stability conditions for constrained equatorial orbits by imposing the explicit constraint x=ẋ=0 on the standard charged-particle equations of motion obtained from the Taub-NUT metric plus Wald potential. The reported monotonic decrease of r_ISCO with B, charge-sign splitting, and subleading C corrections follow directly from solving those conditions; no parameter is fitted to the target ISCO shifts, no result is renamed as a prediction, and no load-bearing premise reduces to a self-citation or prior ansatz by the same authors. The paper explicitly flags the lack of equatorial symmetry and exhibits the residual angular constraint, confirming the derivation remains self-contained rather than self-referential.

Axiom & Free-Parameter Ledger

0 free parameters · 2 axioms · 0 invented entities

The work rests on the standard Einstein-Maxwell equations in curved spacetime and the specific Taub-NUT metric with Manko-Ruiz parameter. No new particles, forces, or fitted constants are introduced; the magnetic field is added via an established embedding prescription.

axioms (2)
  • standard math Einstein-Maxwell equations govern the spacetime and electromagnetic field
    Used to obtain the metric and the equations of motion for charged test particles.
  • domain assumption Wald prescription correctly embeds a uniform magnetic field into the given curved background
    Invoked to introduce the weak external magnetic field B.
