A matrix free action of the Ashtekar-Lewandowski volume operator of loop quantum gravity

Waleed Sherif This is my paper

Pith reviewed 2026-06-26 23:17 UTC · model grok-4.3

classification 🌀 gr-qc hep-thphysics.comp-ph
keywords Ashtekar-Lewandowski volume operatorloop quantum gravitymatrix-free methodsshifted-resolvent quadraturerecoupling theoryvolume densityHamiltonian constraintkinematical Hilbert space
0
0 comments X

The pith

The Ashtekar-Lewandowski volume operator admits a matrix-free action through shifted-resolvent quadrature on its oriented density.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

This paper develops a matrix-free method to apply the Ashtekar-Lewandowski volume operator in loop quantum gravity. It uses the Brunnemann-Thiemann expression for the volume density whose elements are generated locally via recoupling theory, combined with a shifted-resolvent quadrature approximation for the fourth root. The approach avoids forming dense matrices, which previously limited computations to small spin values. It exactly preserves the kernel of the operator and includes error estimates. This enables numerical work on larger graphs and higher spins, including Monte Carlo estimates at spin cutoffs where exact methods fail.

Core claim

We formulate a matrix free action of the SU(2) AL vertex volume operator in standard recoupling basis, making use of the Brunnemann-Thiemann expression for the oriented AL volume density Q_v whose matrix elements can be generated locally from recoupling theory without forming the full matrix. Based on the Balakrishnan-Stieltjes representation of (Q_v²)^{1/4} we approximate the volume by shifted-resolvent quadrature (SRQ). We prove exact preservation of the volume kernel, provide operator-norm and residual error estimates, discuss sector-wise scaling bounds, and validate the method on an embedded K_5 graph at small spin cutoffs against exact dense local-block operators.

What carries the argument

shifted-resolvent quadrature (SRQ) applied to the Balakrishnan-Stieltjes representation of (Q_v²)^{1/4}, where Q_v is the Brunnemann-Thiemann oriented volume density with locally generated recoupling matrix elements

Load-bearing premise

The chosen quadrature nodes and weights together with the sector-wise bound parameters accurately reproduce the action of the fourth-root operator on the relevant subspace without introducing errors that accumulate under repeated application.

What would settle it

Apply both the SRQ method and an exact dense-matrix computation to the same embedded graph state at a moderate spin cutoff where the full local blocks still fit in memory, then verify whether the difference in output vectors lies inside the stated residual and operator-norm error bounds.

Figures

Figures reproduced from arXiv: 2606.18397 by Waleed Sherif.

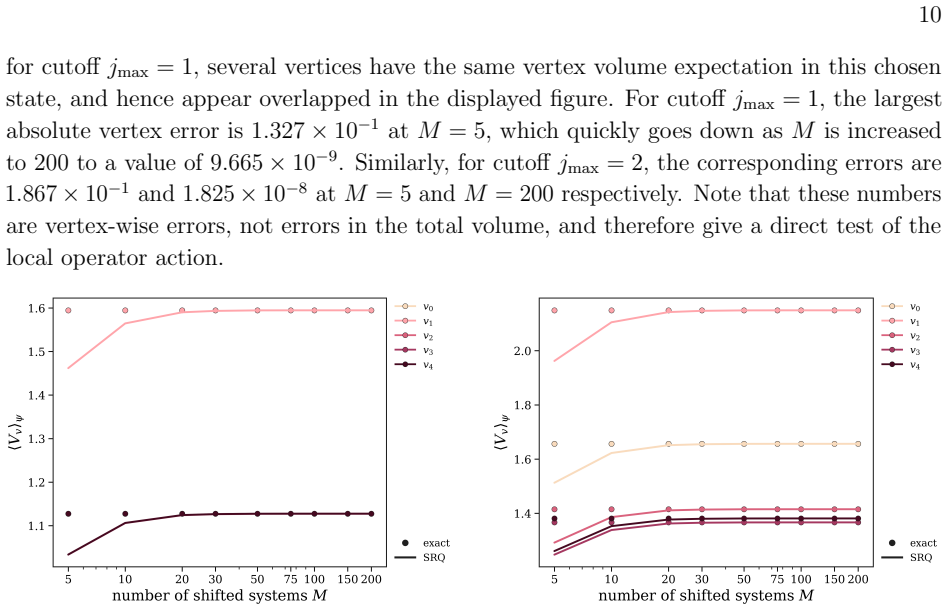

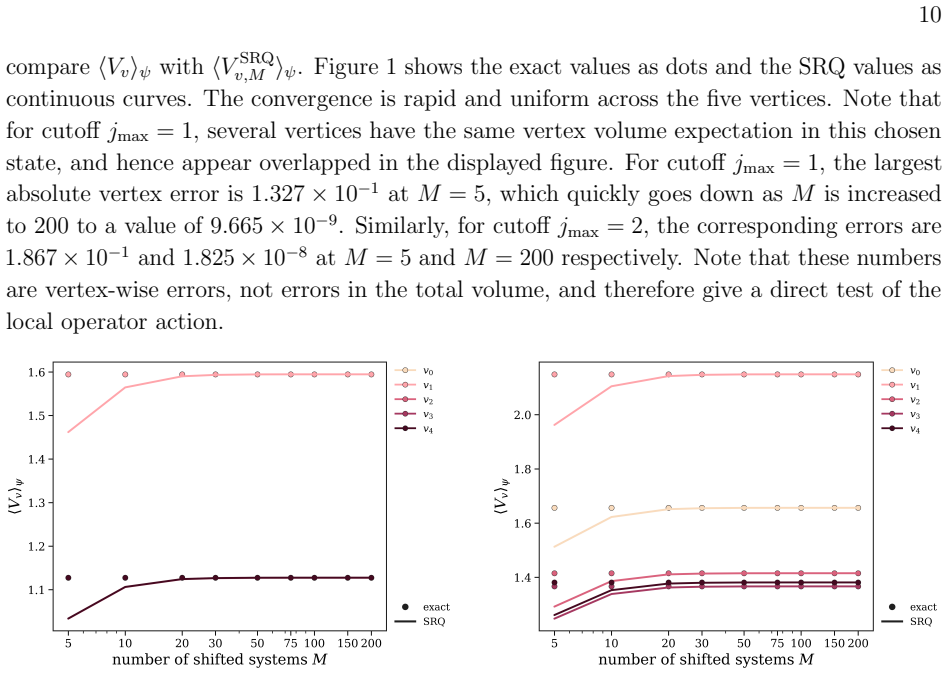

Figure 1
Figure 1. Figure 1: Vertex-resolved convergence of the SRQ approximation on the fixed [PITH_FULL_IMAGE:figures/full_fig_p010_1.png] view at source ↗

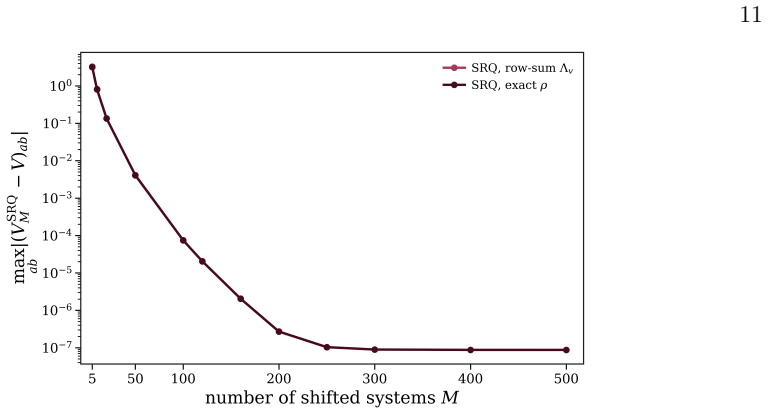

Figure 2
Figure 2. Figure 2: Entrywise dense-block validation of the SRQ volume action in a homogeneous [PITH_FULL_IMAGE:figures/full_fig_p011_2.png] view at source ↗

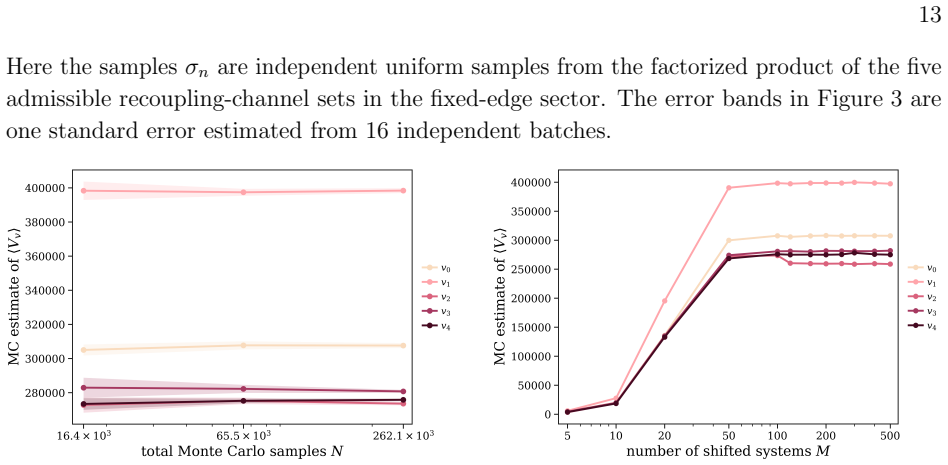

Figure 3
Figure 3. Figure 3: Matrix free SRQ Monte Carlo estimates of high-cutoff [PITH_FULL_IMAGE:figures/full_fig_p013_3.png] view at source ↗

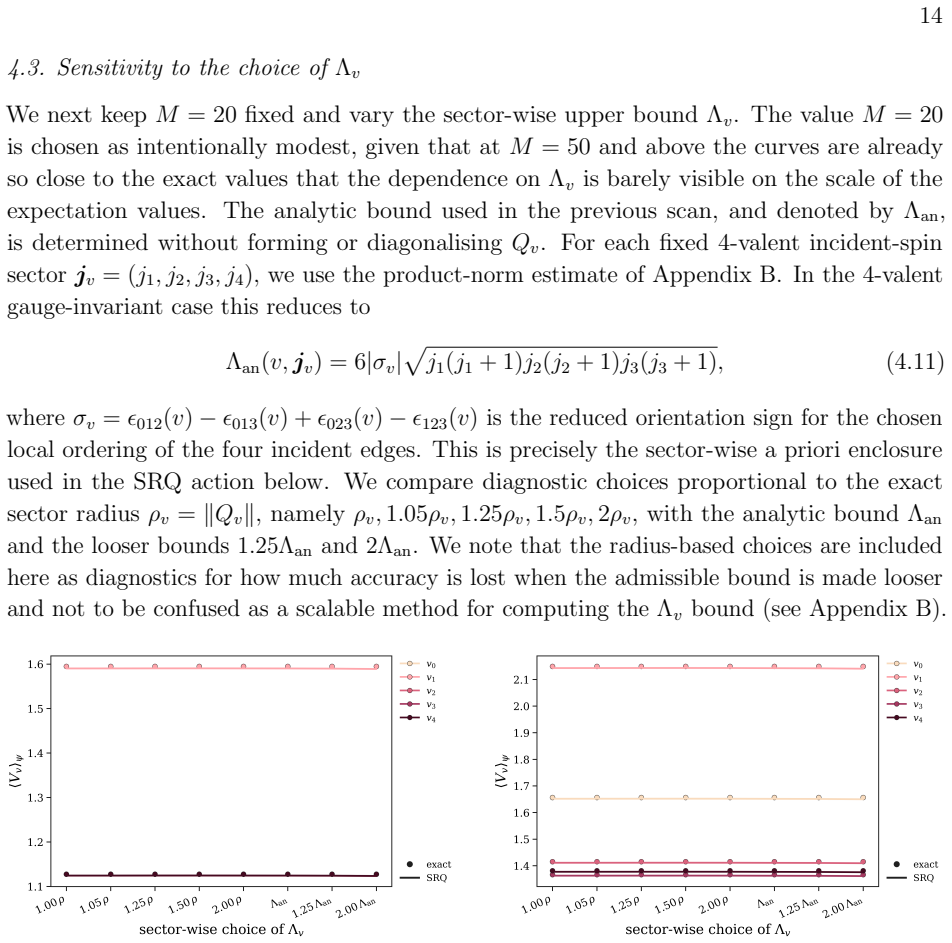

Figure 4
Figure 4. Figure 4: Sensitivity of the Ashtekar-Lewandowski vertex-volume expectation values to [PITH_FULL_IMAGE:figures/full_fig_p014_4.png] view at source ↗

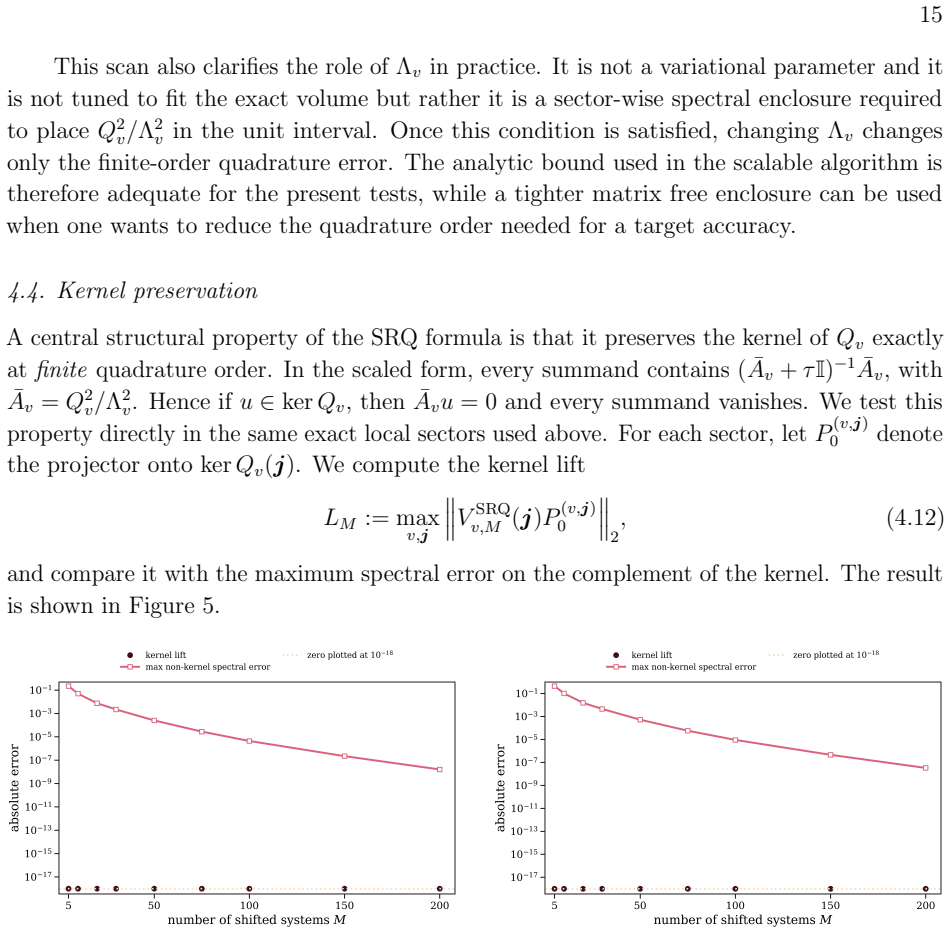

Figure 5
Figure 5. Figure 5: Kernel preservation of the SRQ vertex-volume approximation on [PITH_FULL_IMAGE:figures/full_fig_p015_5.png] view at source ↗

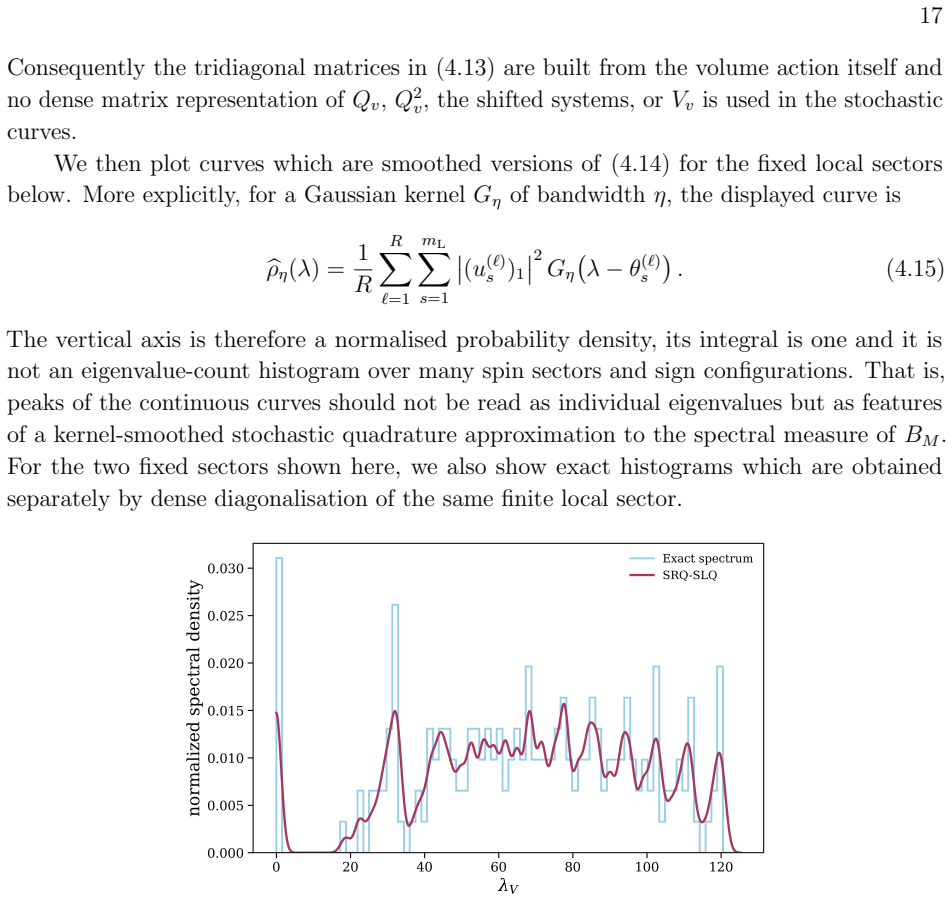

Figure 6
Figure 6. Figure 6: Direct SRQ-SLQ spectral-density estimate for a homogeneous 5-valent spin-12 [PITH_FULL_IMAGE:figures/full_fig_p017_6.png] view at source ↗

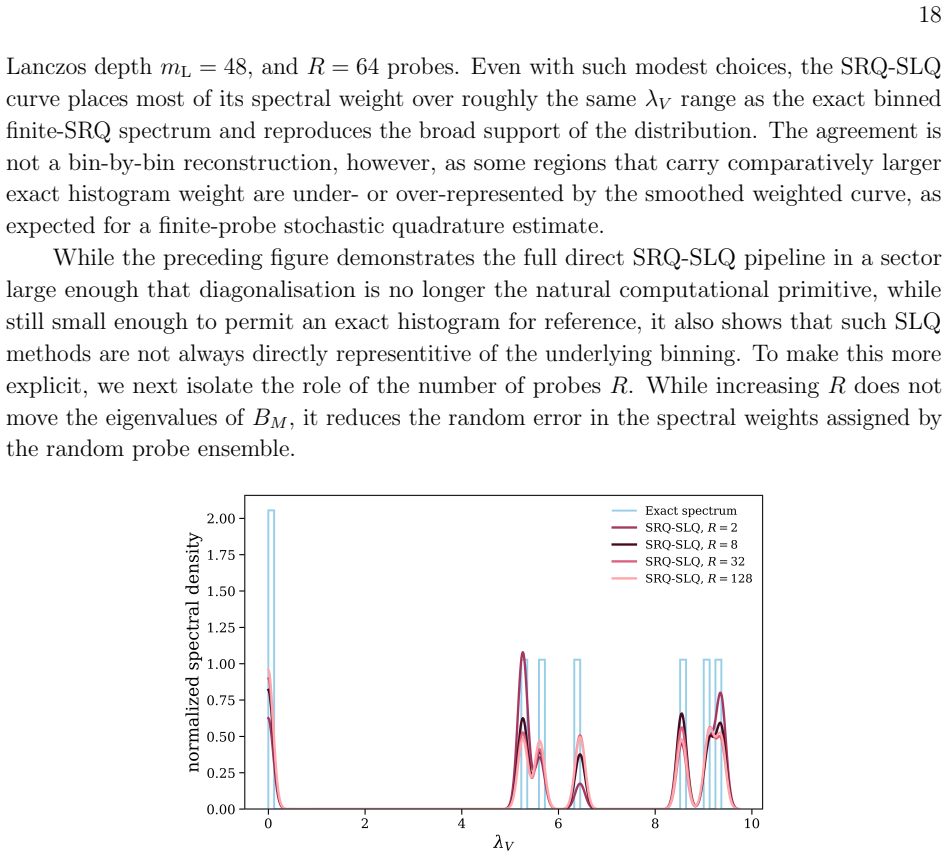

Figure 7
Figure 7. Figure 7: Probe dependence of the direct SRQ-SLQ spectral-density estimate for a [PITH_FULL_IMAGE:figures/full_fig_p018_7.png] view at source ↗
read the original abstract

The Ashtekar-Lewandowski (AL) volume operator of loop quantum gravity is central to the Hamiltonian constraint, but its vertex action is usually obtained from dense spectral decompositions of finite recoupling matrices, obstructing numerical analysis on large kinematical Hilbert spaces or high-valence vertices. We formulate a matrix free action of the $SU(2)$ AL vertex volume operator in standard recoupling basis, making use of the Brunnemann-Thiemann expression for the oriented AL volume density $Q_{v}$ whose matrix elements can be generated locally from recoupling theory without forming the full matrix. Based on the Balakrishnan-Stieltjes representation of $(Q_{v}^{2})^{1/4}$ we approximate the volume by shifted-resolvent quadrature (SRQ). The resulting action uses only repeated applications of $Q_{v}$ and shifted positive linear solves, making it compatible with multi-shift Krylov methods. We prove exact preservation of the volume kernel, provide operator-norm and residual error estimates, discuss sector-wise scaling bounds, and validate the method on an embedded $K_{5}$ graph at small spin cutoffs against exact dense local-block operators. Numerical simulations show rapid convergence of vertex expectation values, controlled dependence on bound parameters, and exact preservation of zero-volume modes. We further demonstrate matrix free Monte Carlo estimates at doubled-spin cutoff $2j=250000$ beyond dense materialisation, and show that SRQ can be combined with stochastic Lanczos quadrature to estimate fixed-sector volume spectral measures without dense volume matrices.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

1 major / 0 minor

Summary. The manuscript develops a matrix-free action for the SU(2) Ashtekar-Lewandowski volume operator in the standard recoupling basis. It employs the Brunnemann-Thiemann expression for the oriented volume density Q_v (whose matrix elements are generated locally) and approximates (Q_v²)^{1/4} via shifted-resolvent quadrature (SRQ) based on the Balakrishnan-Stieltjes representation. The paper proves exact kernel preservation, supplies operator-norm and residual error estimates, discusses sector-wise scaling bounds, validates the approach on an embedded K_5 graph at small spin cutoffs against dense local-block operators, demonstrates Monte Carlo estimates at 2j=250000, and combines SRQ with stochastic Lanczos quadrature for fixed-sector spectral measures.

Significance. If the error control and sector-wise bounds hold with the stated accuracy at high spins and valences, the method would enable numerical exploration of the volume operator on kinematical Hilbert spaces far beyond the reach of dense-matrix techniques, which is a concrete advance for LQG Hamiltonian-constraint studies. The explicit proofs of kernel preservation, the operator-norm/residual estimates, and the compatibility with multi-shift Krylov and stochastic Lanczos methods are genuine strengths that distinguish the work from purely numerical proposals.

major comments (1)
  1. [Numerical results and Monte Carlo demonstration] The operator-norm and residual error estimates, together with the sector-wise scaling bounds, are validated only against exact dense local-block operators on the embedded K_5 graph at small spin cutoffs. The Monte Carlo estimates at doubled-spin cutoff 2j=250000 and the stochastic Lanczos spectral measures therefore rest on the assumption that the same quadrature-node count and bound parameters remain sufficient when spin values increase, without an independent check that the spectrum of Q_v (or the required number of nodes) does not degrade. This verification gap is load-bearing for the central claim of controlled dependence and rapid convergence in the high-spin regime advertised as the method's primary utility.

Simulated Author's Rebuttal

1 responses · 0 unresolved

We thank the referee for the positive overall assessment and for identifying this important point about validation scope. We address the major comment below.

read point-by-point responses

  1. Referee: The operator-norm and residual error estimates, together with the sector-wise scaling bounds, are validated only against exact dense local-block operators on the embedded K_5 graph at small spin cutoffs. The Monte Carlo estimates at doubled-spin cutoff 2j=250000 and the stochastic Lanczos spectral measures therefore rest on the assumption that the same quadrature-node count and bound parameters remain sufficient when spin values increase, without an independent check that the spectrum of Q_v (or the required number of nodes) does not degrade. This verification gap is load-bearing for the central claim of controlled dependence and rapid convergence in the high-spin regime advertised as the method's primary utility.

    Authors: The operator-norm and residual error bounds are obtained directly from the Balakrishnan-Stieltjes representation and the shifted-resolvent quadrature analysis; they depend on the operator-norm bounds for Q_v and on the sector-wise spectral scaling, both of which are proven to hold uniformly for any admissible spin labels (with constants that scale explicitly with the representation labels and valence). The K_5 validation at small cutoffs therefore serves only to confirm that the chosen node count saturates the a-priori error estimate in practice; it is not required for the validity of the bounds themselves. Because an exact dense reference is unavailable precisely in the 2j=250000 regime, the Monte Carlo and stochastic Lanczos results necessarily rely on these general bounds. We will add a short clarifying paragraph in Section 4.3 that explicitly states the spin-independence of the error constants and reiterates that the node count was selected from the worst-case sector bound rather than from the small-spin data alone. revision: partial

Circularity Check

0 steps flagged

No significant circularity in the derivation chain

full rationale

The paper's central construction uses the external Brunnemann-Thiemann expression for the oriented volume density Q_v (whose matrix elements are generated locally from recoupling theory) and the external Balakrishnan-Stieltjes representation of (Q_v²)^{1/4}. It then introduces an independent shifted-resolvent quadrature (SRQ) approximation whose nodes, weights, and sector bounds are chosen for numerical stability. The paper supplies a mathematical proof of exact kernel preservation, operator-norm and residual error estimates, and sector-wise scaling bounds that do not reduce to the input expressions by construction. Numerical validation is performed against exact dense local-block operators on an embedded K_5 graph at small spin cutoffs, providing an independent benchmark. No step equates a fitted parameter to a prediction, renames a known result, or relies on a load-bearing self-citation chain; the derivation remains self-contained against external benchmarks.

Axiom & Free-Parameter Ledger

0 free parameters · 2 axioms · 0 invented entities

The central claim rests on two established domain assumptions from prior LQG literature and one mathematical representation whose accuracy for the operator in question is taken as given.

axioms (2)
  • domain assumption The Brunnemann-Thiemann expression correctly gives the matrix elements of the oriented volume density Q_v from recoupling theory.
    Invoked in the abstract as the starting point for local generation of matrix elements.
  • domain assumption The Balakrishnan-Stieltjes representation applies to the operator (Q_v²)^{1/4} in the recoupling basis.
    Used to justify the quadrature approximation of the volume operator.

pith-pipeline@v0.9.1-grok · 5813 in / 1527 out tokens · 31255 ms · 2026-06-26T23:17:58.710415+00:00 · methodology
