Binary Black Hole Coalescence and the Dynamics of Scalar Hair in Einstein-Maxwell-Scalar Theory

Pith reviewed 2026-06-26 13:24 UTC · model grok-4.3

classification 🌀 gr-qc hep-th
keywords binary black holesscalar hairEinstein-Maxwell-Scalar theorynumerical relativityscalarizationcharged black holeshead-on coalescencedescalarization
0
0 comments X

The pith

Nonminimal coupling triggers scalar hair growth on merging charged black holes even when none existed initially.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper examines head-on collisions of two charged black holes in Einstein-Maxwell-Scalar theory using numerical simulations. It establishes that a nonminimal coupling between the scalar and electromagnetic fields can cause scalar hair to develop dynamically on the final black hole, starting from initial data where the scalar field is zero. The outcome hinges on the strength of the coupling and whether the merged black hole retains net charge. When coupling is weak or charge cancels, the scalar field decays away and the system returns to a bald state. When coupling is strong enough and charge persists, the remnant settles toward a configuration with scalar hair, while also emitting scalar radiation tied to the gravitational waves.

Core claim

The nonminimal electromagnetic-scalar coupling can dynamically trigger the growth of scalar hair even when the individual black holes are initially scalar-free. The subsequent evolution depends on the coupling strength and on the charge retained by the remnant. For weak coupling, or when charge cancellation suppresses the electromagnetic source after merger, the scalar field is radiated away or absorbed by the final horizon and the system dynamically descalarizes. For sufficiently strong coupling and nonzero remnant charge, the scalar field remains finite and the final black hole approaches a scalarized configuration. The coalescence also excites scalar radiation whose time profile is qualit

What carries the argument

The nonminimal electromagnetic-scalar coupling term, which sources scalar field growth from the electromagnetic invariant when the coupling parameter exceeds a threshold value.

Load-bearing premise

The initial data represent two Reissner-Nordström black holes with a small kinetic scalar perturbation where the scalar field itself starts at exactly zero.

What would settle it

A numerical run with coupling strength above threshold and retained remnant charge in which the scalar field value on the final apparent horizon grows and stabilizes at a nonzero constant rather than decaying to zero.

Figures

Figures reproduced from arXiv: 2606.21549 by Eleftherios Papantonopoulos, Jean Pierre D\'iaz, P. A. Gonz\'alez, Yerko V\'asquez.

Figure 1

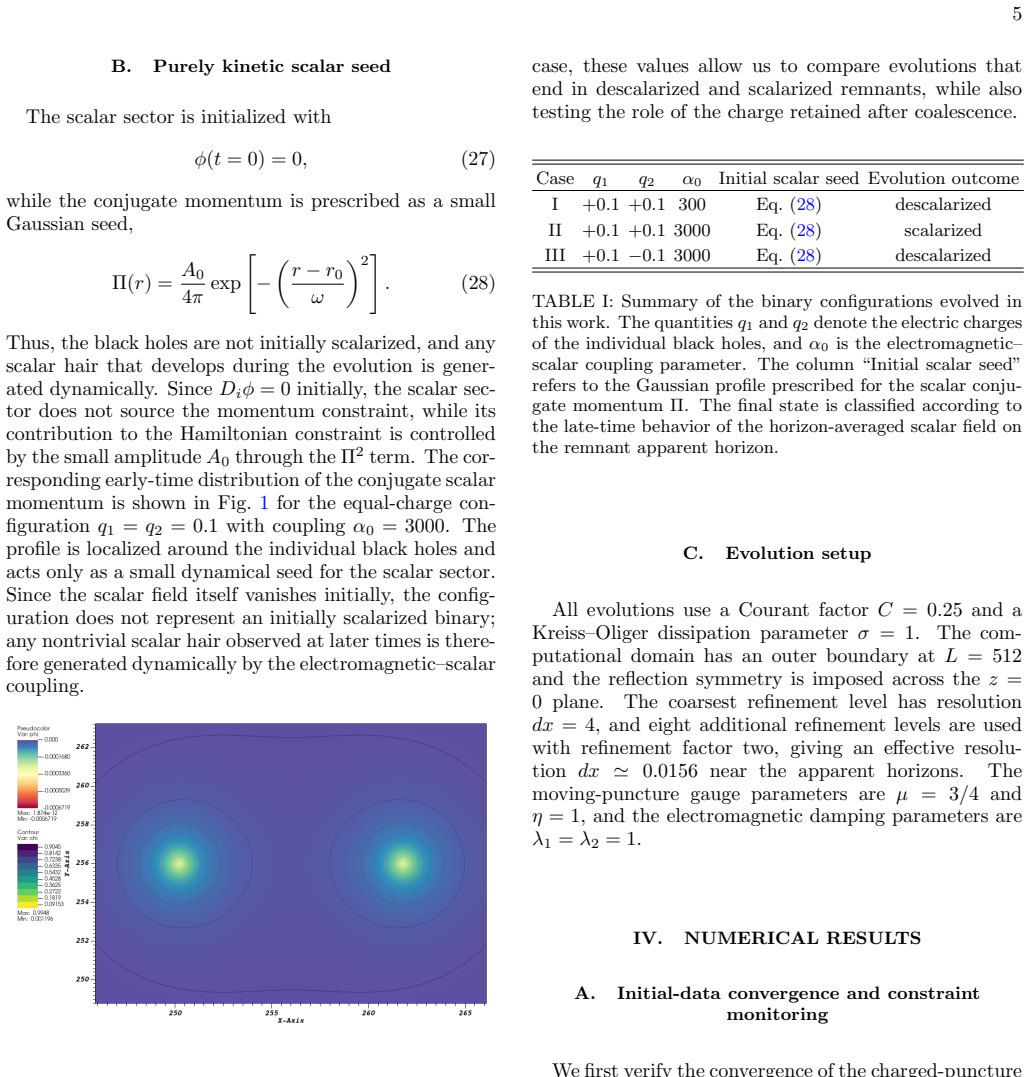

Figure 1. Figure 1: FIG. 1: Early-time distribution of the scalar conjugate mo [PITH_FULL_IMAGE:figures/full_fig_p005_1.png] view at source ↗
Figure 3

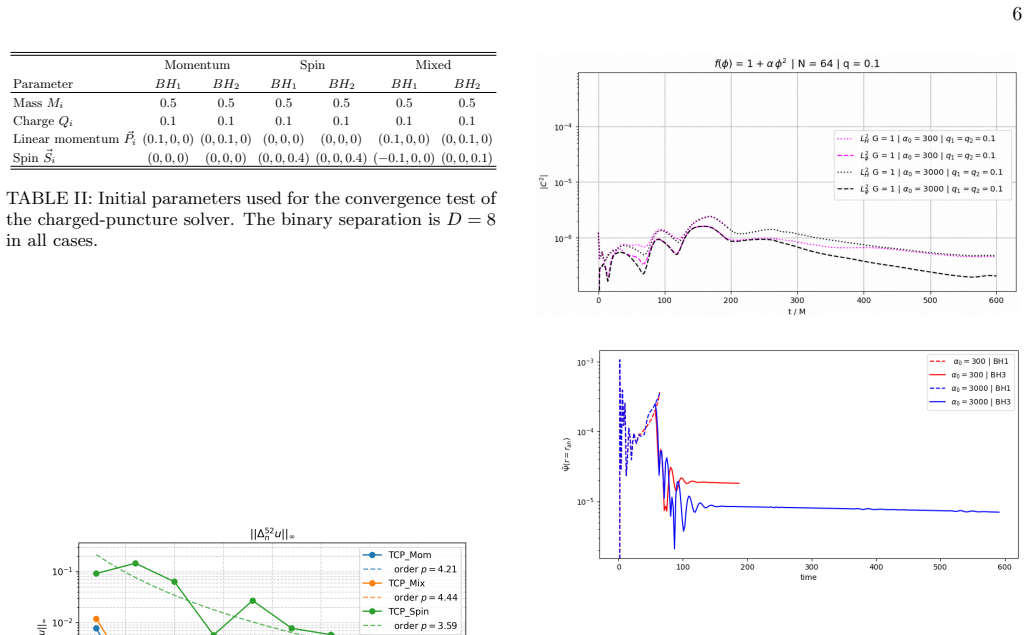

Figure 3. Figure 3: FIG. 3: Constraint monitoring for equal-charge binaries with [PITH_FULL_IMAGE:figures/full_fig_p006_3.png] view at source ↗
Figure 2

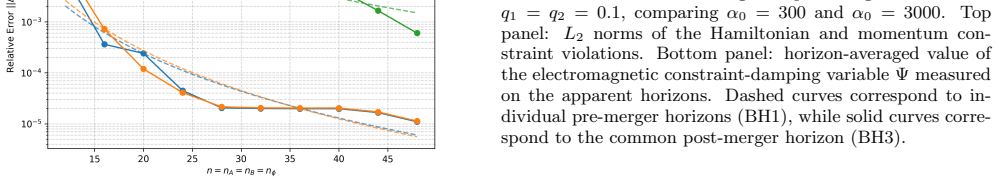

Figure 2. Figure 2: FIG. 2: Convergence test for the TwoChargedPuncture [PITH_FULL_IMAGE:figures/full_fig_p006_2.png] view at source ↗
Figure 4

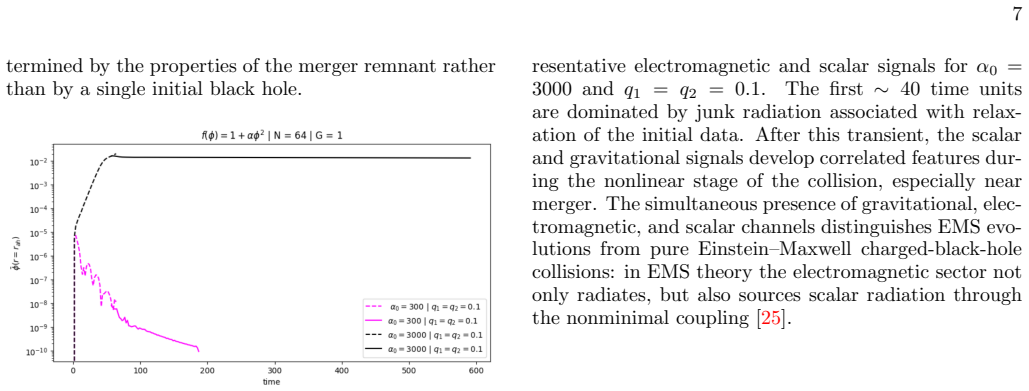

Figure 4. Figure 4: FIG. 4: Average scalar field on the apparent horizons during [PITH_FULL_IMAGE:figures/full_fig_p007_4.png] view at source ↗
Figure 6

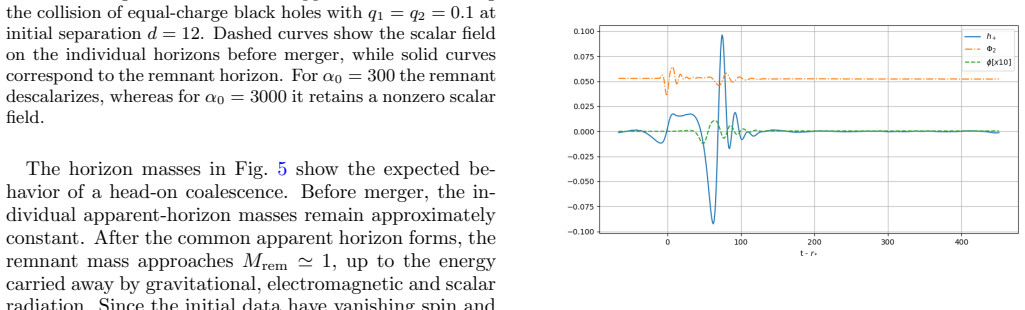

Figure 6. Figure 6: FIG. 6: Gravitational, electromagnetic and scalar radiation [PITH_FULL_IMAGE:figures/full_fig_p007_6.png] view at source ↗
Figure 5

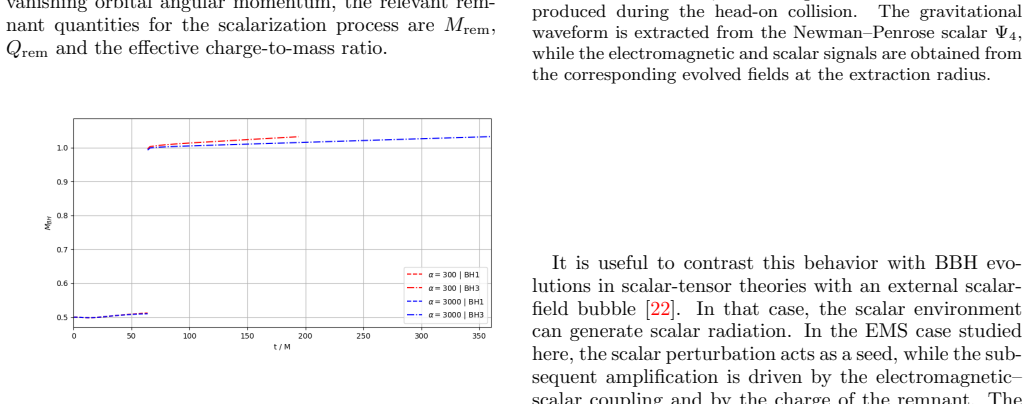

Figure 5. Figure 5: FIG. 5: Time evolution of the apparent-horizon masses during [PITH_FULL_IMAGE:figures/full_fig_p007_5.png] view at source ↗
Figure 8

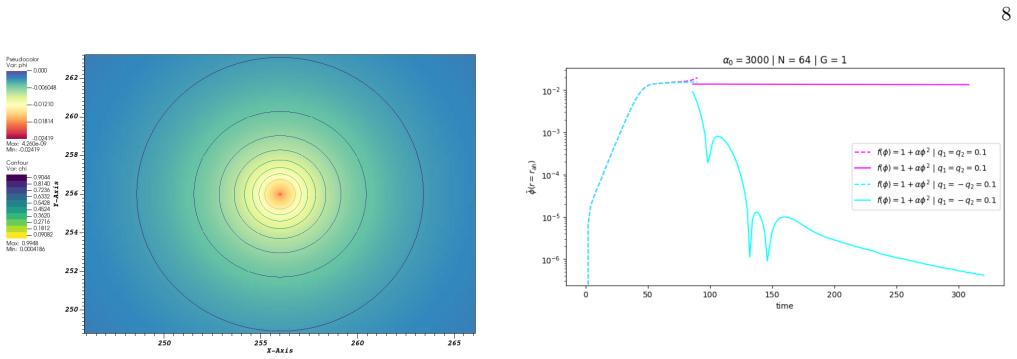

Figure 8. Figure 8: FIG. 8: Evolution of scalarization during the merger of [PITH_FULL_IMAGE:figures/full_fig_p008_8.png] view at source ↗
read the original abstract

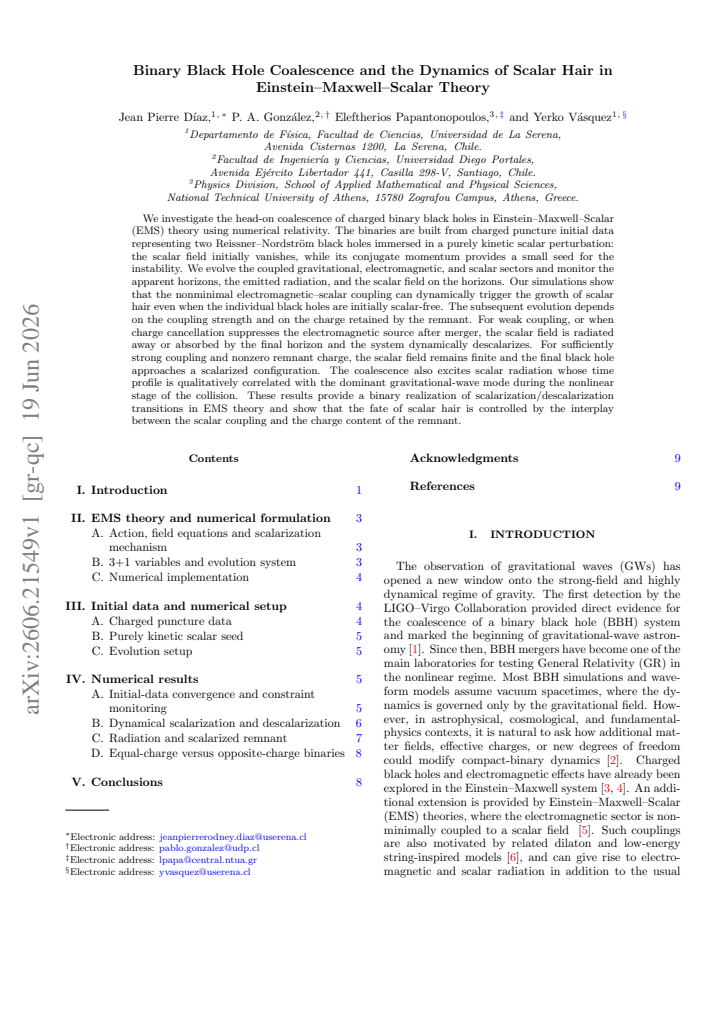

We investigate the head-on coalescence of charged binary black holes in Einstein-Maxwell-Scalar (EMS) theory using numerical relativity. The binaries are built from charged puncture initial data representing two Reissner-Nordstr\"om black holes immersed in a purely kinetic scalar perturbation: the scalar field initially vanishes, while its conjugate momentum provides a small seed for the instability. We evolve the coupled gravitational, electromagnetic, and scalar sectors and monitor the apparent horizons, the emitted radiation, and the scalar field on the horizons. Our simulations show that the nonminimal electromagnetic-scalar coupling can dynamically trigger the growth of scalar hair even when the individual black holes are initially scalar-free. The subsequent evolution depends on the coupling strength and on the charge retained by the remnant. For weak coupling, or when charge cancellation suppresses the electromagnetic source after merger, the scalar field is radiated away or absorbed by the final horizon and the system dynamically descalarizes. For sufficiently strong coupling and nonzero remnant charge, the scalar field remains finite and the final black hole approaches a scalarized configuration. The coalescence also excites scalar radiation whose time profile is qualitatively correlated with the dominant gravitational-wave mode during the nonlinear stage of the collision. These results provide a binary realization of scalarization/descalarization transitions in EMS theory and show that the fate of scalar hair is controlled by the interplay between the scalar coupling and the charge content of the remnant.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 1 minor

Summary. The paper investigates the head-on coalescence of charged binary black holes in Einstein-Maxwell-Scalar (EMS) theory using numerical relativity. Binaries are constructed from charged puncture initial data for two Reissner-Nordström black holes with a purely kinetic scalar perturbation (phi=0, nonzero Pi as a seed). Simulations show that the nonminimal electromagnetic-scalar coupling dynamically triggers scalar hair growth even on initially scalar-free black holes; the outcome (scalarization or descalarization) depends on coupling strength and remnant charge, with scalar radiation correlated to the dominant gravitational-wave mode during merger.

Significance. If the results are free of initial-data artifacts, this provides the first numerical-relativity realization of binary scalarization/descalarization transitions in EMS theory, extending single-black-hole studies to mergers and demonstrating that remnant charge controls the fate of scalar hair. It also reports a qualitative correlation between scalar and gravitational radiation during the nonlinear phase.

major comments (2)
  1. [Initial data construction] Initial data construction (abstract and the section describing the charged puncture data): the setup superposes two RN solutions (which satisfy the EMS constraints only for phi=Pi=0) with phi=0 but nonzero Pi. The nonminimal f(phi)F^2 term modifies the Hamiltonian and momentum constraints, so simply adding the scalar momentum without re-solving the full constraint system can introduce O(1) violations. The subsequent relaxation of these violations could source apparent scalar growth, undermining the claim that the hair is triggered dynamically by the coupling during evolution rather than by initial-data relaxation. The manuscript gives no indication that the constraints were re-solved with the scalar sector active.
  2. [Numerical methods and results] Numerical methods and results sections: the abstract (and by extension the methods description) provides no information on grid resolution, convergence tests, or error estimates for the reported scalar-field growth on the horizons. Without these, it is impossible to determine whether the observed behaviors are physical or numerical artifacts, which is load-bearing for the central claim that the coupling triggers scalar hair.
minor comments (1)
  1. [Abstract] The abstract states that 'the scalar field initially vanishes, while its conjugate momentum provides a small seed for the instability' but does not quantify the amplitude of Pi or demonstrate that it remains a small perturbation after the nonminimal coupling is included.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the thorough review and constructive feedback on our manuscript. We address each major comment below and will revise the paper accordingly to improve clarity and rigor.

read point-by-point responses
  1. Referee: [Initial data construction] Initial data construction (abstract and the section describing the charged puncture data): the setup superposes two RN solutions (which satisfy the EMS constraints only for phi=Pi=0) with phi=0 but nonzero Pi. The nonminimal f(phi)F^2 term modifies the Hamiltonian and momentum constraints, so simply adding the scalar momentum without re-solving the full constraint system can introduce O(1) violations. The subsequent relaxation of these violations could source apparent scalar growth, undermining the claim that the hair is triggered dynamically by the coupling during evolution rather than by initial-data relaxation. The manuscript gives no indication that the constraints were re-solved with the scalar sector active.

    Authors: We acknowledge the validity of this concern. The initial data was constructed via superposition of RN solutions with an added scalar momentum perturbation without explicitly re-solving the full EMS constraint system including the nonminimal coupling. This omission means that constraint violations may have been present and could have contributed to the early scalar evolution. In the revised manuscript we will add an explicit discussion of the initial constraint violations (including their magnitude and subsequent decay), and we will perform and report additional simulations that solve the constraints with the scalar sector active to confirm that the reported scalar hair growth is not an artifact of initial-data relaxation. revision: yes

  2. Referee: [Numerical methods and results] Numerical methods and results sections: the abstract (and by extension the methods description) provides no information on grid resolution, convergence tests, or error estimates for the reported scalar-field growth on the horizons. Without these, it is impossible to determine whether the observed behaviors are physical or numerical artifacts, which is load-bearing for the central claim that the coupling triggers scalar hair.

    Authors: We agree that quantitative information on resolution and convergence is required to support the central claims. The original submission omitted these details. In the revised version we will expand the numerical methods section to specify the grid resolutions employed, the convergence order observed, and the results of convergence tests specifically for the scalar field evaluated on the apparent horizons. We will also include error estimates for the reported scalar hair growth and radiation quantities. revision: yes

Circularity Check

0 steps flagged

No circularity: results from direct numerical evolution of EMS field equations

full rationale

The paper reports outcomes of numerical relativity simulations evolving the coupled gravitational, electromagnetic, and scalar sectors from charged puncture initial data. The central claim (dynamical triggering of scalar hair via nonminimal coupling) follows from integrating the field equations forward in time; no step reduces by construction to a fitted parameter, self-definition, or self-citation chain. No equations or sections exhibit the enumerated circular patterns. The work is self-contained as a dynamical simulation whose outputs are not forced by the inputs.

Axiom & Free-Parameter Ledger

1 free parameters · 1 axioms · 0 invented entities

The central claim relies on the numerical evolution being accurate and the initial scalar perturbation being sufficient to trigger the instability without being an artifact.

free parameters (1)
  • coupling strength
    The strength of the nonminimal coupling is varied to explore different regimes of scalar hair growth.
axioms (1)
  • domain assumption The initial data setup with puncture method for charged black holes is valid for the evolution.
    The paper uses charged puncture initial data for two RN black holes.
