Damage Adaptation in Seconds for Architected Materials

James Avtges , Jake Ketchum , Helena Young , Taekyoung Kim , Ryan Truby , Todd Murphey This is my paper

Pith reviewed 2026-06-27 01:24 UTC · model grok-4.3

classification 💻 cs.RO cs.LG
keywords damage adaptationsoft roboticsproprioceptionarchitected materialsensemble methodreal-time adaptationHSA actuatorsLEAP
0
0 comments X

The pith

Latent damage representations combined with an ensemble method enable real-time adaptation to unseen damage in soft robots.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper establishes that architected materials in soft-actuated systems allow damage to be captured in latent representations, which with a simple ensemble method suffice to adapt to catastrophic unseen damage in under one minute. This works because actuator failure is gradual and damage occupies a low-dimensional discrete coordinate space. The authors also identify conditions where the sample complexity of learning these representations drops from exponential to linear, unlike rigid or continuum mechanisms. The LEAP algorithm demonstrates this on a 6DoF soft wrist with Handed Shearing Auxetic actuators, achieving simulation-free adaptation to cuts, burns, and repairs during a tracing task.

Core claim

Latent damage representations plus a simple yet robust ensemble method is sufficient for adapting to unseen damage in real-time. Moreover, we identify conditions under which exponential sample complexity collapses to linear sample complexity for learned representations of architected materials, a concrete advantage over rigid components or continuum soft mechanisms.

What carries the argument

Latent damage representations in a low-dimensional discrete coordinate space, paired with an ensemble method for adaptive proprioception.

If this is right

  • Enables simulation-free real-time adaptation to cuts, burns, and actuator repairs.
  • Sample complexity for damage learning reduces from exponential to linear under the identified conditions.
  • Supports long-term autonomy for soft robots performing tasks like tracing with a 6DoF wrist.
  • Provides a concrete advantage for architected materials over rigid or continuum soft systems.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The approach may extend to other gradual-damage scenarios in robotics where full modeling is impractical.
  • It could reduce reliance on pre-simulated damage models in field deployments.
  • Further tests on different actuator geometries would clarify the scope of the linear-complexity regime.

Load-bearing premise

Damage can be described in a low-dimensional, discrete coordinate space.

What would settle it

An experiment showing that adaptation to a new damage type requires more than linear samples or fails to reach real-time performance would disprove the claim.

Figures

Figures reproduced from arXiv: 2606.17394 by Helena Young, Jake Ketchum, James Avtges, Ryan Truby, Taekyoung Kim, Todd Murphey.

Figure 1

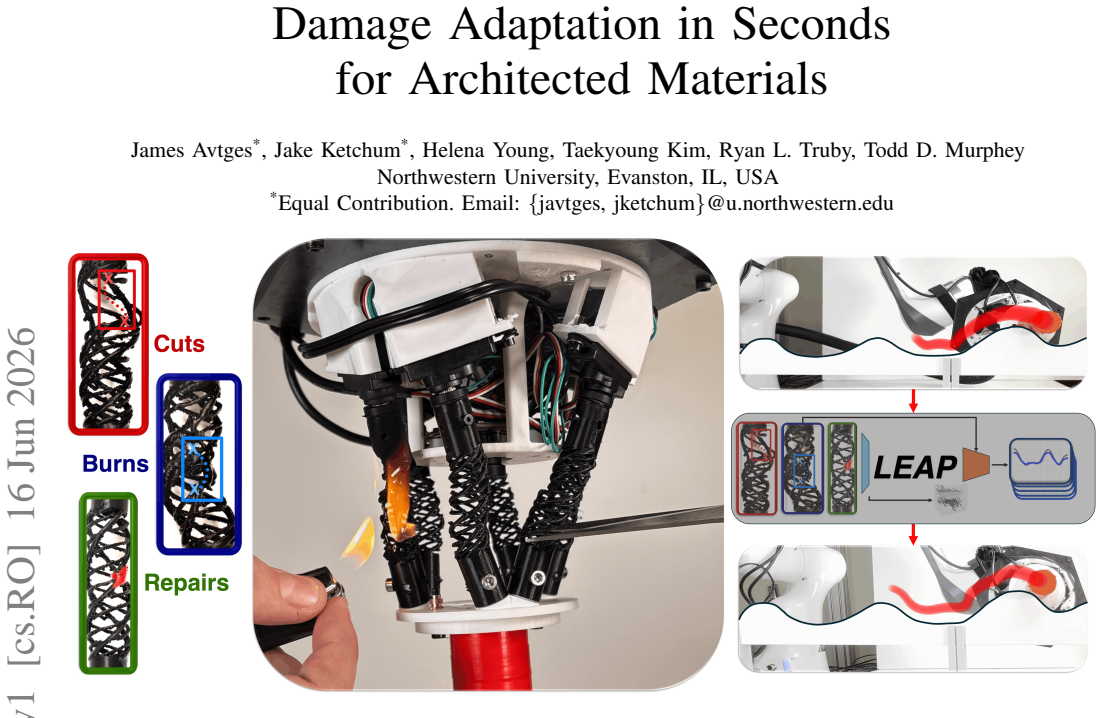

Figure 1. Figure 1: Latent Ensemble Adaptive Proprioception (LEAP): Modeling damage in architected materials enables simple yet robust ensemble methods to adapt to damage in seconds. We evaluate our approach on a soft wrist that completes a contour tracing task using proprioception alone. The wrist is damaged by melting actuators (left), cutting with scissors (right), and repairing them with glue. After adaptation, LEAP recov… view at source ↗

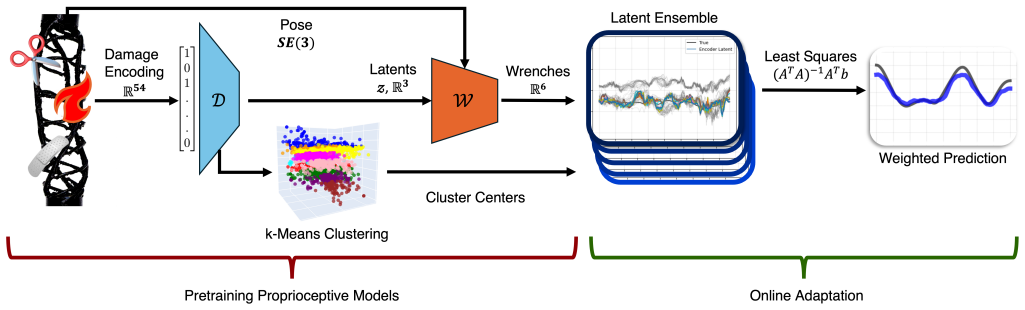

Figure 2
Figure 2. Figure 2: Architecture of LEAP: Our proposed approach encodes damage states into a latent representation and uses the latent structure to produce ensembles— where online data collection and regression of ensemble weightings occurs within seconds. Our architecture contains two neural networks—the first produces latent encodings of the actuator damage state. The second uses the latent variables alongside the measured … view at source ↗

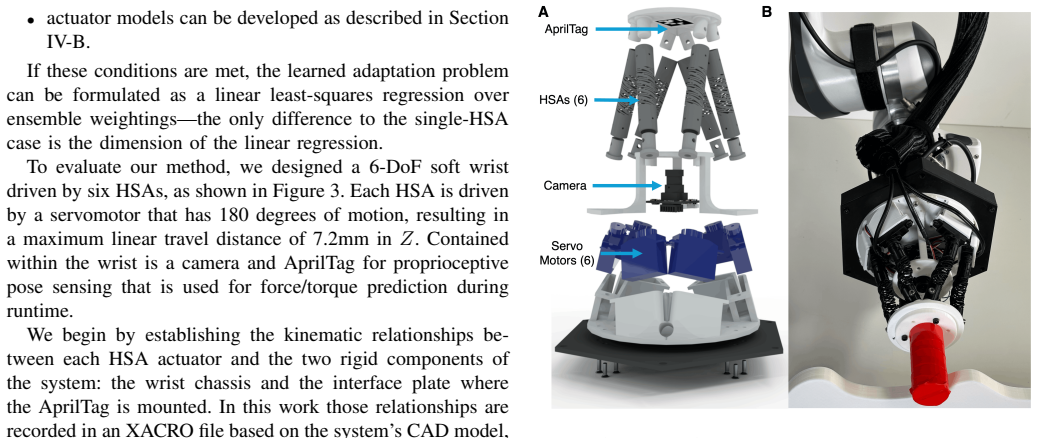

Figure 3
Figure 3. Figure 3: HSA-Actuated Soft Wrist: A. We demonstrate LEAP on a miniature, parallel 6-DoF soft wrist. Servomotors drive HSAs, and a proprioceptive camera determines platform pose via an AprilTag. B. The soft wrist mounted to a Franka Emika Panda robot arm. We demonstrate the wrist’s functionality via a tracing task where the objective is to traverse the contour of a 3D-printed surface while remaining in contact as mu… view at source ↗
Figure 4

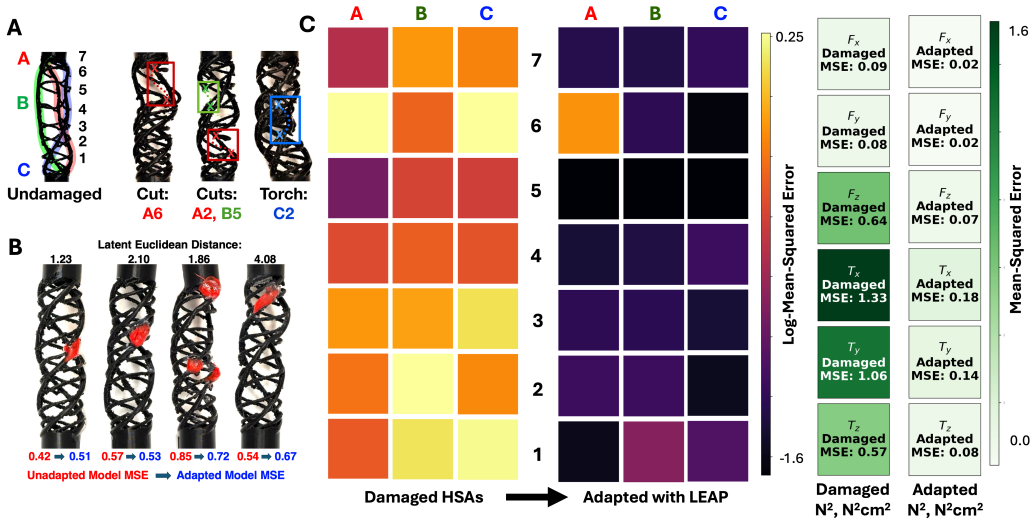

Figure 4. Figure 4: LEAP Enables Robust, Rapid Damage Adaptation. A.) HSA Damage as Discrete Coordinates: The periodic structure of architected materials introduces degeneracies: in an HSA, severed links can be either on a vertical strut (A, B, C) highlighted in the undamaged HSA, or on the horizontal links connecting the major struts. Torching HSAs occurs in one of three locations along each strut. B.) Repair in Architected … view at source ↗

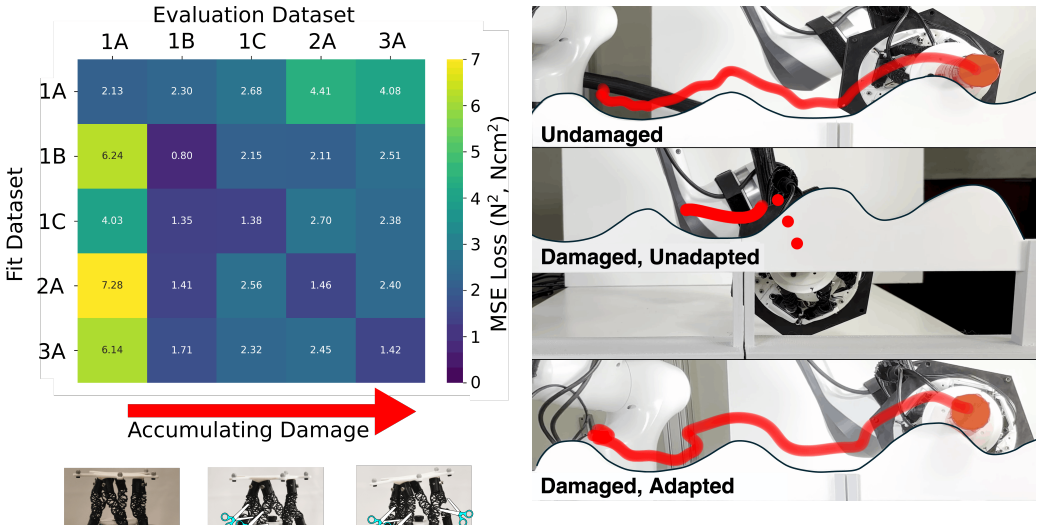

Figure 6
Figure 6. Figure 6: Tracing Task Demonstration: Representative trajectories from the proprioceptive tracing task. Without adaptation, the damaged wrist is not task capable, it fails to follow the contour and cannot recover. After adapting with LEAP, the system recovers up to 100% of its original performance. of the total trajectory. After adapting to burning one HSA and cutting a second (see the provided multimedia), the wris… view at source ↗
Figure 5
Figure 5. Figure 5: Wrist Adaptation Performance: Our whole system model fit to data from increasingly damaged wrist configurations. The confusion matrix diagonal shows that the system is able to adapt to a variety of system damage states using less than a minute of total data collection and computation time. The off-diagonal elements show a clear trend whereby increasing damage accumulation degrades model performance in the … view at source ↗

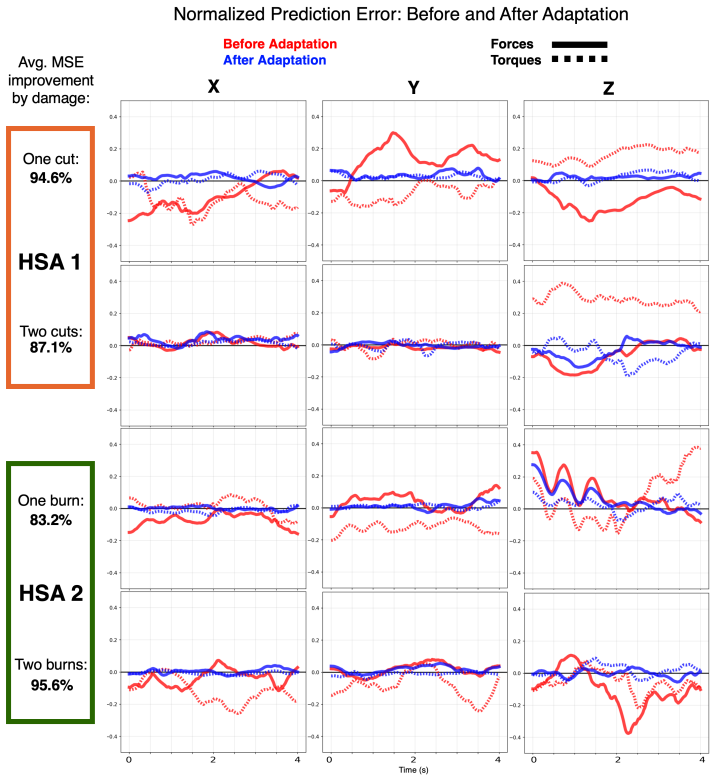

Figure 7
Figure 7. Figure 7: Normalized Error Before and After Adaptation: Pictured is a representative sample of force-torque errors over time—closer to zero is better. Data is plotted for two HSAs that each undergo multiple damages sequentially. apriltag is tag25h9:0 at size 0.0078m and is adhered to the underside of the upper platform. During manual testing the system is controlled with a 6DOF SpaceMouse Compact from 3DConnexion. T… view at source ↗

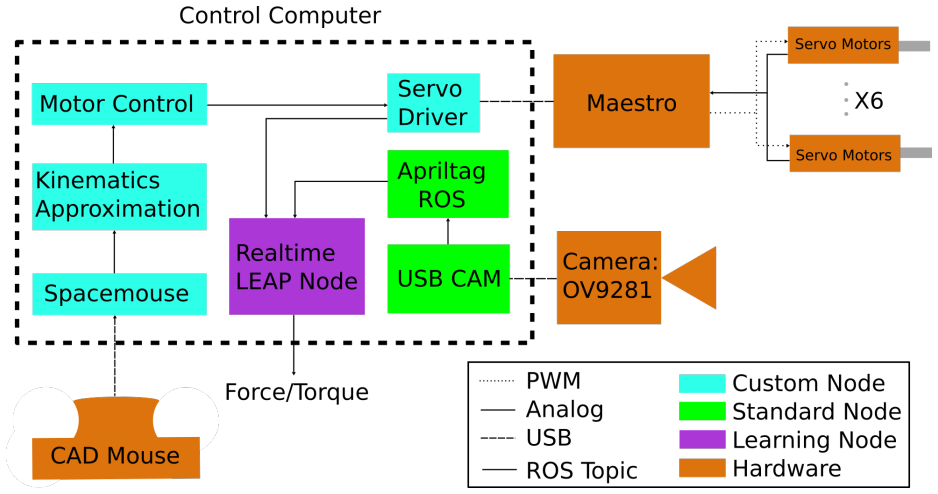

Figure 8
Figure 8. Figure 8: Wrist Block Diagram: The wrist is controlled and interfaced to LEAP via ROS2, associated nodes and hardware are shown. TABLE V ALL HSAS USED IN THIS WORK, AND EACH OF THEIR DAMAGE CONDITIONS. ‘VC’ INDICATES A VERTICAL CUT, ‘HC’ INDICATES A HORIZONTAL CUT, AND ‘B’ INDICATES A BURN. HIGHLIGHTED ROWS UNDERWENT REPAIRS. HSA Damage 1 Damage 2 Damage 3 1 VC A1 HC B3 VC B4 2 VC C3 - - 3 VC A4 - - 4 B C0 VC B3 VC … view at source ↗

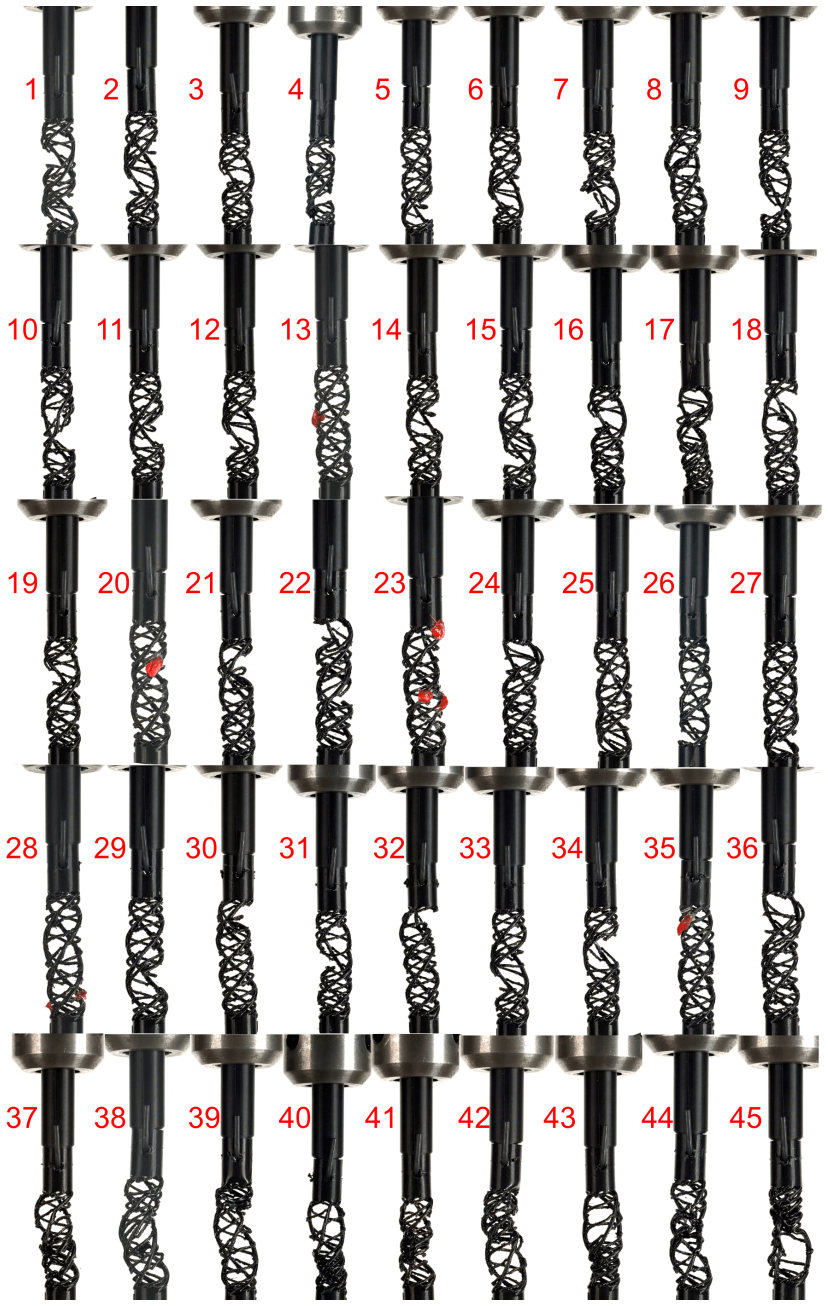

Figure 9
Figure 9. Figure 9: All HSAs used in this work. Table V shows how each HSA was damaged [PITH_FULL_IMAGE:figures/full_fig_p015_9.png] view at source ↗
read the original abstract

Adaptation to damages and in-situ physical repairs is essential for long-term robot autonomy, yet challenging outside of narrowly defined and well-anticipated bounds. In this work we proprioceptively adapt to catastrophic damage in soft-actuated systems in under one minute. Architected materials are well equipped for adaptation: actuator failure occurs gradually rather than acutely, and damage can be described in a low-dimensional, discrete coordinate space. Surprisingly, latent damage representations plus a simple yet robust ensemble method is sufficient for adapting to unseen damage in real-time. Moreover, we identify conditions under which exponential sample complexity collapses to linear sample complexity for learned representations of architected materials, a concrete advantage over rigid components or continuum soft mechanisms. We demonstrate LEAP, our method for adaptive proprioception, via a tracing task for a 6DoF soft wrist based on Handed Shearing Auxetic (HSA) actuators. Our algorithm is able to adapt to cuts, burns, and actuator repairs, enabling simulation-free real-time adaptation that is critical for realizing the promise of soft robots outside the lab. Videos and more information are available at https://murpheylab.github.io/leap.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 0 minor

Summary. The paper presents LEAP, a proprioceptive adaptation method for soft-actuated architected materials that uses latent damage representations combined with a simple ensemble approach to achieve real-time adaptation to unseen damage (cuts, burns, actuator repairs) in under one minute. It demonstrates the approach on a 6DoF Handed Shearing Auxetic (HSA) wrist in a tracing task and claims that damage in such systems lives in a low-dimensional discrete coordinate space, enabling a collapse from exponential to linear sample complexity.

Significance. If the central claims hold with supporting derivations and validation, the work would be significant for soft robotics by offering a practical, simulation-free route to damage resilience outside controlled settings. The sample-complexity reduction result would constitute a concrete theoretical advantage over rigid or continuum systems if rigorously derived and tested.

major comments (2)
  1. [Abstract] Abstract: the central claim that 'latent damage representations plus a simple yet robust ensemble method is sufficient for adapting to unseen damage in real-time' rests on the unvalidated premise that damage occupies a low-dimensional discrete coordinate space; no independent check is supplied that the ensemble exhaustively covers this space or that the exponential-to-linear collapse survives when discreteness is relaxed.
  2. [Abstract] Abstract: the abstract asserts adaptation to cuts, burns, and repairs but supplies no derivation details, error bars, quantitative performance metrics, or data-exclusion rules, rendering the sufficiency claim for real-time adaptation unverifiable from the provided text.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the detailed and constructive comments on our manuscript. We address each major comment point-by-point below, proposing targeted revisions to improve clarity and verifiability while preserving the core contributions.

read point-by-point responses

  1. Referee: [Abstract] Abstract: the central claim that 'latent damage representations plus a simple yet robust ensemble method is sufficient for adapting to unseen damage in real-time' rests on the unvalidated premise that damage occupies a low-dimensional discrete coordinate space; no independent check is supplied that the ensemble exhaustively covers this space or that the exponential-to-linear collapse survives when discreteness is relaxed.

    Authors: The manuscript motivates the low-dimensional discrete coordinate space from the discrete nature of actuator failures in architected materials and derives conditions under which sample complexity reduces from exponential to linear. Experimental results on the 6DoF HSA wrist demonstrate adaptation to multiple unseen damage instances using the ensemble, providing empirical support for coverage of the relevant space. We agree that an explicit independent validation of exhaustive coverage and robustness under relaxed (continuous) discreteness assumptions would strengthen the theoretical claim. We will revise the abstract to qualify the claim with reference to the derived conditions and add a dedicated paragraph in the discussion section addressing the assumptions and potential extensions to continuous damage models. revision: yes

  2. Referee: [Abstract] Abstract: the abstract asserts adaptation to cuts, burns, and repairs but supplies no derivation details, error bars, quantitative performance metrics, or data-exclusion rules, rendering the sufficiency claim for real-time adaptation unverifiable from the provided text.

    Authors: The abstract is intentionally concise and high-level, as is standard. The full manuscript contains the requested elements: quantitative metrics (adaptation times under one minute, success rates), error bars from repeated trials, derivation of the sample-complexity result, and details on experimental protocols including damage types and data handling. We will revise the abstract to incorporate key quantitative highlights (e.g., adaptation time and performance metrics) within length constraints and ensure all supporting details remain clearly signposted in the main text and supplementary material. revision: partial

Circularity Check

0 steps flagged

No circularity detected; claims rest on explicit stated assumption

full rationale

The abstract states the low-dimensional discrete damage coordinate space as a premise for architected materials and then shows that an ensemble on latent representations suffices for real-time adaptation under that premise. No equations are given, no fitted parameters are renamed as predictions, and no self-citations are invoked to justify uniqueness or an ansatz. The sample-complexity collapse is presented as following from the discrete framing rather than being smuggled in by definition. The derivation is therefore self-contained on the provided text; external validation would require the full methods section, but nothing in the visible chain reduces to its own inputs by construction.

Axiom & Free-Parameter Ledger

0 free parameters · 0 axioms · 0 invented entities

Abstract provides no explicit free parameters, axioms, or invented entities; all claims rest on unstated modeling assumptions about damage representation and ensemble robustness.

pith-pipeline@v0.9.1-grok · 5743 in / 1088 out tokens · 20754 ms · 2026-06-27T01:24:52.381610+00:00 · methodology
