Evaluation and Modeling of Pneumatic Percussive Drill for Martian Subsurface Access

Luis Phillipe Tosi , Marcel Veismann , Kristopher Sherrill , Marcello Gori , Scott Perl This is my paper

Pith reviewed 2026-05-25 00:23 UTC · model grok-4.3

classification ⚛️ physics.geo-ph astro-ph.EPastro-ph.IMphysics.flu-dyn
keywords pneumatic percussive drillMartian subsurface accesswireline drilling systemrock simulantsmechanical specific energypercussion drillingCO2 actuationlow-power drilling
0
0 comments X

The pith

A wireline pneumatic drill using Martian CO2 achieves repeatable percussive impacts with specific energies from 74 to 360 MJ per cubic meter.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper evaluates a compact wireline drill that uses compressed CO2 for both hammering and cuttings transport. It presents a reduced-order model of the hammer and chamber dynamics validated against benchtop experiments and reports drilling tests on weaker sandstone and stronger basalt simulants. The measured mechanical specific energy values range from 74 MJ/m3 in weak material to 360 MJ/m3 in strong basalt. These results indicate the system works best in percussion-dominant mode when bit geometry matches available impact energy. A sympathetic reader would care because this points to a low-power way to reach deep subsurface samples on Mars beyond current shallow drilling reach.

Core claim

The architecture study, validated model, and drilling experiments support the wireline pneumatic drill as a candidate for low-power deep drilling on Mars. Experiments show repeatable percussive impacts and mechanical specific energy values from 74 to 360 MJ/m3, with lower values in weaker simulant and higher values in stronger basalt. The results indicate that the system is most effective in a percussion-dominant mode with bit geometry matched to available impact energy.

What carries the argument

Reduced-order model of hammer and chamber dynamics that captures coupled pressure, flow, and impact behavior to interpret hammer velocity, displacement, strike timing, and impact energy.

If this is right

  • The drill concept enables deep subsurface access on Mars with low power consumption using atmospheric CO2.
  • Drilling efficiency is highest in percussion-dominant mode rather than rotary-dominant mode.
  • Bit geometry must be chosen to match the available impact energy for optimal performance.
  • Mechanical specific energy scales with material strength, lower in weak sandstone simulants and higher in strong basalt.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • Full-system integration tests would be needed to confirm cuttings transport works reliably at depth.
  • The same pneumatic architecture could be tested for other planetary bodies with thin atmospheres.
  • Extending the model to include temperature effects on CO2 properties would clarify performance margins.

Load-bearing premise

Benchtop experiments using terrestrial rock simulants and standard atmospheric conditions accurately predict performance under Martian gravity, temperature, pressure, and actual subsurface rock properties.

What would settle it

A drilling test in a vacuum chamber under simulated Martian gravity and pressure that produces mechanical specific energy values outside the reported 74 to 360 MJ/m3 range would falsify the translation from benchtop results.

Figures

Figures reproduced from arXiv: 2605.22849 by Kristopher Sherrill, Luis Phillipe Tosi, Marcello Gori, Marcel Veismann, Scott Perl.

Figure 1
Figure 1. Figure 1: Comparison of different deep drill architectures: top-sided (left) and downhole (right) [PITH_FULL_IMAGE:figures/full_fig_p005_1.png] view at source ↗
Figure 2
Figure 2. Figure 2: Drill deployment sequence of the DASER surface lander [PITH_FULL_IMAGE:figures/full_fig_p007_2.png] view at source ↗
Figure 3
Figure 3. Figure 3: Cross-sectional view of the WiP BHA design [PITH_FULL_IMAGE:figures/full_fig_p008_3.png] view at source ↗
Figure 4
Figure 4. Figure 4: Design and prototype of the WiP rotation mechanism [PITH_FULL_IMAGE:figures/full_fig_p008_4.png] view at source ↗
Figure 5
Figure 5. Figure 5: Flapper-valve design and testing 9 [PITH_FULL_IMAGE:figures/full_fig_p009_5.png] view at source ↗
Figure 6

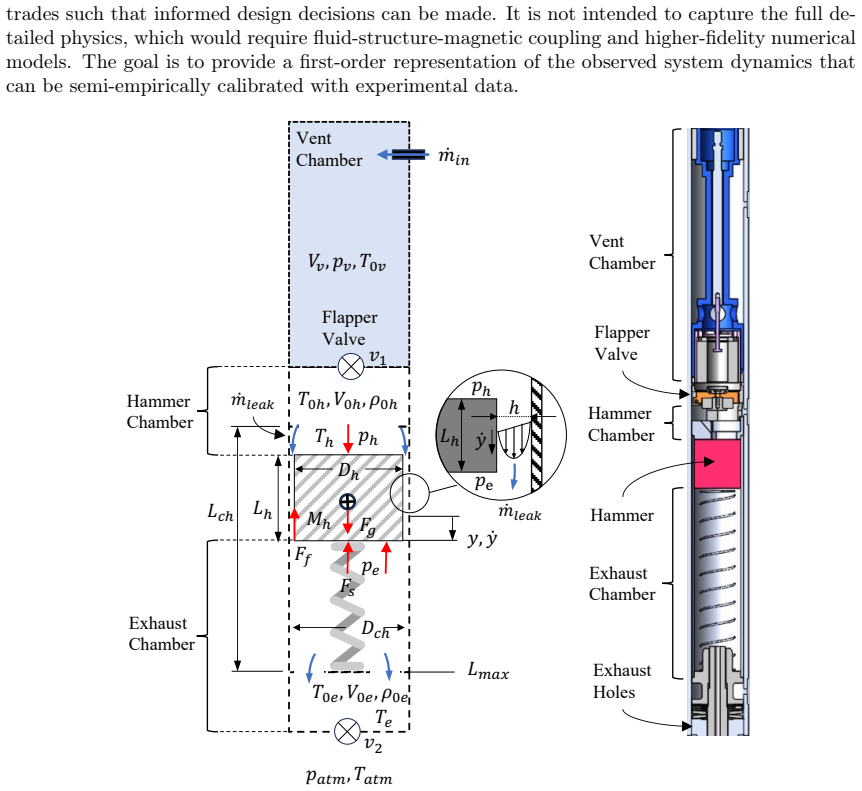

Figure 6. Figure 6: Diagram of coupled flow-hammer dynamics model in the lower drill section ( [PITH_FULL_IMAGE:figures/full_fig_p010_6.png] view at source ↗
Figure 7
Figure 7. Figure 7: Single strike modeled at po = 100 psi with key events labeled. These key events are discussed further, in algorithmic form, in Section 5, where experimental data are processed to extract t0, tpkh, th, and tclose. For the ideal simulations in this section, where tclose > th, th = arg maxt Ep(t) and ||Ep||∞ = E(th). As shown in [PITH_FULL_IMAGE:figures/full_fig_p021_7.png] view at source ↗
Figure 8
Figure 8. Figure 8: Multiple strikes results modeled at varying [PITH_FULL_IMAGE:figures/full_fig_p022_8.png] view at source ↗
Figure 9
Figure 9. Figure 9: Ideal parameter Model results vs. flapper-valve opening threshold pressure. [PITH_FULL_IMAGE:figures/full_fig_p022_9.png] view at source ↗
Figure 10

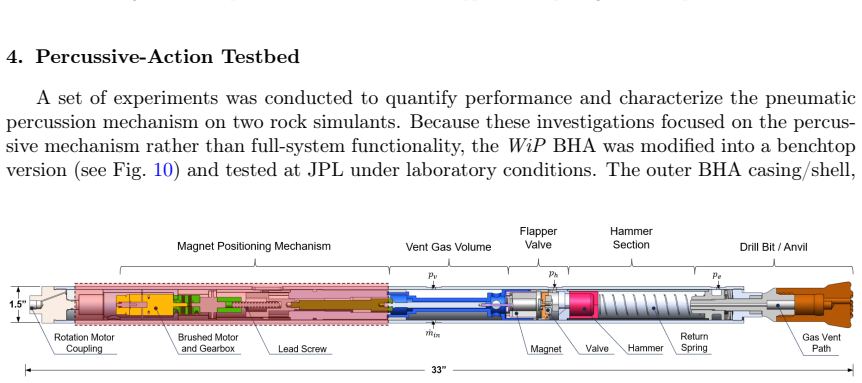

Figure 10. Figure 10: Cross-sectional view of the Percussive-Action Testbed, a modified benchtop version of the WiP BHA used to test the pneumatic percussion mechanism. The red shaded section highlights modified components. 22 [PITH_FULL_IMAGE:figures/full_fig_p022_10.png] view at source ↗
Figure 11
Figure 11. Figure 11: Experimental setup of the borehole assembly (BHA) [PITH_FULL_IMAGE:figures/full_fig_p024_11.png] view at source ↗
Figure 12
Figure 12. Figure 12: Investigated button-head drill-bits, 1-5/8" diameter (left) and 1-3/8" diameter (right) [PITH_FULL_IMAGE:figures/full_fig_p025_12.png] view at source ↗
Figure 13
Figure 13. Figure 13: Example of multiple and single strikes selected by algorithm [PITH_FULL_IMAGE:figures/full_fig_p027_13.png] view at source ↗
Figure 14
Figure 14. Figure 14: Aggregated data from experiments 1a, 1b, and 1c in Table [PITH_FULL_IMAGE:figures/full_fig_p028_14.png] view at source ↗
Figure 15
Figure 15. Figure 15: Aggregated data from experiments 1a, 1b, and 1c in Table [PITH_FULL_IMAGE:figures/full_fig_p029_15.png] view at source ↗
Figure 16
Figure 16. Figure 16: Aggregated data from experiments 1a, 1b, and 1c in Table [PITH_FULL_IMAGE:figures/full_fig_p029_16.png] view at source ↗
Figure 17
Figure 17. Figure 17: Aggregated data from experiments 1a, 1b, and 1c in Table [PITH_FULL_IMAGE:figures/full_fig_p030_17.png] view at source ↗
Figure 18

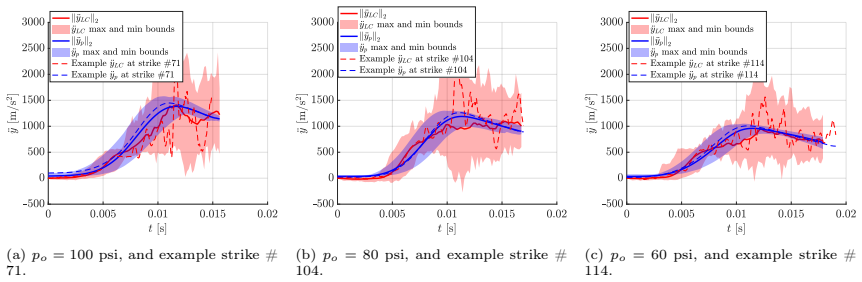

Figure 18. Figure 18: Relevant accelerations for the load-cell and pressure methods, with minimum and maximum bounds, [PITH_FULL_IMAGE:figures/full_fig_p031_18.png] view at source ↗
Figure 19
Figure 19. Figure 19: Relevant parameter distributions for comparison of the 100, 80, and 60 psi results from experiments 1a, [PITH_FULL_IMAGE:figures/full_fig_p032_19.png] view at source ↗
Figure 20
Figure 20. Figure 20: Model and experimental pv and ph comparison for po values of 100, 80, and 60 psi in experiments 1a, 1b, and 1c in [PITH_FULL_IMAGE:figures/full_fig_p033_20.png] view at source ↗
Figure 21
Figure 21. Figure 21: Model and experimental y˙ comparison for po values of 100, 80, and 60 psi in experiments 1a, 1b, and 1c in [PITH_FULL_IMAGE:figures/full_fig_p034_21.png] view at source ↗
Figure 22
Figure 22. Figure 22: Model and experimental y comparison for po values of 100, 80, and 60 psi in experiments 1a, 1b, and 1c in [PITH_FULL_IMAGE:figures/full_fig_p034_22.png] view at source ↗
Figure 23
Figure 23. Figure 23: Model and experimental E comparison for po values of 100, 80, and 60 psi in experiments 1a, 1b, and 1c in [PITH_FULL_IMAGE:figures/full_fig_p035_23.png] view at source ↗
Figure 24

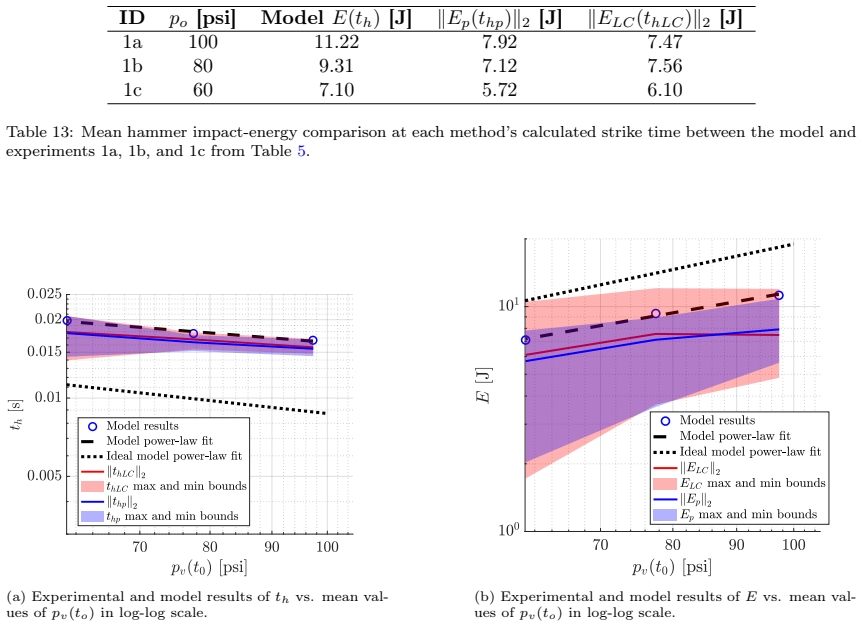

Figure 24. Figure 24: Modeled and experimental comparison of th and E vs. mean values of pv(to) for experiments 1a, 1b, and 1c in [PITH_FULL_IMAGE:figures/full_fig_p036_24.png] view at source ↗
Figure 25

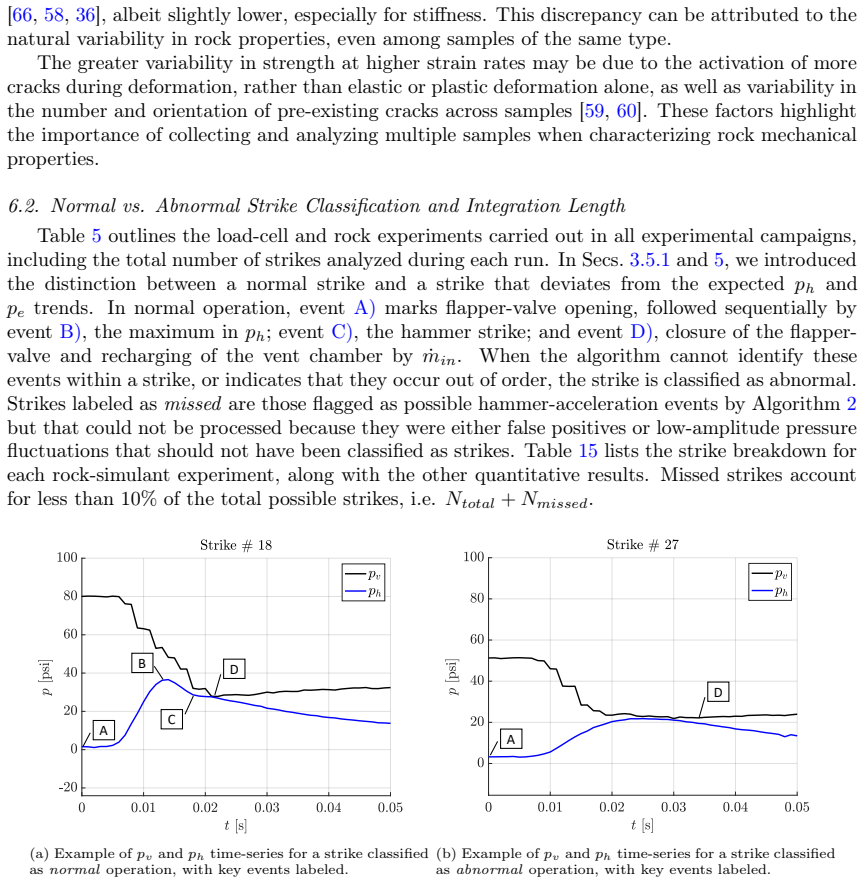

Figure 25. Figure 25: Single-strike examples for normal and abnormal classifications from experiment 2a in Table [PITH_FULL_IMAGE:figures/full_fig_p038_25.png] view at source ↗
Figure 26

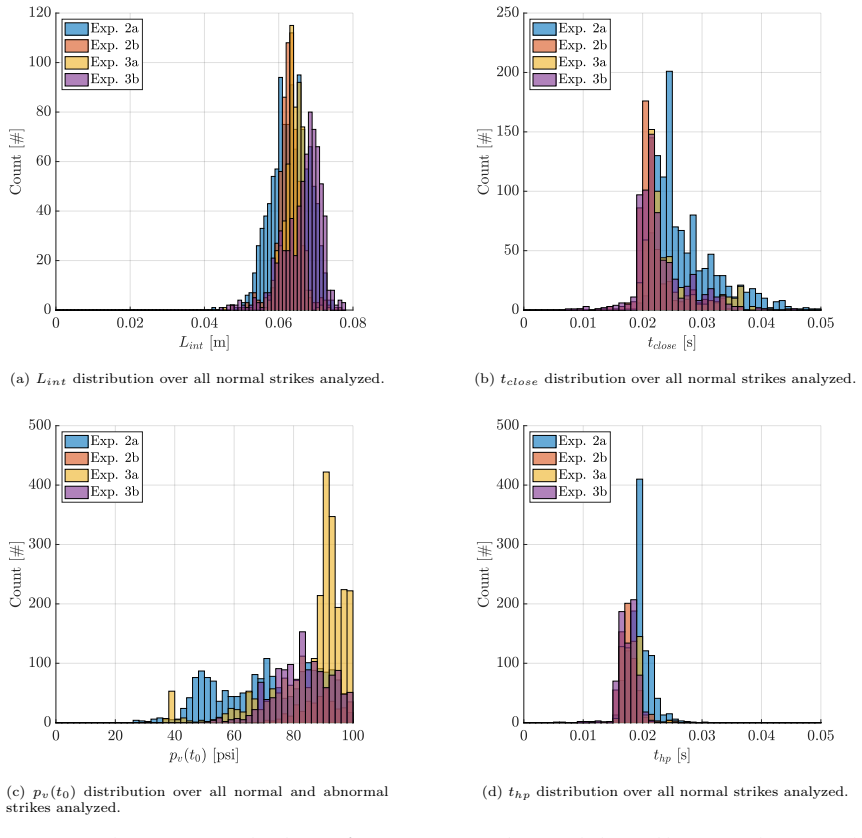

Figure 26. Figure 26: Relevant parameter distributions for experiments 2a, 2b, 3a, and 3b in Table [PITH_FULL_IMAGE:figures/full_fig_p039_26.png] view at source ↗
Figure 27
Figure 27. Figure 27: Hammer kinetic-energy profiles for normal and all-strike classifications for experiment 2a in Table [PITH_FULL_IMAGE:figures/full_fig_p040_27.png] view at source ↗
Figure 28

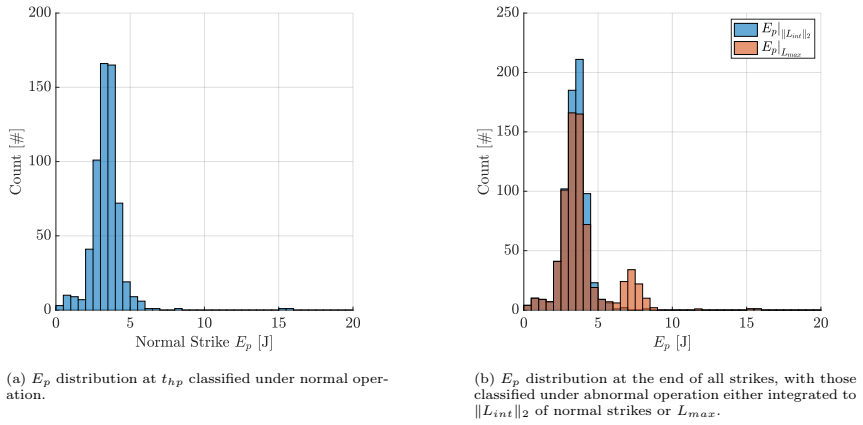

Figure 28. Figure 28: Hammer kinetic-energy profiles for normal and all-strike classifications for experiment 2b in Table [PITH_FULL_IMAGE:figures/full_fig_p041_28.png] view at source ↗
Figure 29

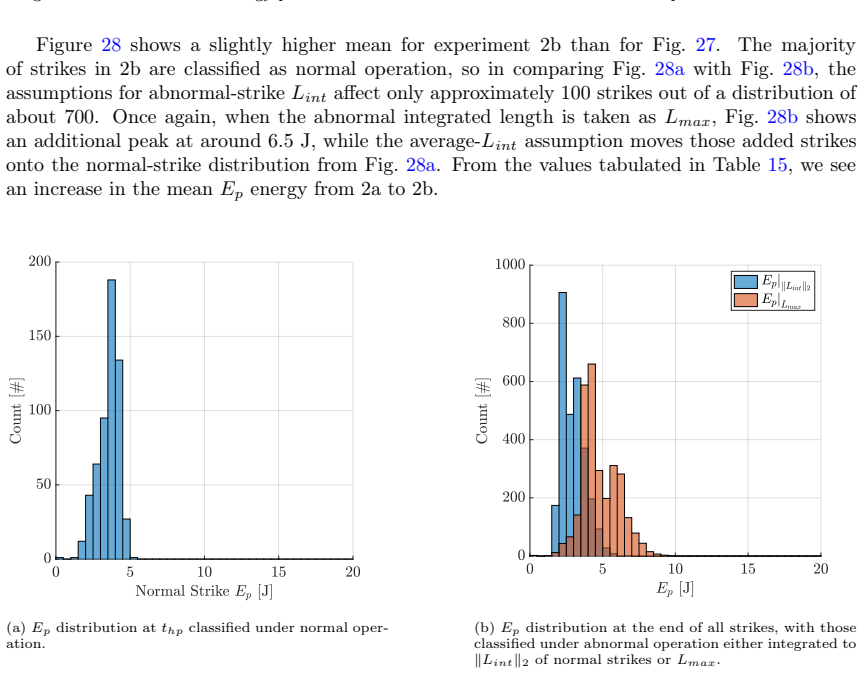

Figure 29. Figure 29: Hammer kinetic-energy profiles for normal and all-strike classifications for experiment 3a in Table [PITH_FULL_IMAGE:figures/full_fig_p041_29.png] view at source ↗
Figure 30

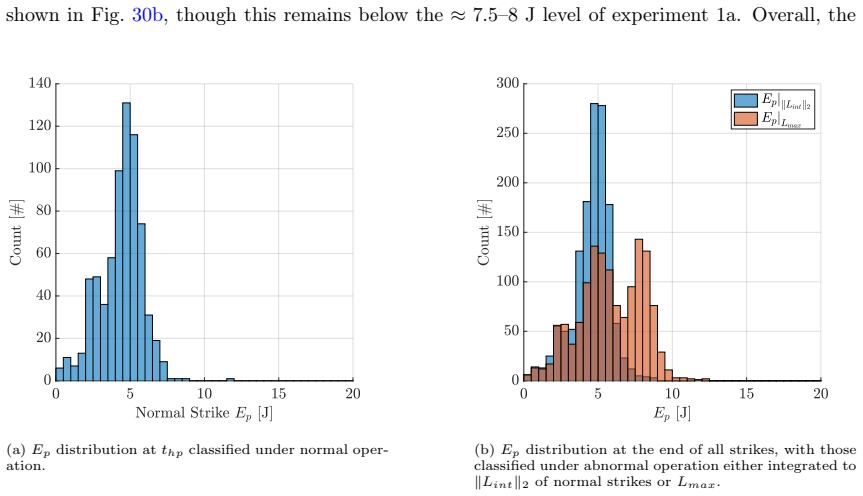

Figure 30. Figure 30: Hammer kinetic-energy profiles for normal and all-strike classifications for experiment 3b in Table [PITH_FULL_IMAGE:figures/full_fig_p042_30.png] view at source ↗
Figure 31
Figure 31. Figure 31: E¯ over UCS strength of different rocks for experiments 2a, 2b, 3a, and 3b. plotted in [PITH_FULL_IMAGE:figures/full_fig_p042_31.png] view at source ↗
Figure 32
Figure 32. Figure 32: Multiple-strike results modeled at varying [PITH_FULL_IMAGE:figures/full_fig_p044_32.png] view at source ↗
read the original abstract

Deep subsurface access on Mars could enable sampling of ancient lacustrine deposits, volatile-rich horizons, and other geologic targets beyond the reach of current shallow drilling systems. This study evaluates a wireline pneumatic rotary-percussive drill concept that uses compressed atmospheric CO2 as both the actuation and transport fluid. The architecture combines a pneumatically driven hammer, magnetic flapper-valve, and incremental bit-indexing mechanism in a compact bottom-hole assembly for low-power deployment. We develop a reduced-order model of the hammer and chamber dynamics that captures coupled pressure, flow, and impact behavior during each strike. The model is compared with benchtop percussion experiments and used to interpret hammer velocity, displacement, strike timing, and impact energy. A modified testbed is then used to drill Martian rock simulants spanning weaker sandstone and stronger Saddleback basalt cases, linking drilling response to operating pressure and material properties. The experiments show repeatable percussive impacts and mechanical specific energy values from 74 to 360 MJ/m3, with lower values in weaker simulant and higher values in stronger basalt. The results indicate that the system is most effective in a percussion-dominant mode with bit geometry matched to available impact energy. Together, the architecture study, validated model, and drilling experiments support the wireline pneumatic drill as a candidate for low-power deep drilling on Mars, while identifying remaining work in robustness, cuttings removal, and full-system integration.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

3 major / 1 minor

Summary. The manuscript evaluates a wireline pneumatic rotary-percussive drill concept for Martian subsurface access that uses compressed CO2 as both actuation and cuttings transport fluid. It presents a reduced-order model of hammer and chamber dynamics that captures coupled pressure, flow, and impact behavior, compares the model to benchtop percussion experiments, and reports drilling tests on weaker sandstone and stronger Saddleback basalt simulants that yield mechanical specific energy (MSE) values from 74 to 360 MJ/m³. The results are interpreted to show effectiveness in percussion-dominant mode with matched bit geometry, and the combined architecture study, model, and experiments are claimed to support the system as a candidate for low-power deep drilling on Mars.

Significance. The work addresses a key technical barrier in planetary exploration by proposing a compact, low-power pneumatic system that avoids heavy terrestrial-style drilling hardware. The reduced-order model and repeatable MSE measurements on simulants provide a useful empirical baseline for percussion performance. However, the significance for actual Martian deployment is constrained by the absence of any scaling analysis or auxiliary data addressing the translation from 1 g / 1 atm benchtop conditions to Martian gravity, pressure, and temperature.

major comments (3)
  1. [Abstract] Abstract: the statement that the model is 'compared with benchtop percussion experiments' supplies no quantitative agreement metrics (e.g., RMS error on impact velocity or timing), error bars, number of trials, or description of data-exclusion criteria, leaving the validation claim unsupported by reported evidence.
  2. [Drilling experiments and model sections] Drilling experiments and model sections: the central claim that the architecture supports low-power deep drilling on Mars rests on an untested extrapolation; the benchtop tests occur at 1 atm and 1 g, yet no scaling analysis, auxiliary simulation, or experiment addresses how reduced back-pressure (~0.6 kPa CO2) alters valve timing, impact energy, or how 0.38 g affects cuttings transport in the wireline architecture.
  3. [Abstract and results interpretation] Abstract and results interpretation: the reported MSE range (74–360 MJ/m³) is linked to material strength and operating pressure, but without reported variability statistics or controls for bit wear, the assertion that the system is 'most effective in a percussion-dominant mode' cannot be evaluated for robustness.
minor comments (1)
  1. [Abstract] Abstract: the phrase 'repeatable percussive impacts' would be strengthened by a brief statement of the number of strikes or runs performed.

Simulated Author's Rebuttal

3 responses · 1 unresolved

We thank the referee for the constructive comments, which have helped clarify the presentation of validation evidence and limitations. We address each major comment below and indicate revisions made to the manuscript.

read point-by-point responses

  1. Referee: [Abstract] Abstract: the statement that the model is 'compared with benchtop percussion experiments' supplies no quantitative agreement metrics (e.g., RMS error on impact velocity or timing), error bars, number of trials, or description of data-exclusion criteria, leaving the validation claim unsupported by reported evidence.

    Authors: We agree that quantitative metrics strengthen the validation claim. The revised manuscript now reports 15 trials, RMS error of 12% on peak impact velocity, timing agreement within 5 ms, error bars on all velocity and energy data, and data-exclusion criteria (outliers >3σ after inspection for sensor malfunction). revision: yes

  2. Referee: [Drilling experiments and model sections] Drilling experiments and model sections: the central claim that the architecture supports low-power deep drilling on Mars rests on an untested extrapolation; the benchtop tests occur at 1 atm and 1 g, yet no scaling analysis, auxiliary simulation, or experiment addresses how reduced back-pressure (~0.6 kPa CO2) alters valve timing, impact energy, or how 0.38 g affects cuttings transport in the wireline architecture.

    Authors: We acknowledge the tests are at terrestrial conditions and that the manuscript does not include scaling analysis for Martian back-pressure or gravity. The paper frames the system as a 'candidate' and already flags remaining work on cuttings removal and integration. We have added an explicit limitations paragraph in the discussion describing the expected effects of reduced back-pressure on valve timing and the role of gravity in cuttings transport, while clarifying that these require dedicated future study. revision: partial

  3. Referee: [Abstract and results interpretation] Abstract and results interpretation: the reported MSE range (74–360 MJ/m³) is linked to material strength and operating pressure, but without reported variability statistics or controls for bit wear, the assertion that the system is 'most effective in a percussion-dominant mode' cannot be evaluated for robustness.

    Authors: We have added standard deviations to the MSE values (e.g., 74 ± 8 MJ/m³) based on five replicates per condition. Bit wear was controlled by replacing bits after every three tests and confirming stable penetration rates; no measurable wear affected the reported data. These additions support evaluation of the percussion-dominant mode claim. revision: yes

standing simulated objections not resolved
  • Comprehensive scaling analysis or auxiliary experiments addressing Martian back-pressure (~0.6 kPa) effects on valve timing and impact energy, and 0.38 g effects on cuttings transport, which lie outside the scope of the current benchtop study.

Circularity Check

0 steps flagged

No circularity; empirical measurements and model validation are independent of target claims

full rationale

The paper reports direct benchtop measurements of percussive impacts, hammer dynamics, and MSE values (74–360 MJ/m³) on terrestrial simulants, plus a reduced-order model validated by comparison to those same runs. No equation or claim reduces by construction to a fitted parameter renamed as prediction, no self-citation chain is load-bearing, and no ansatz is smuggled. The Martian-candidate conclusion is an interpretive extrapolation from the Earth data rather than a derivation that loops back to its own inputs. This is the normal case of a self-contained experimental study.

Axiom & Free-Parameter Ledger

0 free parameters · 0 axioms · 0 invented entities

Abstract-only review provides no identifiable free parameters, axioms, or invented entities. Standard fluid mechanics and impact mechanics are presumed but not detailed.
