HyperParallel-MoE turns MoE operator execution into a static tile-level taskflow to overlap communication with matrix and vector compute on Ascend NPUs.
2026-06-30 15:07 UTC pith:IMOO45BQ
load-bearing objection Hardware-specific MoE scheduler for Ascend that turns AIC/AIV queues into a single-kernel tile taskflow and reports up to 1.58x Dispatch-to-Combine speedup with code released. the 1 major comments →

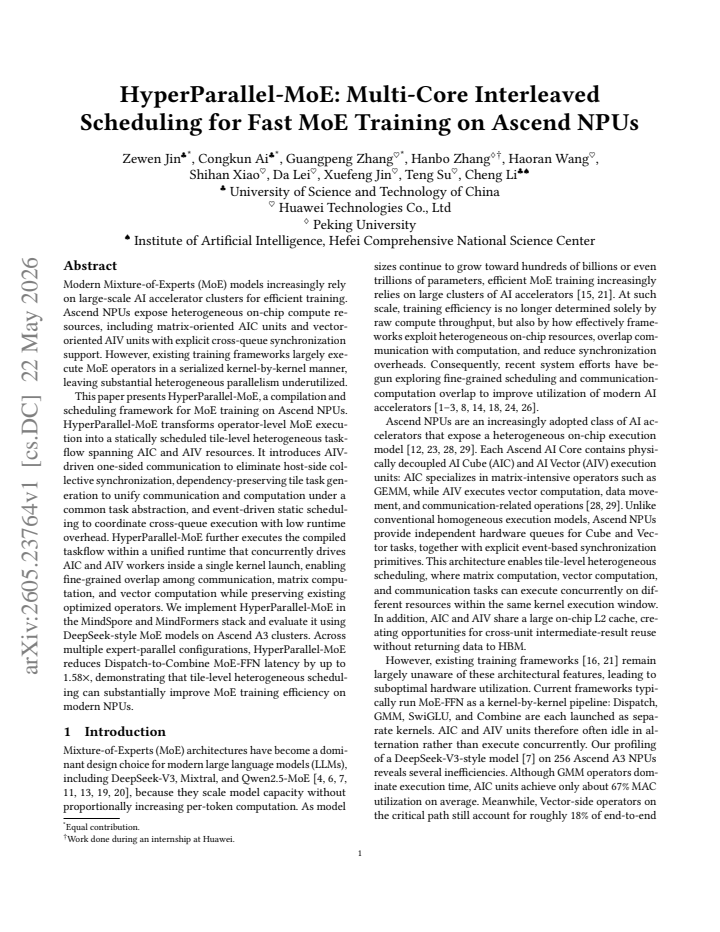

HyperParallel-MoE: Multi-Core Interleaved Scheduling for Fast MoE Training on Ascend NPUs
The pith
A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.
Core claim
HyperParallel-MoE transforms operator-level MoE execution into a statically scheduled tile-level heterogeneous taskflow spanning AIC and AIV resources. It introduces AIV-driven one-sided communication to eliminate host-side collective synchronization, dependency-preserving tile task generation to unify communication and computation under a common task abstraction, and event-driven static scheduling to coordinate cross-queue execution with low runtime overhead. The framework executes the compiled taskflow within a unified runtime that concurrently drives AIC and AIV workers inside a single kernel launch, enabling fine-grained overlap among communication, matrix computation, and vector computa
What carries the argument
The statically scheduled tile-level heterogeneous taskflow that unifies communication and computation under one abstraction and coordinates AIC and AIV queues via event-driven static scheduling.
Load-bearing premise
A statically generated tile-level taskflow can be executed with low runtime overhead while preserving correctness and compatibility with existing optimized operators.
What would settle it
Measure Dispatch-to-Combine MoE-FFN latency on Ascend A3 clusters with and without the HyperParallel-MoE scheduler; if the measured reduction disappears or the added coordination overhead exceeds the overlap gains, the central claim does not hold.
If this is right
- Communication, matrix computation, and vector computation overlap at fine granularity inside one kernel launch.
- Existing optimized operators remain unchanged and are still used inside the new schedule.
- The latency reduction applies across multiple expert-parallel configurations on Ascend A3 clusters.
- The entire MoE-FFN stage runs under a single unified runtime driver rather than repeated host-kernel launches.
Where Pith is reading between the lines
- The same static tile scheduling pattern could be tested on other accelerators that expose separate matrix and vector engines with cross-queue synchronization.
- If task generation overhead stays low at larger scales, the approach would support training bigger MoE models on fixed-size clusters without extra hardware.
- Dynamic re-generation of the tile schedule at runtime could be compared against the static version to check whether adaptability improves results under changing network loads.
Editorial analysis
A structured set of objections, weighed in public.
Referee Report
Summary. The paper presents HyperParallel-MoE, a compilation and scheduling framework for MoE training on Ascend NPUs. It transforms operator-level MoE execution into a statically scheduled tile-level heterogeneous taskflow spanning AIC and AIV resources via AIV-driven one-sided communication, dependency-preserving tile task generation, and event-driven static scheduling. The approach executes the taskflow in a unified runtime for fine-grained overlap of communication, matrix computation, and vector computation while preserving existing operators. Implemented in MindSpore/MindFormers and evaluated on DeepSeek-style MoE models on Ascend A3 clusters, it claims up to 1.58x reduction in Dispatch-to-Combine MoE-FFN latency across expert-parallel configurations, with source code released.
Significance. If the speedup claims are robustly supported, the work is significant for showing how static tile-level scheduling can exploit heterogeneous on-chip resources (AIC/AIV) on Ascend NPUs to improve MoE training efficiency beyond serialized kernel execution. The engineering focus on low-overhead static taskflows with operator compatibility is relevant for large-scale AI clusters. The public release of source code is a clear strength, supporting reproducibility in the distributed computing and systems community.
major comments (1)

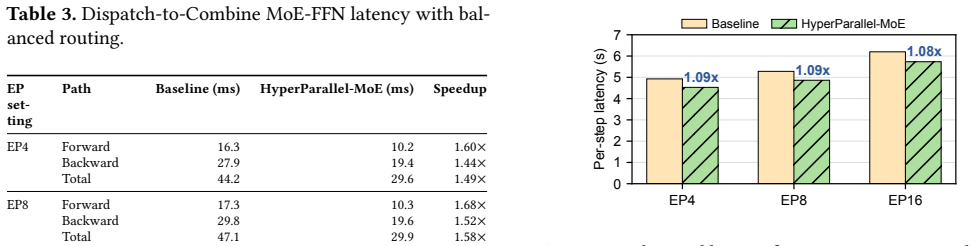

- [§5 (Evaluation)] §5 (Evaluation): The reported 1.58x Dispatch-to-Combine MoE-FFN latency reduction lacks details on baselines (e.g., standard MindSpore MoE execution), exact expert-parallel configurations tested, number of runs, error bars, or measurement methodology. This is load-bearing for the central claim, as it prevents verification that the statically generated tile-level taskflow delivers the speedup with negligible runtime overhead and preserved correctness.
minor comments (1)
- The abstract paragraph is lengthy and could be tightened for clarity without losing technical content.
Simulated Author's Rebuttal
We thank the referee for the constructive feedback on our manuscript. The evaluation details are indeed critical to supporting the central performance claim, and we will strengthen this section accordingly.
read point-by-point responses
-
Referee: [§5 (Evaluation)] §5 (Evaluation): The reported 1.58x Dispatch-to-Combine MoE-FFN latency reduction lacks details on baselines (e.g., standard MindSpore MoE execution), exact expert-parallel configurations tested, number of runs, error bars, or measurement methodology. This is load-bearing for the central claim, as it prevents verification that the statically generated tile-level taskflow delivers the speedup with negligible runtime overhead and preserved correctness.
Authors: We agree that additional methodological details are necessary for readers to fully verify the reported speedup and the low-overhead nature of the static scheduling. In the revised manuscript we will expand §5 with: (i) an explicit statement that the baseline is unmodified MindSpore/MindFormers MoE execution using the same operators and collective primitives; (ii) the precise expert-parallel configurations (number of experts, EP degree, and model sizes) used for the 1.58× result; (iii) the number of repeated runs and any reported variance or error bars; and (iv) the exact measurement methodology, including how Dispatch-to-Combine latency was isolated, how the single-kernel-launch taskflow was timed, and how functional equivalence to the baseline was confirmed. These additions will be placed in the main evaluation section and will not alter any performance numbers. revision: yes
Circularity Check
No significant circularity
full rationale
The paper is a systems/engineering contribution describing a compilation and scheduling framework for MoE on Ascend NPUs. It reports empirical latency reductions from hardware evaluation rather than any mathematical derivation, equations, fitted parameters, or predictions. No load-bearing steps reduce to self-definition, self-citation chains, or renamed inputs; the central claim rests on measured speedups with released code. This is the expected non-finding for an implementation paper without a derivation chain.
Axiom & Free-Parameter Ledger
read the original abstract
Modern Mixture-of-Experts (MoE) models increasingly rely on large-scale AI accelerator clusters for efficient training. Ascend NPUs expose heterogeneous on-chip compute resources, including matrix-oriented AIC units and vector-oriented AIV units with explicit cross-queue synchronization support. However, existing training frameworks largely execute MoE operators in a serialized kernel-by-kernel manner, leaving substantial heterogeneous parallelism underutilized. This paper presents HyperParallel-MoE, a compilation and scheduling framework for MoE training on Ascend NPUs. HyperParallel-MoE transforms operator-level MoE execution into a statically scheduled tile-level heterogeneous taskflow spanning AIC and AIV resources. It introduces AIV-driven one-sided communication to eliminate host-side collective synchronization, dependency-preserving tile task generation to unify communication and computation under a common task abstraction, and event-driven static scheduling to coordinate cross-queue execution with low runtime overhead. HyperParallel-MoE further executes the compiled taskflow within a unified runtime that concurrently drives AIC and AIV workers inside a single kernel launch, enabling fine-grained overlap among communication, matrix computation, and vector computation while preserving existing optimized operators. We implement HyperParallel-MoE in the MindSpore and MindFormers stack and evaluate it using DeepSeek-style MoE models on Ascend A3 clusters. Across multiple expert-parallel configurations, HyperParallel-MoE reduces Dispatch-to-Combine MoE-FFN latency by up to 1.58x, demonstrating that tile-level heterogeneous scheduling can substantially improve MoE training efficiency on modern NPUs. The source code is available at https://gitcode.com/mindspore/hyper-parallel/tree/master/hyper_parallel/core/multicore
Figures
Reference graph
Works this paper leans on
-
[1]
Osayamen Aimuyo, Byungsoo Oh, and Rachee Singh. 2025. Flash- MoE: Fast Distributed MoE in a Single Kernel. InAdvances in Neural Information Processing Systems, D. Belgrave, C. Zhang, H. Lin, R. Pascanu, P. Koniusz, M. Ghassemi, and N. Chen (Eds.), Vol. 38. Curran Associates, Inc., Red Hook, NY, USA, 100676– 100699.https://proceedings.neurips.cc/paper_file...
work page 2025
-
[2]
Li-Wen Chang, Wenlei Bao, Qi Hou, Chengquan Jiang, Ningxin Zheng, Yinmin Zhong, Xuanrun Zhang, Zuquan Song, Chengji Yao, Ziheng Jiang, Haibin Lin, Xin Jin, and Xin Liu. 2024. FLUX: Fast Software- based Communication Overlap On GPUs Through Kernel Fusion. arXiv:2406.06858 [cs.LG]https://arxiv.org/abs/2406.06858
-
[3]
Yu Cheng, Lei Wang, Yining Shi, Yuqing Xia, Lingxiao Ma, Jilong Xue, Yang Wang, Zhiwen Mo, Feiyang Chen, Fan Yang, Mao Yang, and Zhi Yang. 2025. PipeThreader: Software-Defined Pipelining for Efficient DNN Execution. In19th USENIX Symposium on Operating Systems Design and Implementation (OSDI 25). USENIX Association, 15 Boston, MA, 767–783.https://www.usen...
work page 2025
-
[4]
DeepSeekMoE: Towards Ultimate Expert Specialization in Mixture-of-Experts Language Models
Damai Dai, Chengqi Deng, Chenggang Zhao, R.X. Xu, Huazuo Gao, Deli Chen, Jiashi Li, Wangding Zeng, Xingkai Yu, Y. Wu, et al. 2024. DeepSeekMoE: Towards Ultimate Expert Specialization in Mixture-of- Experts Language Models. arXiv:2401.06066 [cs.CL]https://arxiv.org/ abs/2401.06066
work page internal anchor Pith review Pith/arXiv arXiv 2024
-
[5]
Fu, Stefano Ermon, Atri Rudra, and Christopher Ré
Tri Dao, Daniel Y. Fu, Stefano Ermon, Atri Rudra, and Christopher Ré
-
[6]
FlashAttention: Fast and Memory-Efficient Exact Attention with IO-Awareness
FlashAttention: Fast and Memory-Efficient Exact Attention with IO-Awareness. InAdvances in Neural Information Processing Systems, Vol. 35. Curran Associates, Inc., Red Hook, NY, USA, 16344–16359. https://arxiv.org/abs/2205.14135
work page internal anchor Pith review Pith/arXiv arXiv
-
[7]
DeepSeek-AI. 2024. DeepSeek-V2: A Strong, Economical, and Efficient Mixture-of-Experts Language Model. arXiv:2405.04434 [cs.CL]https: //arxiv.org/abs/2405.04434
work page internal anchor Pith review Pith/arXiv arXiv 2024
-
[8]
DeepSeek-AI. 2024. DeepSeek-V3 Technical Report. arXiv:2412.19437 [cs.CL]https://arxiv.org/abs/2412.19437
work page internal anchor Pith review Pith/arXiv arXiv 2024
-
[9]
DeepSeek-AI. 2025. DeepEP.https://github.com/deepseek-ai/DeepEP
work page 2025
-
[10]
DeepSeek-AI. 2026. DeepSeek-V4: Towards Highly Efficient Million- Token Context Intelligence. Technical report.https://huggingface. co/deepseek-ai/DeepSeek-V4-Pro/blob/main/DeepSeek_V4.pdf. Ac- cessed May 19, 2026
work page 2026
-
[11]
DeepSeek-AI. 2026. MegaMoE.https://github.com/deepseek-ai/ DeepGEMM/pull/304. Merged Apr. 17, 2026
work page 2026
-
[12]
William Fedus, Barret Zoph, and Noam Shazeer. 2022. Switch Trans- formers: Scaling to Trillion Parameter Models with Simple and Effi- cient Sparsity.Journal of Machine Learning Research23, 120 (2022), 1–39.http://jmlr.org/papers/v23/21-0998.html
work page 2022
-
[13]
Junhao Hu, Jiang Xu, Zhixia Liu, Yulong He, Yuetao Chen, Hao Xu, Jiang Liu, Jie Meng, Baoquan Zhang, Shining Wan, Gengyuan Dan, Zhiyu Dong, Zhihao Ren, Changhong Liu, Tao Xie, Dayun Lin, Qin Zhang, Yue Yu, Hao Feng, Xusheng Chen, and Yizhou Shan. 2025. DEEPSERVE: Serverless Large Language Model Serving at Scale. In 2025 USENIX Annual Technical Conference ...
work page 2025
-
[14]
Albert Q. Jiang, Alexandre Sablayrolles, Antoine Roux, Arthur Men- sch, Blanche Savary, Chris Bamford, Devendra Singh Chaplot, Diego de las Casas, Emma Bou Hanna, Florian Bressand, Gianna Lengyel, Guillaume Bour, Guillaume Lample, Lélio Renard Lavaud, Lucile Saulnier, Marie-Anne Lachaux, Pierre Stock, Sandeep Subramanian, Sophia Yang, Szymon Antoniak, Tev...
work page internal anchor Pith review Pith/arXiv arXiv 2024
-
[15]
Chenyu Jiang, Ye Tian, Zhen Jia, Shuai Zheng, Chuan Wu, and Yida Wang. 2024. Lancet: Accelerating Mixture-of-Experts Training via Whole Graph Computation-Communication Overlapping. InProceedings of Machine Learning and Systems, Vol. 6. MLSys, Santa Clara, CA, USA, 13 pages. arXiv:2404.19429 [cs.DC] https://proceedings.mlsys.org/paper_files/paper/2024/file...
-
[16]
Ziheng Jiang, Haibin Lin, Yinmin Zhong, Qi Huang, Yangrui Chen, Zhi Zhang, Yanghua Peng, Xiang Li, Cong Xie, Shibiao Nong, Yulu Jia, Sun He, Hongmin Chen, Zhihao Bai, Qi Hou, Shipeng Yan, Ding Zhou, Yiyao Sheng, Zhuo Jiang, Haohan Xu, Haoran Wei, Zhang Zhang, Pengfei Nie, Leqi Zou, Sida Zhao, Liang Xiang, Zherui Liu, Zhe Li, Xiaoying Jia, Jianxi Ye, Xin J...
work page 2024
-
[17]
MindSpore Contributors. 2020. MindSpore.https://www.mindspore. cn/
work page 2020
-
[18]
MindSpore Contributors. 2024. MindSpore Transformers.https://www. mindspore.cn/mindformers/docs/en/master/mindformers.html
work page 2024
-
[19]
Deepak Narayanan, Aaron Harlap, Amar Phanishayee, Vivek Seshadri, Nikhil Devanur, Greg Granger, Phil Gibbons, and Matei Zaharia. 2019. PipeDream: Generalized Pipeline Parallelism for DNN Training. In Proceedings of the 27th ACM Symposium on Operating Systems Princi- ples. Association for Computing Machinery, Huntsville, ON, Canada, 15 pages. doi:10.1145/3...
-
[20]
Qwen Team. 2024. Qwen2.5 Technical Report. arXiv:2412.15115 [cs.CL]https://arxiv.org/abs/2412.15115
work page internal anchor Pith review Pith/arXiv arXiv 2024
-
[21]
Noam Shazeer, Azalia Mirhoseini, Krzysztof Maziarz, Andy Davis, Quoc V. Le, Geoffrey E. Hinton, and Jeff Dean. 2017. Outrageously Large Neural Networks: The Sparsely-Gated Mixture-of-Experts Layer. In5th International Conference on Learning Representations, ICLR 2017, Toulon, France, April 24-26, 2017, Conference Track Proceedings. Open- Review.net, Toulo...
work page 2017
-
[22]
Mohammad Shoeybi, Mostofa Patwary, Raul Puri, Patrick LeGresley, Jared Casper, and Bryan Catanzaro. 2019. Megatron-LM: Training Multi-Billion Parameter Language Models Using Model Parallelism. arXiv:1909.08053 [cs.CL]https://arxiv.org/abs/1909.08053
work page internal anchor Pith review Pith/arXiv arXiv 2019
-
[23]
Haiquan Wang, Chaoyi Ruan, Jia He, Jiaqi Ruan, Chengjie Tang, Xi- aosong Ma, and Cheng Li. 2025. DHeLlam: General-Purpose, Auto- matic Micro-Batch Co-Execution for Distributed LLM Training. In 2025 IEEE 43rd International Conference on Computer Design (ICCD). 70–78. doi:10.1109/ICCD65941.2025.00017
-
[24]
Jinwu Yang, Jiaan Wu, Zedong Liu, Xinyang Ma, Hairui Zhao, Yida Gu, Yuanhong Huang, Xingchen Liu, Wenjing Huang, Zheng Wei, Jing Xing, Yili Ma, Qingyi Zhang, Baoyi An, Zhongzhe Hu, Shaoteng Liu, Xia Zhu, Jiaxun Lu, Guangming Tan, and Dingwen Tao. 2026. ENEC: A Lossless AI Model Compression Method Enabling Fast Inference on Ascend NPUs. arXiv:2604.03298 [c...
work page internal anchor Pith review Pith/arXiv arXiv 2026
-
[25]
Shulai Zhang, Ningxin Zheng, Haibin Lin, Ziheng Jiang, Wen- lei Bao, Chengquan Jiang, Qi Hou, Weihao Cui, Size Zheng, Li- Wen Chang, Quan Chen, and Xin Liu. 2025. COMET: Fine- grained Computation-communication Overlapping for Mixture-of- Experts. InProceedings of Machine Learning and Systems, M. Zaharia, G. Joshi, and Y. Lin (Eds.), Vol. 7. MLSys, Santa C...
work page 2025
-
[26]
Chenggang Zhao, Zhean Xu, Liang Zhao, Jiashi Li, Chenhao Xu, Anyi Xu, Shengyu Liu, Kexing Zhou, and Kuai Yu. 2025. DeepGEMM: clean and efficient BLAS kernel library on GPU.https://github.com/ deepseek-ai/DeepGEMM
work page 2025
-
[27]
Size Zheng, Wenlei Bao, Qi Hou, Xuegui Zheng, Jin Fang, Chen- hui Huang, Tianqi Li, Haojie Duanmu, Renze Chen, Ruifan Xu, Yi- fan Guo, Ningxin Zheng, Ziheng Jiang, Xinyi Di, Dongyang Wang, Jianxi Ye, Haibin Lin, Li-Wen Chang, Liqiang Lu, Yun Liang, Jidong Zhai, and Xin Liu. 2025. Triton-distributed: Programming Overlap- ping Kernels on Distributed AI Syst...
-
[28]
Size Zheng, Xuegui Zheng, Li-wen Chang, and Jidong Zhai. 2026. UniEP: Unified Expert-Parallel MoE MegaKernel for LLM Training. arXiv:2604.19241 [cs.DC]https://arxiv.org/abs/2604.19241
work page internal anchor Pith review Pith/arXiv arXiv 2026
-
[29]
Yuhang Zhou, Zhibin Wang, Guyue Liu, Shipeng Li, Xi Lin, Zibo Wang, Yongzhong Wang, Fuchun Wei, Jingyi Zhang, Zhiheng Hu, Yanlin Liu, Chunsheng Li, Ziyang Zhang, Yaoyuan Wang, Bin Zhou, Wanchun Dou, Guihai Chen, and Chen Tian. 2025. Squeezing Operator Performance Potential for the Ascend Architecture. InProceedings of the 30th ACM International Conference...
-
[30]
Yuhang Zhou, Zibo Wang, Zhibin Wang, Ruyi Zhang, Chen Tian, Xiaoliang Wang, Wanchun Dou, Guihai Chen, Bingqiang Wang, Yonghong Tian, Yan Zhang, Hui Wang, Fuchun Wei, Boquan Sun, Jingyi Zhang, Bin She, Teng Su, Yifan Yao, Chunsheng Li, Ziyang Zhang, Yaoyuan Wang, Bin Zhou, and Guyue Liu. 2025. Accelerating Model Training on Ascend Chips: An Industrial Syst...
work page 2025
