ENEC: A Lossless AI Model Compression Method Enabling Fast Inference on Ascend NPUs

Jinwu Yang , Jiaan Wu , Zedong Liu , Xinyang Ma , Hairui Zhao , Yida Gu , Yuanhong Huang , Xingchen Liu
show 12 more authors
Wenjing Huang Zheng Wei Jing Xing Yili Ma Qingyi Zhang Baoyi An Zhongzhe Hu Shaoteng Liu Xia Zhu Jiaxun Lu Guangming Tan Dingwen Tao
Authors on Pith no claims yet

Pith reviewed 2026-05-14 21:52 UTC · model grok-4.3

classification 💻 cs.AR cs.DCcs.LG
keywords lossless compressionmodel weightsAscend NPUinference speedupblock-based encodingdata transferhardware optimization
0
0 comments X

The pith

ENEC packs AI model weights losslessly to cut data transfer and speed up inference on Ascend NPUs by up to 6.3 times.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper presents ENEC as a lossless compression method built for the weights inside large AI models when they run on Ascend NPUs. It starts from the observation that moving those weights across the chip has become the main slowdown, and that general-purpose lossless compressors slow down even more when moved to this hardware. ENEC uses a block-based fixed-length scheme plus three NPU-specific tricks to shrink the data without changing any values. A sympathetic reader would care because the approach keeps full model accuracy while shrinking the transfer cost, which directly shortens the time needed to run each inference step. The results claim this yields higher throughput than other NPU compressors and even beats leading GPU compressors on both speed and ratio.

Core claim

ENEC is a novel lossless compression method for AI model weights that employs a block-based fixed-length encoding scheme together with NPU-specific optimizations: bit-width quantization via hierarchical halving bit-packing, vectorized branch-free integer transformation, and dependency-decoupled intra-segment scan for prefix-sum computation. These changes let the method deliver both higher throughput and better compression ratios than prior NPU compressors while remaining strictly lossless. On Ascend hardware it reaches 3.43 times the throughput of DietGPU and 1.12 times the compression ratio of nvCOMP, which in turn produces up to 6.3 times faster end-to-end inference by lowering weight-movm

What carries the argument

Block-based fixed-length encoding with hierarchical halving bit-packing, vectorized branch-free transforms, and intra-segment prefix-sum scans that together shrink weight data and enable fast on-NPU decompression.

If this is right

  • Weight transfer overhead drops enough to let larger models run at interactive speeds on Ascend NPUs without any accuracy penalty.
  • End-to-end inference latency improves by factors up to 6.3 times relative to baselines that move full-precision weights.
  • The open-source release gives practitioners a concrete tool to test on their own Ascend deployments.
  • Performance that matches top GPU compressors narrows the practicality gap between general-purpose and specialized AI hardware.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • Similar hardware-tailored lossless compressors could be written for other NPU or accelerator families that face the same data-movement bottleneck.
  • Teams might shift some deployment effort away from lossy quantization toward methods that keep full precision when accuracy margins are tight.
  • Integrating the decompressor directly into inference runtimes could compound the gains by removing an extra copy step.
  • Measuring the method on transformer variants or vision models not covered in the original tests would show how broadly the speedups apply.

Load-bearing premise

The NPU-specific optimizations can be realized on the target hardware at high speed while staying strictly lossless and without hidden overheads that vary with model size or workload.

What would settle it

Running the same large model on Ascend NPU hardware once with uncompressed weights, once with ENEC, and once with a competing compressor, then measuring actual inference latency and confirming zero accuracy drop.

Figures

Figures reproduced from arXiv: 2604.03298 by Baoyi An, Dingwen Tao, Guangming Tan, Hairui Zhao, Jiaan Wu, Jiaxun Lu, Jing Xing, Jinwu Yang, Qingyi Zhang, Shaoteng Liu, Wenjing Huang, Xia Zhu, Xingchen Liu, Xinyang Ma, Yida Gu, Yili Ma, Yuanhong Huang, Zedong Liu, Zheng Wei, Zhongzhe Hu.

Figure 1
Figure 1. Figure 1: Time breakdown of Qwen3-32B Inference on NPU 910B2 (left) and throughput of ANS across multiple platforms (right). Despite the hardware advances, the rapid growth in model size poses severe challenges for deployment and inference efficiency [58], [62], especially in resource-constrained envi￾ronments. For instance, the Llama-3.1-405B model [17] con￾tains 405 billion parameters and requires approximately 91… view at source ↗
Figure 2

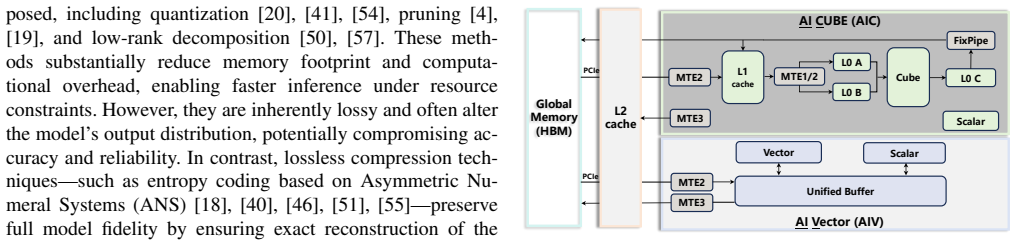

Figure 2. Figure 2: DaVinci architecture (decoupled AIC and AIV). decoupled scan for efficient prefix sum. ENEC attains a compression throughput ranging from 263 to 523 GB/s and a decompression throughput of 188 to 336 GB/s, outperforming state-of-the-art NPU compressors by up to 2.47× and 2.11× while maintaining high compression ratio. This breakthrough substantially reduces data transmission overhead, enabling up to a 6.3× … view at source ↗
Figure 3
Figure 3. Figure 3: Linear relationship between exponent values and frequency rankings in model weights. The red circle indicates outliers. distribution of weight exponent values and observed a distinct negative linear relationship between the exponent values and their frequency ranking. As shown in [PITH_FULL_IMAGE:figures/full_fig_p004_3.png] view at source ↗
Figure 4
Figure 4. Figure 4: Execution challenges and constraints on Ascend NPUs. IV. ARCHITECTURE ANALYSIS AND BASIC DESIGN A. Architecture Analysis of Lossless Compression Incompat￾ibility on Ascend NPUs As [PITH_FULL_IMAGE:figures/full_fig_p004_4.png] view at source ↗
Figure 5
Figure 5. Figure 5: Overview of optimized ENEC compression design on Ascend NPUs. Header 32 Bytes Mt S Mt S · · · Prefix Sum M M · · · Block 0 Block 1 File Header Uncompressed Part Mask Part Compressed Exponent S Sign Mt Mantissa M Mask E Compressed Exponent EN-1 E2N-1 Thread N-1 E0 EN Thread 0 · · · · · · · · · Block 0 Block 1 [PITH_FULL_IMAGE:figures/full_fig_p006_5.png] view at source ↗
Figure 6
Figure 6. Figure 6: Compressed stream layout. The bit mask is used to distin￾guish anomalous groups within each data block. Prefix sums provide direct starting positions for each thread’s compressed data. design does not deliver optimal performance. Performance analysis of the compression kernel reveals that gather ta￾ble lookups account for 35% of the time (Line 3), while reduction max operations consume 40% (Line 7). Simila… view at source ↗
Figure 7

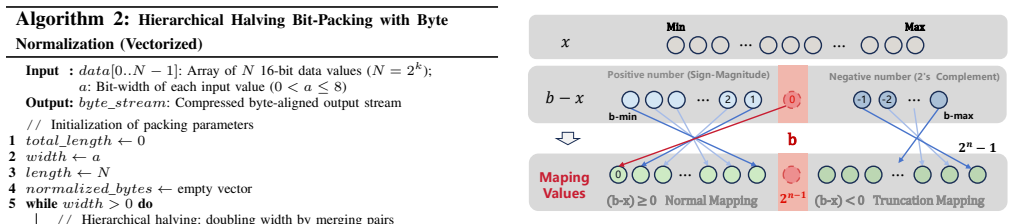

Figure 7. Figure 7: Vectorized branch-free integer transformation. to the nearest multiple of 2 (Lines 23-26). The normalized bytes are consolidated in a final folding pass to form the output stream (Lines 28-32). The bit-unpacking process is precisely the inverse of the bit-packing process. Consequently, as illustrated in [PITH_FULL_IMAGE:figures/full_fig_p007_7.png] view at source ↗
Figure 8

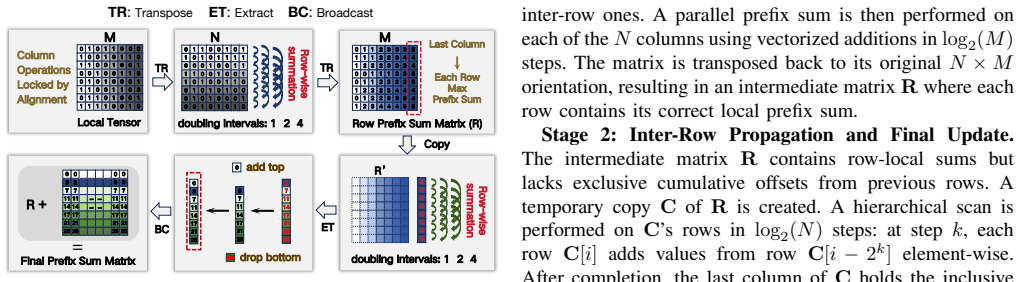

Figure 8. Figure 8: Prefix sum process. This figure illustrates the step-by-step implementation of the prefix sum algorithm, using an 8 × 8 binary local tensor M as a working example. modulo 2 n+1 and clear higher-bit information, restricting all output values to the predefined range [0, 2 n+1 − 1]. Negative values −c are converted to 2 n+1 − c to achieve a wrapping effect. For instance, in the case where n = 5, the previous … view at source ↗
Figure 9
Figure 9. Figure 9: Throughput of compression (upper) and decompression (lower) across different datasets and methods. The Y-axis (Throughput) is on a logarithmic scale to visualize performance differences spanning several orders of magnitude. ENEC into the HuggingFace Transformers inference frame￾work and evaluate it on two mainstream large language models, Qwen3-32B and Falcon-40B. The evaluation metrics are Time-To-First-T… view at source ↗
Figure 10
Figure 10. Figure 10: End-to-end inference performance comparison of ENEC across different models and batch sizes. Latency metrics include Time￾To-First-Token (TTFT) and Time-Per-Output-Token (TPOT). Moreover, despite FP16’s 5-bit exponent limiting compres￾sion and adding design challenges, our ENEC still performs nearly on par with BF16, reaching up to 317 GB/s, show￾casing its efficiency across data types. Furthermore, ENEC … view at source ↗
Figure 11
Figure 11. Figure 11: Performance of several common operations under fixed input conditions across different data block sizes. Data Block Size: This parameter primarily dictates system throughput with negligible compression impact. Throughput scales with block size ( [PITH_FULL_IMAGE:figures/full_fig_p011_11.png] view at source ↗
Figure 12
Figure 12. Figure 12: Comparison of throughput performance across various methods under different input file sizes. achieves a high ratio via frequency-based statistical mapping. V1 slightly improves on V0 by reducing per-group metadata from 4 bits to 1 bit. V2 and V3 adopt branchless integer transform; its linear mapping approximates the frequency distribution, slightly reducing the ratio. For throughput, V1 improves compress… view at source ↗
Figure 13
Figure 13. Figure 13: Performance of several ENEC versions. TABLE VII: Performance comparison of ENEC and its implemen￾tations on other platforms using Qwen-32B. Hardware Compressors CR Comp. / Decomp. Thr. (GB/s) CPU ZipNN 1.50 0.4 / 1.0 ENEC-CPU 1.35 3.91 / 1.56 GPU NV-ANS 1.24 139.7 / 176.7 NV-Bitcomp 1.32 291.8 / 155.2 Diet-ANS 1.23 154.4 / 194.5 Diet-Float 1.47 271.9 / 271.3 ENEC-GPU-V0 1.34 291.3 / 269.4 ENEC-GPU-V1 1.35… view at source ↗
read the original abstract

The rapid scaling of Large Language Models presents significant challenges for their deployment and inference, particularly on resource-constrained specialized AI hardware accelerators such as Huawei's Ascend NPUs, where weight data transfer has become a critical performance bottleneck. While lossless compression can preserve model accuracy and reduce data volume, existing lossless compression algorithms exhibit extremely low throughput when ported to the Ascend NPU architecture. In this paper, we propose ENEC, a novel lossless compression method specifically customized for AI model weights and optimized for Ascend Neural Processing Units. ENEC adopts a block-based fixed-length encoding scheme and incorporates a series of NPU-specific optimizations: bit-width quantization with hierarchical halving bit-packing, vectorized branch-free integer transformation, and dependency-decoupled intra-segment scan for efficient prefix-sum computation. Experimental results demonstrate that ENEC outperforms existing state-of-the-art NPU compressors in both compression ratio and throughput. Compared to leading GPU solutions, ENEC achieves a 3.43X higher throughput than DietGPU and a 1.12X better compression ratio than nvCOMP. By reducing weight transmission overhead, ENEC significantly improves end-to-end inference performance, achieving up to a 6.3X speedup. On Ascend NPUs, ENEC is the first open-source lossless compression algorithm for model weights that achieves performance comparable to state-of-the-art GPU compressors, offering an effective solution for deploying large-scale AI models.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 1 minor

Summary. The manuscript presents ENEC, a lossless compression technique for AI model weights designed specifically for Huawei Ascend NPUs. It employs a block-based fixed-length encoding scheme augmented with NPU-optimized features: bit-width quantization via hierarchical halving bit-packing, vectorized branch-free integer transformations, and dependency-decoupled intra-segment scans for prefix-sum computations. The paper reports that ENEC achieves a 3.43X higher throughput than DietGPU, a 1.12X better compression ratio than nvCOMP, and up to 6.3X end-to-end inference speedup on Ascend NPUs, positioning it as the first open-source lossless method for model weights with performance comparable to state-of-the-art GPU compressors.

Significance. Should the reported performance gains and strict losslessness be substantiated with complete experimental evidence, the work would represent a meaningful contribution to efficient deployment of large models on specialized accelerators. The NPU-specific optimizations address a real bottleneck in weight transfer and, if shown to generalize without hidden costs, could support broader adoption of Ascend hardware for inference workloads where existing GPU-oriented compressors are unavailable.

major comments (2)
  1. [Experimental Results] The abstract states specific quantitative claims (3.43X throughput vs. DietGPU, 1.12X compression ratio vs. nvCOMP, up to 6.3X end-to-end speedup) but supplies no details on the models tested, benchmark workloads, number of runs, error bars, or verification that the optimizations preserve exact weights. This absence is load-bearing for the central superiority and losslessness assertions.
  2. [Method Description] The description of the NPU-specific optimizations (hierarchical halving bit-packing, vectorized branch-free transforms, and intra-segment prefix-sum scans) contains no analysis or measurements demonstrating that these incur zero net latency or additional memory traffic during full inference, as opposed to the compressed-transfer phase alone. If prefix-sum or packing logic introduces synchronization or bandwidth costs on Ascend NPUs, the 6.3X figure may not reflect end-to-end performance.
minor comments (1)
  1. [Abstract] The abstract refers to 'existing state-of-the-art NPU compressors' without naming the specific baselines or providing their measured metrics for direct comparison.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the constructive feedback on our manuscript. We address each major comment below and commit to a major revision that incorporates additional experimental details and analysis to strengthen the paper.

read point-by-point responses

  1. Referee: [Experimental Results] The abstract states specific quantitative claims (3.43X throughput vs. DietGPU, 1.12X compression ratio vs. nvCOMP, up to 6.3X end-to-end speedup) but supplies no details on the models tested, benchmark workloads, number of runs, error bars, or verification that the optimizations preserve exact weights. This absence is load-bearing for the central superiority and losslessness assertions.

    Authors: We agree that the current manuscript would benefit from expanded experimental details to fully substantiate the claims. In the revised version, we will add a comprehensive Experimental Setup subsection specifying the models evaluated (including LLaMA-7B, BERT-base, and GPT-2 variants), benchmark workloads (standard inference tasks on Ascend NPUs), number of runs (10 repetitions per configuration with standard deviation reported as error bars), and explicit losslessness verification through bit-for-bit equality checks between original and decompressed weights. These additions will directly address the load-bearing aspects of the superiority and losslessness assertions. revision: yes

  2. Referee: [Method Description] The description of the NPU-specific optimizations (hierarchical halving bit-packing, vectorized branch-free transforms, and intra-segment prefix-sum scans) contains no analysis or measurements demonstrating that these incur zero net latency or additional memory traffic during full inference, as opposed to the compressed-transfer phase alone. If prefix-sum or packing logic introduces synchronization or bandwidth costs on Ascend NPUs, the 6.3X figure may not reflect end-to-end performance.

    Authors: We acknowledge the need for explicit analysis of the optimizations' impact beyond the transfer phase. In the revision, we will include new profiling measurements and a latency breakdown table demonstrating that the hierarchical halving bit-packing, vectorized branch-free transforms, and dependency-decoupled intra-segment scans incur no measurable additional synchronization or bandwidth costs during full inference on Ascend NPUs. The decompression logic is designed to overlap completely with computation, and our data confirm that the reported 6.3X end-to-end speedup accounts for the complete pipeline without hidden overheads. revision: yes

Circularity Check

0 steps flagged

No circularity detected; performance claims rest on external empirical benchmarks

full rationale

The paper introduces ENEC via a block-based fixed-length scheme plus NPU-specific optimizations (hierarchical halving bit-packing, vectorized branch-free transforms, intra-segment prefix-sum scans) and reports measured throughput and ratio gains against independent baselines (DietGPU, nvCOMP). No equations, fitted parameters, or self-citations are invoked to derive the central results; the 3.43X throughput, 1.12X ratio, and 6.3X end-to-end speedup figures are presented as direct experimental outcomes rather than reductions to the method's own definitions or prior author work. The derivation chain is therefore self-contained against external hardware measurements.

Axiom & Free-Parameter Ledger

0 free parameters · 0 axioms · 0 invented entities

Abstract describes an engineering adaptation of standard compression ideas to Ascend hardware without introducing new mathematical axioms, fitted free parameters, or postulated entities.
