Real-Time Analysis of Unstructured Data with Machine Learning on Heterogeneous Architectures

Fotis I. Giasemis

REVIEW 3 major objections 4 minor 295 references

Real-Time Analysis of Unstructured Data with Machine Learning on Heterogeneous Architectures

T0 review · 3 major / 4 minor · reviewed 2026-08-05 · deepseek-v4-flash

Challenge this review Re-run · record.json Download PDF Read on arXiv ↗

Pith's one-line read A graph-neural-network track finder reconstructs charged particles in the LHCb vertex detector with physics performance comparable to the production algorithm while running inside the first-level GPU trigger.

desk verdict A useful engineering thesis with a real GNN-in-trigger result, but the abstract oversells the FPGA work and the headline physics-parity claim belongs to the prototype, not the deployed C++/CUDA version. read the letter →

arxiv 2508.07423 v3 pith:JGHTBH44 submitted 2025-08-10 physics.data-an cs.AIcs.DCcs.LGhep-ex

Fotis I. Giasemis This is my paper

classification physics.data-ancs.AIcs.DCcs.LGhep-ex

keywords graphneuralnetworktrackreconstructionLHCbVELOreal-timetriggerGPUcomputingFPGAquantizationheterogeneousarchitectures

verification ladder T0 review T1 audit T2 compute T3 formal

The pith

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The reading

The paper's central claim is that a graph-neural-network track finder, ETX4VELO, can reconstruct charged-particle tracks in the upgraded LHCb vertex detector with physics performance comparable to the production 'Search by triplet' algorithm, while running entirely on GPUs inside the first-level trigger Allen. If true, it shows that machine-learned track reconstruction can be competitive in the most demanding real-time filtering environment in particle physics, rather than being strictly a costlier alternative. The paper also claims that an FPGA implementation of the pipeline's embedding MLP can deliver competitive inference throughput at lower energy per event than a GPU, pointing toward heterogeneous trigger systems. These results are established on simulated LHCb collisions and evaluated with the MonteTracko library; the FPGA throughput figures come from synthesis estimates rather than board measurements.

What carries the argument

The central object carrying the claim is the ETX4VELO pipeline, a graph-neural-network track finder. Its functional blocks are: an embedding MLP that turns VELO hit coordinates into a low-dimensional embedding; a k-nearest-neighbour graph built in that embedding space; a message-passing GNN with node and edge networks that scores whether each edge connects hits from the same particle; and a triplet classifier followed by weakly connected components that assembles the scored edges into tracks. The triplet stage is the piece that lets the pipeline separate electron tracks that share initial hits. On the GPU side, the same models are exported through ONNX and run with ONNX Runtime or TensorRT u

What would settle it

Measure the deployed pipeline on real Run 3 LHCb collisions and compare its reconstructed track multiplicity, momentum spectra, and occupancy dependence with the production 'Search by triplet' algorithm; a divergence in efficiency or false-track rate with pile-up that does not appear in the Monte Carlo evaluation would falsify the transfer of the physics-performance claim to production.

Watch

Extended reading notes

Core claim

ETX4VELO replaces the hand-crafted combinatorial search of the production VELO tracker with a learned pipeline: an MLP embeds detector hits into a Euclidean space, a k-nearest-neighbour graph connects nearby hits, a graph neural network scores each edge as genuine or fake, a triplet classifier handles electrons that share hits, and a weakly-connected-components pass groups surviving edges into tracks. Evaluated with MonteTracko on simulated proton-proton collisions, it achieves tracking efficiency, clone rate, ghost/fake rate, and hit purity comparable to 'Search by triplet' for long particles, VELO-only particles, and electrons, and runs end to end inside Allen on GPUs at throughputs the th

Load-bearing premise

The central claim assumes that the simulated Monte Carlo collisions used for training and evaluation faithfully represent real LHCb Run 3 VELO conditions—occupancy, noise, and alignment—since no validation on real collision data is presented.

Editorial extensions

If this is right

If the central claim holds, LHCb could run VELO track finding with a learned algorithm at the same physics quality as the production search while keeping the entire first-level trigger on GPUs.
The comparable electron performance suggests the pipeline can handle the shared-hit ambiguity that is specifically hard for combinatorial seeding, potentially recovering tracks that classical algorithms lose.
The INT8 results imply that the memory and compute cost of GNN inference can be reduced to a level compatible with the trigger without sacrificing tracking quality.
The FPGA results point toward heterogeneous first-level triggers in which the fixed-shape MLP embedding runs on low-power programmable logic while the data-dependent graph and tracking steps remain on GPUs.

Reading between the lines

Editorial extensions of the paper, not claims the author makes directly.

Not tested in the paper: the same pipeline could be retrained for other LHCb subdetectors or for the HL-LHC VELO geometry; the graph-construction and GNN stages would need re-validation because occupancy and hit density change materially.
A straightforward testable extension: measure the FPGA implementation on the actual Alveo board, taking power and latency from counters rather than synthesis reports; the paper's power-per-event advantage is currently an estimate.
The sim-to-real question could be closed by running the deployed Allen code on a sample of real Run 3 collisions and comparing track-level outputs with the production algorithm; the thesis does not yet present that evidence.
If the scaling behavior is as reported, the approach could inform trigger design beyond LHCb, since any experiment with a pixel vertex detector and a throughput constraint faces the same combinatorial bottleneck.

Share X Bluesky LinkedIn Reddit HN

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, and a circularity audit.

Desk Editor's Note

read the letter

Worth a serious referee, with a clear request to fix the framing. The genuinely new thing here is ETX4VELO: a GNN track-finding pipeline adapted from Exa.TrkX to the LHCb VELO, with a triplet classifier for electron tracks, integrated into Allen and run end-to-end on GPUs. The evaluation against the production Search-by-triplet algorithm over eta, phi, pT, vz, and occupancy, using MonteTracko, is the right methodology, and the parenthetical reporting in Tables 8.1–8.3 is honest: the reader can see the difference between the full prototype and the version actually in C++/CUDA. There is also an INT8 quantization study and a partial FPGA implementation of the embedding MLP with power/cost numbers. The work builds on a JINST paper and an IEEE NEWCAS paper, and the code is downloadable. That is real, reproducible engineering, and the thesis deserves referee time.

The soft spots are in the claims, not the measurements. First, the abstract says the pipeline was “accelerated on the FPGA architecture,” but Chapter 10 covers only the embedding MLP. That is an overstatement. Second—and more important—the parenthetical values in Tables 8.1–8.3 are not a minor detail: they are the deployed implementation. The abstract and Chapter 8 headline parity with Search by triplet for the full pipeline with triplets; the version running inside Allen omits that step, and the thesis does not state up front how much the deployed version loses on electrons. If the parentheses are close, fine, but the reader has to dig for it. The framing should be corrected. Third, all physics performance is on simulated MC. No real-data validation appears, so production-readiness is not demonstrated even though the code runs in Allen. Fourth, the GPU throughput numbers come from consumer RTX cards and the FPGA numbers from Vivado synthesis, not the production A5000 or on-board measurements. The thesis mostly discloses these limitations, but they belong in the abstract. None of this invalidates the core engineering result; it just means the claims need to be scoped precisely.

For whom: people working on ML in LHC triggers, FastML/accelerator people, and reviewers who care about deployment details. I would want the revised version to state which pipeline variant achieved the headline numbers and to correct the FPGA claim. Send it to peer review.

Referee Report

3 major / 4 minor

Summary. The thesis presents ETX4VELO, a graph-neural-network-based track reconstruction pipeline for the LHCb VELO, and claims that it reaches physics performance comparable to the production 'Search by triplet' algorithm while running end-to-end inside Allen, LHCb's first-level GPU trigger. The physics performance is evaluated with the MonteTracko framework on simulated proton-proton collisions as a function of eta, phi, pT, vz and occupancy, with the triplet-based Python pipeline as the primary comparison and parenthetical values for the C++/CUDA implementation without the triplet step. A second contribution is an FPGA implementation of the embedding MLP, with throughput, power and cost comparisons against GPUs using Vivado synthesis estimates.

Significance. If the central claims hold, this is a valuable demonstration that a GNN-based tracking pipeline can be deployed inside a real first-level trigger at the LHC collision rate, and it provides concrete evidence on the GPU/FPGA trade-off for such workloads. The manuscript has clear strengths: the evaluation uses an external production baseline, the performance metrics follow LHCb conventions via MonteTracko, the training/validation losses are shown, the ommission of the triplet step in the C++/CUDA version is reported rather than hidden, and the code is organised under a public GitLab group. These features make the work a useful reference for the FastML community. However, several load-bearing points need to be clarified or qualified before the abstract-level claims can be accepted as stated.

major comments (3)

[§8.4, Tables 8.1–8.3; abstract] The headline physics-performance comparison uses the full pipeline with the triplet classifier, while the implementation inside Allen is the C++/CUDA version without the triplet step. Table 8.1–8.3 captions explicitly state that the parenthetical values 'correspond to the performance of the ETX4VELO pipeline without the triplet approach, as currently implemented in C++/CUDA and presented in Chapter 9'. Since Chapter 9 is the version that actually runs in Allen, the abstract's claim that the pipeline is implemented end-to-end inside the trigger and achieves the reported physics performance needs to be tied to this exact configuration. Please state explicitly whether the triplet classifier is part of the Allen implementation; if it is not, the central comparison must be reported for the deployed configuration, or the claim should be qualified accordingly.
[§8.3.1, Figs. 8.18–8.25] All physics-performance results are obtained from simulated Monte Carlo samples (e.g., 7.6 interactions per crossing at sqrt(s)=14 TeV). No validation on Run 3 collision data is presented. The central claim that ETX4VELO is production-ready inside the LHCb trigger depends on the assumption that the simulation faithfully reproduces VELO occupancy, noise and alignment. If real-data validation is not yet possible, the manuscript should say so explicitly and discuss the expected sim-to-real transfer, rather than presenting the simulated performance without qualification.
[§9.3–§9.4, Tables 9.5–9.7; §10.1–§10.3, Tables 10.2–10.7] The throughput comparisons are measured on consumer GPUs (RTX 2080 Ti, RTX 3090), not the production RTX A5000 used in Allen, so the claim that the pipeline fits the trigger budget relies on an extrapolation. In addition, the FPGA throughput and power figures come from Vivado synthesis estimates rather than on-board measurements, and the FPGA implementation covers only the embedding MLP, not the full pipeline. The secondary FPGA/GPU comparison should be scoped to the measured/synthesized component and clearly labelled as an estimate.

minor comments (4)

[Abstract and §10.3] The abstract says the pipeline 'was also accelerated on the FPGA architecture'; Chapter 10 in fact implements only the embedding MLP on FPGA. Consider phrasing this as a partial acceleration with the scope stated up front.
[Tables 9.5–9.6] The comparisons to '530000' and '860000' for the full Allen pipeline should state the units (events/s) and the exact hardware/conditions under which these reference numbers were obtained.
[§3.4, §4.1] Typographical errors: 'competion' should be 'competition', 'byconsequence' should be 'by consequence'. There are also inconsistent spellings of 'MonteTracko' in figure captions.
[§9.2] For reproducibility, give exact software versions and commit hashes or release tags for the GDL4HEP code used for the reported numbers, in addition to the dependency versions already listed.

Circularity Check

0 steps flagged · score 1.0 of 10

No material circularity: central claims rest on external benchmarks (Search by triplet, Allen, Monte Carlo truth), not on fitted parameters renamed as predictions.

full rationale

This is an empirical engineering thesis rather than a derivation from first principles, so the circularity patterns are largely inapplicable. The central physics-performance claim is a direct comparison between ETX4VELO and the production Search-by-triplet algorithm inside Allen, evaluated on simulated LHCb events with MonteTracko (Ch. 8, Tables 8.1–8.3, Figs. 8.18–8.25). The GNN is trained on simulation truth with separate validation losses (Figs. 8.15–8.17), and the baseline is external production code, so the comparison does not reduce to the training data or to the thesis's own definitions. Throughput claims are measured against the full Allen VELO pipeline on specified GPUs (Tables 9.5–9.6), and the FPGA numbers are synthesis-based estimates on Alveo cards (Tables 10.2–10.7). The self-citations to the author's JINST [8] and NEWCAS [13] papers reproduce the same empirical measurements, but they are not load-bearing in a circular way because the evidence is externally falsifiable against the production algorithm and simulation truth. One non-circular consistency caveat is present: the parenthetical values in Table 8.1 show that the C++/CUDA Allen implementation omits the triplet classifier, so the strongest parity claim applies to the full Python pipeline rather than the deployed Allen version; this is a correctness/scope risk, not a circularity.

Assumptions & free parameters 5 free parameters · 5 assumptions · 0 invented entities

All load-bearing degrees of freedom are engineering choices of an ML pipeline: graph construction parameters, score thresholds, model sizes, and quantization or precision settings. The pipeline introduces no new physical entities and no new physics axioms beyond background physics. The entire results chain depends on simulation fidelity, the standard LHCb Monte Carlo, and synthesis-based estimates on the FPGA side, which is why those appear as domain assumptions.

free parameters (5)

k-NN neighborhood size k
Used for the rough graph construction (Section 8.3.2); chosen by hand, controls graph density, physics performance, and inference cost.
Edge and triplet score thresholds
Operating points behind the efficiency and fake-rate numbers in Tables 8.1 to 8.3 and Figures 8.18 to 8.25; threshold sensitivity is not shown, so the comparison rests on these choices.
Embedding MLP and GNN architecture sizes
Reduced 'down to the minimum size possible, while keeping the physics performance within acceptable levels' (Figure 9.2 caption); a hand-guided tradeoff between physics performance and throughput.
INT8 quantization scales (PTQ) = calibrated on a representative sample
Section 9.2.5: quantization scales are fitted on a calibration dataset during post-training quantization; the performance delta is reported in Table 9.4.
FPGA fixed-point precisions ap_fixed<a,b> = 8-bit and 16-bit variants
Section 10.1.4 and Tables 10.5 to 10.7: bit widths chosen after the tolerance study in Figure 10.4; they set resource usage and the reported throughput and power figures.

assumptions (5)

domain assumption Monte Carlo simulation truth correctly labels which detector hits belong to the same particle, and the simulated VELO response matches the real detector.
Invoked in Section 8.3.1 (Datasets) and used through MonteTracko for all physics performance claims; the quoted conditions (7.6 interactions per crossing, sqrt(s)=14 TeV, Figure 7.4) are simulation conditions. No real-data validation appears in the visible text.
domain assumption Supervised training on simulated pp samples transfers to the pile-up and occupancy conditions of the trigger deployment.
The training process (Section 8.3.6) and occupancy scaling studies (Figures 9.11 to 9.13) assume the trained model and measured throughput hold at production occupancies without retraining or degradation beyond what is reported.
domain assumption The production Allen framework and its Search by triplet implementation provide an accurate baseline for the classical tracking comparison.
Tables 8.1 to 8.3 and Figures 8.18 to 8.25 compare against Allen's implementation as ground truth for classical tracking; no independent re-implementation is provided.
standard math Standard ML and HPC background (backpropagation, SGD, message passing, Amdahl's law, CUDA semantics) is applicable as presented.
Chapters 4 and 5 are pedagogical background; the results rely on these standard tools without re-derivation.
domain assumption Vivado HLS synthesis estimates of clock period, latency, and resource utilization are reliable proxies for on-board FPGA performance.
Tables 10.2 to 10.7 report FPGA throughput and power from synthesis, and Table 10.7 is explicitly labeled as 'theoretical performance' for the Alveo implementations, whereas GPU figures are measured; a common measurement basis is not established.

how reviews work

0 comments

Cite this review

Pith. "Pith review of Real-Time Analysis of Unstructured Data with Machine Learning on Heterogeneous Architectures." pith.science (2026). https://pith.science/paper/JGHTBH44

@misc{pith2026250807423,
  author       = {Pith},
  title        = {Pith review of: Real-Time Analysis of Unstructured Data with Machine Learning on Heterogeneous Architectures},
  year         = {2026},
  howpublished = {\url{https://pith.science/paper/JGHTBH44}},
  note         = {Machine review of arXiv:2508.07423}
}

read the original abstract

As the particle physics community needs higher and higher precisions in order to test our current model of the subatomic world, larger and larger datasets are necessary. With upgrades scheduled for the detectors of colliding-beam experiments around the world, and specifically at the Large Hadron Collider at CERN, more collisions and more complex interactions are expected. This directly implies an increase in data produced and consequently in the computational resources needed to process them. At CERN, the amount of data produced is gargantuan. This is why the data have to be heavily filtered and selected in real time before being permanently stored. This data can then be used to perform physics analyses, in order to expand our current understanding of the universe and improve the Standard Model of physics. This real-time filtering, known as triggering, involves complex processing happening often at frequencies as high as 40 MHz. This thesis contributes to understanding how machine learning models can be efficiently deployed in such environments, in order to maximize throughput and minimize energy consumption. Inevitably, modern hardware designed for such tasks and contemporary algorithms are needed in order to meet the challenges posed by the stringent, high-frequency data rates. In this work, I present our graph neural network-based pipeline, developed for charged particle track reconstruction at the LHCb experiment at CERN. The pipeline was implemented end-to-end inside LHCb's first-level trigger, entirely on GPUs. Its performance was compared against the classical tracking algorithms currently in production at LHCb. The pipeline was also accelerated on the FPGA architecture, and its performance in terms of power consumption and processing speed was compared against the GPU implementation.

Figures

Figures reproduced from arXiv: 2508.07423 by the authors.

**Figure 2.1.** Comparison of the streaming data rates (in bytes per second) versus [PITH_FULL_IMAGE:figures/full_fig_p048_2_1.png] view at source ↗

**Figure 2.2.** Plan for the LHC/High-Luminosity LHC (updated in January 2025). Figure from [ [PITH_FULL_IMAGE:figures/full_fig_p051_2_2.png] view at source ↗

**Figure 2.3.** LHCb luminosity results over the various data-taking periods at the LHC. [PITH_FULL_IMAGE:figures/full_fig_p052_2_3.png] view at source ↗

Figures from the paper (99 more)

**Figure 2.4.** Figure 2.4: The evolution of the data bandwidth as a function of time for past and [PITH_FULL_IMAGE:figures/full_fig_p053_2_4.png]

**Figure 2.6.** Figure 2.6: LHC / HL-LHC Plan (updated in February 2022). Taken from [ [PITH_FULL_IMAGE:figures/full_fig_p054_2_6.png]

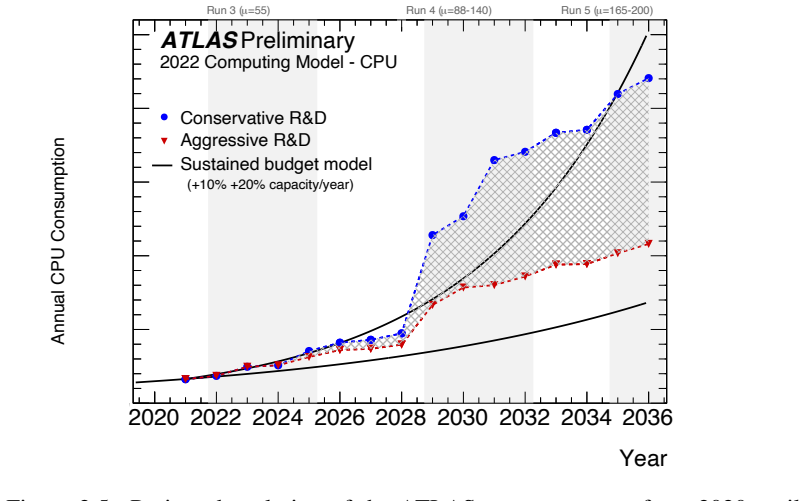

**Figure 2.7.** Figure 2.7: Projected evolution of ATLAS compute usage from 2020 until 2036, under two R&D scenarios. The Figure 2.5: Projected evolution of the ATLAS compute usage from 2020 unt [PITH_FULL_IMAGE:figures/full_fig_p054_2_7.png]

**Figure 3.1.** Figure 3.1: A cylindrical coordinate system defined by an origin [PITH_FULL_IMAGE:figures/full_fig_p061_3_1.png]

**Figure 3.2.** Figure 3.2: The polar (𝜃) and azimuthal (𝜑) angles. Adapted from [101]. 𝐿 𝑀 𝑁 = →↑ 𝑂 = 180↓ 𝑁 = →2.44 𝑂 = 170↓ 𝑁 = →1.32 𝑂 = 150↓ 𝑁 = →0.88 𝑂 = 135↓ 𝑁 = →0.55 𝑂 = 120↓ 𝑁 = 0 𝑂 = 90↓ 𝑁 = 0.55 𝑂 = 60↓ 𝑁 = 0.88 𝑂 = 45↓ 𝑁 = 1.32 𝑂 = 30↓ 𝑁 = 2.43 𝑂 = 10↓ 𝑂 𝑂 = 0↓ 𝑁 = +↑ [PITH_FULL_I…

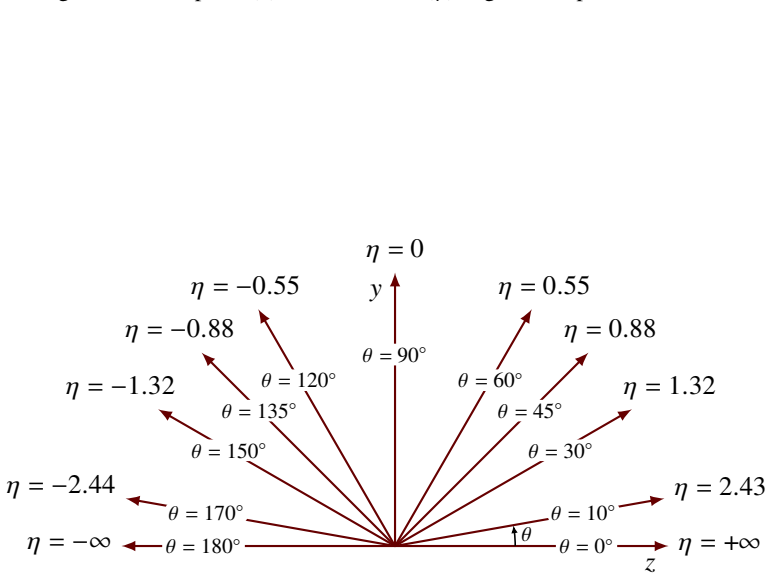

**Figure 3.3.** Figure 3.3: Values of pseudorapidity 𝜂 versus polar angle 𝜃. Figure from [103] [PITH_FULL_IMAGE:figures/full_fig_p062_3_3.png]

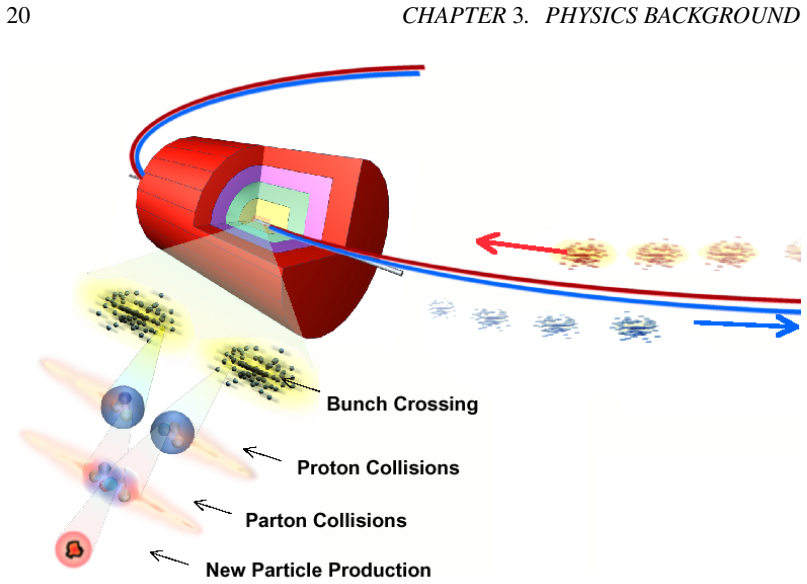

**Figure 3.4.** Figure 3.4: Illustration of beam bunching utilized at the Large Hadron Collider at [PITH_FULL_IMAGE:figures/full_fig_p063_3_4.png]

**Figure 3.5.** Figure 3.5: Illustration of Primary Vertices (PVs) and Secondary Vertices (SVs) [PITH_FULL_IMAGE:figures/full_fig_p064_3_5.png]

**Figure 3.6.** Figure 3.6: A projectile scattering off a target particle. The impact parameter [PITH_FULL_IMAGE:figures/full_fig_p066_3_6.png]

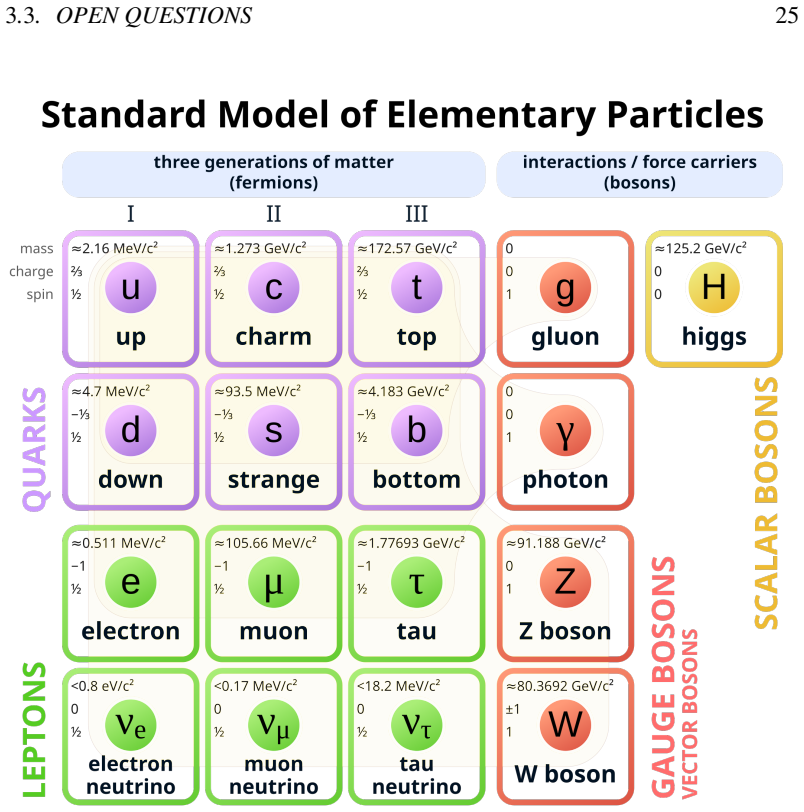

**Figure 3.7.** Figure 3.7: The Standard Model of elementary particles including twelve fundamental [PITH_FULL_IMAGE:figures/full_fig_p068_3_7.png]

**Figure 4.1.** Figure 4.1: Euler diagram of AI and its subfields as relevant to this thesis. The term machine learning is believed to have been coined by Arthur Samuel in 1959 for his work on programming a computer to play checkers [131]. In general, AI is considered as a more general term …

**Figure 4.2.** Figure 4.2: Example of different representations: Suppose we want to separate [PITH_FULL_IMAGE:figures/full_fig_p074_4_2.png]

**Figure 4.3.** Figure 4.3: Examples of underfitting and overfitting on a synthetically generated [PITH_FULL_IMAGE:figures/full_fig_p080_4_3.png]

**Figure 4.4.** Figure 4.4: Illustration of a deep feedforward neural network, highlighting its input, [PITH_FULL_IMAGE:figures/full_fig_p081_4_4.png]

**Figure 4.5.** Figure 4.5: The operations between the input and the first hidden layer. Weights are [PITH_FULL_IMAGE:figures/full_fig_p082_4_5.png]

**Figure 4.6.** Figure 4.6: Popular activation functions. 𝑦 = 𝑓NN(x) = 𝑓𝑘 ( 𝒇 𝑘−1 (· · · 𝒇 2 ( 𝒇 1 (x)))) , (4.26) where 𝒇𝑙 , for the layer index 𝑙 = 1, ..., 𝑘 − 1, are functions with vector output of the form: 𝒇𝑙 (z) = gl(W𝑙z + b𝑙) , (4.27) where W𝑙 are the weights between layers 𝑙 and 𝑙 − 1, …

**Figure 4.7.** Figure 4.7: Illustration of gradient descent in a two-dimensional parameter space. [PITH_FULL_IMAGE:figures/full_fig_p085_4_7.png]

**Figure 4.8.** Figure 4.8: Illustration of the process of convolving a filter across an image using a [PITH_FULL_IMAGE:figures/full_fig_p087_4_8.png]

**Figure 4.9.** Figure 4.9: The architecture of LeNet-5, a convolutional neural network for digits recognition, as depicted in the original paper [ [PITH_FULL_IMAGE:figures/full_fig_p089_4_9.png]

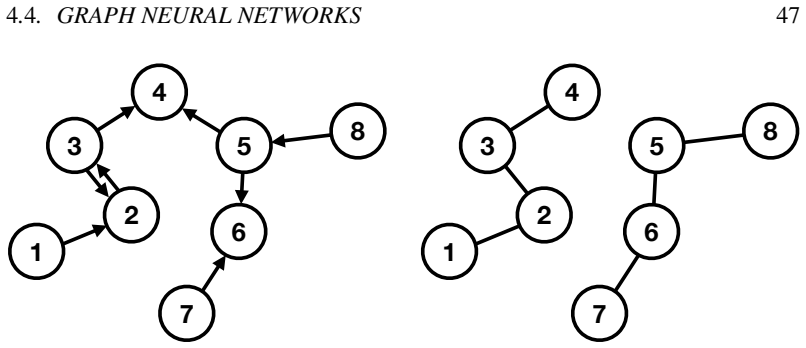

**Figure 4.10.** Figure 4.10: A directed graph with eight vertices and seven edges. 3 8 1 7 6 5 2 4 [PITH_FULL_IMAGE:figures/full_fig_p090_4_10.png]

**Figure 4.12.** Figure 4.12: Illustration of the process of message passing. Every node defines [PITH_FULL_IMAGE:figures/full_fig_p091_4_12.png]

**Figure 4.13.** Figure 4.13: Illustration of the process of symmetric quantization. The scale is [PITH_FULL_IMAGE:figures/full_fig_p093_4_13.png]

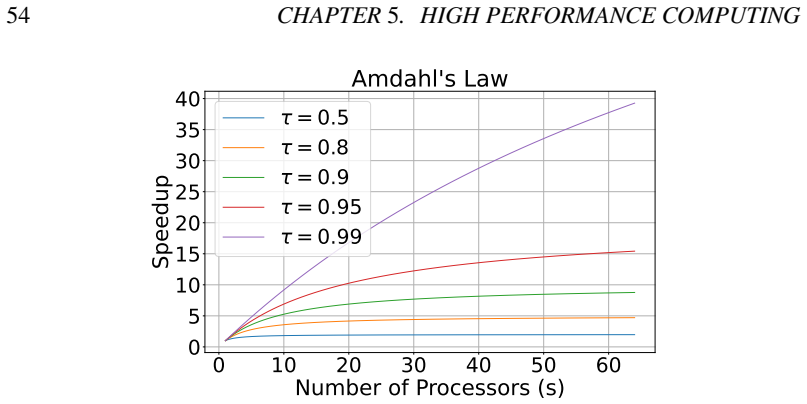

**Figure 5.1.** Figure 5.1: Demonstration of Amdahl’s law for the theoretical maximum speedup of [PITH_FULL_IMAGE:figures/full_fig_p097_5_1.png]

**Figure 5.2.** Figure 5.2: Historical evolution of microprocessor clock rates from 1980 to 2012, [PITH_FULL_IMAGE:figures/full_fig_p098_5_2.png]

**Figure 5.3.** Figure 5.3: Flynn’s Taxonomy. (a) Single Instruction Stream, Single Data Stream (SISD), (b) Single Instruction Stream, Multiple Data Stream (SIMD), (c) Multiple Instruction Stream, Single Data Stream (MISD), (d) Multiple Instruction Stream, Multiple Data Stream (MIMD). The instr…

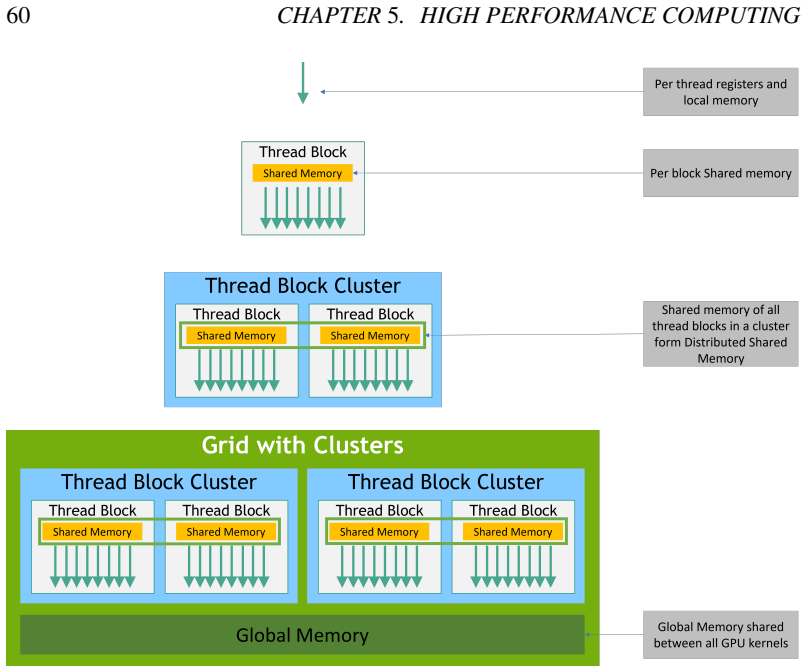

**Figure 5.4.** Figure 5.4: CUDA thread and memory hierarchy. Figure from [ [PITH_FULL_IMAGE:figures/full_fig_p103_5_4.png]

**Figure 5.5.** Figure 5.5: Illustration of the memory hierarchy for a Single Instruction, Multiple [PITH_FULL_IMAGE:figures/full_fig_p104_5_5.png]

**Figure 5.6.** Figure 5.6: Comparison of the allocation of resources between a CPU and a GPU. [PITH_FULL_IMAGE:figures/full_fig_p105_5_6.png]

**Figure 5.7.** Figure 5.7: Illustration of heterogeneous programming using the CUDA programming [PITH_FULL_IMAGE:figures/full_fig_p107_5_7.png]

**Figure 5.8.** Figure 5.8: Illustration of the structure of an FPGA, highlighting its three fundamental [PITH_FULL_IMAGE:figures/full_fig_p109_5_8.png]

**Figure 5.9.** Figure 5.9: Block diagram illustration of a System on a Chip (SoC) FPGA, highlight [PITH_FULL_IMAGE:figures/full_fig_p109_5_9.png]

**Figure 5.10.** Figure 5.10: Illustration of a comparison of different processor architectures based [PITH_FULL_IMAGE:figures/full_fig_p111_5_10.png]

**Figure 6.1.** Figure 6.1: Aerial view of the European Organization for Nuclear Research (CERN), [PITH_FULL_IMAGE:figures/full_fig_p113_6_1.png]

**Figure 6.2.** Figure 6.2: Sketch of the LHC showing its accelerator ring with two beam pipes [PITH_FULL_IMAGE:figures/full_fig_p114_6_2.png]

**Figure 6.3.** Figure 6.3: The CERN accelerator complex during Run 2. Figure from [ [PITH_FULL_IMAGE:figures/full_fig_p115_6_3.png]

**Figure 6.4.** Figure 6.4: Layout of the upgraded LHCb detector. Figure from [ [PITH_FULL_IMAGE:figures/full_fig_p117_6_4.png]

**Figure 6.5.** Figure 6.5: Upgrade VELO module layout, with the LHCb acceptance highlighted. [PITH_FULL_IMAGE:figures/full_fig_p118_6_5.png]

**Figure 6.6.** Figure 6.6: Left: Schematic top view of the 𝑧-𝑥 plane at 𝑦 = 0, illustrating the 𝑧-extent of the luminous region and the nominal LHCb pseudorapidity acceptance, 2 < 𝜂 < 5. Right: Schematic of the nominal sensor layout around the 𝑧-axis in the closed VELO configuration. Half of t…

**Figure 22.** Figure 22: (left) Resolution in the x direction for small angles ✓y. (right) Absolute measurement Figure 6.7: Dependence of hit resolution on the track polar angle. Left: Single hit [PITH_FULL_IMAGE:figures/full_fig_p120_22.png]

**Figure 17.** Figure 17: Percentage of a radiation length (between the origin and Figure 6.8: Left: Percentage of radiation length (betwe [PITH_FULL_IMAGE:figures/full_fig_p121_17.png]

**Figure 6.9.** Figure 6.9: Upgraded LHCb online system. All system components are connected to [PITH_FULL_IMAGE:figures/full_fig_p122_6_9.png]

**Figure 6.10.** Figure 6.10: Upgraded LHCb online system with three GPUs running HLT1 on the [PITH_FULL_IMAGE:figures/full_fig_p123_6_10.png]

**Figure 6.11.** Figure 6.11: Illustration of the simulation process inside LHCb. Generated with [ [PITH_FULL_IMAGE:figures/full_fig_p124_6_11.png]

**Figure 6.12.** Figure 6.12: Production rates estimates for various Standard Model processes at the [PITH_FULL_IMAGE:figures/full_fig_p125_6_12.png]

**Figure 6.13.** Figure 6.13: Illustration of a 𝐵 + → 𝐽/𝜓𝐾+ candidate event in LHCb data, highlighting the tracks, primary and secondary vertices, and the impact parameter of the antimuon track. Figure from [228]. is only achievable through a software-based trigger system operating on a detecto…

**Figure 6.** Figure 6: LHCb Run 2 (left) and upgrade (right) online dataflow diagrams in a compact format. Figure 6.14: LHCb trigger diagram for Run 3. Figure from [PITH_FULL_IMAGE:figures/full_fig_p127_6.png]

**Figure 6.15.** Figure 6.15: LHCb upgrade dataflow focusing on the real-time aspects. Figure [PITH_FULL_IMAGE:figures/full_fig_p129_6_15.png]

**Figure 6.16.** Figure 6.16: Illustration of the LHCb trigger computing model. The same re [PITH_FULL_IMAGE:figures/full_fig_p130_6_16.png]

**Figure 6.17.** Figure 6.17: Schematic of the HLT1 reconstruction at LHCb. Figure from [ [PITH_FULL_IMAGE:figures/full_fig_p131_6_17.png]

**Figure 6.** Figure 6: Velo tracking e!ciency as a function of momentum and transverse momentum (pT ). [8] 2.2 Primary Vertex finding One of the physics requirement in HLT1 is to reconstruct all primary vertices (PVs) from proton-proton collisions. VELO tracks can be extrapolated as straight…

**Figure 6.18.** Figure 6.18: Breakdown of the default HLT1 reconstruction sequence published [PITH_FULL_IMAGE:figures/full_fig_p132_6_18.png]

**Figure 7.1.** Figure 7.1: Cloud chamber photograph of the first positron ever observed. The thick [PITH_FULL_IMAGE:figures/full_fig_p136_7_1.png]

**Figure 7.2.** Figure 7.2: Depiction of the track types in the LHCb detector during Run 3. Figure [PITH_FULL_IMAGE:figures/full_fig_p137_7_2.png]

**Figure 7.3.** Figure 7.3: Examples of pixels being activated due to the passage of charged particles [PITH_FULL_IMAGE:figures/full_fig_p140_7_3.png]

**Figure 25.** Figure 25: Number of VELO hits per track (at Figure 25: Number of VELO hits per track (at [PITH_FULL_IMAGE:figures/full_fig_p141_25.png]

**Figure 7.5.** Figure 7.5: Search by triplet [26], used for tracking in the VELO. It comprises iterative seeding and following stages, where modules are considered from right to left. (a) Seeding stage: For the hit 𝑐0, four candidate hits 𝑐0𝑎, 𝑐0𝑏, 𝑐0𝑐, and 𝑐0𝑑 are considered in the neighborin…

**Figure 7.6.** Figure 7.6: VELO tracking efficiency as a function of [PITH_FULL_IMAGE:figures/full_fig_p144_7_6.png]

**Figure 8.1.** Figure 8.1: Illustration of the process of moving from hits in the detector to the “rough” graph of the event. Colored hits correspond to [PITH_FULL_IMAGE:figures/full_fig_p151_8_1.png]

**Figure 8.2.** Figure 8.2: The process of graph construction for simulated LHCb data in the VELO [PITH_FULL_IMAGE:figures/full_fig_p152_8_2.png]

**Figure 8.3.** Figure 8.3: Illustration of the process of moving from the event graph to the reconstructed tracks of the event. Colored hits correspond to [PITH_FULL_IMAGE:figures/full_fig_p153_8_3.png]

**Figure 8.5.** Figure 8.5: Evaluation of the early version of the ETX4VELO pipeline with the MonteTracko library, with a minimum track length of [PITH_FULL_IMAGE:figures/full_fig_p156_8_5.png]

**Figure 8.6.** Figure 8.6: The percentage of particles versus the number of shared hits they have, [PITH_FULL_IMAGE:figures/full_fig_p157_8_6.png]

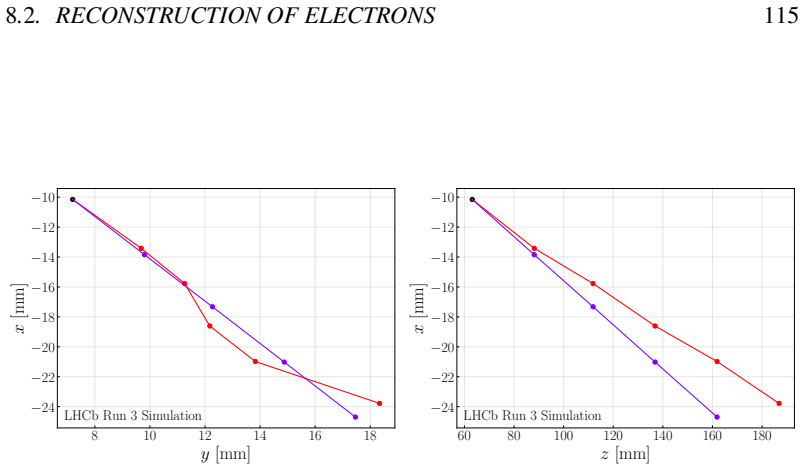

**Figure 8.7.** Figure 8.7: Example of 2 electrons (in red and purple) sharing their first hit (in black) [PITH_FULL_IMAGE:figures/full_fig_p158_8_7.png]

**Figure 8.8.** Figure 8.8: Example of 2 electrons (in red and purple) sharing their first five hits (in [PITH_FULL_IMAGE:figures/full_fig_p158_8_8.png]

**Figure 8.9.** Figure 8.9: Illustration of the process of moving from hit–hit connections to edge– [PITH_FULL_IMAGE:figures/full_fig_p159_8_9.png]

**Figure 8.10.** Figure 8.10: Schematic of the encoding step. The hit coordinates are processed [PITH_FULL_IMAGE:figures/full_fig_p163_8_10.png]

**Figure 8.11.** Figure 8.11: Schematic of the message passing step. The hit encodings are updated by [PITH_FULL_IMAGE:figures/full_fig_p163_8_11.png]

**Figure 8.12.** Figure 8.12: Schematic of the classification step. The final edge encodings are used [PITH_FULL_IMAGE:figures/full_fig_p164_8_12.png]

**Figure 8.13.** Figure 8.13: Visual representation of the three triplet configurations in the edge graph: [PITH_FULL_IMAGE:figures/full_fig_p166_8_13.png]

**Figure 8.14.** Figure 8.14: The architecture of the embedding network used for the physics [PITH_FULL_IMAGE:figures/full_fig_p167_8_14.png]

**Figure 8.15.** Figure 8.15: Training and validation losses for the Embedding MLP used for the [PITH_FULL_IMAGE:figures/full_fig_p167_8_15.png]

**Figure 8.16.** Figure 8.16: Training and validation losses for the GNN ending with the edge [PITH_FULL_IMAGE:figures/full_fig_p168_8_16.png]

**Figure 8.17.** Figure 8.17: Training and validation losses for the GNN ending with the triplet [PITH_FULL_IMAGE:figures/full_fig_p168_8_17.png]

**Figure 8.18.** Figure 8.18: Comparison of ETX4VELO and Search by triplet in Allen, as a function [PITH_FULL_IMAGE:figures/full_fig_p170_8_18.png]

**Figure 8.19.** Figure 8.19: Comparison of ETX4VELO and Search by triplet in Allen, as a function [PITH_FULL_IMAGE:figures/full_fig_p170_8_19.png]

**Figure 8.20.** Figure 8.20: Comparison of ETX4VELO and Search by triplet in Allen, as a function [PITH_FULL_IMAGE:figures/full_fig_p171_8_20.png]

**Figure 8.21.** Figure 8.21: Comparison of ETX4VELO and Search by triplet in Allen, as a function [PITH_FULL_IMAGE:figures/full_fig_p171_8_21.png]

**Figure 8.22.** Figure 8.22: Comparison of ETX4VELO and Search by triplet in Allen, as a function [PITH_FULL_IMAGE:figures/full_fig_p171_8_22.png]

**Figure 8.23.** Figure 8.23: Comparison of ETX4VELO and Search by triplet in Allen, as a function [PITH_FULL_IMAGE:figures/full_fig_p172_8_23.png]

**Figure 8.24.** Figure 8.24: Track-finding performance comparison of Search by triplet in Allen [PITH_FULL_IMAGE:figures/full_fig_p172_8_24.png]

**Figure 8.25.** Figure 8.25: Fake rate comparison of Search by triplet in Allen versus ETX4VELO [PITH_FULL_IMAGE:figures/full_fig_p173_8_25.png]

**Figure 9.1.** Figure 9.1: The process of passing the ETX4VELO models from the Python to the [PITH_FULL_IMAGE:figures/full_fig_p177_9_1.png]

**Figure 9.2.** Figure 9.2: Starting from the original Exa.TrkX model architectures, the ETX4VELO [PITH_FULL_IMAGE:figures/full_fig_p180_9_2.png]

**Figure 9.3.** Figure 9.3: Illustration of combining and storing various points in 3-dimensional [PITH_FULL_IMAGE:figures/full_fig_p181_9_3.png]

**Figure 9.4.** Figure 9.4: The conventional two-level parallelization scheme used in Allen. Events [PITH_FULL_IMAGE:figures/full_fig_p181_9_4.png]

**Figure 9.5.** Figure 9.5: The process of deploying ML models trained in PyTorch on an Nvidia [PITH_FULL_IMAGE:figures/full_fig_p183_9_5.png]

**Figure 9.6.** Figure 9.6: Illustration of the function of ONNX Runtime for different training [PITH_FULL_IMAGE:figures/full_fig_p183_9_6.png]

**Figure 9.7.** Figure 9.7: The process of executing an ONNX exported model using ONNX [PITH_FULL_IMAGE:figures/full_fig_p184_9_7.png]

**Figure 9.8.** Figure 9.8: The different LHCb events are batched together and passed on to the [PITH_FULL_IMAGE:figures/full_fig_p184_9_8.png]

**Figure 9.9.** Figure 9.9: Illustration of the process of performing Post-Training Quantization [PITH_FULL_IMAGE:figures/full_fig_p187_9_9.png]

**Figure 9.10.** Figure 9.10: Throughput comparison of track reconstruction in the VELO on an [PITH_FULL_IMAGE:figures/full_fig_p190_9_10.png]

**Figure 9.11.** Figure 9.11: Comparison of the scaling of the throughput as a function of occupancy [PITH_FULL_IMAGE:figures/full_fig_p192_9_11.png]

**Figure 9.12.** Figure 9.12: Comparison of the ETX4VELO throughput as a function of occupancy [PITH_FULL_IMAGE:figures/full_fig_p193_9_12.png]

**Figure 9.13.** Figure 9.13: Comparison of the ETX4VELO throughput as a function of occupancy [PITH_FULL_IMAGE:figures/full_fig_p193_9_13.png]

**Figure 10.1.** Figure 10.1: Illustration of the process of converting an ML model trained in PyTorch [PITH_FULL_IMAGE:figures/full_fig_p200_10_1.png]

**Figure 10.2.** Figure 10.2: Block diagram of the Zynq-7000 family, highlighting the processing [PITH_FULL_IMAGE:figures/full_fig_p201_10_2.png]

**Figure 10.3.** Figure 10.3: Setup of the PYNQ-Z2 board. 1: The board is set to be booted from [PITH_FULL_IMAGE:figures/full_fig_p202_10_3.png]

**Figure 10.4.** Figure 10.4: Percentage of values predicted, using the untuned, compiled HLS [PITH_FULL_IMAGE:figures/full_fig_p205_10_4.png]

**Figure 10.5.** Figure 10.5: Comparison between the FPGA and GPU ML model inference latency [PITH_FULL_IMAGE:figures/full_fig_p207_10_5.png]

Discussion (0). Sign in to comment.

Reference graph

Works this paper leans on

295 extracted references · 46 canonical work pages

[2]

url:https://www.smarthep.org/

SMARTHEP.SMARTHEP: Real-Time Analysis for Science and Industry. url:https://www.smarthep.org/
[3]

SMARTHEP.ESR5.url: https://www.smarthep.org/positions/ esr5/
[4]

Ximantis.Ximantis: The Future of Traffic Technologies.url:https:// ximantis.com/
[5]

GDL4HEP.GeometricDeepLearningforHighEnergyPhysics.url: https: //gitlab.cern.ch/gdl4hep
[6]

FotisI.GiasemisandAlexandrosSopasakis.LearningTrafficAnomaliesfrom Generative Models on Real-Time Observations. Feb. 2025.doi:10.48550/ arXiv.2502.01391.url:http://arxiv.org/abs/2502.01391

work page Pith review arXiv doi:10.48550/arxiv.2502.01391 2025
[7]

June 2025.doi: 10.48550/arXiv.2506.14578 .url: http://arxiv

SMARTHEP Network.Review of Machine Learning for Real-Time Analysis at the Large Hadron Collider Experiments ALICE, ATLAS, CMS and LHCb. June 2025.doi: 10.48550/arXiv.2506.14578 .url: http://arxiv. org/abs/2506.14578

arXiv doi:10.48550/arxiv.2506.14578 2025
[8]

Graph Neural Network-Based Track Finding in the LHCb Vertex Detector

Anthony Correia et al. “Graph Neural Network-Based Track Finding in the LHCb Vertex Detector”. In:Journal of Instrumentation19.12 (Dec. 2024), P12022.issn:1748-0221.doi: 10.1088/1748-0221/19/12/P12022.url: https://dx.doi.org/10.1088/1748-0221/19/12/P12022

work page doi:10.1088/1748-0221/19/12/p12022.url: 2024
[9]

Anthony Correia.CTD 2023: High-Throughout GNN Track Reconstruction at LHCb. Oct. 2023.url:https://indico.cern.ch/event/1252748/ contributions/5521484/

arXiv 2023

Show all 295 references

[10]

Graph Neural Network-Based Pipeline for Track Finding in the VELO at LHCb

Anthony Correia et al. “Graph Neural Network-Based Pipeline for Track Finding in the VELO at LHCb”. In:Connecting The Dots 2023 (CTD 2023). Oct. 2023, PROC–CTD2023–34.url:https://arxiv.org/abs/2406. 12869

2023
[11]

Giasemis.ICHEP 2024: High-Throughput GNN-Based Track Recon- struction on GPUs at LHCb

Fotis I. Giasemis.ICHEP 2024: High-Throughput GNN-Based Track Recon- struction on GPUs at LHCb. July 2024.url:https://indico.cern.ch/ event/1291157/contributions/5889611/. 183 184BIBLIOGRAPHY

2024
[12]

Giasemis.ML4Jets 2024: High-Throughput GNN-Based Track Re- construction on GPUs at LHCb

Fotis I. Giasemis.ML4Jets 2024: High-Throughput GNN-Based Track Re- construction on GPUs at LHCb. Nov. 2024.url:https://indico.cern. ch/event/1386125/contributions/6161423/

2024
[13]

FotisI.Giasemisetal.ComparativeAnalysisofFPGAandGPUPerformance for Machine Learning-Based Track Reconstruction at LHCb. Feb. 2025.doi: 10.48550/arXiv.2502.02304 .url: http://arxiv.org/abs/2502. 02304

2025 doi arXiv
[14]

Giasemis.ML4Jets 2025: Comparative Analysis of FPGA and GPU Performance for Machine Learning-Based Track Reconstruction at LHCb

Fotis I. Giasemis.ML4Jets 2025: Comparative Analysis of FPGA and GPU Performance for Machine Learning-Based Track Reconstruction at LHCb. Aug. 2025.url: https://indico.cern.ch/event/1526677/ contributions/6530929/

2025
[15]

Giasemis.JRJC 2023: Graph Neural Network for Track Finding at LHCb

Fotis I. Giasemis.JRJC 2023: Graph Neural Network for Track Finding at LHCb. Oct. 2023.url:https://indico.in2p3.fr/event/30000/ contributions/128744/

2023
[16]

Graph Neural Network for Track Finding at LHCb

Fotis I. Giasemis et al. “Graph Neural Network for Track Finding at LHCb”. In:JournéesdeRencontresJeunesChercheurs2023(JRJC2023).June2024, PROC–JRJC2023–27.url:https://hal.science/hal-04609124
[17]

Giasemis.Co-Processor Meeting: Comparative Analysis of FPGA and GPU Performance for Machine Learning-Based Track Reconstruction at LHCb

Fotis I. Giasemis.Co-Processor Meeting: Comparative Analysis of FPGA and GPU Performance for Machine Learning-Based Track Reconstruction at LHCb. Feb. 2025.url:https://indico.cern.ch/event/1513431/

2025
[18]

Allen: A High-Level Trigger on GPUs for LHCb

Roel Aaij et al. “Allen: A High-Level Trigger on GPUs for LHCb”. In: Computing and Software for Big Science4.1 (Apr. 2020), p. 7.issn: 2510- 2044.doi: 10.1007/s41781-020-00039-7 .url: https://doi.org/ 10.1007/s41781-020-00039-7

2020 doi
[19]

2020.doi: 10

LHCb Collaboration.LHCb Upgrade GPU High Level Trigger Technical Design Report. 2020.doi: 10 . 17181 / CERN . QDVA . 5PIR.url: https : //cds.cern.ch/record/2717938

2020
[20]

ALICE HLT High Speed Tracking on GPU

Sergey Gorbunov et al. “ALICE HLT High Speed Tracking on GPU”. In:IEEE Transactions on Nuclear Science58.4 (Aug. 2011), pp. 1845– 1851.issn: 1558-1578.doi: 10.1109/TNS.2011.2157702.url: https: //ieeexplore.ieee.org/document/5934702

2011
[21]

GPU Accelerated Track Reconstruction in the ALICE High Level Trigger

David Rohr, Sergey Gorbunov, and Volker Lindenstruth. “GPU Accelerated Track Reconstruction in the ALICE High Level Trigger”. In:Journal of Physics: Conference Series898.3 (Oct. 2017), p. 032030.issn: 1742-6596. doi: 10.1088/1742-6596/898/3/032030.url: https://dx.doi.org/ 10.1...

2017 doi
[23]

2017.doi:10.17181/CERN.2LBB.4IAL.url: https://cds.cern.ch/record/2285584

ATLAS Collaboration.Technical Design Report for the Phase-II Upgrade of the ATLAS TDAQ System. 2017.doi:10.17181/CERN.2LBB.4IAL.url: https://cds.cern.ch/record/2285584

2017
[24]

CMS Collaboration.The Phase-2 Upgrade of the CMS Data Acquisition and HighLevelTrigger.2021.url: https://cds.cern.ch/record/2759072

2021
[25]

url:https://cds.cern.ch/record/2714892

CMSCollaboration.ThePhase-2UpgradeoftheCMSLevel-1Trigger.2020. url:https://cds.cern.ch/record/2714892

2020
[26]

Search by Triplet: An Efficient Local Track Reconstruction Algorithm for Parallel Architectures

Daniel Hugo Cámpora Pérez, Niko Neufeld, and Agustín Riscos Núñez. “Search by Triplet: An Efficient Local Track Reconstruction Algorithm for Parallel Architectures”. In:Journal of Computational Science54 (Sept. 2021), p. 101422.issn: 1877-7503.doi:10.1016/j.jocs.2021.101422. u...

2021
[27]

Kaz Sato and Cliff Young.An In-Depth Look at Google’s First Tensor Processing Unit. Mar. 2017.url:https://cloud.google.com/blog/ products/ai-machine-learning/an-in-depth-look-at-googles- first-tensor-processing-unit-tpu

2017
[28]

NVIDIATensorCoreProgrammability,Performance & Precision

StefanoMarkidisetal.“NVIDIATensorCoreProgrammability,Performance & Precision”. In:2018 IEEE International Parallel and Distributed Pro- cessing Symposium Workshops (IPDPSW). May 2018, pp. 522–531.doi: 10.1109/IPDPSW.2018.00091 .url: http://arxiv.org/abs/1803. 04014

2018
[29]

TrackML : A Tracking Machine Learning Challenge

Tobias Golling et al. “TrackML : A Tracking Machine Learning Challenge”. In:Proceedings of The 39th International Conference on High Energy Physics — PoS(ICHEP2018). Vol. 340. Aug. 2019, p. 159.url:https: //pos.sissa.it/340/159

2019
[30]

TrackML: A High Energy Physics Particle Tracking Challenge

Polo Calafiura et al. “TrackML: A High Energy Physics Particle Tracking Challenge”. In:2018 IEEE 14th International Conference on e-Science (e- Science). Oct. 2018, pp. 344–344.doi:10.1109/eScience.2018.00088. url:https://ieeexplore.ieee.org/document/8588707

2018
[31]

The Tracking Machine Learning Challenge: Ac- curacy Phase

Sabrina Amrouche et al. “The Tracking Machine Learning Challenge: Ac- curacy Phase”. In:The NeurIPS 2018 Competition. Springer International Publishing, Nov. 2019, pp. 231–264.doi:10.1007/978-3-030-29135- 8_9. arXiv:1904.06778 [hep-ex]. 186BIBLIOGRAPHY

2018 arXiv
[32]

The Tracking Machine Learning Challenge: Throughput Phase

Sabrina Amrouche et al. “The Tracking Machine Learning Challenge: Throughput Phase”. In:Computing and Software for Big Science7.1 (Feb. 2023), p. 1.issn: 2510-2044.doi:10.1007/s41781-023-00094-w.url: https://doi.org/10.1007/s41781-023-00094-w

2023 doi
[33]

June 2020.doi:10.48550/arXiv.2007.00149

Nicholas Choma et al.Track Seeding and Labelling with Embedded-Space Graph Neural Networks. June 2020.doi:10.48550/arXiv.2007.00149. url:http://arxiv.org/abs/2007.00149

2020 doi arXiv
[34]

Novel Fully-Heterogeneous GNN Designs for Track Reconstruction at the HL-LHC

Sylvain Caillou et al. “Novel Fully-Heterogeneous GNN Designs for Track Reconstruction at the HL-LHC”. In:EPJ Web of Conferences295 (2024), p. 09028.issn: 2100-014X.doi: 10.1051/epjconf/202429509028.url: https : / / www . epj - conferences . org / articles / epjconf / abs / 20...

2024
[35]

Exa.TrkX.The Exa.TrkX Project.url:https://github.com/exatrkx
[36]

PerformanceofaGeometricDeepLearningPipelinefor HL-LHCParticleTracking

XiangyangJuetal.“PerformanceofaGeometricDeepLearningPipelinefor HL-LHCParticleTracking”.In:TheEuropeanPhysicalJournalC81.10(Oct. 2021),p.876.issn:1434-6052.doi: 10.1140/epjc/s10052-021-09675- 8.url:https://doi.org/10.1140/epjc/s10052-021-09675-8

2021 doi
[37]

Hermann Kopetz.Real-Time Systems: Design Principles for Distributed Embedded Applications. 1st. USA: Kluwer Academic Publishers, 1997.isbn: 978-0-7923-9894-3

1997
[38]

The LHCb Trigger and Its Performance in 2011

Roel Aaij et al. “The LHCb Trigger and Its Performance in 2011”. In: Journal of Instrumentation8.04 (Apr. 2013), P04022.issn: 1748-0221.doi: 10.1088/1748-0221/8/04/P04022 .url: https://dx.doi.org/10. 1088/1748-0221/8/04/P04022

2011 doi
[39]

TheATLASExperimentattheCERNLargeHadron Collider

ATLASCollaboration.“TheATLASExperimentattheCERNLargeHadron Collider”. In:JINST3 (2008), S08003.doi: 10.1088/1748-0221/3/08/ S08003

2008 doi
[40]

The Trigger of the ATLAS Experiment

Thomas Schörner-Sadenius. “The Trigger of the ATLAS Experiment”. In:Modern Physics Letters A18.31 (Oct. 2003), pp. 2149–2168.issn: 0217-7323.doi: 10 . 1142 / S0217732303011800.url: https : / / www . worldscientific.com/doi/10.1142/S0217732303011800

2003 doi
[41]

The LHCb Trigger System

Timothy Head. “The LHCb Trigger System”. In:Journal of Instrumentation 9.09 (Sept. 2014), p. C09015.issn: 1748-0221.doi: 10 . 1088 / 1748 - 0221 / 9 / 09 / C09015.url: https : / / dx . doi . org / 10 . 1088 / 1748 - 0221/9/09/C09015

2014
[42]

June 2025.url:https://a3d3.ai/

A3D3 Institute.Accelerated AI Algorithms for Data-Driven Discovery. June 2025.url:https://a3d3.ai/

2025
[43]

Philip Harris et al.Physics Community Needs, Tools, and Resources for Machine Learning. Mar. 2022.doi:10.48550/arXiv.2203.16255.url: http://arxiv.org/abs/2203.16255. BIBLIOGRAPHY187

2022 doi arXiv
[44]

Real-Time Fraud Detection Using Machine Learning

Benjamin Borketey. “Real-Time Fraud Detection Using Machine Learning”. In:Journal of Data Analysis and Information Processing12.2 (Apr. 2024), pp. 189–209.doi: 10.4236/jdaip.2024.122011 .url: https://www. scirp.org/journal/paperinformation?paperid=133190

2024
[45]

Real-TimeFinancialMonitoringSystems: Enhancing Risk Management Through Continuous Oversight

BibitayoEbunlomoAbikoyeetal.“Real-TimeFinancialMonitoringSystems: Enhancing Risk Management Through Continuous Oversight”. In:GSC Advanced Research and Reviews20.1 (2024), pp. 465–476.issn: 2582-4597, 2582-4597.doi: 10 . 30574 / gscarr . 2024 . 20 . 1 . 0287.url: https : //gsc...

2024
[46]

Real Time Stock Market Analysis

Naman Adlakha, Ridhima, and Avita Katal. “Real Time Stock Market Analysis”. In:2021 International Conference on System, Computation, Au- tomation and Networking (ICSCAN). July 2021, pp. 1–5.doi:10.1109/ ICSCAN53069.2021.9526506.url: https://ieeexplore.ieee.org/ document/9526506

2021
[47]

An Efficient Hybrid Approach for Forecasting Real-Time Stock Market Indices

Riya Kalra et al. “An Efficient Hybrid Approach for Forecasting Real-Time Stock Market Indices”. In:Journal of King Saud University - Computer and Information Sciences36.8 (Oct. 2024), p. 102180.issn: 1319-1578.doi:10. 1016/j.jksuci.2024.102180 .url: https://www.sciencedirect....

2024
[48]

Real-Time Risk Monitoring with Big Data Analytics for Derivatives Portfolios

Nikhil Jarunde. “Real-Time Risk Monitoring with Big Data Analytics for Derivatives Portfolios”. In:International Journal of Science and Research (IJSR), ISSN: 2319-7064(Sept. 2023).doi: 10.21275/SR24517154713. url: https://www.ijsr.net/getabstract.php?paperid=SR24517154713

2023 doi
[49]

Real-TimeDataAnalysisinHealthMonitoring Systems: A Comprehensive Systematic Literature Review

AntonioIydaPaganellietal.“Real-TimeDataAnalysisinHealthMonitoring Systems: A Comprehensive Systematic Literature Review”. In:Journal of Biomedical Informatics127 (Mar. 2022), p. 104009.issn: 1532-0464.doi: 10.1016/j.jbi.2022.104009 .url: https://www.sciencedirect. com/science/...

2022
[50]

Fleet Management SystemsinLogistics4.0Era:ARealTimeDistributedandScalableArchitec- turalProposal

Ricardo Dintén, Sebastián García, and Marta Zorrilla. “Fleet Management SystemsinLogistics4.0Era:ARealTimeDistributedandScalableArchitec- turalProposal”.In:ProcediaComputerScience.4thInternationalConference onIndustry4.0andSmartManufacturing217(Jan.2023),pp.806–815.issn: 1877-...

2023 doi
[51]

RealTimeTrafficControlUsingBigDataAnalytics

RauhilVermaetal.“RealTimeTrafficControlUsingBigDataAnalytics”.In: International Conference On Advances in Communication and Computing Technology (ICACCT). Feb. 2018, pp. 637–641.doi:10.1109/ICACCT. 2018 . 8529355.url: https : / / ieeexplore . ieee . org / document / 8529355. 1...

2018 doi
[52]

Big Data Ana- lyticsArchitectureforReal-TimeTrafficControl

Sasan Amini, Ilias Gerostathopoulos, and Christian Prehofer. “Big Data Ana- lyticsArchitectureforReal-TimeTrafficControl”.In:20175thIEEEInterna- tional Conference on Models and Technologies for Intelligent Transportation Systems (MT-ITS). June 2017, pp. 710–715.doi:10.1109/MTI...

2017
[53]

EdgeComputingforReal-TimeDe- cisionMakinginAutonomousDriving:ReviewofChallenges,Solutions,and FutureTrends

JihongXie,XiangZhou,andLuCheng.“EdgeComputingforReal-TimeDe- cisionMakinginAutonomousDriving:ReviewofChallenges,Solutions,and FutureTrends”.In:InternationalJournalofAdvancedComputerScienceand Applications (IJACSA)15.7 (June 2024).issn: 2156-5570.doi:10.14569/ IJACSA.2024.01507...

2024
[54]

Real-Time Safety Analysis Using Autonomous Vehicle Data: A Bayesian Hierarchical Extreme Value Model

Ahmed Kamel, Sayed Tarek, and Chuanyun Fu. “Real-Time Safety Analysis Using Autonomous Vehicle Data: A Bayesian Hierarchical Extreme Value Model”. In:Transportmetrica B: Transport Dynamics11.1 (Dec. 2023), pp. 826–846.issn: 2168-0566.doi: 10.1080/21680566.2022.2135634. url:htt...

2023
[55]

ForecastingModelsAnalysisforPredictiveMaintenance

MarcoBelimetal.“ForecastingModelsAnalysisforPredictiveMaintenance”. In:Frontiers in Manufacturing Technology4 (Sept. 2024).issn: 2813-0359. doi: 10.3389/fmtec.2024.1475078.url: https://www.frontiersin. org / journals / manufacturing - technology / articles / 10 . 3389 / fmtec....

2024
[56]

Real-Time Predictive Maintenance-Based Pro- cess Parameters: Towards an Industrial Sustainability Improvement

Hassana Mahfoud et al. “Real-Time Predictive Maintenance-Based Pro- cess Parameters: Towards an Industrial Sustainability Improvement”. In: International Conference on Advanced Intelligent Systems for Sustainable Development(AI2SD’2023).Ed.byMostafaEzziyyani,JanuszKacprzyk,and...

2023 doi
[57]

A Deep Learning and IoT-Driven Framework for Real-Time Adaptive Resource Allocation and Grid Optimization in Smart Energy Systems

Arvind R. Singh et al. “A Deep Learning and IoT-Driven Framework for Real-Time Adaptive Resource Allocation and Grid Optimization in Smart Energy Systems”. In:Scientific Reports15.1 (June 2025), p. 19309. issn: 2045-2322.doi: 10 . 1038 / s41598 - 025 - 02649- w.url: https : //...

2025
[58]

Real-Time Energy Management Simulation for Enhanced Integration of Renewable Energy Resources in DC Microgrids

Hassan Hadi H. Awaji et al. “Real-Time Energy Management Simulation for Enhanced Integration of Renewable Energy Resources in DC Microgrids”. In:Frontiers in Energy Research12 (Sept. 2024).issn: 2296-598X.doi: 10.3389/fenrg.2024.1458115 .url: https://www.frontiersin. org/journ...

2024
[59]

Optimization Based Real-Time Home Energy Management in the Presence of Renewable Energy and Battery Energy Storage

Mahmoud Elkazaz et al. “Optimization Based Real-Time Home Energy Management in the Presence of Renewable Energy and Battery Energy Storage”. In:2019 International Conference on Smart Energy Systems and BIBLIOGRAPHY189 Technologies (SEST). Sept. 2019, pp. 1–6.doi:10 . 1109 / SE...

2019
[60]

Anomaly Detection in Network Traffic for Proactive Security Threat Identification Using Improved Gated Recurrent Unit

Srimaan Yarram et al. “Anomaly Detection in Network Traffic for Proactive Security Threat Identification Using Improved Gated Recurrent Unit”. In: 20253rdInternationalConferenceonIntegratedCircuitsandCommunication Systems (ICICACS). Feb. 2025, pp. 1–5.doi:10.1109/ICICACS65178....

2025
[61]

HEP Community White Paper on Software Trigger and Event Reconstruction: Executive Summary

Johannes Albrecht et al. “HEP Community White Paper on Software Trigger and Event Reconstruction: Executive Summary”. In: (Feb. 2018)

2018
[62]

Phiala Shanahan, Kazuhiro Terao, and Daniel Whiteson.Snowmass 2021 ComputationalFrontierCompF03TopicalGroupReport:MachineLearning. Sept. 2022.doi: 10.48550/arXiv.2209.07559 .url: http://arxiv. org/abs/2209.07559

2021 doi arXiv
[63]

Oliver Aberle et al.High-Luminosity Large Hadron Collider (HL-LHC): Technical Design Report. Tech. rep. Geneva: CERN, 2020.doi:10.23731/ CYRM-2020-0010.url:https://cds.cern.ch/record/2749422

2020
[64]

cern.ch/content/hl-lhc-project

CERN.High-Luminosity LHC Project.url: https://hilumilhc.web. cern.ch/content/hl-lhc-project
[65]

2503.24346.url:http://arxiv.org/abs/2503.24346

ATLAS, Belle II, CMS and LHCb Collaborations.Projections for Key MeasurementsinHeavyFlavourPhysics.Apr.2025.doi: 10.48550/arXiv. 2503.24346.url:http://arxiv.org/abs/2503.24346

2025 doi arXiv
[66]

Giovanni Cavallero and Elena Dall’Occo.Navigating Challenges: LHCb’s Milestone Achievements and Intensive Data Collection in 2024. Sept. 2024. url: https : / / ep - news . web . cern . ch / content / navigating - challenges - lhcb - milestone - achievements - and - intensive -...

2024
[67]

LHCb Collaboration.Computing and Software for LHCb Upgrade II. Mar. 2025.doi: 10.48550/arXiv.2503.24106 .url: http://arxiv.org/ abs/2503.24106

2025 doi arXiv
[68]

2022.url:https://cds.cern.ch/record/2802918

ATLAS Collaboration.ATLAS Software and Computing HL-LHC Roadmap. 2022.url:https://cds.cern.ch/record/2802918

2022
[69]

RudolfFrühwirthandR.K.Bock.DataAnalysisTechniquesforHigh-Energy Physics Experiments. Ed. by H. Grote, D. Notz, and M. Regler. Vol. 11. Cambridge University Press, 2000.isbn: 978-0-521-63548-6

2000
[70]

Real-Time Data Analysis at the LHC: Present and Future

Vladimir Vava Gligorov. “Real-Time Data Analysis at the LHC: Present and Future”. In:Proceedings of the NIPS 2014 Workshop on High-energy Physics and Machine Learning. PMLR, Aug. 2015, pp. 1–18.url:https: //proceedings.mlr.press/v42/glig14.html. 190BIBLIOGRAPHY

2014
[71]

Real-Time Data Processing in the ALICE High LevelTriggerattheLHC

ALICE Collaboration. “Real-Time Data Processing in the ALICE High LevelTriggerattheLHC”.In:ComputerPhysicsCommunications242(Sept. 2019), pp. 25–48.issn: 0010-4655.doi:10.1016/j.cpc.2019.04.011. url: https : / / www . sciencedirect . com / science / article / pii / S0010465519301250

2019 doi
[72]

MachineLearninginHighEnergyPhysicsCommunity WhitePaper

KimAlbertssonetal.“MachineLearninginHighEnergyPhysicsCommunity WhitePaper”.In:Journal ofPhysics:ConferenceSeries1085.2(Sept.2018), p. 022008.issn: 1742-6596.doi: 10.1088/1742-6596/1085/2/022008. url:https://dx.doi.org/10.1088/1742-6596/1085/2/022008

2018 doi
[73]

JEDI-Net: a Jet Identification Algorithm Based on InteractionNetworks

Eric A. Moreno et al. “JEDI-Net: a Jet Identification Algorithm Based on InteractionNetworks”.In:TheEuropeanPhysicalJournalC80.1(Jan.2020), p. 58.issn: 1434-6052.doi: 10.1140/epjc/s10052-020-7608-4 .url: https://doi.org/10.1140/epjc/s10052-020-7608-4

2020 doi
[74]

Deep Learning for Track Recognition in Pixel and Strip- Based Particle Detectors

Olga Bakina et al. “Deep Learning for Track Recognition in Pixel and Strip- Based Particle Detectors”. In:Journal of Instrumentation17.12 (Dec. 2022), P12023.issn:1748-0221.doi: 10.1088/1748-0221/17/12/P12023.url: http://arxiv.org/abs/2210.00599

2022
[75]

Emerging Jets Search, Triton Server Deployment, and Track Quality Development: Machine Learning Applications in High Energy Physics

Claire Savard. “Emerging Jets Search, Triton Server Deployment, and Track Quality Development: Machine Learning Applications in High Energy Physics”. PhD thesis. Colorado U., 2024.url:https : / / repository . cern/records/a3ce1-xc557

2024
[76]

Deep Learning

Yann LeCun, Yoshua Bengio, and Geoffrey Hinton. “Deep Learning”. In: Nature521.7553 (May 2015), pp. 436–444.issn: 1476-4687.doi: 10 . 1038 / nature14539.url: https : / / www . nature . com / articles / nature14539

2015
[77]

The MIT Press, Oct

Ian Goodfellow, Yoshua Bengio, and Aaron Courville.Deep Learning. The MIT Press, Oct. 2016.isbn: 978-0-262-03561-3

2016
[78]

A Roadmap for HEP Software and Computing R&D for the 2020s

Johannes Albrecht et al. “A Roadmap for HEP Software and Computing R&D for the 2020s”. In:Computing and Software for Big Science3.1 (Mar. 2019), p. 7.issn: 2510-2044.doi: 10.1007/s41781-018-0018-8 .url: https://doi.org/10.1007/s41781-018-0018-8

2019 doi
[79]

2022.url:https: //cds.cern.ch/record/2814728

CMS Collaboration.Neural Network-Based Algorithm for the Identification of Bottom Quarks in the CMS Phase-2 Level-1 Trigger. 2022.url:https: //cds.cern.ch/record/2814728

2022
[80]

2023.url:https://cds.cern.ch/record/ 2868782

CMS Collaboration.Electron Reconstruction and Identification in the CMS Phase-2 Level-1 Trigger. 2023.url:https://cds.cern.ch/record/ 2868782

2023
[81]

2023.url:https://cds.cern.ch/record/2876546

CMS Collaboration.Anomaly Detection in the CMS Global Trigger Test Crate for Run 3. 2023.url:https://cds.cern.ch/record/2876546. BIBLIOGRAPHY191

2023
[82]

2024.url:https://cds.cern.ch/record/ 2904695

CMSCollaboration.2024DataCollectedwithAXOL1TLAnomalyDetection at the CMS Level-1 Trigger. 2024.url:https://cds.cern.ch/record/ 2904695

2024
[83]

2023.url: https : / / cds

CMS Collaboration.Level-1 Trigger Calorimeter Image Convolutional Anomaly Detection Algorithm. 2023.url: https : / / cds . cern . ch / record/2879816

2023
[84]

A Reconfigurable Neural Network ASIC for Detector Front-End Data Compression at the HL-LHC

Giuseppe Di Guglielmo et al. “A Reconfigurable Neural Network ASIC for Detector Front-End Data Compression at the HL-LHC”. In:IEEE Transac- tions on Nuclear Science68.8 (Aug. 2021), pp. 2179–2186.issn: 0018-9499, 1558-1578.doi: 10.1109/TNS.2021.3087100 .url: http://arxiv. org/...

2021
[85]

2023.url:https://cds.cern.ch/record/2859651

CMSCollaboration.ContinualLearningintheCMSPhase-2Level-1Trigger. 2023.url:https://cds.cern.ch/record/2859651

2023
[86]

Machine Learning for Real-Time Processing of ATLAS Liquid Argon Calorimeter Signals with FPGAs

Nemer Chiedde. “Machine Learning for Real-Time Processing of ATLAS Liquid Argon Calorimeter Signals with FPGAs”. In:Journal of Instrumenta- tion17.04 (Apr. 2022), p. C04010.issn: 1748-0221.doi:10.1088/1748- 0221/17/04/C04010.url:http://arxiv.org/abs/2111.08590

2022 arXiv
[87]

June 2023.doi: 10

Nicole Schulte et al.Development of the Topological Trigger for LHCb Run 3. June 2023.doi: 10 . 48550 / arXiv . 2306 . 09873.url: http : //arxiv.org/abs/2306.09873

2023 doi arXiv
[88]

Blaise Delaney et al.Applications of Lipschitz Neural Networks to the Run 3 LHCb Trigger System. Dec. 2023.doi:10.48550/arXiv.2312.14265. url:http://arxiv.org/abs/2312.14265

2023 doi arXiv
[89]

Robust and Provably Monotonic Networks

Ouail Kitouni, Niklas Nolte, and Mike Williams. “Robust and Provably Monotonic Networks”. In:Machine Learning: Science and Technology4.3 (Sept. 2023), p. 035020.issn: 2632-2153.doi: 10.1088/2632- 2153/ aced80.url:http://arxiv.org/abs/2112.00038

2023 arXiv
[90]

LHCb Topological Trigger Reoptimization

Tatiana Likhomanenko et al. “LHCb Topological Trigger Reoptimization”. In:JournalofPhysics:ConferenceSeries664.8(Dec.2015),p.082025.issn: 1742-6588, 1742-6596.doi: 10.1088/1742-6596/664/8/082025 .url: http://arxiv.org/abs/1510.00572

2015 arXiv
[91]

Efficient, Reliable and Fast High-Level Triggering Using a Bonsai Boosted Decision Tree

Vladimir Vava Gligorov and Michael Williams. “Efficient, Reliable and Fast High-Level Triggering Using a Bonsai Boosted Decision Tree”. In: Journal of Instrumentation8.02 (Feb. 2013), P02013.issn: 1748-0221.doi: 10.1088/1748-0221/8/02/P02013 .url: https://dx.doi.org/10. 1088/1...

2013 doi
[92]

Edge Intelligence and Internet of Things in Healthcare: A Survey

Syed Umar Amin and M. Shamim Hossain. “Edge Intelligence and Internet of Things in Healthcare: A Survey”. In:IEEE Access9 (2021), pp. 45–59. issn: 2169-3536.doi: 10.1109/ACCESS.2020.3045115 .url: https: //ieeexplore.ieee.org/document/9294145. 192BIBLIOGRAPHY

2021
[93]

Edge Intelligence for Autonomous Driving in 6G Wireless System: Design Challenges and Solutions

Bo Yang et al. “Edge Intelligence for Autonomous Driving in 6G Wireless System: Design Challenges and Solutions”. In:IEEE Wireless Communica- tions28.2(Apr.2021),pp.40–47.issn:1558-0687.doi: 10.1109/MWC.001. 2000292.url:https://ieeexplore.ieee.org/document/9430907

2021
[94]

Computational Intelligence and Deep Learning for Next- Generation Edge-Enabled Industrial IoT

Shunpu Tang et al. “Computational Intelligence and Deep Learning for Next- Generation Edge-Enabled Industrial IoT”. In:IEEE Transactions on Network ScienceandEngineering10.5(Sept.2023),pp.2881–2893.issn:2327-4697. doi: 10.1109/TNSE.2022.3180632.url: https://ieeexplore.ieee. or...

2023
[95]

Edge Computing Services for Smart Cities: A Review and CaseStudy

Ali Alnoman. “Edge Computing Services for Smart Cities: A Review and CaseStudy”.In:2021InternationalSymposiumonNetworks,Computersand Communications (ISNCC). Oct. 2021, pp. 1–6.doi:10.1109/ISNCC52172. 2021 . 9615785.url: https : / / ieeexplore . ieee . org / document / 9615785

2021 doi
[96]

July 2022.url:http://arxiv.org/ abs/2207.07958

Javier Duarte et al.FastML Science Benchmarks: Accelerating Real-Time Scientific Edge Machine Learning. July 2022.url:http://arxiv.org/ abs/2207.07958

2022 arXiv
[97]

EnergyandPolicy Considerations for Modern Deep Learning Research

EmmaStrubell,AnanyaGanesh,andAndrewMcCallum.“EnergyandPolicy Considerations for Modern Deep Learning Research”. In:Proceedings of the AAAI Conference on Artificial Intelligence34.09 (Apr. 2020), pp. 13693– 13696.issn: 2374-3468.doi: 10.1609/aaai.v34i09.7123.url: https: //ojs.a...

2020 doi
[98]

Thompson et al.The Computational Limits of Deep Learning

Neil C. Thompson et al.The Computational Limits of Deep Learning. July 2022.doi: 10.48550/arXiv.2007.05558 .url: http://arxiv.org/ abs/2007.05558

2022 doi arXiv
[99]

Riley, Michael P

Ken F. Riley, Michael P. Hobson, and Stephen J. Bence.Mathematical Methods for Physics and Engineering: A Comprehensive Guide. Cambridge University Press, Mar. 2006.isbn: 978-1-139-45099-7

2006
[100]

May 2009.url:https:// commons.wikimedia.org/wiki/File:Coord_system_CY_1.svg

Jorge Stolfi.Cylindrical Coordinate System. May 2009.url:https:// commons.wikimedia.org/wiki/File:Coord_system_CY_1.svg

2009
[101]

July 2021.url:https://tikz

Izaak Neutelings.3D Coordinate Systems. July 2021.url:https://tikz. net/axis3d/

2021
[102]

World Scientific, 1994.isbn: 978-981-02-0263-7

Cheuk-Yin Wong.Introduction to High-Energy Heavy-Ion Collisions. World Scientific, 1994.isbn: 978-981-02-0263-7

1994
[103]

Izaak Neutelings.Pseudorapidity. Aug. 2021.url:https://tikz.net/ axis2d_pseudorapidity/

2021
[104]

Edwards and Michael J

Donald A. Edwards and Michael J. Syphers.An Introduction to the Physics of High Energy Accelerators. New York, NY, USA: Wiley, Jan. 1993.isbn: 978-0-471-55163-8.url:https://www.osti.gov/biblio/5675075

1993
[105]

CERN.Large Hadron Collider (LHC) Activity Until 2013. 2013. BIBLIOGRAPHY193

2013
[106]

Primary Vertex Reconstruction in the ATLAS Experiment at LHC

Giacinto Piacquadio, Kirill Prokofiev, and Andreas Wildauer. “Primary Vertex Reconstruction in the ATLAS Experiment at LHC”. In:Journal of Physics: Conference Series119.3 (July 2008), p. 032033.issn: 1742-6596. doi: 10.1088/1742-6596/119/3/032033.url: https://dx.doi.org/ 10.10...

2008 doi
[107]

Vertex Reconstruction at the CMS Experiment

Wolfram Erdmann. “Vertex Reconstruction at the CMS Experiment”. In: Journal of Physics: Conference Series110.9 (May 2008), p. 092009.issn: 1742-6596.doi: 10 . 1088 / 1742 - 6596 / 110 / 9 / 092009.url: https : //dx.doi.org/10.1088/1742-6596/110/9/092009

2008 doi
[108]

Izaak Neutelings.B Tagging Jets. Sept. 2021.url:https://tikz.net/ jet_btag/

2021
[109]

ConceptofLuminosity

WernerHerrandBrunoMuratori.“ConceptofLuminosity”.In:CAS-CERN AcceleratorSchool:IntermediateAcceleratorPhysics(2006).doi: 10.5170/ CERN-2006-002.361.url:https://cds.cern.ch/record/941318

2006
[110]

Martin and Graham Shaw.Particle Physics

Brian R. Martin and Graham Shaw.Particle Physics. 2008.isbn: 978-0-470- 03294-7

2008
[111]

Springer, 2020.isbn: 978-3-030- 34244-9.doi:10.1007/978-3-030-34245-6

Stephen Myers and Herwig Schopper.Particle Physics Reference Library Volume 3: Accelerators and Colliders. Springer, 2020.isbn: 978-3-030- 34244-9.doi:10.1007/978-3-030-34245-6

2020 doi
[112]

org/wiki/File:Impctprmtr.png

Tonatsu.ImpactParameter.May2007.url: https://commons.wikimedia. org/wiki/File:Impctprmtr.png
[113]

Penguin Publishing Group, 2006.isbn: 978-0-452-28786-0

Robert Oerter.The Theory of Almost Everything: The Standard Model, the Unsung Triumph of Modern Physics. Penguin Publishing Group, 2006.isbn: 978-0-452-28786-0

2006
[114]

Observation of Top Quark Production in¯𝑝𝑝Collisions with the Collider Detector at Fermilab

CDF Collaboration. “Observation of Top Quark Production in¯𝑝𝑝Collisions with the Collider Detector at Fermilab”. In:Physical Review Letters74.14 (Apr. 1995), p. 2631.doi:10.1103/PhysRevLett.74.2626.url: https: //link.aps.org/doi/10.1103/PhysRevLett.74.2626

1995 doi
[115]

Observation of Tau Neutrino Interactions

DONUT Collaboration. “Observation of Tau Neutrino Interactions”. In: Physics Letters B504.3 (Apr. 2001), pp. 218–224.issn: 0370-2693.doi:10. 1016/S0370-2693(01)00307-0 .url: https://www.sciencedirect. com/science/article/pii/S0370269301003070

2001
[116]

Observation of a New Particle in the Search for the Standard Model Higgs Boson with the ATLAS Detector at the LHC

ATLAS Collaboration. “Observation of a New Particle in the Search for the Standard Model Higgs Boson with the ATLAS Detector at the LHC”. In: Physics Letters B716.1 (Sept. 2012), pp. 1–29.issn: 0370-2693.doi:10. 1016/j.physletb.2012.08.020.url: https://www.sciencedirect. com/s...

2012
[117]

ObservationofaNewBosonataMassof125GeVwith the CMS Experiment at the LHC

CMSCollaboration.“ObservationofaNewBosonataMassof125GeVwith the CMS Experiment at the LHC”. In:Physics Letters B716.1 (Sept. 2012), pp. 30–61.issn: 0370-2693.doi: 10.1016/j.physletb.2012.08.021 . url: https : / / www . sciencedirect . com / science / article / pii / S0370269312008581

2012 doi
[118]

TheQuantumTheory of the Electron

PaulAdrienMauriceDiracandRalphHowardFowler.“TheQuantumTheory of the Electron”. In:Proceedings of the Royal Society of London. Series A, Containing Papers of a Mathematical and Physical Character117.778 (Jan. 1997), pp. 610–624.doi:10.1098/rspa.1928.0023.url: https: //royalsoci...

1997
[119]

Evidence for Oscillation of Atmospheric Neutrinos

Super-Kamiokande Collaboration. “Evidence for Oscillation of Atmospheric Neutrinos”. In:Physical Review Letters81.8 (Aug. 1998), pp. 1562–1567. doi: 10.1103/PhysRevLett.81.1562.url: https://link.aps.org/ doi/10.1103/PhysRevLett.81.1562

1998 doi
[120]

Review of Particle Physics

Particle Data Group. “Review of Particle Physics”. In:Physical Review D 110.3(Aug.2024),p.030001.doi: 10.1103/PhysRevD.110.030001.url: https://link.aps.org/doi/10.1103/PhysRevD.110.030001

2024 doi
[121]

MissMJ.Standard Model of Elementary Particles. Sept. 2019.url:https: / / commons . wikimedia . org / wiki / File : Standard _ Model _ of _ Elementary_Particles.svg

2019
[122]

Unitary Symmetry and Leptonic Decays

Nicola Cabibbo. “Unitary Symmetry and Leptonic Decays”. In:Physical Re- view Letters10.12 (June 1963), pp. 531–533.doi:10.1103/PhysRevLett. 10.531.url: https://link.aps.org/doi/10.1103/PhysRevLett. 10.531

1963 doi
[123]

CP-Violation in the Renormal- izable Theory of Weak Interaction

Makoto Kobayashi and Toshihide Maskawa. “CP-Violation in the Renormal- izable Theory of Weak Interaction”. In:Progress of Theoretical Physics49.2 (Feb. 1973), pp. 652–657.issn: 0033-068X.doi:10.1143/PTP.49.652. url:https://doi.org/10.1143/PTP.49.652

1973 doi
[124]

Measurement of CP Violation in 𝐵0 →𝜓(→ 𝑙+𝑙−)𝐾 0 𝑆(→𝜋 +𝜋−) Decays

LHCb Collaboration. “Measurement of CP Violation in 𝐵0 →𝜓(→ 𝑙+𝑙−)𝐾 0 𝑆(→𝜋 +𝜋−) Decays”. In:Phys. Rev. Lett.132.2 (2024), p. 021801. doi: 10.1103/PhysRevLett.132.021801 .url: https://cds.cern. ch/record/2871717

2024
[125]

2024.doi: 10.17181/CERN.8CUC.W3FT.url: https://cds.cern.ch/ record/2905625

LHCb Collaboration.Simultaneous Determination of the CKM Angle𝛾 and Parameters Related to Mixing and CP Violation in the Charm Sector. 2024.doi: 10.17181/CERN.8CUC.W3FT.url: https://cds.cern.ch/ record/2905625

2024
[126]

Determination of the Quark Coupling Strength Vub Using Baryonic Decays

LHCb Collaboration. “Determination of the Quark Coupling Strength Vub Using Baryonic Decays”. In:Nature Physics11.9 (Sept. 2015), pp. 743–747. issn: 1745-2481.doi: 10.1038/nphys3415.url: https://www.nature. com/articles/nphys3415. BIBLIOGRAPHY195

2015 doi
[127]

Test of Lepton Flavour Universality Using B0 Decays with Hadronic Tau channels

LHCb Collaboration. “Test of Lepton Flavour Universality Using B0 Decays with Hadronic Tau channels”. In:Phys. Rev. D108.1 (2023), p. 012018. doi: 10.1103/PhysRevD.108.012018 .url: https://cds.cern.ch/ record/2857546

2023
[128]

Observation of CP Violation in Charm Decays

LHCb Collaboration. “Observation of CP Violation in Charm Decays”. In: Phys. Rev. Lett.122 (2019), p. 211803.doi:10.1103/PhysRevLett.122. 211803.url:https://cds.cern.ch/record/2668357

2019
[129]

Search for Lepton-Flavor-Violating𝜏−→𝜇−𝜇+𝜇− Decays at Belle II

Belle II Collaboration. “Search for Lepton-Flavor-Violating𝜏−→𝜇−𝜇+𝜇− Decays at Belle II”. In:Journal of High Energy Physics2024.9 (Sept. 2024), p. 62.issn: 1029-8479.doi: 10.1007/JHEP09(2024)062 .url: https://doi.org/10.1007/JHEP09(2024)062

2024 doi
[130]

Andriy Burkov, 2019.isbn: 978-1-9995795-0-0

Andriy Burkov.The Hundred-Page Machine Learning Book. Andriy Burkov, 2019.isbn: 978-1-9995795-0-0

2019
[131]

Some Studies in Machine Learning Using the Game of Checkers

Arthur L. Samuel. “Some Studies in Machine Learning Using the Game of Checkers”. In:IBM Journal of Research and Development3.3 (July 1959), pp. 210–229.issn: 0018-8646.doi: 10.1147/rd.33.0210 .url: https://ieeexplore.ieee.org/document/5392560

1959
[132]

History of One Defeat: Reform of the Julian Calendar as Envisaged by Isaac Newton

Ari Belenkiy and Eduardo Vila Echagüe. “History of One Defeat: Reform of the Julian Calendar as Envisaged by Isaac Newton”. In:Notes and Records of the Royal Society59.3 (Sept. 2005), pp. 223–254.doi:10.1098/rsnr. 2005.0096.url: https://royalsocietypublishing.org/doi/10. 1098/...

2005
[133]

Cambridge, Mass

StephenM.Stigler.TheHistoryofStatistics:theMeasurementofUncertainty Before 1900. Cambridge, Mass. : Belknap Press of Harvard University Press, 1986.isbn: 978-0-674-40340-6.url: http://archive.org/details/ historyofstatist00stig

1900
[134]

The Perceptron: a Probabilistic Model for Information Storage and Organization in the Brain

Frank Rosenblatt. “The Perceptron: a Probabilistic Model for Information Storage and Organization in the Brain”. In:Psychological Review65.6 (Nov. 1958), pp. 386–408.issn: 0033-295X.doi:10.1037/h0042519

1958 doi
[135]

A Stochastic Approximation Method

Herbert Robbins and Sutton Monro. “A Stochastic Approximation Method”. In:TheAnnalsofMathematicalStatistics22.3(Sept.1951),pp.400–407.issn: 0003-4851, 2168-8990.doi: 10.1214/aoms/1177729586.url: https:// projecteuclid.org/journals/annals-of-mathematical-statistics/ volume- 22/...

1951
[136]

A Theory of Adaptive Pattern Classifiers

Shunichi Amari. “A Theory of Adaptive Pattern Classifiers”. In:IEEE Transactions on Electronic ComputersEC-16.3 (June 1967), pp. 299–307. issn: 0367-7508.doi: 10.1109/PGEC.1967.264666 .url: https:// ieeexplore.ieee.org/document/4039068. 196BIBLIOGRAPHY

1967
[137]

Visual Feature Extraction by a Multilayered Network of Analog Threshold Elements

Kunihiko Fukushima. “Visual Feature Extraction by a Multilayered Network of Analog Threshold Elements”. In:IEEE Transactions on Systems Science and Cybernetics5.4 (Oct. 1969), pp. 322–333.issn: 2168-2887.doi:10. 1109 / TSSC . 1969 . 300225.url: https : / / ieeexplore . ieee . ...

1969
[138]

Le.Searching for Activation Functions

Prajit Ramachandran, Barret Zoph, and Quoc V. Le.Searching for Activation Functions. Oct. 2017.doi: 10.48550/arXiv.1710.05941 .url: http: //arxiv.org/abs/1710.05941

2017 doi arXiv
[139]

The Representation of the Cumulative Rounding Error of an Algorithm as a Taylor Expansion of the Local Rounding Errors

Seppo Linnainmaa. “The Representation of the Cumulative Rounding Error of an Algorithm as a Taylor Expansion of the Local Rounding Errors”. PhD thesis. 1970.url:http://hdl.handle.net/10138/316565

1970
[140]

Taylor Expansion of the Accumulated Rounding Error

Seppo Linnainmaa. “Taylor Expansion of the Accumulated Rounding Error”. In:BIT Numerical Mathematics16.2 (June 1976), pp. 146–160.issn: 1572- 9125.doi: 10.1007/BF01931367.url: https://doi.org/10.1007/ BF01931367

1976 doi
[141]

Learning Representations by Back-Propagating Errors

David E. Rumelhart, Geoffrey E. Hinton, and Ronald J. Williams. “Learning Representations by Back-Propagating Errors”. In:Nature323.6088 (Oct. 1986), pp. 533–536.issn: 1476-4687.doi: 10 . 1038 / 323533a0.url: https://www.nature.com/articles/323533a0

1986
[142]

Gradient-Based Learning Applied to Document Recogni- tion

Yann LeCun et al. “Gradient-Based Learning Applied to Document Recogni- tion”. In:Proceedings of the IEEE86.11 (Nov. 1998), pp. 2278–2324.issn: 1558-2256.doi: 10.1109/5.726791.url: https://ieeexplore.ieee. org/document/726791

1998 doi
[143]

ImageNet Classi- fication with Deep Convolutional Neural Networks

Alex Krizhevsky, Ilya Sutskever, and Geoffrey E. Hinton. “ImageNet Classi- fication with Deep Convolutional Neural Networks”. In:Advances in Neural Information Processing Systems. Vol. 25. Curran Associates, Inc., 2012. url: https://papers.nips.cc/paper_files/paper/2012/hash/ ...

2012
[144]

GPUImplementationofNeuralNetworks

Kyoung-SuOhandKeechulJung.“GPUImplementationofNeuralNetworks”. In:Pattern Recognition37.6 (June 2004), pp. 1311–1314.issn: 0031- 3203.doi: 10 . 1016 / j . patcog . 2004 . 01 . 013.url: https : / / www . sciencedirect.com/science/article/pii/S0031320304000524

2004
[145]

High Performance Convolutional Neural Networks for Document Processing

Kumar Chellapilla, Sidd Puri, and Patrice Simard. “High Performance Convolutional Neural Networks for Document Processing”. In: Suvisoft, Oct. 2006.url:https://inria.hal.science/inria-00112631

2006
[146]

Addison-Wesley Professional, July 2010.isbn: 978-0-13-218013-9.url: https : / / books

Jason Sanders and Edward Kandrot.CUDA by Example: An Introduction to General-Purpose GPU Programming. Addison-Wesley Professional, July 2010.isbn: 978-0-13-218013-9.url: https : / / books . google . fr / books?id=49OmnOmTEtQC. BIBLIOGRAPHY197

2010
[147]

Vivienne Sze et al.Efficient Processing of Deep Neural Networks: A Tutorial and Survey. Aug. 2017.doi:10.48550/arXiv.1703.09039.url: http: //arxiv.org/abs/1703.09039

2017 doi arXiv
[148]

Large-Scale Deep Unsupervised Learning Using Graphics Processors

Rajat Raina, Anand Madhavan, and Andrew Y. Ng. “Large-Scale Deep Unsupervised Learning Using Graphics Processors”. In:Proceedings of the 26th Annual International Conference on Machine Learning. ICML ’09. New York, NY, USA: Association for Computing Machinery, June 2009, pp. 8...

2009
[149]

Attention Is All You Need

Ashish Vaswani et al. “Attention Is All You Need”. In:Proceedings of the 31st International Conference on Neural Information Processing Systems. NIPS’17.RedHook,NY,USA:CurranAssociatesInc.,Dec.2017,pp.6000– 6010.isbn: 978-1-5108-6096-4

2017
[150]

May 2016.doi:10

Dzmitry Bahdanau, Kyunghyun Cho, and Yoshua Bengio.Neural Machine Translation by Jointly Learning to Align and Translate. May 2016.doi:10. 48550/arXiv.1409.0473.url:http://arxiv.org/abs/1409.0473

2016 doi arXiv
[151]

OpenAI.IntroducingChatGPT.2022.url: https://openai.com/index/ chatgpt/

2022
[152]

2025.url: https : / / ml - site

Parshin Shojaee et al.The Illusion of Thinking: Understanding the Strengths and Limitations of Reasoning Models via the Lens of Problem Complex- ity. 2025.url: https : / / ml - site . cdn - apple . com / papers / the - illusion-of-thinking.pdf

2025
[153]

Andrew Ng and Tengyu Ma.CS229: Machine Learning.url: https : //cs229.stanford.edu/main_notes.pdf
[154]

A Mathematical Theory of Communication

Claude E. Shannon. “A Mathematical Theory of Communication”. In:Bell SystemTechnicalJournal27.3(1948),pp.379–423.issn:1538-7305.doi: 10. 1002/j.1538-7305.1948.tb01338.x.url: https://onlinelibrary. wiley.com/doi/abs/10.1002/j.1538-7305.1948.tb01338.x

1948
[155]

A Logical Calculus of the Ideas Immanent in Nervous Activity

Warren S. McCulloch and Walter Pitts. “A Logical Calculus of the Ideas Immanent in Nervous Activity”. In:The bulletin of mathematical biophysics 5.4(Dec.1943),pp.115–133.issn:1522-9602.doi: 10.1007/BF02478259. url:https://doi.org/10.1007/BF02478259

1943 doi
[156]

Izaak Neutelings.Neural Networks. Apr. 2024.url:https://tikz.net/ neural_networks/

2024
[157]

Multilayer Feed- forward Networks Are Universal Approximators

Kurt Hornik, Maxwell Stinchcombe, and Halbert White. “Multilayer Feed- forward Networks Are Universal Approximators”. In:Neural Networks2.5 (Jan. 1989), pp. 359–366.issn: 0893-6080.doi:10.1016/0893-6080(89) 90020-8.url: https://www.sciencedirect.com/science/article/ pii/089360...

1989
[158]

Kingma and Jimmy Ba.Adam: A Method for Stochastic Op- timization

Diederik P. Kingma and Jimmy Ba.Adam: A Method for Stochastic Op- timization. Jan. 2017.doi: 10.48550/arXiv.1412.6980 .url: http: //arxiv.org/abs/1412.6980

2017 doi arXiv
[159]

Nadav Cohen.Understanding Optimization in Deep Learning by Analyzing Trajectories of Gradient Descent. Nov. 2018.url:http://offconvex. github.io/2018/11/07/optimization-beyond-landscape/

2018
[160]

Hamilton.Graph Representation Learning

William L. Hamilton.Graph Representation Learning. Morgan & Claypool Publishers, 2020.isbn: 978-1-68173-964-9.url: https://ieeexplore. ieee.org/book/9205745

2020
[161]

Jure Leskovec.CS224W: Machine Learning with Graphs.url: https : //web.stanford.edu/class/cs224w/
[162]

Battaglia et al.Relational Inductive Biases, Deep Learning, and Graph Networks

Peter W. Battaglia et al.Relational Inductive Biases, Deep Learning, and Graph Networks. Oct. 2018.doi:10.48550/arXiv.1806.01261 .url: http://arxiv.org/abs/1806.01261

2018 doi arXiv
[163]

A Gentle Introduction to Deep Learning for Graphs

Davide Bacciu et al. “A Gentle Introduction to Deep Learning for Graphs”. In:NeuralNetworks129(Sept.2020),pp.203–221.issn:0893-6080.doi: 10. 1016/j.neunet.2020.06.006 .url: https://www.sciencedirect. com/science/article/pii/S0893608020302197

2020
[164]

The Graph Neural Network Model

Franco Scarselli et al. “The Graph Neural Network Model”. In:IEEE Transactions on Neural Networks20.1 (Jan. 2009), pp. 61–80.issn: 1941- 0093.doi: 10.1109/TNN.2008.2005605 .url: https://ieeexplore. ieee.org/document/4700287

2009
[165]

InductiveRepresentation Learning on Large Graphs

WilliamL.Hamilton,RexYing,andJureLeskovec.“InductiveRepresentation Learning on Large Graphs”. In:Proceedings of the 31st International Conference on Neural Information Processing Systems. NIPS’17. Red Hook, NY, USA: Curran Associates Inc., Dec. 2017, pp. 1025–1035.isbn: 978-1-...

2017
[166]

Kipf and Max Welling.Semi-Supervised Classification with Graph Convolutional Networks

Thomas N. Kipf and Max Welling.Semi-Supervised Classification with Graph Convolutional Networks. Sept. 2016.url:https://arxiv.org/ abs/1609.02907v4

2016 arXiv
[167]

Deep Learning with Graph-Structured Representations

Thomas N. Kipf. “Deep Learning with Graph-Structured Representations”. PhDthesis.U.ofAmsterdam,2020.url: https://dare.uva.nl/search? identifier=1b63b965-24c4-4bcd-aabb-b849056fa76d

2020
[168]

Interaction Networks for Learning About Objects, RelationsandPhysics

Peter Battaglia et al. “Interaction Networks for Learning About Objects, RelationsandPhysics”.In:Proceedingsofthe30thInternationalConference on Neural Information Processing Systems. NIPS’16. Red Hook, NY, USA: CurranAssociatesInc.,Dec.2016,pp.4509–4517.isbn:978-1-5108-3881-9

2016
[169]

BIBLIOGRAPHY199

Hugging Face.Quantization.url: https://huggingface.co/docs/ optimum/en/concept_guides/quantization. BIBLIOGRAPHY199
[170]

05877.url:http://arxiv.org/abs/1712.05877

BenoitJacobetal.QuantizationandTrainingofNeuralNetworksforEfficient Integer-Arithmetic-OnlyInference.Dec.2017.doi: 10.48550/arXiv.1712. 05877.url:http://arxiv.org/abs/1712.05877

2017 doi arXiv
[171]

url:http://arxiv.org/abs/2004.09602

Hao Wu et al.Integer Quantization for Deep Learning Inference: Principles andEmpiricalEvaluation.Apr.2020.doi: 10.48550/arXiv.2004.09602. url:http://arxiv.org/abs/2004.09602

2020 doi arXiv
[172]

Maarten Grootendorst.A Visual Guide to Quantization. Feb. 2024.url: https : / / newsletter . maartengrootendorst . com / p / a - visual - guide-to-quantization

2024
[173]

StandaloneTrackReconstructiononGPUsintheFirstStage of the Upgraded LHCb Trigger System & Preparations for Measurements with Strange Hadrons in Run 3

LukasCalefice.“StandaloneTrackReconstructiononGPUsintheFirstStage of the Upgraded LHCb Trigger System & Preparations for Measurements with Strange Hadrons in Run 3”. PhD thesis. Dortmund U., 2022.url: https://cds.cern.ch/record/2856339

2022
[174]

Search for Rare Four-Body Charm Decays with Electrons in the Final State and Long Track Reconstruction for the LHCb Trigger

Alessandro Scarabotto. “Search for Rare Four-Body Charm Decays with Electrons in the Final State and Long Track Reconstruction for the LHCb Trigger”. PhD thesis. Sorbonne U., 2023.url:https://cds.cern.ch/ record/2882932

2023
[175]

Performance Optimization for the LHCb Experi- ment

Arthur Marius Hennequin. “Performance Optimization for the LHCb Experi- ment”. PhD thesis. Sorbonne U., 2022.url:https://repository.cern/ records/xkmee-70z26

2022
[176]

The LHCb GPU High Level Trigger and Measurements ofNeutralPionandPhotonProductionwiththeLHCbDetector

Thomas Boettcher. “The LHCb GPU High Level Trigger and Measurements ofNeutralPionandPhotonProductionwiththeLHCbDetector”.PhDthesis. Massachusetts Inst. of Technology, 2021.url:https : / / repository . cern/records/am38y-pw965

2021
[177]

USA: Benjamin-Cummings Publishing Co., Inc., 1994.isbn: 978-0-8053-3170-7

Vipin Kumar et al.Introduction to Parallel Computing: Design and Analysis of Algorithms. USA: Benjamin-Cummings Publishing Co., Inc., 1994.isbn: 978-0-8053-3170-7

1994
[178]

Almasi and A

George S. Almasi and A. Gottlieb.Highly Parallel Computing. USA: Benjamin-Cummings Publishing Co., Inc., 1989.isbn: 978-0-8053-0177-9

1989
[179]

Czech.Introduction to Parallel Computing

Zbigniew J. Czech.Introduction to Parallel Computing. Cambridge: Cam- bridge University Press, 2017.isbn: 978-1-316-80424-7.doi:10.1017/ 9781316795835.011

2017
[180]

isbn: 978-3-642-37802-7

Thomas Rauber and Gudula Rnger.Parallel Programming: for Multicore andClusterSystems.SpringerPublishingCompany,Incorporated,May2013. isbn: 978-3-642-37802-7
[181]

Validity of the Single Processor Approach to Achieving Large Scale Computing Capabilities

Gene M. Amdahl. “Validity of the Single Processor Approach to Achieving Large Scale Computing Capabilities”. In:Proceedings of the April 18-20, 1967, spring joint computer conference. AFIPS ’67 (Spring). New York, NY, USA: Association for Computing Machinery, Apr. 1967, pp. 48...

1967
[182]

Reevaluating Amdahl’s Law

John L. Gustafson. “Reevaluating Amdahl’s Law”. In:Commun. ACM31.5 (May 1988), pp. 532–533.issn: 0001-0782.doi:10.1145/42411.42415. url:https://dl.acm.org/doi/10.1145/42411.42415

1988
[183]

Design of Ion-Implanted MOSFET’s with Very SmallPhysicalDimensions

Robert H. Dennard et al. “Design of Ion-Implanted MOSFET’s with Very SmallPhysicalDimensions”.In:IEEEJournalofSolid-StateCircuits9.5(Oct. 1974),pp.256–268.issn:1558-173X.doi: 10.1109/JSSC.1974.1050511. url:https://ieeexplore.ieee.org/document/1050511

1974
[184]

2015.url: https://wgropp.cs.illinois.edu/courses/ cs598-s15/

William Gropp.Designing and Building Applications for Extreme Scale Systems. 2015.url: https://wgropp.cs.illinois.edu/courses/ cs598-s15/

2015
[185]

Intel Halts Development Of 2 New Microprocessors

Laurie J. Flynn. “Intel Halts Development Of 2 New Microprocessors”. In: The New York Times(May 2004).issn: 0362-4331.url: https://www. nytimes.com/2004/05/08/business/intel-halts-development- of-2-new-microprocessors.html

2004
[186]

Cramming More Components Onto Integrated Circuits

Gordon E. Moore. “Cramming More Components Onto Integrated Circuits”. In:Proceedings of the IEEE86.1 (Jan. 1998), pp. 82–85.issn: 1558-2256. doi: 10.1109/JPROC.1998.658762.url: https://ieeexplore.ieee. org/document/658762

1998
[187]

Very High-Speed Computing Systems

Michael J. Flynn. “Very High-Speed Computing Systems”. In:Proceedings of the IEEE54.12 (Dec. 1966), pp. 1901–1909.issn: 1558-2256.doi: 10.1109/PROC.1966.5273 .url: https://ieeexplore.ieee.org/ document/1447203

1966
[188]

Some Computer Organizations and Their Effectiveness

Michael J. Flynn. “Some Computer Organizations and Their Effectiveness”. In:IEEE Transactions on ComputersC-21.9 (Sept. 1972), pp. 948–960. issn: 1557-9956.doi: 10 . 1109 / TC . 1972 . 5009071.url: https : / / ieeexplore.ieee.org/document/5009071

1972
[189]

June 2007.url: https://commons.wikimedia.org/ wiki/File:SISD.svg

Cburnett.SISD. June 2007.url: https://commons.wikimedia.org/ wiki/File:SISD.svg

2007
[190]

June 2007.url: https://commons.wikimedia.org/ wiki/File:MISD.svg

Cburnett.MISD. June 2007.url: https://commons.wikimedia.org/ wiki/File:MISD.svg

2007
[191]

June 2007.url: https://commons.wikimedia.org/ wiki/File:SIMD.svg

Cburnett.SIMD. June 2007.url: https://commons.wikimedia.org/ wiki/File:SIMD.svg

2007
[192]

June 2007.url: https://commons.wikimedia.org/ wiki/File:MIMD.svg

Cburnett.MIMD. June 2007.url: https://commons.wikimedia.org/ wiki/File:MIMD.svg

2007
[193]

Robert A

F. Robert A. Hopgood, Roger J. Hubbold, and David A. Duce.Advances in Computer Graphics II. Springer Berlin, Heidelberg, 1986.url:https: //link.springer.com/book/9783540169109

1986
[194]

BIBLIOGRAPHY201

Marian Anderson.Is It Time to Rename the GPU?July 2018.url:https: //www.computer.org/publications/tech-news/chasing-pixels/ is-it-time-to-rename-the-gpu/. BIBLIOGRAPHY201

2018
[195]

July 2013.url:https://www.khronos.org/ opencl/

Khronos Group.OpenCL: The Open Standard for Parallel Programming of Heterogeneous Systems. July 2013.url:https://www.khronos.org/ opencl/

2013
[196]

OpenCL: A Parallel Pro- gramming Standard for Heterogeneous Computing Systems

John E. Stone, David Gohara, and Guochun Shi. “OpenCL: A Parallel Pro- gramming Standard for Heterogeneous Computing Systems”. In:Computing in Science & Engineering12.3 (May 2010), pp. 66–73.issn: 1558-366X. doi: 10.1109/MCSE.2010.69.url: https://ieeexplore.ieee.org/ document/5457293

2010
[197]

Alex Handy.AMD Helps OpenCL Gain Ground in HPC Space. Sept. 2011. url: https://sdtimes.com/amd/amd-helps-opencl-gain-ground- in-hpc-space/

2011
[198]

PlayStation 4: Which Game Console is Best? Nov

Jamie Lendino.Xbox One vs. PlayStation 4: Which Game Console is Best? Nov. 2015.url: https://www.extremetech.com/gaming/156273- xbox-720-vs-ps4-vs-pc-how-the-hardware-specs-compare

2015
[199]

Traian Teglet.NVIDIA Tegra Inside Every Audi 2010 Vehicle. Jan. 2010. url: https://news.softpedia.com/news/NVIDIA-Tegra-Inside- Every-Audi-2010-Vehicle-131529.shtml

2010
[200]

Samit Sarkar.Nvidia Unveils Powerful New RTX 2070, RTX 2080, RTX 2080 Ti Graphics Cards. Aug. 2018.url:https://www.polygon.com/ 2018/8/20/17760038/nvidia-geforce-rtx-2080-ti-2070-specs- release-date-price-turing
[201]

Andrew Burnes.NVIDIA DLSS 2.0: A Big Leap In AI Rendering. Mar. 2020.url: https://www.nvidia.com/en-us/geforce/news/nvidia- dlss-2-0-a-big-leap-in-ai-rendering/

2020
[202]

May 2025.url:https:// docs.nvidia.com/cuda/cuda-c-programming-guide/

NVIDIA.CUDA C++ Programming Guide. May 2025.url:https:// docs.nvidia.com/cuda/cuda-c-programming-guide/

2025
[203]

SilvianBensdorp.GPUProgrammingPart2:ArchitectureDetailsandWhen to Make the Switch. Feb. 2024.url:https://jdriven.com/blog/2024/ 02/gpu_part2/

2024
[204]

Mark Harris.An Easy Introduction to CUDA C and C++. Oct. 2012.url: https://developer.nvidia.com/blog/easy-introduction-cuda- c-and-c/

2012
[205]

Kaitlyn Franz.History of the FPGA. Feb. 2016.url:https://digilent. com/blog/history-of-the-fpga/

2016
[206]

15 Years of Innovation

Wim Roelandts. “15 Years of Innovation”. In:XCell32 (1999)

1999
[207]

TheHistory,Status,andFutureofFPGAs

OskarMenceretal.“TheHistory,Status,andFutureofFPGAs”.In:Commun. ACM63.10 (Sept. 2020), pp. 36–39.issn: 0001-0782.doi: 10 . 1145 / 3410669.url:https://dl.acm.org/doi/10.1145/3410669

2020 doi
[208]

202BIBLIOGRAPHY

Arm.What is an FPGA?url:https://www.arm.com/glossary/fpga. 202BIBLIOGRAPHY
[209]

Clive Maxfield.The Design Warrior’s Guide to FPGAs. Apr. 2004.isbn: 978-0-7506-7604-5.url: https://shop.elsevier.com/books/the- design-warriors-guide-to-fpgas/maxfield/978-0-7506-7604- 5

2004
[210]

Muhammed Kawser Ahmed et al.Multi-Tenant Cloud FPGA: A Survey on Security. Sept. 2022.doi: 10.48550/arXiv.2209.11158 .url: http: //arxiv.org/abs/2209.11158

2022 doi arXiv
[211]

University of Toronto.FPGA Architecture for the Challenge.url:https: //www.eecg.toronto.edu/~vaughn/challenge/fpga_arch.html
[212]

Frank Vahid.Digital Design with RTL Design, Verilog and VHDL. 2nd. Wiley Publishing, Feb. 2010.isbn: 978-0-470-53108-2

2010
[213]

PhilippeCoussyandAdamMorawiec.High-LevelSynthesis:fromAlgorithm to Digital Circuit. 1st. Springer Publishing Company, Incorporated, Sept. 2008.isbn: 978-1-4020-8587-1

2008
[214]

The High- Level Synthesis of Digital Systems

Michael McFarland, Alice C. Parker, and Raul Camposano. “The High- Level Synthesis of Digital Systems”. In:Proceedings of the IEEE78.2 (Feb. 1990), pp. 301–318.issn: 1558-2256.doi:10.1109/5.52214.url: https://ieeexplore.ieee.org/document/52214

1990 doi
[215]

CalorimeterReconstructionInnovationsfortheLHCb Experiment

NuriaVallsCanudas.“CalorimeterReconstructionInnovationsfortheLHCb Experiment”. PhD thesis. Ramon Llull U., Barcelona, 2023.url:https: //cds.cern.ch/record/2881088

2023
[216]

Track Reconstruction Development and Commissioning for LHCb’s Run 3 Real-time Analysis Trigger

Andre Gunther. “Track Reconstruction Development and Commissioning for LHCb’s Run 3 Real-time Analysis Trigger”. PhD thesis. Heidelberg U., 2023.url:https://cds.cern.ch/record/2865000

2023
[217]

LHCb Collaboration.Framework TDR for the LHCb Upgrade: Technical Design Report. Tech. rep. 2012, CERN–LHCC–2012–007.url:https: //cds.cern.ch/record/1443882

2012
[218]

The LHCb Detector at the LHC

LHCb Collaboration. “The LHCb Detector at the LHC”. In:Journal of Instrumentation3.08 (Aug. 2008), S08005.doi:10.1088/1748-0221/3/ 08/S08005

2008 doi
[219]

DesignandPerformanceoftheLHCbTriggerandFullReal- Time Reconstruction in Run 2 of the LHC

RoelAaijetal.“DesignandPerformanceoftheLHCbTriggerandFullReal- Time Reconstruction in Run 2 of the LHC”. In:Journal of Instrumentation 14.04 (Apr. 2019), P04013–P04013.issn: 1748-0221.doi:10.1088/1748- 0221/14/04/P04013.url:http://arxiv.org/abs/1812.10790

2019 arXiv
[220]

org/exhibition/images/cern-aerial-cc/

Maximilien Brice.Aerial View of CERN.url:https://supernova.eso. org/exhibition/images/cern-aerial-cc/
[221]

LHC Machine

Lyndon Evans and Philip Bryant. “LHC Machine”. In:Journal of Instrumen- tation3 (2008), S08001.doi:10.1088/1748-0221/3/08/S08001

2008 doi
[222]

Christoph Hasse.Simple Sketch of the LHC. Nov. 2023.url:https:// github.com/hassec/LHC_Sketch. BIBLIOGRAPHY203

2023
[223]

2016.url: https : //cds.cern.ch/record/2119882

Cinzia De Melis.The CERN Accelerator Complex. 2016.url: https : //cds.cern.ch/record/2119882

2016
[224]

Determination of the Pion-Nucleon Scattering Ampli- tude from Dispersion Relations and Unitarity. General Theory

Stanley Mandelstam. “Determination of the Pion-Nucleon Scattering Ampli- tude from Dispersion Relations and Unitarity. General Theory”. In:Physical Review112.4 (Nov. 1958), pp. 1344–1360.doi:10.1103/PhysRev.112. 1344.url: https : / / link . aps . org / doi / 10 . 1103 / PhysRe...

1958 doi
[225]

Implementation and Experience with Luminosity Levelling with Offset Beam

Fabio Follin and Delphine Jacquet. “Implementation and Experience with Luminosity Levelling with Offset Beam”. In:ICFA Mini-Workshop on Beam- BeamEffectsinHadronColliders(2014),pp.183–187.doi: 10.5170/CERN- 2014-004.183.url:https://cds.cern.ch/record/1955354

2014
[226]

LHCb Detector Performance

LHCb Collaboration. “LHCb Detector Performance”. In:International Jour- nalofModernPhysicsA30.07(Mar.2015),p.1530022.issn:0217-751X.doi: 10.1142/S0217751X15300227.url: https://www.worldscientific. com/doi/abs/10.1142/S0217751X15300227

2015 doi
[227]

TheLHCbUpgradeI

LHCbCollaboration.“TheLHCbUpgradeI”.In:JournalofInstrumentation 19.05 (May 2024), P05065.issn: 1748-0221.doi:10.1088/1748-0221/ 19/05/P05065.url: https://dx.doi.org/10.1088/1748-0221/19/ 05/P05065

2024 doi
[228]

LHCb Collaboration.VELO Upgrade Technical Design Report. Tech. rep. 2013.url:https://cds.cern.ch/record/1624070

2013
[229]

LHCbCollaboration.LHCbTrackerUpgradeTechnicalDesignReport.Tech. rep. 2014.url:https://cds.cern.ch/record/1647400

2014
[230]

Performance of the LHCb RICH Detector at the LHC

LHCb RICH Collaboration. “Performance of the LHCb RICH Detector at the LHC”. In:The European Physical Journal C73.5 (May 2013), p.2431.issn:1434-6052.doi: 10.1140/epjc/s10052-013-2431-9.url: https://doi.org/10.1140/epjc/s10052-013-2431-9

2013 doi
[231]

LHCb Collaboration.Particle Identification Upgrade Technical Design Report. Tech. rep. 2013.url:https://cds.cern.ch/record/1624074

2013
[232]

LHCb Collaboration.Track Momentum Resolution at LHCb in 2024. 2024. url:https://cds.cern.ch/record/2920248

2024
[233]

Performance of the LHCb Muon System

Antonio Augusto Alves Jr. et al. “Performance of the LHCb Muon System”. In:Journal of Instrumentation8.02 (Feb. 2013), P02022–P02022.issn: 1748-0221.doi: 10.1088/1748- 0221/8/02/P02022 .url: http:// arxiv.org/abs/1211.1346

2013 arXiv
[234]

url:https://cds.cern.ch/record/1701361

LHCbTriggerandOnlineUpgradeTechnicalDesignReport.Tech.rep.2014. url:https://cds.cern.ch/record/1701361

2014
[235]

LHCb Upgrades

Fabio Ferrari. “LHCb Upgrades”. In:Proceedings of The Eleventh Annual ConferenceonLargeHadronColliderPhysics—PoS(LHCP2023).Vol.450. SISSA Medialab, July 2024, p. 224.doi:10.22323/1.450.0224 .url: https://pos.sissa.it/450/224/. 204BIBLIOGRAPHY

2024 doi
[237]

Spatial Resolution and Efficiency of Prototype SensorsfortheLHCbVELOUpgrade

Emma Buchanan et al. “Spatial Resolution and Efficiency of Prototype SensorsfortheLHCbVELOUpgrade”.In:JournalofInstrumentation17.06 (June 2022), P06038.issn: 1748-0221.doi: 10.1088/1748- 0221/17/ 06/P06038.url: https://dx.doi.org/10.1088/1748-0221/17/06/ P06038

2022 doi
[238]

OperationalAspectsoftheVELOCoolingSystemofLHCb

EddyJans.“OperationalAspectsoftheVELOCoolingSystemofLHCb”.In: Proceedings,22ndInternationalWorkshoponVertexDetectors(Vertex2013). Sept. 2013.doi: 10.22323/1.198.0038 .url: https://inspirehep. net/literature/1306132

2013
[239]

The VELO Upgrade

Eddy Jans. “The VELO Upgrade”. In:JINST10.04 (2015), p. C04031.doi: 10.1088/1748-0221/10/04/C04031

2015 doi
[240]

2010.url: https://cds.cern.ch/record/1279627

Mukund Gupta.Calculation of Radiation Length in Materials. 2010.url: https://cds.cern.ch/record/1279627

2010
[241]

LHCb Collaboration.LHCb Online System Technical Design Report: Data Acquisition and Experiment Control. Tech. rep. CERN-LHCC-2001-040. Dec. 2001

2001
[242]

ClockandTimingDistributionintheLHCbUpgraded Detector and Readout System

FedericoAlessioetal.“ClockandTimingDistributionintheLHCbUpgraded Detector and Readout System”. In:Journal of Instrumentation10.02 (Feb. 2015), p. C02033.issn: 1748-0221.doi: 10.1088/1748-0221/10/02/ C02033.url: https://dx.doi.org/10.1088/1748- 0221/10/02/ C02033

2015 doi
[243]

2004.url: https://gitlab.cern

LHCb Collaboration.Allen GitLab. 2004.url: https://gitlab.cern. ch/lhcb/Allen

2004
[244]

An FPGA-Based Architecture for Real-Time Cluster Finding in the LHCb Silicon Pixel Detector

Giovanni Bassi et al. “An FPGA-Based Architecture for Real-Time Cluster Finding in the LHCb Silicon Pixel Detector”. In:IEEE Transactions on Nuclear Science70.6 (June 2023), pp. 1189–1201.issn: 0018-9499, 1558- 1578.doi: 10.1109/TNS.2023.3273600 .url: http://arxiv.org/ abs/2302.03972

2023
[245]

2007.url:https://gitlab.cern

LHCb Collaboration.Moore GitLab. 2007.url:https://gitlab.cern. ch/lhcb/Moore

2007
[246]

1984.url:https: //cds.cern.ch/record/169940

Bjarne Stroustrup.The C++ Programming Language. 1984.url:https: //cds.cern.ch/record/169940

1984
[247]

Python developers.Python.url:https://www.python.org/
[248]

GAUDI — A Software Architecture and Framework for Building HEP Data Processing Applications

Guy Barrand et al. “GAUDI — A Software Architecture and Framework for Building HEP Data Processing Applications”. In:Computer Physics Communications.CHEP2000140.1(Oct.2001),pp.45–55.issn:0010-4655. doi:10.1016/S0010-4655(01)00254-5. BIBLIOGRAPHY205

2001 doi
[249]

LHCb Build and Deployment Infrastructure for Run 2

Marco Clemencic and Benjamin Couturier. “LHCb Build and Deployment Infrastructure for Run 2”. In:Journal of Physics: Conference Series664.6 (Dec. 2015), p. 062008.issn: 1742-6596.doi:10.1088/1742-6596/664/ 6/062008.url: https://dx.doi.org/10.1088/1742-6596/664/6/ 062008

2015 doi
[250]

LHCb Collaboration.LHCb GitLab.url: https://gitlab.cern.ch/ lhcb
[251]

2007.url:https://gitlab.cern

LHCb Collaboration.Gauss GitLab. 2007.url:https://gitlab.cern. ch/lhcb/Gauss

2007
[252]

The LHCb Simulation Application, Gauss: Design, Evolution and Experience

Marco Clemencic et al. “The LHCb Simulation Application, Gauss: Design, Evolution and Experience”. In:Journal of Physics: Conference Series 331.3 (Dec. 2011), p. 032023.issn: 1742-6596.doi: 10 . 1088 / 1742 - 6596/331/3/032023 .url: https://dx.doi.org/10.1088/1742- 6596/331/3/032023

2011 doi
[253]

ABriefIntroduction toPYTHIA8.1

TorbjörnSjöstrand,StephenMrenna,andPeterSkands.“ABriefIntroduction toPYTHIA8.1”.In:ComputerPhysicsCommunications178.11(June2008), pp. 852–867.issn: 0010-4655.doi: 10 . 1016 / j . cpc . 2008 . 01 . 036. url: https : / / www . sciencedirect . com / science / article / pii / S001...

2008
[254]

GENXICC: A Generator for Hadronic Production of Double Heavy BaryonsΞ𝑐𝑐,Ξ𝑏𝑐 and Ξ𝑏𝑏

Chao-Hsi Chang, Jian-Xiong Wang, and Xing-Gang Wu. “GENXICC: A Generator for Hadronic Production of Double Heavy BaryonsΞ𝑐𝑐,Ξ𝑏𝑐 and Ξ𝑏𝑏”. In:Computer Physics Communications177.5 (Sept. 2007), pp. 467– 478.issn: 00104655.doi: 10.1016/j.cpc.2007.05.012 .url: http: //arxiv.org/ab...

2007 arXiv
[255]

The EvtGen Particle Decay Simulation Package

David J. Lange. “The EvtGen Particle Decay Simulation Package”. In: Nuclear Instruments and Methods in Physics Research Section A: Accel- erators, Spectrometers, Detectors and Associated Equipment. Proceedings of the 7th Int. Conf. on B-Physics at Hadron Machines 462.1 (Apr. 2...

2001 doi
[256]

Geant4 Developments and Applications

John Allison et al. “Geant4 Developments and Applications”. In:IEEE Transactions on Nuclear Science53.1 (Feb. 2006), pp. 270–278.issn: 1558- 1578.doi: 10.1109/TNS.2006.869826 .url: https://ieeexplore. ieee.org/document/1610988

2006
[257]

2014.url:https://github.com/mermaid-js/mermaid

Knut Sveidqvist.Mermaid: Generate Diagrams from Markdown-Like Text. 2014.url:https://github.com/mermaid-js/mermaid

2014
[258]

LHC Availability 2017: Proton Physics – Setting the Scene

Benjamin Todd et al. “LHC Availability 2017: Proton Physics – Setting the Scene”. In:8th Evian Workshop on LHC Beam Operation(2017), pp. 35–46. url:https://cds.cern.ch/record/2813534. 206BIBLIOGRAPHY

2017
[259]

CiscoPublic.CiscoVisualNetworkingIndex:ForecastandTrends,2017–2022. Tech. rep

2017
[260]

Effect of the High-Level Trigger for Detecting Long- Lived Particles at LHCb

Lukas Calefice et al. “Effect of the High-Level Trigger for Detecting Long- Lived Particles at LHCb”. In:Front. Big Data5 (2022), p. 1008737.doi: 10.3389/fdata.2022.1008737

2022
[261]

Allen in the First Days of Run 3

Thomas Boettcher. “Allen in the First Days of Run 3”. In:Connecting The Dots (CTD 2022). Princeton, USA, 2022, PROC–CTD2022–33.url: https://cds.cern.ch/record/2823780

2022
[262]

June 2018.doi:10.48550/arXiv.1806.10912.url: http: //arxiv.org/abs/1806.10912

Vladimir Vava Gligorov.Conceptualization, Implementation, and Com- missioning of Real-Time Analysis in the High Level Trigger of the LHCb Experiment. June 2018.doi:10.48550/arXiv.1806.10912.url: http: //arxiv.org/abs/1806.10912

2018 doi arXiv
[263]

A Comprehensive Real-Time Analysis Model at the LHCb Experiment

Roel Aaij et al. “A Comprehensive Real-Time Analysis Model at the LHCb Experiment”. In:Journal of Instrumentation14.04 (Apr. 2019), P04006– P04006.issn:1748-0221.doi: 10.1088/1748-0221/14/04/P04006.url: http://arxiv.org/abs/1903.01360

2019 arXiv
[264]

2020.url:https://cds.cern.ch/ record/2730181

LHCb Collaboration.RTA and DPA Dataflow Diagrams for Run 1, Run 2, and the Upgraded LHCb Detector. 2020.url:https://cds.cern.ch/ record/2730181

2020
[265]

Measurement of the Track Reconstruction Efficiency at LHCb

LHCb Collaboration. “Measurement of the Track Reconstruction Efficiency at LHCb”. In:Journal of Instrumentation10.02 (Feb. 2015), P02007.issn: 1748-0221.doi: 10 . 1088 / 1748 - 0221 / 10 / 02 / P02007.url: https : //dx.doi.org/10.1088/1748-0221/10/02/P02007

2015 doi
[266]

SelectionandProcessingofCalibrationSamplestoMeasure the Particle Identification Performance of the LHCb Experiment in Run 2

RoelAaijetal.“SelectionandProcessingofCalibrationSamplestoMeasure the Particle Identification Performance of the LHCb Experiment in Run 2”. In:EPJ Techniques and Instrumentation6.1 (Dec. 2019), pp. 1–16. issn: 2195-7045.doi: 10 . 1140 / epjti / s40485 - 019 - 0050 - z.url: htt...

2019 doi
[267]

2018.doi: 10.17181/CERN.Q0P4.57ON.url: https://cds.cern.ch/ record/2319756

LHCb Collaboration.Computing Model of the Upgrade LHCb Experiment. 2018.doi: 10.17181/CERN.Q0P4.57ON.url: https://cds.cern.ch/ record/2319756

2018
[268]

A Comparison of CPU and GPU Implementations for the LHCb Experiment Run 3 Trigger

Roel Aaij et al. “A Comparison of CPU and GPU Implementations for the LHCb Experiment Run 3 Trigger”. In:Computing and Software for Big Science6.1(Dec.2021),p.1.issn:2510-2044.doi: 10.1007/s41781-021- 00070-2.url:https://doi.org/10.1007/s41781-021-00070-2

2021 doi
[269]

A Parallel-Computing Algorithm for High- Energy Physics Particle Tracking and Decoding Using GPU Architectures

Placido Fernandez Declara et al. “A Parallel-Computing Algorithm for High- Energy Physics Particle Tracking and Decoding Using GPU Architectures”. In:IEEE Access7 (2019), pp. 91612–91626.issn: 2169-3536.doi: 10. 1109/ACCESS.2019.2927261.url: https://ieeexplore.ieee.org/ docume...

2019
[270]

TrackingonGPUatLHCb’sFullySoftwareTrigger

AlessandroScarabotto.“TrackingonGPUatLHCb’sFullySoftwareTrigger”. In:Connecting The Dots (CTD 2022). 2022, PROC–CTD2022–28.url: https://cds.cern.ch/record/2823783

2022
[271]

Claus Grupen and Boris Shwartz.Particle Detectors. 2nd ed. Cambridge MonographsonParticlePhysics,NuclearPhysicsandCosmology.Cambridge: CambridgeUniversityPress,2008.doi: 10.1017/CBO9780511534966.url: https://www.cambridge.org/core/books/particle-detectors/ 3431B735771D61076439...

2008 doi
[272]

The Positive Electron

Carl D. Anderson. “The Positive Electron”. In:Physical Review43.6 (Mar. 1933), pp. 491–494.doi: 10 . 1103 / PhysRev . 43 . 491.url: https : //link.aps.org/doi/10.1103/PhysRev.43.491

1933 doi
[273]

2021.url:https://cds.cern.ch/ record/2752971

Peilian Li, Eduardo Rodrigues, and Sascha Stahl.Tracking Definitions and Conventions for Run 3 and Beyond. 2021.url:https://cds.cern.ch/ record/2752971

2021
[274]

LHCb Collaboration.Track Types for the LHCb Upgrade.url:https:// twiki.cern.ch/twiki/pub/LHCb/ConferencePlots/trackTypes_ upgrade.pdf
[275]

The LHCb VELO detector: Design, operation and first results

David Friday. “The LHCb VELO detector: Design, operation and first results”.In:NuclearInstrumentsandMethodsinPhysicsResearchSectionA: Accelerators, Spectrometers, Detectors and Associated Equipment1070 (Jan. 2025), p. 170028.issn: 0168-9002.doi:10.1016/j.nima.2024.170028. url:...

2025
[277]

Charge Sharing in Silicon Pixel Detectors

Keith Mathieson et al. “Charge Sharing in Silicon Pixel Detectors”. In:Nu- clear Instruments and Methods in Physics Research Section A: Accelerators, Spectrometers, Detectors and Associated Equipment. 3rd International Work- shop on Radiation Imaging Detectors 487.1 (July 2002...

2002 doi
[278]

Efficient Component Labeling of Images of Arbitrary Dimension Represented by Linear Bintrees

Hanan Samet and Markku Tamminen. “Efficient Component Labeling of Images of Arbitrary Dimension Represented by Linear Bintrees”. In:IEEE Transactions on Pattern Analysis and Machine Intelligence10.4 (July 1988), pp. 579–586.issn: 1939-3539.doi: 10 . 1109 / 34 . 3918.url: https...

1988
[279]

A General Approach to Connected-Component Labeling for Arbitrary Image Represen- tations

Michael B. Dillencourt, Hanan Samet, and Markku Tamminen. “A General Approach to Connected-Component Labeling for Arbitrary Image Represen- tations”. In:J. ACM39.2 (Apr. 1992), pp. 253–280.issn: 0004-5411.doi: 10.1145/128749.128750.url: https://dl.acm.org/doi/10.1145/ 128749.128750

1992
[280]

A Fast Local Algorithm for Track Reconstruction on Parallel Architectures

Daniel Hugo Cámpora Pérez, Niko Neufeld, and Agustin Riscos Nuñez. “A Fast Local Algorithm for Track Reconstruction on Parallel Architectures”. In:2019 IEEE International Parallel and Distributed Processing Symposium Workshops (IPDPSW). May 2019, pp. 698–707.doi:10.1109/IPDPSW...

2019 doi
[281]

2020.url: https://cds.cern.ch/record/2722327

LHCb Collaboration.Performance of the GPU HLT1 (Allen). 2020.url: https://cds.cern.ch/record/2722327

2020
[282]

GDL4HEP.ETX4VELO: Track Reconstruction in the Velo, Using the Tools of Exa.TrkX.url:https://gitlab.cern.ch/gdl4hep/etx4velo
[283]

GDL4HEP.XDIGI2CSV: A Versatile Tool for Running Allen and Moore Algorithms in a Reproducible Manner.url:https://gitlab.cern.ch/ gdl4hep/xdigi2csv
[284]

GDL4HEP.MonteTracko: A Python Library for Evaluating the Performance of Track Reconstruction Algorithms.url:https://gitlab.cern.ch/ gdl4hep/montetracko
[285]

GPU Usage in ATLAS Reconstruction and Analysis

Attila Krasznahorkay et al. “GPU Usage in ATLAS Reconstruction and Analysis”. In:EPJ Web Conf.245 (2020). Ed. by C. Doglioni et al., p. 05006. doi:10.1051/epjconf/202024505006

2020
[286]

GPU Acceleration of the ATLAS Calorimeter Clustering Algorithm

Nuno Fernandes. “GPU Acceleration of the ATLAS Calorimeter Clustering Algorithm”. In:Journal of Physics: Conference Series2438.1 (Feb. 2023), p. 012044.issn: 1742-6596.doi: 10.1088/1742-6596/2438/1/012044. url:https://dx.doi.org/10.1088/1742-6596/2438/1/012044

2023 doi
[287]

Track Finding in ATLAS Using GPUs

Johannes Mattmann and Christian Schmitt. “Track Finding in ATLAS Using GPUs”. In:Journal of Physics: Conference Series396.2 (Dec. 2012), p. 022035.issn: 1742-6596.doi: 10.1088/1742-6596/396/2/022035 . url:https://dx.doi.org/10.1088/1742-6596/396/2/022035

2012 doi
[288]

OptimisingtheConfigurationoftheCMSGPURecon- struction

AbdullaEbrahimetal.“OptimisingtheConfigurationoftheCMSGPURecon- struction”.In:EPJWebConf.295(2024),p.11015.doi: 10.1051/epjconf/ 202429511015.url:https://cds.cern.ch/record/2919415

2024
[289]

2022.url:https://cds.cern.ch/record/2851656

CMSCollaboration.CommissioningCMSOnlineReconstructionwithGPUs. 2022.url:https://cds.cern.ch/record/2851656

2022
[290]

Usage of GPUs in ALICE Online and Offline Processing during LHC Run 3

David Rohr. “Usage of GPUs in ALICE Online and Offline Processing during LHC Run 3”. In:EPJ Web of Conferences251 (2021), p. 04026. issn: 2100-014X.doi: 10.1051/epjconf/202125104026 .url: http: //arxiv.org/abs/2106.03636. BIBLIOGRAPHY209

2021
[291]

UsageofGPUsforOnlineandOfflineReconstructioninALICE inRun3

DavidRohr.“UsageofGPUsforOnlineandOfflineReconstructioninALICE inRun3”.In:Proceedingsof42ndInternationalConferenceonHighEnergy Physics — PoS(ICHEP2024). Dec. 2024, p. 1012.doi:10.22323/1.476. 1012.url:http://arxiv.org/abs/2502.09138

2024 arXiv
[293]

Exploring Deep Learning MethodsforParticleTrackReconstruction

Rravish Kumar Sharma and Goldie Gabrani. “Exploring Deep Learning MethodsforParticleTrackReconstruction”.In:19thInternationalConference onComputationalScienceandItsApplications(ICCSA).July2019,pp.120– 125.doi: 10.1109/ICCSA.2019.00009 .url: https://ieeexplore. ieee.org/documen...

2019
[294]

Samuel Van Stroud et al.Transformers for Charged Particle Track Recon- struction in High Energy Physics. Nov. 2024.doi:10.48550/arXiv.2411. 07149.url:http://arxiv.org/abs/2411.07149

2024 doi
[295]

The Particle Track Reconstruction Based on Deep LearningNeuralNetworks

Dmitriy Baranov et al. “The Particle Track Reconstruction Based on Deep LearningNeuralNetworks”.In:EPJWebofConferences214(2019),p.06018. issn: 2100-014X.doi: 10.1051/epjconf/201921406018 .url: http: //arxiv.org/abs/1812.03859

2019
[296]

Steven Farrell et al.Novel Deep Learning Methods for Track Reconstruction. Oct. 2018.doi: 10.48550/arXiv.1810.06111 .url: http://arxiv. org/abs/1810.06111

2018 doi arXiv
[297]

TrackFormers: In Search of Transformer-Based Particle Tracking for the High-Luminosity LHC Era

Sascha Caron et al. “TrackFormers: In Search of Transformer-Based Particle Tracking for the High-Luminosity LHC Era”. In:The European Physical Journal C85.4 (Apr. 2025), p. 460.issn: 1434-6052.doi:10.1140/epjc/ s10052-025-14156-3.url:http://arxiv.org/abs/2407.07179

2025 arXiv
[298]

Developing a Hybrid Machine Learning Model for VELO Upgrade Track Reconstruction

Phillip John Marshall. “Developing a Hybrid Machine Learning Model for VELO Upgrade Track Reconstruction”. PhD thesis. U. of Liverpool, 2022. url:https://repository.cern/records/r43w0-zcy49

2022
[299]

Geometric Deep Learning: Going Beyond Euclidean Data

Michael M. Bronstein et al. “Geometric Deep Learning: Going Beyond Euclidean Data”. In:IEEE Signal Processing Magazine34.4 (July 2017), pp. 18–42.issn: 1558-0792.doi: 10 . 1109 / MSP . 2017 . 2693418.url: https://ieeexplore.ieee.org/document/7974879

2017
[300]

End-to-End Multi-Track Reconstruction using Graph Neural Networks at Belle II

Lea Reuter et al. “End-to-End Multi-Track Reconstruction using Graph Neural Networks at Belle II”. In:Computing and Software for Big Science 9.1 (Dec. 2025), p. 6.issn: 2510-2036, 2510-2044.doi:10.1007/s41781- 025-00135-6.url:http://arxiv.org/abs/2411.13596. 210BIBLIOGRAPHY

2025 arXiv

Pith tools

Reviewed August 5, 2026 · model on record in the stance chip above.

[1] [2]

url:https://www.smarthep.org/

SMARTHEP.SMARTHEP: Real-Time Analysis for Science and Industry. url:https://www.smarthep.org/

[2] [3]

SMARTHEP.ESR5.url: https://www.smarthep.org/positions/ esr5/

[3] [4]

Ximantis.Ximantis: The Future of Traffic Technologies.url:https:// ximantis.com/

[4] [5]

GDL4HEP.GeometricDeepLearningforHighEnergyPhysics.url: https: //gitlab.cern.ch/gdl4hep

[5] [6]

FotisI.GiasemisandAlexandrosSopasakis.LearningTrafficAnomaliesfrom Generative Models on Real-Time Observations. Feb. 2025.doi:10.48550/ arXiv.2502.01391.url:http://arxiv.org/abs/2502.01391

work page Pith review arXiv doi:10.48550/arxiv.2502.01391 2025

[6] [7]

June 2025.doi: 10.48550/arXiv.2506.14578 .url: http://arxiv

SMARTHEP Network.Review of Machine Learning for Real-Time Analysis at the Large Hadron Collider Experiments ALICE, ATLAS, CMS and LHCb. June 2025.doi: 10.48550/arXiv.2506.14578 .url: http://arxiv. org/abs/2506.14578

arXiv doi:10.48550/arxiv.2506.14578 2025

[7] [8]

Graph Neural Network-Based Track Finding in the LHCb Vertex Detector

Anthony Correia et al. “Graph Neural Network-Based Track Finding in the LHCb Vertex Detector”. In:Journal of Instrumentation19.12 (Dec. 2024), P12022.issn:1748-0221.doi: 10.1088/1748-0221/19/12/P12022.url: https://dx.doi.org/10.1088/1748-0221/19/12/P12022

work page doi:10.1088/1748-0221/19/12/p12022.url: 2024

[8] [9]

Anthony Correia.CTD 2023: High-Throughout GNN Track Reconstruction at LHCb. Oct. 2023.url:https://indico.cern.ch/event/1252748/ contributions/5521484/

arXiv 2023
