A Deterministic Control Plane for LLM Coding Agents

Padmaraj Madatha This is my paper

Pith reviewed 2026-06-26 03:54 UTC · model grok-4.3

classification 💻 cs.SE cs.AIcs.CR
keywords LLM coding agentsagent configuration filessupply chain managementdeterministic control planepermission enforcementstate machine gatingprompt drift detectionGitHub repository analysis
0
0 comments X

The pith

LLM coding agent configurations propagate as unmanaged duplicates across repositories and require a deterministic control plane to enforce supply-chain integrity and permissions.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

A study of 10,008 GitHub repositories identifies that agent configuration files duplicate at a 10.1 percent rate across independent projects, with most duplication crossing organizational boundaries, while fewer than 1 percent declare permission boundaries and revisions occur at low rates. The paper proposes a deterministic control plane that maps directly onto these gaps by treating agent definitions as a managed supply chain. This includes content addressing with SHA-256 hashes, HMAC-stamped lockfiles, tiered permissions enforced before LLM invocation, a phase state machine for traceability from requirements to tests, compilation to multiple IDE targets, and Jaccard-based drift detection. A sympathetic reader would care because the layer sits above the harness and aims to replace ad-hoc or further LLM-based management with tool-agnostic, enforceable invariants.

Core claim

Agent configurations propagate as undeclared shared components: 10.1 percent of tracked paths are SHA-256 exact duplicates across independent repositories, with 75.5 percent of clone pairs crossing organisational boundaries, 58 percent single-commit histories, and less than 1 percent declaring permission boundaries. The central claim is that these gaps are addressed by a deterministic control plane that treats definitions as a managed supply chain with content addressing and audit logs, enforces tiered permissions and blocklists, gates work through a requirement-to-file-to-test state machine, compiles one canonical definition to seven IDE targets, and detects prompt drift via Jaccard similar

What carries the argument

Rel(AI)Build deterministic control plane, which provides a one-to-one mapping from the identified configuration gaps to supply-chain primitives, tiered permissions, and state-machine gating.

If this is right

  • Agent definitions receive SHA-256 content addressing, HMAC-stamped lockfiles, and hash-chained audit logs.
  • Tiered permissions and attack-derived blocklists are enforced before any LLM invocation occurs.
  • Feature work is gated by a phase state machine that maintains requirement-to-file-to-test traceability.
  • A single canonical definition compiles to seven different IDE targets.
  • Prompt drift is detected automatically through Jaccard similarity on the definitions.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The same supply-chain and gating approach could extend to configuration files for non-coding LLM agents.
  • Widespread use would likely lower the observed cross-repository duplication rate by making definitions versioned and unique.
  • Integration points with existing CI/CD systems would allow agent setups to inherit the same governance level as workflow files.
  • Developer productivity and security metrics from actual deployments would be required to quantify the practical gains beyond the conformance tests.

Load-bearing premise

That the specific combination of supply-chain primitives, tiered permissions, and state-machine gating will produce better real-world outcomes than continued reliance on LLM orchestration or ad-hoc config management.

What would settle it

A controlled comparison measuring rates of unauthorized file access, configuration drift, or security incidents in projects that adopt the control plane versus matched projects that continue with unmanaged configurations.

Figures

Figures reproduced from arXiv: 2606.26924 by Padmaraj Madatha.

Figure 1

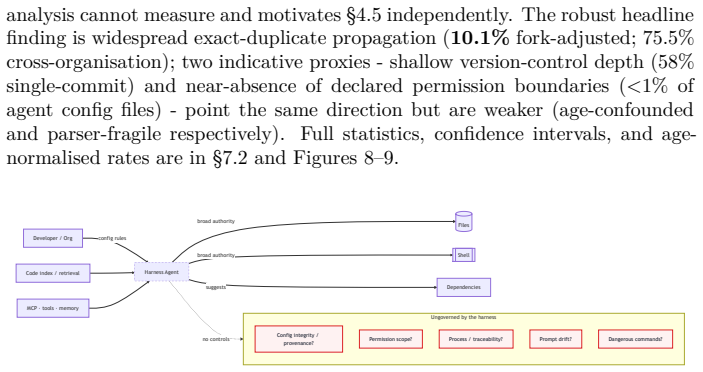

Figure 1. Figure 1: The thin-governance gap. Runtime augmentation (indexing, tools, [PITH_FULL_IMAGE:figures/full_fig_p003_1.png] view at source ↗
Figure 2

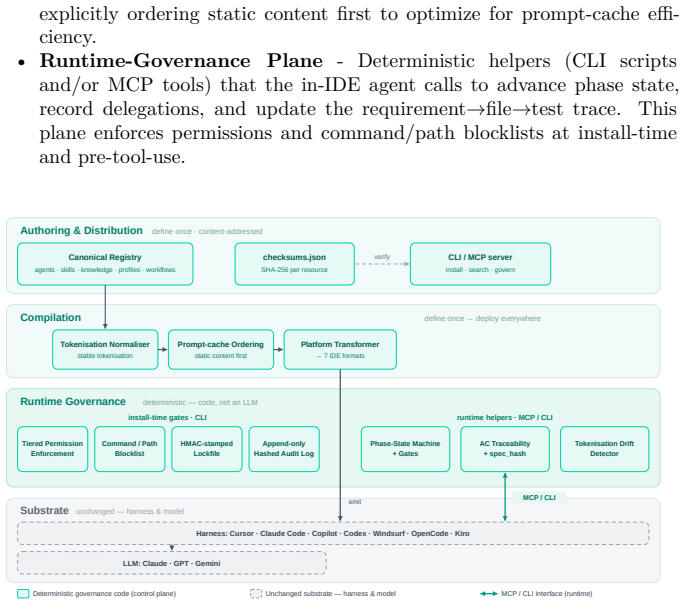

Figure 2. Figure 2: The deterministic control plane architecture. Four horizontal layers [PITH_FULL_IMAGE:figures/full_fig_p010_2.png] view at source ↗
Figure 3

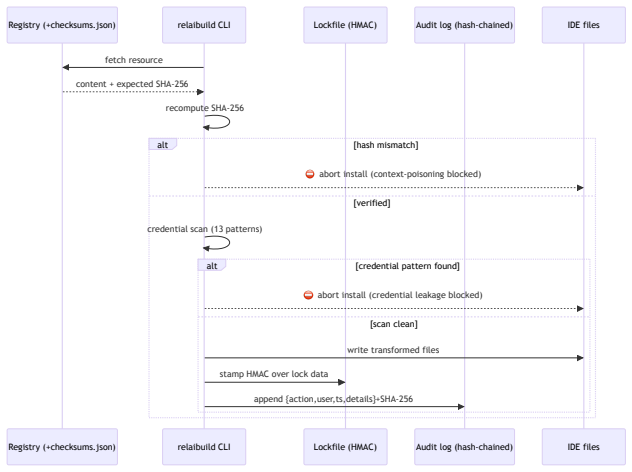

Figure 3. Figure 3: The agent-definition install pipeline. Three independent integrity [PITH_FULL_IMAGE:figures/full_fig_p013_3.png] view at source ↗
Figure 4

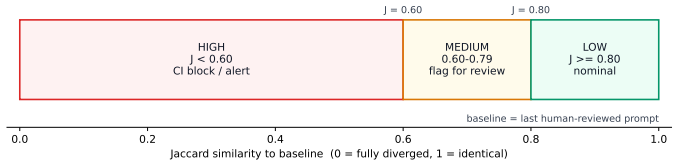

Figure 4. Figure 4: Conceptual illustration of tokenisation drift risk zones. Thresholds [PITH_FULL_IMAGE:figures/full_fig_p017_4.png] view at source ↗
Figure 5

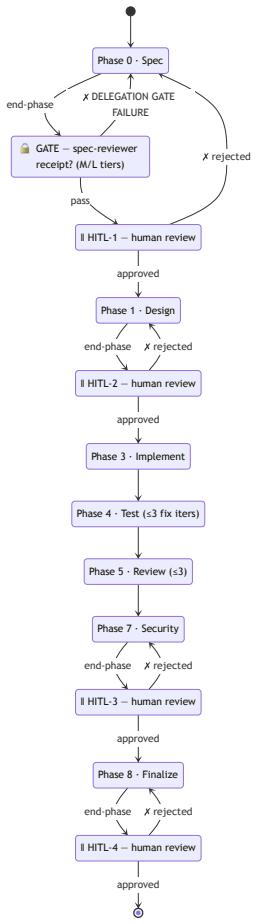

Figure 5. Figure 5: The deterministic phase-gated lifecycle. Four HITL gates (pause [PITH_FULL_IMAGE:figures/full_fig_p019_5.png] view at source ↗
Figure 6

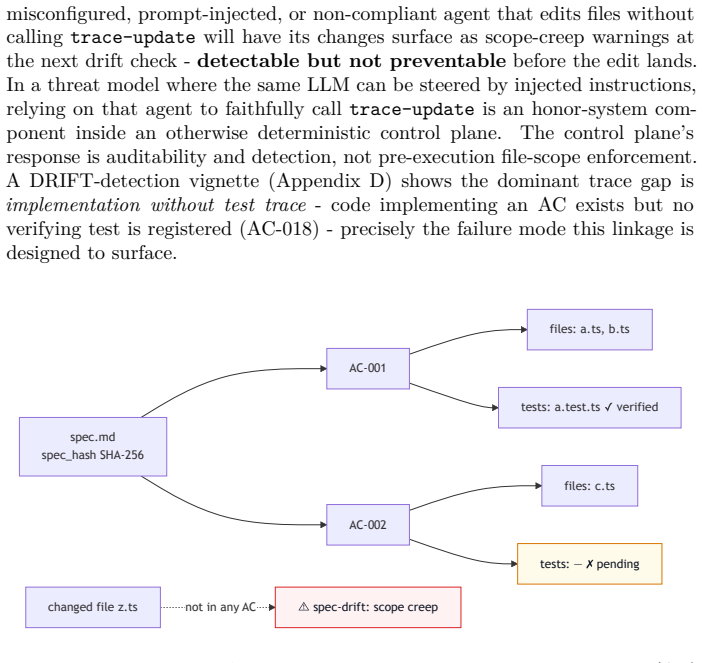

Figure 6. Figure 6: Requirement→file→test traceability. Each acceptance criterion (AC) in the content-addressed spec maps to implementing files and verifying tests; a verified AC is green, an unverified AC is amber. A file changed outside any AC scope surfaces as a spec-drift warning (red), making scope creep de￾tectable automatically. File-to-AC linkage requires cooperative agent invocation of trace-update (§4.5 trust bounda… view at source ↗
Figure 7
Figure 7. Figure 7: Threat → deterministic control mapping. Seven identified threats (red, left) each have a primary deterministic control (teal, right); T-numbers correspond to [PITH_FULL_IMAGE:figures/full_fig_p025_7.png] view at source ↗
Figure 8

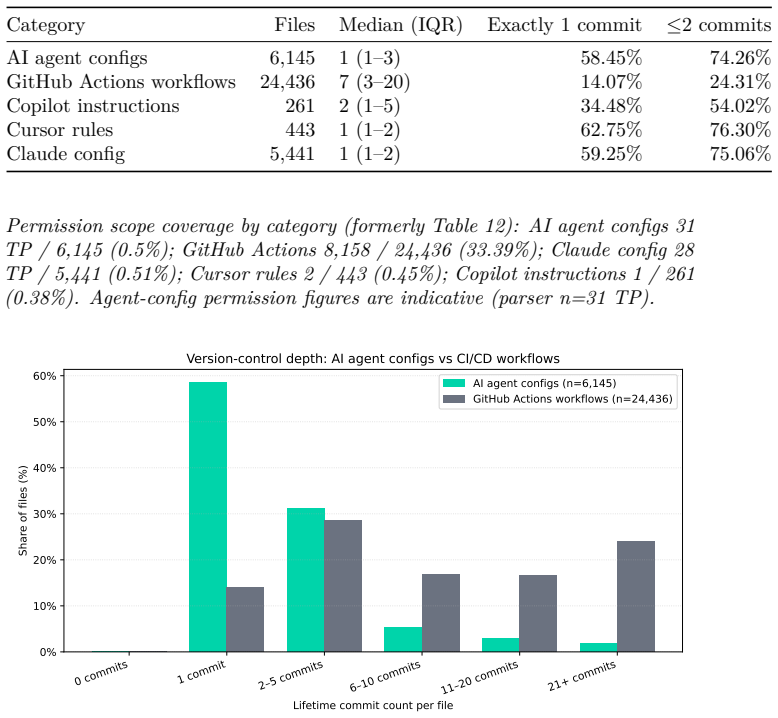

Figure 8. Figure 8: Raw lifetime version-control depth by file category. AI agent [PITH_FULL_IMAGE:figures/full_fig_p031_8.png] view at source ↗
Figure 9

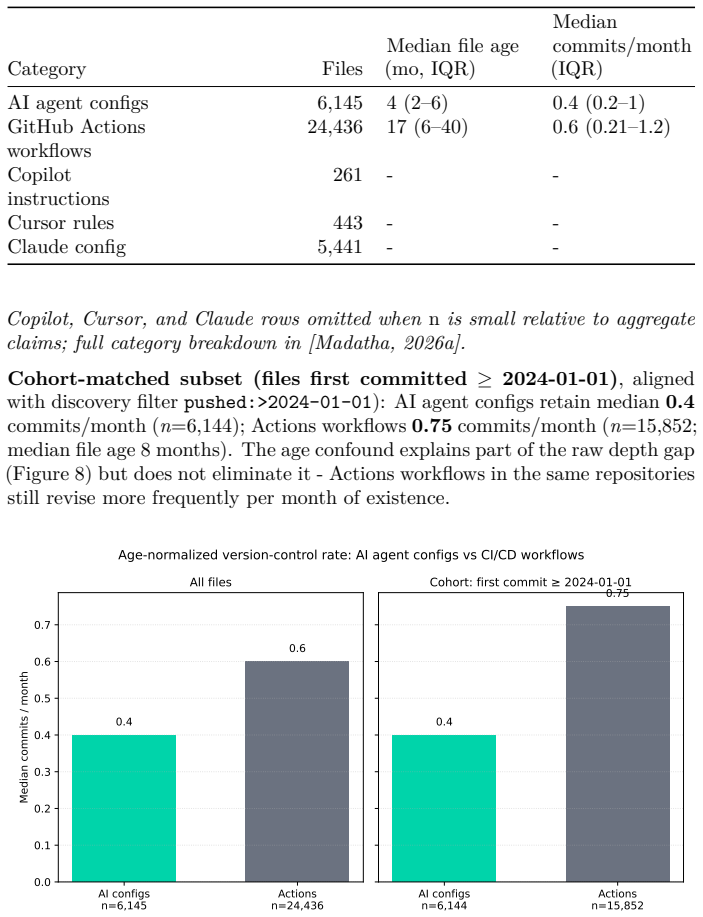

Figure 9. Figure 9: Median commits/month by category. Left panel: all files; [PITH_FULL_IMAGE:figures/full_fig_p032_9.png] view at source ↗
read the original abstract

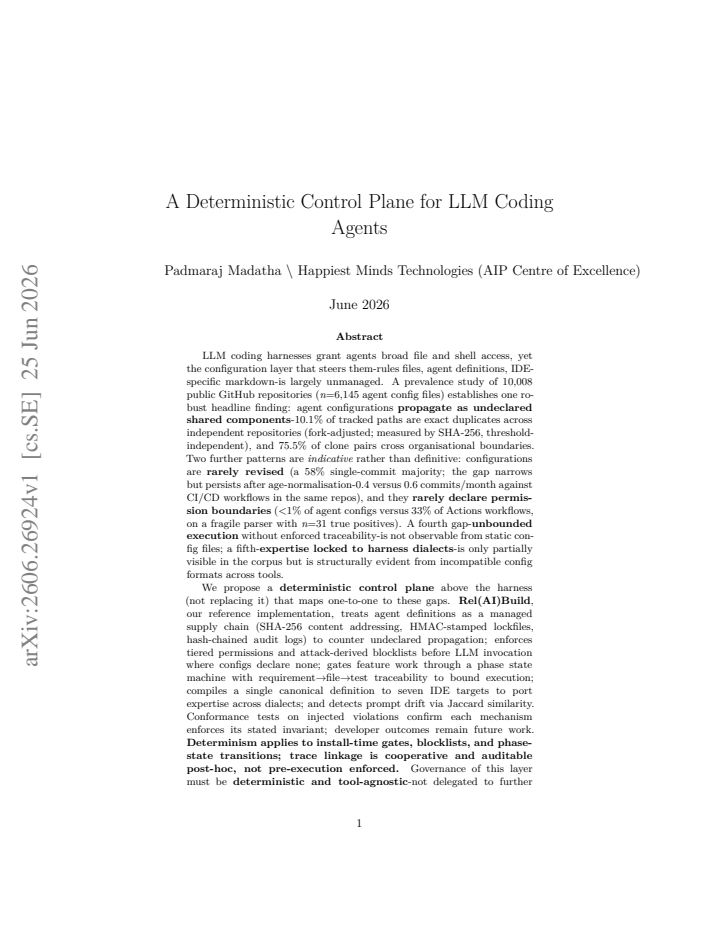

LLM coding harnesses grant agents broad file and shell access, yet the configuration layer that steers them -- rules files, agent definitions, IDE-specific markdown -- is largely unmanaged. A prevalence study of 10,008 public GitHub repositories (n=6,145 agent config files) finds that agent configurations propagate as undeclared shared components: 10.1% of tracked paths are SHA-256 exact duplicates across independent repositories (fork-adjusted, threshold-independent), with 75.5% of clone pairs crossing organisational boundaries. Two further patterns are indicative: configurations are rarely revised (58% single-commit; 0.4 vs 0.6 commits/month age-normalised against CI/CD workflows), and rarely declare permission boundaries (<1% of agent configs vs 33% of Actions workflows, n=31 true positives). We propose a deterministic control plane above the harness that maps one-to-one to these gaps. Rel(AI)Build treats agent definitions as a managed supply chain (SHA-256 content addressing, HMAC-stamped lockfiles, hash-chained audit logs); enforces tiered permissions and attack-derived blocklists before LLM invocation; gates feature work through a phase state machine with requirement-to-file-to-test traceability; compiles a single canonical definition to seven IDE targets; and detects prompt drift via Jaccard similarity. Conformance tests on injected violations confirm each mechanism enforces its stated invariant; developer outcomes remain future work. Governance of this layer must be deterministic and tool-agnostic -- not delegated to further LLM orchestration.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

0 major / 2 minor

Summary. The manuscript reports a prevalence study across 10,008 public GitHub repositories (yielding 6,145 agent config files) that identifies three gaps in LLM coding agent configuration management: 10.1% of tracked paths are SHA-256 exact duplicates across independent repositories (75.5% crossing organisational boundaries), configurations are rarely revised (58% single-commit; 0.4 vs 0.6 commits/month age-normalised), and permission boundaries are rarely declared (<1% of agent configs vs 33% of Actions workflows). It proposes the Rel(AI)Build deterministic control plane that maps one-to-one to these gaps via supply-chain primitives (SHA-256 content addressing, HMAC-stamped lockfiles, hash-chained audit logs), tiered permissions and attack-derived blocklists, a phase state machine with requirement-to-file-to-test traceability, compilation to seven IDE targets, and Jaccard-based prompt-drift detection. Conformance tests on injected violations are reported to confirm that each mechanism enforces its stated invariant; developer outcomes and real-world efficacy are explicitly scoped as future work.

Significance. If the design and its conformance properties hold, the work supplies a concrete, tool-agnostic alternative to ad-hoc or LLM-orchestrated configuration management for LLM coding agents. The prevalence statistics provide empirical motivation for the three gaps, the use of standard cryptographic primitives is parameter-free in the stated sense, and the explicit scoping of claims to the mechanisms (rather than asserted outcome improvements) is a strength. The approach could influence secure configuration practices in the growing LLM-agent tooling ecosystem.

minor comments (2)
  1. The abstract is unusually long and dense; a shorter version focused on the three gaps, the one-to-one mapping, and the scope limitation would improve readability while preserving all technical content.
  2. A high-level architecture diagram of the control plane (showing the relationship between the supply-chain layer, permission gate, state machine, and multi-target compiler) would help readers visualise the one-to-one mapping claimed in the abstract.

Simulated Author's Rebuttal

0 responses · 0 unresolved

We thank the referee for the detailed summary of the manuscript, the positive assessment of its significance, and the recommendation of minor revision. No major comments were raised in the report.

Circularity Check

0 steps flagged

No significant circularity detected

full rationale

The paper reports an empirical prevalence study (n=10,008 repos) that surfaces three observable patterns in agent configs, then presents an explicit design proposal (Rel(AI)Build) that addresses those patterns using standard, externally defined primitives (SHA-256 addressing, HMAC lockfiles, phase state machines, Jaccard drift detection). Conformance is verified by synthetic injection tests that check stated invariants. No equations, fitted parameters, or predictions appear; the mapping is by construction of the proposal itself rather than a reduction. No self-citations are load-bearing, no uniqueness theorems are invoked, and no ansatz or renaming of known results is used. The derivation chain is therefore self-contained against external benchmarks.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 1 invented entities

Relies on standard cryptographic assumptions and introduces one new system entity without fitted parameters or additional axioms beyond domain conventions for permissions and hashing.

axioms (1)
  • standard math SHA-256 and HMAC provide reliable content addressing and tamper evidence for configuration files.
    Invoked for lockfiles and audit logs.
invented entities (1)
  • Rel(AI)Build control plane no independent evidence
    purpose: Deterministic management layer for LLM agent configurations
    New system proposed to address identified gaps.
