Rotating the boundary of a bilayer graphene hexagon by a fraction of a degree drives its electron dynamics from near-integrable to quantum-chaotic, as seen in spectral statistics and eigenstate structure.

Reviewed by Pith at T0; open to challenge. T0 means a machine referee read the full paper against a public rubric. the ladder, T0–T4 →

Challenge this review Re-run · record.json Download PDF Read on arXiv ↗

T0 review · deepseek-v4-flash

2026-08-03 16:57 UTC pith:KC3YAJQ7

load-bearing objection The rotation-driven chaos result is real and well-supported, but the Discussion's '0.1° to Wigner-Dyson' overstates their own SI data. the 3 major comments →

arxiv 2512.10914 v4 pith:KC3YAJQ7 submitted 2025-12-11 cond-mat.mes-hall cond-mat.dis-nncond-mat.stat-mech

Shaping chaos in bilayer graphene cavities

Jucheng Lin , Yicheng Zhuang , Anton M. Graf , Eric J. Heller , Joonas Keski-Rahkonen This is my paper
classification cond-mat.mes-hall cond-mat.dis-nncond-mat.stat-mech PACS 05.45.Mt73.22.Pr73.23.-b
keywords bilayer graphenequantum chaostrigonal warpingquantum billiardsWigner–Dyson statisticsmesoscopic cavitieseigenstate structuresemiclassical ray dynamics
verification ladder T0 review T1 audit T2 compute T3 formal T4 reserved

The pith

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

Bilayer graphene cavities—hexagonal flakes a few hundred nanometres across—offer a tunable platform for studying quantum chaos, and this paper shows that a single geometric knob controls the transition: rotating the cavity's edge relative to the underlying lattice. When the boundary is aligned with the crystal axes, the electron dynamics is nearly integrable or pseudointegrable, with semi-Poisson spectral statistics and long-range-correlated eigenstates. Rotating the boundary by as little as 0.1° destroys the commensurability between the trigonally warped Fermi surface and the hexagonal walls, driving the spectrum to Wigner–Dyson statistics and the eigenstates to random-wave form. The authors confirm this with atomistic tight-binding calculations on million-atom cavities and with semiclassical ray dynamics, which shows the phase space filling quasi-ergodically even though the classical Lyapunov exponent is zero. If right, the result makes rotation angle a practical, experimentally accessible control for engineering chaotic versus regular electron behaviour in graphene devices.

Core claim

The central claim is that boundary–lattice misalignment is a switch for quantum chaos in bilayer graphene cavities. Rotating a hexagonal cavity boundary relative to the underlying lattice—while leaving the physical geometry essentially unchanged—drives the spectrum from pseudointegrable (semi-Poisson) statistics to Wigner–Dyson (GOE/GUE) statistics, and collapses the eigenstate correlation length to the wavelength scale, signalling random-wave eigenstates. Semiclassically, the transition is attributed to the loss of commensurability between the trigonally warped Fermi surface and the polygonal boundary: the warped reflection rule becomes incommensurate with the boundary, producing quasi-ergo

What carries the argument

The trigonally warped Fermi surface of AB-stacked bilayer graphene—arising from the γ3 skew interlayer hopping—gives a strongly anisotropic group velocity, together with a reflection rule that conserves energy and tangential momentum in a Minkowski billiard. The paper's machinery is the interplay between this warped reflection map and the hexagonal boundary's orientation: at alignment the map is commensurate and effectively specular, while upon rotation it becomes incommensurate, spreading trajectories quasi-ergodically over phase space. This classical restructuring is then linked to the quantum observables: level-spacing ratio, spectral rigidity, eigenstate correlation length, and momentum-

Load-bearing premise

The semiclassical explanation assumes that the relevant classical limit of the atomistic tight-binding model is a Minkowski billiard whose boundary reflection conserves energy and tangential momentum, with zero Berry curvature; if the true atomistic edge reflection law deviates substantially from this rule at E ≈ 0.2 eV, the quasi-ergodic phase-space filling and the resulting quantum transition would need a different explanation.

What would settle it

Measure the spectral statistics of a single hexagonal bilayer graphene quantum dot as a function of edge rotation angle at E ≈ 0.2 eV: if the mean level-spacing ratio does not move from the semi-Poisson regime toward GOE/GUE values for rotations of ~0.1°–1°, or if monolayer graphene (which has an isotropic Fermi surface and no trigonal warping) shows the same chaotic transition, the claim that trigonal-warping commensurability loss drives the effect is falsified. Alternatively, an atomistic calculation of the edge reflection probability for zigzag–armchair mixed edges that shows tangential mom

Watch this falsifier. Get emailed when new claim-graph text bears on it.

If this is right

  • Rotation angle becomes a robust, experimentally accessible knob for switching a bilayer graphene cavity between pseudointegrable and chaotic regimes, with no need for strong magnetic fields or external potentials.
  • The transition should be observable in low-temperature transport: Coulomb blockade and excited-state spectroscopy of rotated cavities should reveal level statistics approaching Wigner–Dyson (GOE for the A sector, GUE for the E sector).
  • Eigenstate profiles become random-wave-like with correlation length near the Fermi wavelength, meaning scanning probe imaging of the density should show spatially uncorrelated patterns distinct from the standing waves of aligned cavities.
  • The semiclassical quasi-ergodic filling explains GOE/GUE statistics without classical Lyapunov chaos, so bilayer graphene cavities join the class of systems where ergodicity alone yields random-matrix spectral universality.
  • Device designs must avoid the commensurate 30° armchair orientation, where edge-dominated physics restores quasi-integrable behaviour and the bulk-mismatch mechanism is not captured by the simple semiclassical model.
  • The robustness of the transition across cavity sizes (r = 400–500 nm) and with or without point-group symmetry indicates the effect is generic to the warped Fermi-surface geometry rather than a fine-tuned resonance.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The mechanism should generalise to any two-dimensional material with a stacked, warped Fermi surface and hard-wall confinement; materials with stronger trigonal warping, or the ability to tune warping via an electric field, might exhibit the chaos transition at even smaller misalignments or with an electrically controllable threshold.
  • Beyond spectral statistics, rotation angle could tune magnetotransport and interference phenomena such as conductance fluctuations and weak (anti)localisation, since chaotic and regular classical dynamics produce qualitatively different quantum interference corrections.
  • The quasi-ergodic, non-hyperbolic phase space at intermediate rotations shows filamentary streaks that could support superscars or other structured eigenstates in a controlled way, offering a testbed for predictions about pseudointegrable-to-chaotic crossover.
  • A direct experimental extension would be to map the momentum-space inverse participation ratio of individual eigenstates via Fourier-transform scanning tunnelling spectroscopy, tracking its decrease as a function of rotation angle to confirm the plane-wave-composition mechanism.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit.

Referee Report

3 major / 6 minor

Summary. This paper studies quantum chaos in hexagonal AB-stacked bilayer graphene cavities using large-scale tight-binding simulations. The authors rotate the hexagonal boundary relative to the underlying lattice through 0°–30° and analyze symmetry-resolved level statistics (r-ratio, spectral rigidity), eigenstate correlation lengths, and momentum-space IPR. For the aligned case they report Poisson-like A1u/A2g sectors and semi-Poisson pseudointegrable sectors; after rotation by 15°, ⟨r⟩ rises to 0.516 (A) and 0.558 (E), approaching Wigner–Dyson values, and correlation lengths drop toward the wavelength scale. A semiclassical Minkowski-billiard ray model with kt-conserving reflection shows Poincaré sections collapsing to invariant curves at alignment and spreading quasi-ergodically after rotation. Control calculations with artificial kinks, monolayer graphene, and different sizes support the interpretation that trigonal-warping-induced incommensurability, rather than edge roughness alone, drives the transition. The Discussion further claims that a rotation as small as 0.1° already drives the spectrum to Wigner–Dyson statistics.

Significance. If the result holds, the paper identifies a simple, experimentally accessible control knob—boundary-lattice orientation—for engineering quantum chaos in bilayer graphene cavities, and it provides an atomistic quantum treatment with semiclassical context. Strengths include large-scale tight-binding simulations, explicit symmetry resolution of sectors, use of a realistic lattice model that avoids continuum discretization artifacts, and multiple control calculations (kinks, monolayer graphene, system size). These are substantial and go beyond prior continuum-based semiclassical studies. However, the headline small-angle claim is not supported by the paper's own SI data, and no statistical uncertainties accompany the reported r-values and fit parameters. The semiclassical mechanism is heuristic and does not fully account for intervalley scattering at real edges, as the authors partly acknowledge. The central qualitative transition at moderate angles is credible, but the manuscript's strongest quantitative claims need correction and uncertainty quantification.

major comments (3)
  1. [Sec. V; SI Sec. IV.B, Fig. 5] The Discussion states that 'A rotation as small as 0.1° ... is already sufficient to drive the spectrum to Wigner–Dyson statistics.' This is contradicted by the paper's own Supplementary Fig. 5. At θ=0.1° the A subspace is described as semi-Poisson with ⟨r⟩ between Poisson (0.386) and GOE (0.531), and the E subspace as intermediate between GOE (0.531) and GUE (0.600); the rigidity in A 'closely follows GOE' and in E lies between GOE and GUE. Neither sector reaches Wigner–Dyson. The same wording also conflicts with the kink-control data (SI Fig. 4), which show that one kink is far from sufficient. Please correct the claim to describe a partial crossover at 0.1° and report the actual ⟨r⟩ and ⟨∆3⟩ values there. This is load-bearing because the advertised rapid small-angle control rests on it.
  2. [Sec. III.A; Fig. 2 and Fig. 3] All spectral statistics are reported as single numbers with no statistical uncertainties, fit-quality measures, or sensitivity checks. The energy window (0.18–0.25 eV) contains 2,978 levels total, split among symmetry sectors; ⟨r⟩ differences as small as 0.02–0.03 are used to classify sectors as Poisson, semi-Poisson, GOE, or GUE (e.g., A-sector 0.516 vs GOE 0.531; E-sector 0.558 vs GUE 0.600). Without bootstrap errors, finite-size dependence, or variation over unfolding choices, these classifications are not quantitatively secure. Please add error bars (e.g., bootstrap over levels or over independent window sub-blocks) and state the number of levels in each sector.
  3. [Sec. IV; SI Eqs. (9)–(10)] The causal claim that the transition 'originates from loss of commensurability between the warped Fermi surface and the polygonal boundary' rests on a continuum ray model (SI Eqs. (9)–(10)) that enforces kt-conserving reflection and ignores intervalley scattering and edge termination. The paper's own 30° case is an admitted edge-dominated exception, showing that edge physics can override the bulk mismatch criterion. The kink and MLG controls help, but the semiclassical model is never quantitatively connected to the quantum observables—no comparison of classical phase-space filling with quantum Husimi functions, no prediction of the θ-dependence of ⟨r⟩. I recommend either softening the causal language to 'consistent with' or adding a direct quantum-classical comparison; without it, the mechanism is suggestive rather than established.
minor comments (6)
  1. [SI Sec. I.C, Eq. (4)] The second sub-sublattice vector is written as (√3 a, 0), parallel to the first. Presumably it should be (0, √3 a) or similar. Please correct, as the sub-sublattice construction is used in the main-text eigenstate analysis.
  2. [Introduction] Grammatical typos: 'This paradigm have played' and 'features of of BLG' should be corrected.
  3. [Sec. VI.B] 'we are able to to resolve fully quantum spectrum' contains a duplicated 'to'.
  4. [SI Sec. IV.E] The sentence 'Further results show that the These results show that rotation does not drive MLG cavities...' is garbled and should be rewritten.
  5. [Conclusion] The statement that the rotated cavity 'produces Wigner–Dyson distribution of level spacing' is too strong; at θ=15° the A sector ⟨r⟩=0.516 lies below GOE (0.531) and the E sector ⟨r⟩=0.558 lies between GOE and GUE (0.600). Qualify this claim.
  6. [Fig. 4 caption] The statistical panels (c1)–(c5) are not fully described: it is unclear whether the curves are histograms, kernel densities, or fits, and what the error bars (if any) represent. Please clarify.

Circularity Check

0 steps flagged

No significant circularity: the quantum transition is computed directly from the tight-binding Hamiltonian; the semiclassical ray model is an explicitly separate heuristic.

full rationale

The central claim — that rotating the BLG cavity boundary relative to the lattice drives a near-integrable-to-chaotic quantum transition — is derived directly from diagonalization of the atomistic tight-binding Hamiltonian (Eq. 1) for each orientation angle. The spectral statistics, spectral rigidity, and correlation lengths are descriptive diagnostics of the computed eigenstates, not fitted constraints used to produce the transition. The semiclassical ray model (Sec. IV and SI Sec. II) is introduced explicitly as a continuum heuristic that 'intentionally omits atomistic edge details and serves as a heuristic tool' and is not used to generate the quantum spectra; it is an independent visualization of the classical phase-space structure. The semi-Poisson and GOE–GUE fits are characterizations, not predictions. The only self-citations (e.g., Ref. 22 by co-authors) are motivational and non-load-bearing, so they do not raise the circularity score. The Discussion's statement that 'a rotation as small as 0.1° ... is already sufficient to drive the spectrum to Wigner–Dyson statistics' is inconsistent with the paper's own SI Fig. 5, which shows intermediate statistics (semi-Poisson for A, GOE–GUE intermediate for E) at 0.1°; this is a quantitative overstatement or correctness concern, not a circularity.

Axiom & Free-Parameter Ledger

4 free parameters · 6 axioms · 0 invented entities

The central simulation uses standard tight-binding parameters from prior literature, not fitted values. The hand-chosen energy window and scaling factor are free selections that limit the claim. Correlation length and distribution-fit exponents are data-determined diagnostics, not constraints fed back into the dynamics. The main domain assumptions concern hard-wall edges and the semiclassical kt-conserving reflection rule, both load-bearing for the classical explanation.

free parameters (4)
  • Energy window ΔE = 0.18–0.25 eV
    Hand-selected window where trigonal warping is pronounced and the Fermi surface is convex; all level statistics and eigenstate analyses are restricted to this range.
  • Scaling factor s = 3
    Lattice constant scaled by s=3 to reduce atom count; hopping parameters rescaled to preserve the low-energy band structure. The paper checks other cavity radii but not other scaling factors.
  • Correlation length l (per eigenstate) = e.g., 39.2 nm (A sector), 23.3 nm (E sector) at θ=15°
    Obtained by fitting C(r)=J0(2πr/l) to each eigenstate autocorrelation; used as the principal eigenstate-chaos diagnostic.
  • Semi-Poisson β and GOE-GUE γ fit exponents = β=0.83 and 0.57 for unrotated sectors; γ values not tabulated
    Fit parameters labeling intermediate spectral statistics; descriptive rather than inputs to the central transition.
axioms (6)
  • domain assumption Hard-wall confinement approximates lithographically defined or grown BLG flakes.
    Used throughout the tight-binding model and ray dynamics; real devices may have soft electrostatic confinement or edge reconstructions.
  • domain assumption Trigonal warping from γ3 dominates the relevant physics and the Fermi contour is convex in the chosen energy window.
    Invoked in Section IV and SI II to justify a smooth, area-preserving warped reflection map.
  • domain assumption The semiclassical reflection rule conserves energy and tangential momentum, with zero Berry curvature.
    SI Eq. (9)-(10); the central classical explanation depends on this reflection law, which omits atomistic edge scattering.
  • standard math Bohigas-Giannoni-Schmit / Berry random-wave correspondence applies: Wigner-Dyson statistics and wavelength-scale correlations diagnose quantum chaos.
    Used in Materials and Methods D and E to interpret level statistics and correlation lengths.
  • domain assumption The scaling method with s=3 preserves the low-energy spectrum and spectral correlations of the unscaled lattice.
    SI I.A; all quantum statistics are computed with this scaling.
  • domain assumption Edge roughness contributions are subdominant to trigonal-warping-induced incommensurability for intermediate rotation angles.
    Discussion Section V and SI IV.A; partially tested with kink and monolayer controls, but not for all angles.

pith-pipeline@v1.3.0-alltime-deepseek · 23096 in / 11803 out tokens · 112064 ms · 2026-08-03T16:57:56.982184+00:00 · methodology

0 comments
read the original abstract

Bilayer graphene cavities where electrons are confined within finite graphene flakes provide an alluring platform not only for the future nanoelectronic devices owing to the tunable energy gap but also for investigating the quantum nature of chaos due to the trigonal warping of their Fermi surface. Here we demonstrate that rotating the cavity boundary relative to the underlying lattice structure drives a quantum transition from nearly integrable dynamics to chaotic regime, observed as a concomitant crossover of eigenvalue statistics and eigenstate profiles. Complementing the full quantum treatment, we examine the classical backbone of this onset of chaos by employing semiclassical ray dynamics. Our results position bilayer graphene cavities as a promising venue for investigating and engineering quantum-chaotic behavior in graphene-based devices.

Figures

Figures reproduced from arXiv: 2512.10914 by Anton M. Graf, Eric J. Heller, Joonas Keski-Rahkonen, Jucheng Lin, Yicheng Zhuang.

Figure 1

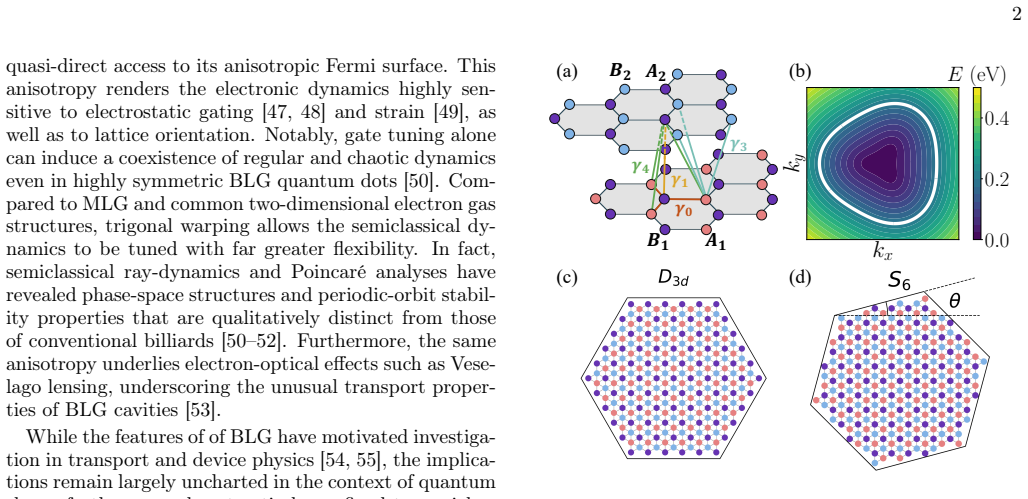

Figure 1. Figure 1: FIG. 1. Illustration of the tight-binding model, Fermi [PITH_FULL_IMAGE:figures/full_fig_p002_1.png] view at source ↗
Figure 3
Figure 3. Figure 3: summarizes the evolution with rotation angle. In the A sector, one branch remains in the intermedi￾ate (semi-Poisson-like) regime across all angles, while the branch that is Poisson-like at θ = 0◦ and 30◦ rapidly in￾creases toward Wigner–Dyson values as θ departs from these commensurate alignments. In the E sector, ⟨r˜⟩ increases more steadily and approaches the GOE/GUE range over a broad interval of angle… view at source ↗
Figure 2
Figure 2. Figure 2: FIG. 2. Level Statistics of unrotated cavities and rotated [PITH_FULL_IMAGE:figures/full_fig_p004_2.png] view at source ↗
Figure 4
Figure 4. Figure 4: FIG. 4. The wavefunctions and their associated statistical properties. (a1)–(a3) representative probability density [PITH_FULL_IMAGE:figures/full_fig_p005_4.png] view at source ↗
Figure 5
Figure 5. Figure 5: FIG. 5. Poincaré sections constructed by recording, for a [PITH_FULL_IMAGE:figures/full_fig_p006_5.png] view at source ↗
Figure 1
Figure 1. Figure 1: FIG. 1: A diagram showing the sub-sublattice of one layer of BLG [PITH_FULL_IMAGE:figures/full_fig_p016_1.png] view at source ↗
Figure 2
Figure 2. Figure 2: FIG. 2: Angle dependence of the correlation length on the rotation angle [PITH_FULL_IMAGE:figures/full_fig_p019_2.png] view at source ↗
Figure 3
Figure 3. Figure 3: FIG. 3: IPR of momentum space analysis for eigenstates. (a,b,c) Statistics of the IPR in [PITH_FULL_IMAGE:figures/full_fig_p020_3.png] view at source ↗
Figure 4
Figure 4. Figure 4: FIG. 4: Atomic geometry of the rotated cavities and unrotated cavities with kinks, the [PITH_FULL_IMAGE:figures/full_fig_p022_4.png] view at source ↗
Figure 5
Figure 5. Figure 5: FIG. 5: The figures illustrate the level spacing distributions and spectral rigidity for the [PITH_FULL_IMAGE:figures/full_fig_p023_5.png] view at source ↗
Figure 6
Figure 6. Figure 6: FIG. 6: Atomic geometries of rotated and unrotated symmetry-broken BLG cavities, and [PITH_FULL_IMAGE:figures/full_fig_p024_6.png] view at source ↗
Figure 7
Figure 7. Figure 7: FIG. 7: The figures illustrate the dependence of [PITH_FULL_IMAGE:figures/full_fig_p025_7.png] view at source ↗
Figure 8
Figure 8. Figure 8: FIG. 8: Atomic geometries of rotated and unrotated MLG cavities and the corresponding [PITH_FULL_IMAGE:figures/full_fig_p026_8.png] view at source ↗
