EigeNet: Geometry-Informed Multi-Modal Learning for Few-shot Novel View RIR Prediction

Pith reviewed 2026-06-29 10:22 UTC · model grok-4.3

classification 💻 cs.SD cs.AIcs.MM
keywords room impulse responsenovel view predictionfew-shot learningspatial audiomulti-modal learningtransformergeometry-informedsim-to-real
0
0 comments X

The pith

EigeNet predicts spatially varying room impulse responses from sparse multi-view inputs using a geometry-informed transformer.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper sets out to solve the inverse problem of predicting room impulse responses for novel views when only a few observations are available, which matters for building immersive spatial audio systems without dense microphone arrays. Its central proposal is a multi-modal architecture that alternates attention across views to capture both local acoustics and global spatial relations, while a separate block modulates features according to explicit room geometry. An auxiliary loss further turns the task into multi-task learning. The authors show that these components together produce state-of-the-art accuracy on both simulated data and real-room recordings and improve transfer from simulation to reality.

Core claim

EIGENET achieves state-of-the-art performance in few-shot novel view RIR prediction and sim-to-real generalization by combining a Cross-view Alternate-attention Transformer with a geometry-informed modulation block that links geometric features to the RIR power spectrum.

What carries the argument

Cross-view Alternate-attention Transformer that iteratively refines intra-view acoustic structures and cross-view spatial relationships, together with a geometry-informed modulation block inspired by acoustic ray tracing.

If this is right

  • The architecture makes full use of multi-view multi-modal context for spatial-temporal reasoning in RIR prediction.
  • The modulation block and auxiliary loss produce consistent gains regardless of the underlying network backbone.
  • The method improves generalization when moving from simulated training data to real acoustic measurements.
  • The overall design supports few-shot prediction suitable for practical spatial audio rendering.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The same geometry-to-spectrum modulation idea could be tested on other acoustic inverse problems such as source localization or dereverberation.
  • If the sim-to-real gap remains small, training pipelines could rely more heavily on synthetic room data before real deployment.
  • Integration with visual scene reconstruction might allow joint audio-visual novel-view synthesis from the same sparse inputs.

Load-bearing premise

The geometry-informed modulation block creates a reliable link between room geometric features and the RIR power spectrum.

What would settle it

An ablation on the real-world benchmark in which the geometry-informed modulation block is removed or replaced shows no remaining gain in accuracy or sim-to-real transfer.

Figures

Figures reproduced from arXiv: 2605.28101 by Chong Jing, Junan Zhang, Zhizheng Wu, Zitong Lan.

Figure 1

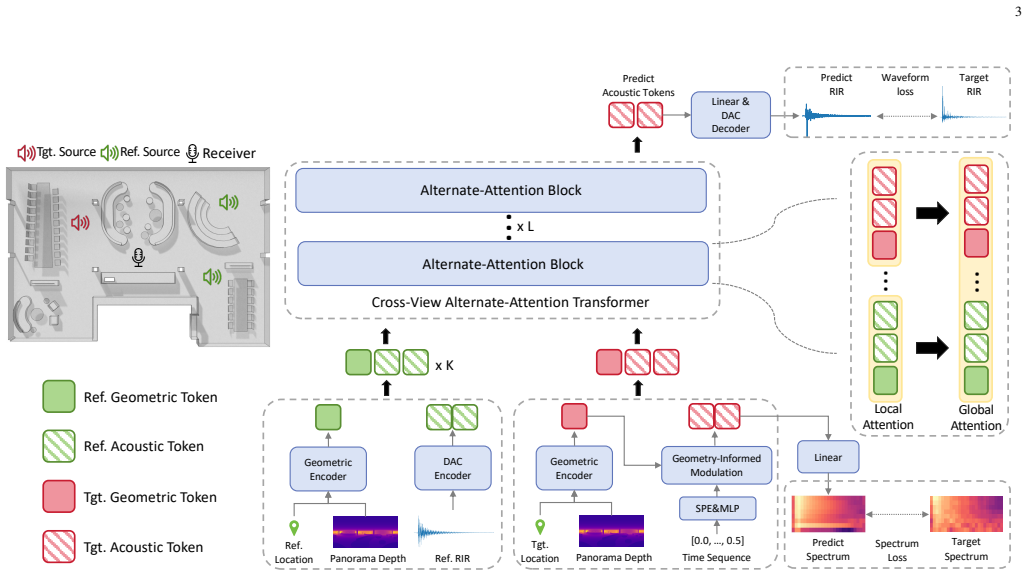

Figure 1. Figure 1: Overview of EIGENET. Geometric and acoustic tokens of all reference and target views are firstly encoded by Encoders and a modulation block, then jointly processed by the Cross-view Alternate-attention Transformer (CVAT) that interleaves intra-view and cross-view attention to predict the target RIR. B. Model Overview As shown in [PITH_FULL_IMAGE:figures/full_fig_p003_1.png] view at source ↗
Figure 2

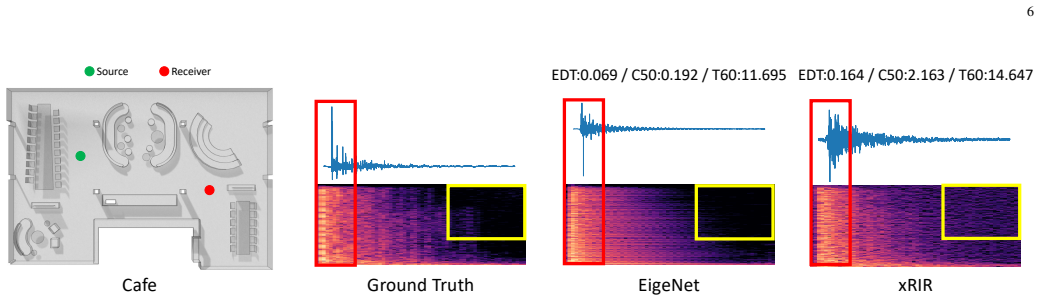

Figure 2. Figure 2: Qualitative results on a complex Cafe scene from AcousticRooms: Red and yellow bounding boxes highlight the regions selected for direct comparison: the early-reflection region in the waveform and the high-frequency portion of the late tail in the STFT. DampenedBase Ground Truth EigeNet xRIR [PITH_FULL_IMAGE:figures/full_fig_p006_2.png] view at source ↗
Figure 3

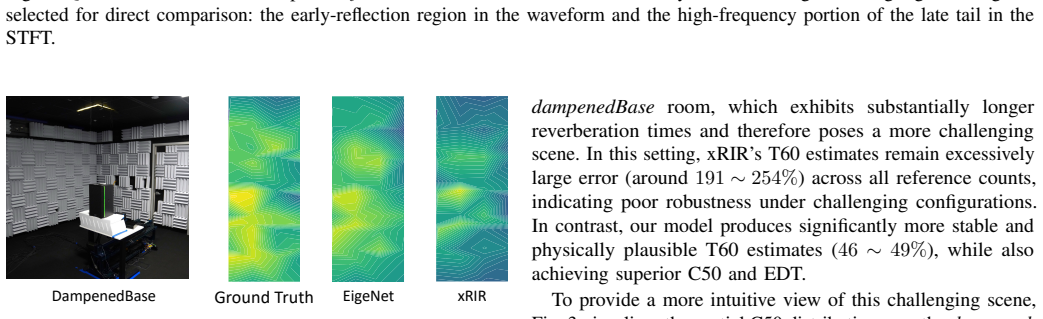

Figure 3. Figure 3: Spatial C50 distribution on the dampenedBase scene from Hear-Anything-Anywhere dataset, together with its RGB image. peak locations and relative amplitudes of the early reflections produced by EIGENET closely track the ground truth, whereas xRIR smears the onset and misplaces several early peaks. In the STFT yellow bounding box (late tail, high-frequency region), our prediction preserves a clean decay stru… view at source ↗
Figure 4

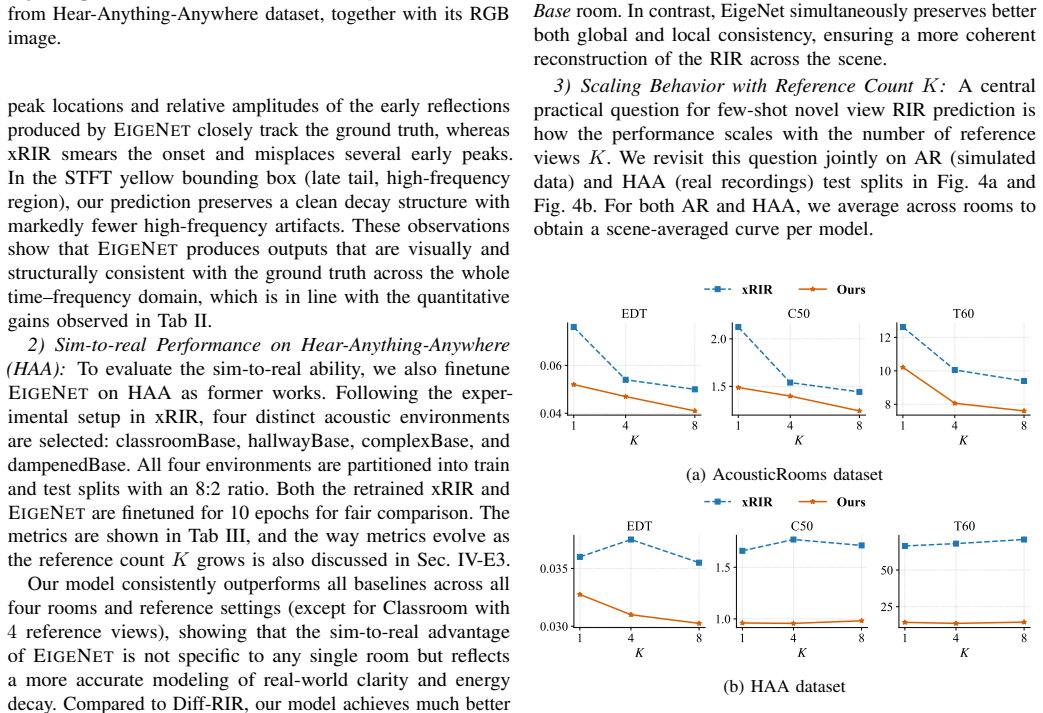

Figure 4. Figure 4: Scaling of EDT (s), C50 (dB) and T60 (%) errors as a [PITH_FULL_IMAGE:figures/full_fig_p006_4.png] view at source ↗
Figure 5

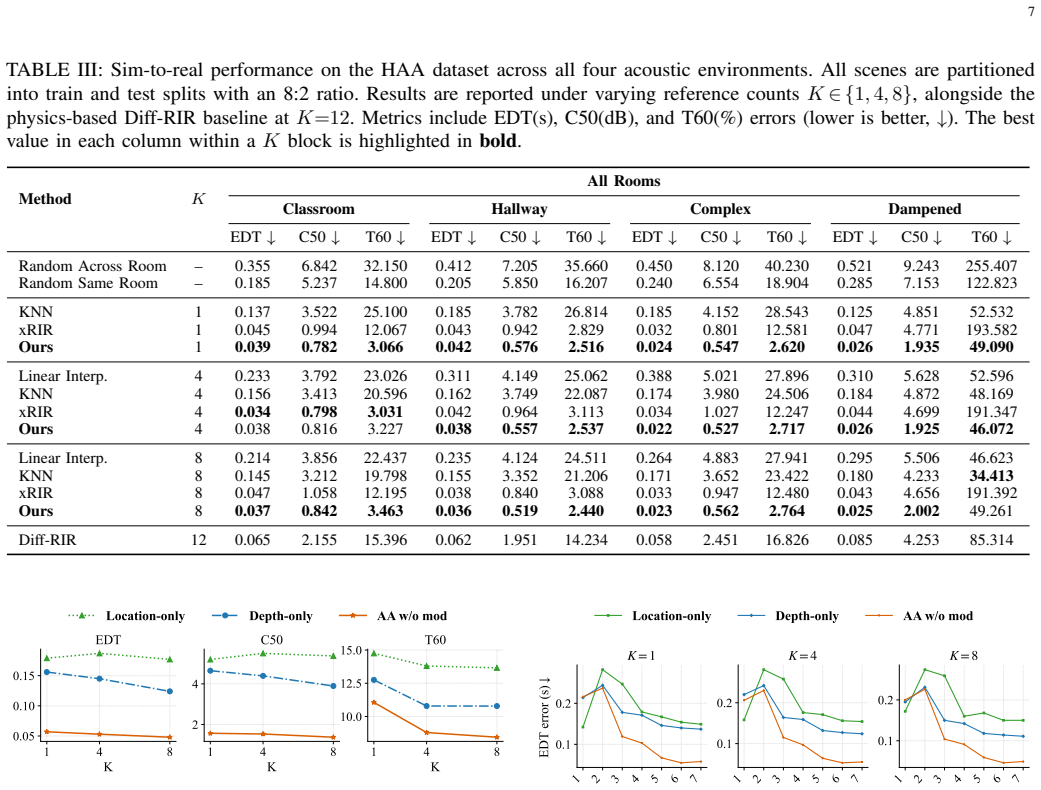

Figure 5. Figure 5: Geometric-Inputs ablation on the unseen split of [PITH_FULL_IMAGE:figures/full_fig_p007_5.png] view at source ↗
Figure 6

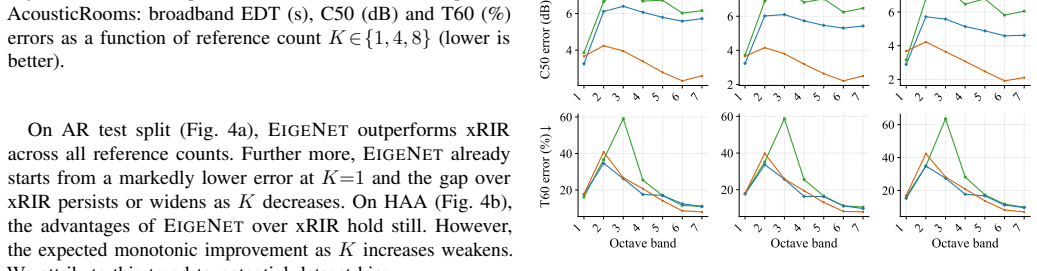

Figure 6. Figure 6: Geometric-Inputs ablation on the unseen split of [PITH_FULL_IMAGE:figures/full_fig_p007_6.png] view at source ↗
Figure 7

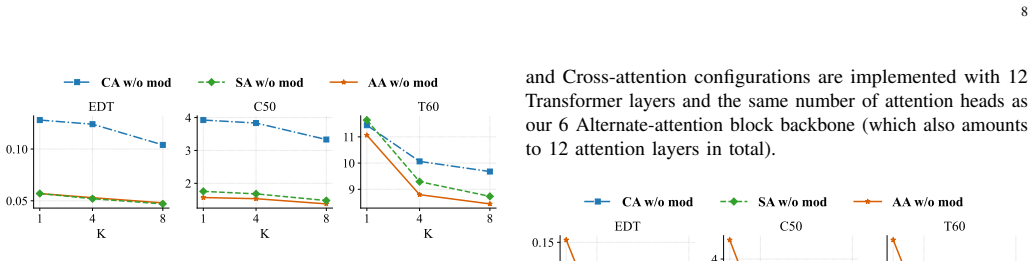

Figure 7. Figure 7: Attention-Mechanism ablation on the unseen split of [PITH_FULL_IMAGE:figures/full_fig_p008_7.png] view at source ↗
Figure 9

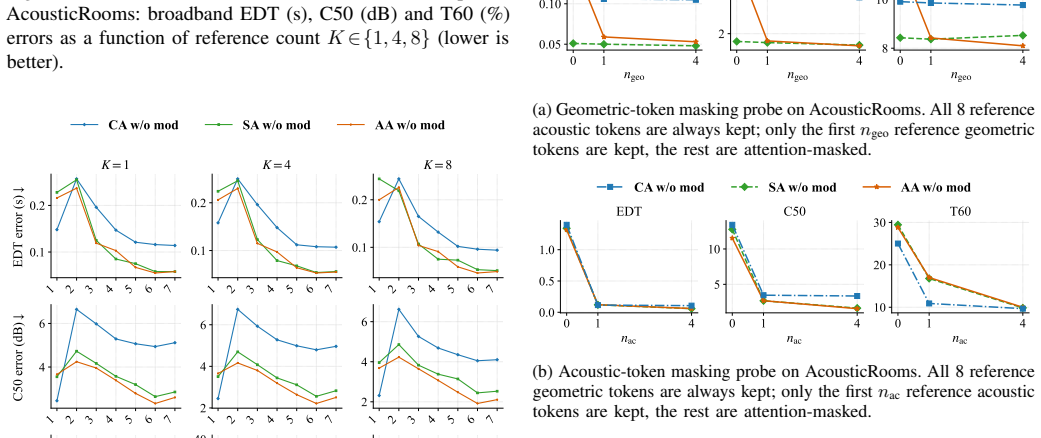

Figure 9. Figure 9: Acoustic and geometric token masking probes on [PITH_FULL_IMAGE:figures/full_fig_p008_9.png] view at source ↗

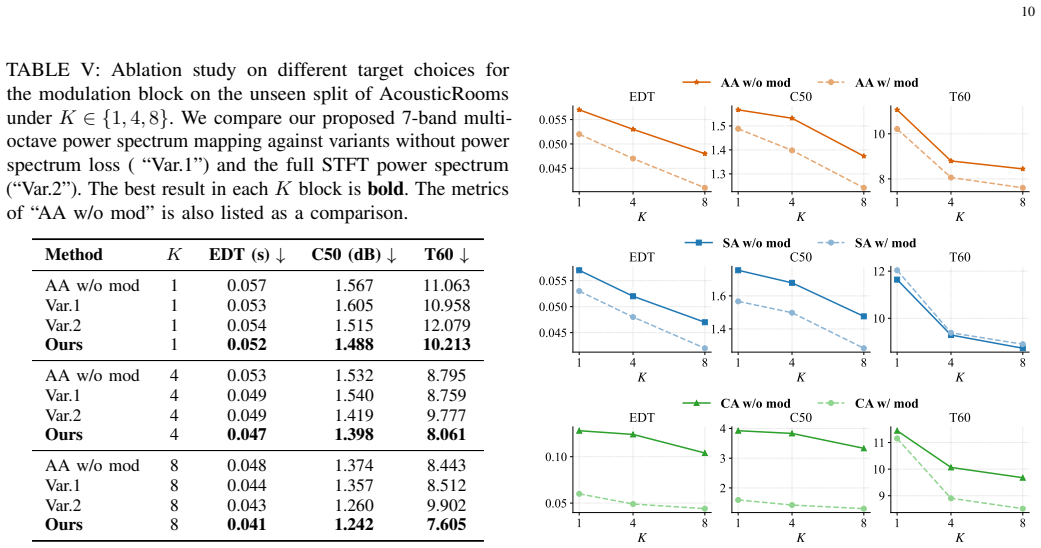

Figure 10
Figure 10. Figure 10: Per-metric comparison of all six variants across [PITH_FULL_IMAGE:figures/full_fig_p010_10.png] view at source ↗
read the original abstract

Predicting spatially varying Room Impulse Response (RIR) from sparse observations is a critical but highly challenging inverse problem for immersive spatial audio rendering. In this work, we present EIGENET, a geometry-informed multi-modal framework for few-shot novel view RIR prediction. At its core is a Cross-view Alternate-attention Transformer that iteratively refines local intra-view acoustic structures and global cross-view spatial relationships. We empirically demonstrate that this architecture is capable of making full use of the multi-view multi-modal context while performing spatial-temporal reasoning for RIR prediction. Inspired by acoustic ray tracing, we design a geometry-informed modulation block to formulate the connection between geometric features and RIR power spectrum. In the mean time, an auxiliary loss is introduced to transform the single-target waveform prediction into a multi-task learning framework. Through ablation studies, we demonstrate that this design yields consistent performance gains regardless of the underlying backbone, thereby confirming its foundational utility and architecture-agnostic generalizability for RIR prediction task. Evaluated on both simulated and real-world benchmarks, EIGENET achieves both state-of-the-art performance in few-shot novel view RIR prediction and sim-to-real generalization. Codes and checkpoints are available on https://github.com/FEAfeatherTHER/EigeNet.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 0 minor

Summary. The manuscript introduces EigeNet, a geometry-informed multi-modal framework for few-shot novel view RIR prediction. It centers on a Cross-view Alternate-attention Transformer that refines intra-view acoustic structures and cross-view spatial relationships, a geometry-informed modulation block (inspired by ray tracing) to connect geometric features to the RIR power spectrum, and an auxiliary loss that converts single-target waveform prediction into multi-task learning. The authors claim SOTA performance and sim-to-real generalization on simulated and real-world benchmarks, plus architecture-agnostic gains shown via ablation studies, with code released.

Significance. If the central claims hold, the work would advance few-shot RIR prediction by demonstrating usable multi-modal and geometry-informed components that generalize across backbones and domains. The open-sourcing of code and checkpoints is a clear strength that supports reproducibility. However, the significance hinges on whether the modulation block creates an enforced geometric-acoustic link rather than a generic feature mixer; absent that, the SOTA and generalization claims would not follow.

major comments (2)
  1. [Abstract and §3] Abstract and §3 (geometry-informed modulation block): the claim that this block 'formulates the connection' between geometric features and RIR power spectrum is load-bearing for both the sim-to-real generalization and the architecture-agnostic gains. No explicit modulation equation, derivation, or enforcement mechanism is shown; if the block functions as an implicit mixer, the reported gains and cross-domain performance would not hold when scattering or material properties deviate from simulation assumptions.
  2. [Abstract] Abstract: the assertions of 'state-of-the-art performance' and 'consistent performance gains' via ablations are made without any quantitative results, baseline details, error analysis, or table/figure references. This prevents evaluation of the central claims and is load-bearing for the SOTA and generalizability assertions.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the constructive feedback. We address each major comment below and will revise the manuscript to improve clarity and substantiation of the claims.

read point-by-point responses
  1. Referee: [Abstract and §3] Abstract and §3 (geometry-informed modulation block): the claim that this block 'formulates the connection' between geometric features and RIR power spectrum is load-bearing for both the sim-to-real generalization and the architecture-agnostic gains. No explicit modulation equation, derivation, or enforcement mechanism is shown; if the block functions as an implicit mixer, the reported gains and cross-domain performance would not hold when scattering or material properties deviate from simulation assumptions.

    Authors: We agree that the description of the geometry-informed modulation block requires an explicit equation and derivation to support the claims of an enforced geometric-acoustic link. In the revised manuscript, we will add the mathematical formulation of the modulation operation in §3, including its ray-tracing-inspired derivation and how it specifically modulates features to connect geometry with the RIR power spectrum, distinguishing it from a generic mixer. revision: yes

  2. Referee: [Abstract] Abstract: the assertions of 'state-of-the-art performance' and 'consistent performance gains' via ablations are made without any quantitative results, baseline details, error analysis, or table/figure references. This prevents evaluation of the central claims and is load-bearing for the SOTA and generalizability assertions.

    Authors: We acknowledge that the abstract should better substantiate the SOTA and ablation claims. In the revision, we will incorporate concise references to the quantitative results, including key performance metrics and pointers to the relevant tables and figures, while maintaining the abstract's brevity. revision: yes

Circularity Check

0 steps flagged

No circularity detected; empirical claims rest on benchmarks and ablations without self-referential reductions

full rationale

The paper describes EigeNet's Cross-view Alternate-attention Transformer and a geometry-informed modulation block (inspired by ray tracing) that 'formulates the connection between geometric features and RIR power spectrum,' plus an auxiliary loss for multi-task learning. Performance claims (SOTA on simulated/real benchmarks, architecture-agnostic gains via ablations) are presented as empirical outcomes. No equations, fitted parameters renamed as predictions, self-citations as load-bearing premises, or derivations that reduce to inputs by construction appear in the text. The modulation block is a design choice validated by results, not a self-definitional or fitted-input step.

Axiom & Free-Parameter Ledger

0 free parameters · 0 axioms · 0 invented entities

Abstract-only review supplies no explicit free parameters, axioms, or invented entities beyond the high-level description of the new transformer block and modulation module.

pith-pipeline@v0.9.1-grok · 5767 in / 1041 out tokens · 22205 ms · 2026-06-29T10:22:32.790192+00:00 · methodology
