arxiv: 2601.21841 · v3 · pith:L4SFKGG3new · submitted 2026-01-29 · 💻 cs.CL

Embodied Task Planning via Graph-Informed Action Generation with Large Language Models

Xiang Li , Ning Yan , Masood Mortazavi This is my paper

Pith reviewed 2026-05-21 14:37 UTC · model grok-4.3

classification 💻 cs.CL
keywords embodied task planninggraph neural networkslarge language modelsexperience memory banksymbolic lookaheadlong-horizon planningRobotouilleALFWorld
0
0 comments X

The pith

Structuring LLM memory as graphs of past execution traces improves long-horizon embodied planning.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper introduces GiG to address how large language models lose coherence or invent invalid actions when planning extended sequences of embodied tasks in changing environments. It organizes an agent's experience into a Graph-in-Graph structure where graph neural networks turn states into embeddings connected by actions, then retrieves similar past traces to guide new decisions while adding a bounded symbolic module to check future moves against environment rules. This targets the gap between strong zero-shot reasoning in text and reliable step-by-step behavior in physical settings like cooking or household tasks. A sympathetic reader would care because better grounding from memory patterns could raise success rates on robot benchmarks without raising compute costs.

Core claim

GiG structures embodied agents' memory using a Graph-in-Graph architecture. A Graph Neural Network encodes environmental states into embeddings that organize into action-connected execution trace graphs within an experience memory bank. This enables retrieval of structurally similar priors to ground current decisions in relevant past patterns. A bounded lookahead module then leverages symbolic transition logic to produce grounded action projections. Evaluated on Robotouille Synchronous, Robotouille Asynchronous, and ALFWorld, the approach delivers Pass@1 gains of up to 22 percent, 37 percent, and 15 percent over state-of-the-art baselines while keeping computational cost comparable or lower.

What carries the argument

Graph-in-Graph architecture that encodes states via GNN into action-connected execution trace graphs for structural prior retrieval, paired with bounded symbolic lookahead for action projection.

If this is right

  • Agents sustain coherent strategies across longer sequences of interdependent actions.
  • Fewer predicted transitions violate the rules of the dynamic environment.
  • Higher success rates appear on both synchronous and asynchronous robot task suites at no extra compute cost.
  • The same memory retrieval plus lookahead pattern transfers across different embodied benchmarks such as ALFWorld.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The graph memory approach could extend to other sequential reasoning domains that require maintaining consistency over many steps.
  • Replacing the current GNN encoder with more expressive variants might strengthen the quality of retrieved structural patterns.
  • Pairing GiG with models that have undergone task-specific fine-tuning could compound the observed gains on new environments.

Load-bearing premise

Retrieving structurally similar past traces from the memory bank and applying bounded symbolic lookahead will improve planning coherence without creating new environment constraint violations or higher hallucination rates.

What would settle it

A controlled test on a fresh embodied planning benchmark in which GiG produces lower or equal task completion rates and more invalid state predictions than the strongest baseline would falsify the central performance claim.

Figures

Figures reproduced from arXiv: 2601.21841 by Masood Mortazavi, Ning Yan, Xiang Li.

Figure 1
Figure 1. Figure 1: In tree-based decomposition (left), peer sub-goals are structurally blocked until the current node completes, forcing idle waits. In contrast, planning as Graph (right) allows dynamic in￾stantiation of new sub-goals, enabling the agent to interleave tasks and utilize the idle horizon. 1. Introduction Embodied task planning (Huang et al., 2022; Wu et al., 2023) refers to the ability of an embodied agent to … view at source ↗
Figure 2

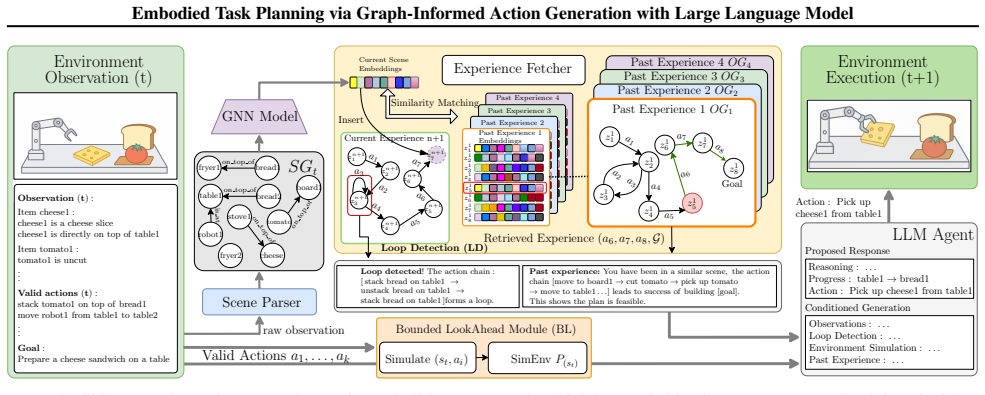

Figure 2. Figure 2: GiG parses the environment observation to build a scene graph, which is encoded by GNN as a structurally-rich embedding. This embedding is fed into an experience fetcher to retrieve structurally similar past memory and detect exploration loops. An LLM agent generates the next action conditioned on current observation, past related experience, current goal, and bounded look-ahead results. decomposition to b… view at source ↗

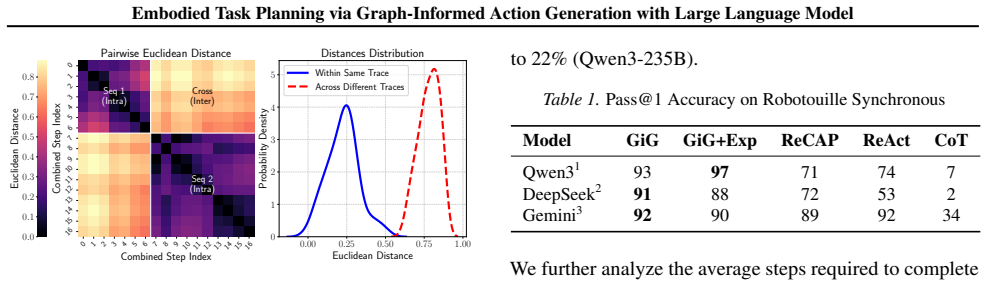

Figure 3
Figure 3. Figure 3: Visualization of GNN embedding separation among intra-trace and inter-trace scene graphs. 4.2. GNN-Based Scene Graph Encoding We use a lightweight GNN to encode each scene graph into a dense representation that captures both object placement and environment topology. To validate the discriminative power of GNN, we study the Euclidean distance between different representations both within a single experienc… view at source ↗

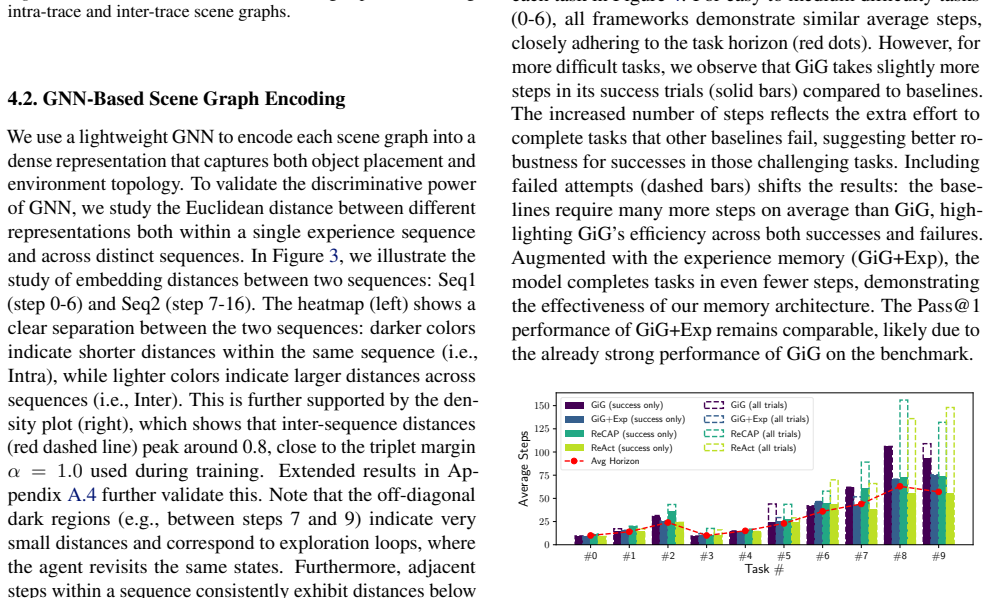

Figure 4
Figure 4. Figure 4: Average steps on Robotouille synchronous tasks on Qwen3-235B. Red dots indicate the horizon length of each task type. success only: average completion steps of success attempts. all trials: average steps of all attempts. 4.4. Robotouille Asynchronous The Robotouille Asynchronous benchmark introduces ac￾tion delays, which allows the agent to interleave other ac￾tions while waiting for the background process… view at source ↗

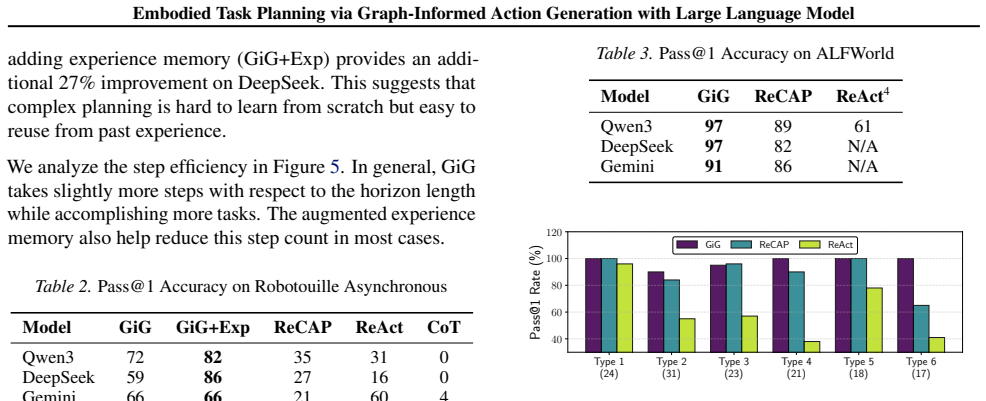

Figure 6
Figure 6. Figure 6: Pass rate for each task type on ALFWorld benchmark. 4.6. Experience Memory Plug-in for Small LLMs We further investigate how a memory bank containing past successful trajectories, sampled from experiences obtained with larger models, improves planning with smaller models such as Qwen3-30B and Gemini-2.5-Flash-Lite. As shown in [PITH_FULL_IMAGE:figures/full_fig_p007_6.png] view at source ↗

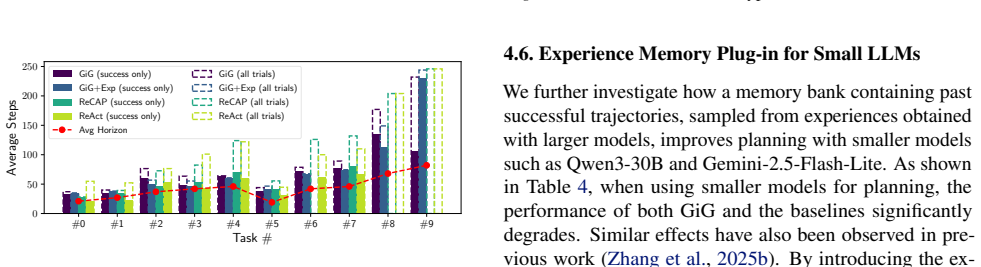

Figure 5
Figure 5. Figure 5: Average steps on Robotouille asynchronous tasks on Qwen3-235B. Red dots indicate the average horizon length of each task. success only: average completion steps of success attempts. all trials: average steps of all attempts. 4.5. ALFWorld ALFWorld is an embodied task simulator designed to enable agents learning abstract, text-based policies. The goal is for the agent to perform a series of household tasks,… view at source ↗

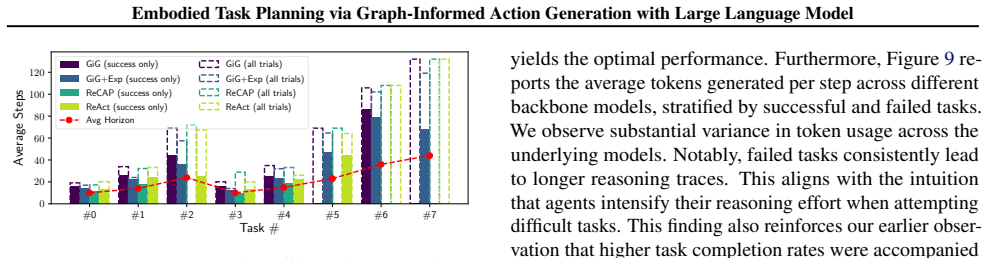

Figure 7
Figure 7. Figure 7: Average steps on Robotouille synchronous tasks on Qwen3-30B-A3B. Red dots indicates the average horizon length of each task. success only: average completion steps of success attempts. all trials: average steps of all attempts. tokens– make these metrics inconsistent over time. To en￾sure a standardized comparison, we instead evaluate cost in terms of computation indicators such as FLOPs (see deriva￾tion i… view at source ↗

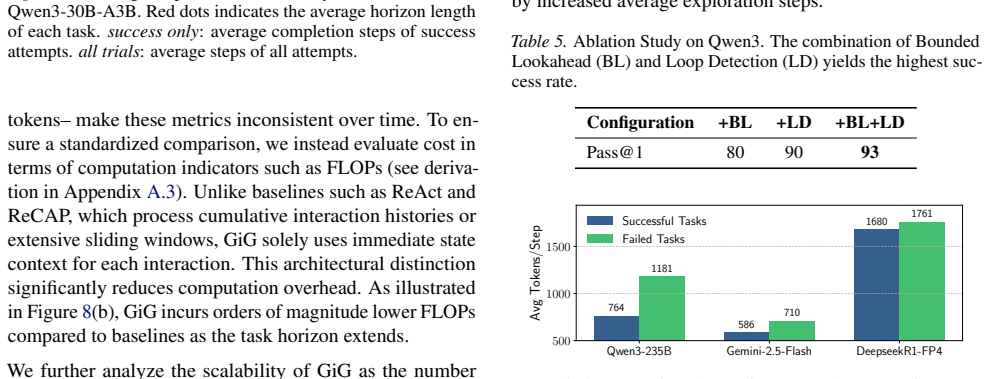

Figure 9
Figure 9. Figure 9: Average tokens (reasoning + output) generated per step. Models put more effort for failed tasks. 5. Limitation Despite improvements in Pass@1 and step efficiency, we acknowledge several limitations of GiG inherent to LLM￾centric agents in long-horizon settings. First, performance scales disproportionately with model size. Although the experience memory bank aids smaller models, they still trail significant… view at source ↗
Figure 8
Figure 8. Figure 8: (a) GiG graph construction latency remains negligible relative to LLM decoding time. (b) GiG requires orders of mag￾nitude less computation than baselines in long-horizon tasks. ϵ is the branching factor of BL. 4.8. Ablation Study We conduct an ablation study to evaluate the contribution of each component. As shown in [PITH_FULL_IMAGE:figures/full_fig_p008_8.png] view at source ↗

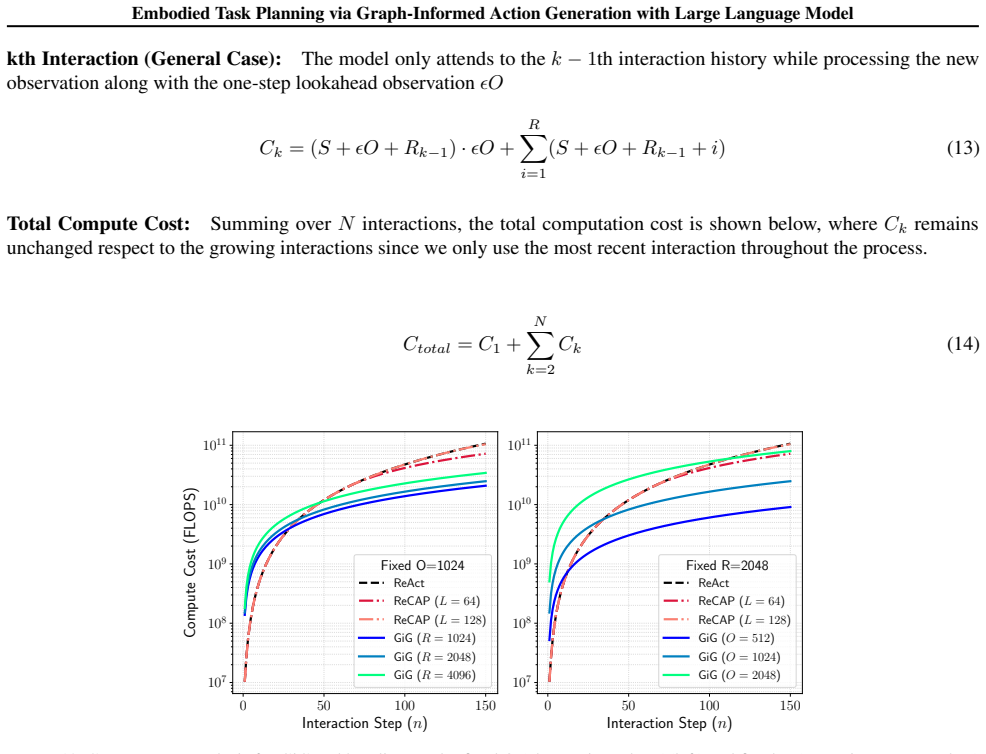

Figure 10
Figure 10. Figure 10: Compute cost analysis for GiG and baselines under fixed O (observation tokens)(left) and fixed R (reasoning+output token) (right) with a fixed available action space (branching factor) ϵ = 10. Based on this analysis, we compare the attention computation costs of GiG against baseline methods under varying conditions [PITH_FULL_IMAGE:figures/full_fig_p014_10.png] view at source ↗

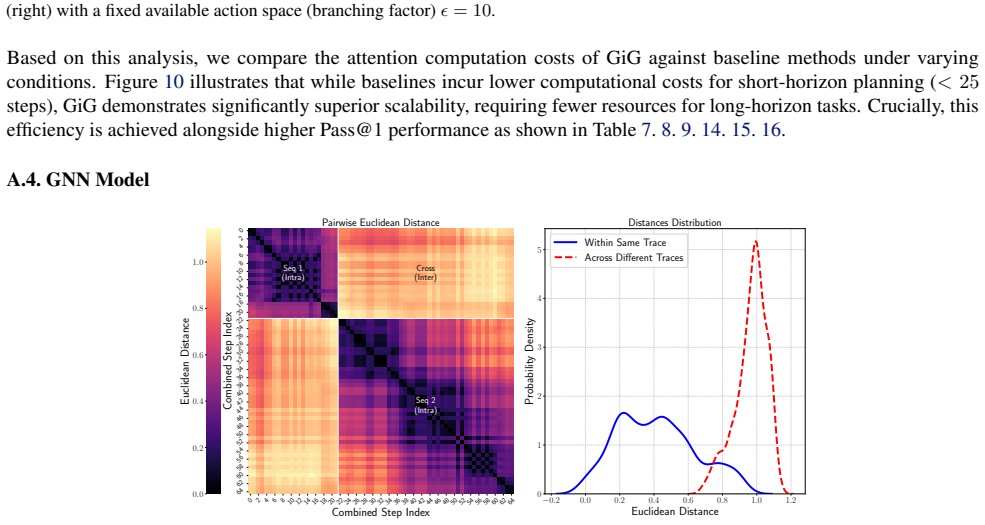

Figure 11
Figure 11. Figure 11: GNN embedding separation plot for two robotouille asynchronous sequences. 14 [PITH_FULL_IMAGE:figures/full_fig_p014_11.png] view at source ↗
Figure 12
Figure 12. Figure 12: System prompt for Robotouille tasks - Part I. 19 [PITH_FULL_IMAGE:figures/full_fig_p019_12.png] view at source ↗
Figure 13
Figure 13. Figure 13: System prompt for Robotouille tasks - Part II. 20 [PITH_FULL_IMAGE:figures/full_fig_p020_13.png] view at source ↗
read the original abstract

While Large Language Models (LLMs) have demonstrated strong zero-shot reasoning capabilities, their deployment as embodied agents still faces fundamental challenges in long-horizon planning. Unlike open-ended text generation, embodied agents must decompose high-level intents into actionable sub-goals while adhering to the constraints of a dynamic environment. Standard LLM planners frequently fail to maintain strategy coherence over extended horizons due to context window limitations or hallucinate state transitions that violate environment constraints. We propose GiG, a planning framework that structures embodied agents' memory using a Graph-in-Graph architecture. Our approach employs a Graph Neural Network (GNN) to encode environmental states into embeddings, organizing these embeddings into action-connected execution trace graphs within an experience memory bank. GiG enables retrieval of structurally-similar priors, allowing agents to ground current decisions in relevant past structural patterns. Furthermore, we introduce a bounded lookahead module that leverages symbolic transition logic to enhance the agent's planning capabilities through grounded action projections. We evaluate our framework on three embodied planning benchmarks-Robotouille Synchronous, Robotouille Asynchronous, and ALFWorld. Our method outperforms state-of-the-art baselines, achieving Pass@1 performance gains of up to 22% on Robotouille Synchronous, 37% on Asynchronous, and 15% on ALFWorld while maintaining comparable or lower computational cost.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 1 minor

Summary. The paper introduces GiG, a planning framework for embodied agents using LLMs. It structures memory via a Graph-in-Graph architecture where a GNN encodes environmental states into embeddings organized as action-connected execution trace graphs within an experience memory bank. This supports retrieval of structurally-similar priors to ground current decisions. A bounded symbolic lookahead module leverages transition logic for grounded action projections. Evaluations on Robotouille Synchronous, Asynchronous, and ALFWorld report Pass@1 gains of up to 22%, 37%, and 15% over state-of-the-art baselines at comparable or lower computational cost.

Significance. If the performance claims are substantiated with proper controls and ablations, the work demonstrates a promising hybrid approach combining GNN-based structural memory retrieval with symbolic lookahead to improve coherence and constraint adherence in long-horizon LLM planning for embodied tasks. This could advance reliable agent deployment in dynamic environments by grounding decisions in past structural patterns.

major comments (2)
  1. Results section: The manuscript reports substantial Pass@1 gains but provides no ablation isolating the graph-informed retrieval (GNN-encoded experience memory bank for structurally-similar priors) from the bounded symbolic lookahead module. Replacing retrieval with random selection or current-state-only lookahead would be required to verify whether the structural priors drive the claimed improvements or if lookahead alone suffices, directly affecting attribution of the 22%/37%/15% gains and the assumption that priors enhance coherence without new constraint violations.
  2. Evaluation and abstract: No details are supplied on the exact baselines, number of trials, statistical significance tests, error bars, or implementation specifics for the GNN encoding, graph retrieval, and lookahead modules. This prevents verification of the central performance claims and reproducibility of the benchmark results.
minor comments (1)
  1. Methods section: Notation for the experience memory bank embeddings and action-connected trace graphs could be defined more explicitly with consistent symbols to improve clarity for readers.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the constructive feedback on our manuscript. We have reviewed the major comments carefully and provide point-by-point responses below, indicating where revisions will be incorporated to strengthen the paper.

read point-by-point responses

  1. Referee: Results section: The manuscript reports substantial Pass@1 gains but provides no ablation isolating the graph-informed retrieval (GNN-encoded experience memory bank for structurally-similar priors) from the bounded symbolic lookahead module. Replacing retrieval with random selection or current-state-only lookahead would be required to verify whether the structural priors drive the claimed improvements or if lookahead alone suffices, directly affecting attribution of the 22%/37%/15% gains and the assumption that priors enhance coherence without new constraint violations.

    Authors: We agree that a more targeted ablation isolating the graph-informed retrieval from the bounded symbolic lookahead would improve attribution of the reported gains. The current manuscript includes comparisons against baselines that omit the full GiG framework, but we acknowledge these do not fully separate the two modules as suggested. We will add the requested ablations (random retrieval and isolated lookahead) to the revised results section. revision: yes

  2. Referee: Evaluation and abstract: No details are supplied on the exact baselines, number of trials, statistical significance tests, error bars, or implementation specifics for the GNN encoding, graph retrieval, and lookahead modules. This prevents verification of the central performance claims and reproducibility of the benchmark results.

    Authors: We thank the referee for highlighting the need for expanded experimental details. The manuscript provides descriptions of the baselines and high-level implementation, but we recognize that additional specifics on trial counts, statistical tests, error bars, and module parameters are necessary for reproducibility. We will expand the evaluation section and add an implementation details subsection in the revision. revision: yes

Circularity Check

0 steps flagged

Empirical framework with external benchmarks; no circular derivation steps

full rationale

The paper introduces GiG as an empirical planning framework that combines GNN-encoded experience memory for retrieving structurally similar priors with a bounded symbolic lookahead module. Performance gains (Pass@1 improvements of up to 22%/37%/15% on Robotouille and ALFWorld) are reported via direct comparison to external state-of-the-art baselines on independent benchmarks. No equations, fitted parameters, or self-citations are shown that would make the central claims reduce to quantities defined by the method's own inputs or prior outputs. The derivation chain consists of architectural choices validated externally rather than any self-definitional, fitted-input, or self-citation load-bearing reductions.

Axiom & Free-Parameter Ledger

0 free parameters · 0 axioms · 0 invented entities

The paper is an empirical machine-learning contribution; the abstract does not introduce or rely on explicit free parameters, unproven axioms, or new invented entities beyond standard GNN and LLM components.
