Causal Cartographer: From Mapping to Reasoning Over Counterfactual Worlds

Ga\"el Gendron; Gillian Dobbie; Jo\v{z}e M. Ro\v{z}anec; Michael Witbrock

REVIEW 4 major objections 6 minor 66 references

Causal Cartographer: From Mapping to Reasoning Over Counterfactual Worlds

T0 review · 4 major / 6 minor · reviewed 2026-08-07 · deepseek-v4-flash

Challenge this review Re-run · record.json Download PDF Read on arXiv ↗

Pith's one-line read The paper proves real-world counterfactual 'what if' queries can be rewritten as ordinary observational queries by matching two observed worlds through a causal blanket.

desk verdict The CausalWorld resource and efficiency results are real, but the paper's central claim—that K-Matching provably yields real-world counterfactuals—rests on a theorem whose proof doesn't go through. read the letter →

arxiv 2505.14396 v1 pith:MFKLBMI3 submitted 2025-05-20 cs.AI cs.CLcs.LG

Gaël Gendron , Jože M. Rožanec , Michael Witbrock , Gillian Dobbie This is my paper · ORCID

classification cs.AIcs.CLcs.LG

keywords causalextractioncounterfactualreasoningworldmodelsgraphretrieval-augmentedgenerationblanketslargelanguageinferenceK-matching

verification ladder T0 review T1 audit T2 compute T3 formal

The pith

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The reading

Large language models answer causal questions by pattern-matching memorized relationships rather than by causal inference, and real-world counterfactuals are hard to evaluate because only the factual world is ever observed. This paper addresses both problems with a two-part framework: an extraction agent that reads news articles and builds a causal network called CausalWorld (975 variables, 1337 causal relationships from 2020 oil-price coverage), and a reasoning agent that solves counterfactual queries by step-by-step inference from causal parents. The load-bearing claim is Theorem 1 (K-Matching Equivalence): if two observed worlds share a target variable and one world's causal blanket can be matched to the other's observations, the counterfactual query collapses to an ordinary observational query, $P(T \mid \mathrm{do}(B_c \setminus O_s), O_o \setminus O_s) = P(T \mid B_c)$. If the assumptions hold, counterfactual questions can be generated and answered from real-world text, and the constrained reasoning agent does so with accuracy comparable to chain-of-thought prompting while cutting inference cost by up to 70%.

What carries the argument

The causal blanket is the load-bearing object: a set of ancestors of a target $T$ that fully determines $T$ through a deterministic function, so that knowing the blanket renders $T$ conditionally independent of everything else. Unlike a Markov blanket, it can include non-parent ancestors (in the chain $A \to B \to C$, $A$ is a causal blanket for $C$). K-Matching is the pairing operation that makes the theorem usable: given two observed worlds $O_o$ and $O_c$ sharing observations $O_s$, and a blanket $B_c$ of the counterfactual world, it splits $B_c$ into $N-K$ matched observations and $K$ interventions. The theorem states the identity $P(T \mid \mathrm{do}(B_c \setminus O_s), O_o \setminus O_s) = P(T \mid B_c)$, and the proof carries the reduction by rewriting the counterfactual over shared exogenous variables and applying rule 2 of do-calculus to drop the intervening variables.

What would settle it

Build a synthetic structural causal model with known ground-truth equations, run the same extraction and K-matching pipeline on text describing its worlds, and compare the theorem's predicted value $P(T \mid B_c)$ against the true counterfactual computed from the model's equations; any systematic disagreement would trace to a violated blanket-completeness or identifiability assumption and would delimit the claim's reach.

Watch

Extended reading notes

Core claim

The paper's central claim is that real-world counterfactual inference becomes tractable and provably correct once causal knowledge is organized as a graph whose nodes carry multiple observed 'worlds.' The authors define a causal blanket — a set of ancestors that fully determines the target through a deterministic function — and a K-Matching procedure that finds two observed worlds that can serve as a factual/counterfactual pair. Theorem 1 (K-Matching Equivalence) asserts that, provided the unmatched factual observations themselves form causal blankets over each shared variable, the target's distribution under interventions on the unmatched blanket variables equals its plain conditional distribution: $P(T \mid \mathrm{do}(B_c \setminus O_s), O_o \setminus O_s) = P(T \mid B_c)$. In the paper's own terms, this proves that the CausalWorld graph gives provable access to counterfactual knowledge, so real-world counterfactuals can be estimated from natural-language data rather than only from synthetic simulators.

Load-bearing premise

The framework assumes the causal graph extracted from news is complete and correct enough that a causal blanket fully and deterministically fixes the target variable, and that the unmatched factual observations uniquely determine each shared variable; if either fails, the K-Matching equality and the provable-access claim collapse.

Editorial extensions

If this is right

Counterfactual evaluation need no longer be confined to synthetic datasets: matched real-world news worlds can serve as ground-truth factual and counterfactual pairs.
Restricting an LLM's context to causal parents and children preserves accuracy relative to chain-of-thought prompting while cutting inference cost by up to 70%.
The extraction pipeline can grow a causal repository from unstructured text, with the graph retrieval component preventing duplicate nodes so that knowledge accumulates incrementally.
Smaller models benefit most: an 8-billion-parameter model that timed out under the chain-of-thought baseline completed the tasks under causal constraints, using roughly 72% less context and 91% less output.
Because most nodes lie in one connected component linked by bridge nodes, a large share of the network's variables can participate in counterfactual computations.

Reading between the lines

Editorial extensions of the paper, not claims the author makes directly.

A direct stress test of the proof's reach would run the same extraction and K-matching pipeline on a corpus paired with a known ground-truth structural causal model, then measure how the equality degrades as the causal blanket is corrupted; the theorem predicts the error stays at zero as long as blankets remain identifiable.
The causal blanket concept sits between a Markov blanket and full structural-model determinism, effectively proposing a minimal sufficient statistic for counterfactual queries; if that reading is right, similar matching identities might be derivable for other query types, such as pure interventions in partially observed settings.
Because every document is recorded as its own world instantiation, the framework should transfer beyond news to any narrative corpus — clinical notes, incident reports, historical accounts — where overlapping descriptions of the same variables can be aligned.

Share X Bluesky LinkedIn Reddit HN

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, and a circularity audit.

Desk Editor's Note

read the letter

Read this one for the resource, not for the theorem. The CausalWorld network (975 nodes, 1337 edges, multi-world instantiations from 2020 news) and the NxGraphRAG retrieval pipeline are genuinely useful contributions; the CTG-Reason agent shows real efficiency gains—up to 70% cost reduction with comparable accuracy on the boolean/trend subsets—and the code and data are public. That is more than most papers ship.

The problem is the load-bearing claim. The abstract and Section 5 say the framework 'provably' estimates true real-world counterfactuals via K-Matching (Theorem 1). The proof in Appendix C does not hold together. It expands over exogenous variables U, then defines S as 'the variables instantiating Os' and sums over S in U—conflating observed endogenous variables with unobserved exogenous noise. The independence T ⊥⊥ U\S | Bc\S is asserted without proof. The step where Oo\Os forms a causal blanket 'over S' is undefined, and the point-mass reduction of P(S | Oo\Os) doesn't follow. The final application of do-calculus Rule 2 is also invalid: the rule requires T to be independent of the intervened variables given the other conditioning set in the graph with incoming edges to those variables removed, but Bc\Os are ancestors of T by Definition 1, so that d-separation fails in general.

Even if the proof were repaired, the hypotheses aren't met in practice. Definition 1 requires a deterministic function T=f(Bc); the graph stores text descriptions, not functional or distributional mechanisms. Section 5.1 simply assumes blankets can be constructed from CausalWorld, and Section 7 concedes full knowledge of the causal graph cannot be guaranteed. The evaluation doesn't rescue this: the CausalWorld-CR ground truth is generated by the same extraction and matching pipeline, so the reported accuracies measure internal consistency with the extractor, not validity against any external benchmark. There are also no significance tests on the accuracy comparisons, so 'similar results' is doing a lot of work.

None of this makes the paper worthless. The dataset and the cost-reduction results are real. But the central theoretical claim, as written, is not supported. I'd send this to peer review—it's exactly the kind of paper a good referee can sharpen—but I'd expect the counterfactual-equivalence claim to be either fixed with a valid theorem and verified hypotheses, or dropped in favor of a systems/dataset framing.

Referee Report

4 major / 6 minor

Summary. The paper proposes Causal Cartographer, a two-agent framework: CTG-Extract uses a graph retrieval-augmented generation agent to extract causal variables and relationships from 500 EventRegistry news events, building a CausalWorld graph with 975 nodes and 1,337 edges; CTG-Reason then answers counterfactual queries by stepwise inference using parent/child variables. Section 5 introduces causal blankets and K-Matching, states Theorem 1 claiming P(T | do(Bc \ Os), Oo \ Os) = P(T | Bc), and uses this to construct a 400-sample CausalWorld-CR evaluation dataset. The authors evaluate o3-mini, GPT-4.1, and LLaMA-3.1-8B against a CausalCoT baseline, reporting comparable accuracy for boolean/trend queries and large reductions in context window and output length. The paper claims that the method 'provably' accesses counterfactual knowledge and enables estimation of real-world counterfactuals.

Significance. If Theorem 1 were valid and its hypotheses satisfied, the paper would make a useful contribution by showing how extracted real-world causal graphs could support counterfactual evaluation without synthetic data. The engineering contributions are real: the graph-RAG extraction pipeline, the released code, and the documented inference-cost reduction (up to 72% input-token and 91% output-token reduction on LLaMA-3.1-8B) are concrete and reproducible. However, the central theoretical claim is not established: the proof of Theorem 1 in Appendix C is internally invalid, and the hypotheses of the theorem are not satisfied by the CausalWorld extraction. In addition, the evaluation ground truth is generated by the same extraction pipeline that creates the graph, so the reported accuracies measure internal consistency with the extraction rather than correctness of real-world counterfactuals. The system contribution is promising, but the 'provable counterfactual access' claim, which is load-bearing for the abstract and conclusion, is unsupported.

major comments (4)

[Appendix C, proof of Theorem 1] The proof conflates observed endogenous variables with exogenous variables. After expanding P(T | do(Bc \ Os), Oo \ Os) as a sum over exogenous U, it defines S as 'the variables instantiating Os' and then sums over S in U, although Os is by Definition 2 a subset of observed observations from V. The assertion T independent of U \ S given Bc \ S is introduced without proof and does not follow from the blanket condition, which only gives T independent of U given Bc. The point-mass claim that P(S | Oo \ Os) is concentrated on the observed values of Os is also unjustified: even if Oo \ Os were a causal blanket for each variable of Os in the sense of Definition 1, that would require a deterministic function, which the extracted graph does not provide. Finally, the do-calculus step misapplies Rule 2: Rule 2 requires T independent of Bc \ Os given Os in the graph with incoming edges to Bc \ Os removed, but by Definition 1 every variable in Bc is an ancestor of T, so this conditional independence generally fails. The equality in Theorem 1 is therefore not proven.
[Sections 5.1 and 7, hypotheses of Theorem 1] Theorem 1 presupposes that Bc is a causal blanket satisfying T = f(Bc) for a deterministic function f, and that Oo \ Os forms a causal blanket over each variable of Os. The CausalWorld graph cannot support these hypotheses: its edges carry textual descriptions, Figures 4 and 15 state explicitly that 'the strength and function related to the causal relationships are not shown,' and the relationship syntax in Appendix J.1.2 lists 'function' as optional. Section 5.1 only assumes that causal blankets can be constructed from the CausalWorld graph, and Section 7 concedes that full knowledge of the true causal graph cannot be guaranteed. Since neither the deterministic functional form nor the completeness of the graph is established for the constructed queries, the abstract's and conclusion's claim that the method 'provably' estimates real-world counterfactuals is unsupported.
[Section 5.2, evaluation validity] The ground truth for CausalWorld-CR is built by the same extraction and matching pipeline that produces the CausalWorld graph: observation ground truth comes from the source documents from which the worlds were extracted, and counterfactual ground truth is obtained by K-matching within that same graph. Accuracy on this dataset therefore measures whether the reasoning agent reproduces the conclusions implicit in the extraction process, not whether the answers are correct counterfactuals against an external standard. No confidence intervals or significance tests are reported for the comparisons in Figure 7, and the LLaMA-3.1-8B CausalCoT arm is largely missing due to timeouts, so the claim that CTG-Reason achieves 'competitive performance' while reducing cost is only weakly supported.
[Section 5.1, formal statement of K-Matching] Definition 2 states that Bc can be K-matched with Oo over T if one can 'build a new causal blanket for T with K interventions from Bc \ Os and N-K observations from Os.' The paper does not define what 'build a new causal blanket' means formally, how the interventions are assigned values, or why the resulting object is guaranteed to satisfy Definition 1. Since Theorem 1 depends exactly on this construction, the missing formalization is load-bearing rather than stylistic.

minor comments (6)

[Figure 7 caption] The caption says results are shown for 'GPT-4o' while the text and experiments use GPT-4.1; this should be corrected.
[Appendix I, Figure 23] Both panels of Figure 23 are labeled 'Observation set'; the second panel appears to show the counterfactual set and should be relabeled.
[Appendix C] In the proof, the sentence 'Bc = (Bc \ Os) ∪ Bc forms a causal blanket over T' contains a typo; the second term on the right should presumably be Os.
[Section 3.1] The name 'NxGaphRAG' appears once in Section 3.1 and should be 'NxGraphRAG'.
[Section 5.3] The phrase 'An complete overview' should read 'A complete overview'.
[Section 5.4] The phrase 'automatically scrapped real-world events' should read 'automatically scraped real-world events.'

Circularity Check

1 steps flagged · score 6.0 of 10

Evaluation of 'real-world counterfactuals' is circular: ground-truth labels are produced by the same CTG-Extract pipeline that builds the CausalWorld graph and blankets used in the queries.

fitted input called prediction [Section 5.2 (CausalWorld-CR) and Appendix B]
"Since the query is built from a single world, the ground-truth is provided by the source document from which the world is built. ... Then, ground-truth counterfactuals are sampled from the CausalWorld graph using matching: observations in the counterfactual world that match those in a factual world are removed and replaced with the factual world for abduction."

The counterfactual query P(T|do(Bc \ Os), Oo \ Os) is constructed from CausalWorld, and its ground-truth label is the value of T in the matched counterfactual world of the same CausalWorld graph. CausalWorld's variables, values, worlds, edges, and the causal blankets Bc are all produced by the CTG-Extract LLM pipeline (Section 3). Thus the 'real-world counterfactual' being predicted is defined by the same extraction process that defines the query's causal structure; the evaluation measures agreement between the reasoning agent and the extraction agent, not correspondence to any independent real-world counterfactual. The abstract's claim that the method 'allows us to construct a large network of real-world causal relationships ...

full rationale

The central derivation chain is: Theorem 1 -> K-Matching -> CausalWorld-CR queries -> claim of provable real-world counterfactual estimation. Theorem 1 is a conditional statement whose hypotheses (existence of deterministic causal blankets, with Oo \ Os blanketing each Os variable) are assumed rather than verified: Section 5.1 states 'We assume that we can construct causal blankets from the CausalWorld graph', and Section 7 concedes that full knowledge of the true causal graph cannot be guaranteed. That is a correctness/verification gap, not by itself circularity. The circularity is in the empirical claim: the counterfactual ground truth is sampled from CausalWorld (Appendix B), and CausalWorld is built by the same CTG-Extract pipeline that defines the variables, worlds, edges, and blankets used to construct each query (Sections 3 and 5.2). Therefore the evaluation can only demonstrate that CTG-Reason is consistent with CTG-Extract; it cannot demonstrate that real-world counterfactuals are estimated. The self-citation [11] for the reasoning-agent methodology is present but is not the load-bearing circular step. No external benchmark is used, so the 'real-world counterfactual' claim reduces to internal consistency of the extraction pipeline; score 6 reflects this partial but central circularity.

Assumptions & free parameters 4 free parameters · 5 assumptions · 1 invented entities

The central claim rests on strong assumptions: the extracted graph is complete and correct, causal blankets are deterministic and identifiable, Theorem 1's blanket condition on Oo \ Os holds, and the LLM extraction is accurate. The hand-chosen hyperparameters (retrieval K, traversal depth P, dataset size, maximum path count) shape the graph and the evaluation set. No new physical entities are postulated; the causal blanket is the main invented formal construct.

free parameters (4)

K (top retrieved nodes in NxGraphRAG) = 3
Chosen by hand in Appendix D to balance exhaustiveness and efficiency; affects which causal variables are matched during extraction and hence the graph structure and queries.
P (neighborhood traversal depth) = 2
Chosen by hand in Appendix D; controls how many neighboring nodes are added to the retrieval context and can influence variable merging and edge creation.
CausalWorld-CR dataset size = 400 samples
Balanced to 400 samples in Section 5.2 and Appendix G to mitigate degree imbalance; the size and balancing affect all reported accuracy and efficiency numbers.
Maximum causal paths per query = 50 paths
Queries with 50 or more causal paths are removed in Appendix G to keep problems tractable; this exclusion affects the composition of the evaluation set.

assumptions (5)

domain assumption The SCM framework with Markovian exogenous variables and deterministic endogenous functions applies to news-derived variables.
Invoked throughout Section 2 and used to write Equation 1; news text does not come with an SCM realization.
ad hoc to paper CausalWorld is a complete and correct causal graph, so causal blankets can be constructed from ancestor sets.
Section 5.1 says 'We assume that we can construct causal blankets from the CausalWorld graph'; Section 7 concedes real-world full-graph knowledge is not guaranteed.
ad hoc to paper Oo \ Os forms a causal blanket over each variable of Os (Theorem 1).
This condition is assumed in the statement of Theorem 1 and is not verified during query construction in Section 5.2; it is essential for the equality.
domain assumption LLM-extracted causal relationships and variable types/values are accurate and grounded in the source text.
Used throughout Sections 3 and 4; the paper provides no human precision/recall evaluation of extraction, and Section 7 acknowledges reliance on source accuracy.
ad hoc to paper The causal blanket is deterministic: T = f(B) for some function f.
Definition 1 requires a deterministic function; this is a strong assumption not established for real-world events, where effects are typically stochastic.

invented entities (1)

Causal blanket
purpose: A set of ancestors that fully determines a target variable; used to justify K-Matching equivalence.
Introduced in Definition 1. It is a formal construct with no falsifiable handle outside the paper; its identifiability is assumed rather than demonstrated.

how reviews work

0 comments

Cite this review

Pith. "Pith review of Causal Cartographer: From Mapping to Reasoning Over Counterfactual Worlds." pith.science (2026). https://pith.science/paper/MFKLBMI3

@misc{pith2026250514396,
  author       = {Pith},
  title        = {Pith review of: Causal Cartographer: From Mapping to Reasoning Over Counterfactual Worlds},
  year         = {2026},
  howpublished = {\url{https://pith.science/paper/MFKLBMI3}},
  note         = {Machine review of arXiv:2505.14396}
}

read the original abstract

Causal world models are systems that can answer counterfactual questions about an environment of interest, i.e. predict how it would have evolved if an arbitrary subset of events had been realized differently. It requires understanding the underlying causes behind chains of events and conducting causal inference for arbitrary unseen distributions. So far, this task eludes foundation models, notably large language models (LLMs), which do not have demonstrated causal reasoning capabilities beyond the memorization of existing causal relationships. Furthermore, evaluating counterfactuals in real-world applications is challenging since only the factual world is observed, limiting evaluation to synthetic datasets. We address these problems by explicitly extracting and modeling causal relationships and propose the Causal Cartographer framework. First, we introduce a graph retrieval-augmented generation agent tasked to retrieve causal relationships from data. This approach allows us to construct a large network of real-world causal relationships that can serve as a repository of causal knowledge and build real-world counterfactuals. In addition, we create a counterfactual reasoning agent constrained by causal relationships to perform reliable step-by-step causal inference. We show that our approach can extract causal knowledge and improve the robustness of LLMs for causal reasoning tasks while reducing inference costs and spurious correlations.

Figures

Figures reproduced from arXiv: 2505.14396 by the authors.

**Figure 1.** Counterfactual twin graph for three endogenous variables {X, Y ,Z} and two exogenous variables {U, V }, under an intervention over X. A counterfactual world is identical to the factual world, except for the intervention and its effects. Exogenous variables are shared by both worlds, connecting the two graphs. X is being intervened upon and so has no incoming edges. The counterfactual value of Y given by P(Y | do(X… view at source ↗

**Figure 2.** Overview of the Causal Cartographer Extraction agent (CTG-Extract). (a) Illustration of the extraction pipeline. The title, content, and metadata from a news source are provided to the agent context. It then generates causal variables and their relationships and adds them to the causal world model. A graphRAG system further compares article data and agent node suggestions and adds to the agent context the nodes and … view at source ↗

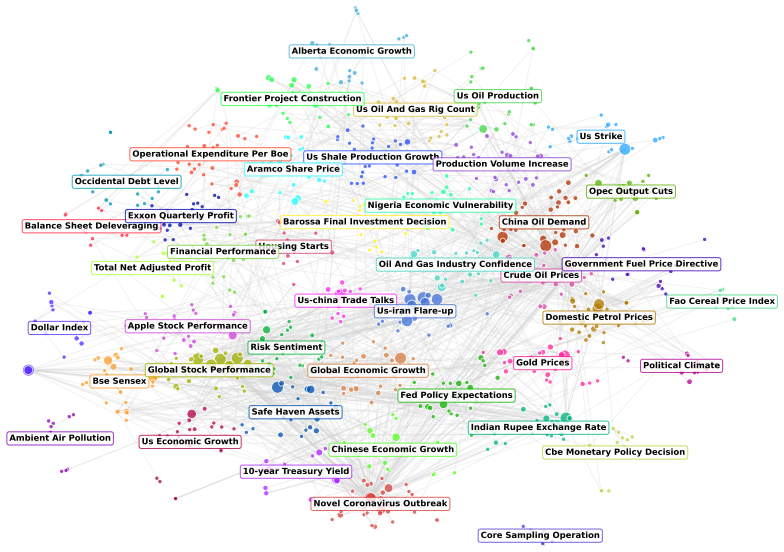

**Figure 3.** CausalWorld graph structure. Colors show the cluster in which the node belongs. Node [PITH_FULL_IMAGE:figures/full_fig_p005_3.png] view at source ↗

Figures from the paper (22 more)

**Figure 4.** Figure 4: Illustration of a direct causal path in the CausalWorld graph. Nodes are [PITH_FULL_IMAGE:figures/full_fig_p006_4.png]

**Figure 5.** Figure 5: Illustration of a cycle in the CausalWorld graph. The legend is the same as in Figure 4. [PITH_FULL_IMAGE:figures/full_fig_p006_5.png]

**Figure 6.** Figure 6: Overview of the Causal Cartographer Reasoning agent (CTG-Reason) and the evaluation pipeline. (a) A query is sampled from the CausalWorld graph using counterfactual matching: values in the counterfactual world that match those in a factual world are abducted and replac…

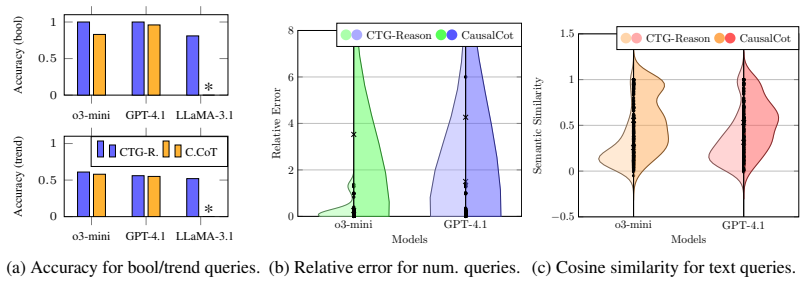

**Figure 7.** Figure 7: (a) Results on the boolean and trend subsets of CausalWorld-CR. Results are shown [PITH_FULL_IMAGE:figures/full_fig_p009_7.png]

**Figure 8.** Figure 8: Statistics on the model answers with CTG-Reason and CausalCoT. (left) The average [PITH_FULL_IMAGE:figures/full_fig_p009_8.png]

**Figure 9.** Figure 9: Overview of the complete Causal Cartographer pipeline with extraction and reasoning [PITH_FULL_IMAGE:figures/full_fig_p014_9.png]

**Figure 10.** Figure 10: Overview of the NxGraphRAG pipeline. The attributes of the graph database are embedded [PITH_FULL_IMAGE:figures/full_fig_p016_10.png]

**Figure 11.** Figure 11: Distribution of weakly and strongly connected components and node degrees in Causal [PITH_FULL_IMAGE:figures/full_fig_p017_11.png]

**Figure 12.** Figure 12: Distribution of cycles in CausalWorld. There are 149 cycles in the graph, with lengths [PITH_FULL_IMAGE:figures/full_fig_p017_12.png]

**Figure 13.** Figure 13: CausalWorld graph structure divided by Louvain communities. Colors correspond to the [PITH_FULL_IMAGE:figures/full_fig_p018_13.png]

**Figure 14.** Figure 14: Distribution of the nodes among the worlds extracted from the source documents. The [PITH_FULL_IMAGE:figures/full_fig_p019_14.png]

**Figure 15.** Figure 15: Illustration of the longest direct causal path in the CausalWorld graph. It contains 18 nodes, [PITH_FULL_IMAGE:figures/full_fig_p020_15.png]

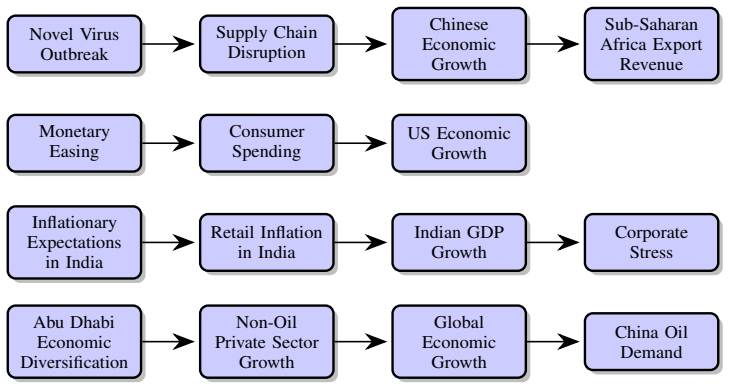

**Figure 16.** Figure 16: Additional direct causal paths in CausalWorld graph. [PITH_FULL_IMAGE:figures/full_fig_p021_16.png]

**Figure 17.** Figure 17: Distribution of the query types and target domains in the CausalWorld-CR dataset. [PITH_FULL_IMAGE:figures/full_fig_p021_17.png]

**Figure 18.** Figure 18: Distribution of the number of nodes in the query graphs of the CausalWorld-CR dataset. [PITH_FULL_IMAGE:figures/full_fig_p021_18.png]

**Figure 19.** Figure 19: Distribution of query types and answer types from CTG-Reason. Types correspond to [PITH_FULL_IMAGE:figures/full_fig_p022_19.png]

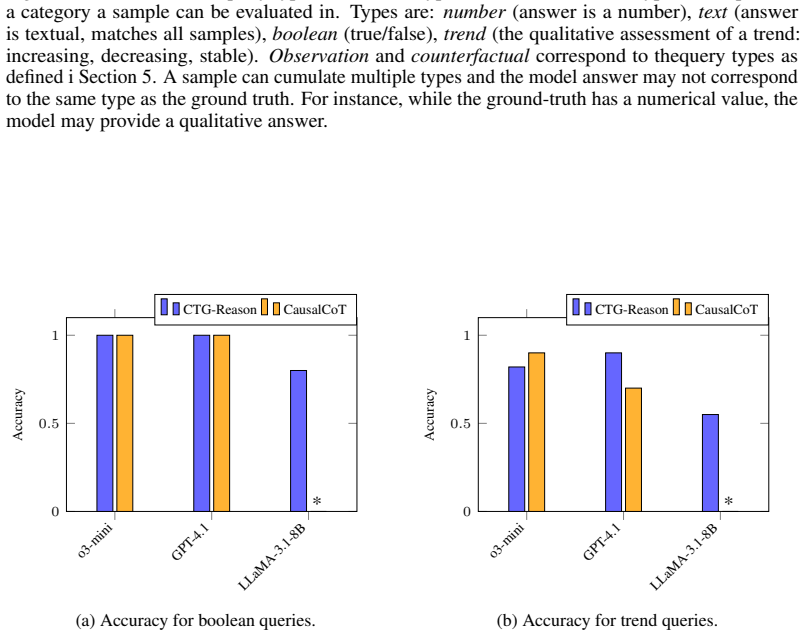

**Figure 20.** Figure 20: Results on the counterfactual set for the boolean and trend queries of CausalWorld-CR. Results are shown for o3-mini, GPT-4o and LLaMA-3.1-8B, using CTG-Reason and CausalCoT. (*) The majority of queries with LLaMA-3.1-8B-CausalCoT returned with a timeout. 22 [PITH_FU…

**Figure 21.** Figure 21: Results on the observational set for the boolean and trend queries of CausalWorld-CR. Results are shown for o3-mini, GPT-4o and LLaMA-3.1-8B, using CTG-Reason and CausalCoT. (*) The majority of queries with LLaMA-3.1-8B-CausalCoT returned with a timeout. −0.5 0 0.5 1 …

**Figure 22.** Figure 22: Violin plots of the semantic (cosine) similarity between ground truth and model answers. [PITH_FULL_IMAGE:figures/full_fig_p023_22.png]

**Figure 23.** Figure 23: Violin plots of the relative error numerical between ground truth and prediction. The [PITH_FULL_IMAGE:figures/full_fig_p024_23.png]

**Figure 24.** Figure 24: Confusion matrices for boolean and trend queries of CausalWorld-CR for o3-mini using [PITH_FULL_IMAGE:figures/full_fig_p024_24.png]

**Figure 25.** Figure 25: Violin plots of the BLEU score for o3-mini and GPT-4.1 using CTG-Reason on coun [PITH_FULL_IMAGE:figures/full_fig_p024_25.png]
