Multilingual Multimodal Software Developer for Code Generation

T0 review · 3 major / 7 minor · reviewed 2026-08-06 · deepseek-v4-flash

Challenge this review Re-run · record.json Download PDF Read on arXiv ↗ Review JSON

Pith's one-line read A 7-billion-parameter model trained to read UML diagrams and flowcharts alongside text outperforms much larger models, including a 72-billion-parameter one, on a new 10-language code-generation benchmark.

desk verdict Solid two-stage SFT recipe for diagram-conditioned code gen, undermined by an in-distribution 300-problem benchmark and a noisy headline comparison to a 72B model. read the letter →

arxiv 2507.08719 v1 pith:MN6Z7RKN submitted 2025-07-11 cs.CL cs.AIcs.SE

Linzheng Chai , Jian Yang , Shukai Liu , Wei Zhang , Liran Wang , Ke Jin , Tao Sun , Congnan Liu
show 7 more authors
Chenchen Zhang Hualei Zhu Jiaheng Liu Xianjie Wu Ge Zhang Tianyu Liu Zhoujun Li
This is my paper · ORCID
classification cs.CLcs.AIcs.SE
keywords multimodalcodegenerationvisualworkflowUMLdiagramsflowchartsinstructiontuningmultilingualevaluationM2EVALbenchmarkPass@1
verification ladder T0 review T1 audit T2 compute T3 formal

The pith

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The reading

This paper argues that code generation gets better when the model can see the software design: UML diagrams and flowcharts, which the authors call Visual Workflow, carry information that text prompts alone do not. To test the idea, the authors built M2C-INSTRUCT, a 13.1-million-sample instruction-tuning corpus, and M2EVAL, a new benchmark of 300 problems across 10 programming languages in which key details are deliberately placed only inside the diagram. Their 7-billion-parameter model, M2-Coder, reaches 25.3 average Pass@1 — the share of generated programs that pass all test cases — beating every similarly sized model and exceeding the 72-billion-parameter Qwen2.5-VL at 24.7. The result matters because software teams routinely communicate through diagrams, and a small open model that can read them would turn design intent directly into working code.

What carries the argument

The load-bearing object is the Visual Workflow: UML class and sequence diagrams and Mermaid-rendered flowcharts generated from code by an LLM, then manually refined and re-embedded into problems. Two mechanisms carry the argument. The first is the diagram-necessity construction principle: when a text problem is converted into a multimodal problem, information is removed from the prompt and re-encoded inside the diagram, so the image is the unique carrier of facts the code must reflect. The second is the two-stage instruction-tuning recipe: stage 1 aligns the model with rendered code images and OCR-heavy inputs at scale, and stage 2, with the vision tower frozen, sharpens diagram comprehension and instruction following on shorter, higher-quality problems. M2EVAL applies the same necessity principle in reverse, stripping prompts until they are unsolvable without the diagram, and scores model outputs by executing them against test cases in ten languages.

What would settle it

Re-run M2EVAL's 30 problems with the same content but diagrams re-rendered in a different style, layout, or drawing tool, or replaced by hand-drawn versions. If M2-Coder-7B's Pass@1 falls sharply while GPT-4o's holds, the gains come from style matching rather than diagram reading. As a second check, give text-only models such as Qwen2.5-Coder-32B the diagram content rewritten as plain text inside the prompt: if they then match or beat M2-Coder, the model's advantage is the extra information the diagram carries, not the visual channel itself.

Watch

Extended reading notes

Core claim

The central claim is that large-scale multimodal instruction tuning on visual workflow data turns a standard vision-language model into a multilingual code generator that uses design diagrams. Starting from Qwen2-VL-7B, the authors fine-tune in two stages: first on 12.9 million cross-modal problems, in which source code is rendered as syntax-highlighted images alongside diagram problems, then on 168 thousand high-quality diagram problems whose essential information is encoded only in the image. On M2EVAL, the resulting M2-Coder-7B scores 25.3 average Pass@1 across ten programming languages, above every other open-weight model evaluated up to 400 billion parameters, including Qwen2.5-VL-72B at 24.7, and close to proprietary leaders such as GPT-4o at 49.7. The paper also shows that text-only code models score 0.0 when the diagram is withheld, evidence that the diagrams are genuinely load-bearing, and that the two-stage recipe beats either stage alone (10.0 and 18.0 individually, 25.3 combined).

Load-bearing premise

The benchmark that measures success, M2EVAL, is built with the same LLM-generated Mermaid/PlantUML diagram pipeline as the training data, so the reported Pass@1 numbers could reflect mastery of synthetic diagram styles rather than of real-world design documents; with only 30 unique concepts, each diagram is also reused across ten languages.

Editorial extensions

If this is right

  • A 7-billion-parameter open-weight model can post 25.3 average Pass@1 on multilingual multimodal code generation, above most models an order of magnitude larger, making diagram-reading a small-model capability rather than a frontier-model one.
  • Even the strongest evaluated model, GPT-4o, reaches only about 50 percent, so M2EVAL leaves clear headroom; the paper names precise visual capture, instruction following, and design-pattern knowledge as the open bottlenecks.
  • Text-only code models score 0.0 when the diagram is withheld, so software workflows that communicate through diagrams will need multimodal components rather than text-only code LLMs.
  • Design-pattern problems are the hardest category for every model, and strictly typed languages (C#, Scala, Swift) trail scripting languages (Python, PHP, JavaScript), pointing to where data and evaluation effort should go next.
  • The dataset, not the base model, drives most of the gain: stage-2 fine-tuning alone moves Qwen2-VL-Instruct from 12.0 to 16.7, and the full two-stage pipeline reaches 25.3.

Reading between the lines

Editorial extensions of the paper, not claims the author makes directly.

  • Because M2EVAL and M2C-INSTRUCT share the same LLM-assisted diagram pipeline, I would expect Pass@1 to drop on hand-drawn or professionally authored diagrams; a re-rendered dev set would quantify how much of the result is genuine visual understanding.
  • The diagram-necessity trick is portable: the same strip-text-and-re-encode-in-image recipe could be applied to UI mockups, database schemas, or API specifications to build multimodal training data for other software-engineering tasks.
  • Stage-1 data volume keeps helping, so the 13.1-million-instance budget is not exhausted; a cheaper question worth testing is whether a much smaller, diagram-only corpus could capture most of the gain, since stage 2 alone already contributes a large share.
  • If the gains transfer across rendering styles, then code-from-diagram generation could be plugged into industrial design tools that already export Mermaid or PlantUML, giving the approach a natural deployment path.
Share X Bluesky LinkedIn Reddit HN

Signed reviews

No signed human review yet.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, and a circularity audit.

Referee Report

3 major / 7 minor

Summary. The paper proposes M2-Coder, a 7B-parameter vision-language model for code generation from UML diagrams and flowcharts ('visual workflows'), trained in two stages on a newly constructed 13.1M-instance instruction-tuning corpus M2C-Instruct. It also introduces M2Eval, a 300-problem benchmark covering 10 programming languages built from 30 concepts, each with one LLM-generated diagram shared across languages. On M2Eval, M2-Coder-7B reports a 25.3 average Pass@1, higher than all evaluated models of comparable size and nominally higher than Qwen2.5-VL-72B (24.7). The authors argue this demonstrates the value of large-scale multimodal instruction tuning and exposes remaining weaknesses of current LMMs in visual understanding and instruction following.

Significance. The resources are potentially valuable: M2C-Instruct is large and multilingual, M2Eval is execution-based with human-verified translations and test cases, and the two-stage SFT recipe gives a substantial improvement over the Qwen2-VL-7B base (25.3 vs 12.0). The paper also reports detailed annotation protocols, payment information, and plans to release code and data, which support reproducibility. However, the central comparative claim against larger models is not statistically supported (a 2-problem difference out of 300), and the benchmark/training distribution overlap means the advantage over other models may partly reflect style matching rather than general multimodal coding ability. With added uncertainty quantification and a robustness analysis against diagram style, the contribution would be a useful step for multimodal code generation.

major comments (3)
  1. [§4.2, Table 4, Figure 17] The headline result that M2-Coder-7B outperforms Qwen2.5-VL-72B rests on a 0.6-point gap (25.3 vs 24.7 average Pass@1), which in Figure 17 corresponds to 76 versus 74 correct (problem, language) pairs out of 300. With a single greedy decoding run and no confidence intervals, the standard error of a 25% pass rate on 300 items is about 2.5 points, so this difference is not distinguishable from sampling noise. The authors should report multiple runs or a paired significance test (e.g., McNemar's test on the 300 items) before claiming superiority, or explicitly soften the claim to 'comparable within noise.' As written, contribution bullet 3 ('competitiveness with larger 70B+ LMMs') is not supported by this comparison, although the larger gaps against 7B baselines (e.g., Qwen2-VL-7B at 12.0) are more robust.
  2. [§2.2, §3.2, Appendices C.2, D.2] M2EVAL and the diagram subset of M2C-INSTRUCT are generated by the same LLM pipeline: Qwen2.5-Coder produces PlantUML/Mermaid diagrams from a code problem and then rewrites the prompt so that key details appear only in the diagram. Because M2-Coder is trained on M2C-INSTRUCT, it is evaluated on the same synthetic diagram style that it saw during training, while all comparison models encounter that style for the first time. This distributional overlap is a plausible source of M2-Coder's advantage beyond actual multimodal coding skill. The paper should (i) explicitly discuss this overlap, (ii) measure sensitivity to diagram style, e.g., by testing on human-created or out-of-pipeline diagrams, and (iii) report whether the performance gap persists when comparison models are given additional diagram examples or when M2-Coder is evaluated on a held-out style. Without such analysis, the comparative results in Table 4 are open to an overfitting explanation.
  3. [§2.3, Figure 17] The effective visual diversity of M2EVAL is 30 unique diagrams (one per concept, shared across the 10 language versions), so the 300-problem count overstates the independent sample size for the visual component. Per-language Pass@1 scores are computed on 30 items, giving standard errors around 8-9 percentage points; the per-language differences in Table 4 (e.g., C# 26.7 vs 16.7) are therefore not meaningful without uncertainty estimates. The authors should report confidence intervals or cluster the analysis by the 30 concepts (e.g., bootstrap by concept) when comparing models.
minor comments (7)
  1. [Abstract and throughout] The naming is inconsistent: the abstract and contributions use 'MM-Coder', 'MMc-Instruct', and 'MMEval', while the body and tables use M2-Coder, M2C-INSTRUCT, and M2EVAL. Please unify the terminology.
  2. [Table 3] The M2EVAL row lists '#Train 13.1M' and a checkmark under 'Instruct', which conflates the 300-problem evaluation benchmark with the 13.1M-instance M2C-INSTRUCT training corpus. M2EVAL should be listed as evaluation-only, with the training-corpus statistics attributed to M2C-INSTRUCT.
  3. [§4.1] The evaluation protocol mixes greedy decoding for 'ordinary' models with temperature 0.6 sampling for 'thinking' models, and no seed averaging is reported for the sampling-based results. This makes the Pass@1 values for thinking models (e.g., Doubao1.5-thinking-pro, QVQ, Kimi) not directly comparable to greedy scores; please either use a uniform protocol or report both sets of numbers and justify the choice.
  4. [§4.2 and §2.2] The 0.0 scores for the text-only models DeepSeek-V3 and Qwen2.5-Coder are expected by construction: §2.2 states that the curation process removes from the prompt all details that are moved into the diagram, making the prompt alone insufficient. This should not be presented as evidence that diagrams are generally necessary for code generation in real-world settings.
  5. [Table 5] The ablation table omits the score for Qwen2-VL-Base without any fine-tuning (model ③ shows dashes). Without this baseline, the ablation cannot separate the effect of stage-1 SFT from the base model's own capability or inability to follow the instruction format; please add the missing baseline or explain why it cannot be evaluated.
  6. [Appendix D.1 and Figure 6] There is a typo ('Futhermore') in Appendix D.1, and Figure 6's 'data efficiency' analysis lacks a description of how many checkpoints were used and whether the trend is based on a single run. Please clarify the experimental design behind this figure.
  7. [Evaluation methodology] The paper does not report a contamination check between M2Eval and the training corpora of the evaluated models. Since M2C-INSTRUCT is derived from GitHub code and LLM-generated problems, the possibility that M2Eval's prototype problems or solutions appear in pretraining corpora should be addressed, e.g., by a fuzzy-match or near-duplicate analysis.

Circularity Check

1 steps flagged · score 4.0 of 10

One peripheral claim ('diagrams are necessary') is true by construction, but the central training/evaluation results are not circular.

  1. self definitional [Section 2.2 (Problem Design) and Section 4.2 (Main Results)]
    "We revise the problem prompts by removing information redundant with the diagrams, making the prompt alone insufficient for a correct solution. ... The results show that DeepSeek-V3 and Qwen2.5-Coder cannot solve the problems without diagrams. This proves that diagrams are necessary in M2EVAL(we paid special attention to this during annotation)."

    The paper presents the 0% text-only result as empirical proof that diagrams are necessary, but this outcome is guaranteed by the benchmark construction itself: the curation protocol deliberately removed information required for a correct solution from the prompt and moved it into the diagram. The phrase 'making the prompt alone insufficient for a correct solution' makes the later claim 'this proves that diagrams are necessary' a restatement of the design choice rather than an independent finding. No model evaluation is needed to establish that a text-only model cannot solve a problem whose prompt was intentionally made unsolvable without the diagram.

full rationale

The central training-and-evaluation loop is not circular: M2-Coder is trained on M2C-INSTRUCT and scored on M2EVAL by executing generated code against held-out test cases, so the Pass@1 numbers do not reduce to a fitted parameter or to the training objective. The one clear self-definitional step is the 'diagrams are necessary' claim in Section 4.2, which follows by construction from the prompt-curation rule in Section 2.2; however, this is a peripheral observation rather than the paper's main contribution. A related but non-circular concern is that M2EVAL was built with the same LLM-based diagram-generation recipe as M2C-INSTRUCT (Sections 2.2 and D.2), making the benchmark in-distribution for the trained model; this is a benchmark-validity and generalization risk, not a logical reduction of the reported scores. The central claims of improved multimodal code generation and competitive performance remain independently measured by execution-based evaluation, so the overall circularity is moderate rather than severe.

Assumptions & free parameters 0 free parameters · 4 assumptions · 0 invented entities

The central claim rests on the representativeness of LLM-generated diagrams and the correctness of the self-built benchmark. No numeric free parameters are fit, but the data-generation protocol embeds several hand-chosen design decisions, including the diagram tools, the removal strategy, and the filtering thresholds.

assumptions (4)
  • domain assumption UML diagrams and flowcharts are an appropriate representation of visual design intent for code generation.
    Section 1 introduces Visual Workflow as the input modality; if real-world design artifacts are not well captured by these diagram types, the claimed practical utility weakens.
  • domain assumption Qwen2.5-Coder-generated diagrams and multimodal problems, filtered by Mermaid rendering, are high-quality enough for training and evaluation.
    Section 3.2 and Appendix D.2 rely on the LLM to produce diagrams and incomplete problems; the entire approach depends on the generator's quality.
  • ad hoc to paper Removing problem details from the prompt and placing them in the diagram makes the prompt alone insufficient.
    Section 2.2 and Appendix C.2 enforce this by construction, which guarantees text-only models score 0% but is not an independent property of natural problems.
  • domain assumption Canonical solutions and test cases in M2EVAL are correct and sufficient.
    Appendix C.3.4 asserts a 100% pass rate for canonical solutions, but the test cases are authored by the same team and limited to an average of 9 per problem.

how reviews work

0 comments
Cite this review

Pith. "Pith review of Multilingual Multimodal Software Developer for Code Generation." pith.science (2026). https://pith.science/paper/MN6Z7RKN

@misc{pith2026250708719,
  author       = {Pith},
  title        = {Pith review of: Multilingual Multimodal Software Developer for Code Generation},
  year         = {2026},
  howpublished = {\url{https://pith.science/paper/MN6Z7RKN}},
  note         = {Machine review of arXiv:2507.08719}
}
read the original abstract

The rapid advancement of Large Language Models (LLMs) has significantly improved code generation, yet most models remain text-only, neglecting crucial visual aids like diagrams and flowcharts used in real-world software development. To bridge this gap, we introduce MM-Coder, a Multilingual Multimodal software developer. MM-Coder integrates visual design inputs-Unified Modeling Language (UML) diagrams and flowcharts (termed Visual Workflow)-with textual instructions to enhance code generation accuracy and architectural alignment. To enable this, we developed MMc-Instruct, a diverse multimodal instruction-tuning dataset including visual-workflow-based code generation, allowing MM-Coder to synthesize textual and graphical information like human developers, distinct from prior work on narrow tasks. Furthermore, we introduce MMEval, a new benchmark for evaluating multimodal code generation, addressing existing text-only limitations. Our evaluations using MMEval highlight significant remaining challenges for models in precise visual information capture, instruction following, and advanced programming knowledge. Our work aims to revolutionize industrial programming by enabling LLMs to interpret and implement complex specifications conveyed through both text and visual designs.

Figures

Figures reproduced from arXiv: 2507.08719 by the authors.

Figure 1
Figure 1. Overview of M2 -CODER, M2C-INSTRUCT and M2EVAL. We constructed M2C-INSTRUCT, an instruction tuning dataset with over 13.1 million instances, to enhance the multilingual multimodal programming capabilities of M2 -CODER. For evaluating M2 -CODER, we curate M2EVAL, a multi￾modal benchmark for code evaluation across 10 programming languages. system architecture/design patterns/process workflows in [PITH_FULL_IMAGE:figu… view at source ↗
Figure 2
Figure 2. The curation process for M2EVAL: (1) designing Python prototype problems grounded in core programming concepts; (2) transforming these into multimodal problems by incorporating diagrams and refining prompts; and (3) translating the problems into multiple programming languages. As illustrated in [PITH_FULL_IMAGE:figures/full_fig_p003_2.png] view at source ↗
Figure 3
Figure 3. PL distribution of M2C￾INSTRUCT. 159-1978px (height) and 338-2081px (width). All 300 problems have solutions, averaging 326 tokens (max 826). Each solution is evaluated against an average of 9 test cases. In [PITH_FULL_IMAGE:figures/full_fig_p004_3.png] view at source ↗
Figures from the paper (31 more)
Figure 4
Figure 4. Figure 4: The M2C-INSTRUCT data construction pipeline. Stage-1 data generates Cross-Modal Problems by converting code to images. Stage-2 data generates Diagram Problems via a two-step process: (1) creating diagrams from problems/solutions, and (2) formulating multimodal problems…
Figure 6
Figure 6. Figure 6: Ablation study on stage-1 1 data efficiency. Ablation experiment for M2 -CODER fine-tuning. We perform an ablation study on M2 -CODER and present the results in [PITH_FULL_IMAGE:figures/full_fig_p007_6.png]
Figure 7
Figure 7. Figure 7: Distribution of GPT￾4o’s Errors in Python. Error Analysis. To gain deeper insights into model capabilities, we conducted an error analysis on GPT-4o’s responses to 11 prob￾lems in Python. As shown in [PITH_FULL_IMAGE:figures/full_fig_p008_7.png]
Figure 8
Figure 8. Figure 8: A case study for M2EVAL showcasing common error patterns in multimodal code gener￾ation. It highlights failures on specific challenges (complex sorting, diagram-to-code with naming conventions). Programming Language Matters. Extending the analysis of language-specific …
Figure 9
Figure 9. Figure 9: Performance differences between each PLs on M [PITH_FULL_IMAGE:figures/full_fig_p009_9.png]
Figure 10
Figure 10. Figure 10: Programming language distribution in M2C-INSTRUCT stage 1 data M2C-INSTRUCT Stage 2. D.2 M2C-INSTRUCT Construction Process This section provides a detailed account of the specific methodologies and procedures used for data synthesis and quality control during the cons…
Figure 11
Figure 11. Figure 11: Programming language distribution of M2C-INSTRUCT Stage 2. Source Data Preparation. As illustrated in [PITH_FULL_IMAGE:figures/full_fig_p024_11.png]
Figure 12
Figure 12. Figure 12: Examples of rendered code images via pygments. [PITH_FULL_IMAGE:figures/full_fig_p025_12.png]
Figure 13
Figure 13. Figure 13: Examples of diagram code images via mermaid. [PITH_FULL_IMAGE:figures/full_fig_p026_13.png]
Figure 14
Figure 14. Figure 14: Prompt template for step 1 of constructing diagram-type data in M [PITH_FULL_IMAGE:figures/full_fig_p026_14.png]
Figure 15

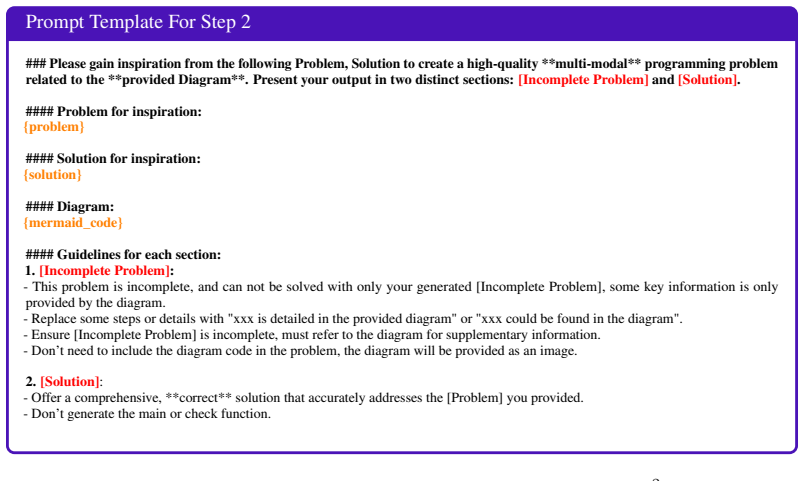

Figure 15. Figure 15: Prompt template for step 2 of constructing diagram-type data in M [PITH_FULL_IMAGE:figures/full_fig_p027_15.png]
Figure 16
Figure 16. Figure 16: Performance comparison of models across task types. 1 [PITH_FULL_IMAGE:figures/full_fig_p029_16.png]
Figure 17
Figure 17. Figure 17: shows the model’s performance on different problems (a score of 10 indicates that the code in all languages passes the tests). It can be seen that on some simple problems (e.g., problems 1, 2, 16, and 19), most models perform well in all languages. However, on some co…
Figure 18
Figure 18. Figure 18: Kotlin error cases from GPT-4o on M2EVAL. 30 [PITH_FULL_IMAGE:figures/full_fig_p030_18.png]
Figure 19
Figure 19. Figure 19: Ruby error cases from GPT-4o on M2EVAL. 31 [PITH_FULL_IMAGE:figures/full_fig_p031_19.png]
Figure 20
Figure 20. Figure 20: Cross-modal example 1 from M2C-INSTRUCT. 32 [PITH_FULL_IMAGE:figures/full_fig_p032_20.png]
Figure 21
Figure 21. Figure 21: Cross-modal example 2 from M2C-INSTRUCT. 33 [PITH_FULL_IMAGE:figures/full_fig_p033_21.png]
Figure 22
Figure 22. Figure 22: Cross-modal example 3 from M2C-INSTRUCT. 34 [PITH_FULL_IMAGE:figures/full_fig_p034_22.png]
Figure 23
Figure 23. Figure 23: Diagram example 1 from M2C-INSTRUCT. 35 [PITH_FULL_IMAGE:figures/full_fig_p035_23.png]
Figure 24
Figure 24. Figure 24: Diagram example 2 from M2C-INSTRUCT. 36 [PITH_FULL_IMAGE:figures/full_fig_p036_24.png]
Figure 25
Figure 25. Figure 25: Diagram example 3 from M2C-INSTRUCT. 37 [PITH_FULL_IMAGE:figures/full_fig_p037_25.png]
Figure 26
Figure 26. Figure 26: Diagram example 4 from M2C-INSTRUCT. 38 [PITH_FULL_IMAGE:figures/full_fig_p038_26.png]
Figure 27
Figure 27. Figure 27: Diagram example 5 from M2C-INSTRUCT. 39 [PITH_FULL_IMAGE:figures/full_fig_p039_27.png]
Figure 28
Figure 28. Figure 28: Example 1 from M2EVAL. 40 [PITH_FULL_IMAGE:figures/full_fig_p040_28.png]
Figure 29
Figure 29. Figure 29: Example 2 from M2EVAL. 41 [PITH_FULL_IMAGE:figures/full_fig_p041_29.png]
Figure 30
Figure 30. Figure 30: Example 3 from M2EVAL. 42 [PITH_FULL_IMAGE:figures/full_fig_p042_30.png]
Figure 31
Figure 31. Figure 31: Example 4 from M2EVAL. 43 [PITH_FULL_IMAGE:figures/full_fig_p043_31.png]
Figure 32
Figure 32. Figure 32: Example 5 from M2EVAL. 44 [PITH_FULL_IMAGE:figures/full_fig_p044_32.png]
Figure 33
Figure 33. Figure 33: Example 6 from M2EVAL. 45 [PITH_FULL_IMAGE:figures/full_fig_p045_33.png]
Figure 34

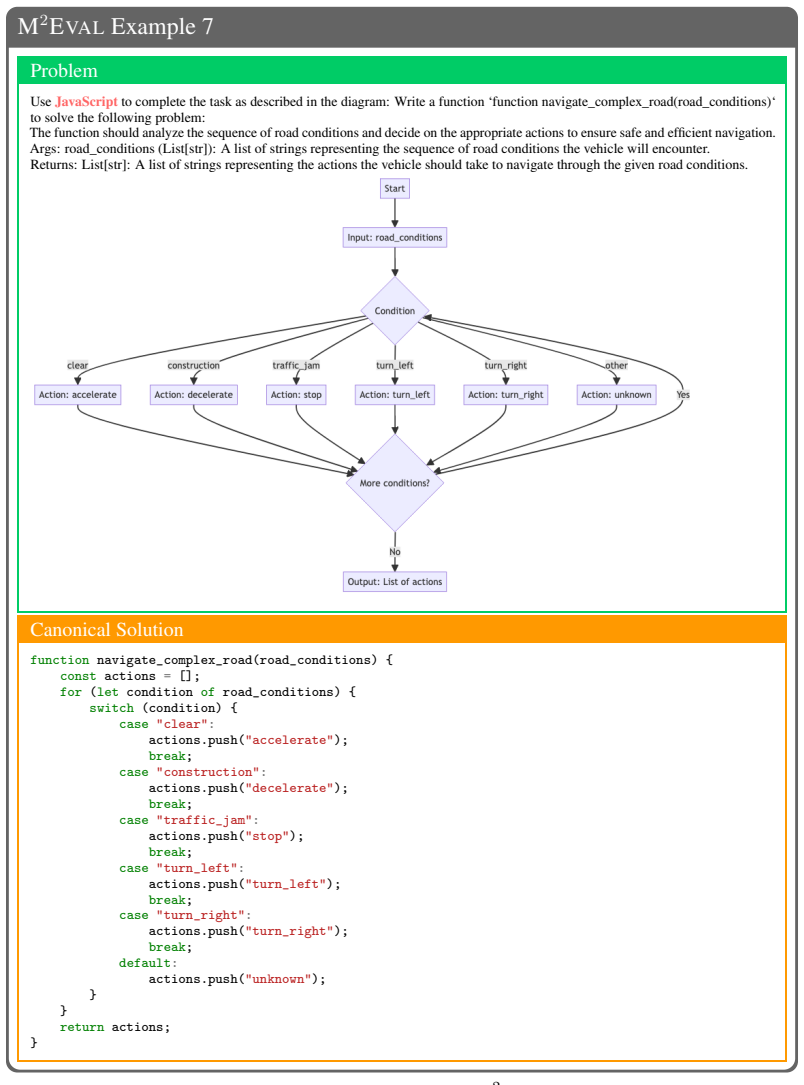

Figure 34. Figure 34: Example 7 from M2EVAL. 46 [PITH_FULL_IMAGE:figures/full_fig_p046_34.png]
Figure 35
Figure 35. Figure 35: Example 8 from M2EVAL. 47 [PITH_FULL_IMAGE:figures/full_fig_p047_35.png]
