Autoregressive Stochastic Clock Jitter Compensation in Analog-to-Digital Converters

Daniele Gerosa , Rui Hou , Vimar Bj\"ork , Ulf Gustavsson , Thomas Eriksson This is my paper

Pith reviewed 2026-05-22 16:54 UTC · model grok-4.3

classification 📡 eess.SP math.OC
keywords clock jitteranalog-to-digital converterautoregressive processKalman filterweighted least squarespilot-assisted compensationSINADR improvement
0
0 comments X

The pith

Modeling stochastic clock jitter in ADCs as a first-order autoregressive process enables two pilot-assisted compensation algorithms for baseband signals.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

This paper models the random timing errors in analog-to-digital converters as a stationary first-order autoregressive process. It develops two algorithms that use known pilot signals to estimate and correct these errors in baseband digitization. One solves a sequence of weighted least-squares problems while the other applies a Kalman filter to use the correlation across successive samples. A conditional maximum-likelihood method estimates the autoregressive parameters from the pilots, and the paper analyzes the resulting linearization errors. Simulations indicate the methods raise signal-to-noise-and-distortion ratio by 1 to 15 dB and reduce error vector magnitude by 0.02 to 1.6 dB, with the Kalman smoother performing best when extra temporal data is available.

Core claim

The stochastic discrete-time clock jitter is modeled as a stationary first-order autoregressive process. Two computationally efficient pilot-assisted dejittering algorithms are proposed for baseband signals: one based on solving a sequence of weighted least-squares problems, and another that exploits the correlated jitter structure via a Kalman filter-based routine. A conditional maximum-likelihood estimator for the autoregressive parameters is provided to support near-optimal Kalman performance when parameters vary, along with a mathematical analysis of induced linearization errors and synthetic simulations that report 1-15 dB SINADR gains and 0.02-1.6 dB EVM gains.

What carries the argument

The first-order autoregressive (AR(1)) model of the stochastic clock jitter, which captures its temporal correlation and directly enables both the weighted least-squares sequence and the Kalman filter dejittering routines.

If this is right

  • The weighted least-squares algorithm supplies a direct, pilot-driven correction for jitter effects without requiring full statistical knowledge beyond the model.
  • The Kalman smoother yields higher performance than the least-squares version by incorporating both past and future observations.
  • The conditional maximum-likelihood parameter estimator keeps the Kalman routine near-optimal even when jitter statistics change slowly over time.
  • Signal quality improves measurably, with SINADR gains ranging from 1 dB to 15 dB according to jitter severity and the density of available pilots.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • If the AR(1) description matches jitter observed in actual high-speed ADCs, the same pilot-assisted routines could be added to existing digital post-processing pipelines to raise effective resolution without new analog hardware.
  • Varying pilot density in the simulations suggests a practical trade-off between compensation accuracy and the fraction of bandwidth spent on training symbols.
  • The linearization-error analysis supplies a template for bounding similar first-order approximations in other timing-recovery or sampling-correction schemes.

Load-bearing premise

The clock jitter follows a stationary first-order autoregressive process whose parameters can be estimated from pilot signals.

What would settle it

Measurements on real ADC hardware with recorded jitter that show no consistent SINADR or EVM improvement when the proposed algorithms are applied compared with uncompensated conversion would falsify the central performance claim.

Figures

Figures reproduced from arXiv: 2505.05030 by Daniele Gerosa, Rui Hou, Thomas Eriksson, Ulf Gustavsson, Vimar Bj\"ork.

Figure 1
Figure 1. Figure 1: Level curves of the term multiplying σ 2 x′ in (12); φ = 0.95 left, φ = 0.999 right, in dB. The double integral in (12) was numerically evaluated via nested integral in MATLAB and its accuracy was double-checked via a separate Monte Carlo where instances of the processes x, ξ etc. were generated and the left-hand side of (12) estimated. subtracted, the pilots removed, and the signal interpolated us￾ing e.g… view at source ↗

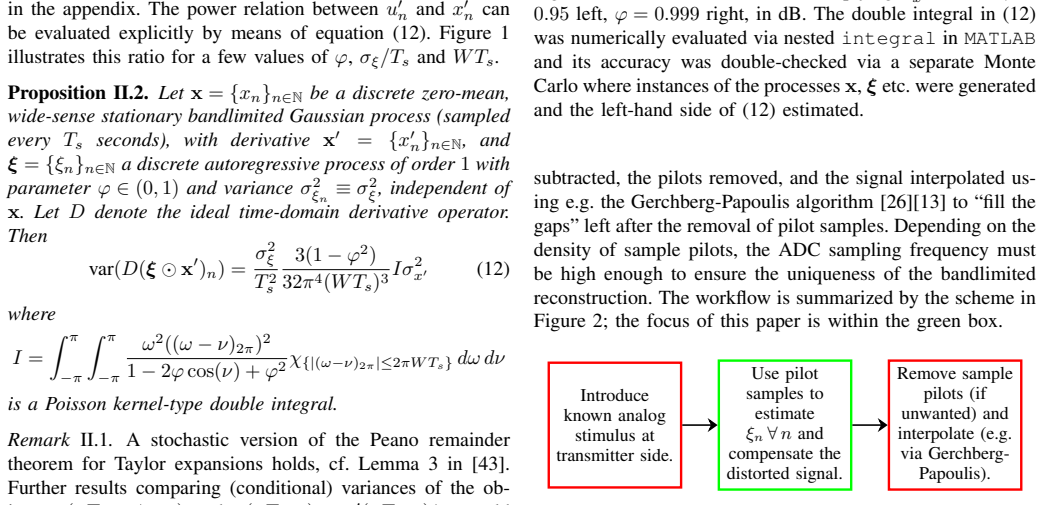

Figure 2
Figure 2. Figure 2: ; the focus of this paper is within the green box. Introduce known analog stimulus at transmitter side. Use pilot samples to estimate ξn ∀ n and compensate the distorted signal. Remove sample pilots (if unwanted) and interpolate (e.g. via Gerchberg￾Papoulis) [PITH_FULL_IMAGE:figures/full_fig_p004_2.png] view at source ↗

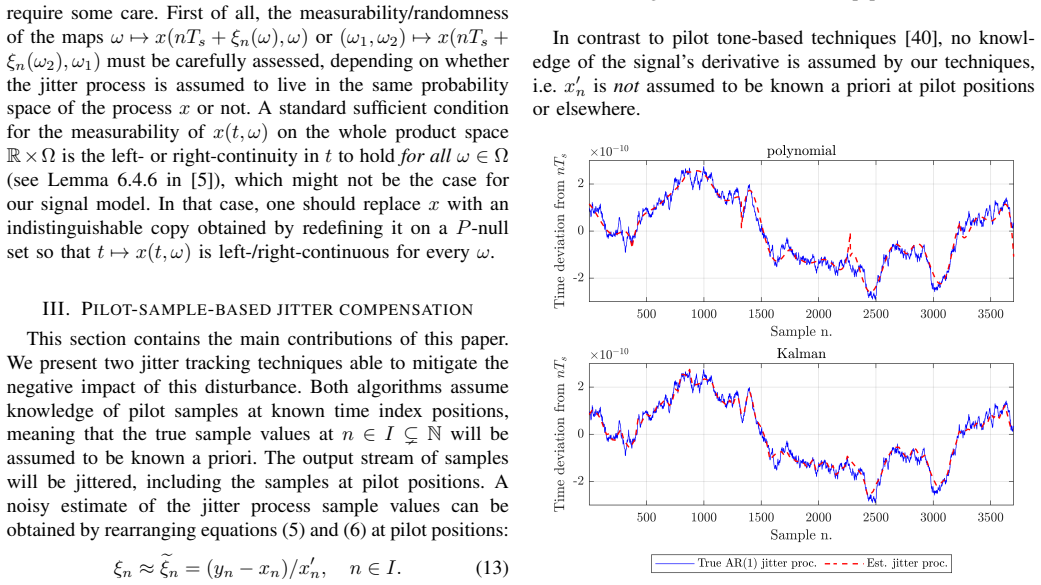

Figure 3
Figure 3. Figure 3: Jitter trackers comparison example, Algorithm 1 (left) [PITH_FULL_IMAGE:figures/full_fig_p004_3.png] view at source ↗

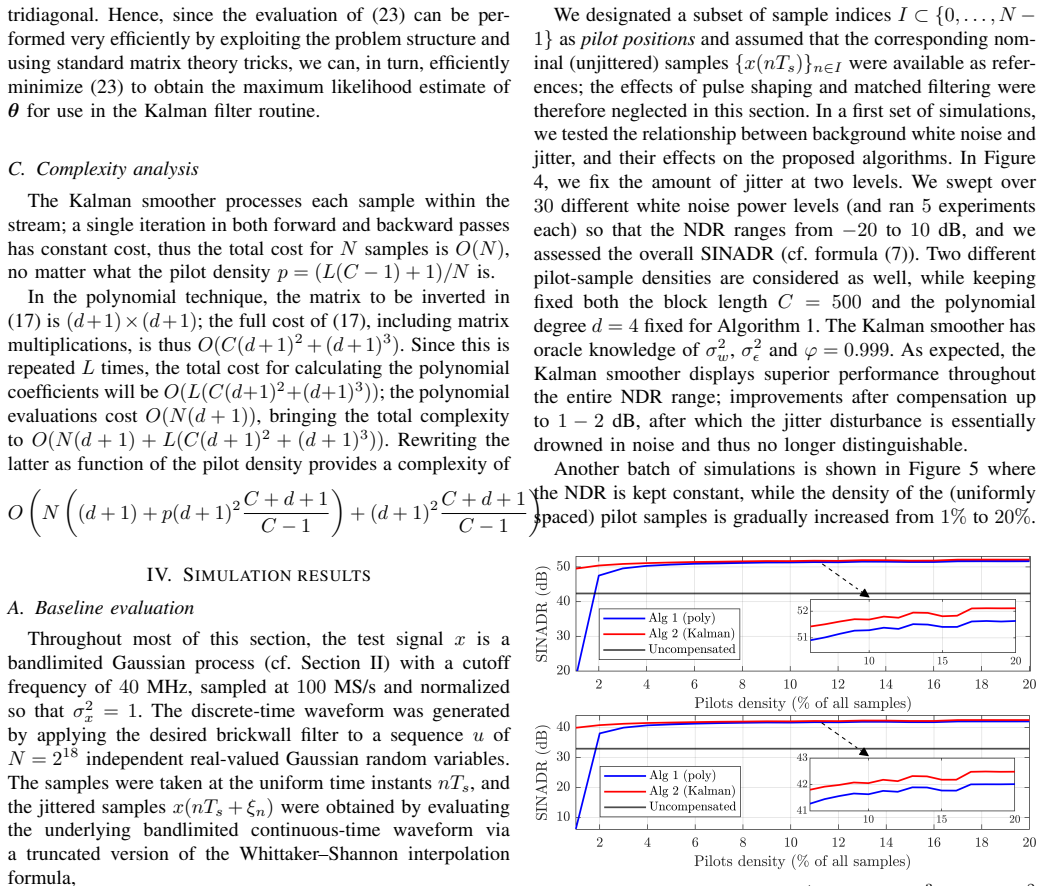

Figure 5
Figure 5. Figure 5: From top to bottom: σξ/Ts = 5 · 10−3 , 1.5 · 10−2 respectively. NDR is fixed to = −10 dB. Both techniques benefit from the higher pilot density, with (a) σξ/Ts = 5 · 10−3 , φ = 0.999 (b) σξ/Ts = 1.5 · 10−2 , φ = 0.999 [PITH_FULL_IMAGE:figures/full_fig_p007_5.png] view at source ↗

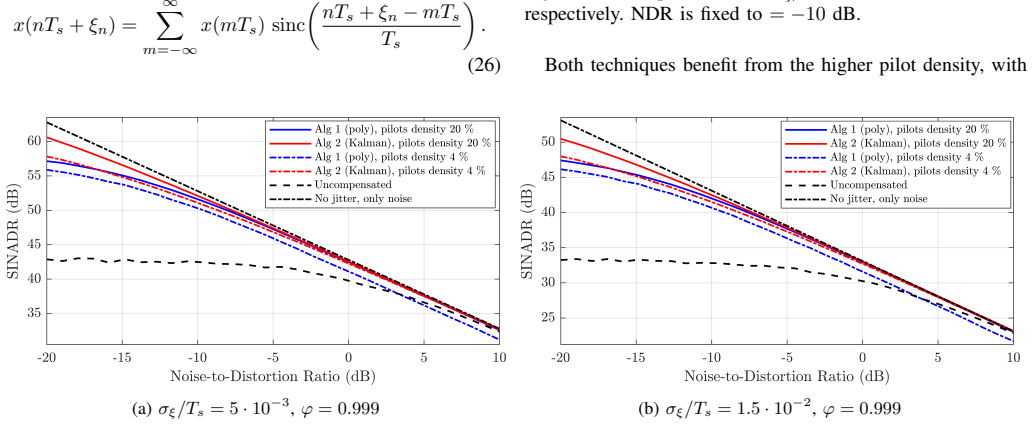

Figure 4
Figure 4. Figure 4: Varying NDR analysis for two different jitter levels. The white noise power is progressively increased. The “No jitter, [PITH_FULL_IMAGE:figures/full_fig_p007_4.png] view at source ↗

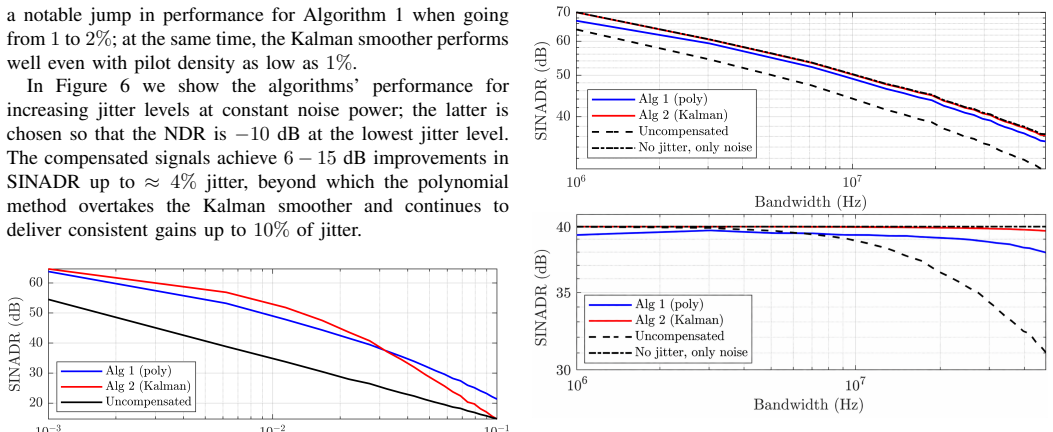

Figure 7
Figure 7. Figure 7: Algorithm performances vs signal bandwidth. Fixed [PITH_FULL_IMAGE:figures/full_fig_p008_7.png] view at source ↗
Figure 8
Figure 8. Figure 8: The plot shows a negligible performance loss when [PITH_FULL_IMAGE:figures/full_fig_p008_8.png] view at source ↗

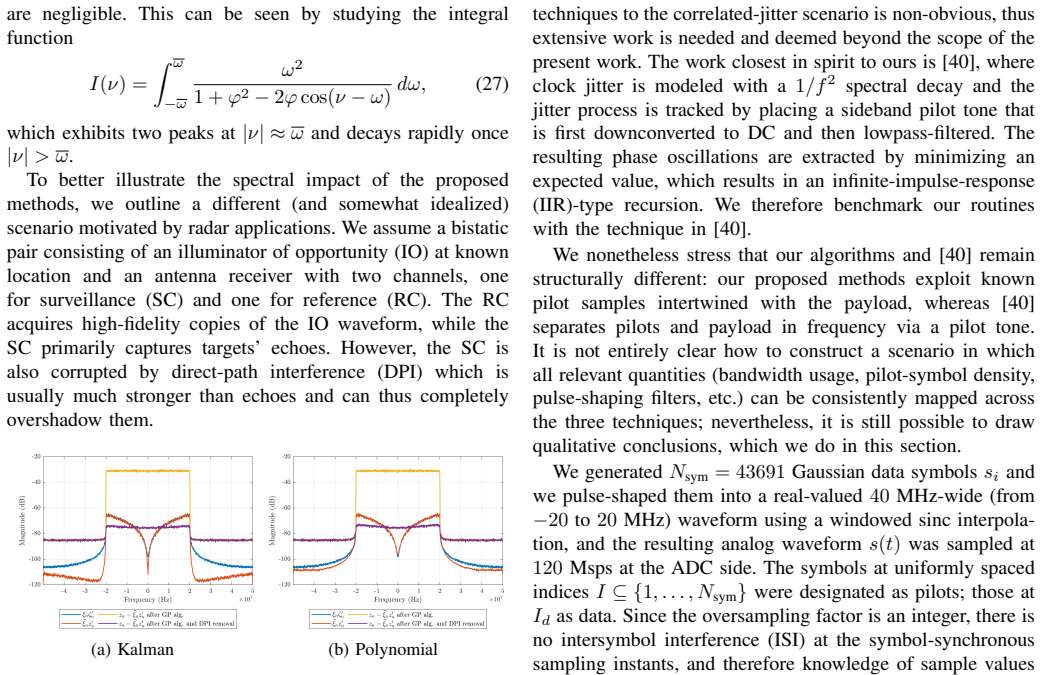

Figure 9
Figure 9. Figure 9: Power spectral density illustrations at different com [PITH_FULL_IMAGE:figures/full_fig_p009_9.png] view at source ↗
Figure 10
Figure 10. Figure 10: EVM performances. On the x axis: pilot-symbol density for Algorithms 1 and 2, and pilot-tone fractional power for [40]. φ = 0.999. Algorithms 1 and 2 display a qualitative behavior consistent with that seen in [PITH_FULL_IMAGE:figures/full_fig_p010_10.png] view at source ↗
read the original abstract

This paper addresses the mathematical modeling and compensation of stochastic discrete-time clock jitter in analog-to-digital converters (ADCs). We model the stochastic clock jitter as a first-order autoregressive (AR(1)) process, and we propose two novel, computationally efficient, pilot-assisted dejittering algorithms for baseband signals: one based on solving a sequence of weighted least-squares problems, and another that exploits the correlated jitter structure via a Kalman filter-based routine. We also propose a conditional maximum-likelihood estimator for the autoregressive parameters, enabling near-optimal Kalman-filter performance even when such parameters vary over time. We further provide a mathematical analysis of the induced linearization errors, and we complement the theory with synthetic simulations to evaluate the proposed techniques across different scenarios. The proposed techniques are shown to yield a 1-15 dB improvement in signal-to-noise-and-distortion ratio (SINADR) and 0.02-1.6 dB in symbol error vector magnitude (EVM), depending on impairment severity and pilot density. The Kalman smoother generally provides superior performance by leveraging additional temporal information.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 2 minor

Summary. The paper models stochastic discrete-time clock jitter in ADCs as a stationary first-order autoregressive (AR(1)) process. It proposes two pilot-assisted dejittering algorithms for baseband signals—a sequence of weighted least-squares problems and a Kalman filter routine—along with a conditional maximum-likelihood estimator for the AR coefficients. A mathematical analysis of induced linearization errors is provided, and the methods are evaluated via synthetic Monte-Carlo simulations that report 1–15 dB SINADR gains and 0.02–1.6 dB EVM improvement depending on impairment severity and pilot density, with the Kalman smoother performing best.

Significance. If the AR(1) model and its parameter estimates prove representative of real ADC clock jitter, the proposed algorithms could supply low-complexity, pilot-based compensation techniques that exploit temporal correlation to improve SINADR and EVM in high-speed sampling systems. The explicit derivation of the filters from the AR(1) correlation structure and the accompanying linearization-error analysis constitute clear technical contributions; the availability of synthetic simulation code would further strengthen reproducibility.

major comments (2)
  1. [Simulation Results] Simulation section (Monte-Carlo trials): all reported SINADR/EVM gains and linearization-error results are obtained by sampling jitter directly from the same stationary AR(1) process used to derive the weighted LS and Kalman routines. This setup does not probe performance under model mismatch (e.g., AR(2), non-stationary increments, or measured hardware jitter spectra) and therefore leaves the claimed 1–15 dB improvement range unverified for practical ADCs.
  2. [Mathematical Analysis] § on linearization-error analysis: the error bounds are derived under the assumption that the AR(1) coefficients are known exactly; the propagation of estimation error from the conditional ML estimator into these bounds is not quantified, which is load-bearing for the claim of near-optimal Kalman performance when parameters vary over time.
minor comments (2)
  1. Clarify in the abstract and introduction whether the weighted least-squares formulation reduces to ordinary least-squares when the AR coefficient is zero, and add a brief comparison of computational complexity (flops per sample) between the two proposed algorithms.
  2. Figure captions should explicitly state the pilot density and AR coefficient values used in each curve so that the dependence of the 1–15 dB range on these parameters is immediately visible.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the constructive feedback and positive assessment of the technical contributions. We address the two major comments below, proposing targeted revisions to strengthen the manuscript while remaining faithful to the scope of the work.

read point-by-point responses

  1. Referee: [Simulation Results] Simulation section (Monte-Carlo trials): all reported SINADR/EVM gains and linearization-error results are obtained by sampling jitter directly from the same stationary AR(1) process used to derive the weighted LS and Kalman routines. This setup does not probe performance under model mismatch (e.g., AR(2), non-stationary increments, or measured hardware jitter spectra) and therefore leaves the claimed 1–15 dB improvement range unverified for practical ADCs.

    Authors: We agree that the Monte-Carlo results are generated under the exact AR(1) model assumed in the derivations, which is the appropriate setting for validating the proposed weighted least-squares and Kalman-filter algorithms along with the accompanying analysis. This matches standard practice when introducing a new stochastic model and associated estimators. To address concerns about practical applicability, we will revise the simulation section and conclusions to explicitly discuss the modeling assumptions, note the absence of mismatch experiments as a limitation, and outline directions for future validation using AR(2) processes or measured hardware jitter spectra. No new simulation data will be added at this stage, as the current results are intended to demonstrate gains under the stated model. revision: partial

  2. Referee: [Mathematical Analysis] § on linearization-error analysis: the error bounds are derived under the assumption that the AR(1) coefficients are known exactly; the propagation of estimation error from the conditional ML estimator into these bounds is not quantified, which is load-bearing for the claim of near-optimal Kalman performance when parameters vary over time.

    Authors: The linearization-error bounds are derived under known coefficients to obtain closed-form expressions that isolate the effect of the linearization approximation itself. The conditional maximum-likelihood estimator is proven consistent in the manuscript, and the simulation results already show that the Kalman smoother maintains strong performance when parameters are estimated rather than known. We will revise the mathematical analysis section to include a short remark on the impact of parameter estimation error, supported by additional Monte-Carlo trials that compare performance with known versus estimated coefficients. This will better support the claim of near-optimal behavior under time-varying parameters. revision: yes

Circularity Check

0 steps flagged

No circularity: AR(1) modeling is an explicit assumption; algorithms and simulations are derived and evaluated consistently but not tautological.

full rationale

The paper states the AR(1) model as a modeling choice that enables the weighted least-squares and Kalman routines, with parameters estimated via conditional ML from pilots. The mathematical analysis of linearization errors and the performance claims (SINADR/EVM gains) are obtained from derivations and Monte-Carlo trials under the stated model. This is standard model-based evaluation and does not reduce any claimed result to a fitted input or self-citation by construction. No load-bearing self-citations, uniqueness theorems, or ansatzes imported from prior author work are present in the provided text. The derivation chain remains self-contained against external benchmarks.

Axiom & Free-Parameter Ledger

1 free parameters · 1 axioms · 0 invented entities

The central claim rests on the domain assumption that clock jitter follows an AR(1) process whose parameters are estimable from pilots; no free parameters are explicitly fitted beyond the AR coefficients, and no new physical entities are introduced.

free parameters (1)
  • AR(1) coefficients
    Estimated on-line via conditional maximum-likelihood from pilot symbols; treated as time-varying but locally stationary.
axioms (1)
  • domain assumption Stochastic clock jitter is a discrete-time first-order autoregressive process
    Invoked at the opening of the modeling section to justify both estimators.
