arxiv: 1907.07160 · v1 · pith:NNNMN632new · submitted 2019-07-16 · 💻 cs.CV · cs.RO· eess.IV

EnforceNet: Monocular Camera Localization in Large Scale Indoor Sparse LiDAR Point Cloud

Yu Chen , Guan Wang This is my paper

Pith reviewed 2026-05-24 20:56 UTC · model grok-4.3

classification 💻 cs.CV cs.ROeess.IV
keywords camera localizationpose estimationmonocular RGBsparse LiDAR mapneural networkresistor moduleindoor navigation
0
0 comments X

The pith

A neural network with a resistor module localizes a monocular RGB camera inside a sparse LiDAR map to centimeter precision.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper sets out to demonstrate that consumer-grade RGB cameras can achieve the same centimeter-level pose accuracy as expensive LiDAR-plus-GPS systems once a sparse LiDAR map already exists. It does so by training a network to regress camera pose directly from a single image against the map, sidestepping the usual need for dense reconstruction or high-end sensors. The central mechanism is a resistor module inserted into the network; the authors state that this module forces better generalization across scenes, raises final accuracy, and shortens training time. Results are shown on multiple large indoor parking-garage datasets collected by the authors.

Core claim

We introduce EnforceNet, a neural network that registers a monocular RGB image to a prior sparse LiDAR point cloud and recovers camera pose at centimeter accuracy; the network incorporates a resistor module that enforces improved generalization, higher prediction accuracy, and faster convergence.

What carries the argument

The resistor module, a network component whose explicit purpose is to enforce better generalization, more accurate pose predictions, and faster convergence during training.

If this is right

  • RGB-only localization becomes viable for mass-market robotics and AR once a sparse LiDAR map is available.
  • Hardware cost for centimeter-level indoor navigation drops from LiDAR-plus-IMU rigs to ordinary cameras.
  • Training time for new environments shortens because the resistor module accelerates convergence.
  • Sparse maps collected once can support repeated high-accuracy localization without repeated dense scanning.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The same resistor module might transfer to other image-to-map registration tasks where training data are limited.
  • Because the method assumes a pre-existing map, any online mapping extension would need separate handling of map updates.
  • Indoor garage results leave open whether the approach scales to outdoor scenes with sparser or noisier LiDAR coverage.

Load-bearing premise

The resistor module must deliver measurable gains in generalization, accuracy, and convergence speed beyond what standard network layers already provide.

What would settle it

An ablation that removes the resistor module and shows no statistically significant loss in final accuracy, cross-scene generalization, or training epochs required on the same parking-garage test sets.

Figures

Figures reproduced from arXiv: 1907.07160 by Guan Wang, Yu Chen.

Figure 1
Figure 1. Figure 1: Data collection vehicle illustration cameras, there are two large categories of methods to get the relative pose of the camera in 3D prior map. The first category is utilizing current view feature point to match the prior map points, the methodology behind this is to minimize the matching points’ distance [12, 13, 14, 15]. This kind of methods need a good initial guess of scale if the monocular camera is u… view at source ↗
Figure 2
Figure 2. Figure 2: Example of RGB and Depth Map. The upper 3 images are RGB image and relative [PITH_FULL_IMAGE:figures/full_fig_p004_2.png] view at source ↗
Figure 3
Figure 3. Figure 3: EnforceNet Sketch Pose-regression Network ∆"#$% Guess Pose ,1 Current Pose ,- Camera Projection ⊖ ∆,-,1 Pose loss 4#$$∆5 [PITH_FULL_IMAGE:figures/full_fig_p006_3.png] view at source ↗
Figure 5
Figure 5. Figure 5: EnforceNet SPST same parking garage, same collection time SPDT same parking garage, different collection time SPDTDC same parking garage, different collection time, different camera direction training-pure the training and the inference data from same garage different trajectories training-mix the training and the inference data from different garage different trajectories [PITH_FULL_IMAGE:figures/full_fi… view at source ↗

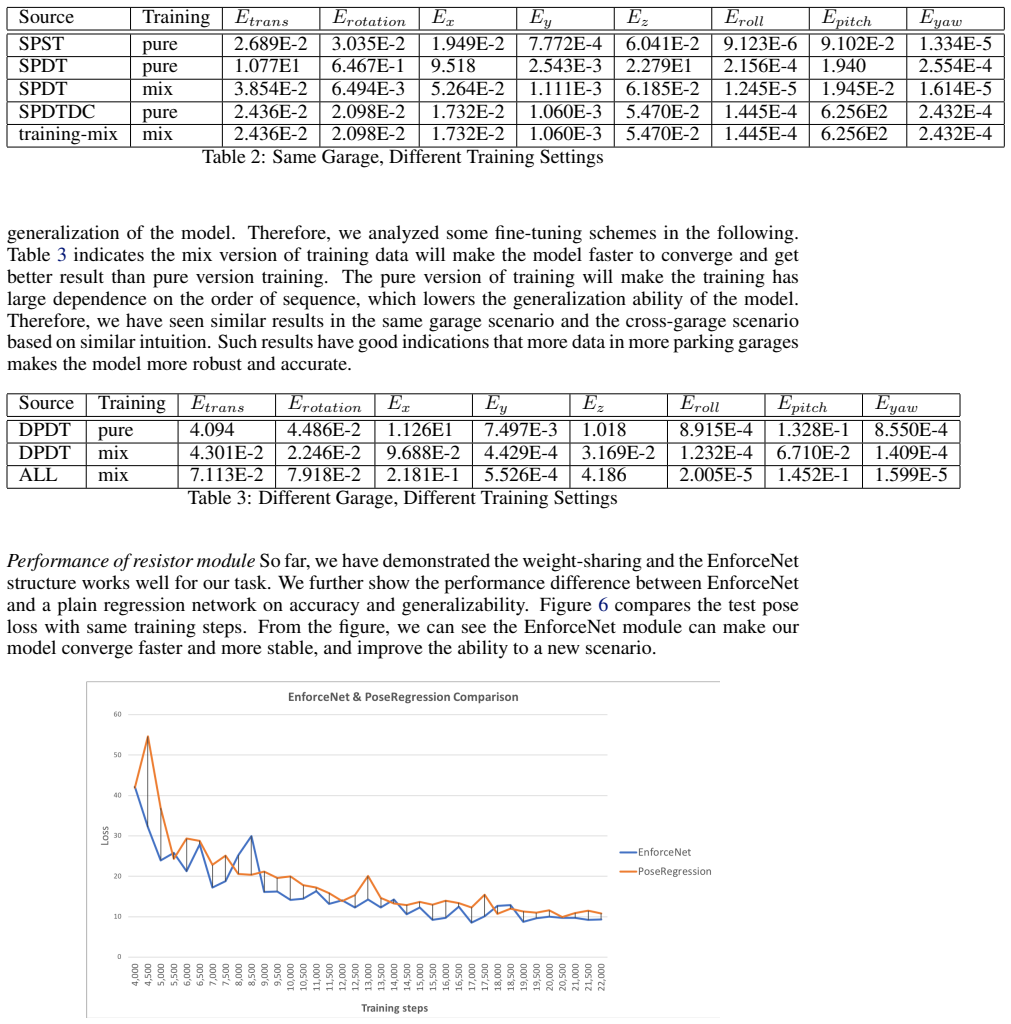

Figure 6
Figure 6. Figure 6: EnforceNet & PoseRegression Comparison 6 Conclusion We proposed EnforceNet, an end-to-end solution for camera pose localization within a large scale and sparse 3D LiDAR point cloud. The EnforceNet has a novel resistor module and a weight￾sharing scheme that is inspired by the state value function and value-iteration in RL framework. We conducted detailed experiments on real-world datasets of large scale in… view at source ↗

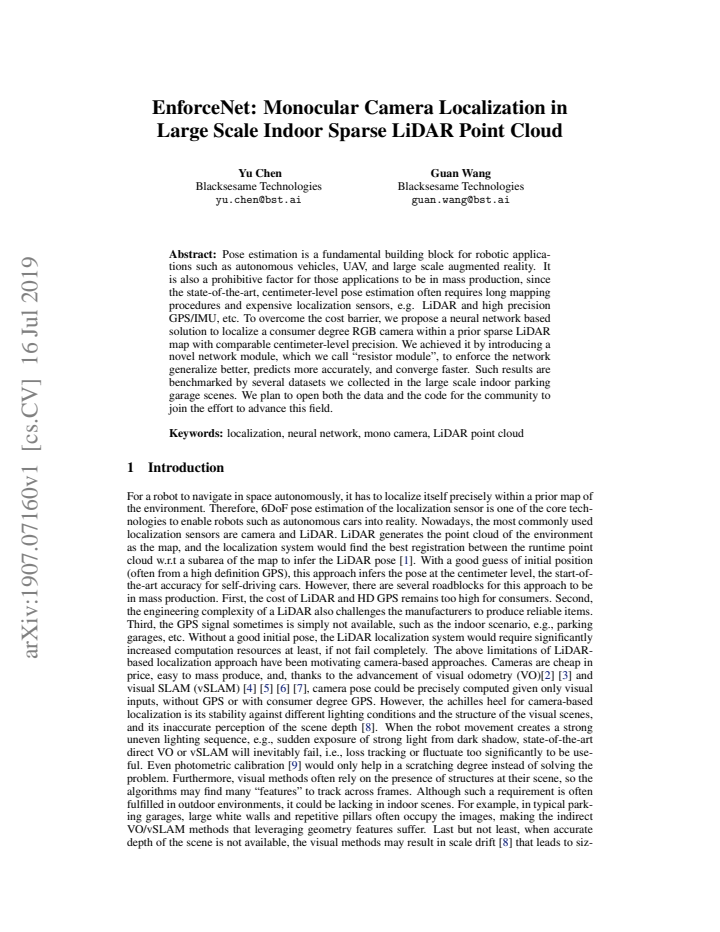

read the original abstract

Pose estimation is a fundamental building block for robotic applications such as autonomous vehicles, UAV, and large scale augmented reality. It is also a prohibitive factor for those applications to be in mass production, since the state-of-the-art, centimeter-level pose estimation often requires long mapping procedures and expensive localization sensors, e.g. LiDAR and high precision GPS/IMU, etc. To overcome the cost barrier, we propose a neural network based solution to localize a consumer degree RGB camera within a prior sparse LiDAR map with comparable centimeter-level precision. We achieved it by introducing a novel network module, which we call resistor module, to enforce the network generalize better, predicts more accurately, and converge faster. Such results are benchmarked by several datasets we collected in the large scale indoor parking garage scenes. We plan to open both the data and the code for the community to join the effort to advance this field.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

1 major / 2 minor

Summary. The paper proposes EnforceNet, a neural network for localizing a consumer RGB camera in a prior sparse LiDAR point cloud map, claiming centimeter-level precision in large-scale indoor parking-garage scenes. The key innovation is a novel 'resistor module' asserted to improve generalization, prediction accuracy, and training convergence; performance is benchmarked on collected datasets, with plans to release both data and code.

Significance. If the resistor module's benefits are confirmed, the work could reduce reliance on expensive sensors for precise localization in robotics and AR. The planned release of data and code is a clear strength that supports reproducibility and community follow-up.

major comments (1)
  1. [Method / Experiments] The central claim attributes better generalization, higher accuracy, and faster convergence specifically to the resistor module, yet the manuscript provides no ablation experiments (network with vs. without the module, or vs. equivalent residual/attention blocks) on the same architecture, training protocol, and parking-garage data. Without such controls, performance gains cannot be isolated from other design choices.
minor comments (2)
  1. [Abstract / Results] Quantitative results (absolute or relative pose errors, success rates, convergence curves) are referenced only at a high level; tables or figures reporting these metrics with error bars or statistical tests are needed to support the 'centimeter-level' claim.
  2. [Abstract] The abstract states results are 'benchmarked by several datasets' but supplies no details on scene scale, number of frames, LiDAR sparsity, or train/test splits.

Simulated Author's Rebuttal

1 responses · 0 unresolved

We thank the referee for the constructive feedback. We address the major comment below.

read point-by-point responses

  1. Referee: [Method / Experiments] The central claim attributes better generalization, higher accuracy, and faster convergence specifically to the resistor module, yet the manuscript provides no ablation experiments (network with vs. without the module, or vs. equivalent residual/attention blocks) on the same architecture, training protocol, and parking-garage data. Without such controls, performance gains cannot be isolated from other design choices.

    Authors: We agree that the absence of ablation studies limits the ability to isolate the resistor module's contribution. In the revised manuscript we will add controlled ablation experiments on the parking-garage datasets, comparing the network with and without the resistor module as well as against equivalent residual and attention blocks under identical architecture, training protocol, and evaluation settings. revision: yes

Circularity Check

0 steps flagged

No significant circularity in derivation chain

full rationale

The paper presents an empirical neural-network approach for monocular camera localization in sparse LiDAR maps, introducing a resistor module whose benefits are asserted via benchmarking on collected indoor datasets. No equations, first-principles derivations, or fitted parameters are described that would reduce any claimed prediction or result to an input by construction. The central performance claims rest on experimental evaluation rather than self-definitional mappings, renamed known results, or load-bearing self-citations. The derivation chain is therefore self-contained against external benchmarks.

Axiom & Free-Parameter Ledger

0 free parameters · 0 axioms · 1 invented entities

Central claim depends on the unshown internal behavior of the resistor module and on the parking-garage datasets being representative of the target use cases.

invented entities (1)
  • resistor module no independent evidence
    purpose: Enforce better generalization, higher accuracy, and faster convergence in the localization network
    Presented as a novel component whose effect is asserted but not derived or independently verified in the abstract.
