EfficientGFormer: Multimodal Brain Tumor Segmentation via Pruned Graph-Augmented Transformer

T0 review · 5 major / 6 minor · reviewed 2026-08-06 · deepseek-v4-flash

Challenge this review Re-run · record.json Download PDF Read on arXiv ↗

Pith's one-line read EfficientGFormer claims that a pruned, edge-type-aware graph attention network on top of an nnFormer encoder delivers the best reported MSD Task01 brain tumor segmentation scores while running at 174 ms per volume.

desk verdict A plausible architecture whose headline claims are undercut by an impossible-looking BraTS 2021 evaluation and a missing efficiency baseline. read the letter →

arxiv 2508.01465 v1 pith:NUQMKKLM submitted 2025-08-02 cs.CV

Fatemeh Ziaeetabar This is my paper
classification cs.CV
keywords braintumorsegmentationmultimodalMRIgraphattentionnetworktransformerknowledgedistillationdual-edgemodelpruningMSDTask01
verification ladder T0 review T1 audit T2 compute T3 formal

The pith

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The reading

EfficientGFormer is a hybrid architecture that combines a pretrained 3D transformer encoder with graph-based reasoning to segment brain tumors from four MRI modalities. The paper claims this design reaches higher Dice scores and lower boundary distances than recent transformer and graph baselines on MSD Task01, while shrinking the model to 36.9M parameters and 174 ms per volume. The authors argue that the dual-edge graph, which mixes spatial adjacency with semantic similarity, and the pruned edge-type-aware attention are what make the accuracy and efficiency gains possible. If these claims hold, the method would offer a practically deployable balance of speed and precision for clinical tumor delineation.

What carries the argument

The central object is a dual-edge graph built from nnFormer patch embeddings: spatial edges connect each node to its $k$ nearest neighbors in physical space, while semantic edges connect it to the $k$ most similar patches in feature space. Over this graph, an edge-type-aware GAT learns separate attention weights for spatial and semantic relations, and a structured pruning scheme removes the lowest-energy attention heads to cut inference cost. A distillation module transfers knowledge from the unpruned teacher GAT to the pruned student via KL divergence on softened logits, so the compact model retains the teacher's spatial and semantic reasoning. These pieces work together to turn dense volumetric attention into sparse, structure-aware message passing.

What would settle it

Re-run the MSD Task01 experiment with the same preprocessing and 80/20 split but replace the dual-edge graph with a single-edge graph or replace edge-type-aware attention with a vanilla GAT; if DSC-WT does not drop by the roughly 1.9-to-2.3 points shown in the ablation, the claimed contribution of the dual-edge design is not real. For the BraTS 2021 numbers, submit the trained model to the official challenge server and compare the returned metrics with Table 3, since local computation cannot reproduce the withheld validation labels.

Watch

Extended reading notes

Core claim

The paper's central claim is that replacing full-volume transformer attention with a pruned, edge-type-aware Graph Attention Network over a dual-edge graph preserves or improves segmentation accuracy while drastically cutting computation. On MSD Task01, EfficientGFormer reports DSC-ET 84.2, DSC-TC 88.3, DSC-WT 92.4 and the lowest HD95 in each subregion, beating the listed baselines. Without any fine-tuning, the same model is reported to reach DSC-WT 87.5 on the BraTS 2021 validation set, which the authors attribute to the graph's structural priors transferring across scanner and cohort shifts. The pruning and distillation module then compresses the model to 36.9M parameters, 198.4 GFLOPs, and roughly 174 ms inference per volume, which the paper describes as real-time. The argument is that each component—dual-edge graph, edge-type-aware attention, and distillation—contributes measurable accuracy, as shown by the ablation study where removing any one drops Dice scores by several points.

Load-bearing premise

The cross-dataset results depend on evaluating the model against BraTS 2021 validation ground-truth labels, but those labels are not distributed with the benchmark and are only accessible through the official challenge evaluation server, so if the authors computed the reported Dice and HD95 locally, the generalization experiment did not happen as described.

Editorial extensions

If this is right

  • A per-volume inference time near 174 ms with 36.9M parameters would make the model usable in time-critical clinical settings where larger transformer baselines are impractical.
  • The reported cross-dataset DSC-WT of 87.5 on BraTS 2021 without fine-tuning suggests the graph-structured reasoning transfers across scanner and cohort shifts better than pure transformer baselines.
  • The ablation pattern indicates the dual-edge graph alone accounts for roughly 2.9 DSC points on enhancing tumor, meaning spatial and semantic relational structure is a measurable source of accuracy.
  • If these results replicate, the architecture provides a reusable template for other volumetric segmentation tasks where local adjacency and long-range feature similarity both matter.

Reading between the lines

Editorial extensions of the paper, not claims the author makes directly.

  • The energy-based head pruning criterion is generic, so a natural testable extension is applying the same pruning to the transformer's own attention heads rather than only the GAT, a direction the paper does not explore.
  • The dual-edge construction with $k$ nearest spatial and semantic neighbors could transfer to multi-organ or whole-body segmentation, where inter-organ semantic relationships are as important as anatomical adjacency.
  • Because BraTS 2021 validation labels are not publicly distributed and are only returned through the official evaluation server, Table 3 should be treated as unverified until the challenge server reports comparable metrics.
  • A controlled comparison that keeps the nnFormer encoder and decoder fixed while varying only the graph module would isolate whether the gains come from graph reasoning or from re-tuning the downstream decoder.
Share X Bluesky LinkedIn Reddit HN

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, and a circularity audit.

Referee Report

5 major / 6 minor

Summary. The paper proposes EfficientGFormer, a hybrid architecture for 3D multimodal brain tumor segmentation that combines a pretrained nnFormer encoder with a dual-edge graph (spatial and semantic edges), an edge-type-aware Graph Attention Network with structured attention-head pruning, and a knowledge-distillation module for student compression. The authors report state-of-the-art results on MSD Task01 (Table 1: DSC-ET 84.2, DSC-TC 88.3, DSC-WT 92.4) and on a cross-dataset transfer to BraTS 2021 (Table 3), along with an efficiency profile (Table 4: 36.9M parameters, 198.4 GFLOPs, 174 ms inference). The central claim is that EfficientGFormer simultaneously improves segmentation accuracy and computational efficiency over recent transformer-based and graph-based baselines.

Significance. If the reported results were reproducible, the architecture would be a plausible engineering contribution to efficient 3D medical image segmentation: the combination of a pretrained transformer encoder, dual-edge graph reasoning, and distillation-based pruning is well motivated, and the method section provides explicit equations for the attention mechanism, pruning criterion, and losses. The paper also deserves credit for a structured ablation study (Table 2) that isolates each component. However, the manuscript currently does not support its two headline claims: the efficiency comparison has no baseline measurements, and the cross-dataset generalization experiment on BraTS 2021 cannot have been performed as described because the validation ground-truth labels are withheld by the challenge. No code or trained models are released, and no variance information is reported despite the statement that all results are averaged over three runs. These gaps are load-bearing for the paper's central claims.

major comments (5)
  1. [§4.4, Table 3] The cross-dataset experiment on the BraTS 2021 validation set cannot be reproduced as described because the challenge does not publicly release ground-truth labels for the validation cases; performance is only obtainable through the official evaluation server. The manuscript does not state that predictions were submitted to the server, so Table 3 does not provide a valid basis for the claimed state-of-the-art generalization. Please clarify whether an official submission was used; otherwise replace this experiment with a properly defined held-out split of the BraTS 2021 training set or another independently labeled dataset.
  2. [§4.5, Table 4] The efficiency claim is unsupported because Table 4 reports only the proposed method's parameter count, FLOPs, and inference time; its caption explicitly states that values for other methods are not reported. The statements that the model is 'significantly faster than typical transformer-based segmentation models' and 'ready for deployment' require same-hardware measurements for at least UNETR, Swin UNETR, and nnFormer, measured under an identical protocol, with variance reported. Without such baselines, the abstract's claim of 'significantly reduced memory and inference time' is not demonstrated.
  3. [§3.1, §4.1, §4.5] The input specification is internally inconsistent. Section 3.1 states that patches of dimension 8 x 8 x 8 mm³ are passed independently through the nnFormer encoder, Section 4.1 states that input volumes are partitioned into 128 x 128 x 128 patches with batch size 2, and Section 4.5 uses 240 x 240 x 155 input volumes for efficiency benchmarking. The graph nodes and graph size depend directly on this choice. Please specify the exact patch size, volume size, and overlap for each experiment, and reconcile the description of the encoder input.
  4. [§4.1, Tables 1-3] All quantitative results are reported as point estimates even though Section 4.1 states that results are averaged over three independent runs. The reported differences between the proposed method and the strongest baseline are on the order of 1-2 DSC points (e.g., 84.2 vs 82.9 for DSC-ET in Table 1), so without standard deviations or significance tests the 'state-of-the-art' claim is not statistically supported. Please report per-run values and standard deviations, or state the spread explicitly.
  5. [§4.2, Table 1] Table 1 compares against baseline numbers from published papers, but the MSD Task01 has no official test labels and the manuscript uses its own 80/20 split, so the comparison is not apples-to-apples unless the baselines were re-run under exactly the same preprocessing, patch sizes, and split. Please re-run the listed baselines under the same protocol or clearly state the source and split for each baseline number; otherwise the 'outperforming recent baselines' claim is not verifiable.
minor comments (6)
  1. [§3.3] The phrase 'in Results Section' should be 'in the Results section'.
  2. [§3.4] There is a typo: 'depited' should be 'depicted'.
  3. [Header] The ACM Reference Format line and the DOI placeholder 'https://doi.org/10.1145/nnnnnnn.nnnnnnn' should be removed or completed before submission.
  4. [§5] The conclusion's reliance on references [17] and [18] (both self-citations, one an arXiv preprint) to argue for cross-domain transferability is speculative; either cite independent evidence or remove the claim.
  5. [§4.1] Define 'GFLOPs' and 'HD95' at first occurrence, and state whether HD95 is computed on the 95th percentile of the Hausdorff distance over all voxels or per structure.
  6. [§3.4] Figure 5 is not referenced in the text of Section 3.4; add a citation to the figure where the distillation module is described.

Circularity Check

0 steps flagged · score 0.0 of 10

No significant circularity: central accuracy and efficiency claims are benchmarked against external datasets; the only author self-citations are motivational and non-load-bearing.

full rationale

This is an empirical systems paper with no derivation chain that reduces a claimed prediction to its own inputs. The dual-edge graph is built from nnFormer embeddings via Euclidean proximity and cosine similarity, but no reported result follows from that construction by definition. Head pruning uses activation energy computed from the model's own representations, yet the reported DSC/HD95 values come from held-out MSD Task01 validation data and from a cross-dataset transfer experiment on BraTS 2021; these are external benchmarks, not fitted outputs. The knowledge-distillation module is a standard teacher-student training signal, and the efficiency numbers are direct measurements, not predictions derived from fitted parameters. The only self-citations are [17] and [18], used in the introduction to motivate graph-based and foundation-model approaches and in the conclusion to point to prior action-recognition work; they do not supply any load-bearing evidence for the architecture or for the state-of-the-art claim. The BraTS 2021 validation-label availability issue raised in the reader's take is a legitimate reproducibility and factual concern about whether Table 3 could have been produced as described, but it is not a circularity of the kind this pass evaluates: no quantity in the paper is defined in terms of another quantity it is then said to predict. The paper is therefore self-contained with respect to circularity, and no circular step is identified.

Assumptions & free parameters 6 free parameters · 3 assumptions · 0 invented entities

The central claims rest on undisclosed hyperparameters (k, p, tau, lambda), a frozen pretrained encoder used in a way not matching its published design, and an empirical pruning rule with no characterization. None of these are derived or independently justified.

free parameters (6)
  • k (number of nearest neighbors for spatial and semantic edges) = not reported
    Controls graph density; the paper specifies top-k but never gives k. Central to the dual-edge graph.
  • p (attention head pruning percentage) = not reported
    Determines which fraction of the H heads are pruned by activation energy; no value or sensitivity analysis is given.
  • tau (distillation temperature) = not reported
    Temperature in the KL distillation loss (Eq. 1), tuned empirically on validation.
  • lambda (distillation loss weight) = not reported
    Balance between segmentation loss and distillation loss in Eq. 2, tuned empirically.
  • lambda1, lambda2 (Dice and cross-entropy loss weights) = not reported
    Weights in the segmentation loss in Section 3.5, set by hand.
  • Input patch scale (independent 8x8x8 mm patches vs 128x128x128 input volumes) = 8 mm and 128^3
    Two inconsistent input scales appear in Sections 3.1 and 4.1; both are architecture choices that affect the graph node count and encoder behavior.
assumptions (3)
  • domain assumption Pretrained nnFormer weights are publicly available and can be reused as a frozen patch-wise feature extractor.
    Section 3.1: 'Each patch is independently passed through the pretrained nnFormer encoder.' nnFormer is a whole-volume 3D segmentation transformer, and patch-wise independent encoding conflicts with its design.
  • ad hoc to paper Activation-energy head pruning preserves segmentation accuracy.
    Section 3.3 defines E_h and prunes the bottom-p% of heads, but provides no proof or sensitivity analysis that this maintains accuracy; the ablation removes distillation, not pruning itself.
  • domain assumption Cosine-similarity top-k semantic edges create useful non-local relations.
    Section 3.2 assumes appearance-similar patches should share information regardless of distance; no supporting analysis beyond the ablation is provided.

how reviews work

0 comments
Cite this review

Pith. "Pith review of EfficientGFormer: Multimodal Brain Tumor Segmentation via Pruned Graph-Augmented Transformer." pith.science (2026). https://pith.science/paper/NUQMKKLM

@misc{pith2026250801465,
  author       = {Pith},
  title        = {Pith review of: EfficientGFormer: Multimodal Brain Tumor Segmentation via Pruned Graph-Augmented Transformer},
  year         = {2026},
  howpublished = {\url{https://pith.science/paper/NUQMKKLM}},
  note         = {Machine review of arXiv:2508.01465}
}
read the original abstract

Accurate and efficient brain tumor segmentation remains a critical challenge in neuroimaging due to the heterogeneous nature of tumor subregions and the high computational cost of volumetric inference. In this paper, we propose EfficientGFormer, a novel architecture that integrates pretrained foundation models with graph-based reasoning and lightweight efficiency mechanisms for robust 3D brain tumor segmentation. Our framework leverages nnFormer as a modality-aware encoder, transforming multi-modal MRI volumes into patch-level embeddings. These features are structured into a dual-edge graph that captures both spatial adjacency and semantic similarity. A pruned, edge-type-aware Graph Attention Network (GAT) enables efficient relational reasoning across tumor subregions, while a distillation module transfers knowledge from a full-capacity teacher to a compact student model for real-time deployment. Experiments on the MSD Task01 and BraTS 2021 datasets demonstrate that EfficientGFormer achieves state-of-the-art accuracy with significantly reduced memory and inference time, outperforming recent transformer-based and graph-based baselines. This work offers a clinically viable solution for fast and accurate volumetric tumor delineation, combining scalability, interpretability, and generalization.

Figures

Figures reproduced from arXiv: 2508.01465 by the authors.

Figure 1
Figure 1. Overview of the proposed EfficientGFormer framework for multimodal brain tumor segmentation. The pipeline takes as input a 3D brain MRI volume composed of four modalities (T1, T2, T1ce, FLAIR), which are processed by a pretrained nnFormer encoder to extract volumetric features. These features inform a dual-edge graph construction module that encodes both spatial (𝐸𝑠 ) and semantic (𝐸𝑚) relations. An edge-type-aware … view at source ↗
Figure 2

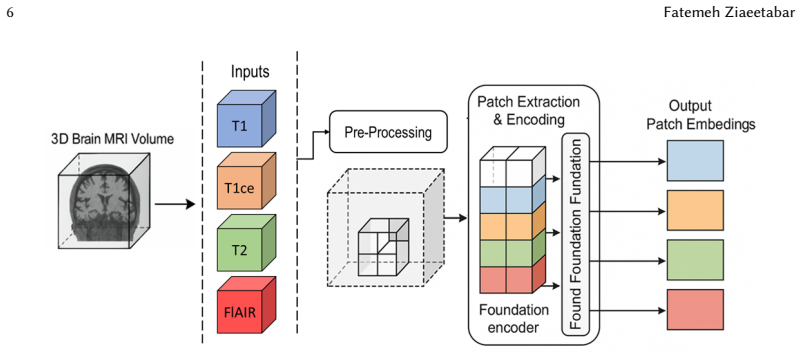

Figure 2. Overview of the foundation encoder pipeline. Multimodal MRI volumes (T1, T1ce, T2, FLAIR) undergo [PITH_FULL_IMAGE:figures/full_fig_p006_2.png] view at source ↗
Figure 3
Figure 3. Illustration of dual-edge construction. Each MRI patch (node) is connected to other nodes through [PITH_FULL_IMAGE:figures/full_fig_p007_3.png] view at source ↗
Figures from the paper (2 more)
Figure 4
Figure 4. Figure 4: Overview of the Pruned Edge-Type-Aware Graph Attention Mechanism. The graph neural network (GAT) computes node embeddings using both spatial (solid lines) and semantic (dashed lines) edges. Multi-head attention is applied separately for each edge type. Each set of atte…
Figure 5
Figure 5. Figure 5: Overview of the knowledge distillation process. MRI patches are processed by both a full-capacity [PITH_FULL_IMAGE:figures/full_fig_p009_5.png]
