On RGB-TIR Stereo Calibration under Extreme Resolution Asymmetry

Micha{\l} Kr\'ol , Micha{\l} Salamonowicz , W{\l}adys{\l}aw Skarbek , Micha{\l} Tomaszewski This is my paper

Pith reviewed 2026-05-20 19:37 UTC · model grok-4.3

classification 💻 cs.CV
keywords RGB-TIR calibrationstereo calibrationlow-resolution thermalbundle adjustmentcorner detectionactive calibration targetbuilding energy analysis
0
0 comments X

The pith

Baseline-constrained bundle adjustment recovers accurate geometry for RGB paired with 625-times lower resolution TIR camera.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper develops a calibration approach for stereo systems that pair a high-resolution RGB camera with a thermal infrared camera limited to just 80 by 62 pixels. An active OLED screen projects checkerboard patterns for the thermal sensor and ChArUco patterns for the RGB sensor on the same physical surface to generate repeatable contrast. A custom corner finder that rectifies perspective, locates saddle points, and refines positions with mean shift works reliably on the tiny thermal frames without manual adjustments per image. A bundle adjustment step that fixes the physical baseline length then corrects for the geometric instability introduced by a flat calibration target. The resulting alignment supports mapping thermal measurements onto RGB images for applications such as evaluating heat loss in building structures.

Core claim

The framework achieves a recovered stereo baseline of 32.7 mm against a nominal 30 mm value together with an overall reprojection error of 0.382 pixels by combining modality-specific patterns on an active OLED screen, a dedicated low-resolution corner detector, and a baseline-constrained bundle adjustment that enforces physically consistent rig geometry despite degeneracy from the planar calibration object.

What carries the argument

Baseline-constrained bundle adjustment that enforces physically consistent rig geometry under the planar-calibration-object degeneracy.

If this is right

  • The calibrated system produces consistent TIR-to-RGB projections that support both constant-depth and per-pixel depth estimation.
  • Validation on a building mock-up demonstrates suitability for multimodal energy performance assessment.
  • The overall reprojection error stays at 0.382 pixels across the extreme resolution pair.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The active single-surface pattern approach could reduce setup time for calibration in field conditions where separate targets are impractical.
  • The same constrained adjustment principle may stabilize calibration for other sensor pairs that suffer from large resolution differences.

Load-bearing premise

The dedicated corner detection algorithm reliably locates checkerboard corners in 80 by 62 pixel thermal images through perspective rectification, Hessian analysis, and mean-shift refinement without requiring per-frame parameter tuning.

What would settle it

A validation run on the thermally active building mock-up that produces either a measured baseline differing by more than a few millimeters from 30 mm or a reprojection error substantially above 0.382 pixels would show the constrained adjustment fails to maintain consistent geometry.

Figures

Figures reproduced from arXiv: 2605.15860 by Micha{\l} Kr\'ol, Micha{\l} Salamonowicz, Micha{\l} Tomaszewski, W{\l}adys{\l}aw Skarbek.

Figure 1
Figure 1. Figure 1: Overview of the proposed RGB–TIR stereo calibration pipeline. Each stage corresponds to a dedicated section of the paper, as indicated on the right. 2. Related Work Research directly relevant to this work spans three themes: (1) geometric calibration of RGB– thermal infrared (TIR) camera systems, with particular attention to configurations exhibiting resolution [PITH_FULL_IMAGE:figures/full_fig_p003_1.png] view at source ↗
Figure 2
Figure 2. Figure 2: RGB–TIR measurement setup and active OLED screen: (a) complete RGB–TIR acquisition rig with preview display; (b) front view of the rigid camera stereo configuration; (c) schematic of the measurement setup; (d) thermally active building mock-up, 1:10 scale; (e) checkerboard pattern displayed on the OLED screen for the TIR modality; (f) ChArUco pattern displayed on the OLED screen for the RGB modality. 3.2. … view at source ↗
Figure 3
Figure 3. Figure 3: Preliminary passive and semi-active calibration objects evaluated during initial experiments: (a– f) examples of silicone and plywood ChArUco boards and further passive calibration object variants. Based on these findings, an OLED display was adopted as the active OLED screen. Light emission from the display induces localised temperature variations across the pattern elements, producing thermal contrast be… view at source ↗
Figure 4

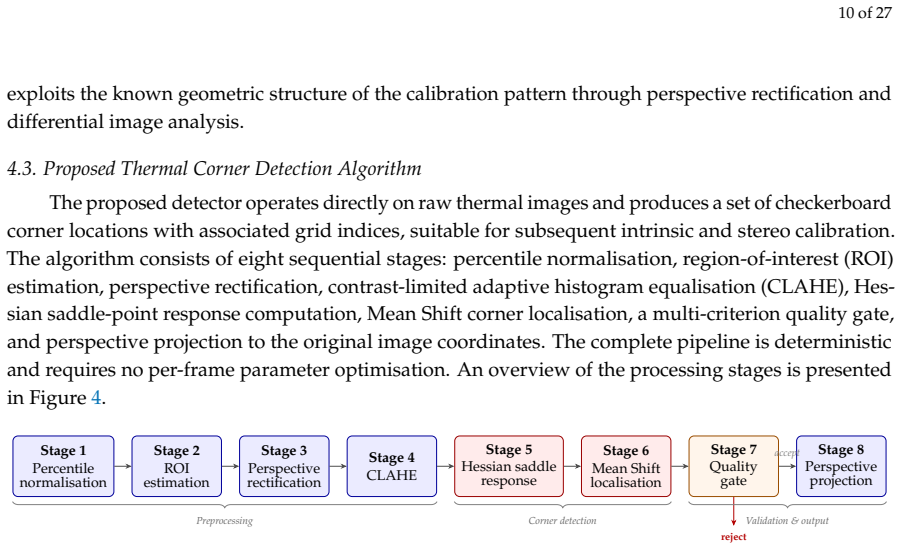

Figure 4. Figure 4: Overview of the proposed thermal corner detection pipeline. Stages 1–4 perform image preprocessing and geometric normalisation; Stages 5–6 detect candidate corners using differential analysis; Stage 7 evaluates geometric consistency and may reject the entire frame; Stage 8 maps accepted corners to the original image coordinates via perspective projection. 4.3.1. Percentile Normalisation Raw thermal images … view at source ↗
Figure 5
Figure 5. Figure 5: ROI estimation and perspective rectification: (a) normalised thermal image with percentile scaling; (b) binary ROI mask obtained via Otsu thresholding and morphological refinement; (c) quadrilateral enclosing the checkerboard derived from the ROI mask; (d) image after rectification and histogram equalisation (CLAHE) [29] with the expected grid overlay. 4.3.3. Hessian Saddle-Point Response Checkerboard corn… view at source ↗
Figure 6
Figure 6. Figure 6: Saddle-point detection and corner localisation: (a) Hessian saddle response map S with the expected grid overlay; (b) Mean Shift convergence from nominal grid positions (blue crosses) to detected corner locations (green markers), with search windows indicated; (c) detected corners overlaid in the rectified thermal image with grid indices. 4.3.5. Quality Gate After corner localisation, a frame-level quality… view at source ↗
Figure 7
Figure 7. Figure 7: Quality gate diagnostics for a representative frame: (a) triangle areas of adjacent grid cells colour-coded by deviation from the expected value; (b) adjacent missing node test — detected corners shown as green markers, with two synthetically removed adjacent nodes (red circles) connected by a red segment to illustrate a gate-failing configuration (|M| = 2). 4.3.6. Perspective Projection to Original Coordi… view at source ↗
Figure 8
Figure 8. Figure 8: Corner positions after perspective projection to the original thermal image coordinate system: (a) corners in the rectified space; (b) corresponding positions after inverse homography, overlaid on the normalised thermal image with grid labels. Representative detection results obtained by the proposed algorithm in thermal images from a calibration session are presented in [PITH_FULL_IMAGE:figures/full_fig_… view at source ↗
Figure 9

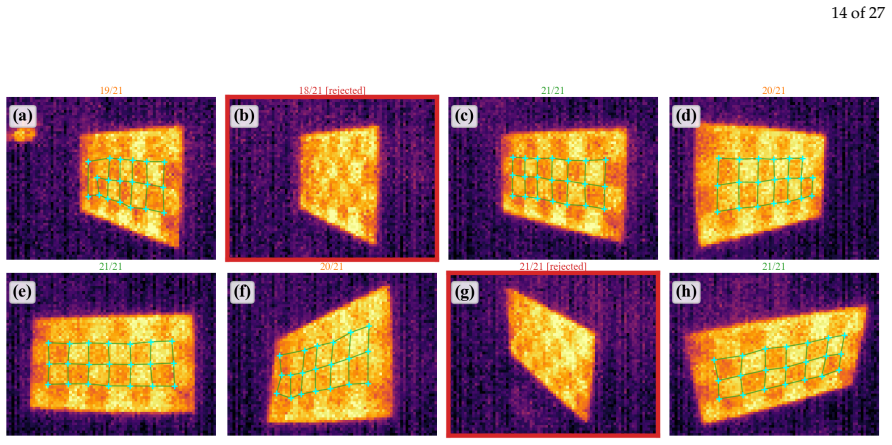

Figure 9. Figure 9: Examples of checkerboard corner detection results (a–h) obtained by the proposed thermal corner detection algorithm on images of 80 × 62 px resolution. Detected corners are connected by grid lines; frames rejected by the quality gate are indicated by a red border. Detection statistics and gate diagnostics are annotated for each frame. 4.4. Frame Pairing Across Modalities During calibration sessions, the nu… view at source ↗
Figure 10
Figure 10. Figure 10: Examples of calibration point sets detected in the RGB and TIR modalities for selected frames [PITH_FULL_IMAGE:figures/full_fig_p016_10.png] view at source ↗
Figure 11
Figure 11. Figure 11: Illustration of RGB point subsampling for harmonisation with the thermal point grid. The titles above each subplot indicate the frame ID and the bounding box of the corner region in the format ID: (xmin, ymin) − (xmax, ymax), where (xmin, ymin) represents the top-left corner and (xmax, ymax) represents the bottom-right corner. The black circle indicates the centre point of the image; only the calibration … view at source ↗
Figure 12
Figure 12. Figure 12: Comparison of RGB–TIR fusion using two approaches based on the estimated stereo calibration parameters (R, T): (a–c) variant using per-pixel plane-intersection depth derived from the ChArUco board pose: (a) detection and pose estimation, (b) TIR overlay on RGB, (c) TIR isolines; (d–f) variant using per-pixel depth estimation with DepthPro: (d) depth map illustrating the character of an outdoor scene with … view at source ↗
read the original abstract

Accurate geometric calibration of RGB-thermal infrared (TIR) stereo camera systems is essential for multimodal building envelope analysis, yet remains challenging when low-cost thermal sensors with very low spatial resolution are employed. This paper presents a practical stereo calibration framework for an RGB camera (2028 x 1520 px) paired with a TIR camera operating at only 80 x 62 px - a pixel-count ratio of approximately 1:625. An active OLED screen dynamically switches modality-specific patterns (checkerboard for TIR, ChArUco for RGB) on a single physical surface, providing controlled and repeatable thermal contrast. A dedicated corner detection algorithm combining perspective rectification, Hessian saddle-point analysis, and Mean Shift localisation achieves reliable checkerboard detection at 80 x 62 px without per-frame parameter tuning. A baseline-constrained bundle adjustment enforces physically consistent rig geometry under the planar-calibration-object degeneracy, yielding a stereo baseline of 32.7 mm (nominal 30 mm) with an overall reprojection error of 0.382 px. The system is validated on a thermally active building mock-up using constant-depth and per-pixel depth estimation, demonstrating consistent TIR-to-RGB projection suitable for building energy performance assessment.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 2 minor

Summary. The paper presents a stereo calibration framework for RGB-TIR camera pairs under extreme resolution asymmetry (RGB 2028×1520 px paired with TIR 80×62 px). It uses an active OLED screen to display modality-specific patterns (checkerboard for TIR, ChArUco for RGB), a dedicated corner detector combining perspective rectification, Hessian saddle-point analysis and Mean Shift localisation for reliable TIR corner finding without per-frame tuning, and a baseline-constrained bundle adjustment to enforce physically consistent rig geometry despite planar-calibration-object degeneracy. The method reports a recovered stereo baseline of 32.7 mm (nominal 30 mm) and overall reprojection error of 0.382 px, with validation via constant-depth and per-pixel depth estimation on a thermally active building mock-up.

Significance. If the central results hold, the work offers a practical solution for multimodal calibration in applications such as building energy performance assessment, where low-cost low-resolution TIR sensors are paired with high-resolution RGB cameras. The active display approach for controlled thermal contrast and the explicit baseline constraint in bundle adjustment directly address the degeneracy that arises with planar targets at such extreme pixel-count ratios (~1:625). The reported baseline accuracy and sub-pixel reprojection error indicate potential for consistent TIR-to-RGB projection, which is a load-bearing requirement for downstream depth and thermal analysis tasks.

major comments (2)
  1. [Abstract / corner detection section] Abstract and methods description of corner detection: the claim that the dedicated detector (perspective rectification + Hessian saddle-point + Mean Shift) achieves reliable checkerboard detection at 80×62 px without per-frame parameter tuning is load-bearing for the entire pipeline, yet the manuscript supplies only the aggregate reprojection error of 0.382 px. No independent localisation error metrics, per-modality residual statistics, detection success rates, or comparison against manual annotations are reported; at this resolution even a 0.3–0.5 px systematic bias corresponds to several degrees of angular error that would directly affect the bundle-adjustment solution yielding the 32.7 mm baseline.
  2. [Validation / experimental results] Validation section: the demonstration on the thermally active building mock-up reports consistent TIR-to-RGB projection via constant-depth and per-pixel depth estimation, but lacks quantitative controls such as comparison to independent ground-truth depth measurements, per-pixel error maps, or ablation of the baseline constraint's contribution to the final accuracy.
minor comments (2)
  1. [Abstract] The stated pixel-count ratio of approximately 1:625 is slightly rounded; an exact calculation (2028×1520)/(80×62) yields ~621.5, which should be reported precisely for reproducibility.
  2. [Results] Notation for the recovered baseline (32.7 mm) and nominal value (30 mm) would benefit from explicit uncertainty intervals or covariance from the bundle adjustment to allow readers to assess how close the result truly is to the physical rig.

Simulated Author's Rebuttal

2 responses · 1 unresolved

We thank the referee for their thorough review and constructive comments on our manuscript. We address each of the major comments point by point below, indicating the changes we will make in the revised version.

read point-by-point responses

  1. Referee: [Abstract / corner detection section] Abstract and methods description of corner detection: the claim that the dedicated detector (perspective rectification + Hessian saddle-point + Mean Shift) achieves reliable checkerboard detection at 80×62 px without per-frame parameter tuning is load-bearing for the entire pipeline, yet the manuscript supplies only the aggregate reprojection error of 0.382 px. No independent localisation error metrics, per-modality residual statistics, detection success rates, or comparison against manual annotations are reported; at this resolution even a 0.3–0.5 px systematic bias corresponds to several degrees of angular error that would directly affect the bundle-adjustment solution yielding the 32.7 mm baseline.

    Authors: We agree that additional metrics specific to the corner detection would provide stronger evidence for the reliability of the detector at such low resolution. The reported 0.382 px reprojection error is an end-to-end metric after bundle adjustment, and the close match of the estimated baseline (32.7 mm) to the nominal value (30 mm) serves as supporting evidence for the overall calibration quality. Nevertheless, to address the referee's concern directly, we will revise the manuscript to include the detection success rate over the sequence of frames, average per-modality residual statistics from the bundle adjustment, and a limited comparison of detected corners against manual annotations for a representative subset of images. These additions will allow for an independent assessment of the localisation accuracy. revision: yes

  2. Referee: [Validation / experimental results] Validation section: the demonstration on the thermally active building mock-up reports consistent TIR-to-RGB projection via constant-depth and per-pixel depth estimation, but lacks quantitative controls such as comparison to independent ground-truth depth measurements, per-pixel error maps, or ablation of the baseline constraint's contribution to the final accuracy.

    Authors: We appreciate the suggestion for more rigorous quantitative validation. In the revised manuscript, we will add per-pixel error maps for the depth estimation results and an ablation study demonstrating the effect of including the baseline constraint in the bundle adjustment on both the reprojection error and the recovered baseline length. However, our experimental validation on the thermally active building mock-up was designed around the consistency of projections and depth estimates derived from the calibrated system itself; we did not collect independent ground-truth depth data using additional sensors. We will explicitly discuss this aspect as a limitation of the current validation approach. revision: partial

standing simulated objections not resolved
  • Provision of independent ground-truth depth measurements for the building mock-up, since no such external depth reference data was acquired in the experiments.

Circularity Check

0 steps flagged

No circularity: derivation relies on standard models plus independent physical constraint

full rationale

The paper applies established camera models, a custom but explicitly algorithmic corner detector (perspective rectification + Hessian + Mean Shift), and bundle adjustment augmented by a physical baseline constraint drawn from rig geometry. The reported 32.7 mm baseline is an optimization output that differs from the nominal 30 mm input, showing the result is not forced by construction. No equations or claims reduce the final calibration parameters to fitted inputs or self-citations; the method is presented as a practical pipeline whose correctness is checked against external physical expectations rather than internal redefinitions. This is a self-contained engineering contribution against standard benchmarks.

Axiom & Free-Parameter Ledger

0 free parameters · 2 axioms · 0 invented entities

The approach rests on established pinhole camera models and planar calibration assumptions, with the novel elements being the detection algorithm and physical constraint rather than new entities or fitted constants.

axioms (2)
  • standard math Standard pinhole camera model with radial and tangential distortion applies to both RGB and TIR sensors.
    Implicit foundation for all stereo calibration computations.
  • domain assumption Planar calibration target introduces degeneracy that can be resolved by enforcing known baseline distance.
    Directly invoked to justify the baseline-constrained bundle adjustment.
