Revisiting the picture of circumbinary disc truncation

Enrico Ragusa , Elliot Lynch , Guillaume Laibe , Richard Alexander This is my paper

Pith reviewed 2026-06-29 01:29 UTC · model grok-4.3

classification 🌌 astro-ph.EP
keywords circumbinary discsdisc truncationcavity eccentricityapsidal alignmenthydrodynamical simulationsbinary starsinnermost stable orbit
0
0 comments X

The pith

Cavity truncation in circumbinary discs depends on the cavity's own eccentricity and apsidal alignment with the binary.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper claims that the inner edge of a circumbinary disc is not set only by the binary separation, eccentricity and mass ratio. Instead the instantaneous eccentricity of the cavity and the relative angle between the binary and cavity apsides together fix the closest stable orbit for disc material. This dependence explains why cavities in simulations often grow larger than simple analytical estimates and continue evolving for long times. A reader would care because the resulting cavity size controls where planets can form, how gas accretes onto the binary, and what observers see in young binary systems. The authors extract the dependence from eighty hydrodynamical runs and supply a semi-analytical formula for the pericentre radius and cavity semi-major axis that incorporates these extra variables.

Core claim

Tidal truncation is controlled by the pericentre distance Rp of the innermost stable disc orbit, which is jointly set by the binary parameters a_bin, e_bin, q and the current disc state e_cav, ϖ_bin−ϖ_cav in a manner analogous to stability limits in the restricted three-body problem. Hydrodynamical quantities H and α produce only mild secondary shifts. A semi-analytical prescription for Rp and a_cav is given that remains valid once q exceeds 0.05 and that is independent of the evolutionary stage of the cavity.

What carries the argument

The pericentre Rp of the innermost stable disc orbit, fixed by the combination of binary properties and the instantaneous cavity eccentricity plus apsidal offset.

If this is right

  • Cavity size can change even when the binary is unchanged, simply because the disc's eccentricity and alignment evolve.
  • For mass ratios above 0.05 the truncation process is dominated by the disc's orbital state rather than binary properties alone.
  • The supplied prescription gives a truncation radius that does not require the system to have reached a steady state.
  • Hydrodynamic corrections from disc thickness and viscosity remain secondary but can be added on top of the gravitational prediction.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • Observers measuring cavity sizes around binaries could in principle back out the current dynamical state of the disc if the prescription is accurate.
  • Planet-migration and accretion models in circumbinary systems would need to track the time-varying cavity edge rather than assume a fixed truncation radius.
  • The analogy with three-body stability suggests that similar orbital-mechanics arguments might apply to other truncated disc problems such as those around eccentric stars or planets.

Load-bearing premise

The eighty simulations sample the full relevant range of cavity eccentricity and apsidal offset without the measured dependence being produced by the chosen starting conditions or grid resolution.

What would settle it

A controlled simulation that holds binary parameters fixed while varying only e_cav and ϖ_bin−ϖ_cav and finds a different Rp than the prescription predicts would falsify the claim.

Figures

Figures reproduced from arXiv: 2606.27419 by Elliot Lynch, Enrico Ragusa, Guillaume Laibe, Richard Alexander.

Figure 1

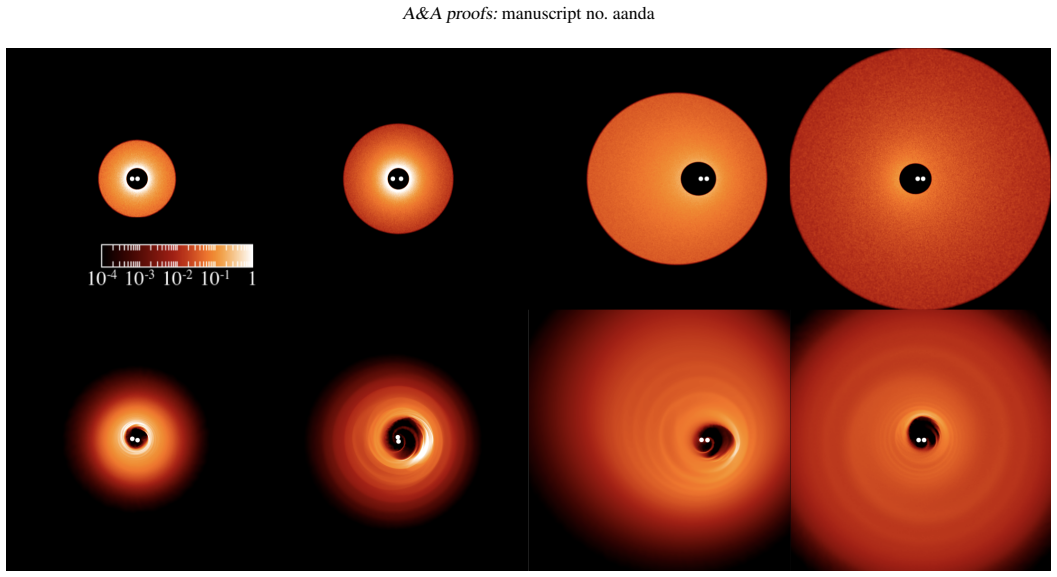

Figure 1. Figure 1: Examples of snapshots of local surface density distributions from numerical simulations with initially circular discs (representative of Group 1 and 2) and with initially eccentric discs (representative of Group 3 and 4). The top row shows the initial conditions. The bottom row an evolved disc after t = 300 tbin. From left to right, Panel 1: shows simulation 2Ae0 (q = 0.1, ebin = 0., H/R = 0.05, α = 0.005,… view at source ↗
Figure 2

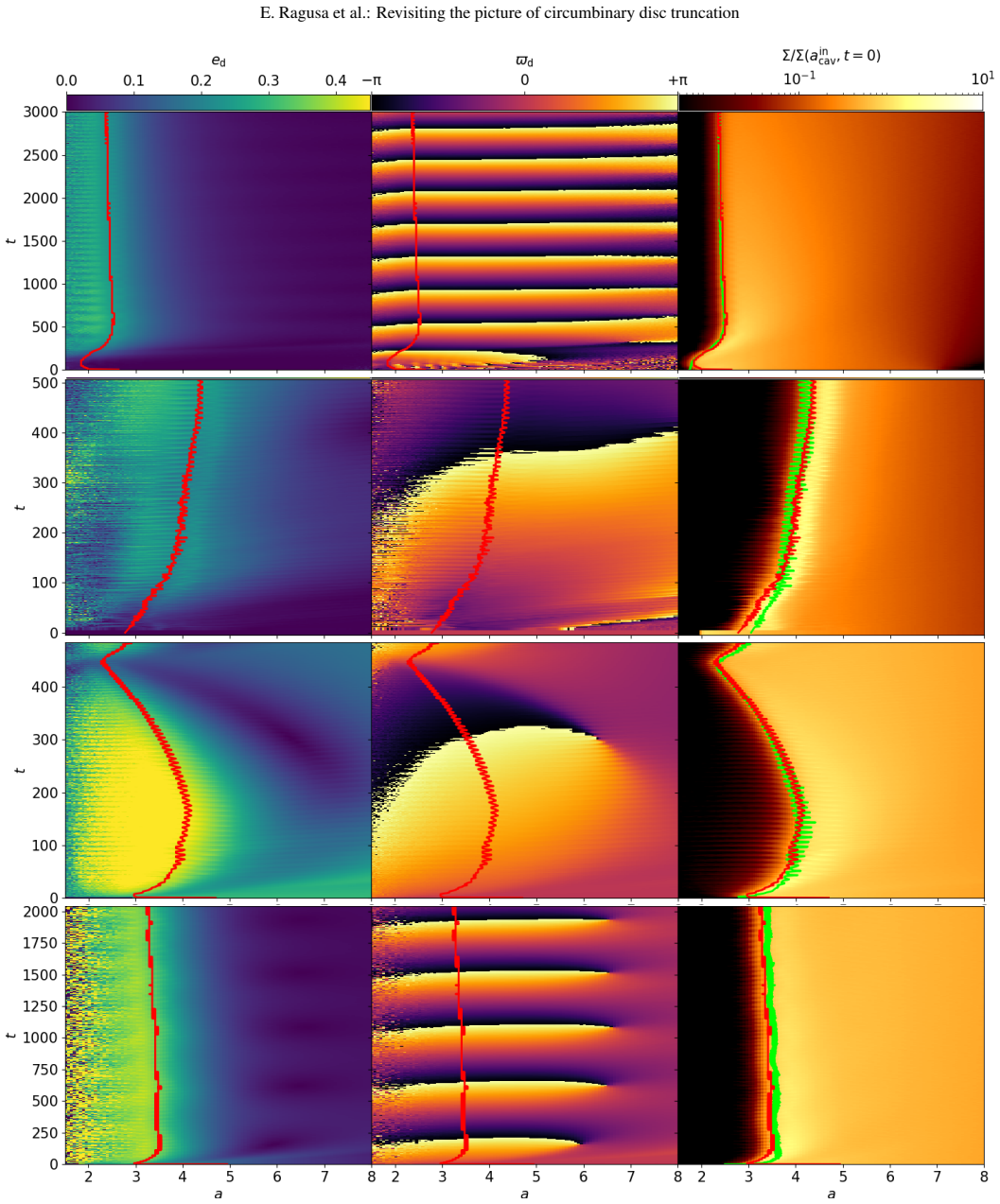

Figure 2. Figure 2: Evolution colourplots of ed(a), ϖd(a), Σ(a) for representative simulations in [PITH_FULL_IMAGE:figures/full_fig_p007_2.png] view at source ↗
Figure 3

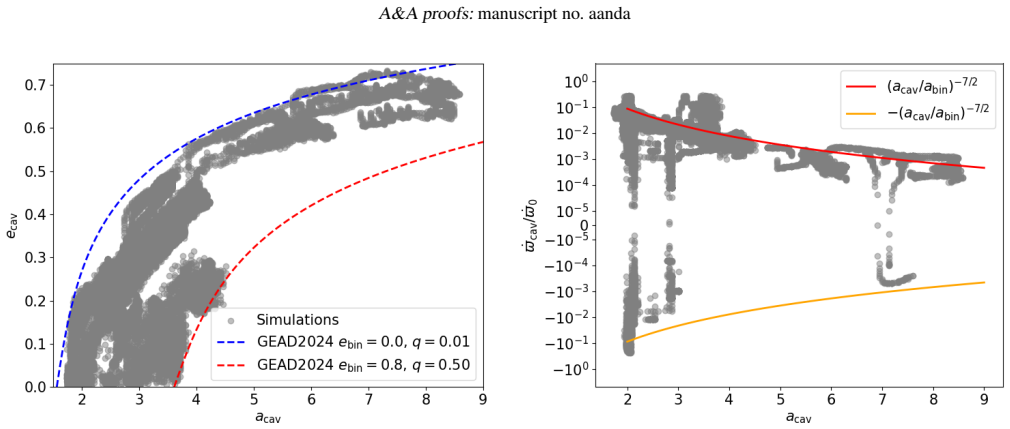

Figure 3. Figure 3: General dependence of cavity eccentricity ecav and precession rate ˙ϖcav as a function of cavity semi-major axis for the full simulation dataset (see also [PITH_FULL_IMAGE:figures/full_fig_p008_3.png] view at source ↗
Figure 4

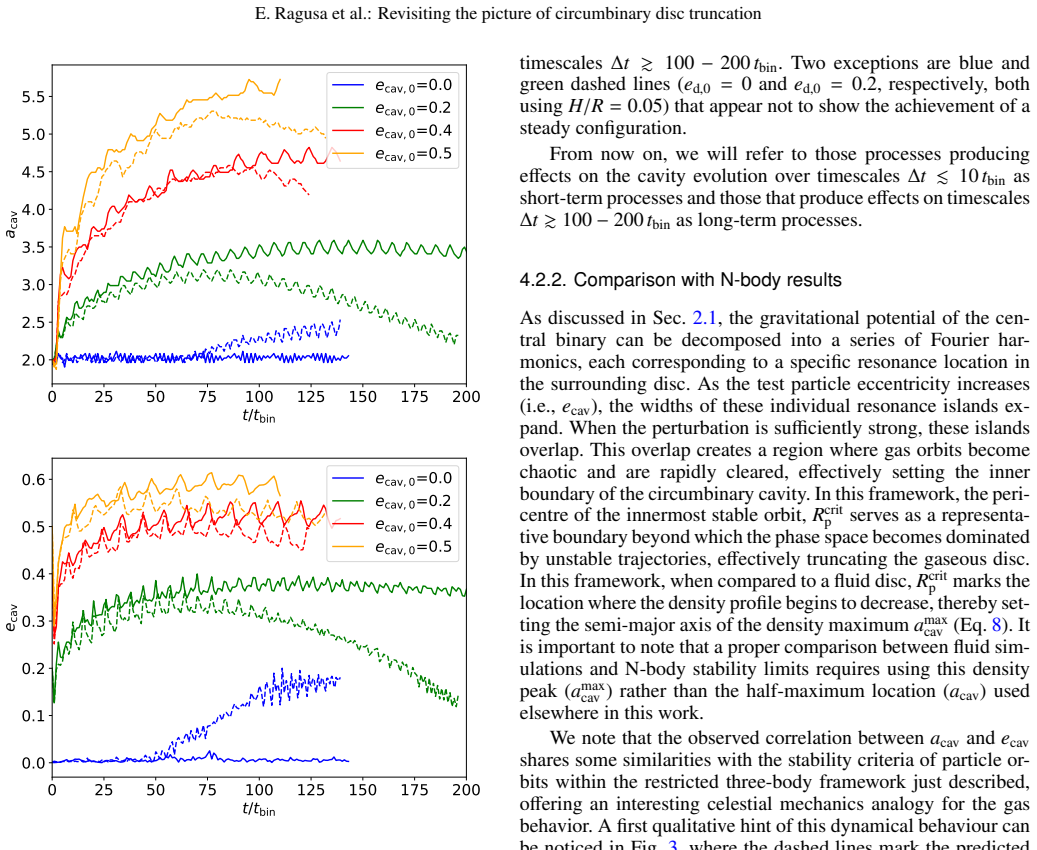

Figure 4. Figure 4: Initial evolution of acav (top panel) and ecav (bottom panel) as a function of time for Group 3 simulations with initial disc eccentric￾ity 0 ≤ ecav,0 ≤ 0.5: that is, simulations 1A(0-5)ed,0 (H/R = 0.1, solid lines) and 1B(0-5)ed,0 (H/R = 0.05, dashed lines) and undersized cavity (a in cav = 2abin, IDs ending with ed,0 in Tab. B.3). Different colours are dif￾ferent initial disc eccentricities as indicated … view at source ↗
Figure 5

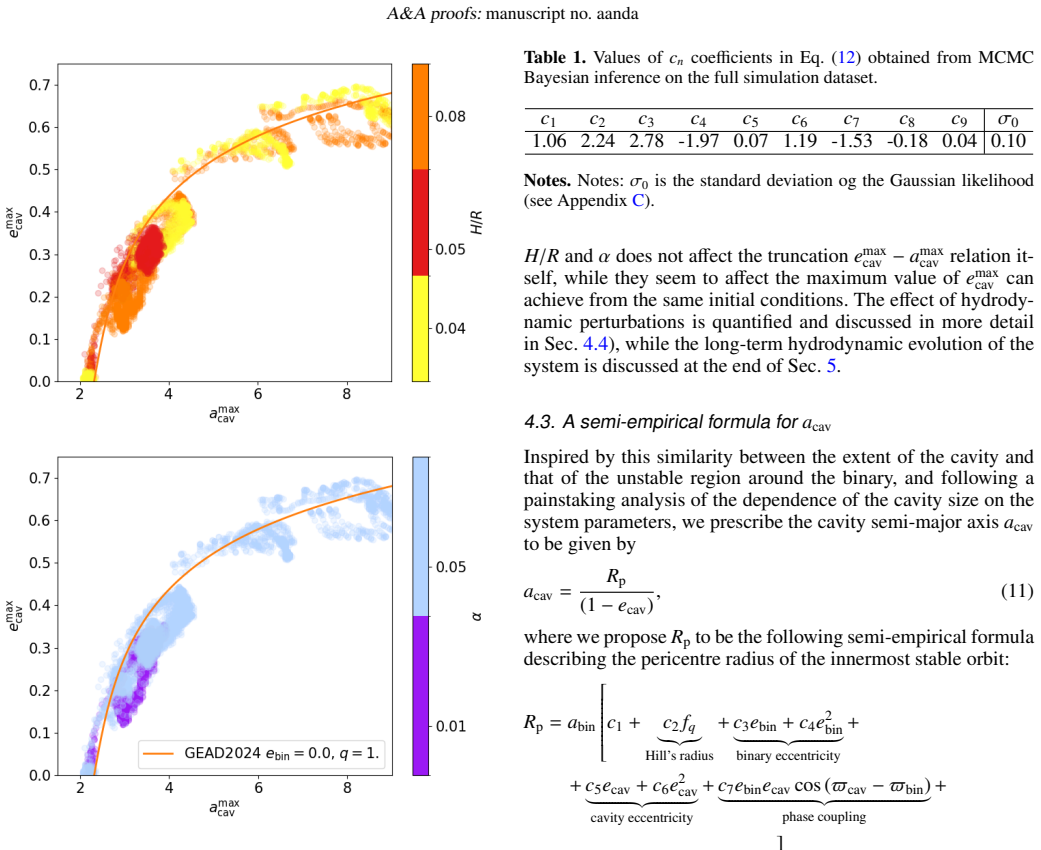

Figure 5. Figure 5: The relation e max cav − a max cav for a selection of simulations from Groups 1, 3 and 4 with ebin = 0, q = 1 and different choices of H/R and α (colors in the colorbar). Each data point represents a simulation snapshot. The orange solid line represent the a crit orbital stability limit prescribed by Georgakarakos et al. (2024). tidal-viscous torque balance, producing the observed dispersion of values of a… view at source ↗
Figure 6

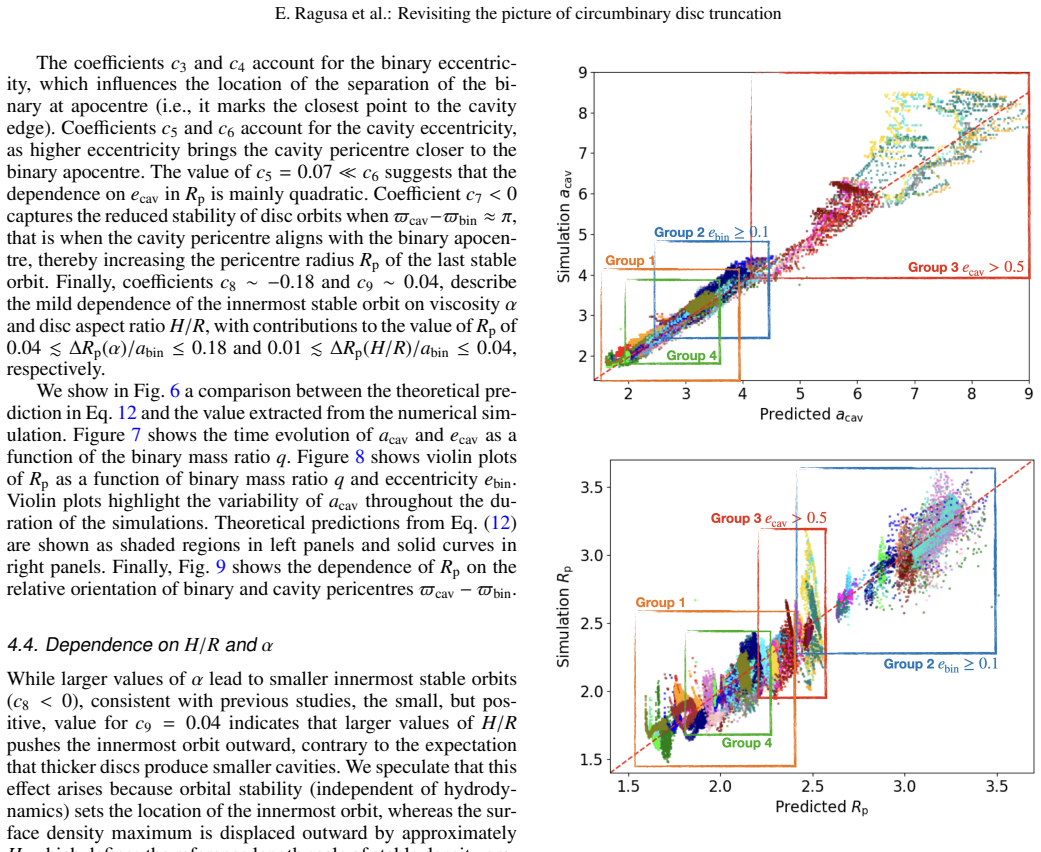

Figure 6. Figure 6: Summary plot of simulation values of acav (top panel) and Rp (bottom panel) compared to theoretical predictions from (12). Each point represent a snapshot of a simulation, each color represents a dif￾ferent numerical simulation. Colored rectangles indicate regions corre￾sponding to different Groups. Orange and green rectangles highlight the extent of all simulations from Group 1 and Group 4, respectively. … view at source ↗
Figure 7

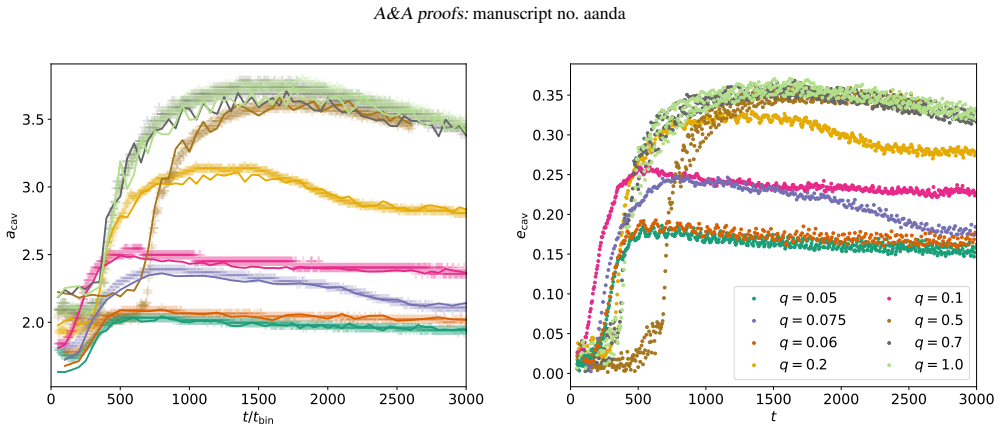

Figure 7. Figure 7: Evolution of cavity semi-major axis acav and cavity eccentricity with time. Left panel: time evolution of the cavity semi-major axis acav, for various binary mass ratios q = {0.05, 0.06, 0.075, 0.1, 0.2, 0.5, 0.7, 1.0} (for fixed ebin = 0 and H/R = 0.05, i.e. a selection of simulations from Group 1), color legend in the right panel. Crosses correspond to individual simulation snapshots, solid lines are obt… view at source ↗
Figure 8

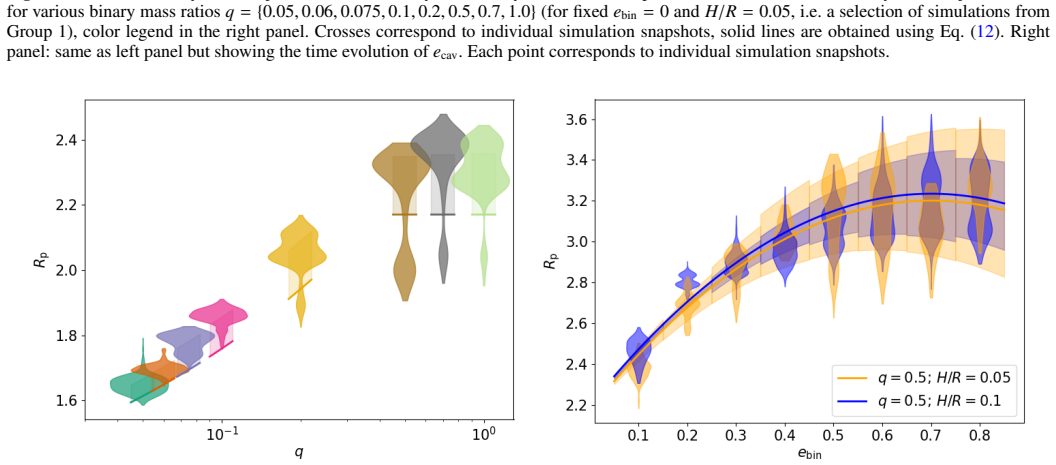

Figure 8. Figure 8: Dependence of cavity pericentre radius Rp on the system parameters. Left panel: Rp as a function of binary mass ratio q = {0.05, 0.06, 0.075, 0.1, 0.2, 0.5, 0.7, 1.0} (for fixed ebin = 0 and H/R = 0.05, i.e. a selection of simulations from Group 1). Violin plots track the range of Rp explored throughout the simulations, while shaded regions represent the predicted range of Rp from Eq. (12) using the maximu… view at source ↗
Figure 9

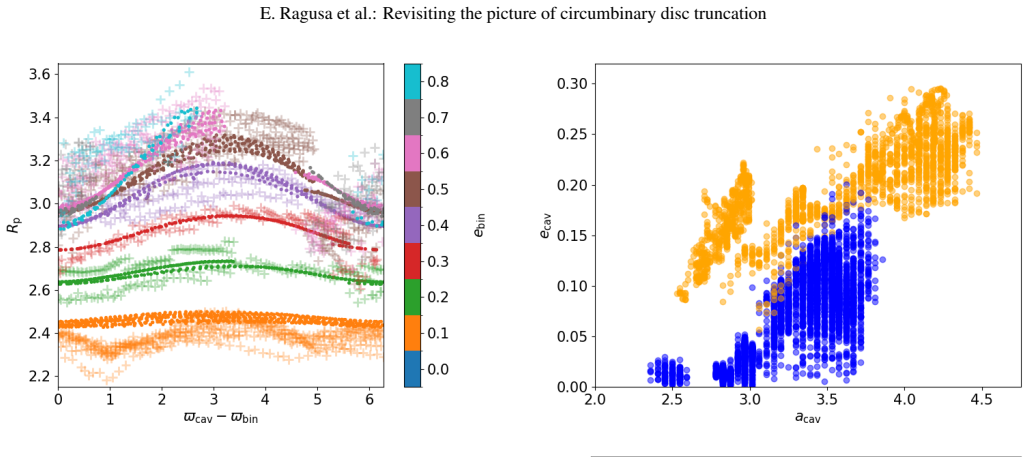

Figure 9. Figure 9: Dependence of Rp as a function of relative orienta￾tion of disc and binary pericentre longitudes, ϖcav − ϖbin, as a function of binary eccentricity ebin, for simulations with ebin = {0.1, 0.2, 0.3, 0.4, 0.5, 0.6, 0.7, 0.8}, H/R = 0.05, α = 0.005 (i.e. a se￾lection of simulations from Group 2, shown in right panel of [PITH_FULL_IMAGE:figures/full_fig_p013_9.png] view at source ↗
Figure 10

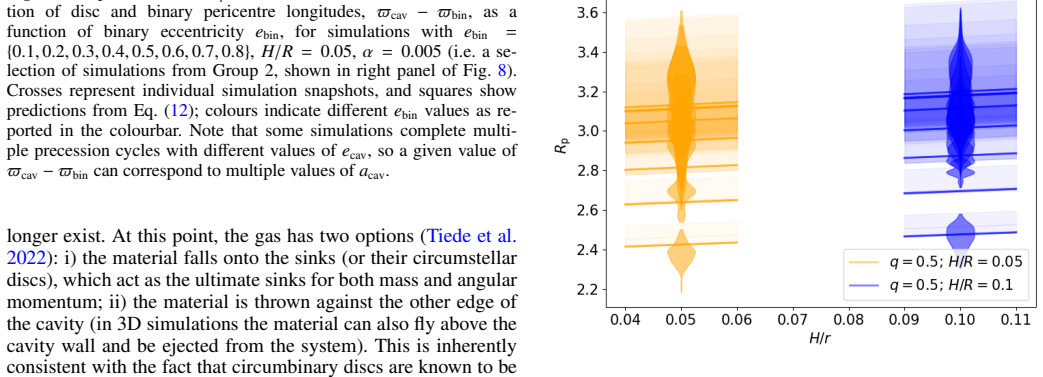

Figure 10. Figure 10 [PITH_FULL_IMAGE:figures/full_fig_p013_10.png] view at source ↗
Figure 11

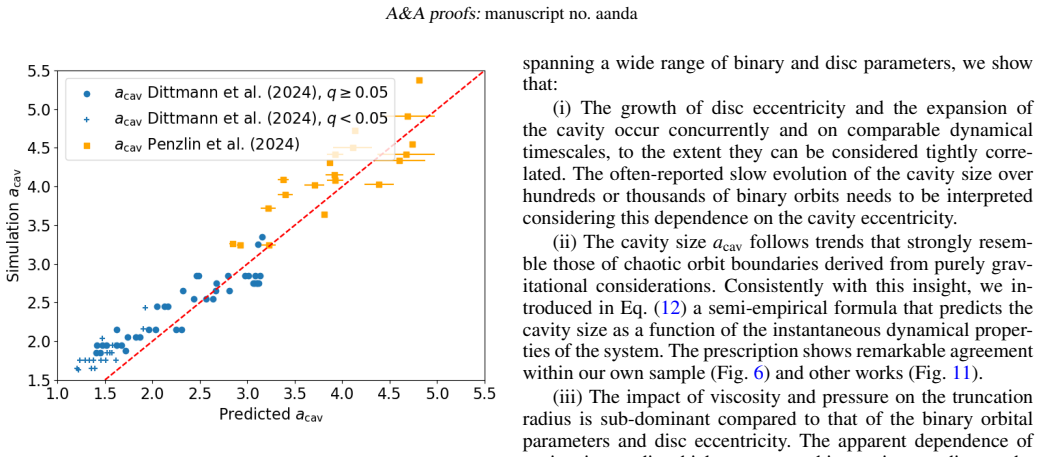

Figure 11. Figure 11: Comparison with other works. Same as top panel of [PITH_FULL_IMAGE:figures/full_fig_p014_11.png] view at source ↗
read the original abstract

Circumbinary discs are observed to develop central cavities carved by the gravitational influence of the binary. Analytical estimates of cavity sizes predict truncation at $\sim 2 \textrm{--} 3$ binary separations, depending on the binary properties. However, numerical studies show only qualitative agreement with these predictions: cavity sizes often evolve on long timescales and can exceed substantially the analytically predicted values. In this work, we revise this paradigm, suggesting that tidal truncation in circumbinary discs responds to additional dynamical parameters that have so far been neglected. We analyse a suite of 80 numerical simulations of circumbinary discs to re-examine the physical mechanism responsible for cavity truncation and to provide a prescription for the cavity size independent of the state of evolution of the system. We find that truncation depends not only on the binary parameters $a_{\rm bin}$, $e_{\rm bin}$, and mass ratio $q$, but also on the instantaneous cavity eccentricity $e_{\rm cav}$ and the relative apsidal orientation $\varpi_{\rm bin}-\varpi_{\rm cav}$. These quantities jointly determine the pericentre of the innermost stable disc orbit $R_{\rm p}$, in a way that shares some similarities with orbital stability in the restricted three body problem. Hydrodynamical effects introduce secondary corrections, with the disc scale height $H$ and viscosity $\alpha$ mildly shifting the cavity edge relative to the purely gravitational prediction. We introduce a semi-analytical prescription that captures these dependences for $R_{\rm p}$ and cavity semi-major axis $a_{\rm cav}$. We conclude that cavity truncation for binaries with mass ratios $q>0.05$ is a process where the instantaneous orbital properties of the disc ($e_{\rm cav}$, $\varpi_{\rm cav}$) play a fundamental role and should be taken into account to accurately evaluate the truncation efficiency.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

3 major / 3 minor

Summary. The manuscript analyzes a suite of 80 hydrodynamical simulations of circumbinary discs and claims that tidal truncation depends on binary parameters a_bin, e_bin, q together with the instantaneous cavity eccentricity e_cav and relative apsidal angle ϖ_bin−ϖ_cav. These jointly set the pericentre Rp of the innermost stable disc orbit; a semi-analytical prescription for Rp and a_cav is derived that is stated to be independent of evolutionary state, with secondary corrections from disc scale height H and viscosity α.

Significance. If the claimed dependence on e_cav and ϖ is shown to be independent of binary parameters and robust to changes in initial conditions or resolution, the work would revise the standard analytic picture of circumbinary truncation radii and supply a practical fitting formula usable in population synthesis or observational modeling. The strength of the result would lie in the size of the simulation suite and the attempt to separate gravitational from hydrodynamical effects.

major comments (3)
  1. [§3] §3 (simulation suite description): the manuscript does not demonstrate that e_cav and ϖ_bin−ϖ_cav are sampled independently of a_bin, e_bin and q. Without a table or scatter-plot matrix showing the joint distribution of these quantities across the 80 runs, it remains possible that the apparent additional dependence is induced by the same tidal forcing that sets the binary-driven cavity, undermining the claim of a new dynamical degree of freedom.
  2. [§4] §4 (semi-analytical prescription): the functional form for Rp is obtained by fitting the same 80 simulations used to identify the dependence; the paper must state whether the functional form was chosen a priori from restricted three-body considerations or adjusted post-hoc, and whether any cross-validation or held-out runs were performed to test predictive power.
  3. [Results] Results section (comparison of gravitational vs hydrodynamical runs): the statement that H and α produce only mild shifts is central to the claim that truncation is primarily gravitational. Quantitative evidence (e.g., ΔRp values or residual plots for different α and H at fixed binary and cavity parameters) is required to substantiate that these corrections remain secondary across the explored range.
minor comments (3)
  1. [Abstract] Abstract: the restriction to q>0.05 should be justified with a brief statement or reference to the low-q behaviour observed in the simulations.
  2. [Notation] Notation: ensure that the definition of Rp (pericentre of the innermost stable orbit) is stated explicitly the first time it appears and used consistently in all figures and equations.
  3. [Figures] Figures: any plot comparing the prescription to simulation data should include residuals or a quantitative measure of fit quality rather than visual agreement alone.

Simulated Author's Rebuttal

3 responses · 0 unresolved

We thank the referee for their constructive feedback. We address each of the major comments in turn and will make the necessary revisions to the manuscript.

read point-by-point responses

  1. Referee: [§3] §3 (simulation suite description): the manuscript does not demonstrate that e_cav and ϖ_bin−ϖ_cav are sampled independently of a_bin, e_bin and q. Without a table or scatter-plot matrix showing the joint distribution of these quantities across the 80 runs, it remains possible that the apparent additional dependence is induced by the same tidal forcing that sets the binary-driven cavity, undermining the claim of a new dynamical degree of freedom.

    Authors: We agree with the referee that an explicit demonstration of the sampling is required. In the revised version, we will include a scatter-plot matrix (or corner plot) displaying the joint distributions of a_bin, e_bin, q, e_cav, and ϖ_bin−ϖ_cav across all 80 simulations. The simulations were designed by varying binary parameters over a grid while allowing the disc cavity to evolve from varied initial conditions, resulting in e_cav and ϖ values that span a range not strictly dictated by the binary parameters alone. This addition will substantiate that the dependence on cavity properties represents an independent dynamical degree of freedom. revision: yes

  2. Referee: [§4] §4 (semi-analytical prescription): the functional form for Rp is obtained by fitting the same 80 simulations used to identify the dependence; the paper must state whether the functional form was chosen a priori from restricted three-body considerations or adjusted post-hoc, and whether any cross-validation or held-out runs were performed to test predictive power.

    Authors: The functional form was selected a priori, drawing from the known dependence of orbital stability limits on eccentricity and apsidal orientation in the restricted three-body problem, as noted in the manuscript. The specific coefficients in the prescription were then fitted to the simulation results. No cross-validation or held-out runs were conducted, as the 80 simulations constitute the entire suite used to develop the model. We will update §4 to clearly state the a priori basis for the form and the post-fitting procedure, and acknowledge the absence of cross-validation as a point for future work. revision: partial

  3. Referee: Results section (comparison of gravitational vs hydrodynamical runs): the statement that H and α produce only mild shifts is central to the claim that truncation is primarily gravitational. Quantitative evidence (e.g., ΔRp values or residual plots for different α and H at fixed binary and cavity parameters) is required to substantiate that these corrections remain secondary across the explored range.

    Authors: We will strengthen the Results section by adding quantitative evidence, including tables of ΔRp values and residual plots comparing different H and α at fixed binary parameters (a_bin, e_bin, q) and cavity parameters (e_cav, ϖ). These will show that the hydrodynamical corrections are indeed secondary, with shifts typically smaller than those induced by changes in the main parameters. This will be incorporated in the revised manuscript. revision: yes

Circularity Check

0 steps flagged

No circularity: empirical prescription openly derived from simulation suite

full rationale

The paper states it analyses 80 simulations to identify dependences on a_bin, e_bin, q, e_cav and ϖ_bin−ϖ_cav, then introduces a semi-analytical prescription that captures those dependences. No equations or claims reduce a derived quantity to a fitted parameter by construction, no load-bearing self-citations are invoked to justify uniqueness, and the prescription is presented as an empirical fit rather than an independent first-principles prediction tested on the same data. The derivation chain is therefore self-contained against external benchmarks (the hydro runs themselves).

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 0 invented entities

The central claim rests on the assumption that the hydrodynamical simulations faithfully capture the gravitational truncation physics and that the measured dependence on e_cav and apsidal offset is not resolution- or viscosity-dependent. No new particles or forces are postulated.

axioms (1)
  • domain assumption The gravitational potential of the binary dominates the truncation; hydrodynamic effects only provide secondary corrections.
    Stated in the abstract when the authors separate the purely gravitational prediction from the mild shifts due to H and α.
