VectorArk's rounded polygon representation and degradation model enable better vectorization of real-world images with superior geometric completeness and fewer artifacts.

Reviewed by Pith at T0; open to challenge. T0 means a machine referee read the full paper against a public rubric. the ladder, T0–T4 →

Challenge this review Re-run · record.json Download PDF Read on arXiv ↗

T0 review · grok-4.3

2026-06-30 13:49 UTC pith:RCDIWUD3

load-bearing objection VectorArk adds a rounded polygon output and degradation model to VLM vectorization for real inputs, but the abstract gives no numbers or comparisons to support the superiority claim. the 1 major comments →

arxiv 2605.24398 v1 pith:RCDIWUD3 submitted 2026-05-23 cs.CV cs.AIcs.GR

VectorArk: Learning Practical Image Vectorization with Rounded Polygon Representation

Tarun Gehlaut , Difan Liu , Charu Bansal , Krutik Malani , Souymodip Chakraborty , Ankit Phogat , Matthew Fisher , Vineet Batra This is my paper
classification cs.CV cs.AIcs.GR
keywords image vectorizationrounded polygonsvision-language modelsdegradation modelSVG generationgeometric completenessartifact suppression
verification ladder T0 review T1 audit T2 compute T3 formal T4 reserved

The pith

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper introduces VectorArk, a VLM-based model for image vectorization that uses a rounded polygon representation to simplify learning and produce smooth primitives. It also includes a degradation model to handle diverse and imperfect inputs like those from text-to-image models. Previous methods perform well only on synthetic benchmarks but fail to generalize to real scenarios. VectorArk shows better results on multiple datasets in terms of geometric completeness and artifact suppression. This matters because practical vectorization needs to work on imperfect real images, not just clean synthetic ones.

Core claim

VectorArk employs a novel rounded polygon representation that simplifies the learning process while naturally producing smooth, visually appealing primitives, and proposes a degradation model that enhances robustness across diverse and imperfect inputs, achieving superior geometric completeness and artifact suppression compared to previous methods across multiple datasets.

What carries the argument

The rounded polygon representation, which simplifies the learning process and produces smooth primitives, combined with the degradation model for robustness.

Load-bearing premise

That the rounded polygon representation simplifies the learning process while naturally producing smooth, visually appealing primitives and that the degradation model enhances robustness across diverse and imperfect inputs.

What would settle it

Evaluating VectorArk on a new set of real-world images with unknown rasterization or from text-to-image models and finding no improvement in geometric completeness or increased artifacts compared to previous methods would falsify the claim.

Watch this falsifier — get emailed when new claim-graph text bears on it.

If this is right

  • Improved vectorization for images generated by text-to-image models.
  • Reduced artifacts in vector outputs from unknown rasterization methods.
  • More reliable performance on diverse real-world inputs.
  • Validation through ablations shows each component contributes to the performance gains.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • Could extend the approach to other vector graphics tasks like editing or animation.
  • The representation might reduce the need for complex post-processing in vectorization pipelines.
  • Testing on even more varied degradation types could further validate robustness.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit.

Referee Report

1 major / 0 minor

Summary. The paper introduces VectorArk, a VLM-based model for practical image vectorization. It employs a novel rounded polygon representation that simplifies learning and produces smooth primitives, together with a degradation model for robustness to imperfect real-world inputs. Experiments are said to demonstrate superior geometric completeness and artifact suppression versus prior methods across multiple datasets, with ablations confirming component contributions.

Significance. If the quantitative claims hold, the work would fill a documented gap between synthetic-benchmark performance and real-world generalization for VLM vectorization, potentially benefiting applications that process outputs from text-to-image models or unknown rasterizers.

major comments (1)
  1. [Abstract] Abstract: the central claim of superior geometric completeness and artifact suppression is stated without any metrics, baselines, error analysis, dataset descriptions, or quantitative comparisons, rendering the claim impossible to evaluate from the supplied text.

Simulated Author's Rebuttal

1 responses · 0 unresolved

We thank the referee for highlighting the need for greater specificity in the abstract. We address the comment below and will revise the manuscript accordingly.

read point-by-point responses

  1. Referee: [Abstract] Abstract: the central claim of superior geometric completeness and artifact suppression is stated without any metrics, baselines, error analysis, dataset descriptions, or quantitative comparisons, rendering the claim impossible to evaluate from the supplied text.

    Authors: We agree that the abstract presents the central claim at a high level without numerical support. The full manuscript contains the requested details (quantitative tables, baselines, error analysis, and dataset descriptions) in Sections 4 and 5. To make the abstract self-contained, we will revise it to include a concise statement of the key quantitative gains (e.g., percentage improvements in geometric completeness and artifact metrics versus the strongest baselines on the reported datasets). revision: yes

Circularity Check

0 steps flagged

No significant circularity; empirical ML model with no derivational chain

full rationale

The paper presents an empirical VLM-based image vectorization system using a rounded polygon representation and a degradation model. The provided abstract and context contain no equations, first-principles derivations, fitted parameters renamed as predictions, or self-citation chains that reduce claims to inputs by construction. Claims of superior performance rest on experimental results across datasets rather than any algebraic or definitional equivalence. This is the expected outcome for a practical ML architecture paper; the derivation chain is absent, so no circularity can be exhibited.

Axiom & Free-Parameter Ledger

0 free parameters · 0 axioms · 0 invented entities

Abstract-only review provides no equations, training details, or modeling choices from which to extract free parameters, axioms, or invented entities.

pith-pipeline@v0.9.1-grok · 5704 in / 892 out tokens · 48177 ms · 2026-06-30T13:49:32.884683+00:00 · methodology

0 comments
read the original abstract

Recent vision-language model (VLM)-based approaches have achieved impressive results on image vectorization tasks. However, they are typically evaluated on synthetic benchmarks, where clean SVGs are rasterized at high resolution and then re-vectorized. As a result, these methods generalize poorly to real-world scenarios, such as images with unknown rasterization methods or those generated by text-to-image models. We introduce VectorArk, a new VLM-based model designed for robust and practical image vectorization. VectorArk employs a novel rounded polygon representation that simplifies the learning process while naturally producing smooth, visually appealing primitives. We also propose a degradation model that enhances robustness across diverse and imperfect inputs. Our experiments show that, in contrast to previous methods, VectorArk achieves superior geometric completeness and artifact suppression across multiple datasets, with comprehensive ablations validating the contribution of each component.

Figures

Figures reproduced from arXiv: 2605.24398 by Ankit Phogat, Charu Bansal, Difan Liu, Krutik Malani, Matthew Fisher, Souymodip Chakraborty, Tarun Gehlaut, Vineet Batra.

Figure 1

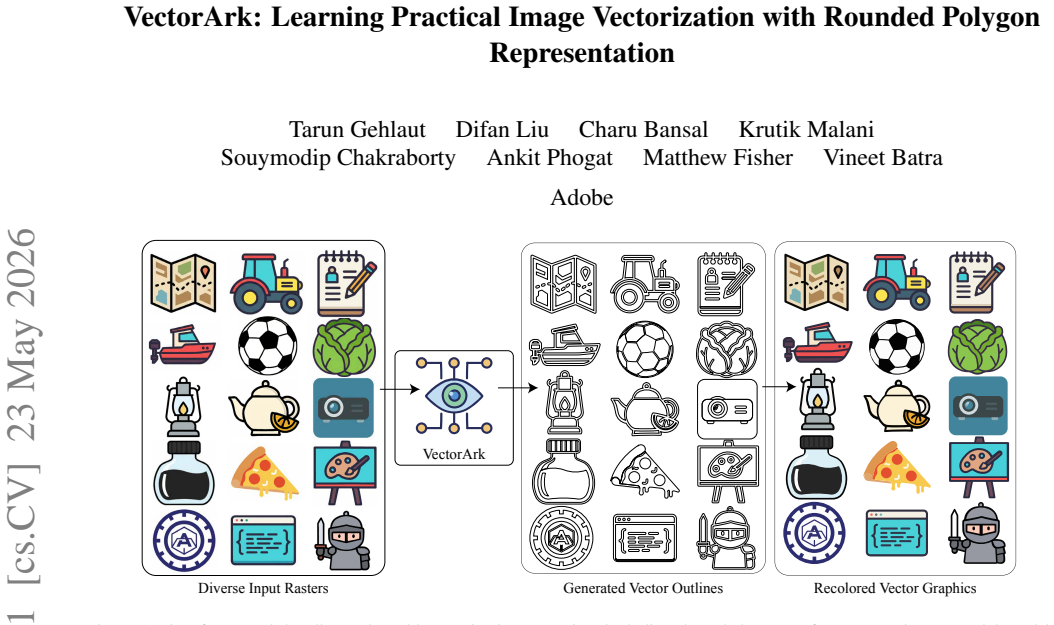

Figure 1. Figure 1: Our framework handles real-world vectorization scenarios, including degraded outputs from text-to-image models and low [PITH_FULL_IMAGE:figures/full_fig_p001_1.png] view at source ↗
Figure 2

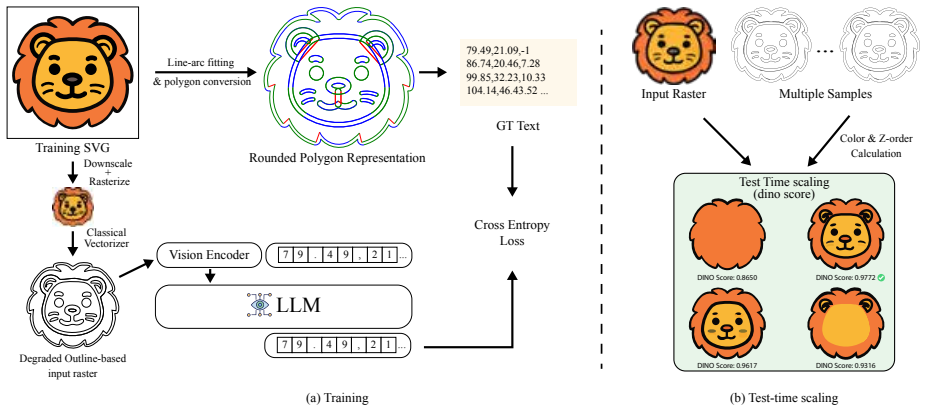

Figure 2. Figure 2: Training and inference pipelines. (a) Training: Both paths are used during training. The upper path converts clean SVGs to rounded polygon ground truth tokens via line-arc fitting. The lower path generates degraded outline rasters through downscaling, rasterization, and classical vectorization. The VLM learns to predict clean geometry from degraded inputs using cross-entropy loss. (b) Test-time scaling: At… view at source ↗
Figure 3

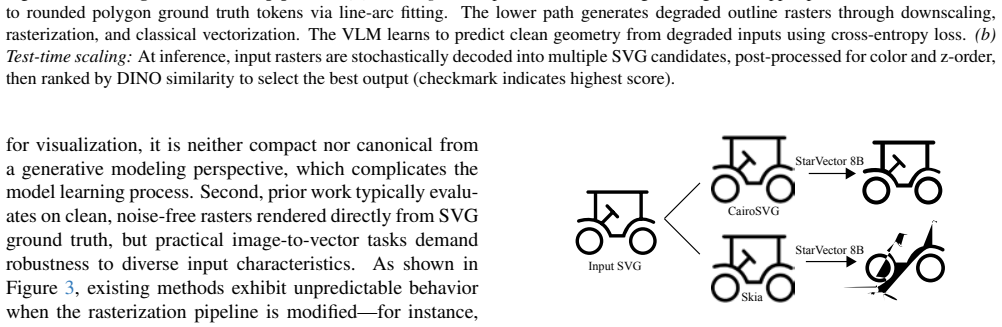

Figure 3. Figure 3: , existing methods exhibit unpredictable behavior when the rasterization pipeline is modified—for instance, switching from one rendering backend to another causes significant degradation in output quality. Similarly, outputs from text-to-image models [8, 14] are increasingly used as inputs for vectorization, yet these generated images often contain distorted shapes and visual characteristics that dif￾fer s… view at source ↗
Figure 4

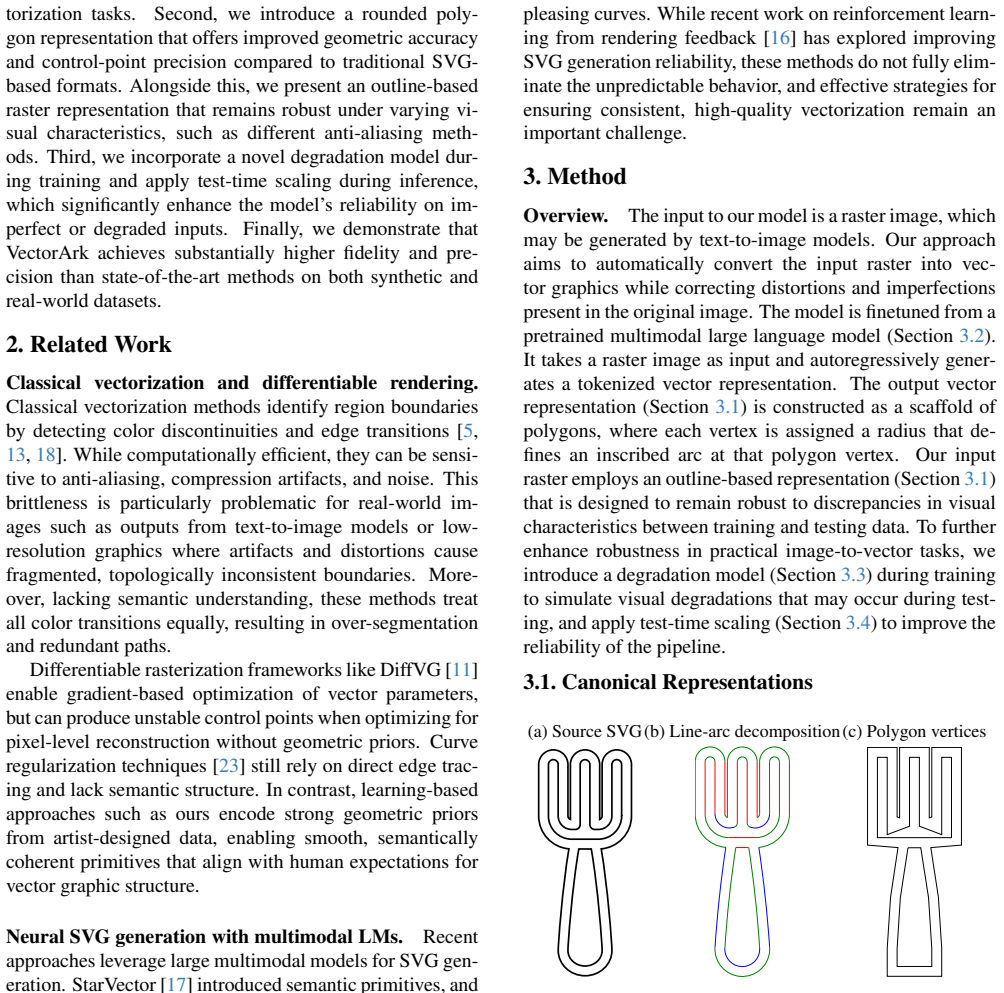

Figure 4. Figure 4: Rounded polygon representation example. Conver￾sion process from an input SVG to our rounded polygon format. (a) Original source SVG with smooth curves. (b) Line-arc decom￾position where red segments represent lines and green/blue seg￾ments represent circular arcs fitted to the original curves. (c) Cor￾responding polygon vertices (intersection points) before applying corner radii; the final representation … view at source ↗
Figure 5

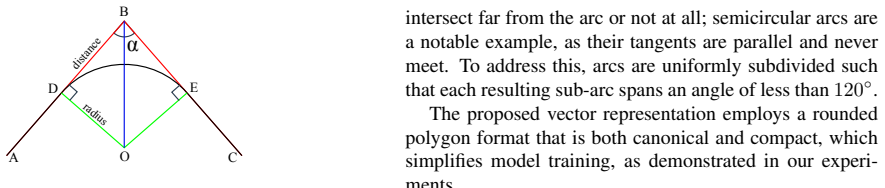

Figure 5. Figure 5: Rounded polygon vertex computation. Given fitted line-arc primitives, we compute polygon vertices by extending tan￾gents at arc endpoints to their intersection point. for training generative models. To simplify the learning process, we adopt a canonical and compact representation that expresses SVGs using rounded polygons. More specif￾ically, we convert each SVG path into a rounded polygon representation i… view at source ↗
Figure 6

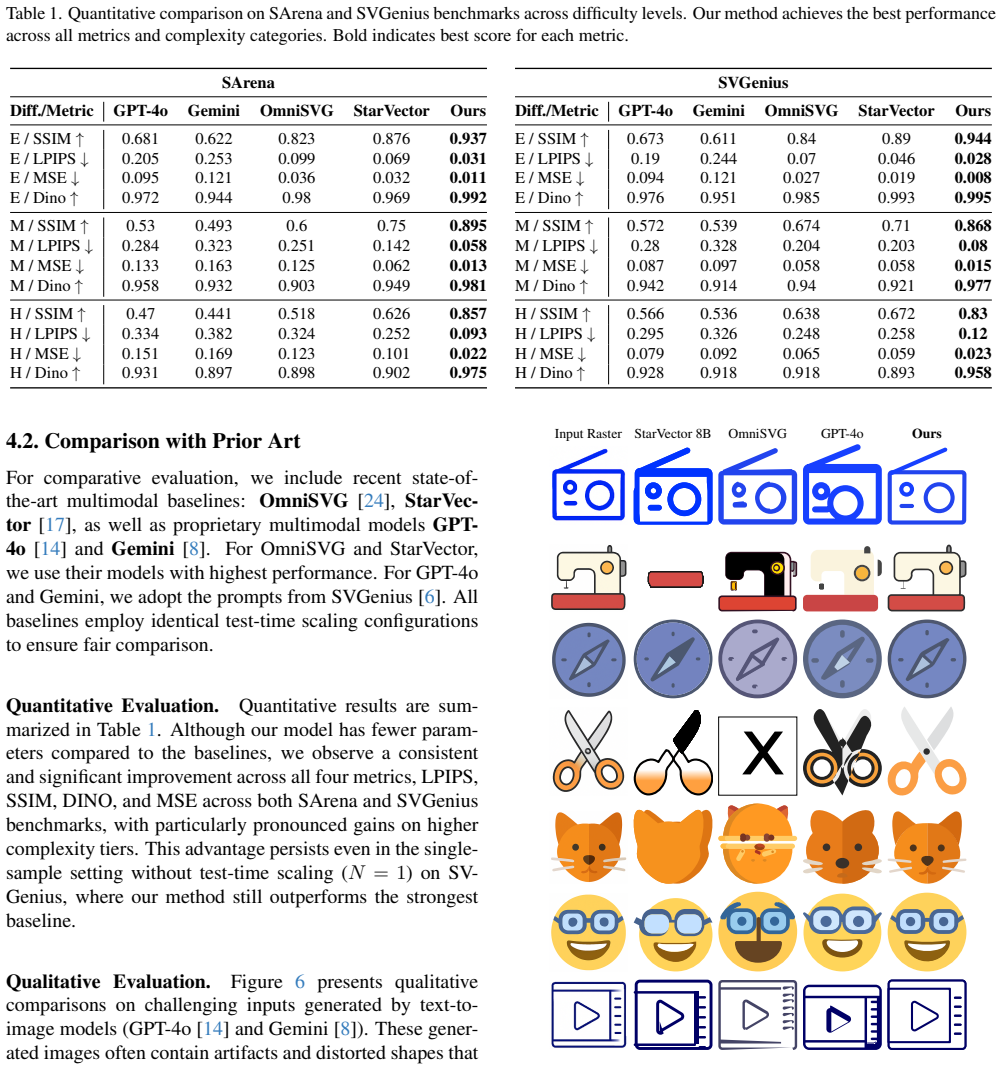

Figure 6. Figure 6: Qualitative comparison on text-to-image generated inputs. training setup identical, while substituting our representa￾tion with OmniSVG’s and StarVector’s representation. For the OmniSVG [24] representation, all SVG commands are restricted to MoveTo (M), LineTo (L), Arc (A), CubicBezier ´ (C), and ClosePath (Z) using only absolute coordinates. We [PITH_FULL_IMAGE:figures/full_fig_p006_6.png] view at source ↗
Figure 8

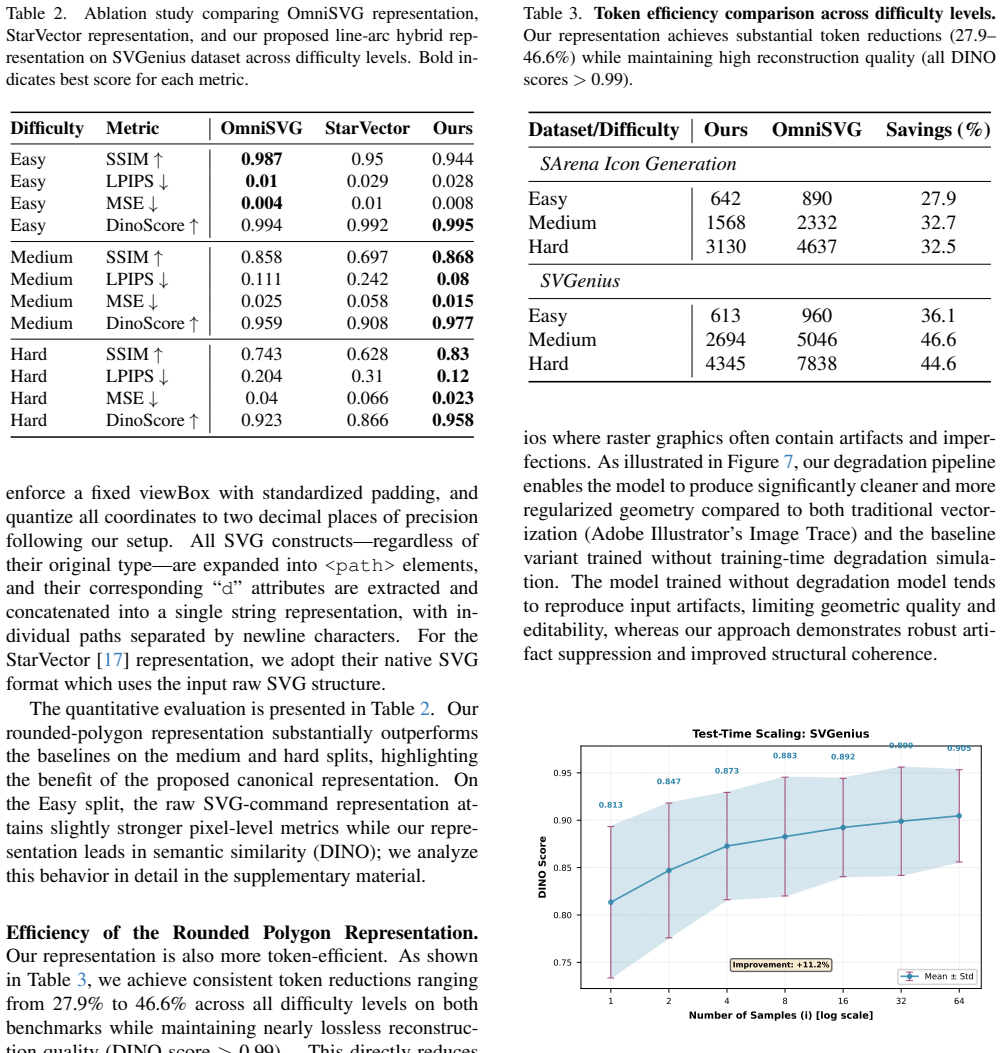

Figure 8. Figure 8: Test-time scaling analysis on SVGenius. DinoScore as a function of parallel generation count, averaged over three ran￾dom seeds. Increasing parallel samples improves reconstruction quality through diversity sampling. Ablation on Test-Time Scaling We investigate the ef￾fect of test-time scaling [19] by varying the number of parallel generations and selecting the best output based on DinoScore. For each conf… view at source ↗
Figure 7

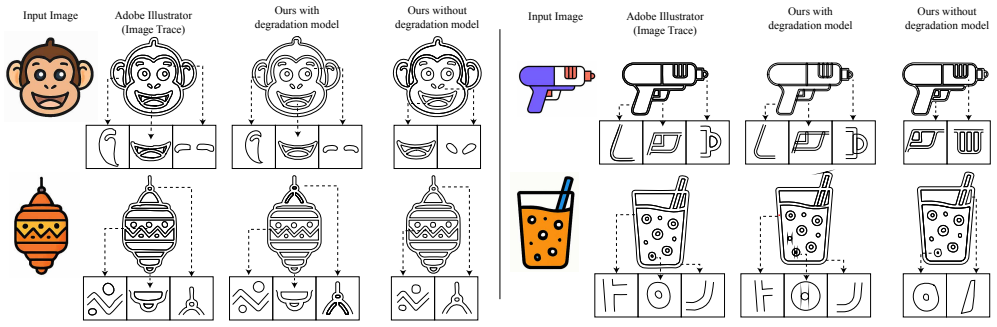

Figure 7. Figure 7: Quality comparison with and without degradation model. Four test cases (arranged in 2×2 grid) comparing vectorization quality across different methods. For each input image, we show generated outlines from: Adobe Illustrator (Image Trace), Ours with degradation model, and Ours without degradation model. Adobe Illustrator introduces artifacts and geometric irregularities (highlighted in boxes). Our method w… view at source ↗
Figure 10

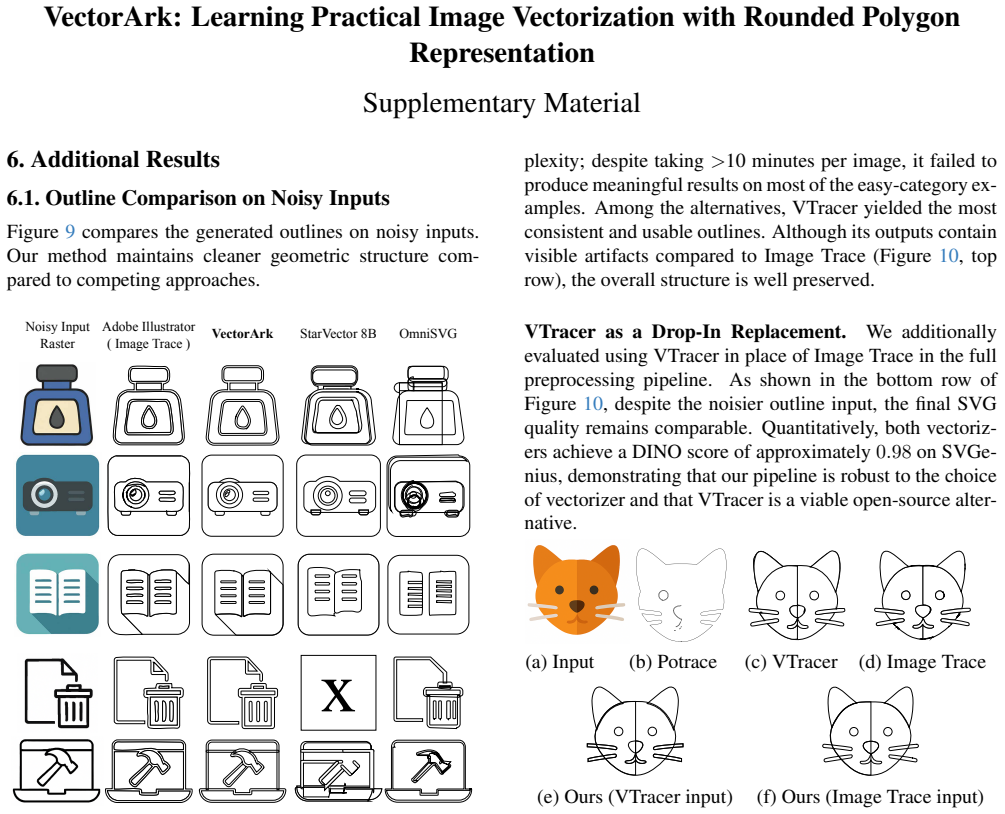

Figure 10. Figure 10: Vectorizer comparison and pipeline robustness on a [PITH_FULL_IMAGE:figures/full_fig_p010_10.png] view at source ↗
Figure 11

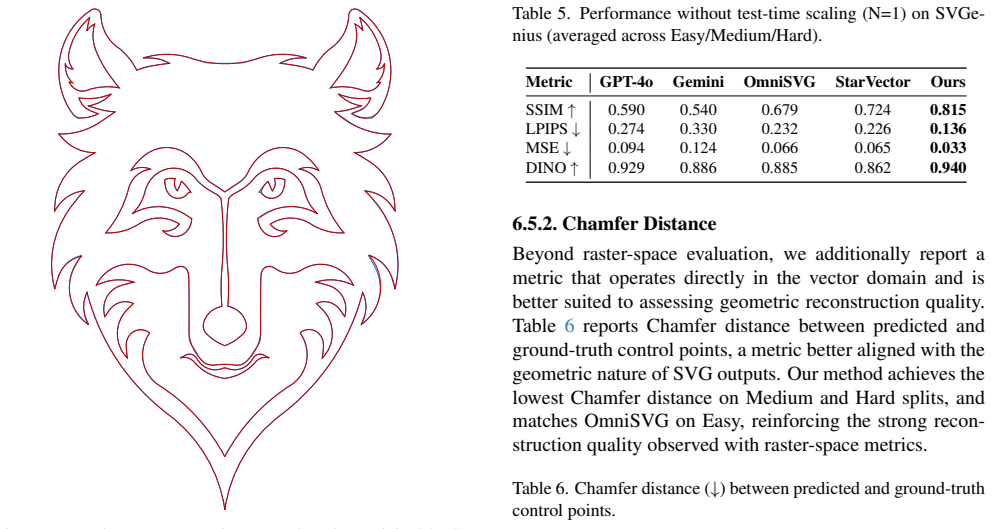

Figure 11. Figure 11: Intricate reconstruction example. Blue: original SVG; [PITH_FULL_IMAGE:figures/full_fig_p011_11.png] view at source ↗
Figure 12

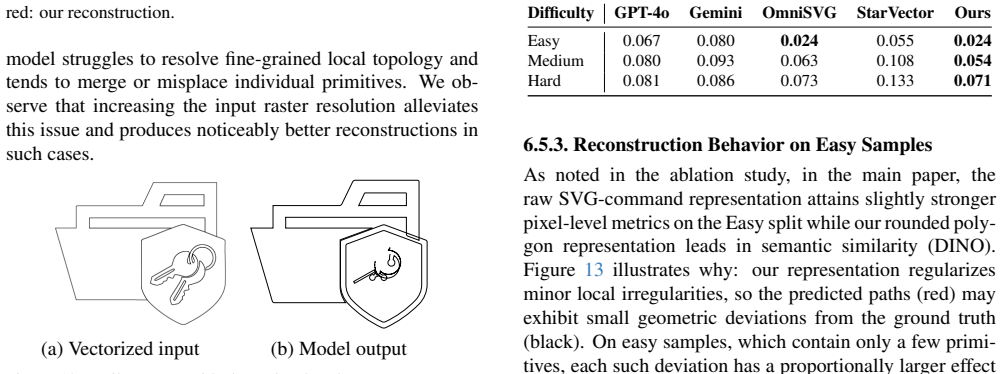

Figure 12. Figure 12: Failure case with dense local path structure concen [PITH_FULL_IMAGE:figures/full_fig_p011_12.png] view at source ↗
Figure 13

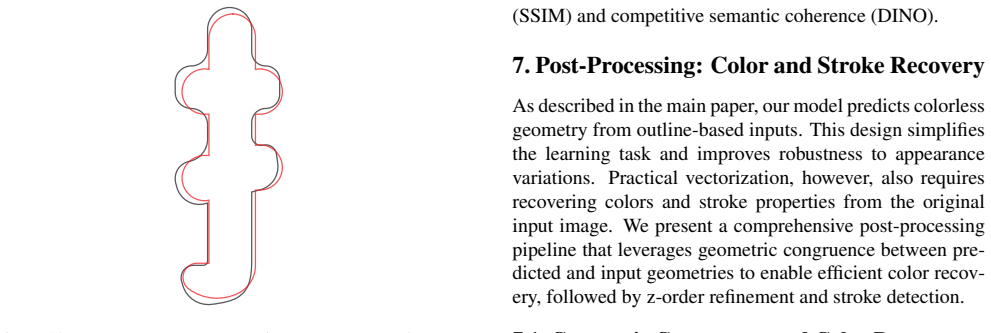

Figure 13. Figure 13: Easy-category reconstruction: our output (red) versus [PITH_FULL_IMAGE:figures/full_fig_p012_13.png] view at source ↗
