Bilateral Teleoperation with Compliant 6-DOF Pose-and-Force Sensing

Yue Feng , Weicheng Huang , I-Ming Chen This is my paper

Pith reviewed 2026-05-20 06:09 UTC · model grok-4.3

classification 💻 cs.RO
keywords bilateral teleoperationcompliant force sensingseries elastic actuatoradmittance controlimpedance controlnetwork delaypassivity6-DOF sensing
0
0 comments X

The pith

Mounting a low-cost compliant 6-DOF pose-and-force end-effector on both leader and follower turns standard manipulators into series elastic actuators for bilateral teleoperation.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper develops a bilateral teleoperation system that avoids expensive rigid force sensors by using a compliant 6-DOF pose-and-force sensing device called Delta6 mounted at the end of both the leader and follower arms. This configuration lets each manipulator function as a 6-degree-of-freedom series elastic actuator. Control is split into a damping-only admittance loop on the leader with a notch filter and a stiffness-damping impedance loop on the follower using a position-based outer loop. The design separates three time scales to work with different hardware and maintains stability during network delays and packet loss in experiments on Lite6 and FR3 arms running at 150 Hz.

Core claim

The central claim is that a Cartesian bilateral framework built around the Delta6 compliant end-effector mounted on both sides, combined with decoupled admittance and impedance control loops and the WinGs Operating Studio middleware, enables stable teleoperation that tracks virtual stiffness in contact and maintains passivity-like energy behavior under delays up to 120 ms and 1 percent packet loss.

What carries the argument

The Delta6 compliant 6-DOF pose-and-force sensing end-effector, which when mounted on a manipulator makes it behave as an end-effector 6-DOF series elastic actuator, carrying the argument by providing integrated sensing without rigid sensors.

If this is right

  • Stable tracking is achieved at 150 Hz under delays of 120±40 ms and 1% packet loss.
  • The system matches prescribed virtual stiffness during contact interactions.
  • Cumulative energy signatures remain favorable in passivity-style tests.
  • Heterogeneous arms can be driven by the same application due to explicit decoupling of hardware I/O, mid-rate loops, and low-rate messages.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • This hardware setup may lower barriers to entry for bilateral teleoperation by replacing costly six-axis force/torque sensors with a single compliant device.
  • The time-scale decoupling could extend to other networked robotic applications beyond teleoperation.
  • Testing on additional manipulator types without recalibration would further validate the hardware-agnostic claim.

Load-bearing premise

Mounting the Delta6 on both manipulators is enough to turn each into a 6-DOF series elastic actuator with no extra calibration or changes needed.

What would settle it

Running the system at 150 Hz with 120 ms delay and 1% loss and observing either instability, stiffness mismatch, or unfavorable energy accumulation would disprove the performance claims.

Figures

Figures reproduced from arXiv: 2605.19255 by I-Ming Chen, Weicheng Huang, Yue Feng.

Figure 1
Figure 1. Figure 1: Data pipeline of the bilateral leader–follower teleop [PITH_FULL_IMAGE:figures/full_fig_p002_1.png] view at source ↗
Figure 2
Figure 2. Figure 2: Kinematic composition operators ⊕ and ⊖: (a) geomet￾ric interpretation in SE(3); (b) shorthand used in the control diagrams. C. Three-Rate Decoupling Three time scales are intentionally separated. Hardware I/O inside WOS runs at the robot control frequency fc (typically several hundred Hz). The Cartesian admittance/impedance loops on the clients run at f L admt and f F impd (typically ∼150 Hz). Teleoperati… view at source ↗
Figure 3
Figure 3. Figure 3: Leader-side coordinate frames and Delta6 mounting on [PITH_FULL_IMAGE:figures/full_fig_p003_3.png] view at source ↗
Figure 4
Figure 4. Figure 4: Block diagram of the Delta6-based Cartesian admit [PITH_FULL_IMAGE:figures/full_fig_p003_4.png] view at source ↗

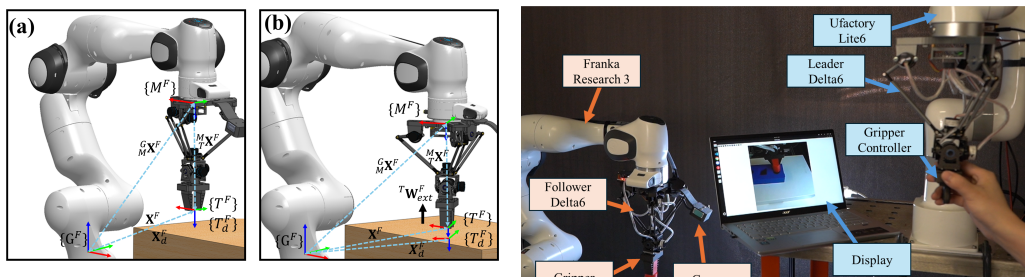

Figure 5
Figure 5. Figure 5: Follower-side coordinate frames and Delta6 mounting [PITH_FULL_IMAGE:figures/full_fig_p004_5.png] view at source ↗

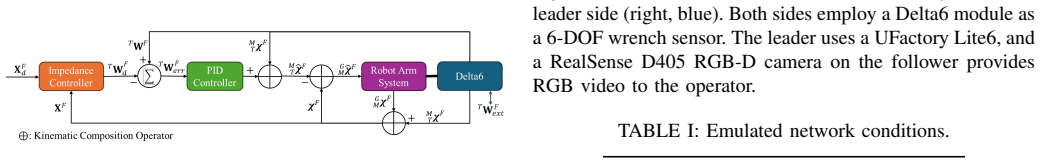

Figure 6
Figure 6. Figure 6: Block diagram of the Delta6-based Cartesian imped [PITH_FULL_IMAGE:figures/full_fig_p004_6.png] view at source ↗
Figure 9
Figure 9. Figure 9: Leader-side admittance Bode plots along z under different damping settings without notch filtering (λ = 0) [PITH_FULL_IMAGE:figures/full_fig_p005_9.png] view at source ↗
Figure 8
Figure 8. Figure 8: Setup for the leader-side dynamic response: the Delta6 [PITH_FULL_IMAGE:figures/full_fig_p005_8.png] view at source ↗
Figure 13
Figure 13. Figure 13: Setup for follower-side collision stability tests: a rigid [PITH_FULL_IMAGE:figures/full_fig_p006_13.png] view at source ↗
Figure 14
Figure 14. Figure 14: Follower-side collision response under two descent [PITH_FULL_IMAGE:figures/full_fig_p006_14.png] view at source ↗
Figure 15
Figure 15. Figure 15: Passivity-oriented bilateral teleoperation experiment [PITH_FULL_IMAGE:figures/full_fig_p007_15.png] view at source ↗

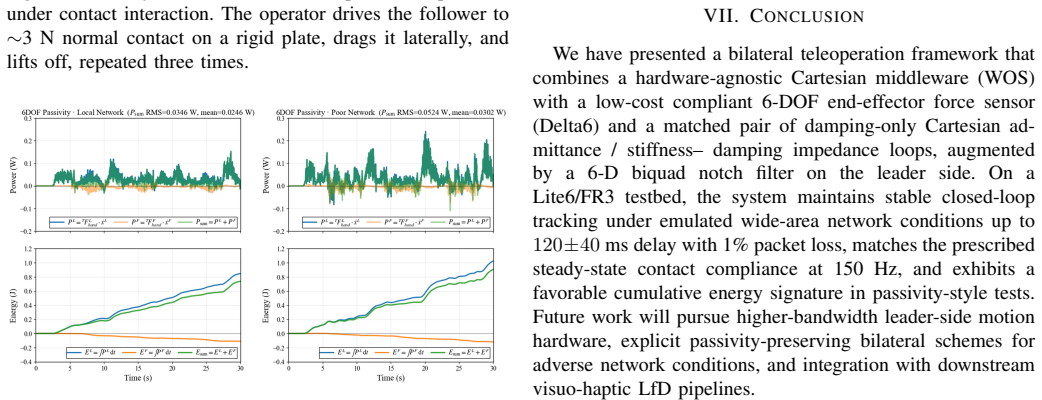

Figure 16
Figure 16. Figure 16: Power and energy analysis under Local and Poor network conditions. The cumulative energy Esum remains pos￾itive throughout, indicating that the injected operator energy consistently exceeds the extracted environment energy. throughout the interaction, primarily due to the relatively large leader-side admittance damping BL chosen for dissipation. The cumulative balance Esum remains positive over the entire… view at source ↗
read the original abstract

Existing bilateral teleoperation platforms still rely on costly rigid six-axis force/torque sensors, tightly coupled leader-follower hardware, and kilohertz control loops. We present a Cartesian bilateral framework built on the hardware-agnostic WinGs Operating Studio (WOS) middleware, in which a low-cost compliant 6-DOF pose-and-force sensing end-effector, Delta6, is mounted on both sides so that each manipulator behaves as an end-effector 6-DOF series elastic actuator (SEA). The leader runs a damping-only admittance loop with a 6-D biquad notch filter; the follower realizes a stiffness-damping impedance through a position-based outer loop with a PID wrench-to-pose mapping. Three time scales (hardware I/O, mid-rate impedance/admittance, low-rate teleoperation messages) are explicitly decoupled, enabling the same application to drive heterogeneous arms. On a Lite6/FR3 testbed at 150 Hz, the system tracks stably under delays up to $120\pm40$ ms and 1% packet loss, matches the prescribed virtual stiffness in contact, and shows a favorable cumulative energy signature in passivity-style tests.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

1 major / 2 minor

Summary. The paper presents a Cartesian bilateral teleoperation framework using WinGs Operating Studio middleware in which low-cost compliant 6-DOF pose-and-force sensing end-effectors (Delta6) are mounted on both leader (Lite6) and follower (FR3) manipulators. This mounting is stated to convert each arm into an end-effector 6-DOF series-elastic actuator. The leader implements a damping-only admittance controller with a 6-D biquad notch filter; the follower uses a position-based impedance loop with PID wrench-to-pose mapping. Three time scales are decoupled to support heterogeneous hardware. Experiments at 150 Hz report stable tracking for delays up to 120±40 ms with 1% packet loss, prescribed virtual stiffness matching in contact, and favorable cumulative energy signatures in passivity-style tests.

Significance. If the core assumption and experimental claims hold, the work would demonstrate a low-cost, middleware-mediated approach to bilateral teleoperation that tolerates realistic network delays and packet loss while achieving stiffness matching and passivity-like behavior without requiring matched rigid hardware or kilohertz loops. The explicit decoupling of hardware I/O, mid-rate control, and teleoperation messaging is a practical strength that could generalize to other heterogeneous arm pairs.

major comments (1)
  1. [Abstract and §3] Abstract and §3 (control architecture): the central claim that simply mounting the Delta6 sensor on each manipulator is sufficient to make the combined system behave as a 6-DOF series-elastic actuator without further calibration or dynamic compensation is load-bearing for the passivity and stiffness-matching guarantees. No derivation, effective-stiffness identification, or measurement isolating the Delta6 compliance from the arms' native joint stiffness, transmission compliance, and inertial dynamics is supplied; an external compliant sensor does not automatically place elasticity in series with the actuators.
minor comments (2)
  1. [Abstract] Abstract: quantitative performance metrics (RMS tracking error, stiffness error, energy integral values) with error bars or statistical summaries are referenced but not reported; these should be added to allow verification of the 'stable tracking' and 'favorable energy signature' statements.
  2. [§4] The description of the three decoupled time scales would benefit from an explicit timing diagram or table listing the rates and data exchanged at each level.

Simulated Author's Rebuttal

1 responses · 0 unresolved

We thank the referee for the constructive and detailed review. The major comment raises an important point about the modeling assumptions, which we address directly below with a commitment to strengthen the manuscript.

read point-by-point responses

  1. Referee: [Abstract and §3] Abstract and §3 (control architecture): the central claim that simply mounting the Delta6 sensor on each manipulator is sufficient to make the combined system behave as a 6-DOF series-elastic actuator without further calibration or dynamic compensation is load-bearing for the passivity and stiffness-matching guarantees. No derivation, effective-stiffness identification, or measurement isolating the Delta6 compliance from the arms' native joint stiffness, transmission compliance, and inertial dynamics is supplied; an external compliant sensor does not automatically place elasticity in series with the actuators.

    Authors: We agree that the manuscript would benefit from a clearer justification of the effective series-elastic behavior. The Delta6 is mounted at the end-effector, placing its calibrated compliance directly in the force path between the manipulator and the environment. While the arms exhibit their own joint and transmission compliance, the Delta6 is intentionally the dominant compliant element under the implemented admittance and impedance controllers. In the revised manuscript we will expand §3 with (i) a brief derivation of the combined end-effector stiffness matrix that treats the Delta6 compliance as the primary series element and (ii) new experimental results from static loading tests and frequency-response measurements that isolate the sensor contribution by comparing configurations with and without the Delta6. These additions will provide both analytical grounding and empirical isolation of the compliance, thereby supporting the passivity-style and stiffness-matching claims. revision: yes

Circularity Check

0 steps flagged

No significant circularity; claims rest on experimental outcomes

full rationale

The paper states that mounting Delta6 on both sides makes each arm behave as a 6-DOF SEA without further calibration, but this is presented as a hardware design choice rather than a derived result. No equations, parameter fits, or self-citation chains are shown that reduce the central claims (stability under delay, stiffness matching, passivity) back to their own inputs by construction. The abstract and description tie performance directly to testbed measurements at 150 Hz, with no load-bearing self-referential definitions or fitted inputs renamed as predictions. This is a self-contained experimental report against external benchmarks.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 0 invented entities

The central claims rest on standard control-theory assumptions about decoupled time scales and the unverified performance characteristics of the Delta6 sensor; no free parameters or new entities are explicitly introduced in the abstract.

axioms (1)
  • domain assumption Three distinct time scales (hardware I/O, mid-rate impedance/admittance, low-rate teleoperation) can be decoupled while preserving overall stability and performance.
    Invoked when stating that the same application can drive heterogeneous arms.

pith-pipeline@v0.9.0 · 5737 in / 1299 out tokens · 41730 ms · 2026-05-20T06:09:36.510272+00:00 · methodology
