Deep Convolutional Compression for Massive MIMO CSI Feedback

Qianqian Yang , Mahdi Boloursaz Mashhadi , Deniz G\"und\"uz This is my paper

Pith reviewed 2026-05-25 10:45 UTC · model grok-4.3

classification 💻 cs.IT cs.LGeess.SPmath.IT
keywords CSI feedbackmassive MIMOdeep learning compressionFDD systemschannel state informationconvolutional networksentropy codingrate distortion optimization
0
0 comments X

The pith

A fully convolutional network called DeepCMC compresses channel state information in FDD massive MIMO systems while jointly optimizing rate and reconstruction quality.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper introduces DeepCMC to address the high CSI feedback overhead that limits spectral efficiency in frequency division duplex massive MIMO. It builds a compression scheme from convolutional layers plus quantization and entropy coding blocks that works across different antenna and subchannel counts. The network is trained to minimize a cost that trades off the actual number of bits sent against the accuracy of the reconstructed channel matrix at the base station. Simulations indicate that this yields higher reconstruction quality than earlier methods at the same compression rate measured in bits per channel dimension.

Core claim

DeepCMC is a deep learning based channel state matrix compression scheme composed of convolutional layers followed by quantization and entropy coding that is fully convolutional for flexibility across system sizes and is trained to minimize a joint cost of compression rate and reconstruction quality, resulting in better performance than prior schemes at equivalent bits per channel dimension.

What carries the argument

DeepCMC, a fully convolutional architecture with quantization and entropy coding blocks that minimizes a rate-distortion cost function.

If this is right

  • Reconstruction quality of the channel state matrix improves at any fixed compression rate in bits per channel dimension.
  • The scheme applies without retraining to systems with different numbers of transmit antennas and sub-channels.
  • Joint optimization of rate and distortion produces a compression pipeline that accounts for the actual bits transmitted after entropy coding.
  • Lower feedback overhead becomes feasible while preserving the spatial multiplexing gains of massive MIMO.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The same architecture could be applied to compress other high-dimensional wireless signals such as beamforming vectors if the training data is adapted.
  • Hardware implementations would need to verify whether the quantization and entropy coding blocks run efficiently on resource-constrained user equipment.
  • Performance under channel aging or mobility would depend on how well the learned features generalize beyond the static simulation assumptions.

Load-bearing premise

The channel models and simulation parameters used for training and evaluation accurately represent the statistics of real-world wireless propagation environments.

What would settle it

Testing the trained DeepCMC model on measured real-world CSI traces from actual base station deployments instead of the simulated channels would show whether the reported quality gains persist.

Figures

Figures reproduced from arXiv: 1907.02942 by Deniz G\"und\"uz, Mahdi Boloursaz Mashhadi, Qianqian Yang.

Figure 1
Figure 1. Figure 1: The encoder/decoder architecture for the proposed CSI feedback compression scheme DeepCMC. [PITH_FULL_IMAGE:figures/full_fig_p003_1.png] view at source ↗
Figure 2
Figure 2. Figure 2: Feature encoder architecture. decoder includes three layers of convolutions (with the same kernel sizes as the encoder) and upsampling (in￾verse of the downsampling operation at the encoder). The decoder architecture also includes two residual blocks with shortcut connections that skip several layers with + denoting element-wise addition in [PITH_FULL_IMAGE:figures/full_fig_p003_2.png] view at source ↗
Figure 3

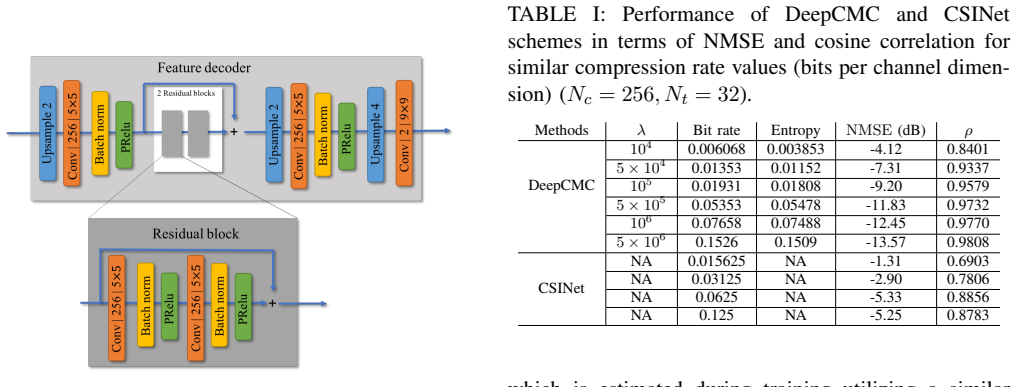

Figure 3. Figure 3: Feature decoder architecture. The entropy encoder converts the quantized values in M into bit streams using CABAC [10] based on the input probability model learned during training. Let s = fe−en(M, P) (6) denote the bit stream derived by passing M through the entropy coder, denoted by fe−en, where P is the probability density function, estimated during training, as it will be described later in the followi… view at source ↗
Figure 4
Figure 4. Figure 4: Bit rate-NMSE trade-off of DeepCMC vs. CSINet, Nc = 256, Nt = 32. the compression rate and the reconstruction loss. We evaluate both the average entropy of the quantized out￾puts of the feature encoder with the test CSI matrices as input, i.e., M, and the average number of actual bits sent by the user. The latter includes the length of the bit streams generated by the entropy encoder with M as the input an… view at source ↗
Figure 5
Figure 5. Figure 5: Bit rate-NMSE trade-off for different number of [PITH_FULL_IMAGE:figures/full_fig_p006_5.png] view at source ↗
read the original abstract

Coded caching provides significant gains over conventional uncoded caching by creating multicasting opportunities among distinct requests. Massive multiple-input multiple-output (MIMO) systems require downlink channel state information (CSI) at the base station (BS) to better utilize the available spatial diversity and multiplexing gains. However, in a frequency division duplex (FDD) massive MIMO system, the huge CSI feedback overhead becomes restrictive and degrades the overall spectral efficiency. In this paper, we propose a deep learning based channel state matrix compression scheme, called DeepCMC, composed of convolutional layers followed by quantization and entropy coding blocks. In comparison with previous works, the main contributions of DeepCMC are two-fold: i) DeepCMC is fully convolutional, and it can be used in a wide range of scenarios with various numbers of sub-channels and transmit antennas; ii) DeepCMC includes quantization and entropy coding blocks and minimizes a cost function that accounts for both the rate of compression and the reconstruction quality of the channel matrix at the BS. Simulation results demonstrate that DeepCMC significantly outperforms the state of the art compression schemes in terms of the reconstruction quality of the channel state matrix for the same compression rate, measured in bits per channel dimension.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

1 major / 2 minor

Summary. The paper proposes DeepCMC, a fully convolutional neural network for compressing the channel state information (CSI) matrix in FDD massive MIMO systems. The architecture consists of convolutional layers followed by quantization and entropy coding blocks. It is designed to handle varying numbers of transmit antennas and subcarriers, and optimizes a joint cost function that accounts for both the compression rate (in bits per channel dimension) and the reconstruction quality at the base station. The central empirical claim is that simulation results show DeepCMC significantly outperforms prior state-of-the-art compression schemes at equivalent compression rates.

Significance. The fully convolutional design and explicit inclusion of rate in the training objective are strengths that could make the approach more practical across different massive MIMO configurations. If the outperformance claim is supported by fair, identical-condition comparisons, the work would contribute to reducing CSI feedback overhead and improving spectral efficiency in FDD systems.

major comments (1)
  1. [Simulation results section] Simulation results section: the claim that DeepCMC 'significantly outperforms the state of the art' is load-bearing for the paper's contribution. The manuscript must explicitly state and demonstrate that all cited baselines were re-implemented and evaluated on the exact same channel realizations, antenna/subcarrier counts, correlation structure, and SNR regime used for DeepCMC; quoting previously published numbers obtained under different conditions would invalidate the comparison.
minor comments (2)
  1. [Abstract] The first sentence of the abstract ('Coded caching provides significant gains...') is unrelated to the paper topic and should be deleted.
  2. Clarify the precise definition of 'bits per channel dimension' and how normalization is performed when the number of antennas or subcarriers changes.

Simulated Author's Rebuttal

1 responses · 0 unresolved

We thank the referee for highlighting the importance of transparent and fair comparisons. We address the single major comment below and will revise the manuscript accordingly to strengthen the presentation of our results.

read point-by-point responses

  1. Referee: [Simulation results section] Simulation results section: the claim that DeepCMC 'significantly outperforms the state of the art' is load-bearing for the paper's contribution. The manuscript must explicitly state and demonstrate that all cited baselines were re-implemented and evaluated on the exact same channel realizations, antenna/subcarrier counts, correlation structure, and SNR regime used for DeepCMC; quoting previously published numbers obtained under different conditions would invalidate the comparison.

    Authors: We agree that the validity of the performance claims rests on identical evaluation conditions. All baselines cited in the paper were re-implemented by the authors and evaluated on the exact same channel realizations, antenna/subcarrier counts, correlation structure, and SNR regime as DeepCMC; no previously published numerical results were quoted. To make this explicit and address the referee's concern, the revised manuscript will include a new paragraph in the Simulation Results section that states these facts and briefly describes the re-implementation process for each baseline. revision: yes

Circularity Check

0 steps flagged

No circularity: empirical outperformance claim is independent of fitted inputs or self-citations.

full rationale

The paper proposes a new fully convolutional architecture (DeepCMC) with explicit quantization and entropy coding blocks, trained end-to-end on a joint rate-reconstruction cost. No equations, uniqueness theorems, or ansatzes are invoked that reduce the reported simulation gains to a self-definition, a fitted parameter renamed as a prediction, or a load-bearing self-citation chain. The performance comparison is presented as an external empirical result rather than a quantity forced by the model's own construction.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 0 invented entities

Only the abstract is available; therefore the ledger records the minimal domain assumptions required to interpret the performance claim.

axioms (1)
  • domain assumption Channel matrices used for training and testing follow the statistical distribution assumed in the simulations.
    Performance claims rest on generalization from simulated channels to real deployments.

pith-pipeline@v0.9.0 · 5751 in / 1214 out tokens · 41477 ms · 2026-05-25T10:45:17.684932+00:00 · methodology

discussion (0)

Sign in with ORCID, Apple, or X to comment. Anyone can read and Pith papers without signing in.

Reference graph

Works this paper leans on

15 extracted references · 15 canonical work pages · 2 internal anchors

  1. [1]

    An overview of limited feedback in wireless communication systems,

    D. J. Love, R. W. Heath, V . K. N. Lau, D. Gesbert, B. D. Rao, and M. Andrews, “An overview of limited feedback in wireless communication systems,” IEEE J. Sel. Areas Commun. , vol. 26, no. 8, pp. 1341–1365, Oct. 2008

    work page 2008

  2. [2]

    Channel state feedback schemes for multiuser MIMO-OFDM downlink,

    H. Shirani-Mehr and G. Caire, “Channel state feedback schemes for multiuser MIMO-OFDM downlink,” IEEE Trans. Commun., vol. 57, no. 9, pp. 2713–2723, Sep. 2009

    work page 2009

  3. [3]

    Compressive sensing based channel feedback protocols for spatially-correlated massive antenna arrays,

    P. Kuo, H. T. Kung, and P. Ting, “Compressive sensing based channel feedback protocols for spatially-correlated massive antenna arrays,” in IEEE Wireless Commun. and Netw. Conf. (WCNC), April 2012, pp. 492–497

    work page 2012

  4. [4]

    Distributed compressive CSIT estimation and feedback for FDD multi-user massive MIMO systems,

    X. Rao and V . K. N. Lau, “Distributed compressive CSIT estimation and feedback for FDD multi-user massive MIMO systems,” IEEE Transactions on Signal Processing , vol. 62, no. 12, pp. 3261–3271, June 2014

    work page 2014

  5. [5]

    Machine Learning in the Air

    D. G ¨und¨uz, P. de Kerret, N. D. Sidiropoulos, D. Gesbert, C. Murthy, and M. van der Schaar, “Machine learning in the air,” CoRR, vol. abs/1904.12385, 2019. [Online]. Available: http://arxiv.org/abs/1904.12385

    work page internal anchor Pith review Pith/arXiv arXiv 1904

  6. [6]

    Deep learning for massive MIMO CSI feedback,

    C.-K. Wen, W.-T. Shih, and S. Jin, “Deep learning for massive MIMO CSI feedback,” IEEE Wireless Commun. Lett. , vol. 7, no. 5, pp. 748–751, 2018

    work page 2018

  7. [7]

    MIMO channel information feedback using deep recurrent network,

    C. Lu, W. Xu, H. Shen, J. Zhu, and K. Wang, “MIMO channel information feedback using deep recurrent network,” IEEE Commun. Lett. , vol. 23, no. 1, pp. 188–191, Jan 2019

    work page 2019

  8. [8]

    Exploiting bi-directional channel reciprocity in deep learning for low rate massive mimo csi feedback,

    Z. Liu, L. Zhang, and Z. Ding, “Exploiting bi-directional channel reciprocity in deep learning for low rate massive mimo csi feedback,” IEEE Wireless Commun. Lett. , pp. 1–1, 2019

    work page 2019

  9. [9]

    Channel estimation for millimeter-wave massive MIMO with hybrid precoding over frequency-selective fading channels,

    Z. Gao, C. Hu, L. Dai, and Z. Wang, “Channel estimation for millimeter-wave massive MIMO with hybrid precoding over frequency-selective fading channels,” IEEE Communications Letters, vol. 20, no. 6, pp. 1259–1262, June 2016

    work page 2016

  10. [10]

    Context-based adap- tive binary arithmetic coding in the h. 264/avc video compres- sion standard,

    D. Marpe, H. Schwarz, and T. Wiegand, “Context-based adap- tive binary arithmetic coding in the h. 264/avc video compres- sion standard,” IEEE Trans. Circuits and Syst. for Video Tech. , vol. 13, no. 7, pp. 620–636, 2003

    work page 2003

  11. [11]

    Deep residual learning for image recognition,

    K. He, X. Zhang, S. Ren, and J. Sun, “Deep residual learning for image recognition,” in Proc. IEEE Int’l Conf. Comp. vision and pattern recognition (CVPR) , Las Vegas, NV , Jun. 2016, pp. 770–778

    work page 2016

  12. [12]

    Conditional probability models for deep image compression,

    F. Mentzer, E. Agustsson, M. Tschannen, R. Timofte, and L. Van Gool, “Conditional probability models for deep image compression,” in Proc. IEEE Int’l Conf. Comp. vision and pattern recognition (CVPR) , Salt Lake City, UT, Jun 2018, pp. 4394–4402

    work page 2018

  13. [13]

    Variational image compression with a scale hyperprior

    J. Ball ´e, D. Minnen, S. Singh, S. J. Hwang, and N. Johnston, “Variational image compression with a scale hyperprior,” arXiv: 1802.01436v2 [eess.IV] , May 2018

    work page internal anchor Pith review Pith/arXiv arXiv 2018

  14. [14]

    The COST 2100 MIMO channel model,

    L. Liu, C. Oestges, J. Poutanen, K. Haneda, P. Vainikainen, F. Quitin, F. Tufvesson, and P. D. Doncker, “The COST 2100 MIMO channel model,” IEEE Wireless Commun., vol. 19, no. 6, pp. 92–99, December 2012

    work page 2012

  15. [15]

    Impact of CSI feedback strategies on lte downlink and reinforcement learning solutions for optimal allocation,

    A. Chiumento, C. Desset, S. Pollin, L. Van der Perre, and R. Lauwereins, “Impact of CSI feedback strategies on lte downlink and reinforcement learning solutions for optimal allocation,” IEEE Trans. V ehicular Tech. , vol. 66, no. 1, pp. 550–562, Jan 2017

    work page 2017
