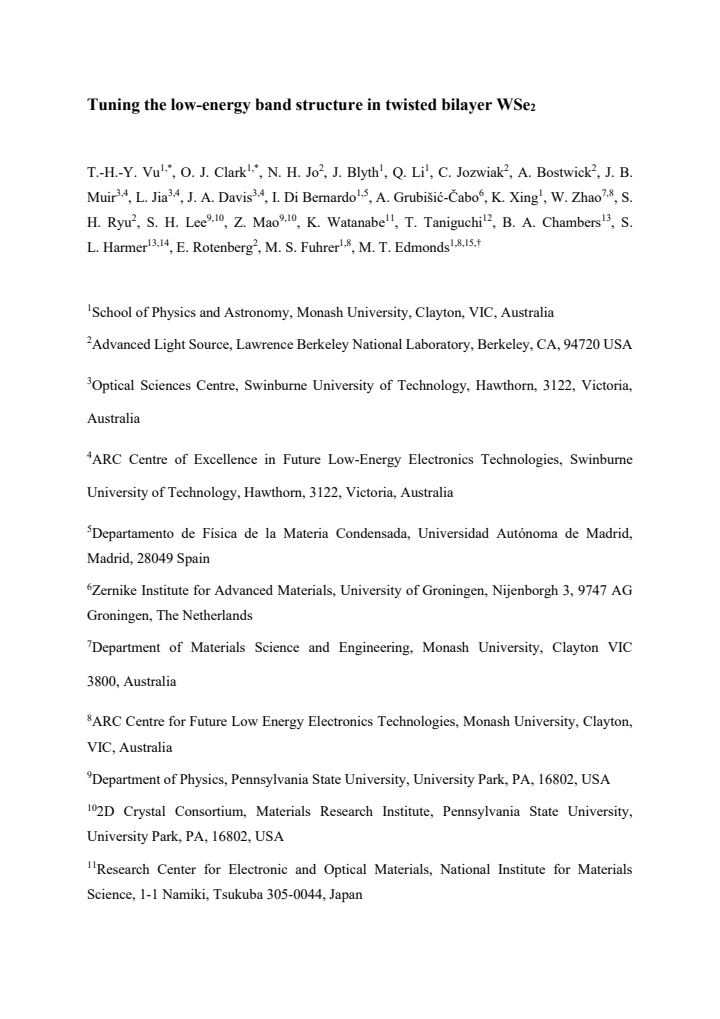

Tuning the low-energy band structure in twisted bilayer WSe2

T.-H.-Y. Vu , O. J. Clark , N. H. Jo , J. Blyth , Q. Li , C. Jozwiak , A. Bostwick , J. B. Muir
show 16 more authors
L. Jia J. A. Davis I. Di Bernardo A. Grubisic Cabo K. Xing W. Zhao S. H. Ryu S. H. Lee Z. Mao K. Watanabe T. Taniguchi B. A. Chambers S. L. Harmer E. Rotenberg M. S. Fuhrer M. T. Edmonds
This is my paper

Pith reviewed 2026-05-21 04:36 UTC · model grok-4.3

classification ❄️ cond-mat.mtrl-sci cond-mat.mes-hall
keywords twisted bilayer WSe2nano-ARPESvalence band tuningtwist anglehole bands at K and Γband gap controlelectron-phonon couplingtransition metal dichalcogenides
0
0 comments X

The pith

In twisted bilayer WSe2 the energy separation between hole bands at K and at Γ shifts by more than 100 meV as twist angle changes while momentum positions stay fixed.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper tracks the near-Fermi-level electronic structure of bilayer WSe2 across many twist angles using nano-ARPES. Momentum locations of the valence band maxima remain unchanged, yet the energy difference between the K-point hole bands and the deeper Γ-point band can be adjusted by over 100 meV. This control is explored for its effects on band-gap size and on spin-dependent electron-phonon coupling strength in homobilayer transition-metal dichalcogenide devices.

Core claim

While the momentum positioning of the valence band maxima is independent of twist angle, the energetic separation between the hole bands at the K point of the Brillouin zone and the higher binding-energy hole band at Γ can be varied in excess of 100 meV.

What carries the argument

Systematic nano-ARPES mapping of twist-angle evolution in the low-energy valence bands of homobilayer WSe2.

If this is right

  • The size of the band gaps in homobilayer WSe2 can be tuned through choice of twist angle.
  • The efficiency of spin-dependent electron-phonon coupling channels becomes adjustable.
  • Device performance in homobilayer transition metal dichalcogenides can be optimized by selecting appropriate twist angles.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The same twist-angle mechanism may allow comparable band tuning in other transition metal dichalcogenide homobilayers.
  • Precise twist control during device assembly could serve as a design parameter for balancing gap size against coupling strength.
  • Combining twist tuning with electrostatic gating might provide independent knobs for both gap magnitude and carrier density.

Load-bearing premise

The observed energy shifts arise purely from the controlled twist angle and are not dominated by uncontrolled variables such as local strain, substrate interactions, or sample inhomogeneity.

What would settle it

Observation of comparable energy variations in multiple samples that share the same nominal twist angle but differ in local strain or substrate would show that twist angle is not the controlling variable.

read the original abstract

Tuning the electronic structures of two-dimensional (2D) material-based heterostructures is of crucial importance for their use in functional next-generation electronics. Here, through angle-resolved photoemission spectroscopy with nanoscale spatial resolution (nano-ARPES), we systematically track the evolution of the near-Fermi-level electronic structure of bilayer WSe2 over a large range of twist angle. While the momentum positioning of the valence band maxima is independent of twist angle, we find that the energetic separation between the hole bands at the K point of the Brillouin zone and the higher binding-energy hole band at {\Gamma} can be varied in excess of 100 meV. We explore the mechanisms underpinning this evolution and discuss the implications for tuning both the size of the band gaps, and the efficiency of the spin-dependent electron-phonon coupling channels in homobilayer transition metal dichalcogenide devices.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

1 major / 2 minor

Summary. The manuscript reports nano-ARPES measurements tracking the near-Fermi-level electronic structure of twisted bilayer WSe2 across a wide range of twist angles. The momentum positions of the valence band maxima are found to be independent of twist angle, while the energetic separation between the K-point hole bands and the higher-binding-energy hole band at Γ varies by more than 100 meV. The authors discuss possible mechanisms for this evolution and its implications for tuning band gaps and spin-dependent electron-phonon coupling in homobilayer TMD devices.

Significance. If the reported >100 meV tuning of the K-Γ separation is robustly attributable to controlled twist angle rather than uncontrolled variables, the work would represent a useful experimental demonstration of band-structure engineering in twisted homobilayers. The nanoscale spatial resolution of the ARPES measurements is a methodological strength that enables local probing over a large twist-angle series. The result, if confirmed, would be of interest for 2D-material device design, though its impact is moderated by the need for clearer exclusion of alternative explanations such as strain.

major comments (1)
  1. [Results] The central claim that the K-Γ hole-band separation varies systematically by >100 meV due to twist angle requires that local strain, substrate interactions, and inhomogeneity are not dominant. The manuscript provides no independent strain quantification (e.g., Raman 2D-mode mapping or diffraction-based lattice constants) correlated with the twist-angle series, nor substrate-variation controls. This omission is load-bearing for attributing the observed shifts to twist angle alone.
minor comments (2)
  1. [Abstract] The abstract reports the 100 meV scale without accompanying error bars, sample statistics, or exclusion criteria; these should be included in the main text and figures to allow assessment of the observational robustness.
  2. Notation for the Γ-point band should be clarified consistently between text and figures to avoid ambiguity with the higher-binding-energy feature.

Simulated Author's Rebuttal

1 responses · 0 unresolved

We thank the referee for their careful reading of the manuscript and for identifying the need to more explicitly address potential confounding factors in attributing the observed K-Γ separation changes to twist angle. We respond to the major comment below.

read point-by-point responses

  1. Referee: [Results] The central claim that the K-Γ hole-band separation varies systematically by >100 meV due to twist angle requires that local strain, substrate interactions, and inhomogeneity are not dominant. The manuscript provides no independent strain quantification (e.g., Raman 2D-mode mapping or diffraction-based lattice constants) correlated with the twist-angle series, nor substrate-variation controls. This omission is load-bearing for attributing the observed shifts to twist angle alone.

    Authors: We agree that robust exclusion of alternative explanations is essential. All measurements in the twist-angle series were performed on samples prepared under identical conditions on the same SiO2/Si substrate, which controls for substrate-induced variations to first order. The nanoscale spatial resolution of the ARPES measurements (~100 nm) enables selection of locally uniform regions, mitigating inhomogeneity effects. Critically, the momentum positions of the K-point valence band maxima remain fixed across the full range of twist angles studied. This observation is inconsistent with dominant strain, which in TMD monolayers and bilayers typically produces measurable shifts in band dispersions and k-space locations. The >100 meV energetic shift is large, varies systematically with twist angle, and aligns with expectations from interlayer hybridization in twisted homobilayers. While independent Raman or diffraction-based strain mapping correlated to the exact ARPES locations is not available in the present dataset, we will revise the manuscript to add an explicit discussion section addressing strain, substrate, and inhomogeneity effects, including why the fixed momentum positions and systematic twist-angle dependence argue against these as dominant mechanisms. Relevant literature on strain-induced shifts in WSe2 will be cited to support this analysis. revision: yes

Circularity Check

0 steps flagged

No circularity: direct experimental measurement of twist-angle-dependent band shifts

full rationale

The paper reports nano-ARPES data tracking the valence-band maxima positions and K-Γ energetic separation in twisted bilayer WSe2 across a range of twist angles. The central claim (separation tunable by >100 meV) is presented as an observed experimental trend extracted from momentum-resolved spectra, with no intervening theoretical derivation, parameter fitting, or self-referential model that reduces the result to its own inputs by construction. No equations, ansatze, or uniqueness theorems are invoked that could create self-definition or fitted-input circularity. The work is therefore self-contained as a measurement campaign.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 0 invented entities

Review performed on abstract only; no explicit free parameters, invented entities, or non-standard axioms are stated. The measurement implicitly rests on the domain assumption that nano-ARPES faithfully reports intrinsic band dispersions.

axioms (1)
  • domain assumption nano-ARPES with nanoscale spatial resolution accurately maps near-Fermi-level valence bands in 2D heterostructures
    Central to the systematic tracking of twist-angle evolution described in the abstract.

pith-pipeline@v0.9.0 · 5803 in / 1335 out tokens · 52446 ms · 2026-05-21T04:36:17.266187+00:00 · methodology
