Sparse 3D Perception for Rose Harvesting Robots: A Two-Stage Approach Bridging Simulation and Real-World Applications

T0 review · 4 major / 5 minor · reviewed 2026-08-06 · deepseek-v4-flash

Challenge this review Re-run · record.json Download PDF Read on arXiv ↗

Pith's one-line read The paper argues that rose-harvesting robots can be guided by a synthetic-trained stereo pipeline that detects rose centers and estimates depth, removing the need for real 3D labels.

desk verdict Solid engineering and a useful synthetic dataset, but the sim-to-real bridge is asserted for depth, not measured, and the only real 2D comparison favors YOLOv5s. read the letter →

arxiv 2508.00900 v1 pith:SABZTYPH submitted 2025-07-28 cs.RO cs.AIcs.CV

Taha Samavati , Mohsen Soryani , Sina Mansouri This is my paper
classification cs.ROcs.AIcs.CV
keywords Damaskroseharvestingrobotsyntheticdatastereodepthestimationpoint-basedobjectdetection3Dlocalizationagriculturalroboticsdomaintransfer
verification ladder T0 review T1 audit T2 compute T3 formal

The pith

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The reading

The paper argues that a rose-harvesting robot can locate Damask rose centers in 3D from stereo RGB images without ever needing a labeled real-world depth dataset. The proposed pipeline detects flower centers as points in a three-channel heatmap (near, distant, background) and then estimates depth at those centers using a lightweight neural network, with a template-matching-and-triangulation alternative for comparison. All training uses a 1,000-sample photorealistic Blender dataset with precise 2D and 3D labels; only a small real stereo set with 2D labels is used for evaluation. The authors report 95.6% F1 on synthetic and 74.4% F1 on real images for 2D detection, and 3% depth error at a 2-meter range on synthetic data. The claim matters because synthetic pretraining plus a point-based stereo head could be a cheap, deployable route to precision harvesting, although the real-data detection gap and the absence of real depth labels define the open risk.

What carries the argument

The load-bearing object is the three-channel adaptive-Gaussian heatmap, which turns 2D detection into a dense point-prediction problem and encodes depth through kernel sharpness. The stereo depth decoder then reads the detected centers off a dense depth map produced from shared encoder features of the left and right images. Two-stage training (localizing first, freezing the detector, then training depth) and the custom sigmoid parameterization of the depth output are supporting mechanisms that stabilize learning.

What would settle it

Collect real rose-field stereo pairs with ground-truth depths (for example, from LiDAR or a rangefinder) across 0.5 to 6 meters, run the trained stereo deep and template-matching pipelines, and compare predicted versus measured depths; the central claim fails if the error at 2 meters is substantially above the reported roughly 6 to 8 centimeters or if real-data detection F1 does not approach the fine-tuned YOLOv5s baseline of 80.4.

Watch

Extended reading notes

Core claim

The paper's central claim is that point-based, sparse localization can be coupled with direct stereo depth regression so that both tasks share an encoder and are trained on synthetic data alone. The localization head is a U-Net-style decoder on an EfficientNetV2-S backbone that outputs three heatmap channels; ground-truth heatmaps are Gaussian peaks whose spatial extent shrinks with flower depth, so the network is encouraged to localize close flowers sharply. The stereo depth decoder receives features from both images, which lets correspondence happen implicitly, and is supervised only at flower centers by a smoothed L1 loss. On the synthetic test set, near-flower localization reaches about 95.5% F1 for the stereo model, and stereo deep depth error is 9.6 cm for near flowers versus 6 cm for template matching with triangulation; the authors express these as 5% and 3% relative errors at 2 meters. The paper's own comparison shows the point detector outperforms a fine-tuned YOLOv5s on synthetic data but trails it on real data (74-point versus 80-point F1), which the authors attribute to the domain gap in the synthetic training set.

Load-bearing premise

The load-bearing premise is that Blender-generated rose-farm images transfer to real fields for both detection and depth; the depth half of that transfer is never measured because the real dataset lacks depth labels.

Editorial extensions

If this is right

  • If the transfer claim holds, a rose-harvesting robot could be built with a cheap stereo camera and a model trained on Blender images, eliminating LiDAR and real 3D labeling cost.
  • The near/distant heatmap split means the system is explicitly optimized to grasp nearby blooms, which is the operationally relevant target for a robotic arm.
  • Because stereo deep regression beats template matching for distant flowers (13 cm versus 20 cm test L1 error) while template matching wins nearby (6 cm versus 9.6 cm), a hybrid matcher could widen the accurate picking range.
  • The compact models, under five million parameters, are offered as evidence that the pipeline can run on resource-constrained field hardware.

Reading between the lines

Editorial extensions of the paper, not claims the author makes directly.

  • A decisive test the paper leaves undone is measuring real depth: recording LiDAR or manual distances for a subset of the real stereo pairs and comparing the stereo network's predictions would directly test the sim-to-real depth transfer that the title promises.
  • The reported real-data result suggests the point-based detector's advantage is environment-specific; combining its heatmap head with a stronger feature extractor or adding a small amount of real labeled imagery to training could close the six-point real F1 gap.
  • The adaptive-Gaussian heatmap that encodes depth-dependent sharpness could be reused for other sparse grasping targets, such as stems, fruit peduncles, or flower buds, not just rose centers.
  • Because template matching and deep stereo fail in complementary ranges, a confidence-based selector between the two depth estimates is a natural next system-level improvement.
Share X Bluesky LinkedIn Reddit HN

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, and a circularity audit.

Referee Report

4 major / 5 minor

Summary. The paper proposes a two-stage pipeline for sparse 3D localization of rose centers in agricultural robotics: a point-based 2D detector (U-Net-like architecture with an EfficientNetV2-S encoder) followed by depth estimation, implemented in monocular and stereo variants and compared with a template-matching triangulation baseline. Training relies on a synthetic Blender-generated rose-farm dataset with dense 2D/3D annotations, while a small real-world stereo dataset with 2D-only labels is used for evaluation. The authors report high synthetic F1 scores and depth errors of 3–8% at 2 m range, and they claim that the approach bridges the simulation-to-real domain gap for 3D perception.

Significance. If fully supported, the paper would offer a practical recipe for training agricultural 3D perception systems entirely on synthetic data with minimal real annotation. The Blender-based synthetic dataset with precise 2D/3D labels and the point-based detection formulation are potentially reusable contributions. However, the two load-bearing claims are not established: real-world 3D localization accuracy is never measured, and the paper's own real-world 2D comparison shows a fine-tuned YOLOv5s baseline outperforming the proposed detector. The headline numbers in the abstract are also not consistently recoverable from the reported tables. With these gaps, the contribution reduces to a synthetic-only depth-estimation study whose real-world transfer remains unvalidated.

major comments (4)
  1. [Abstract; Tables 2–3; Table 10] The abstract's headline F1 of 95.6% (synthetic) cannot be recovered from the per-category results in Tables 2 and 3: monocular near/distant F1 are 96.6/96.3 and stereo near/distant are 95.5/99.8, and no listed averaging procedure produces 95.6. Likewise, the abstract's 74.4% (real) is the stereo near-flower F1 from Table 3, while the monocular near-flower F1 is 78.0 and the fine-tuned YOLOv5s baseline in Table 10 achieves 80.4; the claimed 'superiority of our method' is therefore not supported by the paper's own real-data comparison.
  2. [Sections 3.2 and 5.7; abstract] The paper never evaluates depth estimation on real-world data: Section 3.2 states that 'the depth of flower centers was not recorded' in the real dataset, and Section 5.7 excludes real-world depth metrics 'due to the absence of acquired depth ground-truth for real-world data.' The abstract's '3% at a 2-meter range' is a synthetic-only result (Table 5, NCCoef near flowers). Since the title and abstract claim a bridge from simulation to real-world applications and the paper's central contribution is 3D localization, this missing measurement leaves the key claim unsupported.
  3. [Section 5.2; Tables 3 and 9] The 'hit rate' of 100% reported for the proposed stereo methods in Table 9 is inconsistent with the recall values in Table 3 (97.6% for near flowers in both stereo rows), and Section 5.2 does not define 'hit rate' as a metric. The comparison table also mixes F1, mAP, and hit rate across studies without a clear common basis; the paper should either reconcile these numbers or remove the comparison.
  4. [Sections 5.5–5.6 and Table 5] The abstract credits the 'lightweight deep neural network' with the 3% depth error at 2 m, but Table 5 shows that 0.06 m (3%) is the template-matching baseline (NCCoef), not the deep stereo network, whose near-flower error is 0.096 m (4.8%). The deep method is superior to template matching only for distant flowers (0.13 m vs 0.20 m); the framing of the results should be corrected to attribute the headline figure to the appropriate method.
minor comments (5)
  1. [Section 5.8, Table 7] The inference times for 3D monocular are reported as 211 ms (CPU) and 893 ms (GPU); since GPU inference should be faster, these values are likely swapped or mislabeled.
  2. [Section 2.3] Several typos appear in the related-work section, including 'localizae' and 'by appying'; the text needs copyediting.
  3. [Equation (12)] The caption reads 'Bounding box size (pixles)' — typo — and the heuristic '60/depth' is introduced without motivation or sensitivity analysis.
  4. [Section 5.2] The confidence threshold of 0.51 and the ±5-pixel spatial tolerance for true positives are presented without justification or an ablation study.
  5. [Reference [43]] The Blender citation lacks publication year or last-updated date; please complete the reference.

Circularity Check

0 steps flagged · score 0.0 of 10

No circularity: the reported detection and depth numbers are measured outputs on held-out data, not fitted inputs renamed as predictions; the absent real-world depth validation is a generalization gap, not circular reasoning.

full rationale

The paper's derivation chain is not self-referential. The synthetic dataset (Section 3.1) provides independent ground-truth 2D/3D coordinates; the proposed models are trained on the 70% training split and evaluated on a held-out 15% test split (Section 3.3.1). The depth errors in Tables 4-6 are computed by comparing network outputs with ground-truth labels; they are not constants encoded in the loss functions (Eqs. 4-6) or in the network architecture. The stereo triangulation formula depth = b × f / disparity (Eq. 10) is a standard physical relation, not a fitted identity. The abstract's '3% at 2-meter range' corresponds to the NCCoef near-flower L1 error of 0.06 m in Table 5, which is a measured result on the synthetic test set and not derivable from the inputs by construction. The real-world limitation is explicit and non-circular: Section 3.2 states 'the depth of flower centers was not recorded,' and Section 5.7 reports that 'real-world performance metrics are excluded due to the absence of acquired depth ground-truth for real-world data.' This means the sim-to-real 3D claim is under-validated, but under-validation is an external-validity problem, not circularity. The paper contains no load-bearing self-citations or imported uniqueness theorems; it cites standard tools and benchmark studies. Even the real-data 2D comparison (Table 10) favors fine-tuned YOLOv5s over the proposed detectors, which is unfavorable external evidence rather than a self-confirming reduction. No step in the paper equates a prediction to its input by definition, so the circularity score is zero.

Assumptions & free parameters 8 free parameters · 6 assumptions · 0 invented entities

The paper's quantitative claims rest on a set of tuned hyperparameters (distance threshold, depth scaling, sigmoid parameters, confidence and tolerance for evaluation, template size, class weights) and on assumptions that the Blender renderings are photorealistic enough for transfer, that rectified stereo geometry holds, and that the +/-5 pixel/0.51 threshold protocol captures harvesting-relevant accuracy. No datasets or code are released, and real depth labels are absent.

free parameters (8)
  • Near/distant distance threshold tau = 2 m
    Section 3.3, classifies roses as near or distant; directly defines the 'near flower' category used in all reported F1 and depth error values.
  • Depth scaling factor alpha = 1/8
    Section 3.3, applied to depth labels to stabilize training; defines the network's output space.
  • Custom sigmoid shift and scale = (x-5)/2
    Eq. (1), chosen to constrain depth predictions to a reasonable range; affects all depth estimates.
  • Confidence threshold = 0.51
    Section 5.2, a detection is positive if its heatmap value exceeds this threshold; no precision-recall curve is reported.
  • Spatial tolerance for true positives = +/-5 pixels
    Section 5.2, evaluation criterion; changing this window changes all reported precision, recall, and F-score values.
  • Template size for NCC matching = 32x32 pixels
    Section 4.2.1, patch size for stereo correspondence in the template matching method.
  • Class weights in weighted cross-entropy loss = Not specified
    Section 4.1.3, weights for background, near, and distant classes are mentioned but their values are not reported, yet they directly affect detection results.
  • Bounding box heuristic for YOLOv5 comparison = size = 60 / depth
    Eq. (12), programmatically generated bounding box dimensions for the YOLOv5 baseline comparison; choice affects the reported IoU-based accuracy.
assumptions (6)
  • standard math Pinhole stereo triangulation: depth = b*f/disparity
    Eq. (10), the basis of the template matching depth estimates and of the stereo rig geometry.
  • domain assumption Cameras form a rectified parallel stereo pair with the parameters in Table 1
    Section 4.2.1 constrains correspondence search to horizontal scanlines; if rectification is imperfect, the matching and triangulation errors grow.
  • domain assumption Blender synthetic renderings are photorealistic and representative of real rose farms
    Section 3.1 assumes the synthetic data supports transfer; Section 6.1 acknowledges missing real conditions such as motion blur, focus issues, and limited 3D model diversity.
  • ad hoc to paper Heatmap peaks within +/-5 pixels with confidence over 0.51 count as correct detections
    Section 5.2 defines the evaluation metric; it is an author-chosen tolerance rather than an externally standardized metric for flower detection.
  • domain assumption Pretrained ImageNet weights transfer to rose heatmap detection and depth estimation
    Section 4.1.1 initializes the encoder with ImageNet weights; this is a common but unverified assumption for the synthetic rose domain.
  • domain assumption Depth supervision at flower center pixels is sufficient to learn usable depth for those centers
    Section 4.1.3 and the discussion note that depth predictions for non-flower regions are unreliable, which is acceptable only if the robot never needs depth outside flower centers.

how reviews work

0 comments
Cite this review

Pith. "Pith review of Sparse 3D Perception for Rose Harvesting Robots: A Two-Stage Approach Bridging Simulation and Real-World Applications." pith.science (2026). https://pith.science/paper/SABZTYPH

@misc{pith2026250800900,
  author       = {Pith},
  title        = {Pith review of: Sparse 3D Perception for Rose Harvesting Robots: A Two-Stage Approach Bridging Simulation and Real-World Applications},
  year         = {2026},
  howpublished = {\url{https://pith.science/paper/SABZTYPH}},
  note         = {Machine review of arXiv:2508.00900}
}
read the original abstract

The global demand for medicinal plants, such as Damask roses, has surged with population growth, yet labor-intensive harvesting remains a bottleneck for scalability. To address this, we propose a novel 3D perception pipeline tailored for flower-harvesting robots, focusing on sparse 3D localization of rose centers. Our two-stage algorithm first performs 2D point-based detection on stereo images, followed by depth estimation using a lightweight deep neural network. To overcome the challenge of scarce real-world labeled data, we introduce a photorealistic synthetic dataset generated via Blender, simulating a dynamic rose farm environment with precise 3D annotations. This approach minimizes manual labeling costs while enabling robust model training. We evaluate two depth estimation paradigms: a traditional triangulation-based method and our proposed deep learning framework. Results demonstrate the superiority of our method, achieving an F1 score of 95.6% (synthetic) and 74.4% (real) in 2D detection, with a depth estimation error of 3% at a 2-meter range on synthetic data. The pipeline is optimized for computational efficiency, ensuring compatibility with resource-constrained robotic systems. By bridging the domain gap between synthetic and real-world data, this work advances agricultural automation for specialty crops, offering a scalable solution for precision harvesting.

Figures

Figures reproduced from arXiv: 2508.00900 by the authors.

Figure 1
Figure 1. A sample damask rose farm [1]. Recent advances in artificial intelligence and its widespread applications in computer vision have enabled depth estimation and 3D environmental understanding using two cameras or even a single camera. This can address the need for optimizing LiDAR and depth sensors, potentially reducing costs and ameliorating challenges such as predicting the depth of hidden parts of objects. This stu… view at source ↗

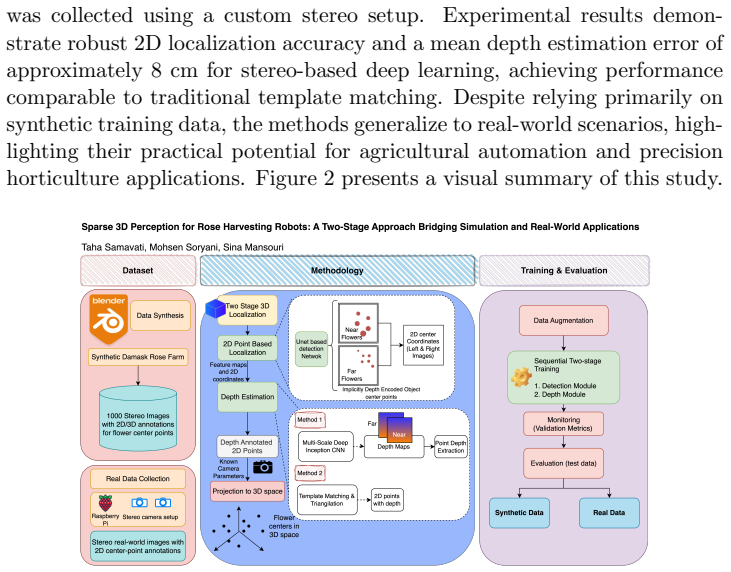

Figure 2
Figure 2. A visual summary of the study. 2. Related works 2.1. Object Detection Object detection is a critical area in computer vision and robotics, es￾sential for robots to perceive and interact with their environment. Visual perception, particularly object detection, provides robots with the necessary information to understand and manipulate their surroundings. For exam￾ple, in flower-picking tasks, 3D spatial information a… view at source ↗
Figure 3
Figure 3. Two samples of synthetic images. Each data sample includes stereo RGB images, the 2D location of the flower centers in the images, the 3D location of the flower centers, and the corresponding depth maps as labels. Ground truth heatmaps were generated by convolving 2D flower center coordinates with adaptive Gaussian kernels, where the spatial extent (sigma) of each kernel was inversely proportional to the flower’s de… view at source ↗
Figures from the paper (21 more)
Figure 4
Figure 4. Figure 4: Two samples of rose images collected by a stereo camera. The left and right [PITH_FULL_IMAGE:figures/full_fig_p010_4.png]
Figure 5
Figure 5. Figure 5: Demonstration of the labeling process of real data. [PITH_FULL_IMAGE:figures/full_fig_p010_5.png]
Figure 6
Figure 6. Figure 6: The distribution of distances between the left camera’s center and flower centers [PITH_FULL_IMAGE:figures/full_fig_p011_6.png]
Figure 7
Figure 7. Figure 7: An overview of the proposed monocular deep learning based model for 3D [PITH_FULL_IMAGE:figures/full_fig_p012_7.png]
Figure 8
Figure 8. Figure 8: Plot of the loss function for depth estimation. [PITH_FULL_IMAGE:figures/full_fig_p014_8.png]
Figure 9

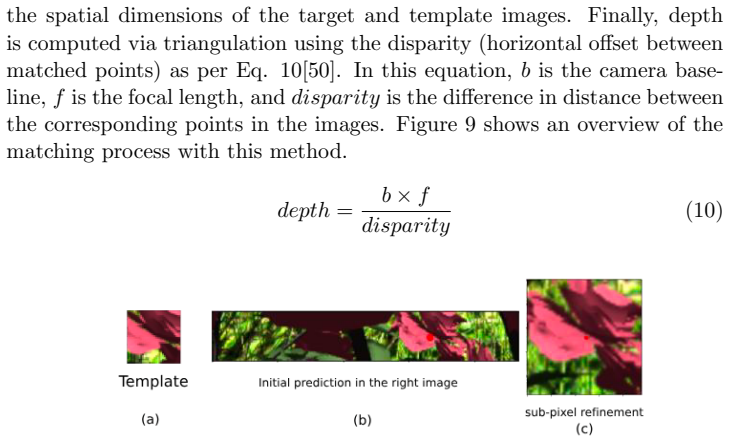

Figure 9. Figure 9: An overview of the template matching process from the left camera image to [PITH_FULL_IMAGE:figures/full_fig_p016_9.png]
Figure 10
Figure 10. Figure 10: Structure of the proposed deep learning-based model for the stereo method. [PITH_FULL_IMAGE:figures/full_fig_p017_10.png]
Figure 11
Figure 11. Figure 11: 2D localization and depth estimation loss values during model training. The [PITH_FULL_IMAGE:figures/full_fig_p018_11.png]
Figure 12
Figure 12. Figure 12: 2D localization and depth estimation loss values during model training. The [PITH_FULL_IMAGE:figures/full_fig_p019_12.png]
Figure 13
Figure 13. Figure 13: (left): The training L1 error of the monocular depth estimation module, cate [PITH_FULL_IMAGE:figures/full_fig_p021_13.png]
Figure 14
Figure 14. Figure 14: The training and test L1 errors of the stereo depth estimation module using [PITH_FULL_IMAGE:figures/full_fig_p022_14.png]
Figure 15
Figure 15. Figure 15: The L1 error of the proposed deep stereo depth estimation module for various [PITH_FULL_IMAGE:figures/full_fig_p023_15.png]
Figure 16
Figure 16. Figure 16: An example of the template matching error. The black point indicates the [PITH_FULL_IMAGE:figures/full_fig_p025_16.png]
Figure 17
Figure 17. Figure 17: Qualitative comparison of rose detection on synthetic (left) and real-world [PITH_FULL_IMAGE:figures/full_fig_p027_17.png]
Figure 18
Figure 18. Figure 18: Monocular deep learning model results on synthetic data: 2D localization [PITH_FULL_IMAGE:figures/full_fig_p028_18.png]
Figure 19
Figure 19. Figure 19: Four examples of monocular 2D localization and depth estimation results on [PITH_FULL_IMAGE:figures/full_fig_p029_19.png]
Figure 20
Figure 20. Figure 20: Stereo-based deep learning model results on synthetic data: 2D localization and [PITH_FULL_IMAGE:figures/full_fig_p029_20.png]
Figure 21
Figure 21. Figure 21: Four real-data examples of 2D detection (near/distant flowers) and depth [PITH_FULL_IMAGE:figures/full_fig_p030_21.png]
Figure 22
Figure 22. Figure 22: An example of depth estimation using the template matching method. White [PITH_FULL_IMAGE:figures/full_fig_p031_22.png]
Figure 23
Figure 23. Figure 23: An example of misclassification of a flower in real data. [PITH_FULL_IMAGE:figures/full_fig_p032_23.png]
Figure 24
Figure 24. Figure 24: This plot shows the 3D coordinates of flower center points for three synthetic [PITH_FULL_IMAGE:figures/full_fig_p033_24.png]
