This paper introduces the wa-hls4ml dataset of 683,176 fully synthesized neural networks and shows that GNN- and transformer-based surrogate models predict FPGA resource usage and latency within a few percent on the synthetic test set, redu

Reviewed by Pith at T0; open to challenge. T0 means a machine referee read the full paper against a public rubric. the ladder, T0–T4 →

Challenge this review Re-run · record.json Download PDF Read on arXiv ↗

T0 review · deepseek-v4-flash

2026-08-03 23:38 UTC pith:SH6ILEYE

load-bearing objection Large, open hls4ml synthesis dataset and a reasonable benchmark package; the abstract overstates the surrogate accuracy and Table 4 has at least one implausible value. the 4 major comments →

arxiv 2511.05615 v1 pith:SH6ILEYE submitted 2025-11-06 cs.LG cs.AIcs.ARphysics.ins-det

wa-hls4ml: A Benchmark and Surrogate Models for hls4ml Resource and Latency Estimation

Benjamin Hawks , Jason Weitz , Dmitri Demler , Karla Tame-Narvaez , Dennis Plotnikov , Mohammad Mehdi Rahimifar , Hamza Ezzaoui Rahali , Audrey C. Therrien
show 8 more authors
Donovan Sproule Elham E Khoda Keegan A. Smith Russell Marroquin Giuseppe Di Guglielmo Nhan Tran Javier Duarte Vladimir Loncar
This is my paper
classification cs.LG cs.AIcs.ARphysics.ins-det
keywords surrogate modelFPGAhls4mlresource estimationlatency estimationhigh-level synthesisgraph neural networktransformer
verification ladder T0 review T1 audit T2 compute T3 formal T4 reserved

The pith

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The authors are trying to establish that a large open dataset of fully synthesized neural network designs, together with graph- and attention-based surrogate models, can make FPGA resource and latency estimation nearly instantaneous and accurate for in-distribution architectures. They build wa-hls4ml, a benchmark containing over 680,000 hls4ml-synthesized fully-connected and convolutional networks targeting Xilinx FPGAs, and train GNN and transformer surrogates on per-layer features. On the synthetic test set, these models generally predict resources and latency within a few percent of the post-logic-synthesis ground truth, for example the transformer achieves 2.9 percent SMAPE for flip-flops and lookup tables and an R² of 0.95 for clock cycles. The authors also show, through seven exemplar scientific models, that accuracy degrades markedly outside the training distribution, often worse than predicting the mean, which they attribute to limited architectural diversity in the dataset. A sympathetic reader would care because this is a concrete path to compressing the FPGA codesign loop from hours to seconds, with a public resource for further work.

Core claim

The central claim is that resource and latency outcomes of hls4ml logic synthesis can be predicted from a per-layer description of the neural network architecture without running synthesis. The authors represent each layer as a node with an 18-dimensional feature vector—input/output dimensions, precision, reuse factor, strategy, layer/activation type, filters, kernel size, stride, padding, batch normalization, and I/O type—and connect nodes along the sequential dataflow. A GATv2-based graph neural network and a transformer trained on 683,176 synthesized samples achieve the stated few-percent accuracy on the synthetic test set, while the included exemplar models reveal that this representatio

What carries the argument

The key machinery is the per-layer 18-dimensional feature vector plus the network-as-graph encoding, processed by a five-layer GATv2 graph attention network or a two-block transformer with a [CLS] token. The GNN's attention weights dynamically determine which layer relationships matter, and learnable pooling—additive, mean, and max—aggregates node embeddings into a graph-level prediction of six targets: LUTs, FFs, DSPs, BRAM, latency cycles, and initiation interval. The transformer treats each layer as a token with positional encoding and uses the [CLS] output to regress the same six targets.

Load-bearing premise

That each layer's local attributes and the sequential order of layers fully determine the post-synthesis resource and latency counts, so a model trained on those features can predict unseen architectures; the exemplar results show this premise weakens outside the training distribution.

What would settle it

Synthesize a neural network with a skip connection or other cross-layer interaction that is absent from the training set, run the surrogate, and compare predictions against actual logic synthesis; if the error substantially exceeds the few-percent accuracy reported on the synthetic test set, the claim that the per-layer feature representation suffices is falsified.

Watch this falsifier — get emailed when new claim-graph text bears on it.

If this is right

  • If a designer's target architecture is in-distribution, surrogate predictions within a few percent let them evaluate design alternatives in seconds rather than hours, without running synthesis.
  • The open benchmark and standardized metrics (R², SMAPE, RMSE, RPE box plots) give the community a common ground for comparing future resource and latency estimators.
  • The dataset's full synthesis artifacts—HLS code, intermediate representations, reports, and logs—support downstream tasks beyond regression, such as code- and IR-driven learning and LLM-based HLS assistants.
  • The authors' own exemplar results imply that broader architectural diversity, not just more samples, is needed for surrogates to generalize to realistic scientific models.
  • Extending the dataset with skip connections, larger reuse ranges, and more target boards is the stated direction for closing the exemplar gap.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The sharp exemplar drop suggests the 18-dimensional local feature vector omits cross-layer interactions such as skip connections and layer fusion that materially change synthesis outcomes; adding explicit graph-level or pairwise features would be a testable fix.
  • Because the dataset stores the full hls4ml project for every sample, the same prediction problem can be re-targeted to other high-level synthesis tools or FPGA families by re-synthesizing a subset, making the benchmark portable.
  • While generalization improves, a practical workaround is to use the surrogate only for early design-space pruning and verify the final candidate with a real synthesis run.
  • The negative R² values on several exemplar metrics, such as the Quarks model, imply that current surrogates are worse than predicting the dataset mean for those cases, so users should not trust them outside the synthetic distribution without additional validation.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit.

Referee Report

4 major / 3 minor

Summary. The paper introduces wa-hls4ml, an open benchmark and dataset of 683,176 hls4ml-synthesized neural networks (fully connected, 1D/2D convolutional) targeting Xilinx FPGAs, with train/validation/test splits of 478,220/102,472/102,484 samples plus 887 exemplar samples from scientific applications. It defines evaluation metrics (R^2, SMAPE, RMSE, RPE) and presents three surrogate models: a rule4ml-style MLP baseline, a GATv2-based GNN, and a small transformer, each predicting BRAM, DSP, FF, LUT, clock cycles, and initiation interval. The test-set results show strong in-distribution performance for several targets (e.g., transformer R^2 = 0.95 for cycles and II), while exemplar results show substantial degradation. The abstract claims the models 'generally predict latency and resources for the 75% percentile within several percent' on the synthetic test set.

Significance. The dataset and benchmark, if adopted, are a genuinely useful community resource: the scale (683k fully synthesized samples), the open release of full synthesis projects/logs, and the explicit exemplar-based evaluation of distribution shift are all strengths. The GNN and transformer surrogates are reasonable first attempts and show promising in-distribution results on several targets. However, the paper's headline accuracy claim overstates what the reported metrics support, and several evaluation inconsistencies affect the comparability of the results. The benchmark contribution is likely significant; the surrogate-model evaluation needs to be tightened before the paper can be accepted.

major comments (4)
  1. [Abstract; §5.2; Eq. (2)] The central claim that the models 'generally predict latency and resources for the 75% percentile within several percent' is not supported by Table 4. Mean SMAPE values on the synthetic test set are 10–20% for most metrics (GNN: BRAM 19.5%, DSP 15.1%, FF 11.6%, LUT 11.4%, Cycles 15.7%, II 13.4%; transformer: BRAM 14.1%, DSP 10.8%, Cycles 10.1%, II 14.1%). Only transformer FF/LUT are near 2.9%. If the claim is based on the 75th percentile of RPE, the paper must report those quantile values directly; the box plots alone do not permit numerical verification. Moreover, Eq. (2) and Eq. (4) add 1 to the denominator, so the reported 'percentages' are not standard relative errors and can be materially smaller than true percentage errors for small resources such as BRAM. The abstract should be revised to match the reported metrics or supplemented with exact quantile evidence.
  2. [§2 (Dataset split)] The manuscript does not state whether the train/validation/test split is performed at the sample level or at the level of distinct model architectures. Since §2.1.1 explains that each architecture is synthesized multiple times with different reuse factors, a sample-level random split can place near-duplicate architectures in both training and test sets, potentially inflating the in-distribution test metrics in Table 4. Please specify the split procedure explicitly and, ideally, report additional metrics on a split that is disjoint at the architecture level.
  3. [Figure 10 caption; Table 5] The GNN's exemplar evaluation appears to use different data from the other models. The caption of Figure 10 states 'Activation layers are removed from the exemplar set to keep a similar input structure as the GNN was trained on,' while no such caveat accompanies the MLP or transformer figures. If the GNN rows in Table 5 are computed on a modified exemplar set, then the cross-model comparisons in Table 5 are not apples-to-apples. The preprocessing must either be applied consistently to all models or the GNN exemplar results should be clearly separated from the others.
  4. [§5.2; Table 4 (Dense)] The text states 'For dense layers, all models show improved performance compared to the overall set,' but Table 4 directly contradicts this for the GNN and transformer. In the dense subset, the GNN has R^2 = -0.51 for BRAM and -0.74 for DSP, whereas the overall test set has R^2 = 0.51 and 0.89; the transformer has identical R^2 for BRAM (0.39) and DSP (0.29) in both rows. Since dense networks are the largest category in the dataset, this discrepancy is consequential for the claim that the surrogates perform well in-distribution. Please correct the interpretation or clarify what subset the 'Dense' row actually represents.
minor comments (3)
  1. [§4.2.1] The description of the '18-dimensional feature vector' is ambiguous and appears inconsistent with the subsequent one-hot encoding and concatenation of global attributes. 'Three input and output dimensions' and the listed categorical features do not obviously sum to 18. Please provide the exact feature list and the dimensionality after preprocessing.
  2. [§4.2.3; §4.3.3] Training details are incomplete: no learning-rate schedule, dropout rate, weight decay, or random seeds are reported, and the GNN batch size is missing. Given that the paper proposes a benchmark, reporting these details is important for reproducibility.
  3. [Throughout] Minor typos and wording issues: 'convolutional modes also contain dense, flatten, and pooling layers' has a spacing error; 'an large impact' should be 'a large impact'; 'SMPAPE' appears in §5.2 and should be 'SMAPE'.

Circularity Check

0 steps flagged

No circularity: surrogate predictions are evaluated on held-out and out-of-distribution synthesis data, with ground truth from logic synthesis; self-citations are disclosed and non-load-bearing.

full rationale

The paper makes no derivation that reduces to its own inputs. The core claim is empirical: GNN and transformer models are trained on 478,220 synthesized samples and evaluated on a held-out 102,484-sample test set plus 887 exemplar samples. Ground truth comes from post-logic synthesis reports, not from the surrogate inputs, so there is no self-definitional or fitted-input-called-prediction structure. The 18-dimensional per-layer feature representation is a modeling assumption, not a circular one: the target values are independently obtained from "the resource and latency usage numbers for that network post-logic synthesis." Self-citations appear (e.g., rule4ml [30] for dataset generation and [29] for per-target MLP training methodology), but they are disclosed prior work used for generation details and do not establish the central result; the benchmark dataset and code are released openly. The paper is also self-critical rather than circular: it states that "the distributions between the exemplar models and test dataset tend to not overlap strongly" and that on the exemplar set "all three predictors show a drop in performance," with many negative R^2 values in Table 5. This out-of-distribution failure is strong evidence that the models are not trivially reproducing their training targets by construction. The apparent inconsistency between the abstract's "within several percent" claim and the Table 4 SMAPE values (roughly 10-20% for most metrics, and Eq. (2) includes a +1 denominator) is a reporting or accuracy concern, not circularity. Overall, the paper's evaluation chain is externally grounded in logic synthesis and held-out data, with no step that is equivalent to its inputs by definition.

Axiom & Free-Parameter Ledger

3 free parameters · 5 axioms · 0 invented entities

No new physical entities are postulated. The paper's central claims rest on trained model weights, hand-chosen hyperparameters, and the assumption that per-layer graph features plus post-logic-synthesis reports are a faithful and sufficient representation of the synthesis outcome.

free parameters (3)
  • Surrogate model learned weights (GNN, transformer, MLP) = optimized on 478,220 training samples
    Sections 4.2.3/4.3.3: trained with AdamW/MSE; these fitted weights are what perform the prediction.
  • Architecture hyperparameters = chosen by hand
    GNN: 5 GATv2 layers, 5 heads, 512 hidden; transformer: 2 encoder blocks, 8 heads, 512 embedding; MLP baseline. No hyperparameter sweep is reported.
  • SMAPE epsilon = 1
    Section 3.2: 'We set ε to the smallest strictly positive value ... which in our case is 1.' Small effect on the metric but explicit.
axioms (5)
  • domain assumption Vivado logic synthesis reports are ground truth for resource and latency.
    The dataset stores post-logic-synthesis resource_report and latency_report (Section 2.1.3); all model metrics compare against these values.
  • domain assumption The random/grid synthetic generator covers the hls4ml design space relevant to training a general surrogate.
    Section 2.1.1 parameter ranges (layers, precisions, reuse factors, strategies) define the training data; performance on the exemplar set tests this assumption.
  • domain assumption The per-layer 18-feature representation loses no information needed for resource/latency prediction.
    Section 4.2.1 and Figure 5: this is the central modeling choice; the exemplar failures suggest it is only partially true.
  • standard math Train/validation/test sets are independent samples from the same synthetic generator with no leakage.
    Section 2 describes random/grid splits; no cross-sample leakage is discussed; standard holdout assumption.
  • standard math R², SMAPE, and RMSE with epsilon=1 are valid evaluation metrics.
    Section 3.2 defines the metrics; standard regression metrics for comparing estimators.

pith-pipeline@v1.3.0-alltime-deepseek · 20308 in / 14197 out tokens · 127624 ms · 2026-08-03T23:38:05.079803+00:00 · methodology

0 comments
read the original abstract

As machine learning (ML) is increasingly implemented in hardware to address real-time challenges in scientific applications, the development of advanced toolchains has significantly reduced the time required to iterate on various designs. These advancements have solved major obstacles, but also exposed new challenges. For example, processes that were not previously considered bottlenecks, such as hardware synthesis, are becoming limiting factors in the rapid iteration of designs. To mitigate these emerging constraints, multiple efforts have been undertaken to develop an ML-based surrogate model that estimates resource usage of ML accelerator architectures. We introduce wa-hls4ml, a benchmark for ML accelerator resource and latency estimation, and its corresponding initial dataset of over 680,000 fully connected and convolutional neural networks, all synthesized using hls4ml and targeting Xilinx FPGAs. The benchmark evaluates the performance of resource and latency predictors against several common ML model architectures, primarily originating from scientific domains, as exemplar models, and the average performance across a subset of the dataset. Additionally, we introduce GNN- and transformer-based surrogate models that predict latency and resources for ML accelerators. We present the architecture and performance of the models and find that the models generally predict latency and resources for the 75% percentile within several percent of the synthesized resources on the synthetic test dataset.

Figures

Figures reproduced from arXiv: 2511.05615 by Audrey C. Therrien, Benjamin Hawks, Dennis Plotnikov, Dmitri Demler, Donovan Sproule, Elham E Khoda, Giuseppe Di Guglielmo, Hamza Ezzaoui Rahali, Jason Weitz, Javier Duarte, Karla Tame-Narvaez, Keegan A. Smith, Mohammad Mehdi Rahimifar, Nhan Tran, Russell Marroquin, Vladimir Loncar.

Figure 1
Figure 1. Figure 1: The traditional codesign workflow compared to the proposed surrogate model based codesign workflow. [PITH_FULL_IMAGE:figures/full_fig_p005_1.png] view at source ↗
Figure 2
Figure 2. Figure 2: All tracked output features plotted for each fully-connected model in the dataset versus Bit-Operations, with the color [PITH_FULL_IMAGE:figures/full_fig_p009_2.png] view at source ↗
Figure 3
Figure 3. Figure 3: All tracked output features plotted for each convolutional model in the dataset versus Bit-Operations, with the color representing [PITH_FULL_IMAGE:figures/full_fig_p010_3.png] view at source ↗
Figure 4
Figure 4. Figure 4: Exemplar vs the train and test subset resource (label) distributions [PITH_FULL_IMAGE:figures/full_fig_p011_4.png] view at source ↗
Figure 5
Figure 5. Figure 5: The overall structure of the GNN, comprising five GATv2Conv layers. The vector [PITH_FULL_IMAGE:figures/full_fig_p014_5.png] view at source ↗
Figure 6
Figure 6. Figure 6: The overall structure of the transformer, comprising 2 encoder blocks. The vector [PITH_FULL_IMAGE:figures/full_fig_p016_6.png] view at source ↗
Figure 7
Figure 7. Figure 7: Relative percentage errors of the baseline MLP on the test set. The y-axis is set to a symmetric log scale. [PITH_FULL_IMAGE:figures/full_fig_p017_7.png] view at source ↗
Figure 8
Figure 8. Figure 8: Relative percentage errors of the MLP on the exemplar models. The y-axis is set to a symmetric log scale. [PITH_FULL_IMAGE:figures/full_fig_p017_8.png] view at source ↗
Figure 9
Figure 9. Figure 9: Relative percent error for the GNN on the test subset. The y-axis is set to a symmetric log scale. [PITH_FULL_IMAGE:figures/full_fig_p018_9.png] view at source ↗
Figure 10
Figure 10. Figure 10: Relative percent error for the GNN on the exemplar dataset. The y-axis is set to a symmetric log scale. Activation layers are [PITH_FULL_IMAGE:figures/full_fig_p018_10.png] view at source ↗
Figure 11
Figure 11. Figure 11: Relative percent error for the transformer on the test subset. The y-axis is set to a symmetric log scale. [PITH_FULL_IMAGE:figures/full_fig_p019_11.png] view at source ↗
Figure 12
Figure 12. Figure 12: Relative percent error for the transformer on the exemplar subset. The y-axis is set to a symmetric log scale. [PITH_FULL_IMAGE:figures/full_fig_p019_12.png] view at source ↗
Figure 13
Figure 13. Figure 13: Scatter plots of MLP predictions on the test set. The red line shows the deviation from true values. Both axes are set to a [PITH_FULL_IMAGE:figures/full_fig_p025_13.png] view at source ↗
Figure 14
Figure 14. Figure 14: Scatter plots of MLP predictions on the exemplar models. The red line shows the deviation from true values. Both axes are set [PITH_FULL_IMAGE:figures/full_fig_p026_14.png] view at source ↗
Figure 15
Figure 15. Figure 15: Scatter plots of GNN predictions on the test set. The red line shows the deviation from true values. Both axes are set to a [PITH_FULL_IMAGE:figures/full_fig_p027_15.png] view at source ↗
Figure 16
Figure 16. Figure 16: Scatter plots of GNN predictions on the exemplar models. The red line shows the deviation from true values. Both axes are [PITH_FULL_IMAGE:figures/full_fig_p028_16.png] view at source ↗
Figure 17
Figure 17. Figure 17: Scatter plots of transformer predictions on the test set. The red line shows the deviation from true values. Both axes are set to [PITH_FULL_IMAGE:figures/full_fig_p029_17.png] view at source ↗
Figure 18

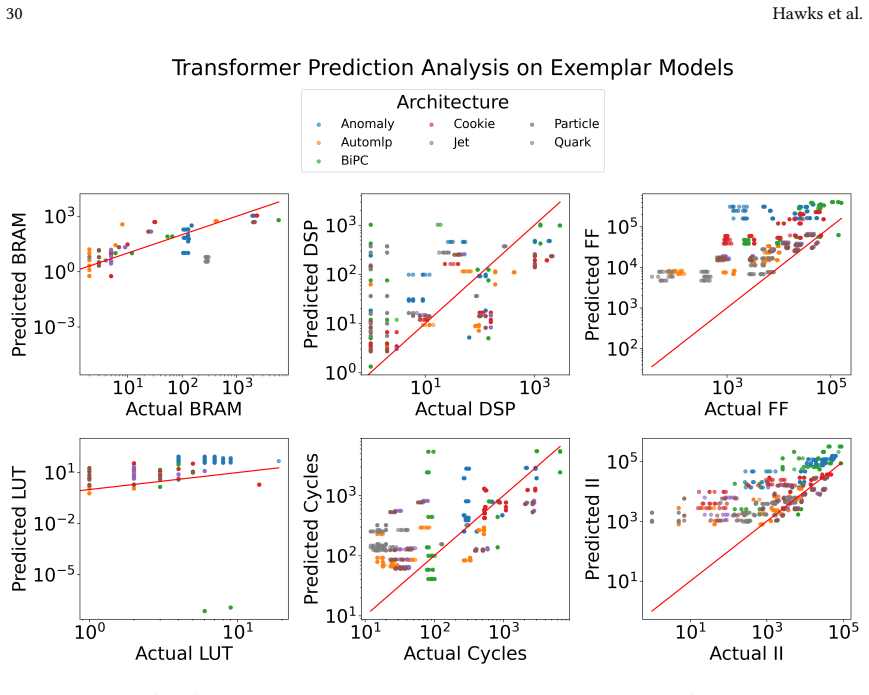

Figure 18. Figure 18: Scatter plots of transformer predictions on the exemplar models. The red line shows the deviation from true values. Both axes [PITH_FULL_IMAGE:figures/full_fig_p030_18.png] view at source ↗
