Nonlinear Mechanics and Predictable Bifurcation of Multi-Cell Kresling Origami Chains

Songlin Yue , Leo de Waal , David Garcia Cava , Marcelo A. Dias This is my paper

Pith reviewed 2026-06-27 08:14 UTC · model grok-4.3

classification ❄️ cond-mat.soft cond-mat.mtrl-sciphysics.class-ph
keywords Kresling origamibifurcation analysismeta-structuresnonlinear mechanicsorigami chainsequilibrium pathsinverse design
0
0 comments X

The pith

Treating creases in Kresling origami as axial rods allows prediction of equilibrium paths in multi-layer chains and inverse design via prescribed critical points.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper models multi-cell Kresling origami chains by representing crease lines as axial-load-carrying elements. It performs continuation and bifurcation analysis starting from single-layer systems and extending to two- and three-layer configurations to track equilibrium branches and instabilities. A generalization strategy is then proposed for n-layer chains that uses prescribed critical points to construct equilibrium paths predictively. This approach supports the inverse design of meta-structures with controlled post-critical behavior. A sympathetic reader would care because it turns complex nonlinear responses into a design tool for programmable mechanical metamaterials.

Core claim

By modeling crease lines as axial-load-carrying elements and applying bifurcation analysis, the equilibrium branches and instabilities of n-layer Kresling chains can be constructed predictively from geometric design variables, enabling inverse design of multi-layer meta-structures through prescribed critical points.

What carries the argument

The modeling of crease lines as axial-load-carrying elements combined with continuation and bifurcation analysis to track equilibrium branches in multi-layer chains.

If this is right

  • Equilibrium paths for multi-layer chains can be built from single-layer responses.
  • Post-critical behavior can be controlled by choosing specific critical points.
  • Inverse design becomes possible for architected metamaterials with desired responses.
  • Branch-point bifurcations and limit-point instabilities can be systematically identified.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • Similar axial modeling might apply to other origami patterns with twist coupling.
  • Experimental validation on physical prototypes could confirm the predicted paths.
  • The approach could extend to dynamic loading or damping effects in metamaterials.

Load-bearing premise

Treating the crease lines simply as rods that carry only axial loads captures the full nonlinear behavior and all bifurcations in the chain.

What would settle it

If measurements on a fabricated three-layer Kresling chain show equilibrium paths or instability loads that differ significantly from the model's predictions, the approach would be falsified.

Figures

Figures reproduced from arXiv: 2606.11823 by David Garcia Cava, Leo de Waal, Marcelo A. Dias, Songlin Yue.

Figure 1

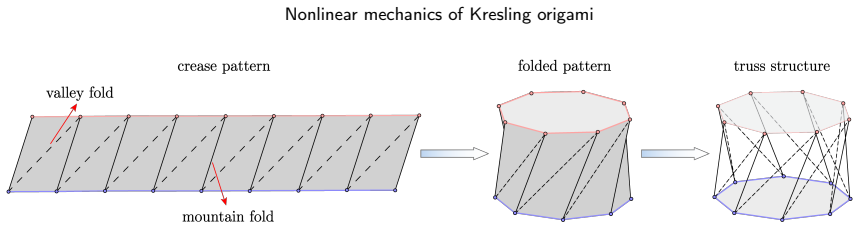

Figure 1. Figure 1: Crease, folded pattern and truss structure of Kresling origami. The solid and dashed lines refer to mountain fold and valley fold, respectively. that extend its nonlinear mechanical response through geometric generalisation, active reconfiguration, and modular assembly. In particular, conical Kresling origami has been developed by relaxing the conventional parallelogram unit￾cell geometry to allow free-for… view at source ↗
Figure 2

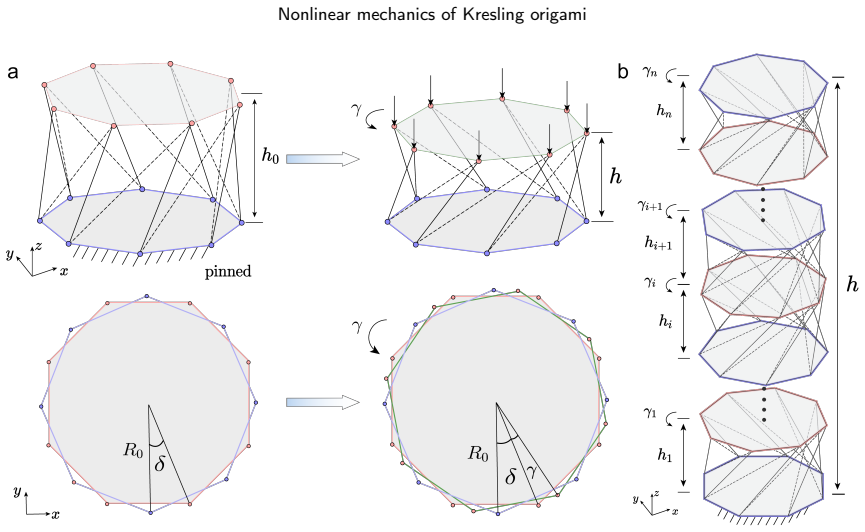

Figure 2. Figure 2: Definition of geometric parameters and degrees-of-freedom (DOFs) for octagonal Kresling unit cell and chain (𝑁 = 8). (a) Under axial quasi-static displacement control, the Kresling unit cell exhibits a coupled twist behavior. The undeformed geometry is defined by height ℎ (0), base radius 𝑅(0), and orientation angle 𝛿. The deformed configuration is described by two DOFs: height ℎ, and rotational angle 𝛾. (… view at source ↗
Figure 3

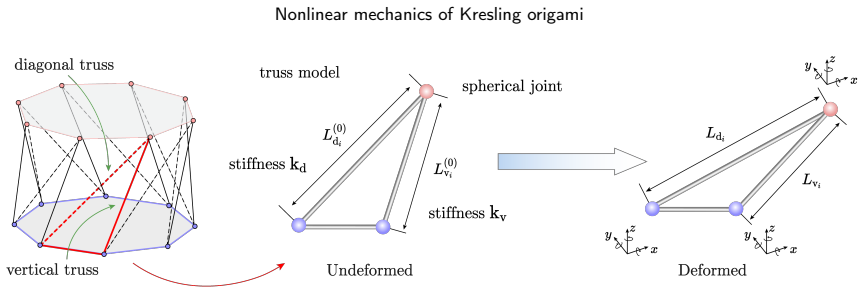

Figure 3. Figure 3: Truss description of Kresling pattern. Deformation mechanism of vertical (v) and diagonal (d) trusses within the triangular facet. Notably, the terms, ’vertical’ and ’diagonal’, serve only to distinguish the relative positions of trusses, and do not necessarily represent the actual orientations. 𝐿 (0) d𝑖 = √ ℎ (0) 𝑖 2 + 2𝑅(0)2 − 2𝑅(0)2 cos ( 𝛿𝑖 + 2𝜋 𝑁 ) . (1b) The deformed lengths of the 𝑖-th unit cell’s v… view at source ↗
Figure 4

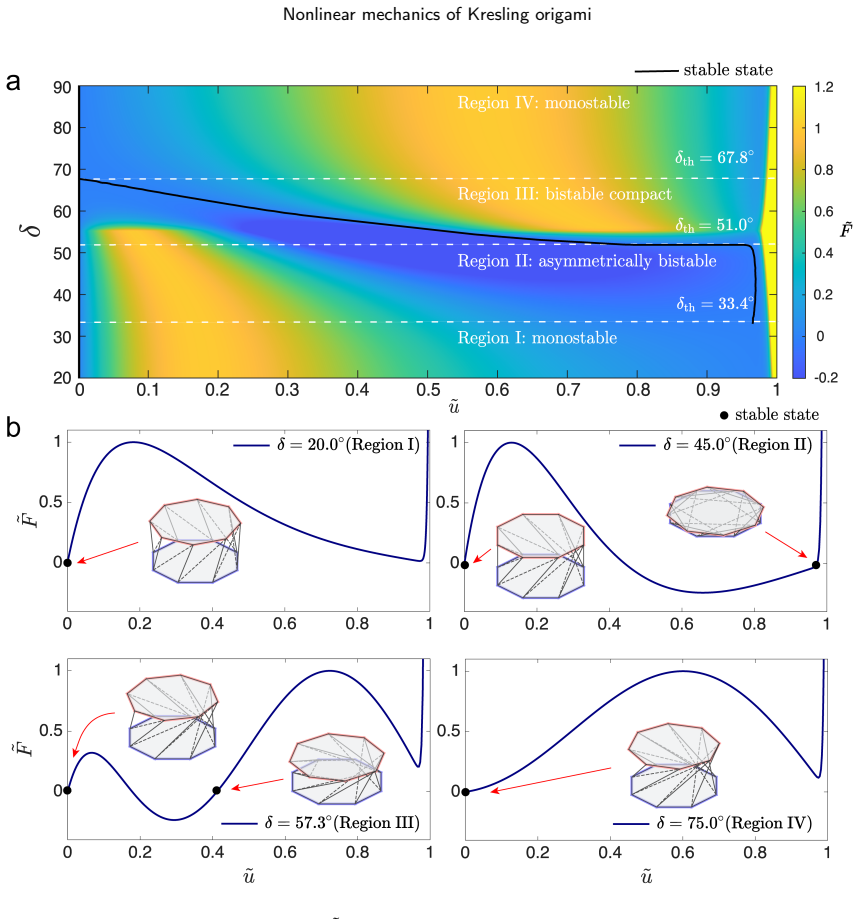

Figure 4. Figure 4: (a) Normalised reaction force curve 𝐹̃ = 𝐹∕𝐹𝑠max as a function of initial orientation angle 𝛿 , where 𝐹𝑠max refers to the maximum reaction force derived from the truss strain energy 𝐸𝑠 . The parametric space is partitioned into four distinct regions (Region I–IV) based on 𝛿, each representing different stability characteristic of unit cell. Black lines refer to the stable states, corresponding to local min… view at source ↗
Figure 5

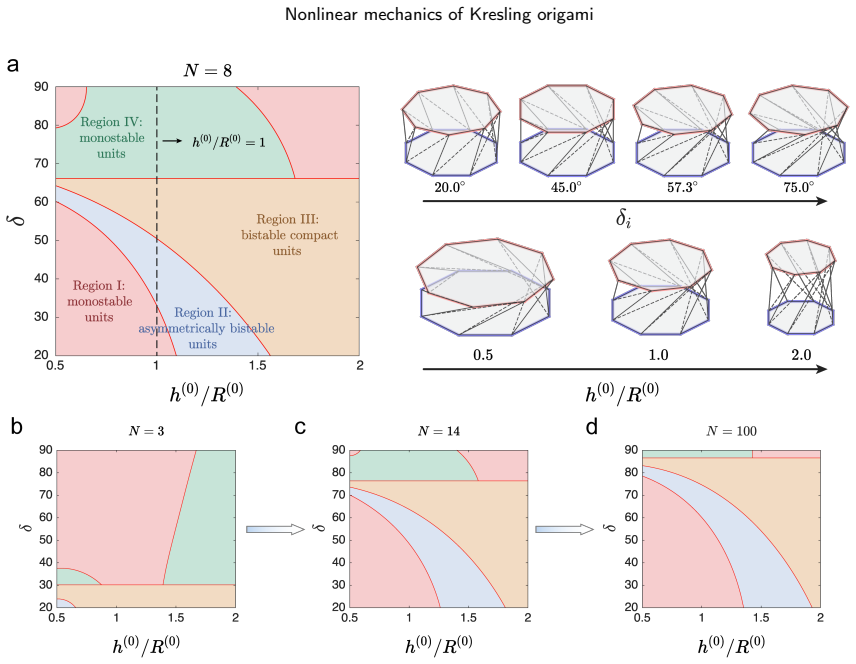

Figure 5. Figure 5: Phase distributions of Region I-IV deforming configurations of Kresling unit cell along two main geometric design space: initial orientation angle 𝛿 and undeformed height-to-radius ratio ℎ (0)∕𝑅(0). (a) Case of octagon base (𝑁 = 8), distribution of Region I-IV and corresponding types of comprised unit cell. The diagrams on the right depict the variations of undeformed configurations along these two geometr… view at source ↗
Figure 6

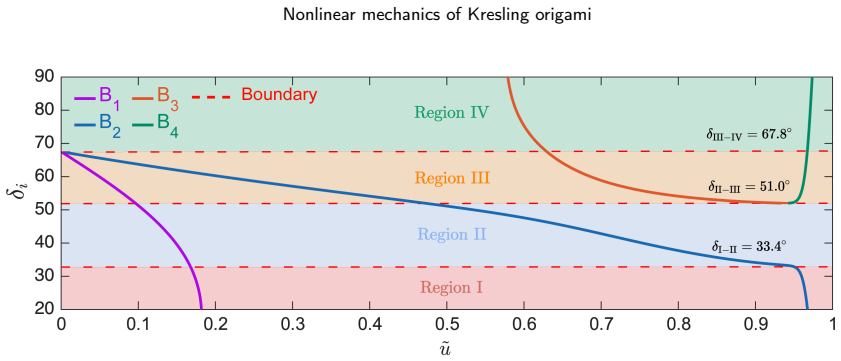

Figure 6. Figure 6: Loci of bifurcation points B1 − B4 as the function of initial orientation angle 𝛿𝑖 of comprised unit cells. The parametric space is partitioned into the same four distinct regions (Region I-IV), demonstrating consistency with that of the single unit case. unit height, so that 𝛾𝑖 can be expressed as a function of ℎ𝑖 . The corresponding angular deviation is therefore defined as ̃𝛾𝑖 = 𝛾𝑖 ( ℎ𝑖 ) − 𝛾𝑖 ( ℎavg) .… view at source ↗
Figure 7

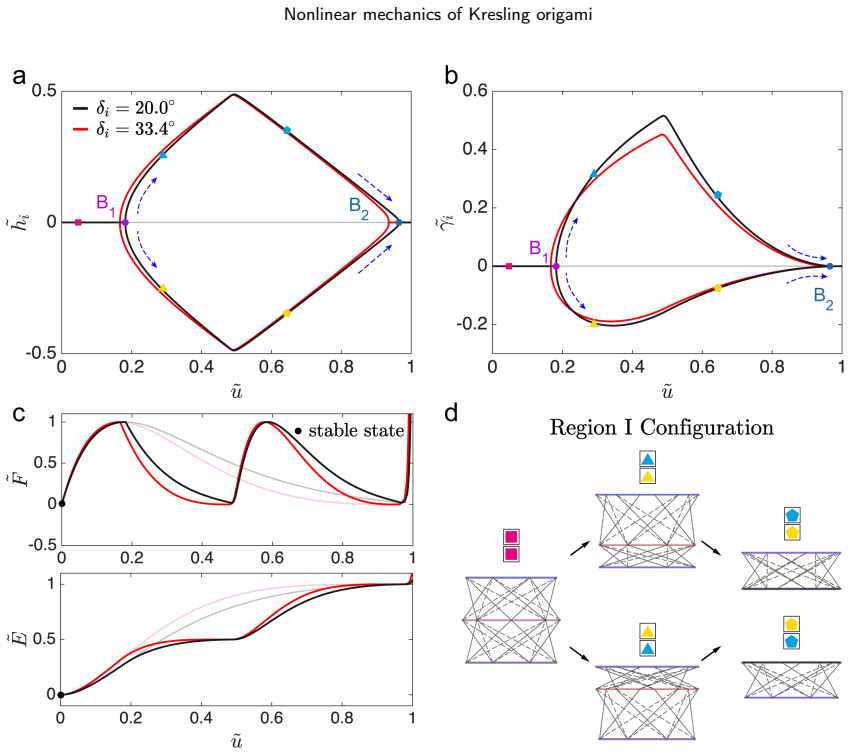

Figure 7. Figure 7: Bifurcation diagrams of the two-layer Kresling chain assembled with identical unit cells. Two cases are compared: Kresling chain comprised of unit cells from Region I (𝛿𝑖 = 20.0 ◦ , bifurcation points and stable states are highlighted) and the Region I-II boundary (𝛿𝑖 = 33.4 ◦ ). Bold and light lines refer to stable and unstable equilibrium path. (a)-(b) Bifurcation diagram described by individual height ℎ… view at source ↗
Figure 8

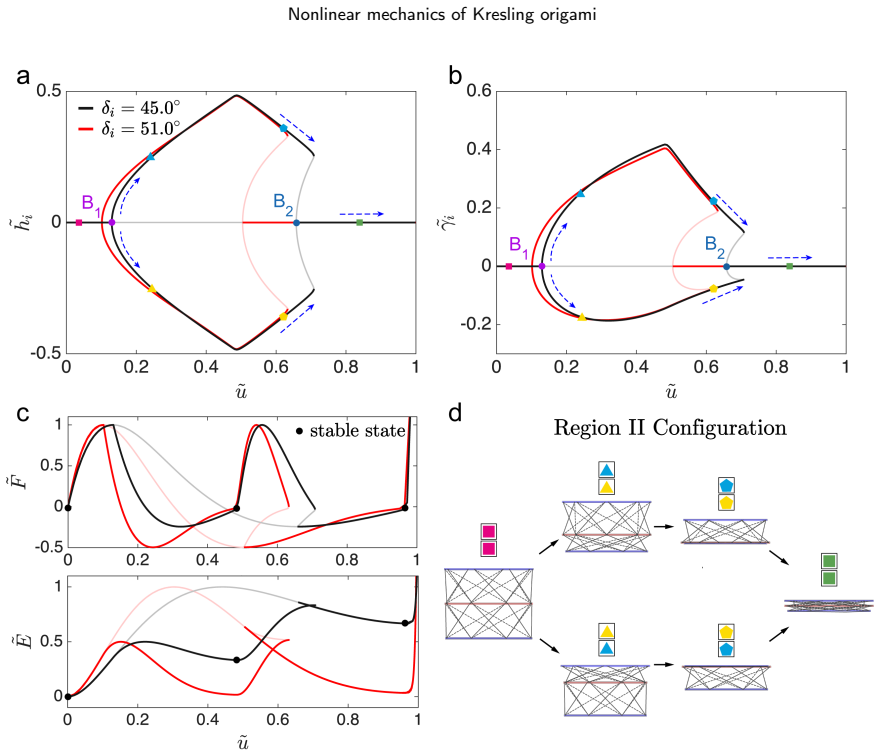

Figure 8. Figure 8: Bifurcation diagrams of the two-layer Kresling chain assembled with identical unit cells. Two cases are compared: Kresling chain comprised of unit cells from Region II (𝛿𝑖 = 45.0 ◦ , bifurcation points and stable states are highlighted) and the Region II-III boundary (𝛿𝑖 = 51.0 ◦ ). Bold and light lines refer to stable and unstable equilibrium. (a)-(b) Bifurcation diagram described by individual height ℎ̃ … view at source ↗
Figure 9

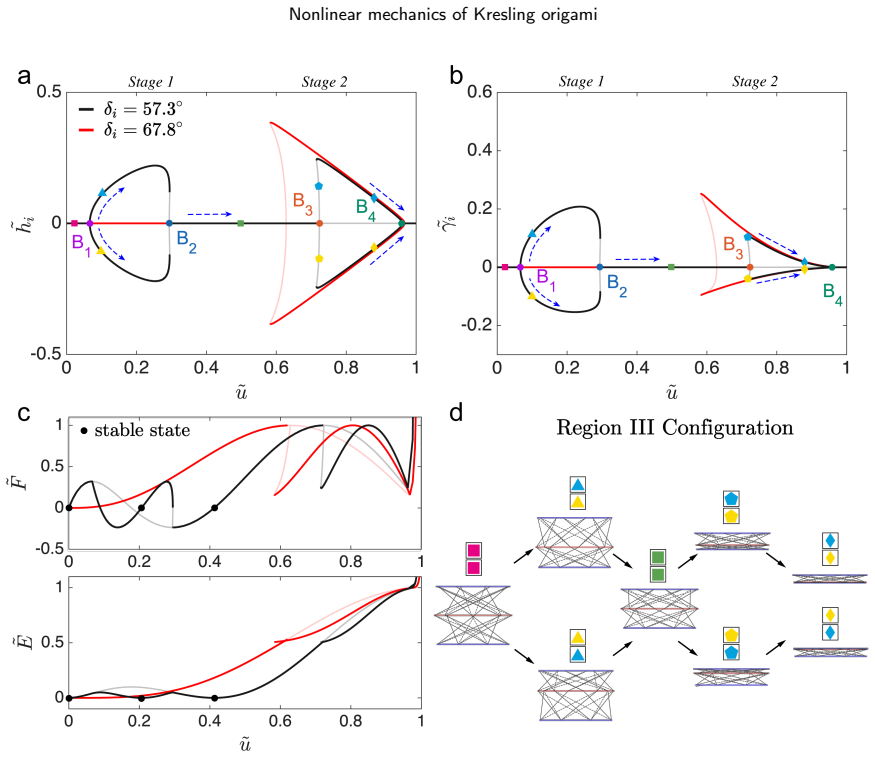

Figure 9. Figure 9: Bifurcation diagrams of the two-layer Kresling chain assembled with identical unit cells. Two cases are compared: Kresling chain comprised of unit cells from Region III (𝛿𝑖 = 57.3 ◦ , bifurcation points and stable states are highlighted) and the Region III-IV boundary (𝛿𝑖 = 67.8 ◦ ). Bold and light lines refer to stable and unstable equilibrium. (a)-(b) Bifurcation diagram described by individual height ℎ̃… view at source ↗
Figure 10

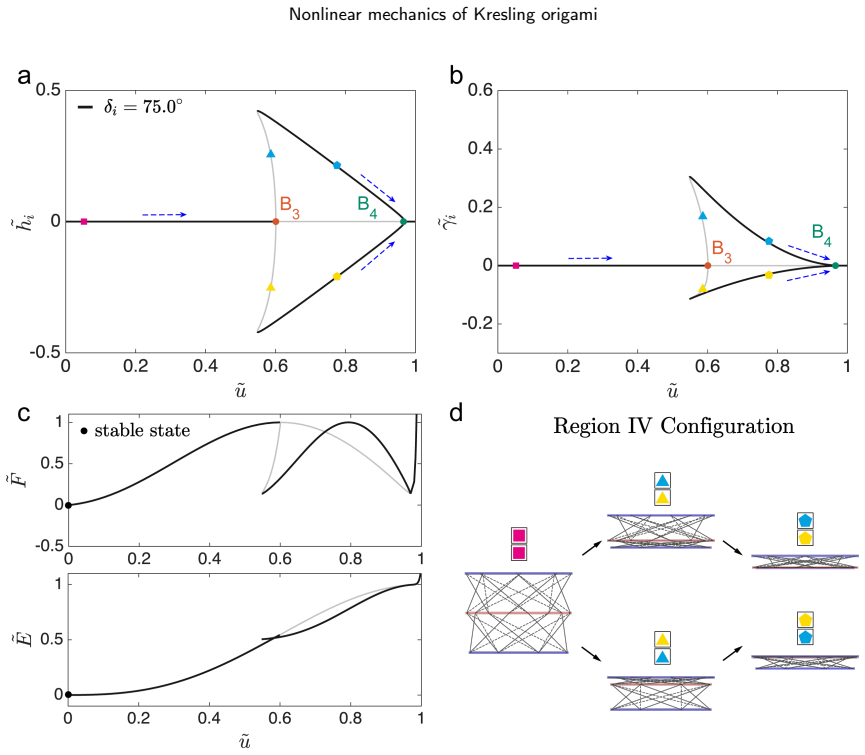

Figure 10. Figure 10: Bifurcation diagrams of the two-layer Kresling chain assembled with identical unit cells from Region IV (𝛿𝑖 = 75.0 ◦ , bifurcation points and stable states are highlighted). Bold and light lines refer to stable and unstable equilibrium. (a)-(b) Bifurcation diagram described by individual height ℎ̃ 𝑖 and rotational angle ̃𝛾𝑖 with respect to strain ̃𝑢. (c) Normalised reaction force 𝐹̃ = 𝐹∕𝐹𝑠max and total po… view at source ↗
Figure 11

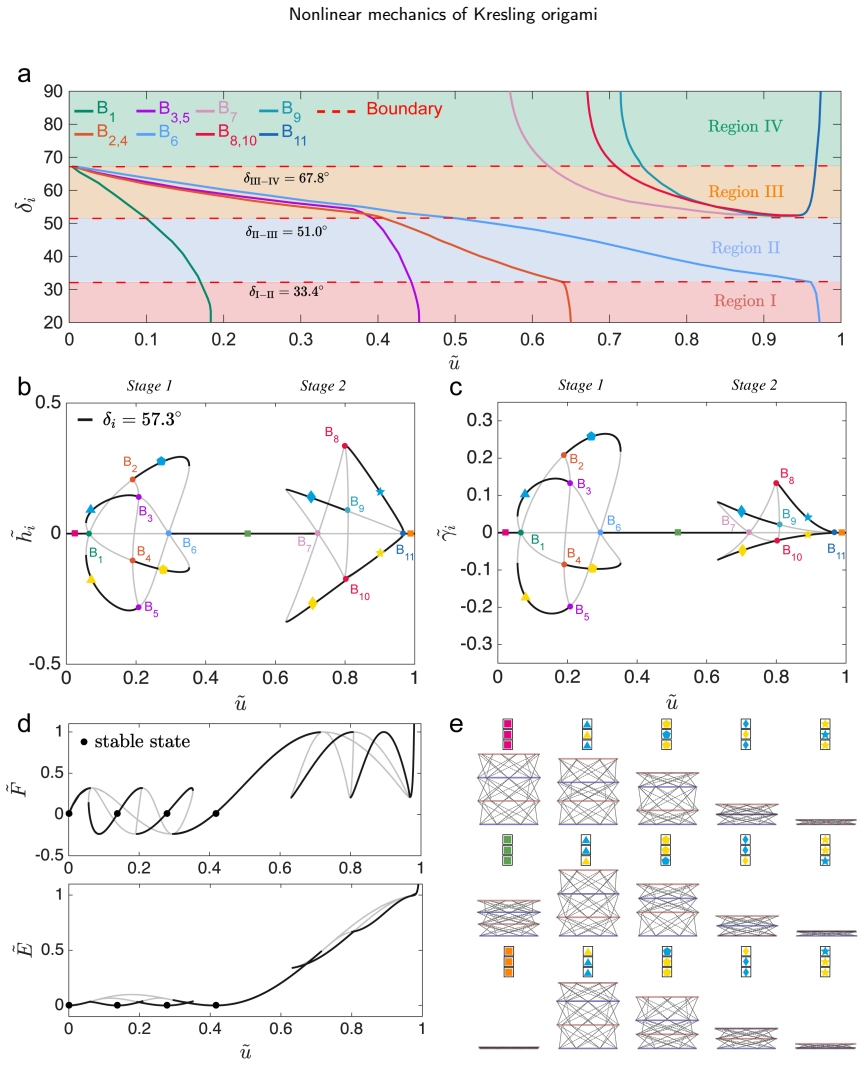

Figure 11. Figure 11: Bifurcation diagrams of the three-layer Kresling chain assembled with identical unit cells from Region III (𝛿𝑖 = 57.3 ◦ , bifurcation points and stable states are highlighted). Bold and light lines refer to stable and unstable equilibrium. (a) Loci of bifurcation points B1 − B11 as the function of unit cell initial orientation angle 𝛿𝑖 . The parametric space is partitioned into the same four distinct regi… view at source ↗
Figure 12

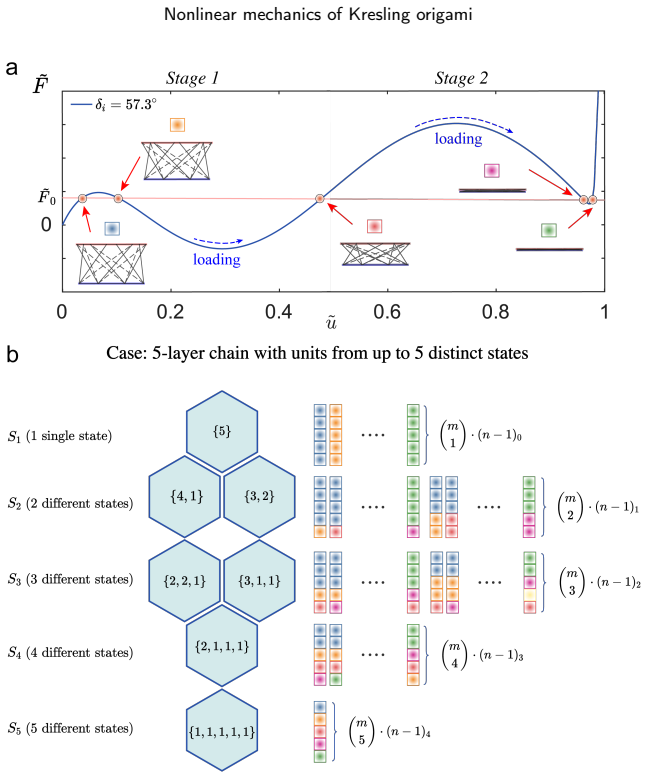

Figure 12. Figure 12: Generalised strategy for solutions of 𝑛-layer Kresling chain. (a) Constitutive behaviour of Region III Kresling unit cell, with initial orientation angle 𝛿𝑖 = 57.3 ◦ and undeformed height-to-radius ℎ (0)∕𝑅(0) = 1. Under reaction force 𝐹̃ 0 , the unit cells in series can exhibit a maximum of five distinct solutions, denoted by blocks with five distinct colours (blue, yellow, red, pink, green). (b) Example … view at source ↗
Figure 13

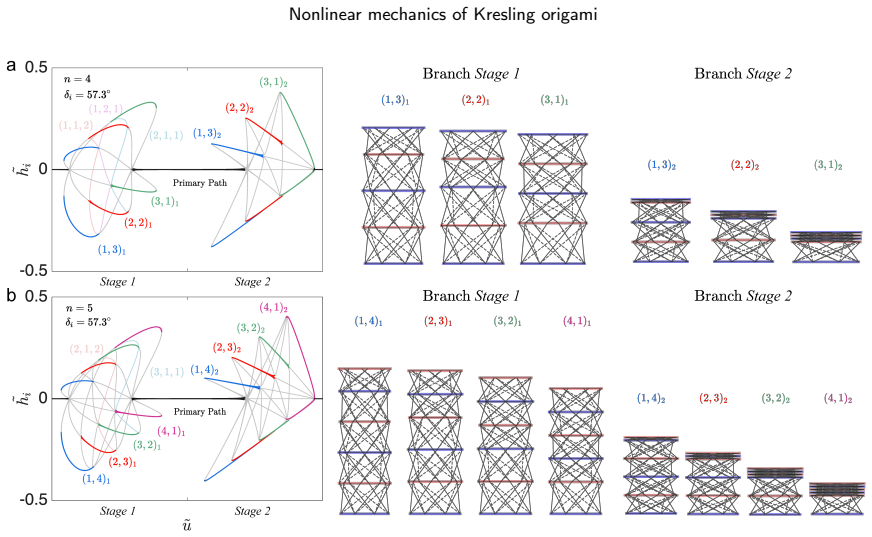

Figure 13. Figure 13: Bifurcation diagram of the 𝑛-layer Kresling chain assembled with identical unit cells from Region III (𝛿𝑖 = 57.3 ◦ ). Bold and light lines refer to stable and unstable equilibrium. Odd-layered case (𝑛 = 4) and even-layered case (𝑛 = 5) are compared. (a)-(b) Bifurcation diagram described by individual height ℎ̃ 𝑖 with respect to strain ̃𝑢. Notation (1, 3)1 , (2, 2)2 , etc., refer to ordered configurations … view at source ↗
Figure 14

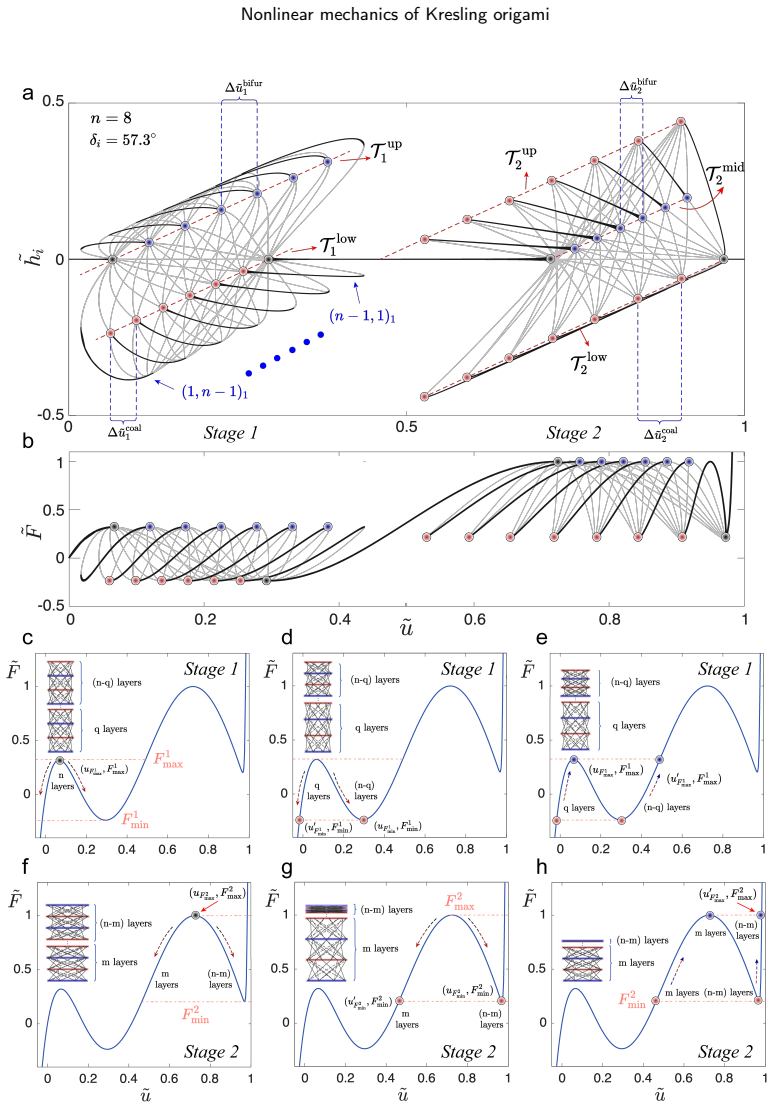

Figure 14. Figure 14: Bifurcation of 𝑛-layer Kresling chain assembled with identical unit cells from Region III (𝛿𝑖 = 57.3 ◦ ), taking 𝑛 = 8 as an example. The primary (black), secondary (blue) bifurcation points, and secondary coalescence (red) points are demonstrated. (a)-(b) Bifurcation diagram and curve of reaction force 𝐹̃. Bold and light lines refer to stable and unstable equilibrium. Trajectories in bifurcation Stage 1 … view at source ↗

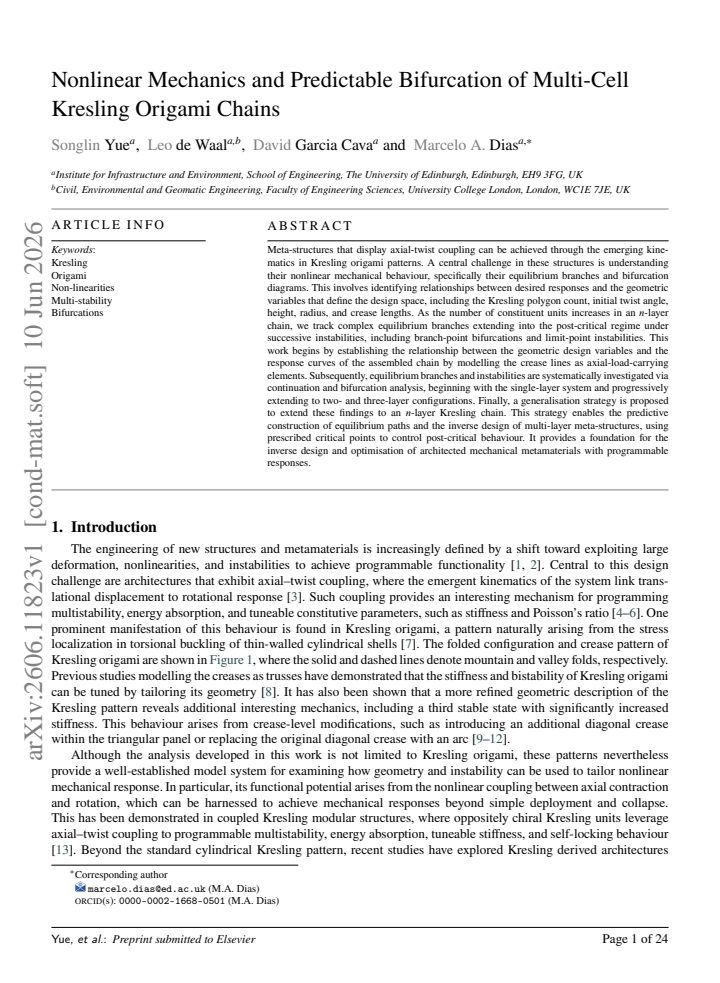

read the original abstract

Meta-structures that display axial-twist coupling can be achieved through the emerging kinematics in Kresling origami patterns. A central challenge in these structures is understanding their nonlinear mechanical behaviour, specifically their equilibrium branches and bifurcation diagrams. This involves identifying relationships between desired responses and the geometric variables that define the design space, including the Kresling polygon count, initial twist angle, height, radius, and crease lengths. As the number of constituent units increases in an n-layer chain, we track complex equilibrium branches extending into the post-critical regime under successive instabilities, including branch-point bifurcations and limit-point instabilities. This work begins by establishing the relationship between the geometric design variables and the response curves of the assembled chain by modelling the crease lines as axial-load-carrying elements. Subsequently, equilibrium branches and instabilities are systematically investigated via continuation and bifurcation analysis, beginning with the single-layer system and progressively extending to two- and three-layer configurations. Finally, a generalisation strategy is proposed to extend these findings to an n-layer Kresling chain. This strategy enables the predictive construction of equilibrium paths and the inverse design of multi-layer meta-structures, using prescribed critical points to control post-critical behaviour. It provides a foundation for the inverse design and optimisation of architected mechanical metamaterials with programmable responses.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 2 minor

Summary. The paper models Kresling origami crease lines as axial-load-carrying truss elements and employs numerical continuation and bifurcation analysis to trace equilibrium branches and instabilities (branch points and limit points) in single-, two-, and three-layer chains. It then proposes a generalization strategy to construct equilibrium paths for arbitrary n-layer chains and to perform inverse design by prescribing critical points that control post-critical behavior.

Significance. If the axial-truss idealization is shown to reproduce the correct instability sequence and post-critical paths, the generalization and inverse-design procedure would supply a practical route to programmable multi-layer origami metamaterials. The work would then strengthen the link between geometric parameters (polygon count, twist angle, crease lengths) and predictable nonlinear responses.

major comments (2)
  1. [Modeling section] Modeling section (crease idealization): representing creases exclusively as axial truss elements omits rotational stiffness and panel rigidity. Because the central claim is that this model enables predictive construction of equilibrium paths and inverse design via prescribed critical points, the absence of any comparison to beam/shell models or experiments leaves the bifurcation structure and post-critical branches unvalidated; this is load-bearing for the n-layer generalization.
  2. [Generalization strategy] Generalization strategy (final section): the procedure for extending 1–3 layer results to arbitrary n is presented without an explicit statement of the inductive assumptions or a verification that the critical-point prescription remains consistent when layer interactions accumulate; this directly affects the inverse-design claim.
minor comments (2)
  1. [Abstract] The abstract states that geometric variables include “Kresling polygon count, initial twist angle, height, radius, and crease lengths,” yet the precise mapping from these variables to the truss-element stiffness matrix is not summarized; a short table or equation reference would improve readability.
  2. [Notation] Notation for the continuation parameters and bifurcation detection criteria should be introduced once and used consistently; several symbols appear without prior definition in the provided abstract.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the constructive comments. We address each major point below and indicate the planned revisions.

read point-by-point responses

  1. Referee: [Modeling section] Modeling section (crease idealization): representing creases exclusively as axial truss elements omits rotational stiffness and panel rigidity. Because the central claim is that this model enables predictive construction of equilibrium paths and inverse design via prescribed critical points, the absence of any comparison to beam/shell models or experiments leaves the bifurcation structure and post-critical branches unvalidated; this is load-bearing for the n-layer generalization.

    Authors: We agree that the axial-truss idealization omits rotational stiffness and panel rigidity. This choice enables the continuation-based bifurcation analysis that underpins the n-layer generalization. In revision we will expand the modeling section to state these assumptions explicitly, discuss their implications for the predicted instability sequence, and cite relevant beam- and shell-based studies on Kresling origami. A full comparative validation study lies outside the present scope, but the added discussion will clarify the domain of applicability of the reported bifurcation structure. revision: partial

  2. Referee: [Generalization strategy] Generalization strategy (final section): the procedure for extending 1–3 layer results to arbitrary n is presented without an explicit statement of the inductive assumptions or a verification that the critical-point prescription remains consistent when layer interactions accumulate; this directly affects the inverse-design claim.

    Authors: We accept this criticism. The revised manuscript will include an explicit statement of the inductive assumptions used to extend the 1–3 layer results to arbitrary n. We will also add a short verification subsection confirming that the prescribed critical-point construction remains consistent when interlayer interactions accumulate, thereby strengthening the inverse-design procedure. revision: yes

Circularity Check

0 steps flagged

No circularity: derivation uses independent numerical continuation on truss model

full rationale

The provided abstract and excerpts describe an axial-truss idealization of creases, followed by standard continuation/bifurcation analysis on 1-3 layers and a generalization to n layers for inverse design via prescribed critical points. No equations, self-citations, or fitted-parameter steps are quoted that would reduce any reported equilibrium path or bifurcation to a tautology by construction. The modeling choice and numerical method are presented as external to the target predictions; the central claim therefore remains self-contained against external benchmarks.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 0 invented entities

Only the abstract is available; the ledger is therefore limited to the explicit modeling premise stated in the abstract.

axioms (1)
  • domain assumption Crease lines can be modeled as axial-load-carrying elements whose force-length response fully determines the chain equilibrium.
    Stated in the abstract as the starting point for relating geometric variables to response curves.
