REVIEW 4 major objections 6 minor 31 references
A single learned draft expert per layer restores cheap, high-acceptance speculative decoding when MoE experts live off the accelerator.
Reviewed by Pith at T0; open to challenge. T0 means a machine referee read the full paper against a public rubric. the ladder, T0–T4 →
T0 review · grok-4.5
2026-07-31 14:57 UTC pith:U7ZOKLQL
load-bearing objection Solid draft-expert idea and clean ablations, but the 1.45× rests partly on a no-cache AR baseline that DraftExpert itself is allowed to escape. the 4 major comments →
DraftExpert: Expansion-Aware Self-Speculative Decoding for End-Device MoE Inference
The pith
A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.
Core claim
Under expert offload, speculative speed is governed by accepted tokens per expert-set expansion, not tokens per target forward. A fixed-footprint shared+top-1+draft-expert drafter, trained by residual/logit/token and router-agreement self-distillation from the frozen MoE, restores cheap drafting and high acceptance; the same router alignment then drives confidence–expansion truncation and target-expert prefetch so exact verification stays controllable.
What carries the argument

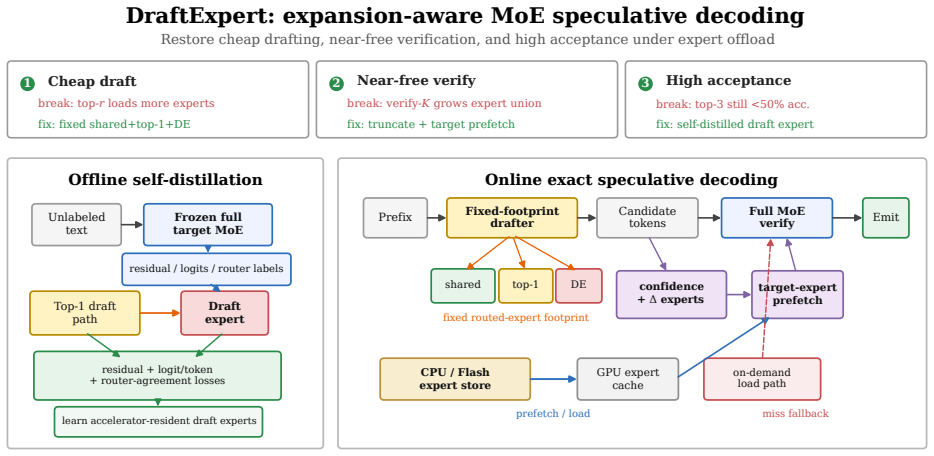

The fixed-footprint shared+top-1+draft-expert path: one lightweight accelerator-resident draft expert per MoE layer approximates the residual of omitted top-k routed experts, so draft cost stays near top-1 while self-distillation recovers acceptance and router agreement for truncation and prefetch.
Load-bearing premise
One small learned draft expert per layer, trained only on residual, token, and router signals from unlabeled text, is enough to replace the missing experts so acceptance and prefetch stay high without loading more routed experts during drafting.
What would settle it
On the same DeepSeek-V2-Lite and Moonlight setups, measure draft acceptance and end-to-end offloaded TPS when the draft expert is removed or trained without residual and router losses; if acceptance falls back near the top-1/top-3 baselines (~22–46%) and the 1.45× speedup disappears, the central claim fails.
If this is right
- End-device MoE runtimes can keep routed experts in CPU or Flash and still use exact speculative decoding without a second draft model.
- Draft cost need not grow with top-r: accuracy can come from a resident draft expert instead of loading more offloaded experts.
- Router agreement becomes a first-class training target because it directly sets prefetch hit rate and verify-side expansion control.
- Dynamic draft length should gate on predicted new verifier experts, not confidence alone.
- Reported gains hold across CPU→GPU BF16 and Flash→NPU Q4_0 single-user decode, with acceptance 84–87% and prefetch hits 86–88%.
Where Pith is reading between the lines
- The same residual-plus-router distillation recipe may transfer to other sparse modules whose activation sets expand under multi-token verify, not only MoE FFNs.
- If draft experts remain tiny relative to the routed pool, memory-constrained devices can treat them as permanent residents much like shared experts and attention.
- Serving stacks that already prefetch experts could plug in draft-router scores as a drop-in lookahead without changing target weights.
- Longer contexts or MoE topologies with weaker residual structure would be the natural stress test for whether one draft expert per layer saturates.
Editorial analysis
A structured set of objections, weighed in public.
Referee Report
Summary. The paper studies speculative decoding for MoE models on end devices where routed experts are offloaded (CPU→GPU or Flash→NPU) and expert movement, not arithmetic, dominates decode latency. It argues that in this regime speculative decoding's three classical conditions (cheap draft, near-free verification, high acceptance) are governed by expert-set expansion rather than token counts. The proposed system, DraftExpert, (i) trains one small accelerator-resident draft expert per MoE layer via self-distillation from the frozen target (residual, logit/token, and router-agreement losses), enabling a fixed-footprint shared+top-1+draft-expert drafter; (ii) truncates draft blocks using a confidence–marginal-expansion controller; and (iii) prefetches predicted verifier experts using the draft router. On DeepSeek-V2-Lite and Moonlight-16B-A3B across both offload hierarchies, the authors report 1.45x average decode throughput over autoregressive expert-offloaded decoding, 84–87% draft acceptance, and 86–88% prefetch hit rates, with exact target-model outputs preserved by full verification.
Significance. If the results hold, the paper makes a useful contribution to an increasingly relevant deployment regime: single-user, latency-critical MoE inference where routed experts live off-accelerator. The expert-set-expansion reframing of the three speculative-decoding conditions is conceptually clean and the fixed-footprint draft expert plus router-agreement distillation is a natural, well-motivated design. The work has concrete strengths: exactness is preserved by construction (all emitted tokens are verified by the frozen target MoE), the evaluation spans two models and two genuinely different memory hierarchies (PCIe CPU→GPU BF16 and Flash→NPU Q4_0 on a real Hexagon HTP), and the loss ablation (Table 5) cleanly separates residual, logit/token, and router contributions, including the non-obvious finding that router-agreement loss is what drives prefetch hit rate from 73% to 88% while leaving acceptance flat. The truncation and prefetch policies are simple, exactness-preserving, and deployable. However, the quantitative significance of the 1.45x headline cannot be assessed until the baseline issue in Major Comment 1 is resolved, since the resident-memory AR reference on MN (14.36 TPS vs.
major comments (4)
- [Setup and Metrics / Table 2] The 1.45x headline speedup (Table 2) is normalized against an AR-offload baseline that is explicitly denied any persistent expert cache: 'Routed target experts are not kept in a persistent accelerator cache unless an experiment explicitly studies the resident-memory reference' (Setup). DraftExpert's own Algorithm 1 (lines 2, 13-14) maintains a cache C and in-flight prefetch set P. The manuscript's own data suggest this asymmetry may account for much of the gain: Figure 5 shows ~59% cumulative layer-expert coverage at K=16 (expert reuse is high, so an LRU cache warms quickly), and on MN the resident-memory AR reference reaches 14.36 TPS versus DraftExpert's 15.47 TPS (Table 1/Table 2) — once expert movement is hidden by any mechanism, the learned-drafter contribution on that platform appears to be ~8%. The cited offload systems (MoE-Infinity, EdgeMoE, Fiddler) all use expert caching/prefe
- [Tables 3 and 5] The acceptance numbers for the top-1 drafter are inconsistent across tables: Table 3 reports 22.5% (DS) / 21.8% (ML) acceptance at K=4, while Table 5 reports the 'Top-1' row at 47.7% (DS) / 45.0% (ML). Since the headline '84-87% acceptance' claim is supported by these same tables (85.0%/83.0% in Table 3; 87.1%/84.5% in Table 5), the discrepancy is not cosmetic. Plausibly Table 5 measures per-token top-1 agreement on held-out text while Table 3 measures block-level accepted/drafted ratio, but this is never stated, and the two metrics are conflated in the text ('acceptance' is used for both). Please define each metric precisely, state the evaluation protocol (prompts, K, teacher-forced vs. free-running), and reconcile the numbers.
- [Self-Distillation (Eqs. 5-11)] The distillation procedure is underspecified for a learned-method paper. Eq. (11) introduces weights alpha, beta, eta and temperature T, and Eq. (5) introduces per-layer scale gamma_l and a draft-expert architecture, but none of these values, the draft-expert capacity/parameter count, the training corpus size, training steps, or wall-clock training cost are reported anywhere. Given that the added per-layer draft expert is a new architectural component whose footprint matters for the central 'fixed-footprint' claim, its size (absolute and relative to one routed expert) must be reported, and a sensitivity check on the loss weights (at least showing robustness of the Table 5 ranking) is needed.
- [Experimental Evaluation / Tables 2-4] Throughput numbers in Tables 2-4 are single point estimates with no error bars, repetition counts, or multi-seed variance, despite known run-to-run variance in offload pipelines (PCIe contention, Flash staging, NPU scheduling) and in distillation training. The DS CG margin (2.99 vs 2.19 TPS) is comfortable, but the ML CG margin (2.50 vs 1.94 TPS) and the comparison against the 14.36 TPS resident-memory reference deserve variance quantification. Please report means and standard deviations over multiple runs, and at least two training seeds for the distilled checkpoint.
minor comments (6)
- [Cost-Aware Dynamic Truncation (Eq. 14)] B_i in Eq. (14) is described as 'a fixed layer-expert budget or a budget derived from the current expert cache,' but the experiments never state which was used or its value. Please specify the budget policy and threshold tau used in Tables 2 and 4.
- [Table 2] Table 2's 'top-r TPS' column is labeled the 'best training-free shared+top-r exact self-drafting setting,' yet all entries are slower than AR offload (e.g., 1.19 vs 2.19 on DS CG), which means the best training-free baseline is effectively AR itself. This is a legitimate finding but should be stated explicitly, including which r won the sweep per platform.
- [Algorithm 1] Algorithm 1, line 7: Delta_i is computed against the not-yet-updated U-hat, which matches Eq. (13), but the variable reuse (U-hat before vs. after update) is easy to misread; a brief comment or renaming would help.
- [Figure 1] Figure 1(b) reports 'decode-128 profiled time' but the profiling protocol (prompt mix, cold vs. warm cache state) is not described; given the cold-cache emphasis in Figure 2, clarify whether Figure 1(b) is cold-start or steady-state.
- [Table 4] Prefetch waste (12-14%, Table 4) is only reported as hit/waste rate; a sentence quantifying its bandwidth/latency cost on the MN platform, where Flash bandwidth is the bottleneck, would strengthen the verify-side analysis.
- [References] Several references are dated 2026 with arXiv numbers (e.g., Bang et al. 2026, McDanel et al. 2026, Li et al. 2026); please verify these are publicly accessible so reviewers and readers can check the positioning claims in Table 6.
Circularity Check
No significant circularity: throughput, acceptance, and prefetch claims are empirical measurements, not identities of the training losses or self-cited premises.
full rationale
DraftExpert is an empirical systems paper. Its load-bearing claims (1.45× decode TPS vs AR offload, 84–87% acceptance, 86–88% prefetch hits; Tables 2–5) are measured end-to-end against frozen-target verification and training-free top-r baselines, not algebraically forced by the residual/logit/token/router losses. Self-distillation uses the frozen full MoE as teacher on unlabeled text (Eqs. 6–11); acceptance and router hit rate remain free outcomes of that training, as the ablation (Table 5) shows stepwise gains rather than tautologies. Fixed-footprint drafting (Eq. 5), confidence–expansion truncation (Eq. 14), and draft-router prefetch are design choices evaluated experimentally; none redefine the reported metrics in terms of themselves. Citations (Leviathan et al., MoE-Infinity, EdgeMoE, Fiddler, etc.) are external prior art, not author-overlapping uniqueness theorems that force the result. Baseline-fairness concerns (no-cache AR vs cached/prefetched DraftExpert) affect attribution of speedup, not circularity of the derivation. The paper is self-contained against external benchmarks with no fitted-input-as-prediction or self-definitional loop.
Axiom & Free-Parameter Ledger
free parameters (4)
- loss weights α, β, η
- confidence threshold τ and expansion budget Bi
- draft-expert capacity / scale γl
- distillation temperature T
axioms (5)
- domain assumption Routed experts dominate parameter count and must be staged on demand from CPU or Flash while non-routed weights stay accelerator-resident.
- standard math Standard MoE forward: y = shared + Σ g_e E_e(h) over top-k router selections.
- ad hoc to paper A single learned draft expert can approximate the residual of the omitted top-k experts well enough for high token and router agreement.
- ad hoc to paper Draft-router predictions of verifier expert sets remain accurate enough after distillation to support useful prefetch and truncation.
- domain assumption Evaluation under cold expert cache / single-user latency-critical decode is the relevant regime.
invented entities (2)
-
Per-layer accelerator-resident draft expert Ed_l
no independent evidence
-
Confidence–expansion truncation controller
no independent evidence
read the original abstract
Large Mixture-of-Experts (MoE) language models are attractive for end-device deployment because only a small subset of experts is active per token, but their routed expert weights often exceed accelerator memory. We target latency-critical single-user settings where routed experts are staged on demand from CPU memory to a GPU or from Flash to a mobile NPU. In this setting, self-speculative decoding faces a new bottleneck: increasing the draft expert set improves accuracy but triggers extra expert loading, while cheap small-footprint drafts have low acceptance; moreover, verifying a multi-token block activates the union of target experts and is no longer close to one target step. We propose DraftExpert, an expansion-aware self-speculative decoding framework for expert-offloaded MoE inference. DraftExpert trains one lightweight accelerator-resident draft expert per layer by self-distilling residual, logit/token, and router-agreement signals from the frozen target MoE. At inference time, it uses a fixed-footprint shared+top-1+draft-expert drafter together with confidence--expansion truncation and target-expert prefetching, while final tokens are still exactly verified by the target model. On DeepSeek-V2-Lite and Moonlight-16B-A3B across CPU-GPU and Flash-NPU offload, DraftExpert improves decode throughput by 1.45x on average, raises draft acceptance to 84~87%, and achieves 86~88% prefetch hit rates.
Figures
Reference graph
Works this paper leans on
-
[1]
2023 , eprint=
Fast Inference from Transformers via Speculative Decoding , author=. 2023 , eprint=
2023
-
[2]
2023 , eprint=
Accelerating Large Language Model Decoding with Speculative Sampling , author=. 2023 , eprint=
2023
-
[3]
International Conference on Learning Representations , year=
Outrageously Large Neural Networks: The Sparsely-Gated Mixture-of-Experts Layer , author=. International Conference on Learning Representations , year=
-
[4]
Journal of Machine Learning Research , volume=
Switch Transformers: Scaling to Trillion Parameter Models with Simple and Efficient Sparsity , author=. Journal of Machine Learning Research , volume=
-
[5]
Bradley McDanel and Steven Li and Sruthikesh Surineni and Harshit Khaitan , year=. 2602.16052 , archivePrefix=
-
[6]
2025 , eprint=
Utility-Driven Speculative Decoding for Mixture-of-Experts , author=. 2025 , eprint=
2025
-
[7]
Self-Speculative Decoding for On-device
Peirong Zheng and Wenchao Xu and Haozhao Wang , booktitle=. Self-Speculative Decoding for On-device. 2026 , doi=
2026
-
[8]
Jehyeon Bang and Eunyeong Cho and Ranggi Hwang and Jinha Chung and Minsoo Rhu , year=. 2604.10152 , archivePrefix=
-
[9]
Zongle Huang and Lei Zhu and Zongyuan Zhan and Ting Hu and Weikai Mao and Xianzhi Yu and Yongpan Liu and Tianyu Zhang , year=. 2505.19645 , archivePrefix=
-
[10]
2025 , eprint=
Accelerating Mixture-of-Experts Inference by Hiding Offloading Latency with Speculative Decoding , author=. 2025 , eprint=
2025
-
[11]
Liangkun Chen and Zijian Wen and Tian Wu and Xiaoxi Zhang and Chuan Wu , year=. 2510.10302 , archivePrefix=
-
[12]
Wenfeng Wang and Jiacheng Liu and Xiaofeng Hou and Xinfeng Xia and Peng Tang and Mingxuan Zhang and Chao Li and Minyi Guo , year=. 2511.14102 , archivePrefix=
-
[13]
Shuhuai Li and Jianghao Lin and Dongdong Ge and Yinyu Ye , year=. 2603.09983 , archivePrefix=
-
[14]
Jakiro: Boosting Speculative Decoding with Decoupled Multi-Head via
Haiduo Huang and Fuwei Yang and Zhenhua Liu and Yixing Xu and Jinze Li and Yang Liu and Xuanwu Yin and Dong Li and Pengju Ren and Emad Barsoum , year=. Jakiro: Boosting Speculative Decoding with Decoupled Multi-Head via. 2502.06282 , archivePrefix=
-
[15]
Xin Cheng and Xingkai Yu and Chenze Shao and Jiashi Li and Yunfan Xiong and others , year=
-
[16]
Semantic Parallelism: Redefining Efficient
Yan Li and Zhenyu Zhang and Zhengang Wang and Pengfei Chen and Pengfei Zheng , booktitle=. Semantic Parallelism: Redefining Efficient. 2026 , eprint=
2026
-
[17]
Dmitry Lepikhin and HyoukJoong Lee and Yuanzhong Xu and Dehao Chen and Orhan Firat and Yanping Huang and Maxim Krikun and Noam Shazeer and Zhifeng Chen , booktitle=
-
[18]
Nan Du and Yanping Huang and Andrew M. Dai and Simon Tong and Dmitry Lepikhin and Yuanzhong Xu and Maxim Krikun and Yanqi Zhou and Adams Wei Yu and Orhan Firat and Barret Zoph and Liam Fedus and Maarten Bosma and Zongwei Zhou and others , booktitle=
-
[19]
2024 , eprint=
Mixtral of Experts , author=. 2024 , eprint=
2024
-
[20]
Damai Dai and Chengqi Deng and Chenggang Zhao and R. X. Xu and Huazuo Gao and Deli Chen and Jiashi Li and Wangding Zeng and Xingkai Yu and Y. Wu and Zhenda Xie and Y. K. Li and Panpan Huang and Fuli Luo and Chong Ruan and Zhifang Sui and Wenfeng Liang , booktitle=. 2024 , doi=
2024
-
[21]
Jingyuan Liu and Jianlin Su and Xingcheng Yao and Zhejun Jiang and Guokun Lai and Yulun Du and Yidao Qin and Weixin Xu and Enzhe Lu and Junjie Yan and Yanru Chen and Huabin Zheng and Yibo Liu and Shaowei Liu and Bohong Yin and Weiran He and Han Zhu and Yuzhi Wang and Jianzhou Wang and Mengnan Dong and Zheng Zhang and Yongsheng Kang and Hao Zhang and Xinra...
-
[22]
Xupeng Miao and Gabriele Oliaro and Zhihao Zhang and Xinhao Cheng and Zeyu Wang and Zhengxin Zhang and Rae Ying Yee Wong and Alan Zhu and Lijie Yang and Xiaoxiang Shi and Chunan Shi and Zhuoming Chen and Daiyaan Arfeen and Reyna Abhyankar and Zhihao Jia , booktitle=
-
[23]
Lee and Deming Chen and Tri Dao , booktitle=
Tianle Cai and Yuhong Li and Zhengyang Geng and Hongwu Peng and Jason D. Lee and Deming Chen and Tri Dao , booktitle=. Medusa: Simple
-
[24]
Yuhui Li and Fangyun Wei and Chao Zhang and Hongyang Zhang , year=. 2401.15077 , archivePrefix=
-
[25]
Proceedings of the 62nd Annual Meeting of the Association for Computational Linguistics , pages=
Draft & Verify: Lossless Large Language Model Acceleration via Self-Speculative Decoding , author=. Proceedings of the 62nd Annual Meeting of the Association for Computational Linguistics , pages=. 2024 , doi=
2024
-
[26]
Aly and Beidi Chen and Carole-Jean Wu , booktitle=
Mostafa Elhoushi and Akshat Shrivastava and Diana Liskovich and Basil Hosmer and Bram Wasti and Liangzhen Lai and Anas Mahmoud and Bilge Acun and Saurabh Agarwal and Ahmed Roman and Ahmed A. Aly and Beidi Chen and Carole-Jean Wu , booktitle=. 2024 , doi=
2024
-
[27]
Leyang Xue and Yao Fu and Zhan Lu and Luo Mai and Mahesh Marina , year=. 2401.14361 , archivePrefix=
-
[28]
Rongjie Yi and Liwei Guo and Shiyun Wei and Ao Zhou and Shangguang Wang and Mengwei Xu , year=. 2308.14352 , archivePrefix=
-
[29]
Fiddler:
Keisuke Kamahori and Tian Tang and Yile Gu and Kan Zhu and Baris Kasikci , booktitle=. Fiddler:
-
[30]
llama.cpp:
Georgi Gerganov , year=. llama.cpp:
-
[31]
NIPS Deep Learning and Representation Learning Workshop , year=
Distilling the Knowledge in a Neural Network , author=. NIPS Deep Learning and Representation Learning Workshop , year=
