High resolution large working distance scanning helium microscopy

Sam M Lambrick , Nick A von Jeinsen , Alek Radi\'c , David J Ward , Donald MacLaren , Andrew P Jardine This is my paper

Pith reviewed 2026-05-20 04:25 UTC · model grok-4.3

classification ⚛️ physics.optics physics.app-ph
keywords scanning helium microscopypinhole SHeMsub-micron resolutionatom optics optimisationlarge working distancesurface sensitivity
0
0 comments X

The pith

Redesigned pinhole and optimized optics yield 340 nm resolution in large-working-distance scanning helium microscopy.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

This paper shows how to reach sub-micron spatial resolution in scanning helium microscopy while keeping a large working distance of 770 to 850 micrometers. The improvements come from optimizing the atom optics under constraints, using a new pinhole plate design, smaller pinhole, greater source to pinhole separation, and enlarged detector aperture. A reader would care because this allows high-resolution, non-destructive imaging of sensitive surfaces like bacteria or materials with practical access for topographic and diffraction studies. The beamwidth measurements match the model, indicating that resolution is now limited by a balance of geometric, source size, and diffraction effects.

Core claim

The central discovery is an intrinsic beamwidth of 340 nm achieved at working distances of 770 μm to 850 μm in a pinhole-based scanning helium microscope, representing a sixfold improvement. This is realized through constrained optimisation of the atom optics together with a redesigned high-resolution pinhole-plate, a reduced pinhole diameter, an increased source--pinhole distance and a larger detector aperture. The beamwidths agree with the modified optimisation model, showing geometric, source-size and diffraction terms now contribute on a similar footing.

What carries the argument

Constrained optimisation of the atom optics combined with the redesigned high-resolution pinhole-plate that enables the sub-micron beam at large distances.

If this is right

  • The instrument can now image bacterial specimens and eroded diamond with sub-micron detail at large working distances.
  • Large-working-distance pinhole SHeM becomes a viable platform for sub-micron imaging.
  • Useful depth of field and practical sample access support topographic imaging and micro-diffraction applications.
  • Multiple resolution-limiting factors contribute equally, indicating a near-optimised regime.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • This design strategy could be applied to improve resolution in other scanning microscopies using neutral probes.
  • With the current balance of terms, small further changes to pinhole size or distances might yield additional gains.
  • The large working distance allows imaging of samples that require significant clearance, such as in situ experiments.

Load-bearing premise

That the measured beamwidths accurately isolate the intrinsic resolution after subtracting geometric, source-size, and diffraction contributions with no significant unmodeled experimental factors.

What would settle it

Observation of beamwidth measurements at 800 micrometer working distance that deviate substantially from the predicted 340 nm after applying the subtraction of contributions.

Figures

Figures reproduced from arXiv: 2605.19930 by Alek Radi\'c, Andrew P Jardine, David J Ward, Donald MacLaren, Nick A von Jeinsen, Sam M Lambrick.

Figure 1
Figure 1. Figure 1: Basic geometry of the Cambridge-type SHeM and the Portland-type [PITH_FULL_IMAGE:figures/full_fig_p002_1.png] view at source ↗
Figure 2
Figure 2. Figure 2: The optical system in the Cambridge SHeM. High pressure gas forms [PITH_FULL_IMAGE:figures/full_fig_p003_2.png] view at source ↗
Figure 3
Figure 3. Figure 3: A cross-sectional render of the Cambridge SHeM, with a new sample [PITH_FULL_IMAGE:figures/full_fig_p005_3.png] view at source ↗
Figure 5
Figure 5. Figure 5: SEM micrographs of the FIB-milled pinhole in the Si–N mem [PITH_FULL_IMAGE:figures/full_fig_p006_5.png] view at source ↗

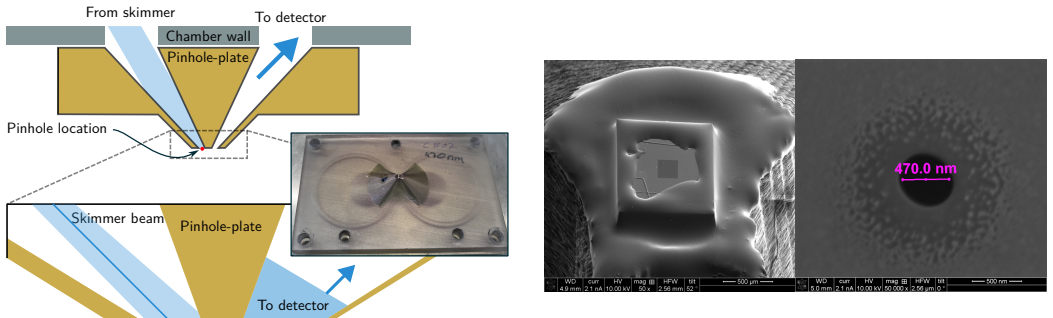

Figure 4
Figure 4. Figure 4: Top, schematic of a pinhole plate (orange) in the Cambridge SHeM, [PITH_FULL_IMAGE:figures/full_fig_p006_4.png] view at source ↗
Figure 6

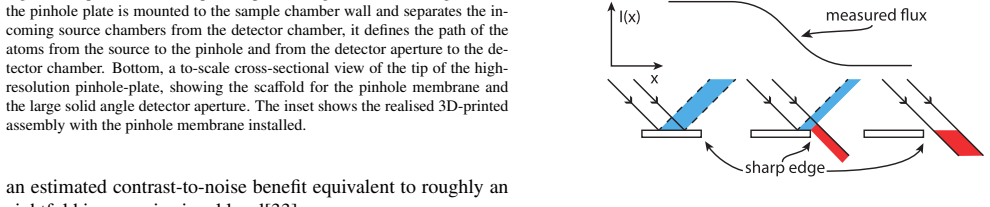

Figure 6. Figure 6: Scanning across a step edge with steps smaller than the beam width [PITH_FULL_IMAGE:figures/full_fig_p006_6.png] view at source ↗
Figure 7
Figure 7. Figure 7: Beamwidth measurements, plotted as the intrinsic beamwidth [PITH_FULL_IMAGE:figures/full_fig_p006_7.png] view at source ↗

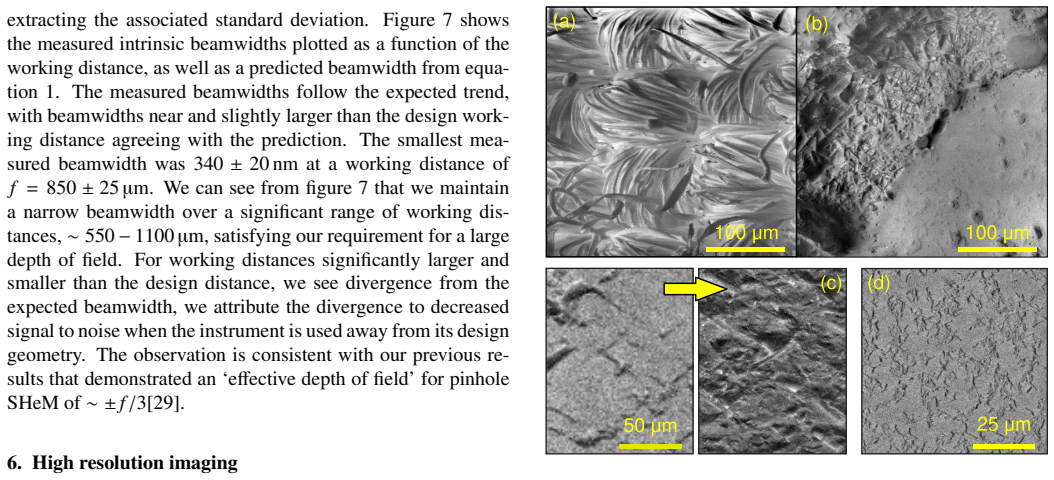

Figure 8
Figure 8. Figure 8: Example high-resolution SHeM micrographs demonstrating a large [PITH_FULL_IMAGE:figures/full_fig_p007_8.png] view at source ↗
read the original abstract

Scanning helium microscopy (SHeM) is attractive for imaging delicate and insulating surfaces because it combines a non-destructive neutral-atom probe with strong surface sensitivity. However, large-working-distance pinhole instruments have so far been limited in spatial resolution. Here we report sub-micron resolution in a large-working-distance pinhole SHeM, with an intrinsic beamwidth of 340nm achieved at working distances of 770 {\mu}m to 850 {\mu}m. This sixfold improvement over our previous long-working-distance configuration is enabled by constrained optimisation of the atom optics together with a redesigned high-resolution pinhole-plate, a reduced pinhole diameter, an increased source--pinhole distance and a larger detector aperture. Beamwidth measurements agree well with the modified optimisation model and show that geometric, source-size and diffraction terms now contribute on a similar footing, placing the instrument in a near-optimised regime. The resulting combination of sub-micron beam size, useful depth of field and practical sample access is demonstrated on bacterial specimens and eroded diamond. The work establishes large-working-distance pinhole SHeM as a viable sub-micron imaging platform and extends its usefulness for topographic imaging and micro-diffraction applications.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

1 major / 0 minor

Summary. The manuscript reports sub-micron resolution in a large-working-distance pinhole scanning helium microscope (SHeM), achieving an intrinsic beamwidth of 340 nm at working distances of 770–850 μm. This sixfold improvement over prior long-working-distance configurations is obtained via constrained optimisation of the atom optics, a redesigned high-resolution pinhole plate, reduced pinhole diameter, increased source–pinhole distance, and enlarged detector aperture. Measured beamwidths are stated to agree with a modified optimisation model in which geometric, source-size, and diffraction contributions are now comparable, placing the instrument near an optimised regime. The combination of resolution, depth of field, and sample access is illustrated on bacterial specimens and eroded diamond.

Significance. If the central experimental result holds, the work establishes large-working-distance pinhole SHeM as a practical sub-micron platform for non-destructive imaging of delicate and insulating surfaces. The balanced contribution of broadening mechanisms and the explicit hardware changes that realise the improvement constitute a clear advance over previous long-working-distance implementations. The demonstrated topographic and micro-diffraction applications further indicate utility beyond pure resolution metrics.

major comments (1)
  1. Beamwidth measurements and model comparison: the reported 340 nm intrinsic width is obtained after subtracting geometric, source-size, and diffraction terms from the measured profiles. While agreement with the modified optimisation model is claimed, the manuscript does not provide a propagated uncertainty budget for the subtracted components or raw line-scan data; this omission weakens the isolation of the intrinsic resolution and should be addressed with explicit error analysis before the central claim can be considered fully substantiated.

Simulated Author's Rebuttal

1 responses · 0 unresolved

We thank the referee for their positive evaluation of the work and for the constructive comment. We address the point below and will revise the manuscript accordingly.

read point-by-point responses

  1. Referee: Beamwidth measurements and model comparison: the reported 340 nm intrinsic width is obtained after subtracting geometric, source-size, and diffraction terms from the measured profiles. While agreement with the modified optimisation model is claimed, the manuscript does not provide a propagated uncertainty budget for the subtracted components or raw line-scan data; this omission weakens the isolation of the intrinsic resolution and should be addressed with explicit error analysis before the central claim can be considered fully substantiated.

    Authors: We agree that an explicit uncertainty budget and access to the raw data would strengthen the central claim. In the revised manuscript we will add the raw line-scan profiles to the supplementary information and include a propagated uncertainty analysis for the geometric, source-size and diffraction contributions to the measured beamwidth. This will allow readers to assess the isolation of the reported 340 nm intrinsic resolution and the agreement with the optimisation model. revision: yes

Circularity Check

0 steps flagged

No significant circularity identified

full rationale

The paper reports an experimental result: sub-micron resolution achieved via documented hardware changes (redesigned pinhole-plate, smaller pinhole, increased source-pinhole distance, larger detector aperture) plus constrained optimization of atom optics. Beamwidth measurements at 770-850 μm working distance are presented as direct data that agree with the modified model, with geometric, source-size and diffraction contributions now comparable. No load-bearing step reduces the reported 340 nm intrinsic beamwidth to a fitted parameter, self-citation chain, or input by construction; the central claim rests on physical implementation and measurement that remains independent of the listed circularity patterns.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 0 invented entities

The work relies on standard neutral-atom beam propagation and pinhole optics principles with no new postulated entities or heavily fitted parameters beyond design choices.

axioms (1)
  • standard math Standard atom optics principles govern helium beam focusing and diffraction in pinhole systems
    Invoked in the constrained optimisation model and beamwidth decomposition into geometric, source-size, and diffraction terms.
