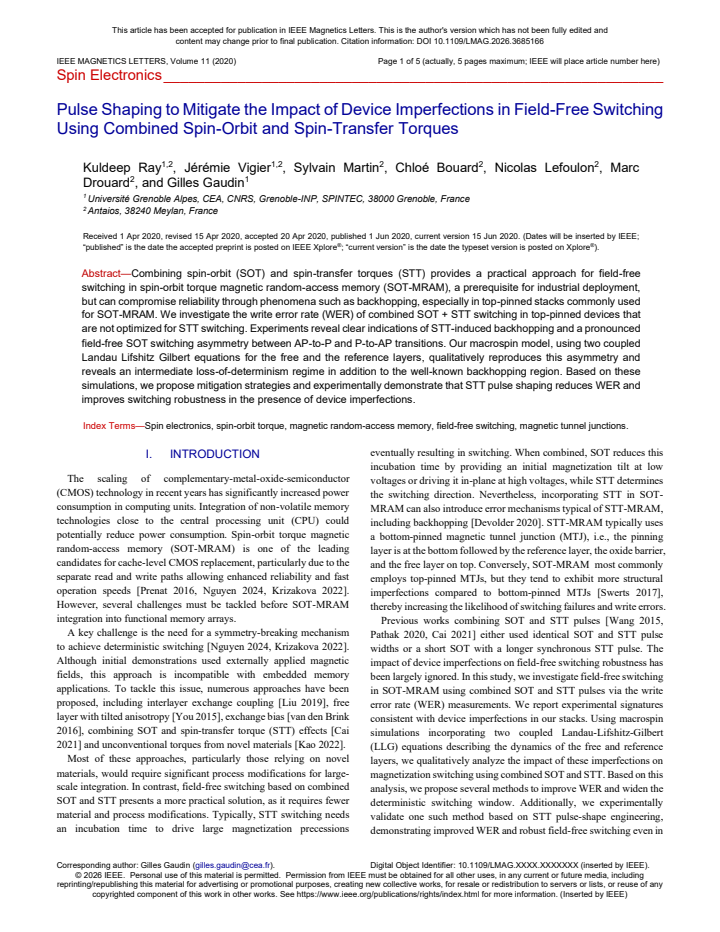

Pulse Shaping to Mitigate the Impact of Device Imperfections in Field-Free Switching Using Combined Spin-Orbit and Spin-Transfer Torques

Kuldeep Ray , J\'er\'emie Vigier , Sylvain Martin , Chlo\'e Bouard , Nicolas Lefoulon , Marc Drouard , Gilles Gaudin This is my paper

Pith reviewed 2026-05-08 10:18 UTC · model grok-4.3

classification ❄️ cond-mat.mes-hall physics.app-ph
keywords SOT-MRAMfield-free switchingspin-orbit torquespin-transfer torquepulse shapingwrite error ratebackhoppingmacrospin model
0
0 comments X

The pith

Shaping the STT pulse reduces write error rates and improves robustness in field-free SOT-STT switching of top-pinned devices.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper examines combined spin-orbit and spin-transfer torque switching for field-free operation in SOT-MRAM, noting that this approach brings backhopping and pronounced asymmetry between AP-to-P and P-to-AP transitions in top-pinned stacks. Experiments on non-optimized devices reveal these reliability issues, while a macrospin model built from two coupled Landau-Lifshitz-Gilbert equations reproduces the asymmetry and identifies an intermediate loss-of-determinism regime. The authors then demonstrate that shaping the STT pulse component lowers the write error rate and makes switching more tolerant of device imperfections.

Core claim

In top-pinned SOT-MRAM devices, the combination of SOT and STT for field-free switching exhibits pronounced asymmetry between AP-to-P and P-to-AP transitions due to STT-induced backhopping. A macrospin model with two coupled LLG equations reproduces this asymmetry and uncovers an intermediate loss-of-determinism regime. Pulse shaping of the STT component reduces the write error rate and enhances switching robustness against device imperfections.

What carries the argument

Macrospin model of two coupled Landau-Lifshitz-Gilbert equations for the free and reference layers, which simulates the dynamics and guides the identification of effective STT pulse shapes.

If this is right

  • Lower write error rates can be achieved without optimizing the stack for pure STT switching.
  • Switching becomes more robust to variations in device parameters such as pinning strength or layer thickness.
  • The loss-of-determinism regime can be avoided by appropriate pulse timing and amplitude.
  • Practical mitigation strategies become available for industrial deployment of SOT-MRAM.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • Similar pulse shaping approaches could extend to other torque combinations or bottom-pinned stacks.
  • Circuit-level integration of pulse generators might improve overall memory yield and energy efficiency.
  • Quantitative mapping of the loss-of-determinism boundaries could inform design rules for scaled devices.

Load-bearing premise

The macrospin approximation with two coupled equations sufficiently captures the essential dynamics of real multilayer devices to guide effective pulse shaping.

What would settle it

Performing the pulse shaping experiment on devices and finding no statistically significant reduction in write error rate compared to unshaped pulses would falsify the mitigation claim.

Figures

Figures reproduced from arXiv: 2604.22574 by Chlo\'e Bouard, Gilles Gaudin, J\'er\'emie Vigier, Kuldeep Ray, Marc Drouard, Nicolas Lefoulon, Sylvain Martin.

Figure 1
Figure 1. Figure 1: (a) Schematic of the material stack of SOT-MRAM devices measured in this study. (b) Representative TMR hysteresis loop obtained by sweeping the out-of-plane field (HZ), showing a TMR = 63% at HZ=0 and an offset field Hoff = –11.94 kA/m. B. Experimental Setup The measurement setup is shown in view at source ↗
Figure 5

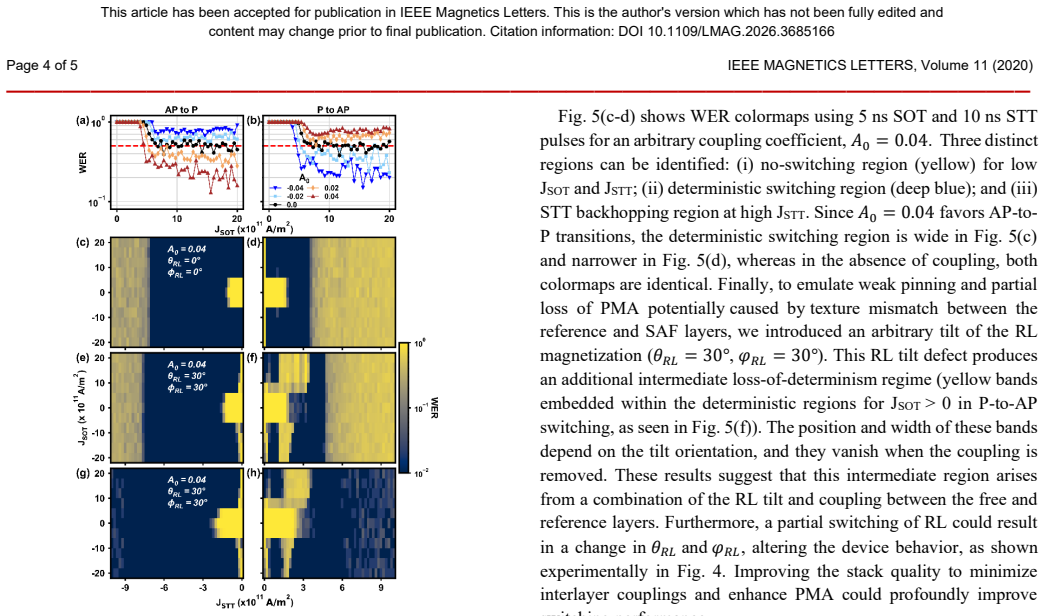

Figure 5. Figure 5: Simulated WER versus SOT current density using different view at source ↗
Figure 6
Figure 6. Figure 6: (a) WER versus VSTT for standard rectangular and modified pulse shapes. (b) WER versus VSOT for a modified two-step SOT pulse. Despite the presence of imperfections, the simulations in view at source ↗
Figure 7

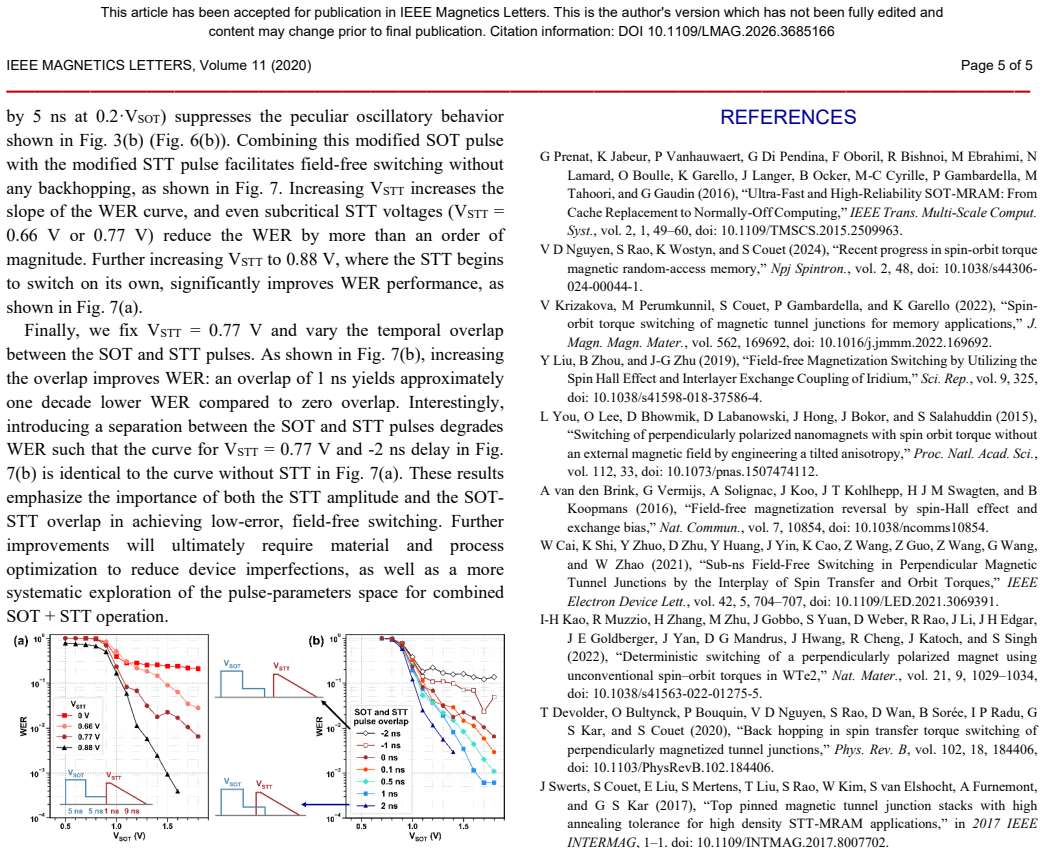

Figure 7. Figure 7: WER versus VSOT using modified SOT and STT pulses (shown in inset) (a) for different VSTT, and (b) for different overlaps between SOT and STT pulses with VSTT = 0.77 V. A negative overlap corresponds to the separation between the end of the SOT and the beginning of the STT pulses. VI. CONCLUSION WER measurements provide substantial evidence of device imperfections in our top-pinned SOT-MRAM. Through macros… view at source ↗
read the original abstract

Combining spin-orbit (SOT) and spin-transfer torques (STT) provides a practical approach for field-free switching in spin-orbit torque magnetic random-access memory (SOT-MRAM), a prerequisite for industrial deployment, but can compromise reliability through phenomena such as backhopping, especially in top-pinned stacks commonly used for SOT-MRAM. We investigate the write error rate (WER) of combined SOT + STT switching in top-pinned devices that are not optimized for STT switching. Experiments reveal clear indications of STT-induced backhopping and a pronounced field-free SOT switching asymmetry between AP-to-P and P-to-AP transitions. Our macrospin model, using two coupled Landau Lifshitz Gilbert equations for the free and the reference layers, qualitatively reproduces this asymmetry and reveals an intermediate loss-of-determinism regime in addition to the well-known backhopping region. Based on these simulations, we propose mitigation strategies and experimentally demonstrate that STT pulse shaping reduces WER and improves switching robustness in the presence of device imperfections.
