A piecewise diffusion regularizer reconstructs free-breathing cardiac cine MRI faster and better than prior methods.

Reviewed by Pith at T0; open to challenge. T0 means a machine referee read the full paper against a public rubric. the ladder, T0–T4 →

Challenge this review Re-run · record.json Download PDF Read on arXiv ↗

T0 review · grok-4.5

2026-07-12 03:25 UTC pith:VLCG6XSA

load-bearing objection Solid engineering paper that makes spatiotemporal diffusion priors usable on long free-breathing cine; efficiency claims are clean and the experiments are thorough.

arxiv 2607.03299 v1 pith:VLCG6XSA submitted 2026-07-03 eess.IV cs.CVcs.LG

Piecewise Dynamic Diffusion Regularization for Reconstruction of Cardiac Cine MRI

Florian F\"urnrohr , Reinhard Heckel This is my paper
classification eess.IV cs.CVcs.LG
keywords cardiac cine MRIreal-time MRIdiffusion modelsspatiotemporal priorvariational reconstructionpiecewise regularizationfree-breathing imaging
verification ladder T0 review T1 audit T2 compute T3 formal T4 reserved

The pith

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

Real-time free-breathing cardiac MRI videos are hard to reconstruct because each frame is severely undersampled and the heart and lungs keep moving. The authors show that a spatiotemporal diffusion model trained on short gated cine sequences can serve as a strong generative prior if it is applied only to short consecutive blocks of frames inside a variational loop that still enforces full data consistency. This piecewise scheme, called PDDR, matches or exceeds classical low-rank, unsupervised network, and other diffusion baselines on retrospective, non-periodic, and prospective data while cutting runtime and GPU memory by roughly an order of magnitude relative to full-sequence diffusion sampling. The result is a practical route to high-quality free-breathing cine that no longer requires breath-holds or ECG gating.

Core claim

Piecewise application of a spatiotemporal diffusion prior inside a variational reconstruction objective recovers high-quality free-breathing cardiac cine videos from highly undersampled multi-coil measurements, outperforming both classical and modern baselines while remaining computationally tractable for sequences of hundreds of frames.

What carries the argument

Piecewise Dynamic Diffusion Regularization (PDDR): the full measurement-consistency term is kept, but the diffusion regularizer is evaluated only on a randomly chosen or sliding-window block of Q consecutive frames at each optimization step, so that memory and runtime scale with block size rather than total sequence length.

Load-bearing premise

A diffusion model trained only on short, breath-hold, ECG-gated cine sequences still supplies a useful generative regularizer for long free-breathing acquisitions that contain respiratory motion and irregular heartbeats.

What would settle it

On a set of long free-breathing multi-coil acquisitions whose true anatomy and motion differ markedly from the gated training distribution, measure whether PDDR's hold-out k-space SER and visual cardiac dynamics degrade below those of an untrained method such as L+S or T-DIP that makes no use of the learned prior.

Watch this falsifier — get emailed when new claim-graph text bears on it.

If this is right

  • Long free-breathing real-time cine sequences can be reconstructed at clinical quality without ECG gating or breath-holds.
  • The same spatiotemporal diffusion model can be reused for both short gated and long real-time acquisitions simply by changing the block size Q and iteration count K.
  • GPU memory and wall-clock time for diffusion-based cardiac reconstruction drop by roughly an order of magnitude relative to full-sequence posterior sampling.
  • Hyper-parameters Q and K give an explicit Pareto trade-off between image quality and hardware cost that can be tuned to available GPUs.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The piecewise idea is architecture-agnostic and could be ported to other high-dimensional inverse problems (dynamic CT, multi-contrast MRI, video compressive sensing) where a strong generative prior exists but full-sequence sampling is prohibitive.
  • If the gated-to-free-breathing distribution shift is the main remaining error source, lightweight domain adaptation or residual motion modeling on top of PDDR could close the residual gap without retraining the diffusion prior from scratch.
  • Because the method already separates spatial anatomy layers from temporal motion layers, the same backbone could be frozen and only the temporal modules fine-tuned for other cyclic organs (liver, lung) with modest additional data.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit.

Referee Report

0 major / 5 minor

Summary. The paper proposes Piecewise Dynamic Diffusion Regularization (PDDR) for free-breathing real-time cardiac cine MRI. A separable spatiotemporal U-Net diffusion model (spatial 2D layers + optional 1D temporal layers with learnable α-mixer) is trained on gated CMRxRecon cine and used as a generative prior inside a variational objective (Eq. 1). Because full-sequence regularization is memory-prohibitive for long videos, the diffusion residual is applied only to a random or sliding-window block of Q consecutive frames at each optimization step, with a descending noise schedule. Retrospective 4–16× experiments on CMRxRecon, non-periodic/arrhythmia/motion simulations, and prospective free-breathing OCMR data show that PDDR matches or exceeds L+S, FMLP, T-DIP, DPS and dSTDM in PSNR/SSIM/SER while cutting runtime and VRAM relative to DPS that uses the identical prior (Tables 1–3, Figs. 2–5).

Significance. Real-time free-breathing cine remains limited by the tension between strong spatiotemporal priors and feasible compute. PDDR supplies a concrete, reproducible solution: the same diffusion model that is impractical under DPS becomes practical under piecewise variational regularization, with documented reductions from 972 s / 41.6 GB to 124 s / 11.4 GB on prospective data. Public datasets, fixed validation-chosen hyperparameters, paired statistical tests, architecture and block-size ablations, and open code strengthen the contribution. If the gated-to-free-breathing transfer continues to hold, the method is immediately useful for clinical real-time pipelines.

minor comments (5)
  1. In Table 1 (12× gated) PDDR reports higher PSNR/SSIM than DPS yet higher NMSE; a one-sentence clarification of which metric is prioritized for the “outperforms” claim would help readers.
  2. Figure 3 caption and surrounding text give reconstruction times that differ slightly from the means in Table 3; stating that the figure shows a single example would remove ambiguity.
  3. Appendix A.4 notes that hyperparameters were tuned only at 12× acceleration. A short remark that the same settings were used for all accelerations (and that this may be slightly suboptimal) would improve transparency.
  4. The α-mixer and skippable temporal path are well motivated, but a brief note on whether α is shared across residual blocks or learned per block would aid re-implementation.
  5. A few typographical inconsistencies appear (e.g., “P iecewise D ynamic D iffusion R egularization”, occasional missing spaces after citations). These are easily cleaned in production.

Circularity Check

0 steps flagged

No significant circularity; PDDR is an empirical variational method whose claims rest on held-out quantitative metrics against public baselines, not on self-referential definitions or fitted-as-prediction loops.

full rationale

The paper proposes a piecewise application of a spatiotemporal diffusion prior inside a standard variational objective (Eq. 1) and evaluates it by direct reconstruction metrics (PSNR/SSIM/NMSE/SER/TTV) on held-out CMRxRecon and OCMR data against classical (L+S), untrained (FMLP, T-DIP) and diffusion (DPS, dSTDM, SDR) baselines. Hyper-parameters are grid-searched once on a validation split and frozen; the diffusion model is trained once on gated sequences and then used unchanged. No equation equates a reported metric to a fitted constant by construction, no uniqueness theorem is imported from the authors’ prior work to force the architecture, and the efficiency numbers (runtime/VRAM of PDDR vs. DPS on the identical model) are measured ablations (Figs. 4–5, Table 4), not tautologies. Self-citations (KRH24a/b) appear only as baselines or for a non-load-bearing timestep schedule; they do not underwrite the central performance claims. The derivation chain is therefore self-contained and non-circular.

Axiom & Free-Parameter Ledger

4 free parameters · 3 axioms · 2 invented entities

The central performance claim rests on the standard multi-coil MRI forward model, the usual diffusion-model training objective, a small set of hand-chosen inference hyper-parameters, and the architectural invention of the separable spatiotemporal residual block. No new physical constants or untestable mediators are introduced.

free parameters (4)
  • regularization weight λ = 0.05
    Balances data-fidelity and diffusion residual terms; set to 0.05 by linear grid search on a validation set (Appendix A.4).
  • block size Q = 36
    Number of consecutive frames regularized per optimization step; chosen as 36 for real-time sequences after Pareto analysis of memory/runtime/quality (Fig. 5, Table 4).
  • optimization steps K = 200
    Number of gradient steps; set to 200 for long sequences after ablation (Fig. 5).
  • maximum diffusion timestep T′ = 400
    Upper noise level used at inference; set to 0.4·T = 400 following the descending schedule ablation (Fig. 8).
axioms (3)
  • domain assumption Multi-coil MRI measurements obey the linear model y_τ = M_τ F S x_τ + n_τ
    Standard forward operator used throughout Sections 2.1 and 3; coil sensitivities estimated by ESPIRiT.
  • domain assumption A denoising diffusion model trained by noise-matching on gated cine data approximates the distribution of cardiac anatomy and motion well enough to serve as a regularizer
    Invoked in Section 3.2 and the training paragraph of Section 4.1; standard assumption of diffusion-based inverse-problem solvers.
  • ad hoc to paper Stochastic piecewise application of the diffusion residual yields an unbiased enough estimate of the full-sequence regularizer for gradient-based optimization
    Core modeling choice of Eq. (1) and the sliding-window schedule; justified empirically by the ablations in Section 4.4 but not derived from first principles.
invented entities (2)
  • Piecewise Dynamic Diffusion Regularization (PDDR) independent evidence
    purpose: Name for the overall reconstruction algorithm that applies a spatiotemporal diffusion prior only to short consecutive blocks inside a variational loop.
    Introduced in Section 3; the entity is the method itself and is evaluated by direct comparison to baselines.
  • Separable spatiotemporal residual block with learnable α-mixer independent evidence
    purpose: Efficient building block that mixes 2-D spatial and 1-D temporal convolutions so that larger block sizes Q fit in GPU memory.
    Defined in Section 3.2 and Appendix A.1; ablation against naïve 3-D blocks shows memory and quality gains.

pith-pipeline@v1.1.0-grok45 · 22555 in / 2633 out tokens · 24654 ms · 2026-07-12T03:25:15.953718+00:00 · methodology

0 comments
read the original abstract

Real-time cardiac cine MRI enables visualization of the beating heart during free breathing, but severe undersampling and motion make reconstruction highly challenging. A central challenge for reconstruction is incorporating powerful priors of cardiac anatomy while remaining computationally efficient. We propose Piecewise Dynamic Diffusion Regularization (PDDR), a reconstruction method that integrates a spatiotemporal diffusion model as a generative prior within a variational reconstruction framework for cine MRI. The model employs dedicated spatial layers to encode anatomical structure and temporal layers to capture cardiac motion learned from gated cine data. PDDR leverages the dynamic prior in a piecewise manner, enabling the efficient use of spatiotemporal diffusion models for processing of long real-time sequences. Experiments on retrospectively accelerated and prospective real-time cine MRI demonstrate that PDDR outperforms classical, unsupervised, and diffusion-based methods, delivering high-quality reconstructions with substantially reduced computation time compared to state-of-the-art baselines. These results highlight PDDR as a practical and scalable solution for free-breathing, real-time cardiac MRI. Code is available at https://github.com/MLI-lab/pddr.

Figures

Figures reproduced from arXiv: 2607.03299 by Florian F\"urnrohr, Reinhard Heckel.

Figure 1
Figure 1. Figure 1: Reconstruction by Piecewise Dynamic Diffusion Regularization. The proposed variational [PITH_FULL_IMAGE:figures/full_fig_p004_1.png] view at source ↗
Figure 2
Figure 2. Figure 2: Reconstruction performance for varying levels of undersampling severity. Image quality [PITH_FULL_IMAGE:figures/full_fig_p007_2.png] view at source ↗
Figure 3
Figure 3. Figure 3: Example reconstructions of prospective free-breathing data. Showing the full field-of [PITH_FULL_IMAGE:figures/full_fig_p011_3.png] view at source ↗
Figure 4
Figure 4. Figure 4: The block sampling strategy. The sliding window approach outperforms random positions [PITH_FULL_IMAGE:figures/full_fig_p012_4.png] view at source ↗
Figure 5
Figure 5. Figure 5: Tradeoff between reconstruction quality and computational cost in PDDR. Colors indicate [PITH_FULL_IMAGE:figures/full_fig_p013_5.png] view at source ↗
Figure 6
Figure 6. Figure 6: The model ablation. Reconstruction performance measured in PSNR ( [PITH_FULL_IMAGE:figures/full_fig_p016_6.png] view at source ↗
Figure 7
Figure 7. Figure 7: The model architecture. (a) An n-dimensional residual block (ResBlock) with timestep conditioning. (b) The α-mixer computes a weighted average of the spatial and the temporal layers output with respect to the sigmoid of the learnable parameter α. (c) The spatiotemporal block (ST-Block) applies a 2D spatial layer and an optional 1D temporal layer to the input and combines the layer outputs. (d) The proposed… view at source ↗

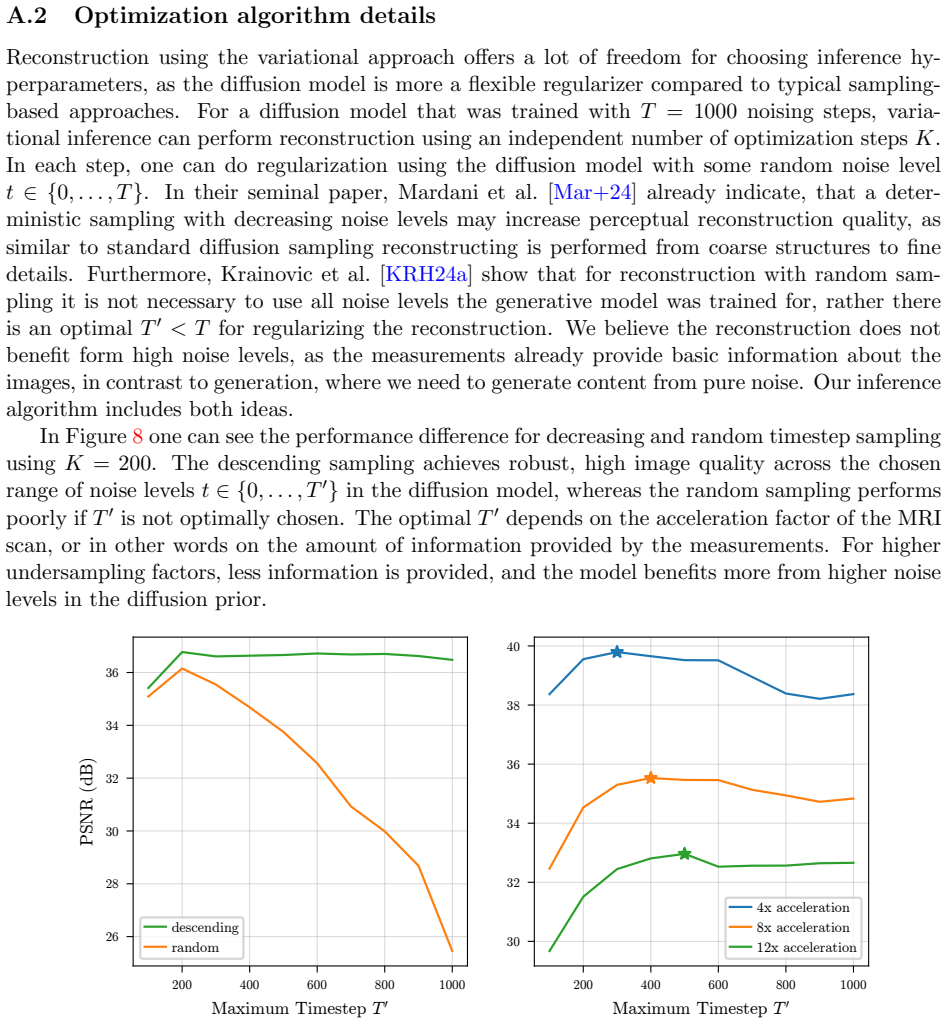

Figure 8
Figure 8. Figure 8: The timestep sampling ablation. Reconstruction performance measured in PSNR with [PITH_FULL_IMAGE:figures/full_fig_p018_8.png] view at source ↗
Figure 9
Figure 9. Figure 9: Example reconstructions of prospective SAX and LAX data. Showing the full field-of [PITH_FULL_IMAGE:figures/full_fig_p022_9.png] view at source ↗
Figure 10
Figure 10. Figure 10: Simulation results of PDDR for multiple accelerations. The performance drop through [PITH_FULL_IMAGE:figures/full_fig_p025_10.png] view at source ↗
