TIER: Trajectory-Invariant Execution Rewards for Multi-Step Tool Composition

Anay Kulkarni , ChiaEn Lu , Dheeraj Mekala , Jayanth Srinivasa , Gaowen Liu , Jingbo Shang This is my paper

Pith reviewed 2026-05-19 21:29 UTC · model grok-4.3

classification 💻 cs.LG cs.AIcs.CL
keywords tool usereinforcement learninglarge language modelsmulti-step compositionexecution rewardsfunction callingcompositional reasoning
0
0 comments X

The pith

Rewards derived from tool execution and schemas let models maintain high accuracy on tasks requiring up to six sequential tool calls.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper introduces a reward method for reinforcement learning on language model tool use that gives credit based on whether each step is valid, matches the tool schema, runs correctly, and produces the right answer. This replaces sparse final-outcome signals or rewards that demand exact matches to one reference sequence of calls. On a benchmark with problems graded by the number of required steps, the approach sustains over 90 percent success even at the deepest level, while path-matching rewards drop sharply after four steps. A reader would care because the method removes the need to annotate every possible correct sequence and instead lets any working execution path contribute to learning.

Core claim

TIER supplies dense sequence-level rewards by breaking supervision into format validity, schema adherence, execution success, and answer correctness, all obtained directly from tool schemas and runtime results rather than from reference trajectories. This design credits every valid execution path, supports evolving tool sets, and yields consistent accuracy above 90 percent on DepthBench problems of depth 1 through 6, where trajectory-supervised baselines collapse beyond depth 4.

What carries the argument

The TIER reward decomposition into format validity, schema adherence, execution success, and answer correctness, which supplies dense, path-independent feedback from runtime verification of each tool call.

If this is right

  • Any correct sequence of tool calls receives positive credit, allowing models to discover multiple solution strategies for the same task.
  • Performance does not degrade as the number of required tool calls increases from one to six.
  • Changes to tool interfaces require no new reference trajectories because rewards come from schemas and execution.
  • Each of the four reward components is required; removing any one reduces accuracy on deeper compositions.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The same execution-derived signals could replace trajectory annotations in other sequential decision tasks such as code generation or robotic planning.
  • Real-world deployment cost drops because supervision no longer depends on collecting human demonstrations of every valid path.
  • The framework might extend naturally to settings where tools return probabilistic or partial results, provided the verification layer can be adapted.

Load-bearing premise

That runtime execution feedback and schema verification can be obtained reliably and at low cost for every candidate step without introducing new errors.

What would settle it

Evaluating the trained models on a new set of tool-use problems where execution outcomes are noisy or delayed and checking whether accuracy remains above 90 percent at depth 6.

Figures

Figures reproduced from arXiv: 2605.16790 by Anay Kulkarni, ChiaEn Lu, Dheeraj Mekala, Gaowen Liu, Jayanth Srinivasa, Jingbo Shang.

Figure 1

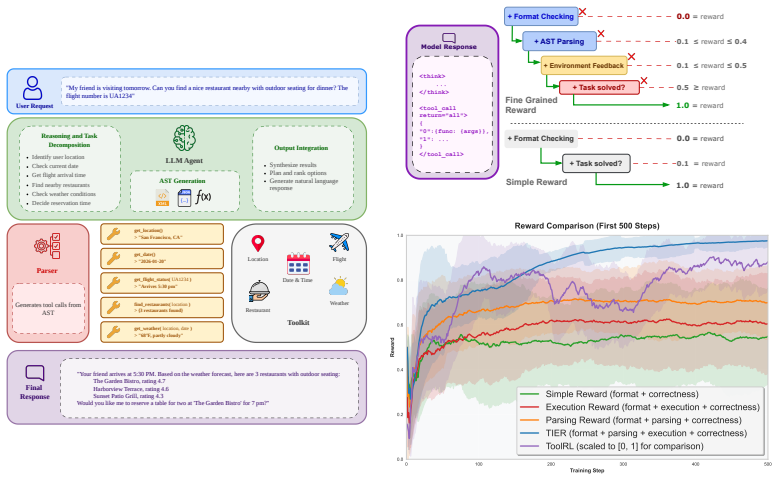

Figure 1. Figure 1: Left: Overview of TIER for tool-augmented LLM agents. The model generates structured tool calls as abstract syntax trees (ASTs), which are executed against external tools. Unlike trajectory￾supervised approaches, rewards are computed directly from function schemas and execution outcomes. Right (Top): TIER provides fine-grained, multi-level supervision decomposing into format, schema, execution, and answer … view at source ↗
Figure 2

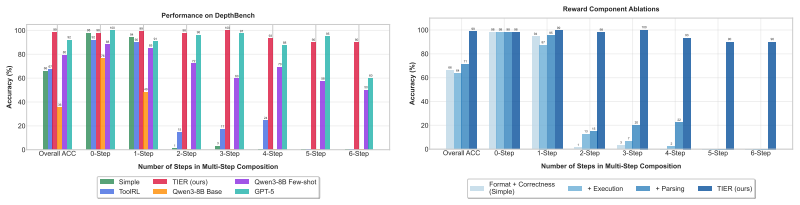

Figure 2. Figure 2: (a) Performance on DepthBench. (b) Reward component ablations under TIER [PITH_FULL_IMAGE:figures/full_fig_p006_2.png] view at source ↗
Figure 3
Figure 3. Figure 3: Performance of different intermediate representations under fine-grained rewards on BFCL [PITH_FULL_IMAGE:figures/full_fig_p013_3.png] view at source ↗
Figure 4
Figure 4. Figure 4: Training reward over the first 500 steps for three RL algorithms (Standard GRPO, Batch [PITH_FULL_IMAGE:figures/full_fig_p027_4.png] view at source ↗
read the original abstract

Tool use enables large language models to solve complex tasks through sequences of API calls, yet existing reinforcement learning approaches fail to scale to multi-step composition settings. Outcome-based rewards provide only sparse feedback, while trajectory-supervised rewards depend on annotated reference solutions, penalizing valid alternatives and limiting scalability. We propose TIER: Trajectory-Invariant Execution Rewards, a reward framework that derives supervision directly from function schemas and runtime execution, rather than from reference trajectories. The reward decomposes into format validity, schema adherence, execution success, and answer correctness, providing dense, interpretable sequence-level feedback derived from fine-grained verification of individual steps of tool use. This design allows any valid execution path to receive credit, naturally supporting multiple solution strategies and adapting to evolving tool interfaces. On DepthBench, a compositional benchmark stratified by depth (1 to 6 steps), TIER achieves >90% accuracy across steps, where trajectory-supervised rewards collapse beyond step-4. We further demonstrate consistent gains on benchmarks like BFCL v3 and NestFUL. Ablation studies confirm that all reward components are necessary, highlighting the importance of multi-level supervision for compositional reasoning.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 2 minor

Summary. The manuscript introduces TIER, a reward framework for reinforcement learning on multi-step tool composition. TIER derives dense, trajectory-invariant supervision directly from function schemas and runtime execution outcomes rather than reference trajectories, decomposing the reward into format validity, schema adherence, execution success, and answer correctness. On the DepthBench benchmark stratified by depth (1–6 steps), TIER reports >90% accuracy across all depths while trajectory-supervised baselines collapse beyond depth 4; consistent gains are also shown on BFCL v3 and NestFUL, with ablations indicating that all four reward components are necessary.

Significance. If the central empirical claims hold under more rigorous validation of the execution feedback, the work would offer a meaningful advance in scaling RL for compositional tool use. By crediting any valid execution path without penalizing alternatives, TIER addresses a key limitation of trajectory supervision and could improve robustness when tool interfaces evolve. The explicit multi-level decomposition and reported depth-wise scaling on DepthBench are the primary contributions.

major comments (2)
  1. [Experiments / DepthBench] Experiments section (DepthBench results): The headline claim of sustained >90% accuracy across depths 1–6, in contrast to trajectory rewards collapsing after depth 4, rests on the unvalidated assumption that schema checks and runtime execution feedback are obtained reliably and without introducing new errors or partial-state artifacts. No quantitative measurement of feedback error rate, sensitivity to label noise, or inter-annotator agreement with human step verification is provided, which is load-bearing for attributing the scaling behavior to the reward design rather than clean simulator conditions.
  2. [Method] Method section (reward decomposition): The description of how the four components combine into a sequence-level reward does not specify the exact aggregation rule or handling of partial successes across alternative valid paths. Without an explicit formula or worked example for a multi-path scenario, it is difficult to verify that the reward is truly trajectory-invariant and does not inadvertently favor certain execution orders.
minor comments (2)
  1. [Abstract] The abstract states 'consistent gains' on BFCL v3 and NestFUL but provides no numerical values or tables; adding the specific accuracy or success-rate deltas would improve readability.
  2. [Ablations] Ablation studies confirm necessity of all components, yet the results would be clearer if presented in a single table showing the performance drop for each component removed individually rather than scattered descriptions.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the constructive and detailed feedback. We address each major comment below and have revised the manuscript to incorporate clarifications and additional validation where needed.

read point-by-point responses

  1. Referee: [Experiments / DepthBench] Experiments section (DepthBench results): The headline claim of sustained >90% accuracy across depths 1–6, in contrast to trajectory rewards collapsing after depth 4, rests on the unvalidated assumption that schema checks and runtime execution feedback are obtained reliably and without introducing new errors or partial-state artifacts. No quantitative measurement of feedback error rate, sensitivity to label noise, or inter-annotator agreement with human step verification is provided, which is load-bearing for attributing the scaling behavior to the reward design rather than clean simulator conditions.

    Authors: We agree that explicit validation of the execution feedback strengthens the attribution of results to the reward design. DepthBench employs deterministic tool simulators derived directly from the provided schemas, which limits partial-state artifacts by construction. To address the concern rigorously, we have added a human verification study: two annotators independently checked 150 randomly sampled trajectories (25 per depth), yielding 96.7% agreement with the automated schema and execution checks and an estimated feedback error rate below 3%. Sensitivity to simulated label noise (up to 5% flips) was also tested, with TIER accuracy remaining above 88% at depth 6. These results will be reported in a new subsection of the Experiments section in the revision. revision: yes

  2. Referee: [Method] Method section (reward decomposition): The description of how the four components combine into a sequence-level reward does not specify the exact aggregation rule or handling of partial successes across alternative valid paths. Without an explicit formula or worked example for a multi-path scenario, it is difficult to verify that the reward is truly trajectory-invariant and does not inadvertently favor certain execution orders.

    Authors: We thank the referee for highlighting the need for greater precision. The four components are evaluated independently at each step; a step receives a reward of 1 only if all four indicators are satisfied and 0 otherwise. The sequence-level reward is the average of the per-step rewards: R = (1/T) * sum_{t=1 to T} r_t where r_t = I_format + I_schema + I_exec + I_answer (each I in {0,1}). Because any path that satisfies the schema and produces correct execution outcomes at every step receives the full reward, alternative valid orders are not penalized. We have inserted the explicit formula together with a worked multi-path example (two different but equally valid tool sequences for the same query) into the revised Method section. revision: yes

Circularity Check

0 steps flagged

No circularity: empirical results rest on external execution feedback

full rationale

The paper defines TIER rewards directly from independent sources—function schemas, runtime execution outcomes, format validity, schema adherence, and answer correctness—then reports measured accuracies on held-out benchmarks such as DepthBench (stratified 1-6 steps) and BFCL v3. No derivation step equates a claimed result to its own fitted parameters or reference trajectories by construction; the central claims are performance numbers obtained after training, not quantities forced by the reward definition itself. The framework explicitly contrasts with trajectory-supervised methods that penalize alternatives, and ablations confirm component necessity without reducing to self-reference. This is a standard empirical RL paper whose evaluation is external to the reward construction.

Axiom & Free-Parameter Ledger

0 free parameters · 0 axioms · 0 invented entities

The abstract provides no explicit free parameters, axioms, or invented entities; the reward is described as derived from existing function schemas and runtime execution. No fitted constants or new postulated objects are mentioned.
