Frontier: Towards Comprehensive and Accurate LLM Inference Simulation

Yicheng Feng , Xin Tan , Yangtao Deng , Yimin Jiang , Yibo Zhu , Hong Xu This is my paper

Pith reviewed 2026-05-21 03:43 UTC · model grok-4.3

classification 💻 cs.DC cs.AIcs.LG
keywords LLM serving simulationdisaggregated inferencediscrete-event simulatorperformance modelingGPU clusterinference optimizationstateful workloads
0
0 comments X

The pith

Frontier simulator models disaggregated LLM serving with under 4% throughput error.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper presents Frontier, a discrete-event simulator for modern LLM inference serving that handles disaggregated execution patterns, complex parallelism, runtime optimizations, and stateful workloads such as reasoning and RL rollouts. Existing simulators rely on monolithic-replica abstractions and average-case analytical proxies that produce high errors in latency and throughput predictions and can even reverse optimization conclusions. Frontier instead uses role-specific workers to model co-location, Prefill-Decode Disaggregation, and Attention-FFN Disaggregation while embedding optimizations like CUDA Graphs inside the scheduler-batch-engine loop. If the accuracy claims hold, designers could explore large configuration spaces for production systems without repeated hardware experiments.

Core claim

Frontier features a disaggregated abstraction that models co-location, Prefill-Decode Disaggregation (PDD), and Attention-FFN Disaggregation (AFD) with role-specific cluster workers. It incorporates key runtime optimizations such as CUDA Graphs and speculative decoding within the scheduler-batch-engine loop and supports stateful requests for emerging workloads. It provides accurate and generalizable predictions of computation, communication, and memory costs. On a 16-H800 GPU testbed, Frontier achieves an average throughput error below 4%, reducing end-to-end latency error from 44.9% to 6.4% under co-location and from 51.7% to 2.6% under disaggregation compared with state-of-the-art tools.}

What carries the argument

disaggregated abstraction that models co-location, Prefill-Decode Disaggregation (PDD), and Attention-FFN Disaggregation (AFD) using role-specific cluster workers inside a discrete-event scheduler-batch-engine loop

If this is right

  • It scales to simulations of over 1K GPUs on commodity CPUs.
  • It enables SLA-dependent Pareto frontier exploration for serving configurations.
  • It supports validation of agentic reasoning scheduling.
  • It allows reconfiguration analysis for RL post-training.
  • It facilitates studies of heterogeneous disaggregated allocation.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The same cost-model structure could be used to predict energy or power draw under the same disaggregated setups without new hardware runs.
  • Accuracy on the reported testbed suggests the simulator might support what-if studies for next-generation accelerators or network fabrics.
  • Production traces with bursty or multi-tenant traffic could serve as an independent check on whether the current cost models need refinement.

Load-bearing premise

The cost models for computation, communication, and memory generalize accurately to diverse workload compositions and serving scenarios beyond the specific testbed configurations used for validation.

What would settle it

Run Frontier predictions on a fresh hardware platform or workload mix (for example, a cluster with different GPU interconnects or a combined agentic-reasoning plus RL-rollout trace) and check whether throughput and latency errors remain below 4% and 7% respectively.

Figures

Figures reproduced from arXiv: 2605.21312 by Hong Xu, Xin Tan, Yangtao Deng, Yibo Zhu, Yicheng Feng, Yimin Jiang.

Figure 1
Figure 1. Figure 1: Measured vLLM TPOT with and without CUDA Graph under differ￾ent workloads (64 requests per work￾load, mean ISL/OSL, tested on 8×A800- SXM GPUs). Left: co-location. Right: PDD. Percentages show reduction. Mode ISL/OSL Padding Inflation Co-location 2048/256 7K 22.6% 256/2048 100K 38.7% 512/512 29K 45.8% 1024/1024 28K 22.6% PDD 2048/256 14K 42.6% 256/2048 111K 42.5% 512/512 37K 57.2% 1024/1024 52K 40.0% [PIT… view at source ↗
Figure 4
Figure 4. Figure 4: Fidelity gaps caused by simplified modeling. Left: Relying on coarse proxies (total token count) fails to capture batch het￾erogeneity, yielding coarse-grained performance estimates. Right: Analytical KV-cache modeling overestimates effective memory bud￾get, leading to a cascade of errors from admission control to over￾optimistic throughput projection. activation transfers become causal edges, and MoE EP i… view at source ↗
Figure 5

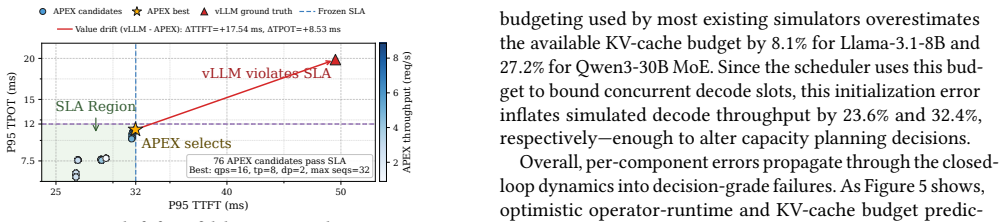

Figure 5. Figure 5: Decision drift from fidelity gaps on Llama-3.1-8B over 16 H800 GPUs (co-location). The simulator-selected best config￾uration lies inside the frozen SLA region, but the corresponding vLLM ground-truth point moves outside the SLA because overly optimistic comp-op and KV-cache budget predictions underesti￾mate request latency. Note that we maintain feature parity in this evaluation by disabling vLLM optimiza… view at source ↗
Figure 6

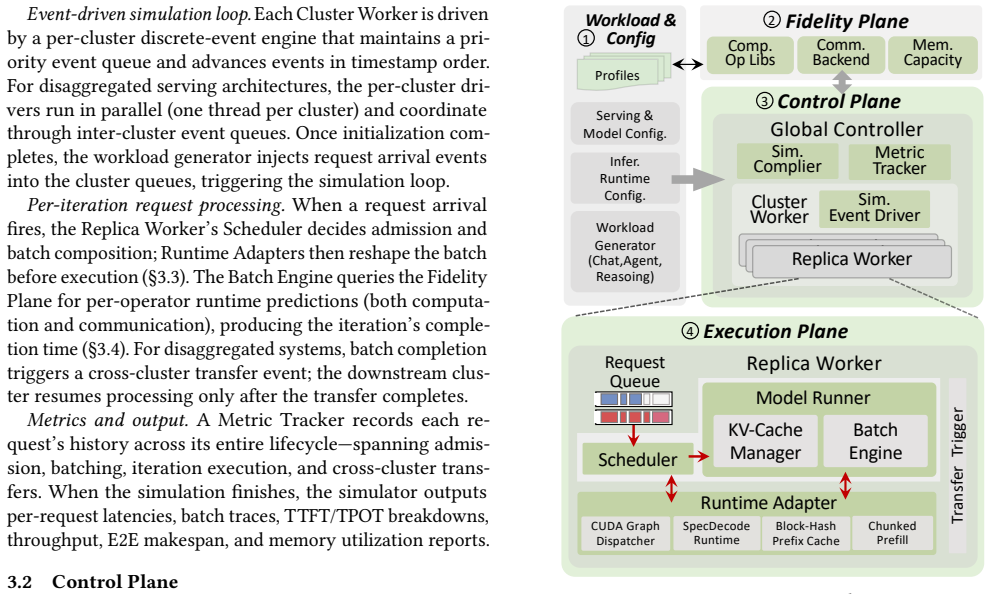

Figure 6. Figure 6: Frontier system architecture. a single domain. Whenever a role 𝑐 hosts both domains, the two sharding products must span the same device set: tpattn · dpattn = tpffn · epffn, 𝑐 ∈ {C, P, D}. (1) The per-replica world size of each cluster role is then 𝑊 𝑐 𝑅 = ( pp · tpattn · dpattn, 𝑐 ∈ {C, P, D, A}, pp · tpffn · epffn, 𝑐 = F, (2) where the two branches agree on C/P/D by Eq. 1. Each role 𝑐 instantiates 𝑁 𝑐 𝑅… view at source ↗
Figure 9
Figure 9. Figure 9: Decode throughput. +CG bars stack eager through￾put with the CUDA Graph gain; top labels show total +CG/eager speedup. Arch. Workload E-vLLM CG-vLLM ΔFrontier Co-loc. Prefill-heavy 294.8k 307.3k -6.9k (2.25%) Decode-heavy 294.8k 420.5k -10.7k (2.55%) SharedGPT 69.6k 84.2k +0.3k (0.40%) Disagg. Prefill-heavy 147.5k 150.1k -1.2k (0.80%) Decode-heavy 147.5k 167.9k +0.6k (0.37%) SharedGPT 34.9k 42.9k -30 (0.07… view at source ↗
Figure 8
Figure 8. Figure 8: Available KV-cache blocks over time under co￾location (Qwen3-30B MoE, SharedGPT trace), with a max gap of 294 blocks (115.6 MB; ΔMB = 0.393Δ𝐵, where Δ𝐵 is the block gap). Mode Parallel vLLM ΔFrontier ΔAnalytical Co-loc. (1,8,1,8) 31k +7 (0.02%) +4.4k (14.10%) (4,2,1,2) 58.0k +1.0k (1.76%) +12.5k (21.38%) Disagg. (2,2,2,4) 27.0k +0.5k (1.89%) +7.6k (27.95%) (1,4,1,4) 12.0k -1 (0.01%) +4.6k (39.73%) [PITH_F… view at source ↗
Figure 11
Figure 11. Figure 11: End-to-end fidelity on a 16-card H800 testbed for co-location and PDD across prefill-heavy, decode-heavy, balanced, and SharedGPT workloads. Panels report TTFT, TPOT, throughput, and E2E makespan for both Llama3.1-8B (dense) and Qwen3-30B MoE; dashed bars indicate simulators that do not support the serving architecture or model family. All data are normalized against the ground truth (vLLM), represented b… view at source ↗
Figure 12
Figure 12. Figure 12: AFD fidelity on Step3-316B (16 H800 GPUs) against the ground truth across prefill-heavy, decode-heavy, and balanced workloads. AFD-TP and AFD-EP report throughput (decode toks/s). of per-iteration cost, KV-cache block capacity, and admission￾watermark preemption intact; small per-operator errors bounded in §5.1 therefore do not amplify through the feedback path into the qualitatively different regimes tha… view at source ↗
Figure 14
Figure 14. Figure 14: Heterogeneous Qwen3-235B-A22B [12] allocation ex￾poses which PDD and AFD role assignments convert hardware discounts into cost efficiency. (i.e., 50 toks/s/user), decode batches shrink and throughput is capped. PDD removes that interference by giving prefill and decode separate clusters, which makes it strong when TTFT is loose and most GPUs can be kept on decode. AFD further separates decode-attention fr… view at source ↗
Figure 15
Figure 15. Figure 15: Phase-aware scheduling for multi-round reasoning. Scenario. Multi-round agentic reasoning workloads no longer behave like a single prompt followed by a single decode stream. Taking a coding agent such as Claude Code [1] as an example, each request progresses through two phases: internal planning and final response generation. During plan￾ning, the agent runs multiple thinking rounds marked by <thinking> t… view at source ↗
Figure 17
Figure 17. Figure 17: H20 operator fidelity CDFs. Curves show Frontier abso￾lute percentage error for attention, linear ops, and MoE on the H20 BF16 and FP8. Prefill-heavy Decode-heavy Hybrid/mixed SharedGPT Workload 0 2 4 6 8 10 Mean relative error (%) H20 Dense 3.6% 6.5% 4.5% 4.4% 2.8% 6.0% 4.0% 5.1% Co-location PDD Prefill-heavy Decode-heavy Hybrid/mixed SharedGPT Workload H20 MoE 3.8% 0.5% 0.9% 2.7% 5.8% 7.0% 0.9% 3.1% [P… view at source ↗
Figure 19
Figure 19. Figure 19: Example of three serving architectures in Frontier. A.3 PDD and AFD Scheduling Workflow Frontier operates as a discrete-event simulator (DES). This subsection expands the control and execution-plane mech￾anisms into a concrete workflow-level algorithmic descrip￾tion. We show the example of three serving architectures of Frontier in [PITH_FULL_IMAGE:figures/full_fig_p016_19.png] view at source ↗
Figure 20
Figure 20. Figure 20: Skip-join MLFQ on the agentic trace: p95 aTTFT im￾proves marginally and hidden planning throughput regresses. Blue￾bar annotations show the relative change over vLLM. (matching the <thinking> blocks in the scenario descrip￾tion) followed by one answer-visible round. Round 𝑟 ′ con￾tributes ℓ𝑟,𝑟′ new prompt tokens (after same-request prefix reuse) and 𝑜𝑟,𝑟′ decode tokens. Following the main definition, aTTF… view at source ↗
Figure 21
Figure 21. Figure 21: Frontier online SharedGPT qps64 scheduler comparison. Panel (a) reports normalized macro metrics, and the bar labels show multipliers relative to vLLM. Panels (b)–(d) retain the micro￾scheduling view of batch size, backlog, and prefill/decode mixing over time (s). setting was selected because it sustains a saturated queue￾ing regime while still allowing both schedulers to complete cleanly [PITH_FULL_IMAG… view at source ↗
read the original abstract

Modern LLM serving is no longer homogeneous or monolithic. Production systems now combine disaggregated execution, complex parallelism, runtime optimizations, and stateful workloads such as reasoning, agents, and RL rollouts. Simulation is attractive for exploring this growing design space, yet existing simulators lack the architectural completeness and decision-grade fidelity it demands. Their monolithic-replica abstractions are ill-suited to disaggregated serving, while average-case analytical proxies can distort SLA predictions and even reverse optimization conclusions. We present Frontier, a discrete-event simulator for modern LLM inference serving. Frontier features a disaggregated abstraction. It captures the structure and dynamics of modern serving systems by modeling co-location, Prefill-Decode Disaggregation (PDD), and Attention-FFN Disaggregation (AFD) with role-specific cluster workers, incorporating key runtime optimizations (e.g., CUDA Graphs, speculative decoding) within the scheduler-batch-engine loop, and supporting stateful requests for emerging workloads. It further provides accurate and generalizable predictions of computation, communication, and memory costs across diverse serving scenarios with complex workload compositions. On 16-H800 GPU testbed, Frontier achieves an average throughput error below 4%. Compared with state-of-the-art simulators, it reduces end-to-end latency error from 44.9% to 6.4% under co-location and from 51.7% to 2.6% under disaggregation. It scales to over 1K GPUs on commodity CPUs and enables new use cases such as SLA-dependent Pareto frontier exploration, heterogeneous disaggregated allocation, agentic reasoning scheduling validation, and RL post-training reconfiguration.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 2 minor

Summary. The paper presents Frontier, a discrete-event simulator for modern LLM inference serving. It introduces disaggregated abstractions for co-location, Prefill-Decode Disaggregation (PDD), and Attention-FFN Disaggregation (AFD), models role-specific workers, incorporates runtime optimizations such as CUDA Graphs and speculative decoding in the scheduler-batch-engine loop, and supports stateful requests. On a 16-H800 GPU testbed, it reports average throughput error below 4%, reducing end-to-end latency error from 44.9% to 6.4% under co-location and from 51.7% to 2.6% under disaggregation relative to prior simulators. It claims scalability to over 1K GPUs and enables new use cases including SLA-dependent Pareto exploration and RL post-training reconfiguration.

Significance. If the reported accuracy holds with proper separation of calibration and validation data, Frontier would be a useful tool for design-space exploration in disaggregated and stateful LLM serving systems, addressing gaps in monolithic abstractions of existing simulators. The concrete hardware error metrics and explicit support for PDD/AFD are positive features. The significance is tempered by the need to confirm that the cost models for computation, communication, and memory are predictive rather than fitted to the reported testbed runs.

major comments (2)
  1. [§5] §5 (Evaluation): The central accuracy claims (throughput error <4%, latency reductions to 6.4% and 2.6%) rest on cost models whose derivation is not explicitly separated from the validation traces on the 16-H800 testbed. Without held-out workloads, cross-validation, or independent calibration data, the low errors risk measuring fit quality rather than generalization, directly affecting the claim of 'accurate and generalizable predictions across diverse serving scenarios.'
  2. [§4.2] §4.2 (Cost Models): The models for computation, communication, and memory are presented as generalizable, yet the manuscript provides no explicit parameter counts, fitting procedure, or sensitivity analysis showing independence from the specific 16-H800 configurations used for the error metrics. This is load-bearing for the disaggregation and optimization claims.
minor comments (2)
  1. [Abstract] The abstract states scalability to over 1K GPUs on commodity CPUs, but the main text should include concrete simulation runtime or memory usage figures for that scale to support the claim.
  2. [Figures/Tables] Figure captions and table legends should clarify whether error bars represent standard deviation across multiple runs or workload variations.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the constructive and detailed review. The comments on evaluation methodology and cost model transparency are well-taken and point to areas where additional clarity will strengthen the manuscript. We respond to each major comment below.

read point-by-point responses

  1. Referee: [§5] §5 (Evaluation): The central accuracy claims (throughput error <4%, latency reductions to 6.4% and 2.6%) rest on cost models whose derivation is not explicitly separated from the validation traces on the 16-H800 testbed. Without held-out workloads, cross-validation, or independent calibration data, the low errors risk measuring fit quality rather than generalization, directly affecting the claim of 'accurate and generalizable predictions across diverse serving scenarios.'

    Authors: We agree that explicit separation of derivation from validation is essential to support generalization claims. The cost models combine analytical formulations (FLOPs, bandwidth, memory access patterns) with micro-benchmark measurements collected on smaller-scale hardware prior to the 16-H800 end-to-end runs; the latter serve strictly as validation. To address the concern directly, we will revise §5 to document this separation, add held-out workload results, and include a brief cross-validation summary. These additions will better substantiate the reported accuracy figures as predictive rather than fitted. revision: yes

  2. Referee: [§4.2] §4.2 (Cost Models): The models for computation, communication, and memory are presented as generalizable, yet the manuscript provides no explicit parameter counts, fitting procedure, or sensitivity analysis showing independence from the specific 16-H800 configurations used for the error metrics. This is load-bearing for the disaggregation and optimization claims.

    Authors: We thank the referee for highlighting this gap in presentation. The models are constructed from hardware-derived analytical expressions supplemented by limited empirical calibration on non-overlapping small-scale traces. We will expand §4.2 (and add an appendix if space requires) with explicit parameter counts, the precise fitting procedure, and a sensitivity analysis demonstrating robustness across GPU counts and configurations. This revision will make the independence from the 16-H800 testbed explicit and reinforce the generalizability needed for the disaggregation claims. revision: yes

Circularity Check

0 steps flagged

No significant circularity: accuracy claims rest on external hardware measurements

full rationale

The paper's central results are empirical error metrics (throughput <4%, latency reductions to 6.4%/2.6%) obtained by running the simulator against direct measurements on a physical 16-H800 GPU testbed. These comparisons use held-out execution traces rather than internal equations or parameters fitted to the same validation runs. No self-definitional steps, fitted-input predictions, or load-bearing self-citations appear in the derivation of the cost models or disaggregation abstractions; the simulator's fidelity is presented as an external benchmark outcome, not a closed loop.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 0 invented entities

The contribution rests on standard discrete-event modeling assumptions rather than new free parameters or invented physical entities; the simulator itself is the engineered artifact.

axioms (1)
  • domain assumption Discrete-event simulation with role-specific workers can faithfully capture dynamics of co-location, PDD, and AFD in LLM serving
    Invoked as the foundation for modeling scheduler-batch-engine loop and cost predictions.
