pith. sign in

arxiv: 2605.17332 · v1 · pith:Y5RRYG54new · submitted 2026-05-17 · 🪐 quant-ph · cond-mat.mes-hall

Strain-free, symmetrical, InGaAs quantum dots as single photon emitters in the telecomC-band

Rabbia Tahir , Pawe{\l} Wyborski , Artur Tuktamyshev , Stefano Vichi , Richard N\"otzel , Battulga Munkhbat , Stefano Sanguinetti This is my paper

Pith reviewed 2026-05-20 13:13 UTC · model grok-4.3

classification 🪐 quant-ph cond-mat.mes-hall
keywords InGaAs quantum dotssingle photon emitterstelecom C-bandstrain-free growthC3v symmetrymolecular beam epitaxylocal droplet etchingmetamorphic buffer
0
0 comments X

The pith

Strain-free InGaAs quantum dots on GaAs substrates emit single photons in the telecom C-band with measured purity of 0.14.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper shows how to grow In0.7Ga0.3As quantum dots without strain by using a lattice-matched In0.7Al0.3As buffer layer on GaAs(111)A. This produces dots with C3v symmetry that emit in the 1400-1600 nm range. Lifetimes of 1.3-1.9 ns and linewidths down to 300 μeV indicate clean material, while autocorrelation under pulsed light gives g(2)(0) of 0.141, confirming single-photon behavior. Such sources would allow low-loss transmission through existing fiber networks for quantum communication.

Core claim

The authors grew strain-free In0.7Ga0.3As/In0.7Al0.3As quantum dots on GaAs(111)A by local droplet etching in molecular beam epitaxy, inserting a thin metamorphic buffer layer that shares the same lattice constant as the dot material. The resulting dots display C3v symmetry, ground-state emission from 1400 to 1600 nm, exciton lifetimes between 1.3 and 1.9 ns, and linewidths as narrow as 300 μeV. Pulsed-excitation second-order autocorrelation measurements yield g^(2)(0) = 0.141 ± 0.027, verifying single-photon emission.

What carries the argument

The lattice-matched In0.7Al0.3As metamorphic buffer layer that permits completely strain-free self-assembly of C3v-symmetric InGaAs quantum dots on GaAs(111)A via local droplet etching.

If this is right

  • Emission in the 1550 nm window enables direct use in standard optical-fiber quantum networks without frequency conversion.
  • C3v symmetry and narrow linewidths support consistent polarization and coherence properties needed for multi-photon experiments.
  • Measured lifetimes near 1.5 ns and g(2)(0) below 0.2 indicate the dots can function as on-demand single-photon sources under pulsed excitation.
  • Strain-free growth on GaAs(111)A reduces defect density, which should improve photon indistinguishability compared with strained dots.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The same buffer-layer approach could be tested on other substrate orientations to control dot shape or emission polarization further.
  • Transferring these dots onto silicon photonic chips might combine telecom single-photon sources with CMOS-compatible circuitry.
  • Lowering the residual g(2)(0) value through better background suppression would make the emitters viable for quantum key distribution over longer distances.

Load-bearing premise

The thin In0.7Al0.3As buffer layer exactly matches the lattice constant of the In0.7Ga0.3As dot material and thereby produces fully strain-free dots on the GaAs(111)A substrate.

What would settle it

High-resolution transmission electron microscopy or X-ray diffraction that detects measurable residual strain or lattice mismatch inside the grown quantum dots would show the strain-free condition is not met.

Figures

Figures reproduced from arXiv: 2605.17332 by Artur Tuktamyshev, Battulga Munkhbat, Pawe{\l} Wyborski, Rabbia Tahir, Richard N\"otzel, Stefano Sanguinetti, Stefano Vichi.

Figure 1
Figure 1. Figure 1: Schematic diagram, summarizing steps for the InGaAs/InAlAs QDs growth by [PITH_FULL_IMAGE:figures/full_fig_p004_1.png] view at source ↗
Figure 2
Figure 2. Figure 2: (a) 2.5×2.5 µm2 AFM topography image of sample A. The inset reports the magnified image of 6.8 nm deep and 54.3 nm wide individual nanohole. (b) 2.5×2.5 µm2 AFM topography image of sample B. (c) Height cross-section profiles of both unfilled and filled nanoholes from sample A and B. The two nanoholes in (a) and (b) are highlighted by yellow circles. (d) 3D mesh of the AFM-derived sloped geometry of grown Q… view at source ↗
Figure 3

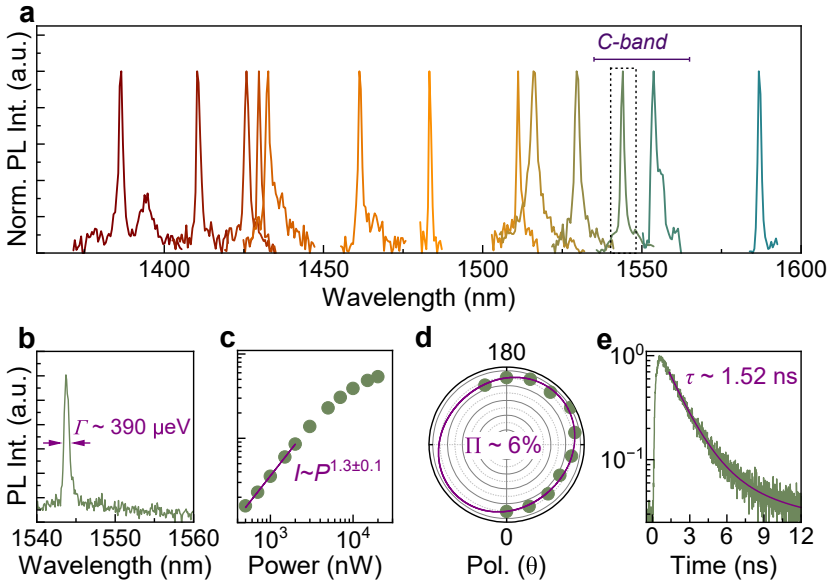

Figure 3. Figure 3: (a) µ-PL spectra of several QDs with sharp emission peaks centered at around 1380–1600 nm. (b) µ-PL spectra of marked QD in (a) (within C-band range), including fitted line broadening value. (c) Power-dependent QD PL intensity fitted by a power law. (d) Emission intensity plot as a function of polarization, including DOLP fitting. (e) Time￾resolved PL histogram of QD emission, with the solid lines depictin… view at source ↗
Figure 4

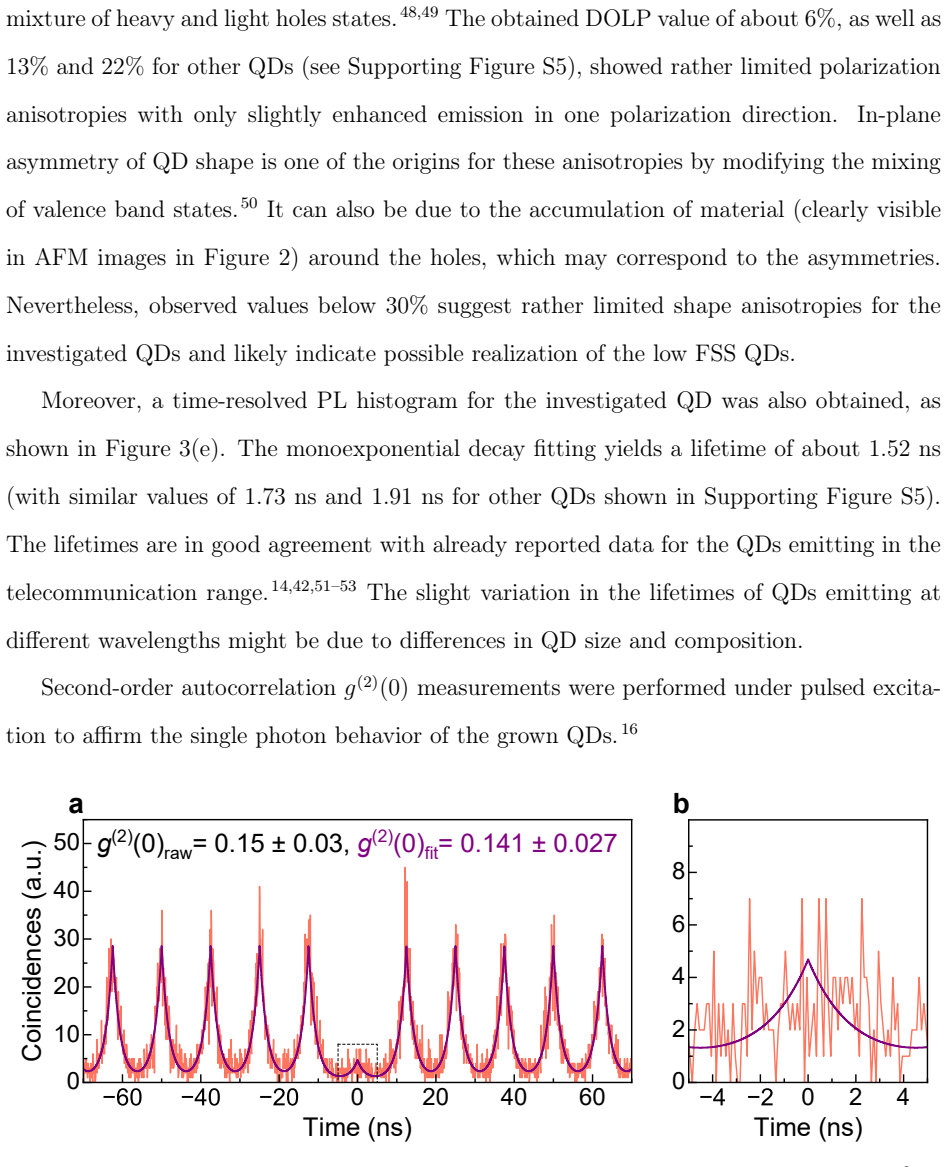

Figure 4. Figure 4: (a) Autocorrelation coincidence plot. (b) Second order correlation function [PITH_FULL_IMAGE:figures/full_fig_p010_4.png] view at source ↗
read the original abstract

Non-classical photon sources made of semiconductor quantum dots (QDs) emitting in the telecommunication C-band are crucial components for low-loss, long-distance photonic quantum communication networks. Here we designed and fabricated strain--free In$_{0.7}$Ga$_{0.3}$As/In$_{0.7}$Al$_{0.3}$As QDs grown on GaAs(111)A substrates working as single-photon emitters in the 1550 nm window. The QDs were grown via local droplet etching method in a molecular beam epitaxy environment, employing a thin In$_{0.7}$Al$_{0.3}$As metamorphic buffer layer with the same lattice constant of the QD material, thus allowing for a completely strain--free self-assembly of the QDs. The QDs exhibit a C$_{3v}$ symmetry with a ground state emission in the 1400--1600 nm range. The exciton lifetimes of $\approx$ 1.3--1.9 ns and linewidths as low as $\approx$ 300 $\mu$eV show the good quality of the fabricated QDs. Second-order autocorrelation measurements under pulsed excitation confirmed the single-photon purity of the emitters, yielding a $g^{(2)}(0)$ value of $0.141 \pm 0.027$

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

1 major / 2 minor

Summary. The manuscript reports the growth of In0.7Ga0.3As quantum dots in In0.7Al0.3As barriers on GaAs(111)A substrates via local droplet etching in MBE, using a thin In0.7Al0.3As metamorphic buffer layer asserted to enable completely strain-free self-assembly. The QDs are stated to possess C3v symmetry with ground-state emission in the 1400-1600 nm range; measured exciton lifetimes are 1.3-1.9 ns, linewidths reach ~300 μeV, and pulsed-excitation autocorrelation yields g^(2)(0) = 0.141 ± 0.027, supporting single-photon emission in the telecom C-band.

Significance. Demonstration of C-band single-photon emitters with reported lifetimes, narrow linewidths, and antibunching would be relevant for fiber-compatible quantum networks if the strain-free design and resulting symmetry are substantiated. The work provides direct optical characterization data, but its impact depends on confirming the central growth mechanism.

major comments (1)
  1. [Abstract and growth description paragraph] Abstract and growth description paragraph: the assertion that the thin In0.7Al0.3As metamorphic buffer enables 'completely strain-free self-assembly' is load-bearing for the title, the claimed C3v symmetry, and the interpretation of the ~300 μeV linewidths, yet no XRD reciprocal-space maps, TEM cross-sections, or quantitative strain measurements are supplied to verify full relaxation on the ~7% mismatched GaAs(111)A substrate.
minor comments (2)
  1. [Abstract] Abstract: the g^(2)(0) uncertainty is reported, but the excitation power, repetition rate, and integration time or number of traces should be stated to allow assessment of the measurement statistics.
  2. [Abstract] Abstract: the range 1400-1600 nm is given without specifying the distribution of emission wavelengths across the ensemble or the fraction of dots within the C-band window.

Simulated Author's Rebuttal

1 responses · 0 unresolved

We thank the referee for their careful reading of the manuscript and for identifying the central role of the strain-free claim. We address this point directly below and indicate how the revised manuscript will be updated.

read point-by-point responses

  1. Referee: [Abstract and growth description paragraph] Abstract and growth description paragraph: the assertion that the thin In0.7Al0.3As metamorphic buffer enables 'completely strain-free self-assembly' is load-bearing for the title, the claimed C3v symmetry, and the interpretation of the ~300 μeV linewidths, yet no XRD reciprocal-space maps, TEM cross-sections, or quantitative strain measurements are supplied to verify full relaxation on the ~7% mismatched GaAs(111)A substrate.

    Authors: We agree that direct structural verification would strengthen the manuscript. The thin In0.7Al0.3As buffer is grown with the same nominal composition (and therefore lattice constant) as the In0.7Ga0.3As dot material precisely to eliminate the lattice mismatch that would otherwise exist between the dots and the GaAs(111)A substrate. In the local-droplet-etching process on (111)A surfaces, this lattice-matched buffer allows the dots to form without the biaxial strain that typically breaks C3v symmetry in (001)-grown dots. The observed C3v symmetry is therefore a direct consequence of the substrate orientation combined with the absence of strain-induced asymmetry, while the ~300 μeV linewidths are consistent with the reduced inhomogeneous broadening expected in a strain-free environment. Although the present manuscript does not contain XRD reciprocal-space maps or TEM cross-sections, the optical data (symmetry, lifetime range, and single-photon statistics) are fully consistent with the design. In the revised version we will (i) expand the growth section with a short discussion of the buffer-relaxation rationale and relevant literature precedents and (ii) add a clarifying sentence in the abstract that the strain-free character is inferred from the lattice-matched buffer design and the resulting optical properties. revision: partial

Circularity Check

0 steps flagged

No circularity: pure experimental demonstration with direct measurements

full rationale

The paper reports fabrication and optical characterization of In0.7Ga0.3As/In0.7Al0.3As QDs on GaAs(111)A using a metamorphic buffer chosen to match lattice constants. All key results—emission range 1400-1600 nm, exciton lifetimes 1.3-1.9 ns, linewidths down to 300 μeV, C3v symmetry, and g^(2)(0) = 0.141 ± 0.027—are obtained from direct experimental measurements on the grown samples. No theoretical derivation, fitted model, or self-referential prediction is present; the strain-free design is an input growth parameter whose outcome is verified by the observed symmetry and spectral quality rather than assumed by construction. No self-citations or ansatzes are invoked to close any loop.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 0 invented entities

The central claim rests on standard MBE growth assumptions and optical characterization methods rather than new theoretical constructs or fitted parameters.

axioms (1)
  • domain assumption Local droplet etching in MBE produces self-assembled QDs with controllable symmetry when a lattice-matched metamorphic buffer is used.
    Invoked in the growth description to justify strain-free formation.

pith-pipeline@v0.9.0 · 5797 in / 1296 out tokens · 41141 ms · 2026-05-20T13:13:51.518138+00:00 · methodology

discussion (0)

Sign in with ORCID, Apple, or X to comment. Anyone can read and Pith papers without signing in.

Lean theorems connected to this paper

Citations machine-checked in the Pith Canon. Every link opens the source theorem in the public Lean library.

What do these tags mean?
matches
The paper's claim is directly supported by a theorem in the formal canon.
supports
The theorem supports part of the paper's argument, but the paper may add assumptions or extra steps.
extends
The paper goes beyond the formal theorem; the theorem is a base layer rather than the whole result.
uses
The paper appears to rely on the theorem as machinery.
contradicts
The paper's claim conflicts with a theorem or certificate in the canon.
unclear
Pith found a possible connection, but the passage is too broad, indirect, or ambiguous to say the theorem truly supports the claim.

Reference graph

Works this paper leans on

84 extracted references · 84 canonical work pages

  1. [1]

    Impact of MBE-grown (

    Wyborski, Pawe. Impact of MBE-grown (. Phys. Rev. Appl. , volume =. 2023 , month =. doi:10.1103/PhysRevApplied.20.044009 , url =

    work page doi:10.1103/physrevapplied.20.044009 2023

  2. [2]

    Simulation of Semiconductor Processes and Devices 2007: SISPAD 2007 , pages=

    Multiscale simulation of electronic and optoelectronic devices with TiberCAD , author=. Simulation of Semiconductor Processes and Devices 2007: SISPAD 2007 , pages=. 2007 , publisher=

    work page 2007

  3. [3]

    Computational Materials Science , volume =

    Barettin, Daniele and Pecchia, Alessandro and der Maur, Matthias Auf and Di Carlo, Aldo and Lassen, Benny and Willatzen, Morten , title =. Computational Materials Science , volume =. 2021 , type =

    work page 2021

  4. [4]

    Scientific Reports , volume=

    High--temperature droplet epitaxy of symmetric GaAs/AlGaAs quantum dots , author=. Scientific Reports , volume=. 2020 , publisher=

    work page 2020

  5. [5]

    Journal of Physics: Condensed Matter , volume =

    Burt, MG , title =. Journal of Physics: Condensed Matter , volume =. 1999 , type =

    work page 1999

  6. [6]

    AIP Advances , volume=

    Local droplet etching on InAlAs/InP surfaces with InAl droplets , author=. AIP Advances , volume=. 2022 , publisher=

    work page 2022

  7. [7]

    Telecom C-band photon emission from (In, Ga) As quantum dots generated by filling nanoholes in In0. 52Al0. 48As layers , author=. AIP Advances , volume=. 2023 , publisher=

    work page 2023

  8. [8]

    Encyclopedia of interfacial chemistry , pages =

    Erbe, Andreas and Nayak, Simantini and Chen, Ying-Hsuan and Niu, Fang and Pander, Marc and Tecklenburg, Stefanie and Toparli, Cigdem , title =. Encyclopedia of interfacial chemistry , pages =. 2018 , type =

    work page 2018

  9. [9]

    Nature materials , volume=

    Droplet epitaxy of semiconductor nanostructures for quantum photonic devices , author=. Nature materials , volume=. 2019 , publisher=

    work page 2019

  10. [10]

    Journal of crystal growth , volume =

    Heyn, Ch and Stemmann, A and Klingbeil, M and Strelow, Ch and Köppen, T and Mendach, S and Hansen, W , title =. Journal of crystal growth , volume =. 2011 , type =

    work page 2011

  11. [11]

    Physica Scripta , ISSN =

    Hidayat, Wagma and Usman, Muhammad , title =. Physica Scripta , ISSN =. 2024 , type =

    work page 2024

  12. [12]

    Crystal Growth & Design , volume =

    Hilska, Joonas and Chellu, Abhiroop and Hakkarainen, Teemu , title =. Crystal Growth & Design , volume =. 2021 , type =

    work page 2021

  13. [13]

    Nano Letters , volume =

    Hornung, Florian and Pfister, Ulrich and Bauer, Stephanie and Cyrlyson’s, Dee Rocking and Wang, Dongze and Vijayan, Ponraj and Garcia Jr, Ailton J and Covre da Silva, Saimon Filipe and Jetter, Michael and Portalupi, Simone L , title =. Nano Letters , volume =. 2024 , type =

    work page 2024

  14. [14]

    Journal of Optics , volume=

    Semiconductor quantum dots as an ideal source of polarization-entangled photon pairs on-demand: a review , author=. Journal of Optics , volume=. 2018 , publisher=

    work page 2018

  15. [15]

    Crystal Growth & Design , volume=

    Local droplet etching with indium droplets on InP (100) by metal--organic vapor phase epitaxy , author=. Crystal Growth & Design , volume=. 2024 , publisher=

    work page 2024

  16. [16]

    Applied Surface Science , volume=

    Local droplet etching of a vicinal InGaAs (111) A metamorphic layer , author=. Applied Surface Science , volume=. 2024 , publisher=

    work page 2024

  17. [17]

    Applied physics letters , volume =

    Wang, Zh M and Liang, BL and Sablon, KA and Salamo, GJ , title =. Applied physics letters , volume =. 2007 , type =

    work page 2007

  18. [18]

    Membranes , volume =

    Wei, Mohan and Zhang, Yaozhong and Wang, Yifan and Liu, Xiaoping and Li, Xiaoliang and Zheng, Xing , title =. Membranes , volume =. 2024 , type =

    work page 2024

  19. [19]

    Physical Review B , volume =

    Winkler, R and Rössler, U , title =. Physical Review B , volume =. 1993 , type =

    work page 1993

  20. [20]

    Scientific Reports , volume=

    Near-critical Stranski-Krastanov growth of InAs/InP quantum dots , author=. Scientific Reports , volume=. 2024 , publisher=

    work page 2024

  21. [21]

    Advanced Quantum Technologies , pages=

    High-Purity Single-Photon Emission in the Telecom O-Band from Droplet-Epitaxy InAs Quantum Dots Integrated into a GaAs/AlGaAs Planar Microcavity on Vicinal GaAs (111) A Platform , author=. Advanced Quantum Technologies , pages=. 2025 , publisher=

    work page 2025

  22. [22]

    ACS photonics , volume=

    On-demand generation of entangled photon pairs in the telecom C-band with InAs quantum dots , author=. ACS photonics , volume=. 2021 , publisher=

    work page 2021

  23. [23]

    Nano letters , volume=

    High-yield fabrication of entangled photon emitters for hybrid quantum networking using high-temperature droplet epitaxy , author=. Nano letters , volume=. 2018 , publisher=

    work page 2018

  24. [24]

    Applied physics express , volume=

    Self-assembly of symmetric GaAs quantum dots on (111) A substrates: Suppression of fine-structure splitting , author=. Applied physics express , volume=. 2010 , publisher=

    work page 2010

  25. [25]

    Applied physics letters , volume=

    Spectral diffusion and line broadening in single self-assembled GaAs/ AlGaAs quantum dot photoluminescence , author=. Applied physics letters , volume=. 2008 , publisher=

    work page 2008

  26. [26]

    Nature Communications , volume=

    Electrically-driven single-photon sources based on colloidal quantum dots with near-optimal antibunching at room temperature , author=. Nature Communications , volume=. 2017 , publisher=

    work page 2017

  27. [27]

    Materials , volume=

    Electronic and optical properties of InAs QDs grown by MBE on InGaAs metamorphic buffer , author=. Materials , volume=. 2022 , publisher=

    work page 2022

  28. [28]

    Scientific Reports , volume=

    Photoluminescence of InAs/GaAs quantum dots under direct two-photon excitation , author=. Scientific Reports , volume=. 2020 , publisher=

    work page 2020

  29. [29]

    Crystal Growth & Design , volume=

    Nanohole etching in AlGaSb with gallium droplets , author=. Crystal Growth & Design , volume=. 2021 , publisher=

    work page 2021

  30. [30]

    Applied Physics Letters , volume=

    GaAs quantum dots grown by droplet etching epitaxy as quantum light sources , author=. Applied Physics Letters , volume=. 2021 , publisher=

    work page 2021

  31. [31]

    Journal of Crystal Growth , volume=

    Droplet etching with indium--Intermixing and lattice mismatch , author=. Journal of Crystal Growth , volume=. 2019 , publisher=

    work page 2019

  32. [32]

    Advanced Quantum Technologies , volume=

    Strain-free GaSb quantum dots as single-photon sources in the telecom S-band , author=. Advanced Quantum Technologies , volume=. 2023 , publisher=

    work page 2023

  33. [33]

    Nanoscale research letters , volume=

    Dynamics of mass transport during nanohole drilling by local droplet etching , author=. Nanoscale research letters , volume=. 2015 , publisher=

    work page 2015

  34. [34]

    Local droplet etching with In, Al and InAl in In0. 52Al0. 48As layers for generation of quantum dots emitting in the optical C-band , author=. Journal of Crystal Growth , pages=. 2025 , publisher=

    work page 2025

  35. [35]

    Nature Nanotechnology , volume=

    A bright and fast source of coherent single photons , author=. Nature Nanotechnology , volume=. 2021 , publisher=

    work page 2021

  36. [36]

    Nature communications , volume=

    Low-noise GaAs quantum dots for quantum photonics , author=. Nature communications , volume=. 2020 , publisher=

    work page 2020

  37. [37]

    Nanoscale research letters , volume=

    Droplet etching of deep nanoholes for filling with self-aligned complex quantum structures , author=. Nanoscale research letters , volume=. 2016 , publisher=

    work page 2016

  38. [38]

    Nano letters , volume=

    Polarized and bright telecom C-band single-photon source from InP-based quantum dots coupled to elliptical Bragg gratings , author=. Nano letters , volume=. 2024 , publisher=

    work page 2024

  39. [39]

    Scientific Reports , volume=

    Temperature dependence of the single photon emission from interface-fluctuation GaN quantum dots , author=. Scientific Reports , volume=. 2017 , publisher=

    work page 2017

  40. [40]

    Nature communications , volume=

    Revealing the biexciton and trion-exciton complexes in BN encapsulated WSe2 , author=. Nature communications , volume=. 2018 , publisher=

    work page 2018

  41. [41]

    Nanoscale Research Letters , volume=

    Telecommunication wavelength-band single-photon emission from single large InAs quantum dots nucleated on low-density seed quantum dots , author=. Nanoscale Research Letters , volume=. 2016 , publisher=

    work page 2016

  42. [42]

    Scientific Reports , volume=

    Purcell-enhanced single photons at telecom wavelengths from a quantum dot in a photonic crystal cavity , author=. Scientific Reports , volume=. 2024 , publisher=

    work page 2024

  43. [43]

    Materials , volume=

    Metamorphic buffer layer platform for 1550 nm single-photon sources grown by MBE on (100) GaAs substrate , author=. Materials , volume=. 2021 , publisher=

    work page 2021

  44. [44]

    Applied Physics Letters , volume=

    Coherence in single photon emission from droplet epitaxy and Stranski--Krastanov quantum dots in the telecom C-band , author=. Applied Physics Letters , volume=. 2021 , publisher=

    work page 2021

  45. [45]

    Materials , volume=

    Optical quality of InAs/InP quantum dots on distributed Bragg reflector emitting at 3rd telecom window grown by molecular beam epitaxy , author=. Materials , volume=. 2021 , publisher=

    work page 2021

  46. [46]

    Nano Letters , volume=

    Electrical control of quantum dots in GaAs-on-insulator waveguides for coherent single-photon generation , author=. Nano Letters , volume=. 2025 , publisher=

    work page 2025

  47. [47]

    Nanomaterials , volume=

    Polarization anisotropies in strain-free, asymmetric, and symmetric quantum dots grown by droplet epitaxy , author=. Nanomaterials , volume=. 2021 , publisher=

    work page 2021

  48. [48]

    Nature communications , volume=

    Highly indistinguishable and strongly entangled photons from symmetric GaAs quantum dots , author=. Nature communications , volume=. 2017 , publisher=

    work page 2017

  49. [49]

    Physical review letters , volume=

    Highly Reduced Fine-Structure Splitting in InAs , author=. Physical review letters , volume=. 2008 , publisher=

    work page 2008

  50. [50]

    Crystals , volume=

    Telecom O-band quantum dots fabricated by droplet etching , author=. Crystals , volume=. 2024 , publisher=

    work page 2024

  51. [51]

    ACS Applied Nano Materials , volume=

    Broad range tuning of InAs quantum dot emission for nanophotonic devices in the telecommunication bands , author=. ACS Applied Nano Materials , volume=. 2024 , publisher=

    work page 2024

  52. [52]

    Nanophotonics , volume=

    Thin-film InGaAs metamorphic buffer for telecom C-band InAs quantum dots and optical resonators on GaAs platform , author=. Nanophotonics , volume=. 2022 , publisher=

    work page 2022

  53. [53]

    Journal of Crystal Growth , volume=

    InP-based quantum dot lasers emitting at 1.3 m , author=. Journal of Crystal Growth , volume=. 2023 , publisher=

    work page 2023

  54. [54]

    JETP Letters , volume=

    Single-photon Emission in the Telecom C-Band in a Micropillar Cavity with an InAs/InGaAs Quantum Dot , author=. JETP Letters , volume=. 2025 , publisher=

    work page 2025

  55. [55]

    Physical Review B , volume=

    Effects of random alloy disorder, shape deformation, and substrate misorientation on the exciton lifetime and fine structure splitting of GaAs/Al x Ga 1- x As (111) quantum dots , author=. Physical Review B , volume=. 2023 , publisher=

    work page 2023

  56. [56]

    arXiv preprint arXiv:2404.06083 , year=

    Telecom wavelength single-photon source based on InGaSb/AlGaSb quantum dot technology , author=. arXiv preprint arXiv:2404.06083 , year=

    work page arXiv

  57. [57]

    Journal of Crystal Growth , volume=

    Flat metamorphic InAlAs buffer layer on GaAs (111) A misoriented substrates by growth kinetics control , author=. Journal of Crystal Growth , volume=. 2022 , publisher=

    work page 2022

  58. [58]

    Physical Review Applied , volume=

    Quantum dots on GaAs substrates as integration-ready high-performance single-photon sources at telecommunication wavelengths , author=. Physical Review Applied , volume=. 2026 , publisher=

    work page 2026

  59. [59]

    Nanomaterials , volume=

    Strain Relaxation of InAs Quantum Dots on Misoriented InAlAs (111) Metamorphic Substrates , author=. Nanomaterials , volume=. 2022 , publisher=

    work page 2022

  60. [60]

    physica status solidi (RRL)--Rapid Research Letters , volume=

    Self-assembled InAs quantum dots on InGaAsP/InP (100) by modified droplet epitaxy in metal--organic vapor phase epitaxy around the telecom C-band for quantum photonic applications , author=. physica status solidi (RRL)--Rapid Research Letters , volume=. 2024 , publisher=

    work page 2024

  61. [61]

    Nano Letters , volume=

    Unveiling the 3D Morphology of Epitaxial GaAs/AlGaAs Quantum Dots , author=. Nano Letters , volume=. 2024 , publisher=

    work page 2024

  62. [62]

    Nanotechnology , volume=

    Self-assembled GaAs/AlGaAs coupled quantum ring-disk structures by dropletepitaxy , author=. Nanotechnology , volume=. 2010 , publisher=

    work page 2010

  63. [63]

    Physical Review Applied , volume=

    Universal growth scheme for quantum dots with low fine-structure splitting at various emission wavelengths , author=. Physical Review Applied , volume=. 2017 , publisher=

    work page 2017

  64. [64]

    Nanomaterials , volume=

    Dot-size dependent excitons in droplet-etched cone-shell GaAs quantum dots , author=. Nanomaterials , volume=. 2022 , publisher=

    work page 2022

  65. [65]

    Journal of applied physics , volume=

    Band parameters for III--V compound semiconductors and their alloys , author=. Journal of applied physics , volume=. 2001 , publisher=

    work page 2001

  66. [66]

    Light: Science & Applications , volume=

    Monolithic integration of embedded III-V lasers on SOI , author=. Light: Science & Applications , volume=. 2023 , publisher=

    work page 2023

  67. [67]

    Scientific reports , volume=

    Fast Purcell-enhanced single photon source in 1,550-nm telecom band from a resonant quantum dot-cavity coupling , author=. Scientific reports , volume=. 2012 , publisher=

    work page 2012

  68. [68]

    Physical Review Letters , volume=

    Strain relaxation in InAs/GaAs (111) A heteroepitaxy , author=. Physical Review Letters , volume=. 2000 , publisher=

    work page 2000

  69. [69]

    Scientific Reports , volume=

    Strain relaxation in InAs heteroepitaxy on lattice-mismatched substrates , author=. Scientific Reports , volume=. 2020 , publisher=

    work page 2020

  70. [70]

    Central European Journal of Physics , volume=

    Gwyddion: an open-source software for SPM data analysis , author=. Central European Journal of Physics , volume=. 2012 , publisher=

    work page 2012

  71. [71]

    Applied Physics Letters , volume=

    Optimization of AlAs/AlGaAs quantum well heterostructures on on-axis and misoriented GaAs (111) B , author=. Applied Physics Letters , volume=. 2012 , publisher=

    work page 2012

  72. [72]

    Nature communications , volume=

    Electroluminescence from multi-particle exciton complexes in transition metal dichalcogenide semiconductors , author=. Nature communications , volume=. 2019 , publisher=

    work page 2019

  73. [73]

    ACS applied materials & interfaces , volume=

    Self-running Ga droplets on GaAs (111) A and (111) B surfaces , author=. ACS applied materials & interfaces , volume=. 2013 , publisher=

    work page 2013

  74. [74]

    ACS nano , year=

    Engineering Nanohole-Etched Quantum Dots for Telecom-Band Single-Photon Generation , author=. ACS nano , year=

    work page

  75. [75]

    Journal of Applied Physics , volume=

    Metamorphic approach to single quantum dot emission at 1.55 m on GaAs substrate , author=. Journal of Applied Physics , volume=. 2008 , publisher=

    work page 2008

  76. [76]

    Scientific Reports , volume=

    Temperature activated dimensionality crossover in the nucleation of quantum dots by droplet epitaxy on GaAs (111) A vicinal substrates , author=. Scientific Reports , volume=. 2019 , publisher=

    work page 2019

  77. [77]

    Physical Review B—Condensed Matter and Materials Physics , volume=

    Kinetic model of local droplet etching , author=. Physical Review B—Condensed Matter and Materials Physics , volume=. 2011 , publisher=

    work page 2011

  78. [78]

    Nano Letters , volume=

    Low-Density InGaAs/AlGaAs Quantum Dots in Droplet-Etched Nanoholes , author=. Nano Letters , volume=. 2026 , publisher=

    work page 2026

  79. [79]

    Scientific Reports , author =

    Purcell-enhanced single photons at telecom wavelengths from a quantum dot in a photonic crystal cavity , volume =. Scientific Reports , author =. 2024 , pages =

    work page 2024

  80. [80]

    and Fedorov, A

    Tuktamyshev, A. and Fedorov, A. and Bietti, S. and Vichi, S. and Zeuner, K. D. and Jöns, K. D. and Chrastina, D. and Tsukamoto, S. and Zwiller, V. and Gurioli, M. and Sanguinetti, S. , title = ". Applied Physics Letters , volume =. 2021 , doi =

    work page 2021

Showing first 80 references.
