Location of the liquid-vapor critical point in aluminum
Pith reviewed 2026-05-10 15:48 UTC · model grok-4.3
The pith
The liquid-vapor critical point of aluminum sits at 6531-6576 K, 0.637 g/cm³ and 1.6 kbar.
A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.
Core claim
Using spinodal analysis of the equation of state and direct coexistence simulations with Gaussian mixture phase identification, the authors determine the liquid-vapor critical point of aluminum to be at 6531-6576 K, 0.637 g/cm³, and 1.6 kbar after selecting the PBEsol exchange-correlation functional for its agreement with experimental liquid densities.
What carries the argument
Deep potential molecular dynamics trained on PBEsol DFT data, combined with spinodal analysis of the equation of state and direct coexistence simulations identified by Gaussian mixture models.
If this is right
- The reported values can be used directly in models of laser ablation, shock compression, and planetary interiors involving aluminum.
- The same combination of deep-potential training, spinodal analysis, and Gaussian-mixture coexistence runs supplies a route for locating critical points in other metals.
- Temperature uncertainty of only ~50 K replaces the previous spread of thousands of kelvin.
- The framework is stated to be transferable, so the same workflow can be repeated for other metallic elements under extreme conditions.
Where Pith is reading between the lines
- The method could be applied to metals for which no experimental critical-point data exist at all.
- If the choice of functional remains the dominant uncertainty, systematic tests of additional functionals on the same deep-potential workflow would further tighten the result.
- The narrowed critical parameters could be inserted into existing hydrodynamic codes to check whether predicted ablation depths or shock Hugoniots shift measurably.
Load-bearing premise
The PBEsol exchange-correlation functional, chosen after benchmarking against experimental liquid densities, together with the deep potential trained on its data, correctly describes the equation of state and phase behavior near the critical point.
What would settle it
An experimental measurement of the critical temperature in aluminum that lies outside the interval 6531-6576 K would show the simulated location to be incorrect.

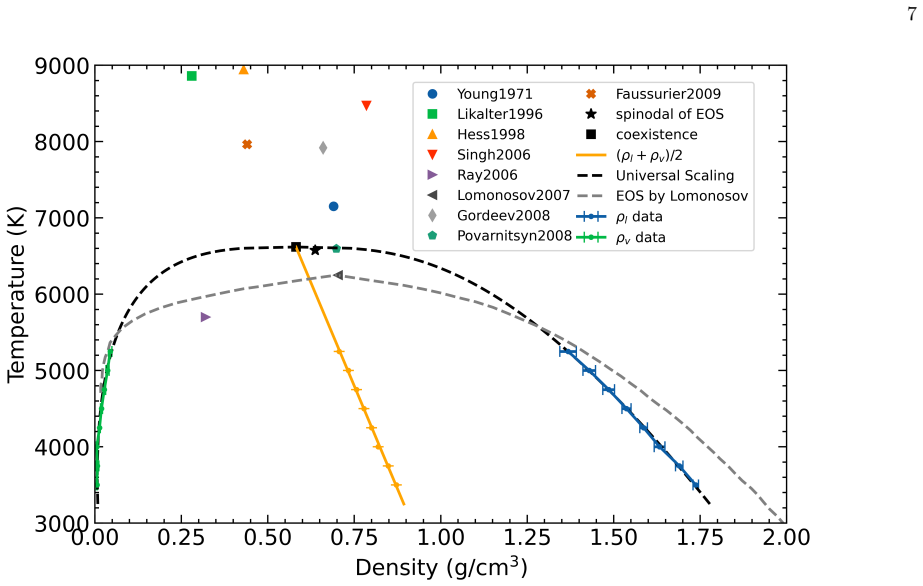

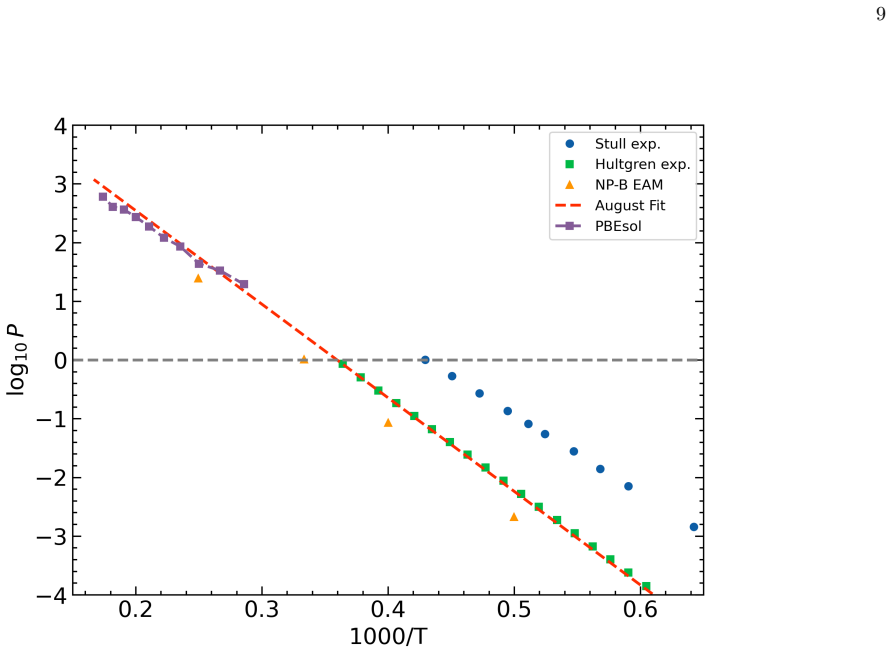

Figures
read the original abstract
The precise location of the liquid-vapor critical point in aluminum has remained elusive for decades, with reported critical temperatures spanning nearly 4000 K. Here we resolve this long-standing uncertainty by combining deep potential molecular dynamics with large-scale simulations trained on high-fidelity electronic-structure data. We benchmark multiple exchange-correlation functionals against experimental liquid densities and identify PBEsol as providing the most consistent description. Using complementary approaches -- spinodal analysis of the equation of state and direct coexistence simulations with Gaussian mixture phase identification -- we converge on a critical temperature of 6531-6576 $^\circ$K, a critical density of $0.637$ g/cm$^{3}$, and a critical pressure of $1.6$ kbar. The precision of these values, with temperature uncertainties of $\sim$50 K, represents a marked improvement over previous estimates. Our framework establishes a transferable strategy for predicting critical phenomena in metals, with implications for laser ablation, shock compression, and planetary modeling under extreme conditions.
Editorial analysis
A structured set of objections, weighed in public.
Referee Report
Summary. The manuscript determines the liquid-vapor critical point of aluminum via deep-potential molecular dynamics trained on PBEsol DFT data. Benchmarking several exchange-correlation functionals against experimental liquid densities selects PBEsol; two complementary large-scale methods—spinodal analysis of the equation of state and direct coexistence simulations with Gaussian-mixture phase identification—converge on Tc = 6531–6576 K, ρc = 0.637 g cm⁻³ and Pc = 1.6 kbar, with temperature uncertainties of ~50 K.
Significance. If the underlying functional remains accurate in the low-density regime, the work supplies the tightest computational bounds yet on aluminum’s critical parameters and demonstrates a transferable workflow for metallic critical phenomena. The dual-method convergence and use of machine-learned potentials trained on independent electronic-structure data constitute clear technical strengths.
major comments (2)
- [Benchmarking paragraph] Benchmarking paragraph (abstract and methods): PBEsol is selected solely on the basis of agreement with experimental liquid densities near 2.7 g cm⁻³. The reported critical density (0.637 g cm⁻³) lies far below this regime, where metallic cohesion weakens and possible non-metallic character appears; no additional validation (e.g., vapor pressures, cohesive energies at low density, or comparison with higher-level functionals) is provided to confirm that the same functional error cancellation holds near the spinodal.
- [Results section] Results section on spinodal and coexistence: Both the equation-of-state spinodal analysis and the direct-coexistence runs employ the identical PBEsol-trained deep potential. Their numerical agreement therefore tests only internal consistency of the potential, not whether the underlying DFT surface correctly locates the binodal or spinodal at low density. An independent check against a second functional or against experimental proxies in the critical region would be required to support the central claim.
minor comments (1)
- [Abstract] Notation: the symbol °K is non-standard; thermodynamic temperatures should be reported in K without the degree symbol.
Simulated Author's Rebuttal
We thank the referee for the careful reading, positive assessment of the technical strengths, and constructive comments on functional validation. We address each major comment below and have revised the manuscript with added discussion and clarifications.
read point-by-point responses
-
Referee: Benchmarking paragraph (abstract and methods): PBEsol is selected solely on the basis of agreement with experimental liquid densities near 2.7 g cm⁻³. The reported critical density (0.637 g cm⁻³) lies far below this regime, where metallic cohesion weakens and possible non-metallic character appears; no additional validation (e.g., vapor pressures, cohesive energies at low density, or comparison with higher-level functionals) is provided to confirm that the same functional error cancellation holds near the spinodal.
Authors: We appreciate the referee highlighting this limitation. Our selection of PBEsol was driven by the availability of experimental benchmarks for the dense liquid; we have now expanded the Methods section with additional literature comparisons of PBEsol performance for aluminum cohesive energies and other properties across densities. We have also added an explicit limitations paragraph in the Discussion acknowledging that error cancellation may differ near the spinodal and that the critical-point values are conditional on the functional choice. Direct new DFT calculations at critical densities were not feasible within the study scope. revision: partial
-
Referee: Results section on spinodal and coexistence: Both the equation-of-state spinodal analysis and the direct-coexistence runs employ the identical PBEsol-trained deep potential. Their numerical agreement therefore tests only internal consistency of the potential, not whether the underlying DFT surface correctly locates the binodal or spinodal at low density. An independent check against a second functional or against experimental proxies in the critical region would be required to support the central claim.
Authors: We agree that the two-method convergence primarily confirms internal consistency of the workflow rather than absolute DFT accuracy at low density. In the revised Results section we now explicitly distinguish these aspects and have added cross-references to prior theoretical studies of aluminum using alternative functionals or methods for context. Performing a full independent check would require new DFT data generation and potential retraining, which lies beyond the present computational resources; we have therefore included a statement on possible systematic uncertainties arising from the functional. revision: partial
Circularity Check
No significant circularity in simulation-derived critical parameters
full rationale
The derivation proceeds by first benchmarking several DFT functionals against experimental liquid densities at ambient conditions to select PBEsol, training a deep potential on the resulting DFT data, and then executing two independent large-scale simulation protocols (spinodal analysis of the equation of state and direct coexistence with Gaussian-mixture phase labeling) whose outputs are the reported critical temperature, density, and pressure. These critical values are not used in the functional selection, potential training, or any fitting step; they emerge as predictions from the model. No self-definitional equations, fitted inputs relabeled as predictions, or load-bearing self-citations appear in the chain. Internal consistency between the two simulation methods constitutes a cross-check rather than a reduction to the inputs by construction.
Axiom & Free-Parameter Ledger
axioms (2)
- domain assumption PBEsol provides the most consistent description of aluminum liquid densities among tested functionals
- domain assumption Deep potentials trained on high-fidelity electronic-structure data faithfully reproduce the underlying potential energy surface for large-scale simulations near the critical point
Reference graph
Works this paper leans on
-
[1]
(circle), Likalter [13] (square), Hess[14] (upper triangle), Singh[15](down triangle), Ray[16] (right triangle), Lomonosov[17] (left triangle), Gordeev[19] (diamond), Povarnitsyn [18] (pentagon), and Faussurier[20](cross). We employ the temperature quench molecular dynamics (TQMD) to obtain the liquid-vapor coexistence curve (see Section II D). We choose ...
work page 2000
-
[2]
A. S. V. Ramana, Molecular dynamics simulation of liquid-vapor coexistence curves of metals, Journal of Physics: Con- ference Series377, 012086 (2012)
work page 2012
-
[3]
T. Ma, T. D¨ oppner, R. W. Falcone, L. Fletcher, C. Fortmann, D. O. Gericke, O. L. Landen, H. J. Lee, A. Pak, J. Vor- berger, K. W¨ unsch, and S. H. Glenzer, X-Ray scattering measurements of strong Ion-Ion correlations in shock-compressed aluminum, Phys. Rev. Lett.110, 065001 (2013)
work page 2013
-
[4]
R. W. Lemke, D. H. Dolan, D. G. Dalton, J. L. Brown, K. Tomlinson, G. R. Robertson, M. D. Knud- son, E. Harding, A. E. Mattsson, J. H. Carpenter, R. R. Drake, K. Cochrane, B. E. Blue, A. C. Robinson, 10 and T. R. Mattsson, Probing off-Hugoniot states in Ta, Cu, and Al to 1000 GPa compression with magneti- cally driven liner implosions, Journal of Applied ...
-
[5]
V. I. Mazhukin, O. N. Koroleva, M. M. Demin, A. V. Shapranov, and A. A. Aleksashkina, Atomistic simulation of the coexistence of liquid–vapor phase states for gold and determination of critical parameters, Mathematical Models and Computer Simulations14, 819 (2022)
work page 2022
-
[6]
M. K. Lentz, M. P. Desjarlais, and J. P. Townsend, Liquid–vapor coexistence of platinum from ab initio simulations, The Journal of Chemical Physics164, 094119 (2026)
work page 2026
- [7]
-
[8]
J. P. Colombier, P. Combis, F. Bonneau, R. Le Harzic, and E. Audouard, Hydrodynamic simulations of metal ablation by femtosecond laser irradiation, Phys. Rev. B71, 165406 (2005)
work page 2005
-
[9]
J. Fishburn, M. Withford, D. Coutts, and J. Piper, Study of the fluence dependent interplay between laser induced material removal mechanisms in metals: Vaporization, melt displacement and melt ejection, Applied Surface Science252, 5182 (2006)
work page 2006
-
[10]
M. D. Knudson and M. P. Desjarlais, Equation of state and transport property measurements of warm dense matter (2009)
work page 2009
-
[11]
J. Terragni and A. Miotello, Laser ablation of aluminum near the critical regime: A computational gas-dynamical model with temperature-dependent physical parameters, Micromachines12, 10.3390/mi12030300 (2021)
- [12]
-
[13]
D. A. Young and B. J. Alder, Critical point of metals from the van der Waals model, Phys. Rev. A3, 364 (1971)
work page 1971
-
[14]
A. A. Likalter, Equation of state of metallic fluids near the critical point of phase transition, Phys. Rev. B53, 4386 (1996)
work page 1996
-
[15]
H. Hess, Z. Metallkd.89(1998)
work page 1998
-
[16]
J. K. Singh, J. Adhikari, and S. K. Kwak, Vapor-liquid phase coexistence curves for Morse fluids, Fluid Phase Equilibria 248, 1 (2006)
work page 2006
-
[17]
A. RAY, M. SRIVASTAVA, G. KONDAYYA, and S. MENON, Improved equation of state of metals in the liquid-vapor region, Laser and Particle Beams24, 437 (2006)
work page 2006
-
[18]
Lomonosov, Multi-phase equation of state for aluminum, Laser and Particle Beams25, 567 (2007)
I. Lomonosov, Multi-phase equation of state for aluminum, Laser and Particle Beams25, 567 (2007)
work page 2007
-
[19]
M. Povarnitsyn, K. Khishchenko, and P. Levashov, Simulation of shock-induced fragmentation and vaporization in metals, International Journal of Impact Engineering35, 1723 (2008)
work page 2008
-
[20]
D. G. Gordeev, L. F. Gudarenko, M. V. Zhernokletov, V. G. Kudel’kin, and M. A. Mochalov, Semi-empirical equation of state of metals. equation of state of aluminum, Combustion, Explosion, and Shock Waves44, 177 (2008)
work page 2008
-
[21]
G. Faussurier, C. Blancard, and P. L. Silvestrelli, Evaluation of aluminum critical point using an ab initio variational approach, Phys. Rev. B79, 134202 (2009)
work page 2009
-
[22]
L. P. Kadanoff, Scaling laws for Ising models nearT c, Physics Physique Fizika2, 263 (1966)
work page 1966
-
[23]
K. G. Wilson, Renormalization group and critical phenomena. i. renormalization group and the kadanoff scaling picture, Phys. Rev. B4, 3174 (1971)
work page 1971
-
[24]
K. G. Wilson, Renormalization group and critical phenomena. ii. phase-space cell analysis of critical behavior, Phys. Rev. B4, 3184 (1971)
work page 1971
-
[25]
K. G. Wilson, The renormalization group: Critical phenomena and the kondo problem, Rev. Mod. Phys.47, 773 (1975)
work page 1975
-
[26]
J. Behler and M. Parrinello, Generalized neural-network representation of high-dimensional potential-energy surfaces, Phys. Rev. Lett.98, 146401 (2007)
work page 2007
-
[27]
J. Behler, Neural network potential-energy surfaces in chemistry: a tool for large-scale simulations, Phys. Chem. Chem. Phys.13, 17930 (2011)
work page 2011
- [28]
-
[29]
Luo, Supplementary: Location of the liquid-vapor critical point in aluminum (2026)
K. Luo, Supplementary: Location of the liquid-vapor critical point in aluminum (2026)
work page 2026
-
[30]
M. Chen, G.-C. Guo, and L. He, Systematically improvable optimized atomic basis sets for ab initio calculations, Journal of Physics: Condensed Matter22, 445501 (2010)
work page 2010
-
[31]
D. R. Hamann, Optimized norm-conserving Vanderbilt pseudopotentials, Phys. Rev. B88, 085117 (2013)
work page 2013
-
[32]
L. Kleinman and D. M. Bylander, Efficacious form for model pseudopotentials, Phys. Rev. Lett.48, 1425 (1982)
work page 1982
-
[33]
Y. Huang, ABACUS Pseudopot-Nao Square (APNS) project, https://kirk0830.github.io/abacus-pseudopot-nao- square/index.html
-
[34]
J. Sun, A. Ruzsinszky, and J. P. Perdew, Strongly constrained and appropriately normed semilocal density functional, Physical Review Letters115, 036402 (2015)
work page 2015
-
[35]
J. P. Perdew, K. Burke, and M. Ernzerhof, Generalized gradient approximation made simple, Phys. Rev. Lett.77, 3865 (1996)
work page 1996
- [36]
- [37]
-
[38]
A. P. Thompson, H. M. Aktulga, R. Berger, D. S. Bolintineanu, W. M. Brown, P. S. Crozier, P. J. in ’t Veld, A. Kohlmeyer, S. G. Moore, T. D. Nguyen, R. Shan, M. J. Stevens, J. Tranchida, C. Trott, and S. J. Plimpton, LAMMPS - a flexible 11 simulation tool for particle-based materials modeling at the atomic, meso, and continuum scales, Comp. Phys. Comm. 27...
work page 2022
-
[39]
Y. S. Touloukian,Recommended values of the thermophysical properties of eight alloys, major constituents and their oxides, Tech. Rep. (1966)
work page 1966
-
[40]
G. Gathers, Thermophysical properties of liquid copper and aluminum, International journal of Thermophysics4, 209 (1983)
work page 1983
-
[41]
E. A. Brandes and G. Brook,Smithells metals reference book(Elsevier, 2013)
work page 2013
-
[42]
M. J. Assael, A. E. Kalyva, K. D. Antoniadis, R. Michael Banish, I. Egry, J. Wu, E. Kaschnitz, and W. A. Wakeham, Reference data for the density and viscosity of liquid copper and liquid tin, Journal of Physical and Chemical Reference Data39, 033105 (2010)
work page 2010
-
[43]
J. Schmitz, B. Hallstedt, J. Brillo, I. Egry, and M. Schick, Density and thermal expansion of liquid Al–Si alloys, Journal of Materials Science47, 3706 (2012)
work page 2012
-
[44]
M. Leitner, T. Leitner, A. Schmon, K. Aziz, and G. Pottlacher, Thermophysical properties of liquid aluminum, Metallurgical and Materials Transactions A48, 3036 (2017)
work page 2017
-
[45]
J. P. Perdew, A. Ruzsinszky, G. I. Csonka, O. A. Vydrov, G. E. Scuseria, L. A. Constantin, X. Zhou, and K. Burke, Restoring the density-gradient expansion for exchange in solids and surfaces, Physical review letters100, 136406 (2008)
work page 2008
-
[46]
A. D. Becke, Density-functional thermochemistry. iii. the role of exact exchange, The Journal of chemical physics98, 5648 (1993)
work page 1993
-
[47]
C. Lee, W. Yang, and R. G. Parr, Development of the colle-salvetti correlation-energy formula into a functional of the electron density, Physical review B37, 785 (1988)
work page 1988
- [48]
- [49]
-
[50]
L. D. Gelb and E. A. M¨ uller, Location of phase equilibria by temperature-quench molecular dynamics simulations, Fluid Phase Equilibria203, 1 (2002)
work page 2002
-
[51]
J. S. Rowlinson and B. Widom,Molecular theory of capillarity(Courier Corporation, 2013)
work page 2013
- [52]
-
[53]
J. Zinn-Justin, Precise determination of critical exponents and equation of state by field theory methods, Physics Reports 344, 159 (2001)
work page 2001
-
[54]
J. Sengers and J. L. Sengers, Thermodynamic behavior of fluids near the critical point, Annual Review of Physical Chemistry 37, 189 (1986)
work page 1986
-
[55]
A. J. Liu and M. E. Fisher, The three-dimensional Ising model revisited numerically, Physica A: Statistical Mechanics and its Applications156, 35 (1989)
work page 1989
-
[56]
D. Bhatt, A. W. Jasper, N. E. Schultz, J. I. Siepmann, and D. G. Truhlar, Critical properties of aluminum, Journal of the American Chemical Society128, 4224 (2006), https://doi.org/10.1021/ja0577950
-
[57]
M. P. Desjarlais, Quantum molecular dynamics simulations for generating equation of state data, AIP Conference Pro- ceedings1161, 32 (2009), https://pubs.aip.org/aip/acp/article-pdf/1161/1/32/12145787/32 1 online.pdf
work page 2009
-
[58]
Luo, Zenodo, https://doi.org/10.5281/zenodo.17213314 (2026)
K. Luo, Zenodo, https://doi.org/10.5281/zenodo.17213314 (2026)
-
[59]
N. B. Wilding, Critical-point and coexistence-curve properties of the Lennard-Jones fluid: A finite-size scaling study, Phys. Rev. E52, 602 (1995)
work page 1995
-
[60]
R. Hultgren and A. S. for Metals,Selected Values of the Thermodynamic Properties of the Elements(American Society for Metals, 1973)
work page 1973
-
[61]
D. R. Stull, Inorganic compounds, Industrial & Engineering Chemistry39, 540 (1947), https://doi.org/10.1021/ie50448a023
