Concise Geometric Description as a Bridge: Unleashing the Potential of LLM for Plane Geometry Problem Solving

Jingyun Wang , Dian Li , Xiaohan Wang , Gang Liu , Jiahong Yan , Guoliang Kang

Authors on Pith no claims yet

Pith reviewed 2026-05-16 10:28 UTC · model grok-4.3

classification 💻 cs.AI

keywords plane geometry problem solvingconditional declaration languagemultimodal interpreterchain-of-thought fine-tuningGRPOLLM reasoninggeometric descriptionsFormalgeo7k

0 comments

The pith

Translating diagrams into concise formal text lets standard LLMs solve plane geometry problems with far less training data than end-to-end multimodal models.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper argues that plane geometry problem solving does not require joint training of visual perception and logical reasoning inside one model. Instead, a multimodal interpreter is trained to output short, structured textual descriptions of a diagram using Conditional Declaration Language. An ordinary language model then receives only those descriptions plus the problem text and produces the solution. Because the interpreter is trained with chain-of-thought supervision and rewards that directly measure description accuracy, the approach reaches competitive accuracy on standard benchmarks after fine-tuning on only 5.5k examples. The separation preserves the base language model's reasoning strengths and avoids the data hunger of full multimodal fine-tuning.

Core claim

An MLLM Interpreter fine-tuned via CoT-augmented supervised learning followed by GRPO using CDL matching rewards converts geometric diagrams into Conditional Declaration Language descriptions; an off-the-shelf LLM then solves the problem from those descriptions and the given text, achieving favorable results against leading open- and closed-source MLLMs on Formalgeo7k-Rec-CoT, Unigeo, and MathVista after training on only 5.5k samples.

What carries the argument

Conditional Declaration Language (CDL) acts as the concise textual bridge that encodes diagram geometry so the downstream LLM can reason without seeing the image.

If this is right

The reasoning LLM never needs to be retrained on images, preserving its original capabilities across tasks.
CDL-matching rewards supply denser training signals than final-answer rewards during interpreter optimization.
Modest datasets suffice because the interpreter focuses only on description generation rather than full solution reasoning.
The same interpreter-LLM split can be applied to other geometry benchmarks without rebuilding the entire system.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

The modular split may reduce data requirements in other multimodal reasoning domains where perception and inference can be separated.
If CDL captures all geometrically relevant relations, analogous formal languages could serve as bridges for physics or chemistry diagram tasks.
Testing whether one interpreter works unchanged with multiple different reasoning LLMs would reveal how general the CDL representation is.

Load-bearing premise

Accurate CDL descriptions generated by the interpreter are sufficient for the downstream LLM to reach correct solutions on unseen problems without additional visual information.

What would settle it

A test set of problems in which the interpreter produces verifiably correct CDL yet the LLM still returns systematically wrong answers would falsify the claim that the description step alone is enough.

Figures

Figures reproduced from arXiv: 2601.21164 by Dian Li, Gang Liu, Guoliang Kang, Jiahong Yan, Jingyun Wang, Xiaohan Wang.

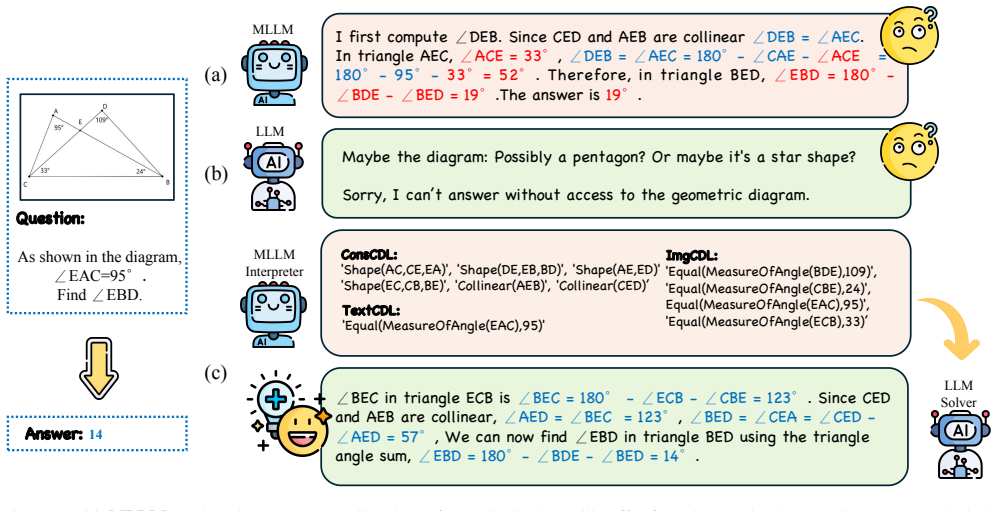

**Figure 1.** Figure 1: (a) MLLMs. Though MLLMs can directly perform PGPS, they still suffer from heavy visual perception errors or logical reasoning errors. (b) LLMs. LLMs are not capable of PGPS without access to geometric diagrams. (c) Ours. We employ a MLLM interpreter to convert geometric diagrams into a concise CDL description upon which an LLM solver performs reasoning. converting geometric inputs into textual descriptions… view at source ↗

**Figure 2.** Figure 2: Method Overview. (a) Data Construction. We construct Formalgeo7k-Rec-CoT by manual reviewing Formalgeo7k v2 and incorporating the Chain-of-Thought (CoT). We design a two-stage pipeline to train MLLM Interpreter, including a (b) CoT-Augmented SFT Stage and a (c) GRPO Stage with CDL Matching Rewards. Based on the generated CDL, an (d) LLM Solver directly performs reasoning and derives final solutions. ing th… view at source ↗

**Figure 3.** Figure 3: Qualitative Results on Formalgeo7k-Rec-CoT. We present an example illustrating the complete pipeline of CDL Solver: an MLLM Interpreter converts geometric inputs into CDL upon which the LLM Solver performs reasoning and derives the final answer. Effect of various RL rewards: Sf , SC , SI and ST . During the RL stage, we specifically design rewards, including Format Reward Sf , ConsCDL Reward SC , ImgCDL R… view at source ↗

**Figure 4.** Figure 4: Illustration of CDL’s Conciseness. A textual description of a geometric diagram can be decomposed into shape descriptions (H), relation descriptions (R), and irrelevant words (O). We use “basic” to denote the triangles that cannot be decomposed further, and “composition” to denote the complex triangles composed of two basics. Under specific constraints in the CDL rule, |HC |, |R C |, and |O C | are minimal… view at source ↗

**Figure 5.** Figure 5: Qualitative Result on Formalgeo7k-Rec-CoT. Prompt: The Caption of this geometric diagram is: As shown in the figure, in △ABC, ∠BAC = 70.0, rotate △ABC clockwise around point C by a certain angle to get △DEC, the corresponding point of point A is D, ED passes point A, then the degree of rotation angle is (). Please provide the consCDL and imgCDL based on this given geometric diagram and provide the textCDL … view at source ↗

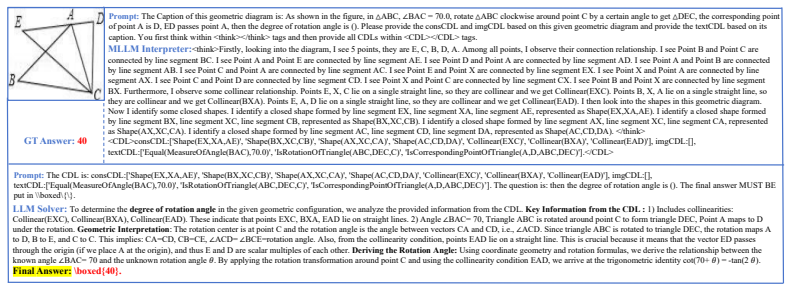

**Figure 6.** Figure 6: Qualitative Result on Unigeo. 4 [PITH_FULL_IMAGE:figures/full_fig_p014_6.png] view at source ↗

**Figure 7.** Figure 7: Qualitative Result on MathVista. 5 [PITH_FULL_IMAGE:figures/full_fig_p015_7.png] view at source ↗

read the original abstract

Plane Geometry Problem Solving (PGPS) is a multimodal reasoning task that aims to solve a plane geometric problem based on a geometric diagram and problem textual descriptions. Although Large Language Models (LLMs) possess strong reasoning skills, their direct application to PGPS is hindered by their inability to process visual diagrams. Existing works typically fine-tune Multimodal LLMs (MLLMs) end-to-end on large-scale PGPS data to enhance visual understanding and reasoning simultaneously. However, such joint optimization may compromise base LLMs' inherent reasoning capability. In this work, we observe that LLM itself is potentially a powerful PGPS solver when appropriately formulating visual information as textual descriptions. We propose to train a MLLM Interpreter to generate geometric descriptions for the visual diagram, and an off-the-shelf LLM is utilized to perform reasoning. Specifically, we choose Conditional Declaration Language (CDL) as the geometric description as its conciseness eases the MLLM Interpreter training. The MLLM Interpreter is fine-tuned via CoT (Chain-of-Thought)-augmented SFT followed by GRPO to generate CDL. Instead of using a conventional solution-based reward that compares the reasoning result with the ground-truth answer, we design CDL matching rewards to facilitate more effective GRPO training, which provides more direct and denser guidance for CDL generation. To support training, we construct a new dataset, Formalgeo7k-Rec-CoT, by manually reviewing Formalgeo7k v2 and incorporating CoT annotations. Extensive experiments on Formalgeo7k-Rec-CoT, Unigeo, and MathVista show our method (finetuned on only 5.5k data) performs favorably against leading open-source and closed-source MLLMs.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Desk Editor's Note private letter to a colleague

The split CDL interpreter plus untouched LLM beats end-to-end MLLMs on geometry with 5.5k examples, but only if the descriptions really carry every needed relation.

read the letter

The main takeaway is that training a small MLLM just to output concise CDL descriptions, then feeding those to an off-the-shelf LLM, can match or exceed larger multimodal models on plane geometry tasks while using far less data and leaving the reasoner untouched. That split is the concrete advance here. They build Formalgeo7k-Rec-CoT by adding CoT traces to an existing set, run CoT-augmented SFT on the interpreter, then apply GRPO with a CDL-matching reward instead of the usual answer-based one. The reward gives denser signal during alignment, which seems to help the interpreter produce usable descriptions. Experiments on Formalgeo7k-Rec-CoT, Unigeo, and MathVista show the combination holding up against leading open and closed MLLMs. That efficiency story is worth noting; most prior work fine-tunes the whole multimodal stack jointly and risks degrading the base reasoning. The soft spot is whether CDL actually transmits every diagram relation the downstream LLM needs. The paper treats matching the generated CDL to reference as sufficient, but if some incidence or ordering stays implicit, the text-only reasoner could fail on problems outside the training distribution even when a direct visual model would succeed. No ablation in the abstract isolates that risk, so the claim rests on the final numbers holding up once the full tables are checked. The work is aimed at people building geometry solvers or testing modular multimodal pipelines. It deserves a serious referee because the pipeline is reproducible, the dataset is new, and the efficiency angle is testable. Minor revisions on the completeness argument and a couple of extra ablations would make it solid.

Referee Report

2 major / 1 minor

Summary. The manuscript proposes decoupling visual interpretation from reasoning in plane geometry problem solving (PGPS). An MLLM Interpreter is fine-tuned via CoT-augmented SFT and GRPO (with a CDL-matching reward) to generate concise Conditional Declaration Language (CDL) descriptions from diagrams; an off-the-shelf LLM then performs textual reasoning on the CDL plus problem text. A new 5.5k-example dataset (Formalgeo7k-Rec-CoT) is constructed by reviewing Formalgeo7k v2 and adding CoT annotations. Experiments on Formalgeo7k-Rec-CoT, Unigeo, and MathVista claim the method outperforms leading open- and closed-source MLLMs while using limited data and avoiding degradation of base LLM reasoning.

Significance. If the central claim holds, the work shows that concise textual geometric descriptions can serve as an effective bridge, enabling data-efficient use of existing LLMs for multimodal geometric tasks without joint optimization that risks impairing reasoning. The CDL choice for conciseness and the denser CDL-matching GRPO reward (versus conventional solution-based rewards) are practical contributions that could generalize to other structured reasoning domains.

major comments (2)

[§3.2] §3.2 and GRPO reward design: CDL matching is treated as a sufficient proxy for geometric understanding, yet no ablation isolates whether residual ambiguities (e.g., implicit incidence, ordering, or diagram-specific relations not explicitly declared in CDL) cause the downstream LLM to fail on problems outside the Formalgeo7k-Rec-CoT distribution while direct visual MLLMs succeed.
[Experiments] Experiments section: The abstract asserts favorable performance against leading MLLMs with only 5.5k fine-tuning examples, but the absence of detailed quantitative metrics, specific baselines, ablation tables, or statistical significance tests in the reported results makes it impossible to verify robustness of the gains or the weakest assumption that accurate CDL alone suffices without visual input.

minor comments (1)

[§2] Clarify notation for CDL syntax in Section 2 and ensure all comparison tables include exact accuracy numbers, number of test problems, and confidence intervals.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the constructive feedback on our manuscript. We address each major comment point-by-point below, providing clarifications and committing to revisions that strengthen the empirical support and methodological transparency without altering the core claims.

read point-by-point responses

Referee: [§3.2] §3.2 and GRPO reward design: CDL matching is treated as a sufficient proxy for geometric understanding, yet no ablation isolates whether residual ambiguities (e.g., implicit incidence, ordering, or diagram-specific relations not explicitly declared in CDL) cause the downstream LLM to fail on problems outside the Formalgeo7k-Rec-CoT distribution while direct visual MLLMs succeed.

Authors: We appreciate this observation on the need for targeted validation of CDL completeness. CDL, as a formal declarative language within the FormalGeo framework, is explicitly designed to enumerate all required geometric entities, relations, and constraints (e.g., points, lines, circles, incidences, and angles) without relying on implicit diagram features. Our CoT-augmented SFT and CDL-matching GRPO reward further encourage exhaustive coverage during generation. While the manuscript reports strong out-of-distribution results on Unigeo and MathVista, we acknowledge the value of an explicit ablation. In the revision, we will add a new subsection in §3.2 with an ablation that measures downstream LLM accuracy on a held-out subset when using (i) full CDL, (ii) CDL with deliberately omitted relations, and (iii) direct visual input to an MLLM, thereby isolating any residual ambiguity effects. revision: partial
Referee: [Experiments] Experiments section: The abstract asserts favorable performance against leading MLLMs with only 5.5k fine-tuning examples, but the absence of detailed quantitative metrics, specific baselines, ablation tables, or statistical significance tests in the reported results makes it impossible to verify robustness of the gains or the weakest assumption that accurate CDL alone suffices without visual input.

Authors: We agree that expanded quantitative reporting will improve verifiability. The full manuscript already contains accuracy tables on Formalgeo7k-Rec-CoT (e.g., 85.3% vs. 78.1% for GPT-4o), Unigeo, and MathVista, with baselines including GPT-4V, Claude-3-Opus, LLaVA-1.6, and Qwen-VL, plus ablations on SFT vs. GRPO and CDL vs. natural-language descriptions. To fully address the concern, we will revise the Experiments section to include: (1) complete per-dataset metric tables with all baselines and our method, (2) additional ablation tables isolating the contribution of accurate CDL (e.g., oracle CDL vs. generated CDL vs. image-only), and (3) statistical significance tests (paired t-tests and McNemar’s test with p-values) on the reported gains. These additions will be placed in §4 and the appendix. revision: yes

Circularity Check

0 steps flagged

No circularity: empirical pipeline evaluated on external benchmarks

full rationale

The paper's central claim is an empirical result: a two-stage system (MLLM Interpreter fine-tuned on 5.5k examples to output CDL, followed by an off-the-shelf LLM for reasoning) achieves competitive accuracy on Formalgeo7k-Rec-CoT, Unigeo, and MathVista. No mathematical derivation or prediction reduces to its inputs by construction. The GRPO reward uses CDL matching as a training signal for the interpreter only; final performance is measured by standard problem-solving accuracy on held-out data, not by construction. No self-citations, uniqueness theorems, or ansatzes are invoked to force the result. The method is self-contained against external benchmarks.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 0 invented entities

The central claim rests on the domain assumption that CDL is an adequate lossless bridge between diagram and reasoning; no free parameters or invented entities are introduced beyond standard fine-tuning hyperparameters.

axioms (1)

domain assumption CDL descriptions contain all information needed for correct geometric reasoning
Implicit in the decision to route all visual information through the interpreter output.

pith-pipeline@v0.9.0 · 5637 in / 1142 out tokens · 27730 ms · 2026-05-16T10:28:28.815410+00:00 · methodology

discussion (0)

Lean theorems connected to this paper

Citations machine-checked in the Pith Canon. Every link opens the source theorem in the public Lean library.

IndisputableMonolith/Cost/FunctionalEquation.lean washburn_uniqueness_aczel unclear

?

unclear
Relation between the paper passage and the cited Recognition theorem.

conciseness of CDL narrows the search space... benefits the training of MLLM Interpreter
IndisputableMonolith/Foundation/AbsoluteFloorClosure.lean reality_from_one_distinction unclear

?

unclear
Relation between the paper passage and the cited Recognition theorem.

CDL matching rewards... recall and precision of the matching results

What do these tags mean?

matches: The paper's claim is directly supported by a theorem in the formal canon.
supports: The theorem supports part of the paper's argument, but the paper may add assumptions or extra steps.
extends: The paper goes beyond the formal theorem; the theorem is a base layer rather than the whole result.
uses: The paper appears to rely on the theorem as machinery.
contradicts: The paper's claim conflicts with a theorem or certificate in the canon.
unclear: Pith found a possible connection, but the passage is too broad, indirect, or ambiguous to say the theorem truly supports the claim.
