arxiv: 2604.08258 · v1 · submitted 2026-04-09 · 💻 cs.RO

EvoGymCM: Harnessing Continuous Material Stiffness for Soft Robot Co-Design

Le Shen , Kangyao Huang , Wentao Zhao , Huaping Liu This is my paper

Pith reviewed 2026-05-10 18:03 UTC · model grok-4.3

classification 💻 cs.RO
keywords soft roboticsco-designcontinuous material stiffnessmorphology optimizationcontrol policiesreactive materialsinvariant materialsperformance benchmarking
0
0 comments X

The pith

Treating material stiffness as continuously variable alongside morphology and control improves soft robot performance across tasks.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper seeks to demonstrate that discretizing material stiffness in existing soft-robot design platforms artificially limits what robots can achieve. It does this by defining continuous stiffness as a design variable that can be optimized in two ways: either through real-time adjustment policies for tunable materials or through joint optimization of fixed stiffness fields with shape and control. Experiments on multiple tasks show measurable performance gains and emergent synergies among the three design elements. A sympathetic reader would care because soft robots derive their advantage from physical compliance, yet current discrete material choices prevent full exploitation of that compliance in automated design.

Core claim

Formalizing continuous material stiffness as a first-class design variable enables two co-design paradigms that outperform discrete baselines: Reactive-Material Co-Design learns policies for on-the-fly stiffness tuning while Invariant-Material Co-Design jointly optimizes fixed stiffness distributions with morphology and control; systematic experiments confirm that this continuous treatment raises task success and reveals beneficial couplings across design variables.

What carries the argument

Morphology-Material-Control co-design paradigms that treat stiffness as a continuous field, either learned reactively as a policy or optimized invariantly as a static distribution.

If this is right

  • Soft robots reach higher task performance when stiffness can be varied continuously rather than in fixed discrete steps.
  • Synergies appear among morphology, material, and control that remain inaccessible under discretization.
  • The same continuous treatment applies both to programmable materials that change stiffness dynamically and to traditional materials whose stiffness is set once during fabrication.
  • High-dimensional design spaces that couple geometry, material properties, and controllers become tractable to optimize.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • Physical prototypes built from the optimized continuous designs could be tested to check whether simulated gains survive real fabrication tolerances and actuation noise.
  • The continuous-stiffness formulation might be extended to other material properties such as damping or density to further enlarge the co-design space.
  • Automated pipelines that output fabrication instructions directly from the optimized stiffness fields could shorten the loop from simulation to hardware.

Load-bearing premise

The two introduced settings accurately capture real material mechanisms and the high-dimensional coupling of morphology, material, and control can be optimized without simulation artifacts.

What would settle it

A direct comparison in which continuous-stiffness designs produce no performance advantage or even underperform discrete-stiffness baselines when transferred to physical hardware on the same tasks.

Figures

Figures reproduced from arXiv: 2604.08258 by Huaping Liu, Kangyao Huang, Le Shen, Wentao Zhao.

Figure 1
Figure 1. Figure 1: Overview of EvoGymCM and the proposed co-design paradigms. (a) EvoGymCM introduces continuous material stiffness, overcoming the discrete limitations of (b) standard EvoGym. This continuous formulation enables two distinct paradigms: (c) Reactive-Material Co-Design drives real-time stiffness tuning in the inner loop; whereas (d) Invariant-Material Co-Design optimizes stiffness configurations in the outer l… view at source ↗
Figure 2
Figure 2. Figure 2: Robot Representation and Physical Modeling [PITH_FULL_IMAGE:figures/full_fig_p003_2.png] view at source ↗
Figure 3
Figure 3. Figure 3: Algorithmic pipeline of the proposed morphology-material-control co-design paradigms, illustrating the distinct workflows for the Reactive-Material [PITH_FULL_IMAGE:figures/full_fig_p004_3.png] view at source ↗
Figure 4
Figure 4. Figure 4: Fixed Robot Set ratios), facilitating the realization of traditional material manufacturing. V. EXPERIMENTS AND RESULTS To comprehensively evaluate the impact of introducing a continuous material stiffness dimension, we conducted systematic experiments across diverse task environments. Beyond quantifying pure performance improvements, our analysis deeply investigates the underlying mechanisms: specifically… view at source ↗
Figure 5
Figure 5. Figure 5: Representative Case of Material-Control Co-Optimization [PITH_FULL_IMAGE:figures/full_fig_p006_5.png] view at source ↗
Figure 6
Figure 6. Figure 6: Correlation between Material Stiffness and Control Signals [PITH_FULL_IMAGE:figures/full_fig_p006_6.png] view at source ↗
Figure 9
Figure 9. Figure 9: Bilevel Ablation Results comparing Invariant-Material Co-Design [PITH_FULL_IMAGE:figures/full_fig_p007_9.png] view at source ↗
Figure 8
Figure 8. Figure 8: Evolution of Robot Designs via Reactive-Material Co-Design [PITH_FULL_IMAGE:figures/full_fig_p007_8.png] view at source ↗
Figure 10
Figure 10. Figure 10: Evolution of Robot Designs via Invariant-Material Co-Design [PITH_FULL_IMAGE:figures/full_fig_p008_10.png] view at source ↗

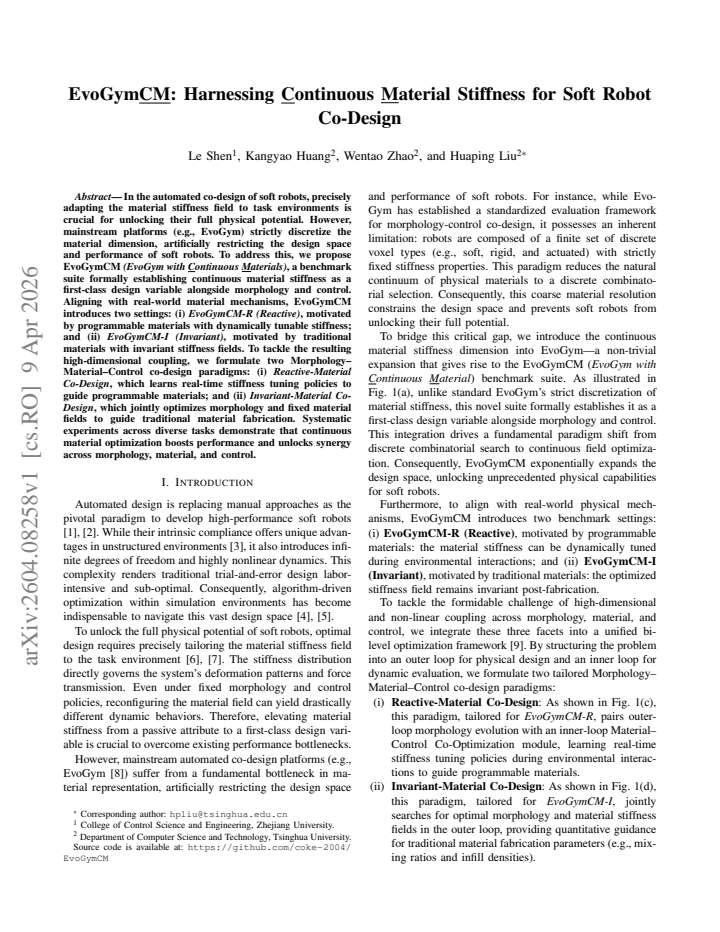

read the original abstract

In the automated co-design of soft robots, precisely adapting the material stiffness field to task environments is crucial for unlocking their full physical potential. However, mainstream platforms (e.g., EvoGym) strictly discretize the material dimension, artificially restricting the design space and performance of soft robots. To address this, we propose EvoGymCM (EvoGym with Continuous Materials), a benchmark suite formally establishing continuous material stiffness as a first-class design variable alongside morphology and control. Aligning with real-world material mechanisms, EvoGymCM introduces two settings: (i) EvoGymCM-R (Reactive), motivated by programmable materials with dynamically tunable stiffness; and (ii) EvoGymCM-I (Invariant), motivated by traditional materials with invariant stiffness fields. To tackle the resulting high-dimensional coupling, we formulate two Morphology-Material-Control co-design paradigms: (i) Reactive-Material Co-Design, which learns real-time stiffness tuning policies to guide programmable materials; and (ii) Invariant-Material Co-Design, which jointly optimizes morphology and fixed material fields to guide traditional material fabrication. Systematic experiments across diverse tasks demonstrate that continuous material optimization boosts performance and unlocks synergy across morphology, material, and control.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

0 major / 3 minor

Summary. The manuscript introduces EvoGymCM as an extension to EvoGym for incorporating continuous material stiffness into the co-design of soft robots. It defines two settings, Reactive (EvoGymCM-R) for dynamically tunable stiffness and Invariant (EvoGymCM-I) for fixed stiffness fields, along with corresponding co-design paradigms for jointly optimizing morphology, material, and control. Systematic experiments on diverse tasks are presented to demonstrate performance improvements and synergies from continuous material optimization.

Significance. If the experimental results hold, this work is significant for the field of soft robotics co-design. By treating material stiffness as a continuous variable rather than discrete, it expands the design space and better aligns with real-world material properties. The introduction of a benchmark suite with defined paradigms could facilitate future research in automated design, potentially leading to more capable soft robots through better exploitation of physical properties.

minor comments (3)
  1. [Abstract] The abstract claims performance boosts but does not include any specific quantitative metrics, error bars, or baseline comparisons, which would help readers quickly gauge the magnitude of the improvements.
  2. [Introduction] The motivation for choosing the Reactive and Invariant settings is clear, but a brief discussion on how these map to specific real-world materials or fabrication methods would strengthen the connection to practical applications.
  3. [Experiments] Ensure that all figures and tables have clear captions and legends that distinguish between the different co-design paradigms and material representations.

Simulated Author's Rebuttal

0 responses · 0 unresolved

We thank the referee for their positive summary of EvoGymCM, recognition of its significance in expanding the design space for soft robot co-design via continuous material stiffness, and recommendation for minor revision. We are pleased that the Reactive and Invariant settings, along with the Morphology-Material-Control paradigms, are viewed as valuable contributions that align with real-world material properties and could facilitate future research.

Circularity Check

0 steps flagged

No significant circularity detected

full rationale

The paper proposes EvoGymCM as a benchmark extending EvoGym to continuous material stiffness, introducing Reactive and Invariant settings motivated by real-world mechanisms and two corresponding co-design paradigms. Central claims rest on empirical experiments across tasks that compare continuous versus discrete material representations and report performance gains plus synergy. No derivation chain, equations, fitted parameters presented as predictions, or self-referential definitions appear; results are direct experimental outcomes from the stated optimization paradigms rather than reductions to inputs by construction. The work is self-contained against its own benchmarks and controls.

Axiom & Free-Parameter Ledger

0 free parameters · 0 axioms · 0 invented entities

Abstract-only review; no explicit free parameters, axioms, or invented entities are stated. The central claim rests on the unstated assumption that the simulation faithfully represents continuous stiffness fields.

pith-pipeline@v0.9.0 · 5516 in / 1076 out tokens · 29154 ms · 2026-05-10T18:03:39.903035+00:00 · methodology

discussion (0)

Sign in with ORCID, Apple, or X to comment. Anyone can read and Pith papers without signing in.

Reference graph

Works this paper leans on

24 extracted references · 24 canonical work pages · 1 internal anchor

  1. [1]

    Unshackling evolution: Evolving soft robots with multiple materials and a powerful generative encoding,

    N. Cheney, R. MacCurdy, J. Clune, and H. Lipson, “Unshackling evolution: Evolving soft robots with multiple materials and a powerful generative encoding,”SIGEVOlution, vol. 7, no. 1, pp. 11–23, Aug. 2014

    work page 2014

  2. [2]

    Evolving embodied intelligence from materials to machines,

    D. Howard, A. E. Eiben, D. F. Kennedy, J.-B. Mouret, P. Valencia, and D. Winkler, “Evolving embodied intelligence from materials to machines,”Nature Machine Intelligence, vol. 1, no. 1, pp. 12–19, Jan. 2019

    work page 2019

  3. [3]

    Soft robotics: Biological inspiration, state of the art, and future research,

    D. Trivedi, C. D. Rahn, W. M. Kier, and I. D. Walker, “Soft robotics: Biological inspiration, state of the art, and future research,”Applied bionics and biomechanics, vol. 5, no. 3, pp. 99–117, 2008

    work page 2008

  4. [4]

    Evolving virtual creatures,

    K. Sims, “Evolving virtual creatures,” inProc. 21st Annu. Conf. Comput. Graph. Interact. Tech. (SIGGRAPH ’94), New York, NY , USA, July 1994, pp. 15–22

    work page 1994

  5. [5]

    Embodied intelligence: A synergy of morphology, action, perception and learning,

    H. Liu, D. Guo, and A. Cangelosi, “Embodied intelligence: A synergy of morphology, action, perception and learning,”ACM Computing Surveys, vol. 57, no. 7, pp. 1–36, 2025

    work page 2025

  6. [6]

    Design, fabrication and control of soft robots,

    D. Rus and M. T. Tolley, “Design, fabrication and control of soft robots,”Nature, vol. 521, no. 7553, pp. 467–475, May 2015

    work page 2015

  7. [7]

    Stiffening in soft robotics: A review of the state of the art,

    M. Manti, V . Cacucciolo, and M. Cianchetti, “Stiffening in soft robotics: A review of the state of the art,”IEEE Robotics & Automation Magazine, vol. 23, no. 3, pp. 93–106, 2016

    work page 2016

  8. [8]

    Evolution gym: A large-scale benchmark for evolving soft robots,

    J. Bhatia, H. Jackson, Y . Tian, J. Xu, and W. Matusik, “Evolution gym: A large-scale benchmark for evolving soft robots,” inProc. Adv. Neural Inform. Process. Syst. (NeurIPS), vol. 34, 2021, pp. 2201–2214

    work page 2021

  9. [9]

    A review on bilevel optimization: From classical to evolutionary approaches and applications,

    A. Sinha, P. Malo, and K. Deb, “A review on bilevel optimization: From classical to evolutionary approaches and applications,”IEEE transactions on evolutionary computation, vol. 22, no. 2, pp. 276– 295, 2017

    work page 2017

  10. [10]

    Competevo: towards morphological evolution from competition,

    K. Huang, D. Guo, X. Zhang, X. Ji, and H. Liu, “Competevo: towards morphological evolution from competition,”arXiv preprint arXiv:2405.18300, 2024

    work page arXiv 2024

  11. [11]

    Automatic design and manufacture of soft robots,

    J. Hiller and H. Lipson, “Automatic design and manufacture of soft robots,”IEEE Trans. Robot., vol. 28, no. 2, pp. 457–466, Apr. 2012

    work page 2012

  12. [12]

    Mor- phV AE: Advancing morphological design of voxel-based soft robots with variational autoencoders,

    J. Song, Y . Yang, W. Peng, W. Zhou, F. Wang, and W. Yao, “Mor- phV AE: Advancing morphological design of voxel-based soft robots with variational autoencoders,”Proc. AAAI Conf. Artif. Intell., vol. 38, no. 9, pp. 10 368–10 376, Mar. 2024

    work page 2024

  13. [13]

    Morphology evolution for embodied robot design with a classifier-guided diffusion model,

    S. Liu, J. Yan, H. Wang, and Y . Jin, “Morphology evolution for embodied robot design with a classifier-guided diffusion model,”IEEE Trans. Evol. Comput., 2025, to be published

    work page 2025

  14. [14]

    LASeR: Towards diversified and generalizable robot design with large language models,

    J. Song, Y . Yang, H. Xiao, W. Peng, W. Yao, and F. Wang, “LASeR: Towards diversified and generalizable robot design with large language models,” inProc. 13th Int. Conf. Learn. Represent. (ICLR), Oct. 2024

    work page 2024

  15. [15]

    Curriculum-based co-design of morphology and control of voxel- based soft robots,

    Y . Wang, S. Wu, H. Fu, Q. Fu, T. Zhang, Y . Chang, and X. Wang, “Curriculum-based co-design of morphology and control of voxel- based soft robots,” inProc. 11th Int. Conf. Learn. Represent. (ICLR), Sept. 2022

    work page 2022

  16. [16]

    Cross- task collaborative optimization based on knowledge transfer for soft robot design,

    J. Zhao, W. Peng, H. Wang, W. Zhou, Y . Yang, and W. Yao, “Cross- task collaborative optimization based on knowledge transfer for soft robot design,”IEEE Trans. Evol. Comput., 2025, to be published

    work page 2025

  17. [17]

    Lamarckian co-design of soft robots via transfer learning,

    K. Harada and H. Iba, “Lamarckian co-design of soft robots via transfer learning,” inProc. Genetic Evol. Comput. Conf. (GECCO), Melbourne, VIC, Australia, July 2024, pp. 832–840

    work page 2024

  18. [18]

    PreCo: Enhancing generalization in co-design of modular soft robots via brain-body pre-training,

    Y . Wang, S. Wu, T. Zhang, Y . Chang, H. Fu, Q. Fu, and X. Wang, “PreCo: Enhancing generalization in co-design of modular soft robots via brain-body pre-training,” inProc. 7th Conf. Robot Learn. (CoRL), Dec. 2023, pp. 478–498

    work page 2023

  19. [19]

    Rapidly evolving soft robots via action inheritance,

    S. Liu, W. Yao, H. Wang, W. Peng, and Y . Yang, “Rapidly evolving soft robots via action inheritance,”IEEE Trans. Evol. Comput., vol. 28, no. 6, pp. 1674–1688, Dec. 2024

    work page 2024

  20. [20]

    A multi-objective optimiza- tion framework based on information sharing for serially connected robot design,

    J. Zhao, W. Peng, H. Wang, and W. Yao, “A multi-objective optimiza- tion framework based on information sharing for serially connected robot design,”Complex & Intelligent Systems, vol. 11, no. 9, p. 410, Sept. 2025

    work page 2025

  21. [21]

    Human-level control through deep reinforcement learning,

    V . Mnih, K. Kavukcuoglu, D. Silver, A. A. Rusu, J. Veness, M. G. Bellemare, A. Graves, M. Riedmiller, A. K. Fidjeland, G. Ostrovski, S. Petersen, C. Beattie, A. Sadik, I. Antonoglou, H. King, D. Kumaran, D. Wierstra, S. Legg, and D. Hassabis, “Human-level control through deep reinforcement learning,”Nature, vol. 518, no. 7540, pp. 529–533, Feb. 2015

    work page 2015

  22. [22]

    R. S. Sutton, A. G. Barto,et al.,Reinforcement learning: An intro- duction. MIT press Cambridge, 1998, vol. 1, no. 1

    work page 1998

  23. [23]

    Proximal Policy Optimization Algorithms

    J. Schulman, F. Wolski, P. Dhariwal, A. Radford, and O. Klimov. (2017) Proximal policy optimization algorithms. arXiv:1707.06347

    work page internal anchor Pith review Pith/arXiv arXiv 2017

  24. [24]

    Soft actor-critic: Off- policy maximum entropy deep reinforcement learning with a stochastic actor,

    T. Haarnoja, A. Zhou, P. Abbeel, and S. Levine, “Soft actor-critic: Off- policy maximum entropy deep reinforcement learning with a stochastic actor,” inInternational conference on machine learning. Pmlr, 2018, pp. 1861–1870

    work page 2018
