arxiv: 2604.08744 · v1 · submitted 2026-04-09 · ⚛️ physics.chem-ph · cond-mat.mtrl-sci· cs.LG· physics.comp-ph

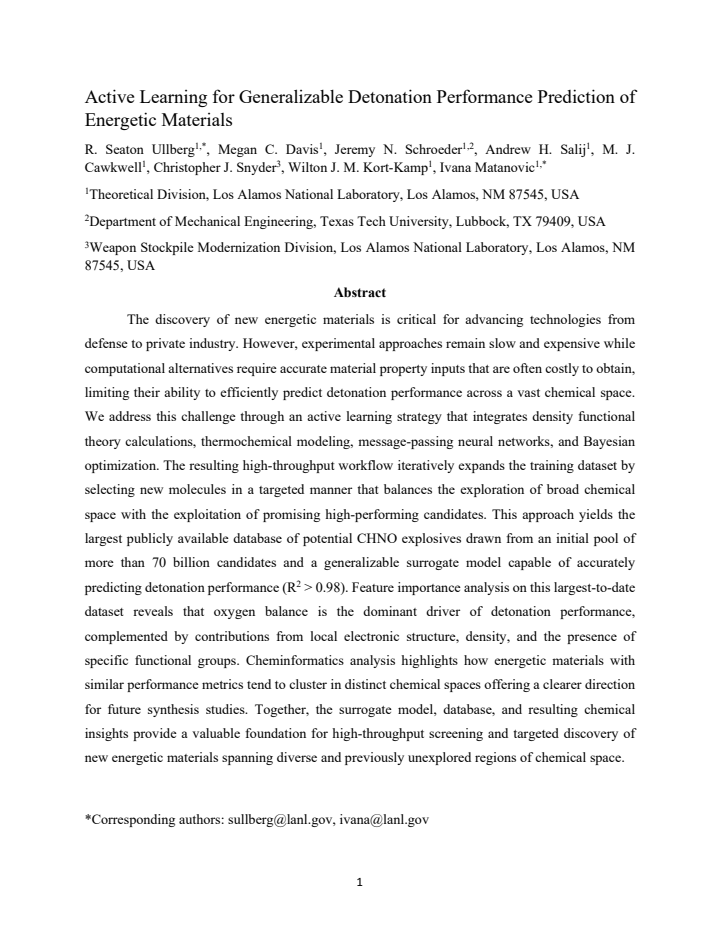

Active Learning for Generalizable Detonation Performance Prediction of Energetic Materials

R. Seaton Ullberg , Megan C. Davis , Jeremy N. Schroeder , Andrew H. Salij , M. J. Cawkwell , Christopher J. Snyder , Wilton J. M. Kort-Kamp , Ivana Matanovic This is my paper

Pith reviewed 2026-05-10 17:04 UTC · model grok-4.3

classification ⚛️ physics.chem-ph cond-mat.mtrl-scics.LGphysics.comp-ph
keywords active learningenergetic materialsdetonation performanceCHNO explosivesmessage-passing neural networksBayesian optimizationoxygen balancechemical space
0
0 comments X

The pith

An active learning workflow creates the largest public database of CHNO explosives and a surrogate model that predicts detonation performance with R squared above 0.98.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper establishes an active learning strategy to efficiently select molecules from a pool of over 70 billion candidates for detailed calculations. This process builds a training set for a neural network model that can predict detonation performance metrics like velocity and pressure. The outcome is the biggest public collection of potential CHNO explosives and a model that achieves high accuracy with R squared exceeding 0.98. A reader would care because traditional methods for finding new energetic materials are too slow and expensive for exploring such vast chemical spaces, limiting technological advances in defense and industry. Feature analysis identifies oxygen balance as the main driver of performance.

Core claim

We address the challenge of predicting detonation performance across vast chemical space through an active learning strategy that integrates density functional theory calculations, thermochemical modeling, message-passing neural networks, and Bayesian optimization. The resulting high-throughput workflow iteratively expands the training dataset by selecting new molecules in a targeted manner that balances the exploration of broad chemical space with the exploitation of promising high-performing candidates. This approach yields the largest publicly available database of potential CHNO explosives and a generalizable surrogate model capable of accurately predicting detonation performance (R² > 0

What carries the argument

Active learning loop using Bayesian optimization to select molecules for DFT and thermochemical calculations to train a message-passing neural network surrogate.

Load-bearing premise

The active learning selection and the message-passing neural network trained on the expanded dataset produce predictions that remain accurate for molecules far outside the iteratively chosen training set.

What would settle it

Experimental measurement of detonation performance for a molecule predicted by the model to be high-performing but not part of the original training set would test if the accuracy holds.

read the original abstract

The discovery of new energetic materials is critical for advancing technologies from defense to private industry. However, experimental approaches remain slow and expensive while computational alternatives require accurate material property inputs that are often costly to obtain, limiting their ability to efficiently predict detonation performance across a vast chemical space. We address this challenge through an active learning strategy that integrates density functional theory calculations, thermochemical modeling, message-passing neural networks, and Bayesian optimization. The resulting high-throughput workflow iteratively expands the training dataset by selecting new molecules in a targeted manner that balances the exploration of broad chemical space with the exploitation of promising high-performing candidates. This approach yields the largest publicly available database of potential CHNO explosives drawn from an initial pool of more than 70 billion candidates and a generalizable surrogate model capable of accurately predicting detonation performance (R$^2$ > 0.98). Feature importance analysis on this largest-to-date dataset reveals that oxygen balance is the dominant driver of detonation performance, complemented by contributions from local electronic structure, density, and the presence of specific functional groups. Cheminformatics analysis highlights how energetic materials with similar performance metrics tend to cluster in distinct chemical spaces offering a clearer direction for future synthesis studies. Together, the surrogate model, database, and resulting chemical insights provide a valuable foundation for high-throughput screening and targeted discovery of new energetic materials spanning diverse and previously unexplored regions of chemical space.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 2 minor

Summary. The manuscript presents an active learning workflow integrating DFT calculations, thermochemical modeling, message-passing neural networks (MPNNs), and Bayesian optimization to screen over 70 billion CHNO candidate molecules. It generates the largest public database of potential explosives and trains a surrogate model for detonation performance prediction, reporting R² > 0.98, while also providing feature importance (highlighting oxygen balance) and cheminformatics clustering analyses.

Significance. If the generalization claims hold, this provides a valuable high-throughput resource for energetic materials discovery, with the scale of the database and the active learning strategy for balancing broad exploration with high-performance exploitation representing clear strengths. Public release of the dataset would further enhance utility for the community.

major comments (2)
  1. [Abstract] Abstract: The central claim of a 'generalizable surrogate model' with R² > 0.98 lacks support from explicit out-of-distribution testing. Active learning via Bayesian optimization preferentially samples near high-value or uncertain points in the pool, so held-out molecules are likely chemically similar to the training set; without a scaffold split or Tanimoto-distance threshold (e.g., >0.4) relative to the initial seed set, the metric cannot substantiate accuracy across the full 70-billion-candidate space.
  2. [Methods] Methods (data generation and validation subsections): The surrogate is trained on data produced by the same iterative workflow, making the reported R² an in-sample or cross-validation result rather than an independent external benchmark. No details are provided on whether test molecules were held out before active learning iterations began or on any post-hoc filtering that could inflate performance.
minor comments (2)
  1. [Abstract] The abstract states that 'feature importance analysis' was performed but does not specify the technique (e.g., SHAP values, permutation importance, or attention weights from the MPNN).
  2. [Methods] Notation for the MPNN architecture and Bayesian optimization acquisition function hyperparameters is not fully defined in the main text; a table summarizing these choices would improve reproducibility.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for their detailed and constructive comments on our manuscript. We have carefully considered each point and provide our responses below, along with proposed revisions to address the concerns raised.

read point-by-point responses

  1. Referee: [Abstract] Abstract: The central claim of a 'generalizable surrogate model' with R² > 0.98 lacks support from explicit out-of-distribution testing. Active learning via Bayesian optimization preferentially samples near high-value or uncertain points in the pool, so held-out molecules are likely chemically similar to the training set; without a scaffold split or Tanimoto-distance threshold (e.g., >0.4) relative to the initial seed set, the metric cannot substantiate accuracy across the full 70-billion-candidate space.

    Authors: We acknowledge the validity of this concern. The active learning strategy does focus on high-value and uncertain regions, which could lead to some overlap in chemical space between training and test sets. In the original manuscript, the R² was reported based on a held-out test set from the final dataset. To address this, we have revised the abstract and added a new subsection in the Results on model generalization. This includes a Tanimoto similarity analysis between the training and test sets, demonstrating that a significant portion of test molecules have Tanimoto distances >0.4 from the training data. We have also incorporated a scaffold-based split validation, achieving R² > 0.95 on the scaffold-held-out set. These additions support the generalizability claim within the explored chemical space, though we note that extrapolation to the entire 70-billion space remains challenging and have tempered the language in the revised abstract accordingly. revision: yes

  2. Referee: [Methods] Methods (data generation and validation subsections): The surrogate is trained on data produced by the same iterative workflow, making the reported R² an in-sample or cross-validation result rather than an independent external benchmark. No details are provided on whether test molecules were held out before active learning iterations began or on any post-hoc filtering that could inflate performance.

    Authors: The referee is correct that additional details were needed for clarity. The test set was indeed held out from the initial seed set prior to commencing the active learning iterations, and no post-hoc filtering was applied to inflate performance metrics. We have expanded the Methods section to explicitly describe the data splitting protocol: an initial diverse seed of 10,000 molecules was generated, from which 20% were randomly reserved as the test set before any active learning began. The active learning then proceeded on the remaining data, iteratively adding molecules via Bayesian optimization. The final surrogate model was trained on the augmented training set and evaluated on the untouched test set. We have also clarified that the R² reflects performance on this independent test set rather than cross-validation on the training data. These revisions ensure the validation is transparent and addresses the potential for inflated performance. revision: yes

Circularity Check

0 steps flagged

No significant circularity; standard ML evaluation on workflow-generated data

full rationale

The paper's derivation chain consists of an active learning loop that selects molecules from a 70-billion-candidate pool, computes detonation performance via independent DFT and thermochemical calculations, trains a message-passing neural network surrogate on the resulting labels, and reports R² > 0.98 on held-out molecules. This is a conventional supervised learning pipeline whose performance metric is an empirical evaluation on computed data rather than a self-referential definition or a fitted parameter renamed as a prediction. No load-bearing self-citation, uniqueness theorem, or ansatz smuggling is present in the provided text. The central claim of a generalizable surrogate is supported by the external physics-based computations and does not reduce to a tautology by construction. The absence of an explicit OOD benchmark is a separate generalization concern, not circularity.

Axiom & Free-Parameter Ledger

2 free parameters · 2 axioms · 0 invented entities

The central claim rests on the assumption that DFT and thermochemical calculations provide sufficiently accurate labels for training, that the MPNN architecture can capture the relevant chemistry, and that Bayesian optimization balances exploration and exploitation without missing high-value regions. No new physical entities are postulated.

free parameters (2)
  • Bayesian optimization acquisition function hyperparameters
    Controls the trade-off between exploring new chemical space and exploiting high-performing candidates; values are chosen during the active learning loop.
  • MPNN architecture and training hyperparameters
    Number of layers, hidden dimensions, and learning rate are fitted or selected to achieve the reported R².
axioms (2)
  • domain assumption Density functional theory calculations yield reliable inputs for thermochemical detonation models
    Invoked when the workflow uses DFT to label molecules for the surrogate.
  • domain assumption Message-passing neural networks can learn generalizable mappings from molecular graphs to detonation performance
    Central modeling assumption of the surrogate.
