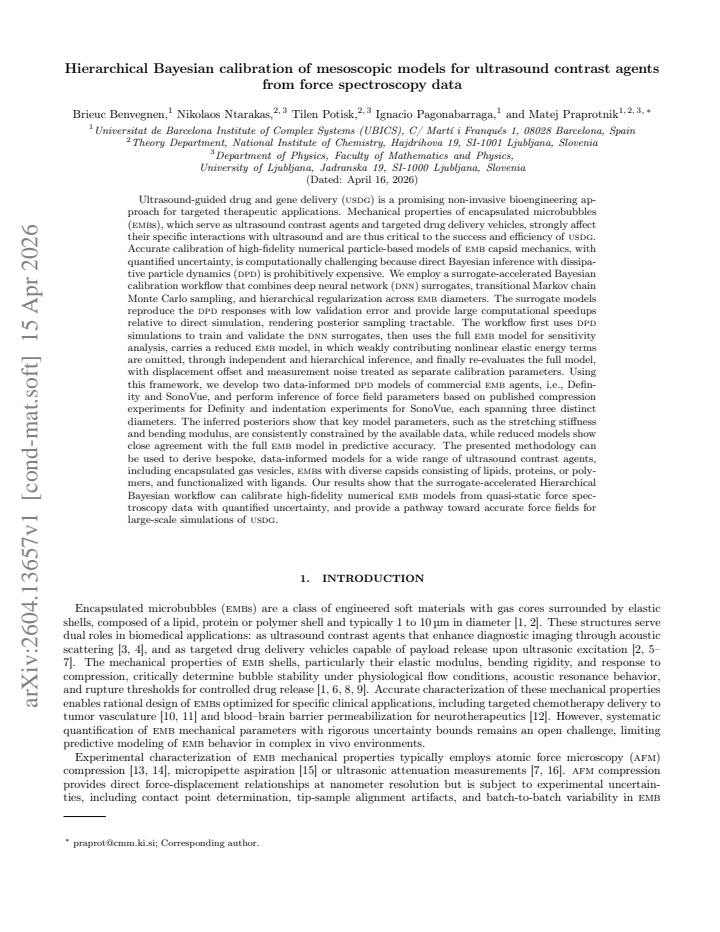

Hierarchical Bayesian calibration of mesoscopic models for ultrasound contrast agents from force spectroscopy data

Brieuc Benvegnen , Nikolaos Ntarakas , Tilen Potisk , Ignacio Pagonabarraga , Matej Praprotnik This is my paper

Pith reviewed 2026-05-10 12:13 UTC · model grok-4.3

classification ❄️ cond-mat.soft cond-mat.mes-hallphysics.bio-phphysics.comp-ph
keywords Bayesian calibrationdissipative particle dynamicsultrasound contrast agentsencapsulated microbubblesforce spectroscopyhierarchical inferenceneural network surrogatescapsid mechanics
0
0 comments X

The pith

A hierarchical Bayesian workflow with neural surrogates calibrates mesoscopic DPD models of microbubble shells to force spectroscopy data across multiple diameters.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper introduces a surrogate-accelerated Bayesian method to calibrate dissipative particle dynamics models of encapsulated microbubble capsids without running prohibitively expensive direct simulations for every parameter set. Deep neural network approximations stand in for the force spectroscopy simulations, transitional Markov chain Monte Carlo explores the posterior, and hierarchical regularization shares information across three different particle diameters for each commercial agent. The resulting posteriors for Definity and SonoVue show that stretching stiffness and bending modulus become well constrained by the published compression and indentation measurements. If the approach holds, it supplies ready-to-use particle-based models whose mechanical parameters are tied directly to experimental force curves rather than chosen by hand.

Core claim

We develop a surrogate-accelerated Bayesian calibration workflow that combines deep neural network surrogates, transitional Markov chain Monte Carlo sampling, and hierarchical regularization across diameters. Applied to published compression data for Definity and indentation data for SonoVue, each covering three distinct diameters, the workflow produces data-informed DPD models in which key force-field parameters such as stretching stiffness and bending modulus are consistently constrained by the measurements.

What carries the argument

The surrogate-accelerated hierarchical Bayesian calibration workflow, in which DNNs approximate DPD force spectroscopy simulations so that transitional MCMC can efficiently sample posteriors while hierarchical regularization couples inference across different microbubble diameters.

If this is right

  • The calibrated DPD models for Definity and SonoVue supply particle-level mechanics that can be inserted directly into larger-scale simulations of ultrasound-driven drug delivery.
  • Key shell parameters remain identifiable when data from multiple diameters are combined, reducing the risk that single-size experiments leave parameters under-determined.
  • The same workflow can generate bespoke models for other ultrasound contrast agents whose capsids are made of lipids, proteins, or polymers.
  • Hierarchical regularization across sizes improves robustness of the inferred posteriors compared with independent calibration of each diameter.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The method lowers the barrier to building predictive mesoscopic models for any soft-matter particle whose expensive simulations can be approximated by a neural surrogate.
  • If the inferred parameters prove transferable to dynamic ultrasound conditions, the models could guide the design of agents with tailored resonance or stability properties.
  • Extending the hierarchy to include additional experimental modalities, such as acoustic scattering data, would further tighten the mechanical constraints.

Load-bearing premise

The chosen form of the DPD force field can represent the actual mechanical response of the microbubble capsids and the neural-network surrogate approximates the true simulation outputs accurately enough for reliable posterior sampling.

What would settle it

New compression or indentation experiments on the same Definity or SonoVue particles that produce force curves incompatible with the inferred posterior ranges, or direct DPD runs with the posterior-mean parameters that fail to reproduce the measured force-distance relations within experimental uncertainty.

Figures

Figures reproduced from arXiv: 2604.13657 by Brieuc Benvegnen, Ignacio Pagonabarraga, Matej Praprotnik, Nikolaos Ntarakas, Tilen Potisk.

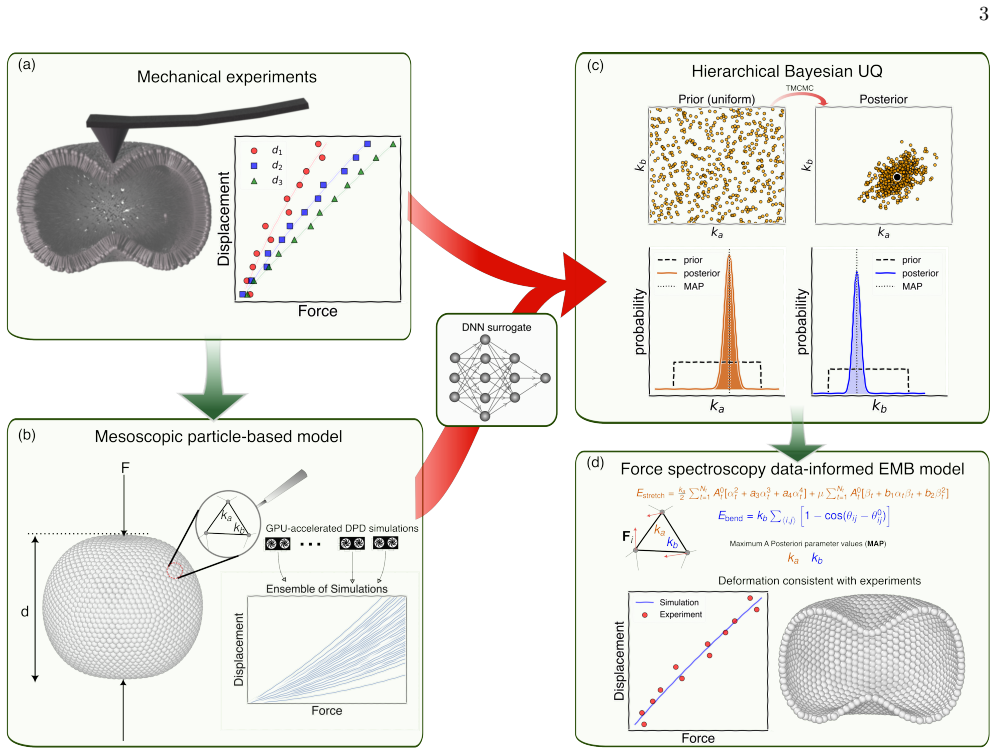

Figure 1
Figure 1. Figure 1: FIG. 1 [PITH_FULL_IMAGE:figures/full_fig_p003_1.png] view at source ↗

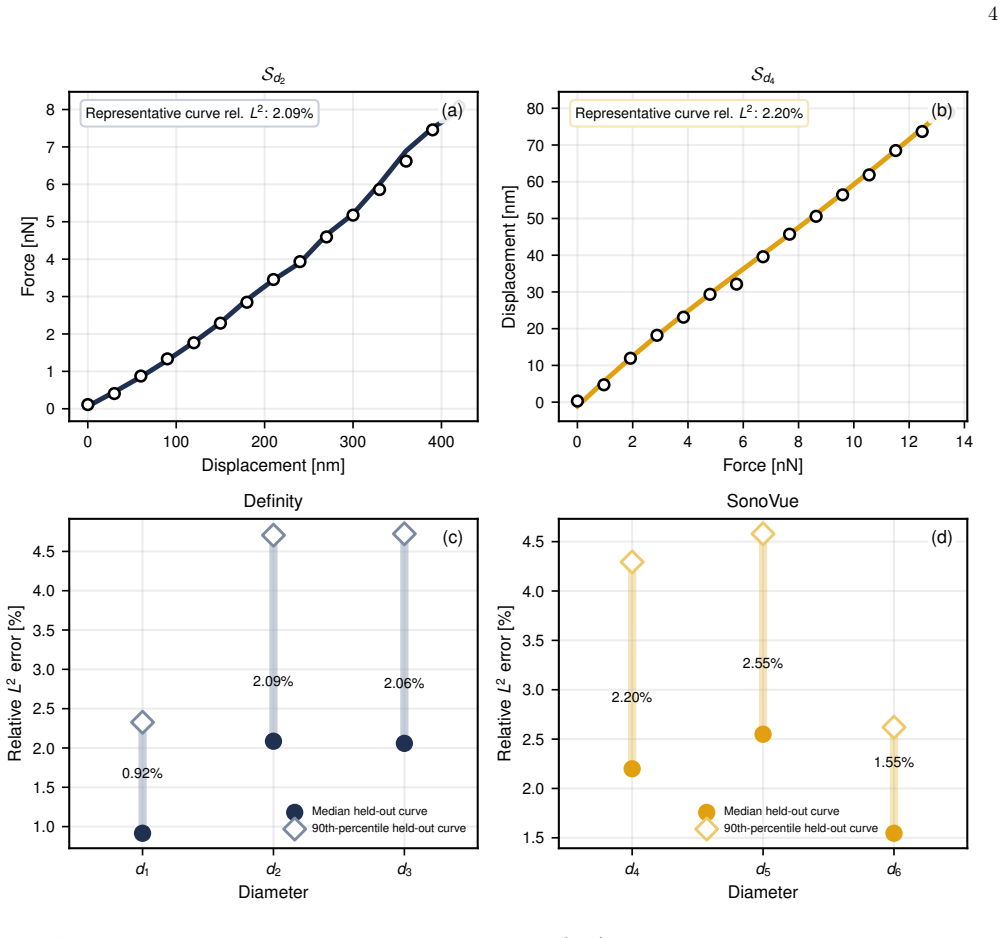

Figure 2
Figure 2. Figure 2: FIG. 2 [PITH_FULL_IMAGE:figures/full_fig_p004_2.png] view at source ↗

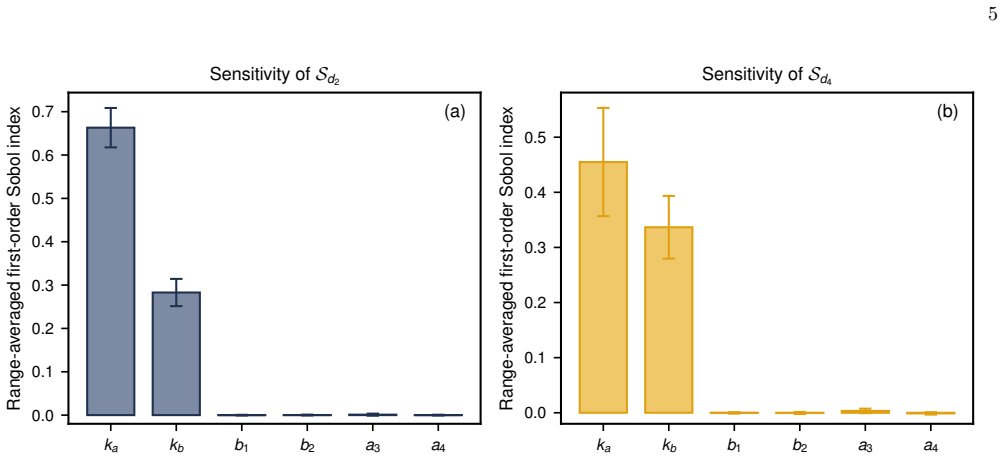

Figure 3
Figure 3. Figure 3: FIG. 3 [PITH_FULL_IMAGE:figures/full_fig_p005_3.png] view at source ↗

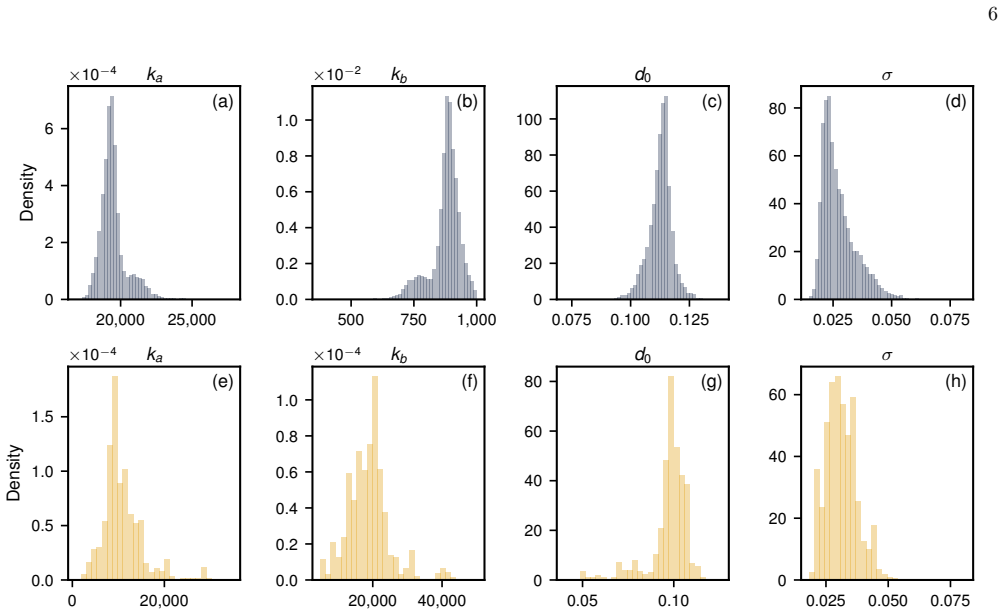

Figure 4
Figure 4. Figure 4: FIG. 4 [PITH_FULL_IMAGE:figures/full_fig_p006_4.png] view at source ↗

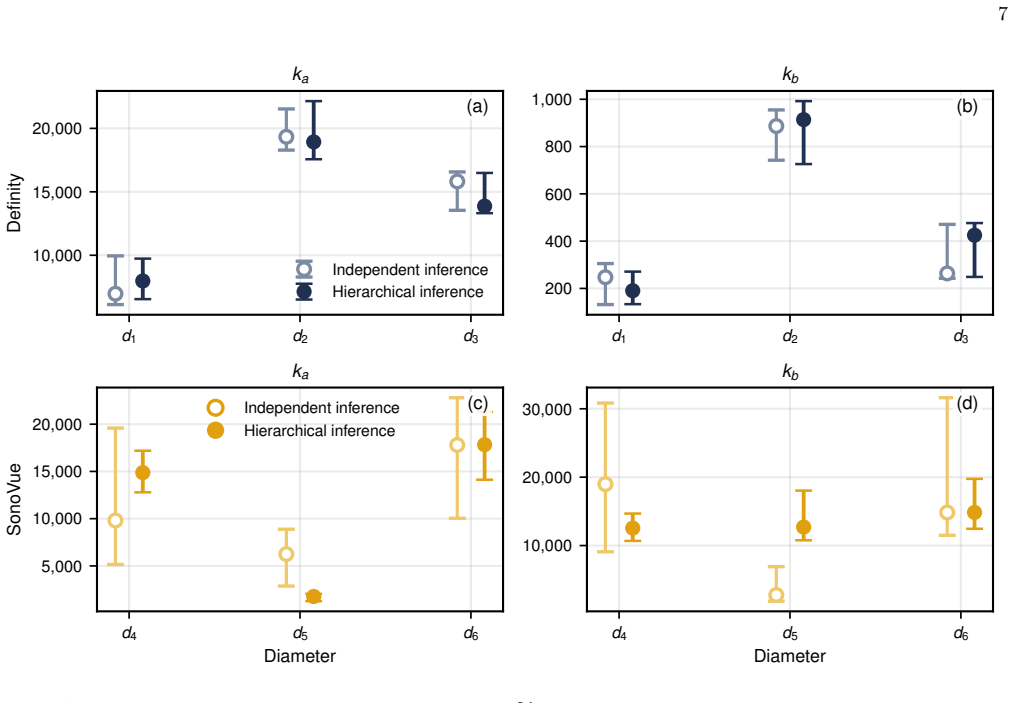

Figure 5
Figure 5. Figure 5: FIG. 5 [PITH_FULL_IMAGE:figures/full_fig_p007_5.png] view at source ↗

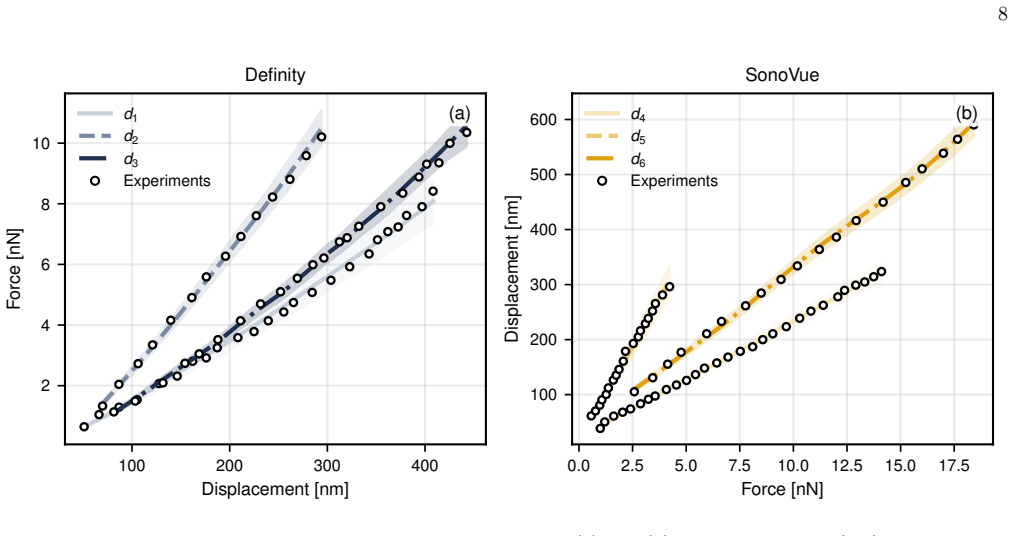

Figure 6
Figure 6. Figure 6: FIG. 6 [PITH_FULL_IMAGE:figures/full_fig_p008_6.png] view at source ↗

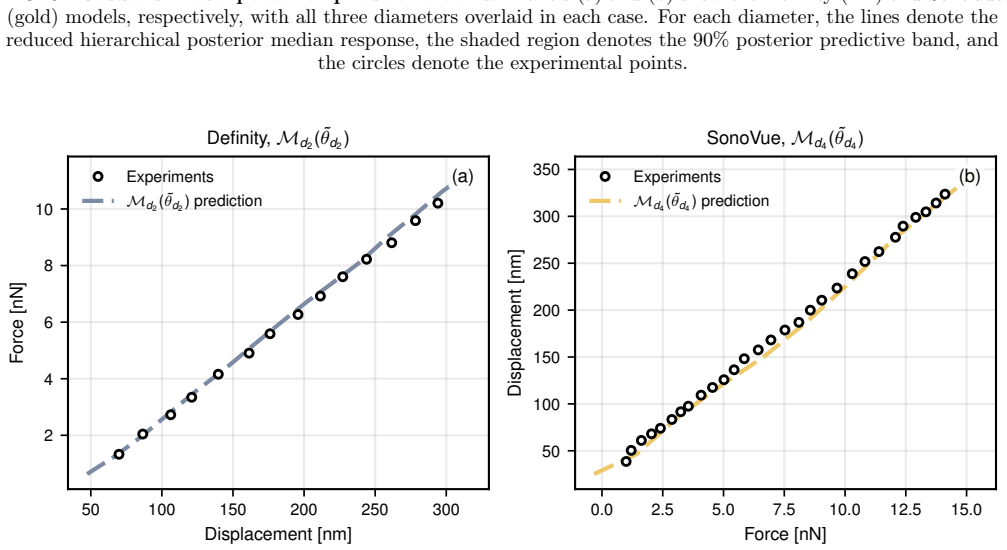

Figure 7
Figure 7. Figure 7: FIG. 7 [PITH_FULL_IMAGE:figures/full_fig_p008_7.png] view at source ↗

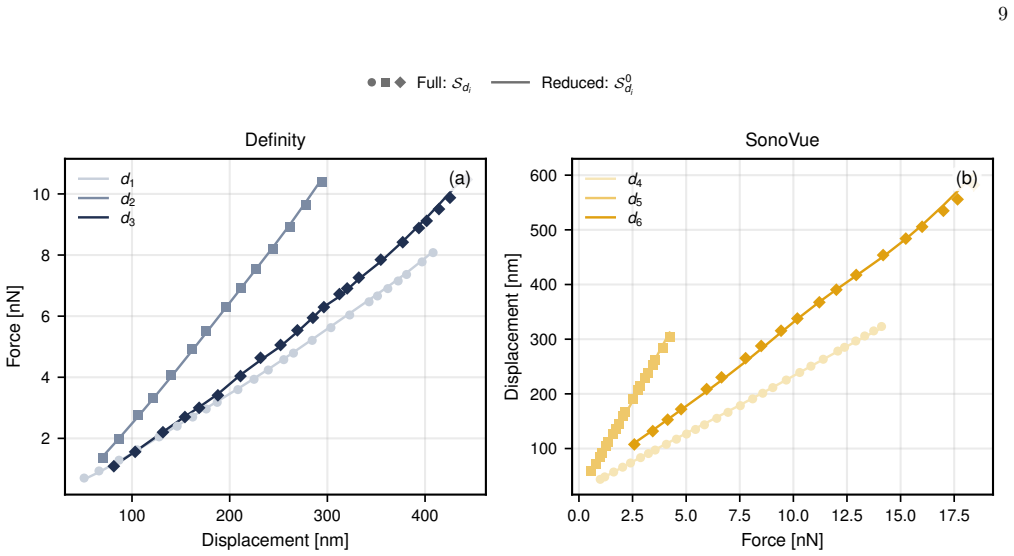

Figure 8
Figure 8. Figure 8: FIG. 8 [PITH_FULL_IMAGE:figures/full_fig_p009_8.png] view at source ↗

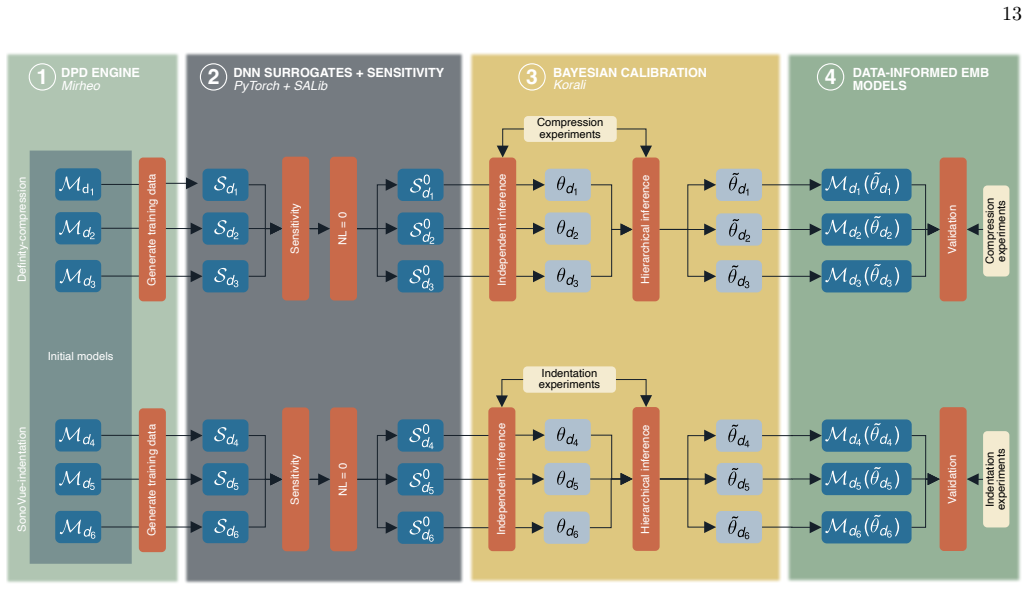

Figure 9
Figure 9. Figure 9: FIG. 9 [PITH_FULL_IMAGE:figures/full_fig_p013_9.png] view at source ↗
Figure 10
Figure 10. Figure 10: FIG. 10 [PITH_FULL_IMAGE:figures/full_fig_p015_10.png] view at source ↗
read the original abstract

Ultrasound-guided drug and gene delivery (USDG) is a promising non-invasive approach for targeted therapeutic applications. Mechanical properties of encapsulated microbubbles (EMBs), which serve as contrast agents, strongly affect their specific interactions with ultrasound and are thus critical to the success and efficiency of USDG. Accurate calibration of high-fidelity particle-based models of EMB capsid mechanics is computationally challenging because direct Bayesian inference with dissipative particle dynamics (DPD) is prohibitively expensive. We employ a surrogate-accelerated Bayesian calibration workflow that combines deep neural network (DNN) surrogates, transitional Markov chain Monte Carlo sampling, and hierarchical regularization across EMB diameters. Using this framework, we develop two data-informed DPD models of commercial EMB agents, i.e., Definity and SonoVue, and perform inference of force field parameters based on published compression experiments for Definity and indentation experiments for SonoVue, each spanning three distinct diameters. The inferred posteriors show that key model parameters, such as the stretching stiffness and bending modulus, are consistently constrained by the available data. The presented methodology can be used to derive bespoke, data-informed models for a wide range of ultrasound contrast agents, including encapsulated gas vesicles, EMBs with diverse capsids consisting of lipids, proteins, or polymers, and functionalized with ligands.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 1 minor

Summary. The manuscript presents a surrogate-accelerated hierarchical Bayesian calibration workflow that uses deep neural network (DNN) surrogates to enable efficient inference of dissipative particle dynamics (DPD) force-field parameters for mesoscopic models of commercial ultrasound contrast agents (Definity and SonoVue). Inference is performed on published compression and indentation force-spectroscopy data spanning three diameters per agent; the resulting posteriors are reported to constrain key parameters such as stretching stiffness and bending modulus, with hierarchical regularization enforcing consistency across diameters.

Significance. If the DNN surrogates are shown to be accurate in the relevant posterior regions, the work supplies a practical route to data-informed DPD models of encapsulated microbubbles. Such models are directly relevant to ultrasound-guided drug delivery, where capsid mechanics govern agent response. The hierarchical structure across diameters is a methodological strength that promotes physically consistent parameter sets without ad-hoc tuning.

major comments (2)
  1. The central claim that the inferred posteriors on stretching stiffness and bending modulus are data-driven (rather than surrogate artifacts) requires that the DNN accurately reproduces DPD force-displacement curves near the posterior means for each of the three diameters. No test-set MAE, maximum error, or direct DPD re-runs at posterior samples are reported; without these, systematic surrogate bias could artificially tighten or shift the posteriors. This validation step is load-bearing for the workflow's validity.
  2. The hierarchical regularization across diameters is presented as a strength, yet the manuscript does not quantify how much the joint posterior tightens relative to independent per-diameter inferences, nor does it show that the regularization does not mask surrogate errors that are correlated across diameters.
minor comments (1)
  1. The abstract would be strengthened by inclusion of at least one quantitative result (e.g., posterior credible-interval widths or surrogate error bounds) so readers can immediately gauge the degree of constraint achieved.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for their constructive comments and positive assessment of the significance of our work. We address each major comment below and will revise the manuscript accordingly to strengthen the validation and presentation of the hierarchical approach.

read point-by-point responses

  1. Referee: The central claim that the inferred posteriors on stretching stiffness and bending modulus are data-driven (rather than surrogate artifacts) requires that the DNN accurately reproduces DPD force-displacement curves near the posterior means for each of the three diameters. No test-set MAE, maximum error, or direct DPD re-runs at posterior samples are reported; without these, systematic surrogate bias could artificially tighten or shift the posteriors. This validation step is load-bearing for the workflow's validity.

    Authors: We agree that explicit validation of the DNN surrogates within the posterior support is essential to rule out systematic bias. In the revised manuscript we will add a new subsection on surrogate fidelity that reports (i) test-set MAE and maximum absolute error over the full training range, and (ii) direct DPD re-simulations at 20–30 posterior samples drawn from each diameter-specific marginal. These comparisons will be shown as overlaid force-displacement curves together with quantitative error metrics, confirming that surrogate discrepancies remain well below the experimental noise level. revision: yes

  2. Referee: The hierarchical regularization across diameters is presented as a strength, yet the manuscript does not quantify how much the joint posterior tightens relative to independent per-diameter inferences, nor does it show that the regularization does not mask surrogate errors that are correlated across diameters.

    Authors: We acknowledge the value of a quantitative comparison. The revised manuscript will include an additional figure and table that repeat the inference independently for each diameter (using identical DNN surrogates and priors) and directly compare the resulting marginal posteriors to the hierarchical joint posterior. We will report the reduction in posterior variance and the shift in credible intervals. To address possible masking of correlated surrogate errors, we will also provide a supplementary analysis of the surrogate residual fields across the three diameters; because the DNNs were trained on independent DPD runs for each diameter, the residuals are uncorrelated by construction, and we will state this assumption explicitly. revision: yes

Circularity Check

0 steps flagged

No significant circularity; inference uses independent experimental data

full rationale

The paper's derivation chain consists of training a DNN surrogate on DPD simulations over a parameter grid, then using that surrogate inside transitional MCMC to infer force-field parameters (stretching stiffness, bending modulus) from published, independent compression/indentation experiments on Definity and SonoVue across three diameters. No step equates a model output to its own input by construction, renames a fitted quantity as a prediction, or relies on a self-citation chain for a uniqueness theorem. The hierarchical regularization across diameters is a standard Bayesian device and does not create self-definition. The central claim that posteriors are data-constrained therefore remains logically independent of the fitted values themselves. Surrogate accuracy is an unverified modeling assumption rather than a circular reduction.

Axiom & Free-Parameter Ledger

2 free parameters · 2 axioms · 0 invented entities

The central claim depends on the domain assumption that DPD is suitable for this system and that the surrogate approximation holds. The parameters are not free but inferred; no new physical entities are introduced.

free parameters (2)
  • stretching stiffness
    Bayesian-inferred parameter from experimental data in the DPD model.
  • bending modulus
    Bayesian-inferred parameter from experimental data in the DPD model.
axioms (2)
  • domain assumption The chosen DPD force field is an appropriate representation for the mechanics of lipid or polymer capsids in EMBs
    Invoked when developing the models for Definity and SonoVue.
  • domain assumption DNN surrogates can be trained to faithfully reproduce DPD simulation outputs for force spectroscopy
    Necessary for the surrogate-accelerated workflow to be valid.
