arxiv: 2604.20692 · v1 · submitted 2026-04-22 · 💻 cs.RO

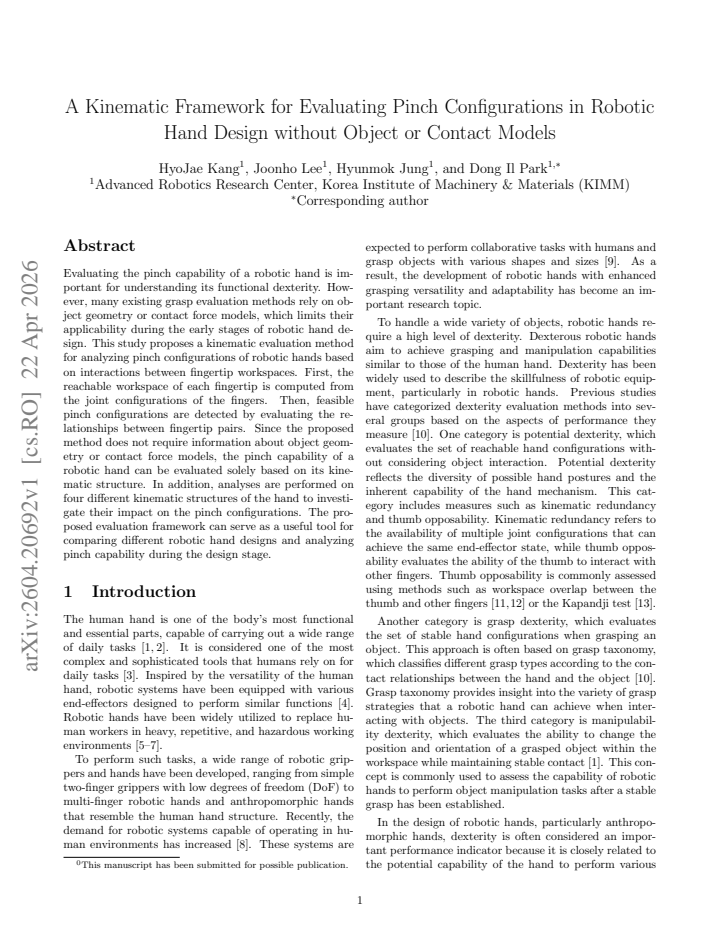

A Kinematic Framework for Evaluating Pinch Configurations in Robotic Hand Design without Object or Contact Models

HyoJae Kang , Joonho Lee , Hyunmok Jung , Dong Il Park This is my paper

Pith reviewed 2026-05-09 23:36 UTC · model grok-4.3

classification 💻 cs.RO
keywords robotic hand designkinematic evaluationpinch capabilityfingertip workspacegrasp analysisdexterityworkspace analysis
0
0 comments X

The pith

Robotic hand pinch capability can be evaluated from its kinematic structure alone by checking fingertip workspace pairs.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper proposes a method to assess pinch capability in robotic hands without any data on object shapes or contact forces. It first computes the reachable workspace for each fingertip from the finger's joint angles and link lengths. Feasible pinches are then identified by examining geometric relationships between these workspace pairs for different fingers. This kinematic-only approach lets designers compare hand structures early in development. A reader would care because it removes the need for detailed object models during initial design iterations.

Core claim

Feasible pinch configurations are detected by evaluating geometric relationships between the reachable workspaces of fingertip pairs, where each workspace is computed directly from the finger joint configurations, without requiring information about object geometry or contact force models. The method is demonstrated through analysis of four different kinematic hand structures to show how their joint and link arrangements affect possible pinches.

What carries the argument

The kinematic evaluation method that identifies feasible pinches via geometric relationships between computed fingertip workspace pairs.

If this is right

  • Different kinematic structures of a hand can be directly compared for pinch performance using only joint and link parameters.
  • Pinch capability analysis becomes possible at the earliest design stages before any object or force modeling.
  • The framework supports rapid iteration over hand designs by varying joint limits or link lengths and recomputing workspaces.
  • Four tested structures reveal that workspace overlap patterns differ with kinematic choices such as finger count or joint arrangement.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • Designers could optimize finger proportions by maximizing workspace overlap metrics before building physical prototypes.
  • The approach may apply to other manipulation primitives like in-hand rotation if similar workspace-pair checks are defined.
  • It could reduce reliance on full physics simulation during initial hand topology selection.

Load-bearing premise

That geometric relationships between fingertip workspaces reliably indicate all feasible pinch configurations without any object or contact information.

What would settle it

A real-world experiment on a robotic hand that successfully performs a pinch in a configuration the workspace-pair method labels infeasible, or fails in one it labels feasible.

Figures

Figures reproduced from arXiv: 2604.20692 by Dong Il Park, HyoJae Kang, Hyunmok Jung, Joonho Lee.

Figure 1
Figure 1. Figure 1: First, the hand illustrated in Fig. 1(a) consists [PITH_FULL_IMAGE:figures/full_fig_p003_1.png] view at source ↗
Figure 1
Figure 1. Figure 1: Kinematic structures of robotic hand (a) 21-DoF hand, (b) Cases of 3-DoF finger, (c) Cases of 4-DoF [PITH_FULL_IMAGE:figures/full_fig_p004_1.png] view at source ↗
Figure 2
Figure 2. Figure 2: Opposing area based on two-finger facing con [PITH_FULL_IMAGE:figures/full_fig_p005_2.png] view at source ↗
Figure 3
Figure 3. Figure 3: Contactable range avilable for grasping when [PITH_FULL_IMAGE:figures/full_fig_p005_3.png] view at source ↗
Figure 4
Figure 4. Figure 4: Examples of the contactable state: (a) without [PITH_FULL_IMAGE:figures/full_fig_p006_4.png] view at source ↗
Figure 5
Figure 5. Figure 5: Initial posture of thumb and fingers for four [PITH_FULL_IMAGE:figures/full_fig_p009_5.png] view at source ↗
Figure 6
Figure 6. Figure 6: Reachable areas for four cases with different [PITH_FULL_IMAGE:figures/full_fig_p009_6.png] view at source ↗
Figure 8
Figure 8. Figure 8: Distal phalanx alignment detection results for [PITH_FULL_IMAGE:figures/full_fig_p010_8.png] view at source ↗
Figure 9
Figure 9. Figure 9: Lateral pinch detection results for Case 1 with [PITH_FULL_IMAGE:figures/full_fig_p012_9.png] view at source ↗
Figure 11
Figure 11. Figure 11: Tip pinch detection results for four cases with [PITH_FULL_IMAGE:figures/full_fig_p013_11.png] view at source ↗
Figure 12
Figure 12. Figure 12: Example postures for different pinch types: (a) pulp pinch in Case 4, (b) three-jaw chuck pinch in Case [PITH_FULL_IMAGE:figures/full_fig_p015_12.png] view at source ↗
read the original abstract

Evaluating the pinch capability of a robotic hand is important for understanding its functional dexterity. However, many existing grasp evaluation methods rely on object geometry or contact force models, which limits their applicability during the early stages of robotic hand design. This study proposes a kinematic evaluation method for analyzing pinch configurations of robotic hands based on interactions between fingertip workspaces. First, the reachable workspace of each fingertip is computed from the joint configurations of the fingers. Then, feasible pinch configurations are detected by evaluating the relationships between fingertip pairs. Since the proposed method does not require information about object geometry or contact force models, the pinch capability of a robotic hand can be evaluated solely based on its kinematic structure. In addition, analyses are performed on four different kinematic structures of the hand to investigate their impact on the pinch configurations. The proposed evaluation framework can serve as a useful tool for comparing different robotic hand designs and analyzing pinch capability during the design stage.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 2 minor

Summary. The manuscript proposes a kinematic framework to evaluate pinch configurations of robotic hands by first computing the reachable workspace of each fingertip from joint limits, then detecting feasible pinch configurations via geometric relationships (such as intersections or distance thresholds) between fingertip workspace pairs. The approach is applied to four different hand kinematic structures to compare their pinch capabilities, with the central claim that pinch evaluation can be performed solely from kinematics without any object geometry or contact force models.

Significance. If the geometric workspace tests reliably identify physically realizable pinches, the framework would offer a practical, model-free tool for comparing hand designs at early stages when object-specific information is unavailable. The paper's strength is its explicit focus on kinematic structure alone and the demonstration across multiple hand topologies, which could aid design iteration. However, the significance depends on whether the pairwise tests actually capture pinch feasibility, as opposed to merely proximity of reachable fingertip poses.

major comments (2)
  1. [§3.2] §3.2 (Pinch Configuration Detection): The geometric predicate applied to fingertip workspace pairs (intersection, distance, or similar) is defined without reference to object volume occupation or insertion trajectories. This directly underpins the abstract claim that 'feasible pinch configurations can be detected by evaluating the relationships between fingertip pairs' without object models, yet configurations satisfying the test may still be unreachable once an object must occupy the intervening space without collision.
  2. [§4] §4 (Analyses on Four Kinematic Structures): The reported differences in pinch configurations across hand designs rest on the same unvalidated geometric tests. Without a cross-check against even a single physical pinch task or comparison to an object-aware baseline, the claim that kinematic structure alone determines pinch capability remains unsupported by evidence that the detected configurations are usable.
minor comments (2)
  1. [Abstract] The abstract states that 'analyses are performed' on four structures but provides no preview of the quantitative outcomes or metrics used; adding a sentence summarizing the key comparative findings would improve readability.
  2. [§3] Notation for workspace boundaries and the exact geometric test (e.g., intersection volume threshold) is introduced without an accompanying equation; an explicit definition in §3.1 or §3.2 would reduce ambiguity.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the constructive comments on our manuscript. We address each major comment below and have revised the paper to better clarify the intended scope and limitations of the kinematic framework.

read point-by-point responses

  1. Referee: [§3.2] §3.2 (Pinch Configuration Detection): The geometric predicate applied to fingertip workspace pairs (intersection, distance, or similar) is defined without reference to object volume occupation or insertion trajectories. This directly underpins the abstract claim that 'feasible pinch configurations can be detected by evaluating the relationships between fingertip pairs' without object models, yet configurations satisfying the test may still be unreachable once an object must occupy the intervening space without collision.

    Authors: The framework is deliberately formulated to operate without object geometry or contact models, enabling evaluation at early design stages when such information is unavailable. The geometric predicates identify kinematically reachable fingertip relationships (e.g., workspace intersections or proximity thresholds) that constitute a necessary condition for pinching. We acknowledge that these tests do not guarantee collision-free object insertion or volume occupation, as those factors are object-dependent and outside the method's scope. We have revised §3.2 to explicitly state that the detected configurations are kinematically feasible candidates rather than guaranteed physically realizable pinches, and we note the need for subsequent object-specific validation. revision: partial

  2. Referee: [§4] §4 (Analyses on Four Kinematic Structures): The reported differences in pinch configurations across hand designs rest on the same unvalidated geometric tests. Without a cross-check against even a single physical pinch task or comparison to an object-aware baseline, the claim that kinematic structure alone determines pinch capability remains unsupported by evidence that the detected configurations are usable.

    Authors: Section 4 applies the kinematic framework to four distinct hand structures to illustrate how variations in joint limits and link lengths influence the number and distribution of detected pinch configurations. The differences reported are therefore meaningful within the kinematic-only setting. The manuscript does not assert that kinematics alone fully determines usable pinch capability in physical settings; rather, it shows that kinematic structure can be used to compare pinch potential when object data is absent. A physical cross-check would require selecting concrete objects and tasks, which would move the evaluation outside the model-free premise. We have added text in §4 and the discussion to acknowledge this boundary and outline how the framework could be combined with object-aware methods in future work. revision: partial

Circularity Check

0 steps flagged

No circularity: kinematic workspace computation and geometric tests are direct and self-contained.

full rationale

The derivation consists of two explicit steps: (1) computing reachable fingertip workspaces from joint limits and configurations (standard forward kinematics, no fitting or self-reference), and (2) applying pairwise geometric relationships to label pinch configurations. The abstract states this process directly detects feasible pinches without object geometry or contact models, so the output is the result of the defined procedure rather than a reduction of any fitted parameter or self-citation chain back to the inputs. No equations, uniqueness theorems, or prior self-citations appear in the provided text that would force the result by construction. The method is therefore an independent algorithmic framework whose validity rests on external verification of its geometric predicate, not on internal circularity.

Axiom & Free-Parameter Ledger

0 free parameters · 2 axioms · 0 invented entities

The central claim rests on standard kinematic assumptions plus a novel detection rule for pinches from workspace relations, which is introduced without independent justification.

axioms (2)
  • domain assumption Reachable workspaces of fingertips can be accurately computed from joint configurations and link lengths.
    This is a standard assumption in robot kinematics.
  • ad hoc to paper Feasible pinch configurations can be determined solely from geometric relationships between fingertip workspace pairs.
    This is the core novel assumption of the method, introduced without further justification in the abstract.
