TurboReg: TurboClique for Robust and Efficient Point Cloud Registration

T0 review · 3 major / 7 minor · reviewed 2026-08-06 · deepseek-v4-flash

Challenge this review Re-run · record.json Download PDF Read on arXiv ↗

Pith's one-line read Three mutually compatible correspondences are enough to estimate a rigid transformation as reliably as a maximal clique, turning exponential-time search into a linear-time GPU-parallel algorithm.

desk verdict A genuinely faster clique-based registration estimator with solid empirical results, but the paper's central stability justification is a hand-wavy limit that doesn't survive scrutiny. read the letter →

arxiv 2507.01439 v3 pith:UKVGCR6Q submitted 2025-07-02 cs.CV

Shaocheng Yan , Pengcheng Shi , Zhenjun Zhao , Kaixin Wang , Kuang Cao , Ji Wu , Jiayuan Li This is my paper · ORCID
classification cs.CV
keywords pointcloudregistrationrobustestimationcompatibilitygraphmaximalclique3-cliquepivot-guidedsearchsecond-orderspatialconsistencyGPUparallel
verification ladder T0 review T1 audit T2 compute T3 formal

The pith

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The reading

TurboReg's central claim is that a fixed 3-clique — three correspondences that are mutually compatible under a tight distance-difference bound — estimates a rigid transformation as stably as the maximal cliques used by leading graph-based registration methods, and that this swap turns an exponential-time search into a linear-time, GPU-parallel one. The reasoning is a variance trade-off: the least-squares pose estimate is stabilized either by feeding it many matches, as maximal cliques do, or by suppressing the effective noise through a stringent compatibility threshold $\tau$, which is the mode TurboClique relies on. To keep the three-match hypotheses rich in inliers, the Pivot-Guided Search ranks the highest second-order-compatibility edges as pivots and expands each into a third compatible match, producing only $K_1 K_2$ hypotheses per frame. If the claim holds, robust registration stops being a combinatorial bottleneck: on the 3DMatch dataset with FCGF features, TurboReg (1K) reports more than 200× the GPU throughput of the 3DMAC maximal-clique method while raising registration recall from 92.79% to 93.59%.

What carries the argument

The load-bearing objects are (1) TurboClique, a 3-clique in a compatibility graph whose edge exists when $|\,\|x_i-x_j\|-\|y_i-y_j\|\,| \le \tau$, with $\tau$ set near a quarter of the point-cloud resolution; (2) the Pivot-Guided Search (PGS), which orders edges of the second-order compatibility graph $\hat{G}_{ij} = G_{ij}\sum_k G_{ik}G_{jk}$, takes the top $K_1$ edges as pivots, and expands each pivot by its common neighbors into triplets scored by summed edge weight, keeping the top $K_2$ per pivot; and (3) the Ordered SC² Graph (O2Graph), a directed version that orients each edge from the lower to the higher node index and provably assigns every TurboClique to a unique pivot. The theoretical engine is the variance identity for the least-squares estimator, which frames clique size and residual noise as interchangeable sources of stability and licenses the swap from maximal to minimal cliques.

What would settle it

Run the discrepancy experiment from App. A.2 on datasets beyond 3DMatch+FPFH: for a sample of pairs, extract 10-cliques and all their $\binom{10}{3}$ 3-clique subsets at the recommended threshold $\tau \approx 0.25\times$ resolution, and compare the estimated rotations and translations; if on 3DLoMatch, KITTI, or with FCGF/Predator features the median disagreement grows to a substantial fraction of the success thresholds (15° rotation, 30 cm translation) — or if TurboReg's recall drops noticeably versus a 10-clique variant on the same pairs — then the compensating-stability assumption does not transfer and the reported speedup is specific to the 3DMatch+FPFH regime.

Watch

Extended reading notes

Core claim

The paper's central claim is that a TurboClique — a 3-clique in a compatibility graph built with a stringent (small) threshold $\tau$ (Definition 1) — carries enough spatial-consistency information to estimate a rigid transformation as stably as a maximal clique does. The supporting analysis treats the Kabsch solver as a least-squares estimator with variance $\mathrm{Var}(\hat{\beta}|X) = \sigma^2(X'X)^{-1}$, isolating two stability mechanisms: data-scaling stability from using many matches, and pairwise compatibility-induced stability from enforcing $|\,\|x_i-x_j\| - \|y_i-y_j\|\,| \le \tau$ on every pair. The paper argues that as $\tau$ shrinks, the constraint truncates the matching-noise distribution so that its effective variance $\sigma^2_{\text{eff}}$ tends to zero, and that the recommended threshold $\tau \approx 0.25\times$ point-cloud resolution makes a 3-clique estimate agree with a 10-clique estimate to within $0.1^\circ$ rotation and $0.5$ mm translation on 3DMatch+FPFH (App. A.2). The search side is carried by PGS, which ranks edges of the SC² graph by their second-order score, takes the top $K_1$ as pivots, and keeps the top $K_2$ third matches per pivot, giving $K_1 K_2$ hypotheses in $O(K_1 N)$ time; the directed O2Graph variant guarantees that each TurboClique is generated by exactly one pivot.

Load-bearing premise

The load-bearing premise is that tightening the compatibility threshold squeezes the matching-noise variance down fast enough that three compatible matches estimate a transformation as stably as a large clique would, a trade-off supported by a heuristic noise-truncation argument and a single 3-clique-versus-10-clique experiment on 3DMatch+FPFH rather than by a quantitative bound that holds across scenes, descriptors, and noise levels.

Editorial extensions

If this is right

  • Maximal-clique enumeration — costing on the order of $O(d(N-d)3^{d/3})$ for graph degeneracy $d$ — can be replaced by an $O(N)$ fixed-size search, and with enough parallel units on a GPU the search approaches constant time.
  • Only $K_1 K_2 = 2000$ hypotheses are needed per point-cloud pair at the default settings, orders of magnitude fewer than the millions of RANSAC iterations, and this budget yields the highest registration recall among the compared estimators on 3DMatch, 3DLoMatch, and KITTI.
  • The speed and accuracy transfer across descriptor families: FPFH, FCGF, and Predator features all feed the same TurboClique pipeline without retraining or per-descriptor tuning beyond the threshold rule.
  • Runtime becomes predictable: unlike maximal-clique enumeration, whose cost depends on graph density and branching, PGS has a tightly clustered per-frame runtime, which the paper positions as suitable for real-time SLAM-style applications.
  • The ablations give a simple operating recipe: set $\tau$ near a quarter of the point-cloud resolution, $K_1 = 1000$, and $K_2 = 2$, and recall stays within a couple of points of its peak over a wide range of $\tau$ (above 82% for $\tau$ from 0.01 m to 0.08 m on 3DMatch+FPFH).

Reading between the lines

Editorial extensions of the paper, not claims the author makes directly.

  • My inference: the stability trade-off is argued heuristically — a noise-truncation limit rather than a quantitative bound on transformation-error variance as a function of $\tau$ and clique size — so the compensation claim is a design principle awaiting a theorem; a closed-form variance bound would predict the optimal $\tau$ without per-dataset ablations.
  • My inference: the fixed-size-clique-plus-pivot recipe is generic and should transfer to any consensus problem with a pairwise geometric consistency graph, including loop-closure detection in SLAM, multi-view image matching, and wide-baseline stereo, where the same exponential graph-search bottleneck appears.
  • My inference: the paper's own supplementary analysis suggests the remaining bottleneck is hypothesis ranking, not search — the top-1 inlier-count rule misses correct transformations that sit inside the top-$K$ set, so a better re-ranker on top of PGS could raise recall further without slowing the search.
  • My inference: the practical ceiling of the method is reached when fewer than three true inliers survive feature matching — at extreme low overlap the 3-clique itself cannot exist, and the method would need a denser or better descriptor rather than a bigger search.
Share X Bluesky LinkedIn Reddit HN

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, and a circularity audit.

Referee Report

3 major / 7 minor

Summary. The paper proposes TurboReg, a correspondence-based point cloud registration estimator. Instead of searching for maximal cliques in a compatibility graph, TurboReg defines a TurboClique as a 3-clique in a highly constrained compatibility graph, and finds these cliques with a pivot-guided search (PGS) that uses the K1 highest-weighted SC2 edges as pivots and keeps the top-K2 third nodes per pivot. An ordered variant of the SC2 graph (O2Graph) is introduced to avoid duplicate TurboClique detections, and each candidate triple is scored by Kabsch-based inlier count. Experiments on 3DMatch, 3DLoMatch, and KITTI with FPFH, FCGF, and Predator descriptors report state-of-the-art or competitive registration recall with large reported speedups, and code is released.

Significance. If the empirical results hold, TurboReg is a practically valuable contribution: the fixed-size hypothesis structure is GPU-friendly, the benchmark coverage is broad, and the paper includes a detailed ablation study plus released code. The paper also correctly identifies a real limitation of maximal-clique enumeration and demonstrates a credible alternative. However, the theoretical stability argument that underpins the TurboClique definition is not valid as stated, and the headline speedup is based on an asymmetric GPU-vs-CPU comparison. The significance is therefore conditional on revising those claims.

major comments (3)
  1. [App. A.1, Eq. (11)] The argument that the constraint |∥d_ij+e_ij∥−∥d_ij∥| ≤ τ forces e_ij→0 as τ→0 is geometrically false. The set {e_ij : ∥d_ij+e_ij∥=∥d_ij∥} is a sphere of codimension 1 and contains vectors of norm up to 2∥d_ij∥, so a single pairwise compatibility constraint does not restrict the component of e_ij perpendicular to d_ij. Consequently the claimed reduction of the effective noise variance to zero, σ_eff→0, is unsupported, and the central premise that a stringent τ lets a 3-clique match the stability of a maximal clique is not established by the provided derivation. The supporting experiment in App. A.2 compares 3-cliques with 10-cliques only on 3DMatch+FPFH and does not vary noise level, scene geometry, or descriptor, so it cannot carry that weight. Please replace the limit argument with a rigorous analysis, or explicitly reframe the stability claim as a heuristic validated only empirically.
  2. [Table 1 and Sec. 4.1.2] The abstract's headline claim that TurboReg (1K) is 208.22× faster than 3DMAC compares TurboReg's GPU time (64.55 FPS) against 3DMAC's CPU time (0.31 FPS). The same table reports TurboReg's CPU implementation at 2.73 FPS, i.e. an 8.8× CPU-to-CPU speedup. Since 3DMAC has no GPU implementation, the GPU-vs-CPU comparison should be clearly labeled as such, and the abstract and contributions should not present a GPU-to-CPU ratio as the primary speed comparison without this caveat.
  3. [Sec. 4.1.1 and Sec. 4.3] The hyperparameters τ, K1, and K2 are tuned on the same benchmarks on which the final registration recall is reported. Section 4.1.1 states that τ is 'adjusted based on empirical evaluation' and the ablation summary recommends fine-tuning to 1.2 cm for 3DMatch, while K1 is set to 1K/2K for indoor datasets and 0.25K/0.5K for KITTI based on the per-dataset ablations in Table 5. This selection procedure biases the reported state-of-the-art recall, since the test set is used for parameter choice. Please add a validation split or a sensitivity analysis that shows the method's performance across a fixed parameter range without per-dataset tuning, and report the corresponding recall.
minor comments (7)
  1. [Sec. 3.4] The heading 'Implemetation Details of PGS' contains a typo; it should read 'Implementation Details of PGS'.
  2. [App. C] In the proof of the Unique Assignment Property, the phrase 'denoeted as TC(πz)' should be 'denoted as TC(πz)'.
  3. [Eq. (4)] The definition of the pivot set P is ambiguous when several edges tie at the K1-th largest weight: the text says 'all such edges are included until |P| = K1', but including all tied edges can make |P| exceed K1. Please specify the tie-breaking rule precisely.
  4. [Table 5] The ablation table skips rows 20–22, yet the text refers to 'rows 10 vs. 23'. Please renumber the rows and adjust the references so that every cited row exists.
  5. [App. A.2, Fig. 5] Figure 5 would be easier to read if the horizontal axis labels and units were shown explicitly for each panel, and if the caption stated how many point-cloud pairs contributed to the distributions.
  6. [Abstract and Fig. 1] The notation 'TurboReg (1K)' is used in the abstract without defining K; please define K1 and K2 at first use. Also, Fig. 1 labels the proposed method as 'ICCV2025'; if this is not the accepted venue, this label should be removed.
  7. [Sec. 3.4] The claim that the GPU implementation 'effectively achieves near-constant time complexity, approximating O(1)' assumes R ≫ K1N and ignores data-transfer and synchronization costs. The measured times in Table 7 show that PGS consumes about 11.4–11.9 ms and model estimation scales with K1; please soften the O(1) claim to match the actual implementation behavior.

Circularity Check

0 steps flagged · score 2.0 of 10

No load-bearing circularity: the stability argument in App. A.1 is an invalid (not circular) limit inference; self-citations are minor and non-load-bearing; benchmarks are external.

full rationale

This paper's derivation chain is self-contained rather than circular. The central stability claim (Sec. 3.2, Definition 1) rests on the in-paper analysis of App. A, not on an imported fit or a self-citation chain: App. A.1 attempts to infer sigma_eff^2 -> 0 from Eq. (11), App. A.2 empirically compares 3-clique vs 10-clique estimates on 3DMatch+FPFH, and App. C proves the O2Graph Unique Assignment Property locally. The App. A.1 limit inference is geometrically invalid (the tau=0 constraint | ||d+e|| - ||d|| | = 0 defines a sphere, not e -> 0, so tangential noise components survive and sigma_eff^2 need not vanish); that is a correctness/validity gap in the heuristic motivation, not a circular reduction, because the conclusion is not contained in the premise by construction. Evaluation claims are checked against external benchmarks (3DMatch, 3DLoMatch, KITTI) and independent baselines (3DMAC, FastMAC, SC2-PCR, RANSAC, TEASER++, PointDSC, VBReg), and the speed advantage (PGS with O(K1*N) work and GPU parallelism) is a complexity argument independent of the fitted parameters. Self-citations exist ([27] QGORE, [47] k-clique listing, [49] QuadricsReg, [50] ML-SemReg) but are contextual or motivational: [47] motivates the O2Graph only where App. C supplies the proof. The mildest concern is that tau, K1, and K2 are tuned via ablation on the same benchmarks whose final RR is then reported (Tab. 5 row 4 gives the 93.59% that appears in Tab. 1, and Sec. 4.1.1 states tau is 'adjusted based on empirical evaluation'); this is benchmark-level hyperparameter selection rather than statistical forcing, since RR is stable over a wide tau range (82-84% over tau = 0.010-0.08 m on 3DMatch+FPFH) and the same settings generalize to KITTI and other descriptors. No prediction reduces to its inputs by construction, so the score reflects only the minor self-citations and the transparent same-benchmark tuning.

Assumptions & free parameters 3 free parameters · 4 assumptions · 0 invented entities

The central empirical claim rests on a few hyperparameters (tau, K1, K2) and several domain assumptions about noise and the guidance value of SC2 scores. No physical entities are introduced.

free parameters (3)
  • tau (compatibility threshold) = 0.012 m for 3DMatch; 0.25x point cloud resolution elsewhere, fine-tuned
    Controls graph sparsity and the stability/recall trade-off; chosen by ablation (Tab. 5 rows 1-9).
  • K1 (pivot count) = 1000 or 2000 (indoor), 250 or 500 (KITTI)
    Number of top SC2 edges used as pivots; ablation shows convergence around K1=1000 (Tab. 5 rows 11-16).
  • K2 (TurboCliques per pivot) = 2
    Top-K2 triangles kept per pivot; ablation (Tab. 5 rows 17-19) picks 2.
assumptions (4)
  • domain assumption Match noise is independent, zero-mean, isotropic Gaussian
    App. A.1 assumes r_i ~ N(0, sigma^2 I) to derive the effective-variance argument; real feature matching noise is not isotropic Gaussian.
  • ad hoc to paper Spatial compatibility truncation reduces effective noise variance toward zero as tau tends to zero
    App. A.1 claims sigma^2_eff tends to zero when tau tends to zero; the argument treats the norm constraint as if it forced e_ij toward zero coordinate-wise, which is a heuristic, not a derivation.
  • domain assumption Kabsch estimation can be analyzed as linear least squares
    Sec. 3.2 uses Var(beta_hat|X)=sigma^2(X'X)^-1 to motivate stability; Kabsch is nonlinear in rotation, so this is an analogy.
  • domain assumption SC2 edge weight correlates with inlier likelihood and TurboClique density
    PGS uses SC2 scores to select pivots (Sec. 3.3); this property is borrowed from SC2-PCR [9] and assumed to hold under low overlap.

how reviews work

0 comments
Cite this review

Pith. "Pith review of TurboReg: TurboClique for Robust and Efficient Point Cloud Registration." pith.science (2026). https://pith.science/paper/UKVGCR6Q

@misc{pith2026250701439,
  author       = {Pith},
  title        = {Pith review of: TurboReg: TurboClique for Robust and Efficient Point Cloud Registration},
  year         = {2026},
  howpublished = {\url{https://pith.science/paper/UKVGCR6Q}},
  note         = {Machine review of arXiv:2507.01439}
}
abstract

Robust estimation is essential in correspondence-based Point Cloud Registration (PCR). Existing methods using maximal clique search in compatibility graphs achieve high recall but suffer from exponential time complexity, limiting their use in time-sensitive applications. To address this challenge, we propose a fast and robust estimator, TurboReg, built upon a novel lightweight clique, TurboClique, and a highly parallelizable Pivot-Guided Search (PGS) algorithm. First, we define the TurboClique as a 3-clique within a highly-constrained compatibility graph. The lightweight nature of the 3-clique allows for efficient parallel searching, and the highly-constrained compatibility graph ensures robust spatial consistency for stable transformation estimation. Next, PGS selects matching pairs with high SC$^2$ scores as pivots, effectively guiding the search toward TurboCliques with higher inlier ratios. Moreover, the PGS algorithm has linear time complexity and is significantly more efficient than the maximal clique search with exponential time complexity. Extensive experiments show that TurboReg achieves state-of-the-art performance across multiple real-world datasets, with substantial speed improvements. For example, on the 3DMatch+FCGF dataset, TurboReg (1K) operates $208.22\times$ faster than 3DMAC while also achieving higher recall. Our code is accessible at \href{https://github.com/Laka-3DV/TurboReg}{\texttt{TurboReg}}.

Figures

Figures reproduced from arXiv: 2507.01439 by the authors.

Figure 1
Figure 1. Registration Recall and Speed Comparison on the 3DMatch+FCGF Dataset. Our method (⋆) achieves the highest recall and significantly outperforms competing methods in speed. cause it does not rely on initial transformation guesses [37, 39]. It typically consists of two main steps: (1) fea￾ture matching to establish putative 3D keypoint correspon￾dences [11, 39, 42], and (2) robust transformation estimation through inli… view at source ↗
Figure 2
Figure 2. Pipeline of TurboReg. TurboReg takes correspondences as input. First, these matches are used to construct an Ordered SC2 Graph (O2Graph, defined in Definition 2). Next, the PGS algorithm (Sec. 3.3) is applied to the O2Graph, producing TurboCliques (de￾fined in Definition 1). Finally, during the Model Estimation step (Sec. 3.5), a transformation is estimated for each TurboClique, and the highest-scoring transformatio… view at source ↗
Figure 3
Figure 3. Comparison of Different Types of Cliques. In the compatibility graph, each node represents a match, and the edges between nodes indicate spatial compatibility. Prior stud￾ies [38, 49, 61, 62] primarily estimate transformation using (a) maximal clique—a subset that maximizes mutually compatible matches to ensure transformation stability. However, the computa￾tional complexity of maximal clique search grows exponentia… view at source ↗
Figures from the paper (10 more)
Figure 4
Figure 4. Figure 4: Time comparison (ms) between various robust estimators, [PITH_FULL_IMAGE:figures/full_fig_p007_4.png]
Figure 5

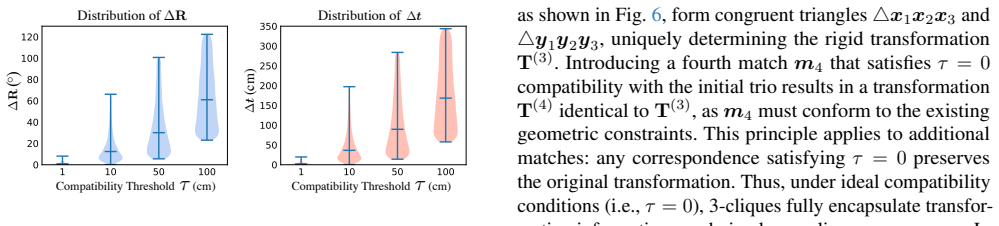

Figure 5. Figure 5: Distribution of discrepancies between transformations [PITH_FULL_IMAGE:figures/full_fig_p013_5.png]
Figure 6
Figure 6. Figure 6: Demonstration of matches when τ = 0. confirms this inference by demonstrating that transformation discrepancies between 3-cliques and 10-cliques decrease as τ diminishes. Specifically, we assess transformation dis￾crepancies between estimates derived from 3-cliques and…
Figure 7
Figure 7. Figure 7: Undirected graph for demonstration. distinct vertices is adjacent: \forall \boldsymbol {u}, \boldsymbol {v} \in \mathcal {C}, (\boldsymbol {u}, \boldsymbol {v}) \in E(\mathcal {G}), (15) where E(G) represents the edge set of G. For example, the vertices {1, 3, 5} are f…
Figure 8
Figure 8. Figure 8: Insufficient Consensus Correspondences. Red indicates lower IN values, while green denotes higher IN values. N: 4213 IN: 46 IN: 85 RE: 7.21° TE: 1.55 m N: 6017 IN: 148 IN: 175 RE: 11.65° TE: 0.46 m N: 3398 IN: 94 IN: 112 RE: 11.47° TE: 0.12 m Ours Ground Truth [PITH_F…
Figure 9
Figure 9. Figure 9: Larger Consensus Set with Small Errors. Red indicates lower IN values, while green denotes higher IN values. and Model Estimation modules exhibit a positive correlation between K1 and runtime, since an increase in K1 leads to a higher number of TurboCliques. In GPU imp…
Figure 10
Figure 10. Figure 10: Larger Consensus Set with Large Errors. Red indicates lower IN values, while green denotes higher IN values. correct. This contradicts the maximum consensus set assumption. We categorize this scenario into two sub￾categories: (a) Small Errors: The estimated rigid tran…
Figure 11
Figure 11. Figure 11: Qualitative Comparison on 3DMatch. Red and green represent failed and successful registrations, respectively. 18 [PITH_FULL_IMAGE:figures/full_fig_p018_11.png]
Figure 12
Figure 12. Figure 12: Qualitative Comparison on 3DLoMatch. Red and green represent failed and successful registrations, respectively. 19 [PITH_FULL_IMAGE:figures/full_fig_p019_12.png]
Figure 13
Figure 13. Figure 13: Qualitative comparison on KITTI. Red and green represent failed and successful registrations, respectively. 20 [PITH_FULL_IMAGE:figures/full_fig_p020_13.png]
