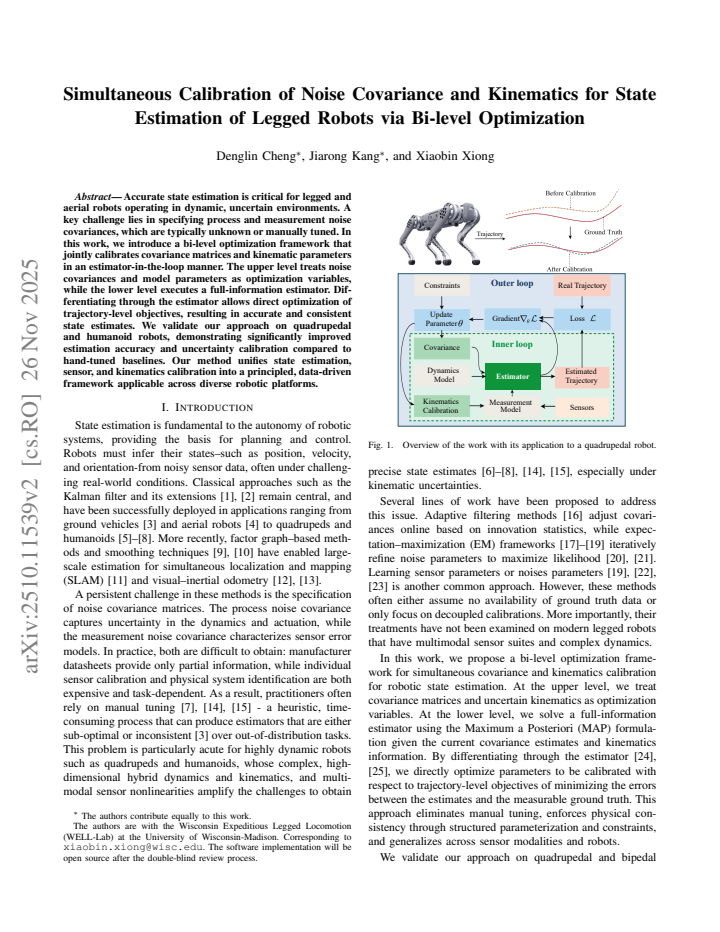

Simultaneous Calibration of Noise Covariance and Kinematics for State Estimation of Legged Robots via Bi-level Optimization

Denglin Cheng , Jiarong Kang , Xiaobin Xiong This is my paper

Pith reviewed 2026-05-18 07:28 UTC · model grok-4.3

classification 💻 cs.RO math.OC
keywords state estimationbi-level optimizationnoise covariancekinematic calibrationlegged robotsquadrupedhumanoidfull-information estimator
0
0 comments X

The pith

A bi-level optimization framework jointly tunes noise covariances and kinematic parameters inside a state estimator for legged robots.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper shows that noise covariances and kinematic parameters can be calibrated together by nesting a full-information estimator inside an outer optimization loop. The upper level adjusts the covariances and parameters as decision variables, while the lower level solves for the robot trajectory; gradients are passed back through the estimator to directly minimize trajectory-level error metrics. This replaces manual tuning with a data-driven process that produces state estimates whose accuracy and uncertainty match observed performance more closely. The approach is demonstrated on both quadrupedal and humanoid platforms, where it outperforms hand-tuned baselines in estimation error and consistency. A sympathetic reader would care because reliable state estimates are a prerequisite for stable control of legged machines in uncertain settings, and the method removes a persistent source of ad-hoc engineering.

Core claim

The central claim is that treating noise covariance matrices and kinematic parameters as optimization variables in an upper-level problem, while executing a full-information estimator at the lower level, and differentiating through that estimator yields accurate and consistent state estimates that unify estimation, sensor calibration, and kinematics calibration into one principled procedure.

What carries the argument

The bi-level optimization framework that places covariance matrices and kinematic parameters in the upper level and a full-information estimator in the lower level, with differentiation through the estimator to optimize trajectory objectives.

If this is right

  • State estimates become more accurate without requiring separate manual tuning of process and measurement noise.
  • Uncertainty reported by the estimator better reflects actual trajectory errors.
  • Kinematic parameter errors are reduced as part of the same optimization that improves the state trajectory.
  • The same procedure applies without modification to both quadrupedal and humanoid platforms.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The framework could shorten the time to deploy a new legged robot by replacing weeks of hand-tuning with a single calibration dataset.
  • Because the method operates estimator-in-the-loop, it may generalize to other estimation architectures such as Kalman filters or factor-graph solvers.
  • Extending the upper-level objective to include control performance metrics could produce parameters that are optimal for both estimation and downstream locomotion.

Load-bearing premise

Differentiating through the full-information estimator produces stable and unbiased gradients that can be used to improve the upper-level trajectory objectives.

What would settle it

Compare state estimation errors and covariance consistency on a quadruped or humanoid robot equipped with motion-capture ground truth before and after running the bi-level calibration procedure.

Figures

Figures reproduced from arXiv: 2510.11539 by Denglin Cheng, Jiarong Kang, Xiaobin Xiong.

Figure 1

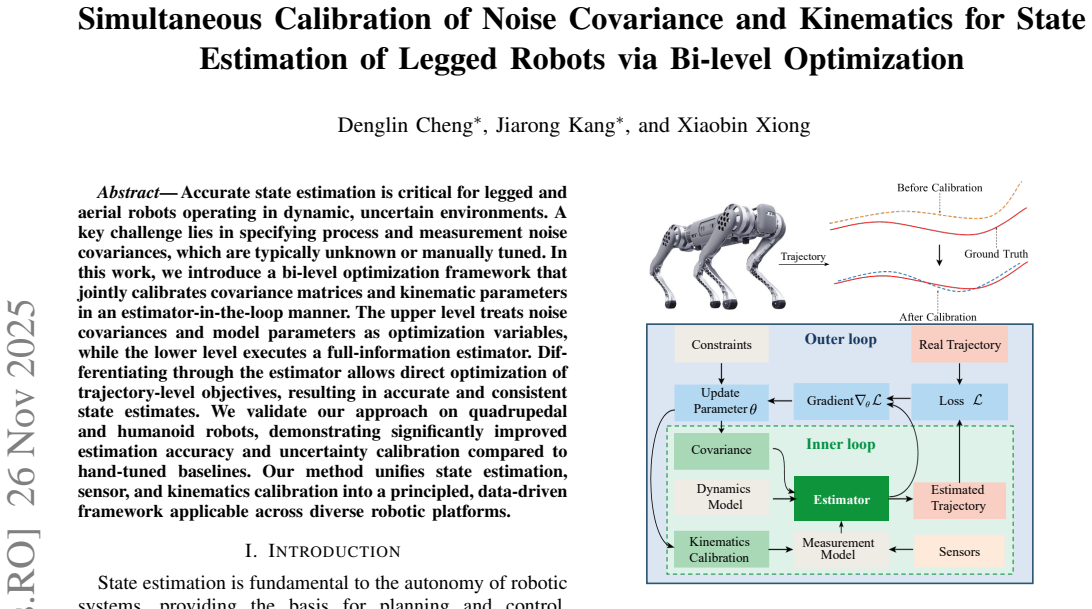

Figure 1. Figure 1: Overview of the work with its application to a quadrupedal robot. [PITH_FULL_IMAGE:figures/full_fig_p001_1.png] view at source ↗
Figure 2

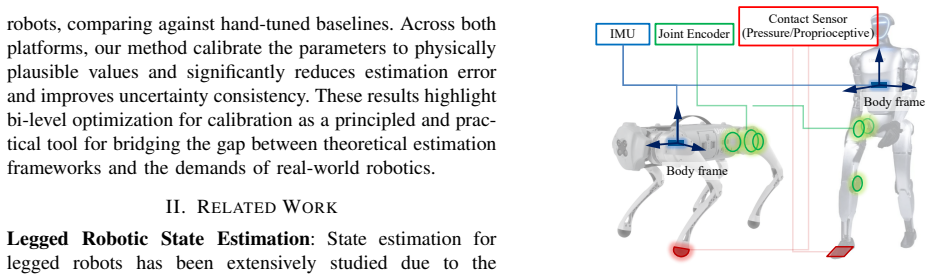

Figure 2. Figure 2: Illustration of the common sensing capabilities on legged robots: [PITH_FULL_IMAGE:figures/full_fig_p002_2.png] view at source ↗
Figure 3

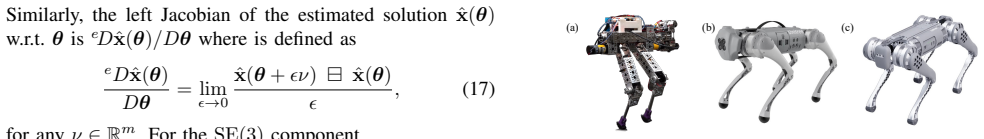

Figure 3. Figure 3: The robot STRIDE (a), quadrupedal robot Go1 (b), and B1 (c) are [PITH_FULL_IMAGE:figures/full_fig_p006_3.png] view at source ↗
Figure 6

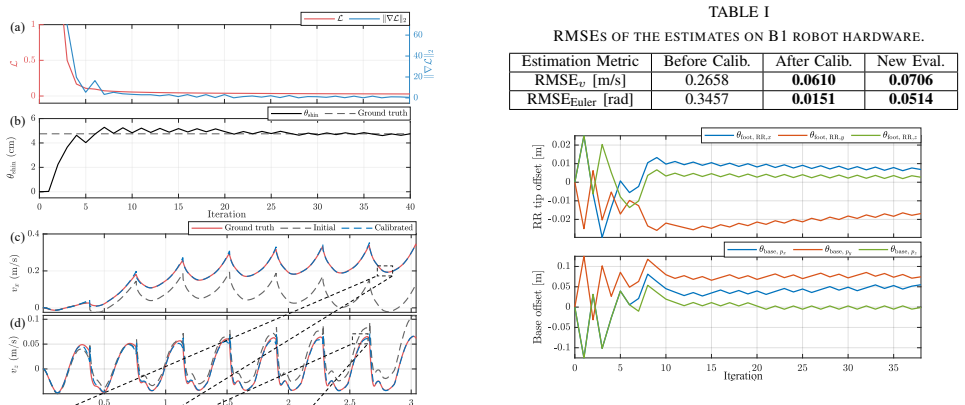

Figure 6. Figure 6: Convergence of the kinematics calibration on B1 robot hardware: [PITH_FULL_IMAGE:figures/full_fig_p007_6.png] view at source ↗
Figure 5

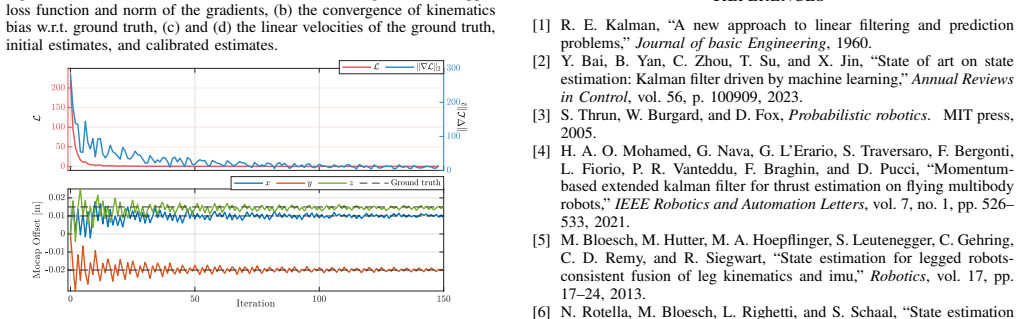

Figure 5. Figure 5: Calibration results on Go1: convergences of cost and gradient (top), [PITH_FULL_IMAGE:figures/full_fig_p007_5.png] view at source ↗
Figure 7

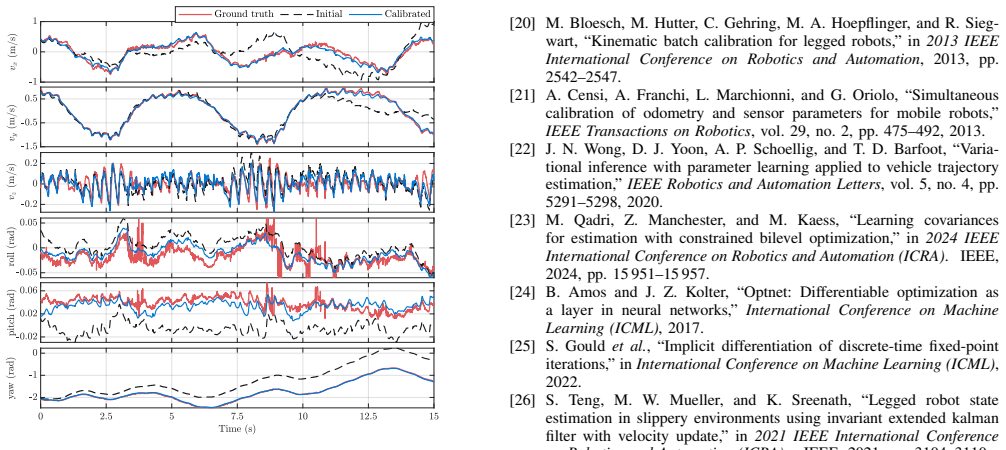

Figure 7. Figure 7: Calibration results on B1 hardware in terms of linear velocity and [PITH_FULL_IMAGE:figures/full_fig_p008_7.png] view at source ↗
Figure 8

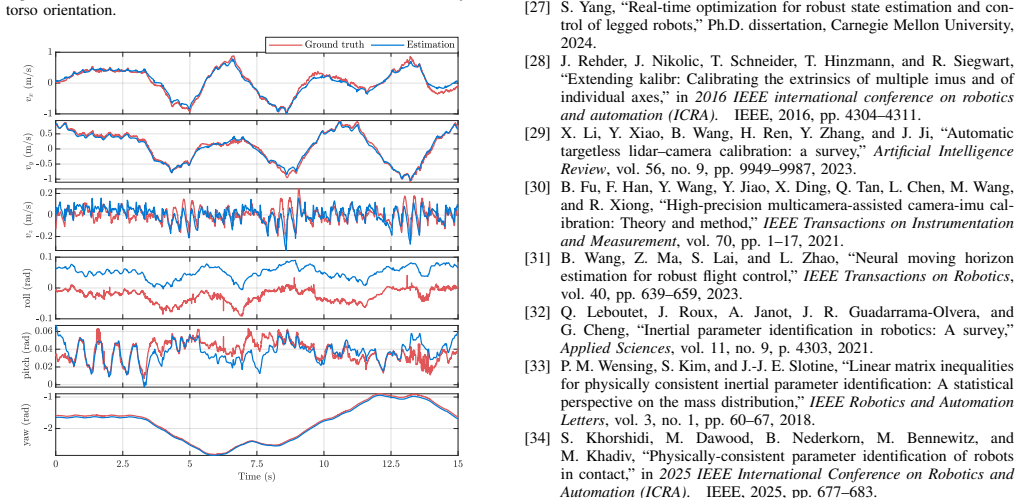

Figure 8. Figure 8: Evaluation results on B1 hardware in terms of linear velocity and [PITH_FULL_IMAGE:figures/full_fig_p008_8.png] view at source ↗
