Device/circuit simulations of silicon spin qubits based on a gate-all-around transistor

Tetsufumi Tanamoto , Keiji Ono This is my paper

Pith reviewed 2026-05-17 00:08 UTC · model grok-4.3

classification ❄️ cond-mat.mes-hall quant-ph

keywords spin qubitsgate-all-around transistorqubit readoutsiliconTCADSPICECMOS

0 comments

The pith

Silicon spin qubit readout works through state-dependent current in a gate-all-around transistor.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The authors simulate how a logical spin qubit made of two physical qubits affects the current in a surrounding gate-all-around transistor due to different charge distributions from spin states. They use 3D TCAD simulations to model the current-voltage characteristics for various qubit and transistor configurations. Circuit simulations with SPICE then show that a standard CMOS sense amplifier circuit can amplify these signals if voltages are controlled dynamically. This demonstrates a path to reading out spin qubits using conventional semiconductor technology. The approach relies on electrostatic effects rather than direct magnetic sensing.

Core claim

Different spin configurations in the logical qubit lead to distinct electrostatic effects on the GAA transistor, resulting in measurable differences in the current flowing through it. Simulations confirm that a properly designed CMOS circuit with dynamic voltage control allows a conventional sense amplifier to detect the qubit state effectively.

What carries the argument

The gate-all-around transistor, whose current is modulated by the electrostatic potential from the qubit's spin-dependent charge distribution.

If this is right

The readout process can be integrated into standard CMOS fabrication flows.
Existing TCAD and SPICE tools are sufficient to design and verify such hybrid quantum-classical circuits.
Dynamic control of voltages enables reliable detection despite weak signals from the qubits.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

If successful in hardware, this could allow spin qubits to be embedded directly in classical control electronics on the same chip.
Scaling to larger qubit arrays would require simulating interference between multiple GAA sensors.
Alternative readout methods might be compared for power efficiency in future designs.

Load-bearing premise

The electrostatic effects from different spin configurations must produce current differences large enough to be distinguished from noise and fabrication variations.

What would settle it

An experiment measuring the actual current difference in a fabricated GAA transistor with controlled spin states and comparing it to the simulated values and noise levels.

Figures

Figures reproduced from arXiv: 2512.08152 by Keiji Ono, Tetsufumi Tanamoto.

**Figure 4.** Figure 4: FIG. 4. Current-voltage characteristics of the type-A con [PITH_FULL_IMAGE:figures/full_fig_p003_4.png] view at source ↗

**Figure 2.** Figure 2: FIG. 2. (a) A unit of the qubit (two quantum dots) and [PITH_FULL_IMAGE:figures/full_fig_p003_2.png] view at source ↗

**Figure 3.** Figure 3: FIG. 3. An example of stacking the qubit arrays of Fig. 2. [PITH_FULL_IMAGE:figures/full_fig_p003_3.png] view at source ↗

**Figure 5.** Figure 5: FIG. 5. Current-voltage characteristics of the type-A config [PITH_FULL_IMAGE:figures/full_fig_p004_5.png] view at source ↗

**Figure 6.** Figure 6: FIG. 6. Electric potential profile of the [PITH_FULL_IMAGE:figures/full_fig_p004_6.png] view at source ↗

**Figure 7.** Figure 7: FIG. 7. Current density profile of the [PITH_FULL_IMAGE:figures/full_fig_p005_7.png] view at source ↗

**Figure 8.** Figure 8: FIG. 8. Qubit readout circuit based on the comparison of two [PITH_FULL_IMAGE:figures/full_fig_p007_8.png] view at source ↗

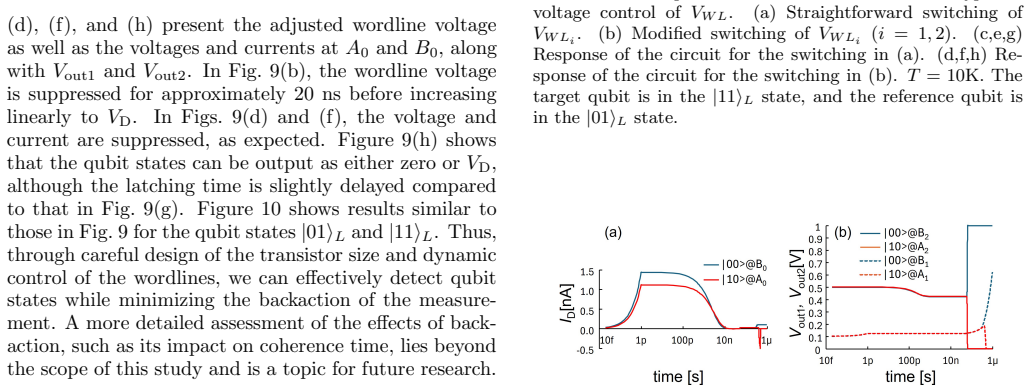

**Figure 9.** Figure 9: FIG. 9. Time-dependent circuit behaviors for two types of [PITH_FULL_IMAGE:figures/full_fig_p007_9.png] view at source ↗

**Figure 10.** Figure 10: FIG. 10. Time-dependent circuit behaviors for two types of [PITH_FULL_IMAGE:figures/full_fig_p007_10.png] view at source ↗

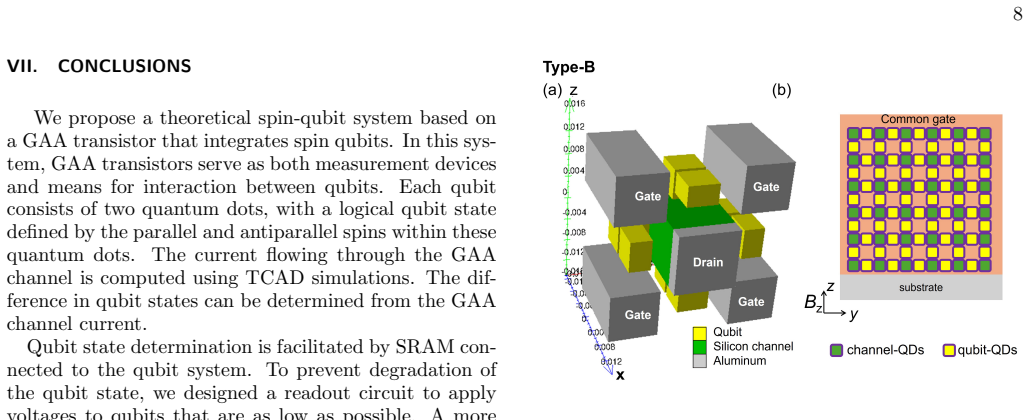

**Figure 11.** Figure 11: FIG. 11. We can arrange the qubits and GAA transistor [PITH_FULL_IMAGE:figures/full_fig_p008_11.png] view at source ↗

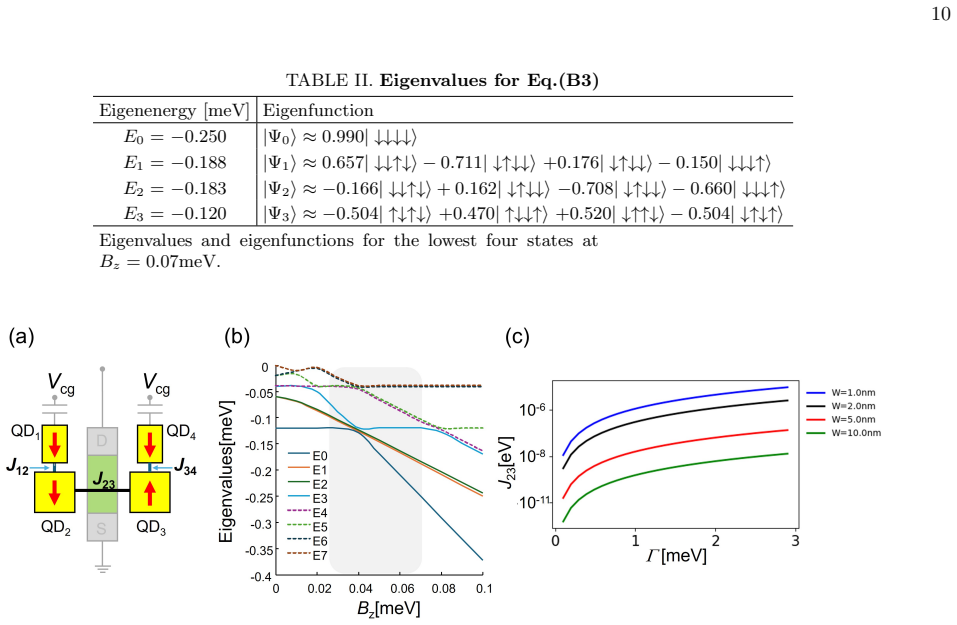

**Figure 12.** Figure 12: FIG. 12. (a) [PITH_FULL_IMAGE:figures/full_fig_p009_12.png] view at source ↗

**Figure 13.** Figure 13: FIG. 13. The qubit operation is based on the Heisenberg coupling between quantum dots. (a) Qubit-qubit interaction between [PITH_FULL_IMAGE:figures/full_fig_p010_13.png] view at source ↗

read the original abstract

We theoretically investigated the readout process of a spin--qubit structure based on a gate-all-around (GAA) transistor. Our study focuses on a logical qubit composed of two physical qubits. Different spin configurations result in different charge distributions, which subsequently influence the electrostatic effects on the GAA transistor. Consequently, the current flowing through the GAA transistor depends on the qubit's state. We calculated the current-voltage characteristics of the three-dimensional configurations of the qubit and GAA structures, using technology computer-aided design (TCAD) simulations. Moreover, we performed circuit simulations using the Simulation Program with Integrated Circuit Emphasis (SPICE) to investigate whether a readout circuit made from complementary metal--oxide semiconductor (CMOS) transistors can amplify the weak signals generated by the qubits. Our findings indicate that, by dynamically controlling the applied voltage within a properly designed circuit, the readout can be detected effectively based on a conventional sense amplifier.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Desk Editor's Note private letter to a colleague

TCAD/SPICE simulation maps two-spin logical qubit states to current differences in a GAA transistor and shows sense-amp amplification is possible in principle, but the work leaves the size of those differences versus realistic cryogenic noise unquantified.

read the letter

The paper runs standard 3D TCAD on a gate-all-around silicon transistor that hosts a two-physical-qubit logical spin qubit, then feeds the resulting state-dependent currents into a SPICE model of a CMOS sense amplifier. Different spin configurations produce different charge distributions that shift the electrostatics enough to change the transistor current, and the circuit simulation indicates that dynamic voltage control can bring the weak signal up to detectable levels. That specific mapping and the end-to-end device-to-circuit flow is the concrete piece that is not already in the cited prior work on silicon spin qubits. The methods themselves are off-the-shelf, which is fine for a targeted feasibility study. The authors credit the commercial tools and keep the geometry and doping profiles explicit, so the calculation is reproducible in the usual TCAD sense. The soft spot is exactly where the stress-test note lands: the manuscript shows I-V curves that differ by spin state, yet it does not report how large those deltas are relative to thermal noise, 1/f noise, or process variation at the ~1 K temperatures where these devices would actually run. Without that comparison or Monte-Carlo runs, the claim that readout is “detected effectively” rests on an assumption that the electrostatic perturbation is big enough in real hardware. The free parameters (geometry, doping) are listed but not varied systematically in the abstract-level description. This is the kind of paper that belongs in a specialized journal or conference proceedings on quantum-CMOS co-design. Readers working on silicon qubit integration will find the circuit-level idea useful as a starting point, even if they will want to add their own noise analysis. I would send it to peer review; the simulation is honest and the target is practical, but referees will need to press on the missing noise floor numbers before the integration claim can be taken as demonstrated.

Referee Report

2 major / 2 minor

Summary. The paper claims that TCAD simulations of a gate-all-around (GAA) transistor integrated with a two-physical-qubit logical spin qubit demonstrate state-dependent drain currents arising from spin-configuration-dependent charge distributions, and that SPICE simulations of a conventional CMOS sense-amplifier circuit can amplify the resulting weak signals to enable effective readout when the applied voltage is dynamically controlled.

Significance. If the simulated current differences prove large enough to exceed realistic noise and variation floors, the work would supply a useful device-circuit co-simulation framework for silicon spin-qubit readout, highlighting a potential route to scalable CMOS-compatible detection that avoids custom cryogenic amplifiers.

major comments (2)

[TCAD results] TCAD results section: the I-V curves for different spin states are presented without reported values of ΔI, without mesh-convergence checks, and without any comparison of ΔI to expected thermal, 1/f, or amplifier noise at ~1 K; this quantitative gap directly undermines the central claim that readout is 'detected effectively' with a standard sense amplifier.
[SPICE circuit simulations] SPICE circuit section: the sense-amplifier simulations use standard CMOS models without cryogenic corrections (threshold-voltage shift, mobility freeze-out, or increased low-temperature noise), so the amplification of the weak qubit-induced signals cannot yet be considered realistic for the operating regime of silicon spin qubits.

minor comments (2)

[Abstract] Abstract: no numerical values are given for current differences, bias points, or simulation parameters, reducing the reader's ability to judge practical relevance.
[Methods] Device geometry and doping profiles are listed as free parameters but are not tabulated or described with sufficient precision for independent reproduction of the 3D TCAD structures.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the careful and constructive review of our manuscript. The comments highlight important aspects of quantitative validation and cryogenic applicability that we have addressed in the revision.

read point-by-point responses

Referee: [TCAD results] TCAD results section: the I-V curves for different spin states are presented without reported values of ΔI, without mesh-convergence checks, and without any comparison of ΔI to expected thermal, 1/f, or amplifier noise at ~1 K; this quantitative gap directly undermines the central claim that readout is 'detected effectively' with a standard sense amplifier.

Authors: We agree that explicit reporting of ΔI, mesh convergence verification, and noise benchmarking are necessary to substantiate the readout claim. In the revised manuscript we now tabulate the extracted current differences ΔI between the relevant spin configurations. We have added a dedicated subsection documenting mesh-convergence tests (current variation < 1 % upon successive refinement) and have included order-of-magnitude estimates comparing ΔI to thermal (kT/C), 1/f, and typical CMOS sense-amplifier noise floors at ~1 K. These additions show that the simulated signal margins remain detectable under the stated conditions. revision: yes
Referee: [SPICE circuit simulations] SPICE circuit section: the sense-amplifier simulations use standard CMOS models without cryogenic corrections (threshold-voltage shift, mobility freeze-out, or increased low-temperature noise), so the amplification of the weak qubit-induced signals cannot yet be considered realistic for the operating regime of silicon spin qubits.

Authors: We acknowledge that the SPICE simulations rely on standard room-temperature CMOS compact models and therefore omit cryogenic corrections. In the revised text we have added an explicit limitations paragraph stating this approximation and have supplied literature-based estimates of threshold-voltage shift and mobility reduction at 1 K to indicate the expected direction and magnitude of change. While a full cryogenic device-model library would be preferable, the present circuit-level study is intended to illustrate the dynamic-voltage-control concept; the added discussion clarifies the scope and points to future modeling needs. revision: partial

Circularity Check

0 steps flagged

No circularity: readout claims rest on independent TCAD/SPICE simulations

full rationale

The paper derives its readout-effectiveness claim from numerical device simulations in commercial TCAD (computing 3D electrostatics and I-V curves for different spin configurations) followed by SPICE circuit simulations of a CMOS sense-amplifier stage. These steps use external, standard physics models and commercial solvers whose outputs are not defined in terms of the target result; the current delta is an emergent consequence of the modeled charge distributions rather than a fitted or self-referential quantity. No equations reduce by construction to the claimed prediction, no self-citations are load-bearing, and no ansatz or uniqueness theorem is smuggled in. The derivation chain is therefore self-contained against external benchmarks.

Axiom & Free-Parameter Ledger

1 free parameters · 1 axioms · 0 invented entities

The central claim rests on the domain assumption that spin configurations produce distinct electrostatic effects and on standard semiconductor device physics; no new entities are postulated and simulation parameters are not enumerated in the abstract.

free parameters (1)

device geometry and doping profiles
TCAD simulations require specific 3D dimensions, doping concentrations, and material parameters that are not listed in the abstract.

axioms (1)

domain assumption Different spin configurations result in different charge distributions that influence the electrostatics of the GAA transistor
Invoked in the abstract as the mechanism linking qubit state to transistor current.
