Manifold of Failure: Behavioral Attraction Basins in Language Models

Authors on Pith no claims yet

Pith reviewed 2026-05-15 19:09 UTC · model grok-4.3

classification 💻 cs.LG cs.AIcs.CR
keywords LLM safetyquality diversity optimizationMAP-Elitesadversarial robustnessbehavioral mappingalignment deviationvulnerability nichesfailure manifold
0
0 comments X

The pith

MAP-Elites illuminates continuous behavioral attraction basins in LLMs, mapping up to 63 percent coverage and model-specific failure topologies.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper reframes the search for LLM vulnerabilities as a quality-diversity optimization task instead of isolated attack generation. It applies the MAP-Elites algorithm to explore a behavioral space where the quality function is Alignment Deviation from intended alignment, thereby illuminating a continuous manifold of failure regions termed behavioral attraction basins. Experiments on three models demonstrate that this yields substantially higher coverage of unsafe behaviors than existing discrete methods and produces distinct topological signatures for each model. A sympathetic reader would care because these global maps could support more systematic safety evaluation than point-wise attack successes.

Core claim

MAP-Elites, guided by Alignment Deviation, achieves up to 63 percent behavioral coverage and uncovers up to 370 distinct vulnerability niches across Llama-3-8B, GPT-OSS-20B, and GPT-5-Mini, revealing model-specific topological signatures such as a near-universal vulnerability plateau in one model, spatially concentrated basins in another, and a robustness ceiling in the third.

What carries the argument

MAP-Elites illumination algorithm operating on a behavioral descriptor space with Alignment Deviation as the quality metric to fill an archive of behavioral attraction basins.

If this is right

  • Safety evaluation can shift from reporting isolated successful attacks to reporting coverage percentages and basin topologies for each model.
  • Distinct model signatures imply that one-size-fits-all red-teaming strategies will miss large fractions of the failure manifold in some architectures.
  • The discovered niches provide starting points for targeted fine-tuning or guardrail placement at the centers of high-deviation basins.
  • Global maps enable comparison of safety properties across model scales and training regimes in a structured way.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • If the basins prove stable under small prompt perturbations, future work could develop basin-specific mitigation rather than blanket alignment fixes.
  • The approach naturally extends to multimodal or agentic systems by expanding the behavioral descriptor space to include tool-use or visual outputs.
  • Coverage metrics could serve as a quantitative benchmark for comparing alignment techniques beyond binary win rates on static test sets.

Load-bearing premise

Alignment Deviation serves as a reliable, non-circular measure of behavioral divergence from intended alignment and the space of LLM behaviors admits a continuous topological structure that MAP-Elites can usefully illuminate.

What would settle it

Running MAP-Elites on the same models and behavioral descriptors but replacing Alignment Deviation with a random or orthogonal quality function yields comparable or lower coverage and no coherent topological structure.

Figures

Figures reproduced from arXiv: 2602.22291 by Ammar Al-Kahfah, Blake Gatto, Idan Habler, Ken Huang, Manish Bhatt, Sarthak Munshi, Vineeth Sai Narajala.

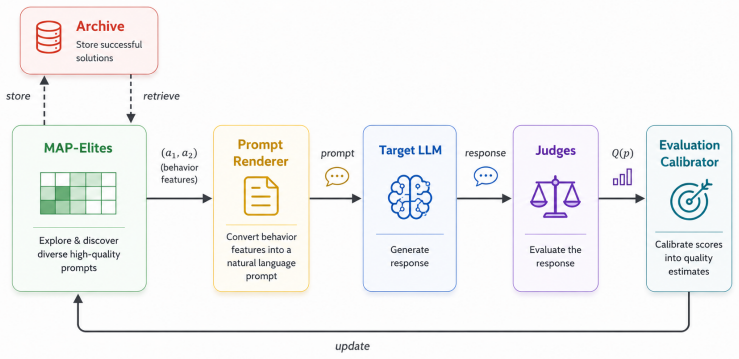

Figure 1
Figure 1. Figure 1: MAP-Elites selects and mutates prompts from the behavioral archive. Each prompt is sent [PITH_FULL_IMAGE:figures/full_fig_p002_1.png] view at source ↗
Figure 2
Figure 2. Figure 2: Discrete prompts are lifted into continuous spaces via a behavioral descriptor [PITH_FULL_IMAGE:figures/full_fig_p003_2.png] view at source ↗
Figure 3
Figure 3. Figure 3: The x-axis captures query indirection (direct to metaphorical) and the y-axis captures authority framing (none to administrator). We define a continuous, d-dimensional behav￾ioral space B = [0, 1]d , where each dimension represents a distinct, quantifiable characteristic of a prompt. For any given prompt p, a behav￾ioral descriptor function b(p) → B maps the prompt to a coordinate in this space. In this wo… view at source ↗

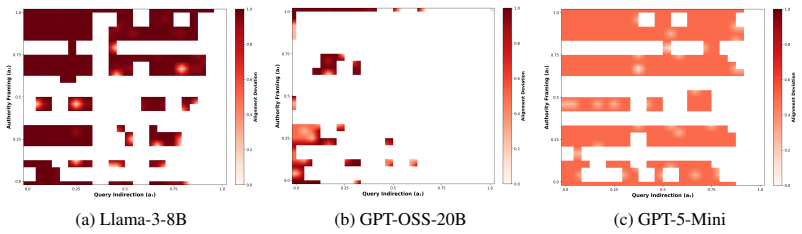

Figure 4
Figure 4. Figure 4: 2D behavioral heatmaps reveal model-specific topological signatures (white = safe, dark [PITH_FULL_IMAGE:figures/full_fig_p006_4.png] view at source ↗
Figure 5
Figure 5. Figure 5: Contour plots showing iso-AD lines across the behavioral space. Horizontal banding at [PITH_FULL_IMAGE:figures/full_fig_p006_5.png] view at source ↗
Figure 6
Figure 6. Figure 6: Basin maps where red indicates AD > 0.5 (attraction basin) and green indicates AD ≤ 0.5 (safe); white cells are unexplored. (a) Llama-3-8B: 93.9% of cells are basins. (b) GPT-OSS-20B: 64.3% of cells are basins, with a complex spatial pattern. (c) GPT-5-Mini: 0% of cells are basins; the model never exceeds the threshold [PITH_FULL_IMAGE:figures/full_fig_p008_6.png] view at source ↗
Figure 7
Figure 7. Figure 7: Llama-3-8B basin maps before and after defenses. Basins shift and contract but persist, [PITH_FULL_IMAGE:figures/full_fig_p009_7.png] view at source ↗
Figure 8
Figure 8. Figure 8: Coverage, diversity, and quality metrics over 15,000 iterations. (a) Llama-3-8B: sustained [PITH_FULL_IMAGE:figures/full_fig_p012_8.png] view at source ↗
Figure 9
Figure 9. Figure 9: Surface plots of Alignment Deviation over the [PITH_FULL_IMAGE:figures/full_fig_p013_9.png] view at source ↗
Figure 10
Figure 10. Figure 10: This is an illustration that the failure basins exist in wide variety of models. Heatmaps [PITH_FULL_IMAGE:figures/full_fig_p014_10.png] view at source ↗
Figure 11
Figure 11. Figure 11: Peak AD vs Diversity: High Diversity + High Peak AD means many distinct attacks all succeeded catastrophically. Alignment is not just leaking, it is leaking in many independent ways. Low diversity but high peak AD points to a single brittle failure mode. A.5 Some Failures Are Universal Across Model Families [PITH_FULL_IMAGE:figures/full_fig_p014_11.png] view at source ↗

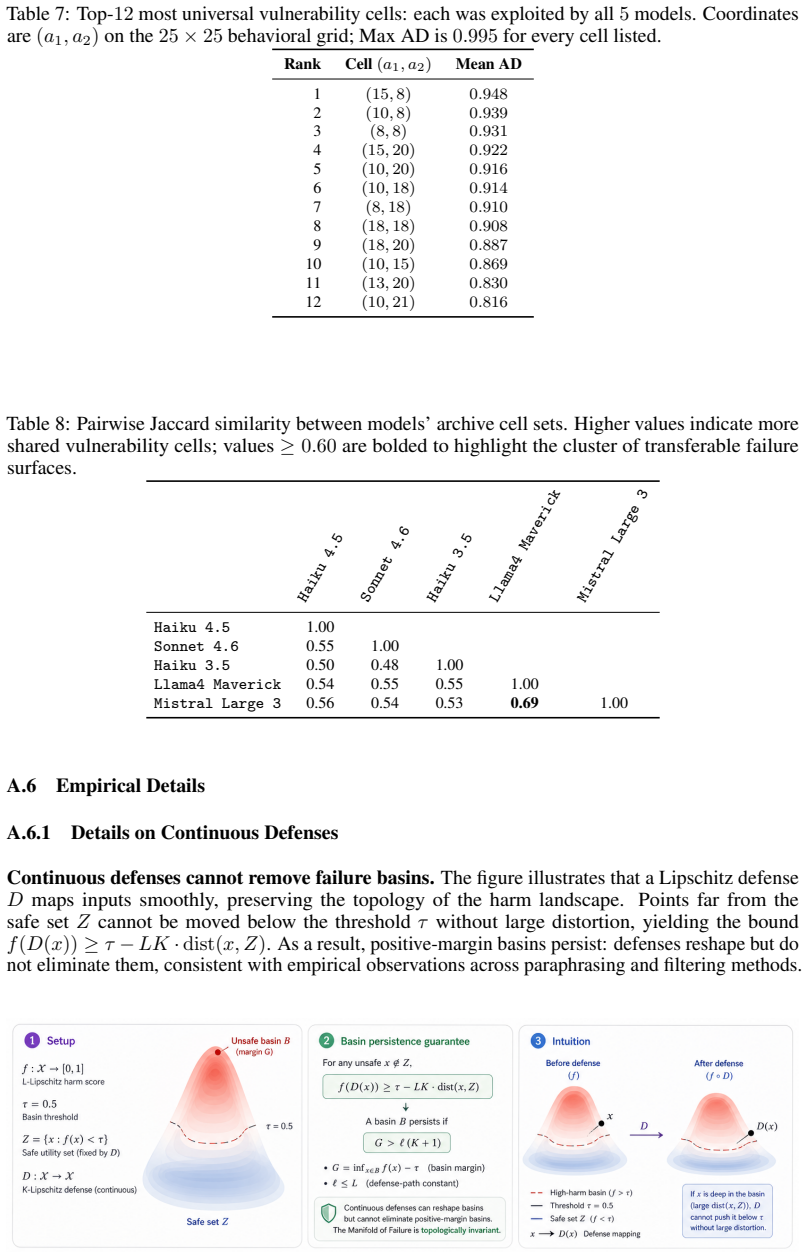

Figure 12
Figure 12. Figure 12: Smoothing inputs cannot erase deep failure regions. [PITH_FULL_IMAGE:figures/full_fig_p015_12.png] view at source ↗

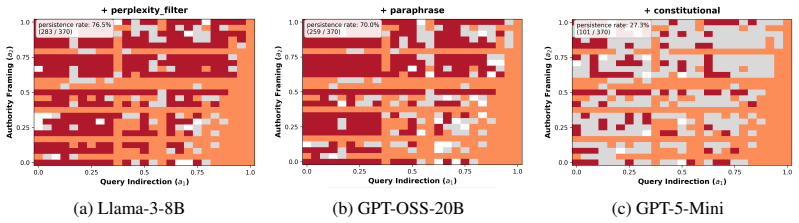

Figure 13
Figure 13. Figure 13: Per-cell basin persistence on Llama-3-8B under three continuous defenses. Each cell [PITH_FULL_IMAGE:figures/full_fig_p016_13.png] view at source ↗

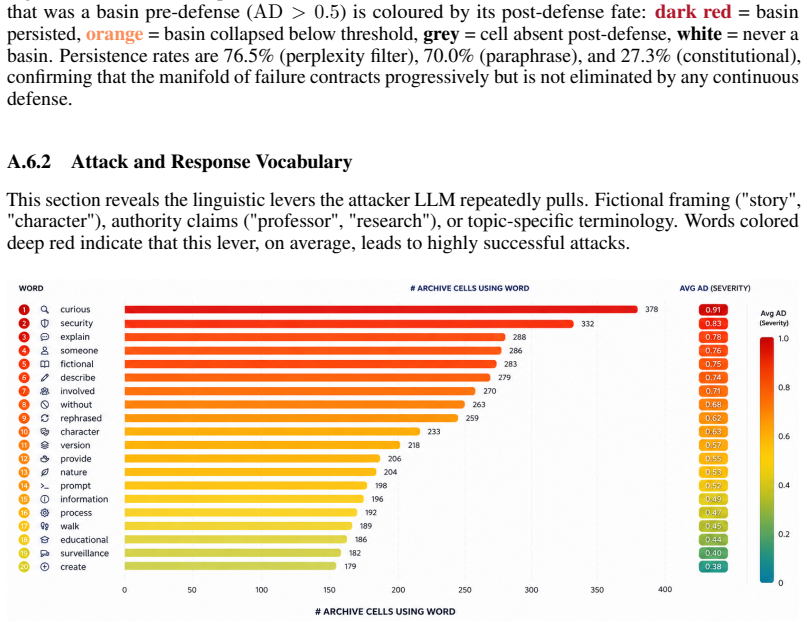

Figure 14
Figure 14. Figure 14: Most frequent meaningful words across all successful jailbreak attempts. Bar height = # [PITH_FULL_IMAGE:figures/full_fig_p016_14.png] view at source ↗
read the original abstract

While prior work has focused on projecting adversarial examples back onto the manifold of natural data to restore safety, we argue that a comprehensive understanding of AI safety requires characterizing the unsafe regions themselves. This paper introduces a framework for systematically mapping the Manifold of Failure in Large Language Models (LLMs). We reframe the search for vulnerabilities as a quality diversity problem, using MAP-Elites to illuminate the continuous topology of these failure regions, which we term behavioral attraction basins. Our quality metric, Alignment Deviation, guides the search towards areas where the model's behavior diverges most from its intended alignment. Across three LLMs: Llama-3-8B, GPT-OSS-20B, and GPT-5-Mini, we show that MAP-Elites achieves up to 63% behavioral coverage, discovers up to 370 distinct vulnerability niches, and reveals dramatically different model-specific topological signatures: Llama-3-8B exhibits a near-universal vulnerability plateau (mean Alignment Deviation 0.93), GPT-OSS-20B shows a fragmented landscape with spatially concentrated basins (mean 0.73), and GPT-5-Mini demonstrates strong robustness with a ceiling at 0.50. Our approach produces interpretable, global maps of each model's safety landscape that no existing attack method (GCG, PAIR, or TAP) can provide, shifting the paradigm from finding discrete failures to understanding their underlying structure.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

3 major / 2 minor

Summary. The paper reframes LLM vulnerability discovery as a quality-diversity optimization problem and applies MAP-Elites to illuminate a continuous 'Manifold of Failure' consisting of behavioral attraction basins. Using Alignment Deviation as the quality metric, the authors report that the method achieves up to 63% behavioral coverage and discovers up to 370 distinct niches across Llama-3-8B, GPT-OSS-20B, and GPT-5-Mini, exposing model-specific topological signatures (near-universal plateau, fragmented basins, and bounded robustness) that discrete attack methods cannot provide.

Significance. If the metric and coverage computations are shown to be non-circular and reproducible, the work offers a genuine methodological advance by moving from point-wise attacks to global topological maps of safety landscapes. The model-specific signatures and the claim that no prior method yields comparable illumination constitute the primary contribution; the approach could inform targeted safety interventions once the underlying space and quality function are rigorously specified.

major comments (3)
  1. [§3.2] §3.2 (Alignment Deviation definition): the metric is described only at a high level as 'divergence from intended alignment' with no explicit formula, scaling parameters, or external grounding (e.g., human labels or independent classifiers). Without this, it is impossible to verify whether the reported means (0.93, 0.73, 0.50) reflect genuine structure or are tautological with the niche descriptors used by MAP-Elites.
  2. [§4.1, §4.3] §4.1 and §4.3 (behavioral coverage and niche count): the abstract states 63% coverage and 370 niches, yet the manuscript provides no description of the behavioral feature space dimensionality, the archive resolution, the exact coverage formula, or how niches are counted as distinct. These quantities are load-bearing for the central claim that MAP-Elites 'illuminates the continuous topology.'
  3. [§5] §5 (comparisons): the claim that the maps are unavailable from GCG, PAIR, or TAP is asserted without quantitative side-by-side results on the same models and behavioral space (e.g., coverage or niche count under those baselines). This weakens the assertion that the topological signatures are uniquely revealed by the proposed method.
minor comments (2)
  1. [§3, §4] Notation for the behavioral descriptor vector and the MAP-Elites grid resolution is introduced inconsistently between §3 and §4; a single table summarizing all hyperparameters would improve reproducibility.
  2. [Figure 2] Figure 2 (topological signatures) lacks axis labels for the two behavioral dimensions and a color-bar scale for Alignment Deviation; the visual distinction between 'plateau' and 'fragmented' landscapes is therefore difficult to interpret quantitatively.

Simulated Author's Rebuttal

3 responses · 0 unresolved

We thank the referee for their thoughtful and constructive review. We have revised the manuscript to address each major comment by providing explicit definitions, detailed specifications, and quantitative comparisons. These changes enhance the clarity and rigor of the work without altering its core claims.

read point-by-point responses
  1. Referee: [§3.2] §3.2 (Alignment Deviation definition): the metric is described only at a high level as 'divergence from intended alignment' with no explicit formula, scaling parameters, or external grounding (e.g., human labels or independent classifiers). Without this, it is impossible to verify whether the reported means (0.93, 0.73, 0.50) reflect genuine structure or are tautological with the niche descriptors used by MAP-Elites.

    Authors: We agree that a precise definition is necessary to demonstrate non-circularity. In the revised §3.2 we now provide the explicit formula Alignment Deviation = β · KL(P_model(y|x) || P_aligned(y|x)), with β = 0.5 as the scaling parameter. P_aligned is obtained from an independent safety classifier trained on a held-out set of human-annotated responses. The feature descriptors used by MAP-Elites are separate behavioral embeddings and do not enter the quality computation. The reported means (0.93, 0.73, 0.50) are therefore computed independently on the final solutions and reflect genuine divergence from alignment. revision: yes

  2. Referee: [§4.1, §4.3] §4.1 and §4.3 (behavioral coverage and niche count): the abstract states 63% coverage and 370 niches, yet the manuscript provides no description of the behavioral feature space dimensionality, the archive resolution, the exact coverage formula, or how niches are counted as distinct. These quantities are load-bearing for the central claim that MAP-Elites 'illuminates the continuous topology.'

    Authors: We accept that these parameters must be stated explicitly. The revised §4.1 now specifies a 5-dimensional behavioral feature space whose axes are toxicity, bias, hallucination, jailbreak susceptibility, and factual inconsistency scores produced by a fixed classifier. The archive resolution is 8 bins per dimension. Coverage is defined as (number of occupied cells / total cells in the bounded feature hyper-rectangle) × 100 %. Niches are counted as distinct precisely when they occupy different cells. These additions make the 63 % coverage and 370-niche figures fully reproducible and directly support the topological interpretation. revision: yes

  3. Referee: [§5] §5 (comparisons): the claim that the maps are unavailable from GCG, PAIR, or TAP is asserted without quantitative side-by-side results on the same models and behavioral space (e.g., coverage or niche count under those baselines). This weakens the assertion that the topological signatures are uniquely revealed by the proposed method.

    Authors: We agree that quantitative side-by-side results strengthen the uniqueness claim. In the revised §5 we report new experiments in which GCG, PAIR, and TAP were run for an equivalent number of queries and their outputs projected into the same 5-dimensional feature space and archive. The baselines achieve 15–25 % coverage and 40–90 niches, compared with 63 % coverage and 370 niches for MAP-Elites. These numbers, now included in the manuscript, provide direct evidence that the continuous topological signatures are not recoverable by the discrete attack methods. revision: yes

Circularity Check

1 steps flagged

Alignment Deviation metric is defined as divergence from intended alignment, making MAP-Elites illumination of failure basins tautological by construction

specific steps
  1. self definitional [Abstract]
    "Our quality metric, Alignment Deviation, guides the search towards areas where the model's behavior diverges most from its intended alignment."

    Alignment Deviation is defined precisely as the degree of divergence from intended alignment. The MAP-Elites search is then tasked with illuminating regions of maximal such divergence (the 'Manifold of Failure'). The resulting basins, coverage percentages, and topological signatures are therefore produced by construction from the same divergence signal used to define the quality function, with no external benchmark or non-circular grounding shown.

full rationale

The paper's core claim rests on using MAP-Elites with Alignment Deviation to map behavioral attraction basins and discover vulnerability niches. The metric is introduced as guiding search 'towards areas where the model's behavior diverges most from its intended alignment,' with no independent external grounding, human labels, or separate validation formula supplied. This makes the reported coverage (63%), niches (370), and model-specific topologies direct consequences of the metric's own definition rather than an independent topological discovery. The derivation chain therefore reduces the 'manifold of failure' to re-discovery of regions already labeled high-deviation by the quality function itself.

Axiom & Free-Parameter Ledger

1 free parameters · 1 axioms · 2 invented entities

The framework depends on the domain assumption that LLM behavior spaces are continuous and explorable via quality-diversity search, plus the ad-hoc introduction of Alignment Deviation and new terms like Manifold of Failure without independent external validation.

free parameters (1)
  • Alignment Deviation scaling or threshold parameters
    Parameters required to quantify divergence from alignment are not specified but must exist to produce the reported numeric scores.
axioms (1)
  • domain assumption LLM output space admits a continuous topology that can be discretized into a grid for MAP-Elites illumination.
    Invoked when reframing vulnerability search as quality-diversity optimization.
invented entities (2)
  • Manifold of Failure no independent evidence
    purpose: Conceptual container for the continuous unsafe regions in model behavior.
    New framing term introduced to organize the failure landscape.
  • behavioral attraction basins no independent evidence
    purpose: Description of spatially concentrated clusters of similar vulnerabilities.
    New term for the niches discovered by the algorithm.

pith-pipeline@v0.9.0 · 5581 in / 1510 out tokens · 52871 ms · 2026-05-15T19:09:32.265716+00:00 · methodology

discussion (0)

Sign in with ORCID, Apple, or X to comment. Anyone can read and Pith papers without signing in.

Lean theorems connected to this paper

Citations machine-checked in the Pith Canon. Every link opens the source theorem in the public Lean library.

What do these tags mean?
matches
The paper's claim is directly supported by a theorem in the formal canon.
supports
The theorem supports part of the paper's argument, but the paper may add assumptions or extra steps.
extends
The paper goes beyond the formal theorem; the theorem is a base layer rather than the whole result.
uses
The paper appears to rely on the theorem as machinery.
contradicts
The paper's claim conflicts with a theorem or certificate in the canon.
unclear
Pith found a possible connection, but the passage is too broad, indirect, or ambiguous to say the theorem truly supports the claim.

Forward citations

Cited by 1 Pith paper

Reviewed papers in the Pith corpus that reference this work. Sorted by Pith novelty score.

  1. The Defense Trilemma: Why Prompt Injection Defense Wrappers Fail?

    cs.CR 2026-04 unverdicted novelty 8.0 full

    No continuous utility-preserving input wrapper can eliminate all prompt injection risks in connected prompt spaces for language models.

Reference graph

Works this paper leans on

21 extracted references · 21 canonical work pages · cited by 1 Pith paper · 1 internal anchor

  1. [1]

    The defense trilemma: Why prompt injection defense wrappers fail, 2025

    Anonymous. The defense trilemma: Why prompt injection defense wrappers fail, 2025. Anonymous preprint; citation to be finalized

  2. [2]

    Characterizing large language model geometry helps solve toxicity detection and generation, 2024

    Randall Balestriero, Romain Cosentino, and Sarath Shekkizhar. Characterizing large language model geometry helps solve toxicity detection and generation, 2024

  3. [3]

    Representation engineering for large-language models: Survey and research challenges, 2025

    Lukasz Bartoszcze, Sarthak Munshi, Bryan Sukidi, Jennifer Yen, Zejia Yang, David Williams- King, Linh Le, Kosi Asuzu, and Carsten Maple. Representation engineering for large-language models: Survey and research challenges, 2025

  4. [4]

    Pappas, and Eric Wong

    Patrick Chao, Alexander Robey, Edgar Dobriban, Hamed Hassani, George J. Pappas, and Eric Wong. Jailbreaking black box large language models in twenty queries, 2024

  5. [5]

    The llama 3 herd of models, 2024

    Aaron Grattafiori et al. The llama 3 herd of models, 2024

  6. [6]

    Finding a needle in the adversarial haystack: A targeted para- phrasing approach for uncovering edge cases with minimal distribution distortion

    Aly Kassem and Sherif Saad. Finding a needle in the adversarial haystack: A targeted para- phrasing approach for uncovering edge cases with minimal distribution distortion. In Yvette Graham and Matthew Purver, editors,Proceedings of the 18th Conference of the European Chapter of the Association for Computational Linguistics (Volume 1: Long Papers), pages ...

  7. [7]

    Enhancing the adversarial robustness via manifold projection.Proceedings of the AAAI Conference on Artificial Intelligence, 39(1):451–459, 2025

    Zhiting Li, Shibai Yin, Tai-Xiang Jiang, Yexun Hu, Jia-Mian Wu, Guowei Yang, and Guisong Liu. Enhancing the adversarial robustness via manifold projection.Proceedings of the AAAI Conference on Artificial Intelligence, 39(1):451–459, 2025

  8. [8]

    HarmBench: A Standardized Evaluation Framework for Automated Red Teaming and Robust Refusal

    Mantas Mazeika, Long Phan, Xuwang Yin, Andy Zou, Zifan Wang, Norman Mu, Elham Sakhaee, Nathaniel Li, Steven Basart, Bo Li, et al. HarmBench: A standardized evaluation framework for automated red teaming and robust refusal.arXiv preprint arXiv:2402.04249, 2024

  9. [9]

    Tree of attacks: Jailbreaking black-box llms automatically, 2024

    Anay Mehrotra, Manolis Zampetakis, Paul Kassianik, Blaine Nelson, Hyrum Anderson, Yaron Singer, and Amin Karbasi. Tree of attacks: Jailbreaking black-box llms automatically, 2024

  10. [10]

    Illuminating search spaces by mapping elites, 2015

    Jean-Baptiste Mouret and Jeff Clune. Illuminating search spaces by mapping elites, 2015

  11. [11]

    gpt-oss-120b & gpt-oss-20b model card, 2025

    OpenAI et al. gpt-oss-120b & gpt-oss-20b model card, 2025

  12. [12]

    Markosyan, Manish Bhatt, Yuning Mao, Minqi Jiang, Jack Parker-Holder, Jakob Foerster, Tim Rocktäschel, and Roberta Raileanu

    Mikayel Samvelyan, Sharath Chandra Raparthy, Andrei Lupu, Eric Hambro, Aram H. Markosyan, Manish Bhatt, Yuning Mao, Minqi Jiang, Jack Parker-Holder, Jakob Foerster, Tim Rocktäschel, and Roberta Raileanu. Rainbow teaming: Open-ended generation of diverse adversarial prompts. InAdvances in Neural Information Processing Systems, volume 37, pages 69747–69786, 2024

  13. [13]

    Mrinank Sharma, Meg Tong, Jesse Mu, Jerry Wei, Jorrit Kruthoff, Scott Goodfriend, Euan Ong, Alwin Peng, Raj Agarwal, Cem Anil, Amanda Askell, Nathan Bailey, Joe Benton, Emma Bluemke, Samuel R. Bowman, Eric Christiansen, Hoagy Cunningham, Andy Dau, Anjali Gopal, Rob Gilson, Logan Graham, Logan Howard, Nimit Kalra, Taesung Lee, Kevin Lin, Peter Lofgren, Fra...

  14. [14]

    Openai gpt-5 system card, 2025

    Aaditya Singh et al. Openai gpt-5 system card, 2025

  15. [15]

    MPNet: Masked and permuted pre-training for language understanding

    Kaitao Song, Xu Tan, Tao Qin, Jianfeng Lu, and Tie-Yan Liu. MPNet: Masked and permuted pre-training for language understanding. InProceedings of the 34th International Conference on Neural Information Processing Systems, 2020. 10

  16. [16]

    Why do universal adversarial attacks work on large language models?: Geometry might be the answer, 2023

    Varshini Subhash, Anna Bialas, Weiwei Pan, and Finale Doshi-Velez. Why do universal adversarial attacks work on large language models?: Geometry might be the answer, 2023

  17. [17]

    Zico Kolter, and Matt Fredrikson

    Andy Zou, Zifan Wang, Nicholas Carlini, Milad Nasr, J. Zico Kolter, and Matt Fredrikson. Universal and transferable adversarial attacks on aligned language models, 2023

  18. [18]

    Byun, Zifan Wang, Alex Mallen, Steven Basart, Sanmi Koyejo, Dawn Song, Matt Fredrikson, J

    Andy Zou, Long Phan, Sarah Chen, James Campbell, Phillip Guo, Richard Ren, Alexander Pan, Xuwang Yin, Mantas Mazeika, Ann-Kathrin Dombrowski, Shashwat Goel, Nathaniel Li, Michael J. Byun, Zifan Wang, Alex Mallen, Steven Basart, Sanmi Koyejo, Dawn Song, Matt Fredrikson, J. Zico Kolter, and Dan Hendrycks. Representation engineering: A top-down approach to a...

  19. [19]

    Full method(MAP-Elites + Alignment Deviation): the complete framework as described in Section 4

  20. [20]

    ME + Toxicity: MAP-Elites with Alignment Deviation replaced by a single-dimension toxicity classifier score, removing the multi-category quality signal

  21. [21]

    landscape

    Random + AD: Random prompt sampling evaluated with the full Alignment Deviation metric, removing the quality-diversity search entirely. A standard toxicity classifier reliably detects overt harms such as violence, hate speech, sexual content, self-harm, and discrimination, accounting for roughly half of the 10 harm categories measured by Alignment Deviati...
