Boosting Document Parsing Efficiency and Performance with Coarse-to-Fine Visual Processing

Cheng Cui , Ting Sun , Suyin Liang , Tingquan Gao , Zelun Zhang , Jiaxuan Liu , Xueqing Wang , Changda Zhou

show 10 more authors

Hongen Liu Manhui Lin Yue Zhang Yubo Zhang Jing Zhang Jun Zhang Xing Wei Yi Liu Dianhai Yu Yanjun Ma

Authors on Pith no claims yet

Pith reviewed 2026-05-15 00:22 UTC · model grok-4.3

classification 💻 cs.CV cs.AIcs.IR

keywords document parsingvision-language modelscoarse-to-fine processingvision token reductionefficient OCRpage-level parsingelement recognition

0 comments

The pith

PaddleOCR-VL filters redundant image regions with a lightweight module so a 0.9B vision-language model can parse documents at state-of-the-art accuracy using far fewer tokens.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

High-resolution document images cause quadratic growth in vision tokens for vision-language models, driving up compute costs. The authors argue that documents contain large redundant areas such as backgrounds that can be safely ignored. They introduce a lightweight Valid Region Focus Module that predicts which tokens carry semantic value and passes only those to a compact 0.9B model for final recognition. Experiments show the resulting system matches or exceeds larger models on both full-page parsing and element recognition while cutting token count and inference time.

Core claim

PaddleOCR-VL uses a coarse-to-fine pipeline in which the Valid Region Focus Module first identifies valid vision tokens via localization and contextual prediction, then routes only those tokens to a trained 0.9B vision-language model that performs detailed document recognition without processing the entire high-resolution image.

What carries the argument

The Valid Region Focus Module (VRFM), a lightweight network that selects semantically relevant vision tokens from document images before they reach the recognition model.

If this is right

Page-level parsing and element-level recognition both reach state-of-the-art scores.
The system uses substantially fewer vision tokens and parameters than competing vision-language models.
Inference speed improves while maintaining or exceeding accuracy of larger models.
Targeted filtering of visual input proves effective for fine-grained document tasks.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

The same filtering step could be applied to other high-resolution vision tasks to reduce token budgets without retraining the main model.
Small domain-specific models guided by coarse selection may close the gap with much larger general-purpose models in structured visual domains.
Further gains are possible if the Valid Region Focus Module is jointly trained end-to-end with the recognition model rather than used as a fixed preprocessor.

Load-bearing premise

Redundant background regions in documents can be identified reliably enough that the small model still recovers full accuracy from the remaining tokens.

What would settle it

Accuracy on a held-out document set drops sharply when the Valid Region Focus Module is forced to discard regions that contain critical text or layout elements.

Figures

Figures reproduced from arXiv: 2603.24326 by Changda Zhou, Cheng Cui, Dianhai Yu, Hongen Liu, Jiaxuan Liu, Jing Zhang, Jun Zhang, Manhui Lin, Suyin Liang, Tingquan Gao, Ting Sun, Xing Wei, Xueqing Wang, Yanjun Ma, Yi Liu, Yubo Zhang, Yue Zhang, Zelun Zhang.

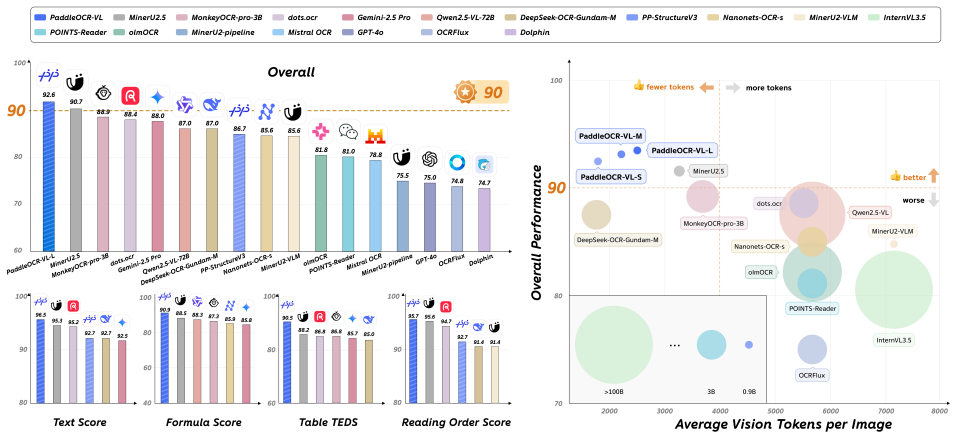

**Figure 1.** Figure 1: PaddleOCR-VL achieves state-of-the-art performance with the fewest vision tokens and parameters on OmniDocBench v1.5. [PITH_FULL_IMAGE:figures/full_fig_p002_1.png] view at source ↗

**Figure 2.** Figure 2: Architectural comparison of End-to-end VLM and our method. Among various types of document images, the valid area accounts [PITH_FULL_IMAGE:figures/full_fig_p003_2.png] view at source ↗

**Figure 3.** Figure 3: The overview of our proposed PaddleOCR-VL, which consists of two components. The first component is VRFM, which accu [PITH_FULL_IMAGE:figures/full_fig_p004_3.png] view at source ↗

**Figure 4.** Figure 4: Architecture of the Valid Region Focus Module (VRFM). [PITH_FULL_IMAGE:figures/full_fig_p005_4.png] view at source ↗

read the original abstract

Document parsing is a fine-grained task where image resolution significantly impacts performance. While advanced research leveraging vision-language models benefits from high-resolution input to boost model performance, this often leads to a quadratic increase in the number of vision tokens and significantly raises computational costs. We attribute this inefficiency to substantial visual regions redundancy in document images, like background. To tackle this, we propose PaddleOCR-VL, a novel coarse-to-fine architecture that focuses on semantically relevant regions while suppressing redundant ones, thereby improving both efficiency and performance. Specifically, we introduce a lightweight Valid Region Focus Module (VRFM) which leverages localization and contextual relationship prediction capabilities to identify valid vision tokens. Subsequently, we design and train a compact yet powerful 0.9B vision-language model (PaddleOCR-VL-0.9B) to perform detailed recognition, guided by VRFM outputs to avoid direct processing of the entire large image. Extensive experiments demonstrate that PaddleOCR-VL achieves state-of-the-art performance in both page-level parsing and element-level recognition. It significantly outperforms existing solutions, exhibits strong competitiveness against top-tier VLMs, and delivers fast inference while utilizing substantially fewer vision tokens and parameters, highlighting the effectiveness of targeted coarse-to-fine parsing for accurate and efficient document understanding. The source code and models are publicly available at https://github.com/PaddlePaddle/PaddleOCR.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Desk Editor's Note private letter to a colleague

PaddleOCR-VL adds a lightweight VRFM to prune redundant tokens before a 0.9B model, which is a practical efficiency move but the SOTA claim rests on unshown numbers.

read the letter

The main thing here is PaddleOCR-VL's coarse-to-fine setup. A small Valid Region Focus Module first picks out the relevant visual regions in a document image using localization and context cues, then a 0.9B model processes only those tokens for the actual parsing. This cuts the vision token count and speeds things up compared to feeding the whole high-res image to a bigger VLM. The paper does a decent job laying out a practical solution to the token bloat problem that comes with high-resolution document inputs. They train the compact model to work with the filtered output, and making the code public lets others reproduce or build on it. For tasks like information extraction from PDFs or scans, this kind of efficiency boost could matter in real deployments. Where it gets thin is the lack of hard numbers in the abstract. It says SOTA performance and strong competitiveness, but without the actual metrics, comparisons, or ablation studies, it's hard to judge how much the pruning helps or hurts. The potential issue that the filter might miss fine details in complex layouts, like overlapping text or low-contrast elements, is worth watching. If the experiments don't include targeted checks on those cases, the efficiency claim stays conditional. This work is aimed at people who implement document parsing pipelines and need to balance accuracy with compute. Someone already using VLMs for similar tasks would get the most out of the architecture description and the reported inference speeds. I'd recommend putting it through peer review. The approach is grounded enough to deserve a closer look at the data.

Referee Report

2 major / 2 minor

Summary. The paper introduces PaddleOCR-VL, a coarse-to-fine document parsing architecture consisting of a lightweight Valid Region Focus Module (VRFM) that identifies semantically relevant image regions via localization and contextual prediction, followed by a compact 0.9B vision-language model (PaddleOCR-VL-0.9B) that performs detailed recognition on the filtered token set. It claims state-of-the-art results on page-level parsing and element-level recognition tasks, with substantial gains in inference speed and reductions in vision tokens and parameters relative to existing solutions and larger VLMs.

Significance. If the central performance claims hold under rigorous verification, the work offers a practical advance in efficient high-resolution document understanding by mitigating quadratic token scaling. The public release of code and models at https://github.com/PaddlePaddle/PaddleOCR further supports reproducibility and potential adoption in real-world OCR pipelines.

major comments (2)

[Valid Region Focus Module and Experiments] The headline SOTA and efficiency claims rest on the untested assumption that VRFM correctly retains all semantically critical tokens (small text, tables, signatures, low-contrast elements) while discarding only redundant background. The manuscript reports only aggregate page- and element-level metrics; it does not quantify recall on critical sub-regions or present failure cases on dense or low-contrast layouts where filtering could cause irrecoverable accuracy drops.
[Abstract and Results] The abstract asserts SOTA performance and strong competitiveness against top-tier VLMs without providing any quantitative metrics, baseline tables, or ablation results. This omission makes it impossible to assess the magnitude of improvement or rule out post-hoc tuning, and the full experimental section must supply these details for the central claim to be verifiable.

minor comments (2)

[Method] Notation for the VRFM output (filtered token set) and its integration with the 0.9B model could be clarified with an explicit diagram or pseudocode to improve reproducibility.
[Discussion] The paper should include a limitations section discussing scenarios where VRFM filtering might degrade performance (e.g., highly cluttered documents).

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the constructive feedback. We address each major comment below and will revise the manuscript to incorporate the suggested improvements.

read point-by-point responses

Referee: [Valid Region Focus Module and Experiments] The headline SOTA and efficiency claims rest on the untested assumption that VRFM correctly retains all semantically critical tokens (small text, tables, signatures, low-contrast elements) while discarding only redundant background. The manuscript reports only aggregate page- and element-level metrics; it does not quantify recall on critical sub-regions or present failure cases on dense or low-contrast layouts where filtering could cause irrecoverable accuracy drops.

Authors: We agree that granular validation of VRFM is valuable. While the reported aggregate metrics on page- and element-level tasks already demonstrate strong end-to-end performance, we will add in the revision: quantitative recall measurements for critical sub-regions (small text, tables, signatures, low-contrast elements) and an analysis of failure cases on dense or low-contrast layouts. These additions will directly address the concern about potential irrecoverable accuracy drops. revision: yes
Referee: [Abstract and Results] The abstract asserts SOTA performance and strong competitiveness against top-tier VLMs without providing any quantitative metrics, baseline tables, or ablation results. This omission makes it impossible to assess the magnitude of improvement or rule out post-hoc tuning, and the full experimental section must supply these details for the central claim to be verifiable.

Authors: We acknowledge that the abstract currently lacks specific numbers. In the revised manuscript we will update the abstract to include key quantitative results (accuracy gains, token reduction, parameter efficiency) together with explicit references to the baseline tables and ablations already present in the experimental section. This will make the magnitude of improvement directly verifiable from the abstract. revision: yes

Circularity Check

0 steps flagged

No circularity in empirical architecture derivation

full rationale

The paper presents PaddleOCR-VL as an empirical coarse-to-fine architecture: a lightweight VRFM identifies valid tokens via localization and context prediction, after which a separately trained 0.9B VLM performs recognition on the filtered input. No equations, fitted-parameter predictions, self-definitional loops, or load-bearing self-citations appear in the provided text. Performance claims rest on external benchmarks and experiments rather than any internal reduction to the method's own inputs. The derivation chain is therefore self-contained and non-circular.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 2 invented entities

The central claim rests on the new VRFM module and the 0.9B model; no free parameters are explicitly fitted in the abstract description, but the module itself is an invented component whose effectiveness is asserted empirically.

axioms (1)

domain assumption High-resolution document images contain substantial redundant visual regions such as background that can be safely suppressed.
Stated directly in the abstract as the motivation for the coarse-to-fine design.

invented entities (2)

Valid Region Focus Module (VRFM) no independent evidence
purpose: Lightweight module that identifies valid vision tokens via localization and contextual relationship prediction.
New component introduced to guide the subsequent recognition stage.
PaddleOCR-VL-0.9B no independent evidence
purpose: Compact 0.9B vision-language model that performs detailed recognition on VRFM-selected regions.
New model size and training regime proposed for the fine stage.
