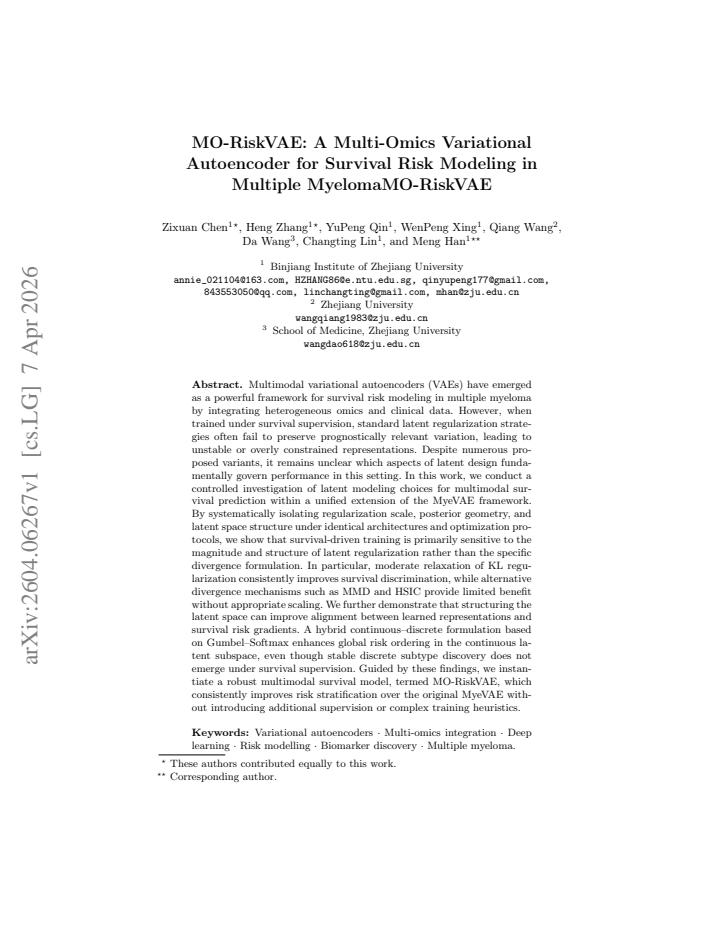

MO-RiskVAE: A Multi-Omics Variational Autoencoder for Survival Risk Modeling in Multiple MyelomaMO-RiskVAE

Zixuan Chen , Heng Zhang , YuPeng Qin , Wenpeng Xing , Qiang Wang , Da Wang , Changting Lin , Meng Han

Authors on Pith no claims yet

Pith reviewed 2026-05-10 19:35 UTC · model grok-4.3

classification 💻 cs.LG cs.AI

keywords multiple myelomasurvival predictionvariational autoencodermultimodal integrationlatent regularizationrisk stratificationomics data

0 comments

The pith

In multimodal survival models for multiple myeloma, moderate relaxation of latent regularization improves risk discrimination more than altering the divergence measure.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper conducts controlled tests on latent design choices inside a multimodal variational autoencoder trained for survival prediction from omics and clinical data in multiple myeloma. Keeping the overall architecture and training fixed, it varies regularization strength, posterior shape, and whether the latent space mixes continuous and discrete variables. The results indicate that survival performance depends chiefly on how strongly the latent space is regularized and how it is structured, rather than on which divergence penalty is used. Moderate weakening of the standard KL term preserves more prognostically useful variation and raises discrimination metrics, while switching to MMD or HSIC adds little unless the scale is also adjusted. A hybrid continuous-discrete latent space further aligns representations with risk gradients in the continuous part. These observations guide construction of an improved model that achieves stronger risk stratification without extra supervision.

Core claim

By systematically isolating regularization scale, posterior geometry, and latent space structure under identical architectures and optimization protocols, survival-driven training is shown to respond primarily to the magnitude and structure of latent regularization rather than the specific divergence formulation. Moderate relaxation of KL regularization consistently improves survival discrimination, alternative divergences provide limited benefit without appropriate scaling, and structuring the latent space improves alignment between learned representations and survival risk gradients. A hybrid continuous-discrete formulation based on Gumbel-Softmax enhances global risk ordering in the連続部分,

What carries the argument

Systematic isolation of latent regularization magnitude, posterior geometry, and continuous-discrete structure under fixed multimodal VAE architecture and survival supervision.

If this is right

Moderate relaxation of KL regularization consistently improves survival discrimination.
Alternative divergence mechanisms such as MMD and HSIC provide limited benefit without appropriate scaling.
Structuring the latent space improves alignment between learned representations and survival risk gradients.
A hybrid continuous-discrete formulation enhances global risk ordering in the continuous latent subspace even though stable discrete subtype discovery does not emerge.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

Similar regularization tuning may improve multimodal survival models trained on other cancer types or omics combinations.
Risk modeling and subtype discovery appear to pull the latent space in different directions, suggesting they may need separate objectives or staged training.
The optimal regularization scale likely depends on the specific omics modalities and cohort size, pointing to a need for data-driven scale selection methods.

Load-bearing premise

The controlled experiments with identical architectures and optimization protocols truly isolate the effects of latent modeling choices without confounding from data splits, hyperparameter interactions, or post-hoc selection of the best regularization scale.

What would settle it

An independent replication on a new myeloma cohort that finds equivalent survival discrimination when divergence type is changed at fixed regularization scale, or that finds no gain from moderate KL relaxation, would falsify the claim that regularization magnitude and structure dominate.

Figures

Figures reproduced from arXiv: 2604.06267 by Changting Lin, Da Wang, Heng Zhang, Meng Han, Qiang Wang, Wenpeng Xing, YuPeng Qin, Zixuan Chen.

**Figure 2.** Figure 2: Effect of KL regularization weight β on validation C-index. Analysis of training loss magnitudes reveals that the Cox objective dominates optimization, whereas KL-, MMD-, and HSIC-based regularizers operate at substantially smaller scales. This imbalance explains why survival performance is primarily governed by the effective strength of latent regularization rather than the specific divergence formulatio… view at source ↗

**Figure 3.** Figure 3: Kaplan–Meier survival curves on the validation set (median risk split). [PITH_FULL_IMAGE:figures/full_fig_p007_3.png] view at source ↗

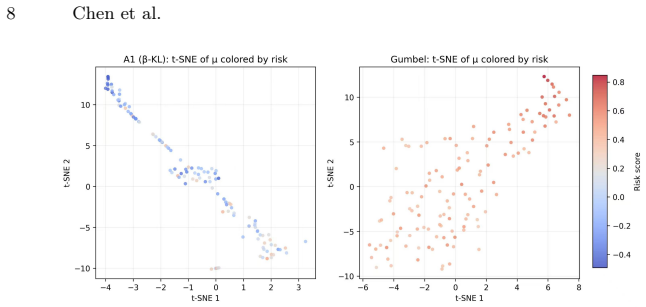

**Figure 4.** Figure 4: t-SNE visualization of continuous latent representations colored by pre [PITH_FULL_IMAGE:figures/full_fig_p008_4.png] view at source ↗

read the original abstract

Multimodal variational autoencoders (VAEs) have emerged as a powerful framework for survival risk modeling in multiple myeloma by integrating heterogeneous omics and clinical data. However, when trained under survival supervision, standard latent regularization strategies often fail to preserve prognostically relevant variation, leading to unstable or overly constrained representations. Despite numerous proposed variants, it remains unclear which aspects of latent design fundamentally govern performance in this setting. In this work, we conduct a controlled investigation of latent modeling choices for multimodal survival prediction within a unified extension of the MyeVAE framework. By systematically isolating regularization scale, posterior geometry, and latent space structure under identical architectures and optimization protocols, we show that survival-driven training is primarily sensitive to the magnitude and structure of latent regularization rather than the specific divergence formulation. In particular, moderate relaxation of KL regularization consistently improves survival discrimination, while alternative divergence mechanisms such as MMD and HSIC provide limited benefit without appropriate scaling. We further demonstrate that structuring the latent space can improve alignment between learned representations and survival risk gradients. A hybrid continuous--discrete formulation based on Gumbel--Softmax enhances global risk ordering in the continuous latent subspace, even though stable discrete subtype discovery does not emerge under survival supervision. Guided by these findings, we instantiate a robust multimodal survival model, termed MO-RiskVAE, which consistently improves risk stratification over the original MyeVAE without introducing additional supervision or complex training heuristics.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Desk Editor's Note private letter to a colleague

The paper shows moderate KL relaxation improves survival discrimination in a multi-omics VAE for myeloma more than switching divergences, but the ablations may not cleanly isolate magnitude effects from post-hoc scale choices or single-split variability.

read the letter

The main takeaway is that survival-driven training in this multimodal VAE setup responds more to the strength of latent regularization than to the specific divergence used. Moderate relaxation of KL gives better risk ordering than strict or absent regularization, while MMD and HSIC add little once scale is controlled, and a hybrid Gumbel-Softmax structure helps the continuous part align with survival gradients even if discrete subtypes remain unstable. This is a direct extension of the prior MyeVAE work with a focused set of comparisons under matched architectures and protocols.

Referee Report

2 major / 1 minor

Summary. The manuscript introduces MO-RiskVAE, a multimodal variational autoencoder extending the MyeVAE framework for integrating heterogeneous omics and clinical data in multiple myeloma survival risk modeling. Through a controlled investigation under identical architectures and optimization protocols, it claims that survival-driven training is primarily sensitive to the magnitude and structure of latent regularization rather than the specific divergence formulation (KL vs. MMD/HSIC). Moderate relaxation of KL regularization consistently improves survival discrimination, structuring the latent space improves alignment with survival risk gradients, and a hybrid continuous-discrete Gumbel-Softmax formulation enhances global risk ordering in the continuous subspace. The resulting MO-RiskVAE model improves risk stratification over the baseline without additional supervision or complex heuristics.

Significance. If the empirical results hold under rigorous controls, the work provides actionable guidance for latent design in survival-supervised multimodal VAEs by prioritizing regularization scale and structure over divergence choice. This could improve prognostic modeling in cancer genomics. The emphasis on systematic isolation of factors under matched protocols is a methodological strength that supports reproducibility and targeted improvements in this domain.

major comments (2)

[Abstract] Abstract: The claim that survival-driven training 'is primarily sensitive to the magnitude and structure of latent regularization rather than the specific divergence formulation' and that 'moderate relaxation of KL regularization consistently improves survival discrimination' requires explicit evidence that regularization scales were not selected post-hoc (e.g., via per-divergence grid search maximizing C-index on the evaluation data). Without such details, the comparison risks confounding from hyperparameter optimization bias rather than isolating the intended effects.
[Abstract] Abstract/Methods: The description of a 'controlled investigation... under identical architectures and optimization protocols' must specify the data partitioning strategy (e.g., repeated random splits, fixed seeds, or cross-validation) and whether performance metrics are averaged over multiple runs. Single-split results without these controls could reflect variability or selection artifacts, undermining the 'consistently improves' assertion.

minor comments (1)

[Abstract] Abstract: The phrasing 'stable discrete subtype discovery does not emerge under survival supervision' would benefit from a brief operational definition or reference to the specific metric used to assess stability.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We appreciate the referee's detailed feedback on our manuscript. We address the major comments point by point below. We agree that additional details on experimental controls are necessary for clarity and will revise the manuscript to include them.

read point-by-point responses

Referee: [Abstract] Abstract: The claim that survival-driven training 'is primarily sensitive to the magnitude and structure of latent regularization rather than the specific divergence formulation' and that 'moderate relaxation of KL regularization consistently improves survival discrimination' requires explicit evidence that regularization scales were not selected post-hoc (e.g., via per-divergence grid search maximizing C-index on the evaluation data). Without such details, the comparison risks confounding from hyperparameter optimization bias rather than isolating the intended effects.

Authors: We thank the referee for highlighting this important point. To ensure the comparisons isolate the effects of regularization magnitude and structure, the regularization scales were selected based on a grid search performed on a separate validation set, using the same range of values for all divergence formulations. No optimization was performed on the evaluation data. In the revised manuscript, we will explicitly describe the hyperparameter selection procedure in the Methods section, including the validation strategy used to choose the scales, to eliminate any ambiguity regarding post-hoc selection. revision: yes
Referee: [Abstract] Abstract/Methods: The description of a 'controlled investigation... under identical architectures and optimization protocols' must specify the data partitioning strategy (e.g., repeated random splits, fixed seeds, or cross-validation) and whether performance metrics are averaged over multiple runs. Single-split results without these controls could reflect variability or selection artifacts, undermining the 'consistently improves' assertion.

Authors: We agree that specifying the data partitioning and run averaging is essential to support the claims of consistent improvement. Our experiments employed a repeated random split strategy with fixed random seeds for reproducibility, and all performance metrics, including the C-index, were averaged over multiple independent runs. We will update both the Abstract and the Methods section in the revised manuscript to provide these details, ensuring the controlled nature of the investigation is fully transparent. revision: yes

Circularity Check

0 steps flagged

No circularity: empirical claims rest on controlled experiments, not definitional reduction

full rationale

The paper conducts a controlled empirical study comparing latent regularization choices (KL scale, MMD, HSIC, Gumbel-Softmax) under matched architectures and protocols within an extension of the MyeVAE framework. All load-bearing statements are performance observations (e.g., 'moderate relaxation of KL regularization consistently improves survival discrimination') derived from reported C-index and risk stratification metrics across configurations. No equations, predictions, or uniqueness theorems are presented that reduce by construction to fitted parameters or prior self-citations; the derivation chain consists entirely of experimental isolation rather than tautological re-expression of inputs.

Axiom & Free-Parameter Ledger

1 free parameters · 1 axioms · 0 invented entities

The central claims rest on standard VAE assumptions plus empirical tuning of regularization strength; no new physical entities are postulated.

free parameters (1)

KL regularization scale
The paper identifies moderate relaxation as optimal through controlled tests, making this a tuned hyperparameter that affects the reported performance gains.

axioms (1)

domain assumption Multimodal omics and clinical data can be usefully integrated via a shared latent space for survival risk prediction
Invoked throughout the MyeVAE extension and all ablation experiments.

pith-pipeline@v0.9.0 · 5590 in / 1240 out tokens · 60001 ms · 2026-05-10T19:35:59.940555+00:00 · methodology

discussion (0)

Lean theorems connected to this paper

Citations machine-checked in the Pith Canon. Every link opens the source theorem in the public Lean library.

IndisputableMonolith/Cost/FunctionalEquation.lean washburn_uniqueness_aczel unclear

?

unclear
Relation between the paper passage and the cited Recognition theorem.

survival-driven training is primarily sensitive to the magnitude and structure of latent regularization rather than the specific divergence formulation
IndisputableMonolith/Foundation/RealityFromDistinction.lean reality_from_one_distinction unclear

?

unclear
Relation between the paper passage and the cited Recognition theorem.

moderate relaxation of KL regularization consistently improves survival discrimination

What do these tags mean?

matches: The paper's claim is directly supported by a theorem in the formal canon.
supports: The theorem supports part of the paper's argument, but the paper may add assumptions or extra steps.
extends: The paper goes beyond the formal theorem; the theorem is a base layer rather than the whole result.
uses: The paper appears to rely on the theorem as machinery.
contradicts: The paper's claim conflicts with a theorem or certificate in the canon.
unclear: Pith found a possible connection, but the passage is too broad, indirect, or ambiguous to say the theorem truly supports the claim.

Reference graph

Works this paper leans on

18 extracted references · 3 canonical work pages · 1 internal anchor

[1]

G., Chen, J., Chew, G.-L., Chng, W

Chang, J. G., Chen, J., Chew, G.-L., Chng, W. J.: MyeVAE: A multi-modal vari- ational autoencoder for risk profiling of newly diagnosed multiple myeloma.BMC Artificial Intelligence1, 8 (2025)

2025
[2]

M., Naeem, S

Hassan, A. M., Naeem, S. M., Eldosoky, M. A. A., Mabrouk, M. S.: A deep genera- tive approach to cancer prognosis: MMD-VAE for multi-omics data fusion.Network Modeling Analysis in Health Informatics and Bioinformatics14, 94 (2025)

2025
[3]

T., Razzaque, M

Hira, M. T., Razzaque, M. A., Angione, C., Scrivens, J., Sawan, S., Sarker, M. S.: Integrated multi-omics analysis of ovarian cancer using variational autoencoders. Scientific Reports11, 6265 (2021)

2021
[4]

C., Lee, K

Li, C., Gu, Y., Virgilio, M. C., Lee, K. H., Collins, K. L., Welch, J. D.: Inferring differential dynamics from multi-lineage, multi-omic, and multi-sample single-cell data with MultiVeloVAE.Nature Communications16, 11505 (2025)

2025
[5]

Qiu, P., Zhu, W., Kumar, S., Chen, X., Yang, J., Sun, X., Razi, A., Wang, Y., Soti- ras, A.: Multimodal variational autoencoder: A barycentric view.arXiv preprint arXiv:2412.20487 (2024)

work page arXiv 2024
[6]

In:Advances in Neural Information Processing Systems (NeurIPS), pp

Shi, Y., Siddharth, N., Paige, B., Torr, P.: Variational mixture-of-experts autoen- coders for multi-modal deep generative models. In:Advances in Neural Information Processing Systems (NeurIPS), pp. 15692–15703 (2019)

2019
[7]

In:Advances in Neural Information Processing Sys- tems (NeurIPS), pp

Sohn, K., Yan, X., Lee, H.: Learning structured output representation using deep conditional generative models. In:Advances in Neural Information Processing Sys- tems (NeurIPS), pp. 3483–3491 (2015)

2015
[8]

M., Daunhawer, I., Vogt, J

Sutter, T. M., Daunhawer, I., Vogt, J. E.: Generalized multimodal ELBO. In: International Conference on Learning Representations (ICLR)(2021)

2021
[9]

Suzuki, M., Nakayama, K., Matsuo, Y.: Joint multimodal learning with deep gen- erative models.arXiv preprintarXiv:1611.01891 (2016)

work page arXiv 2016
[10]

In:Advances in Neural Information Processing Systems (NeurIPS), pp

Wu, M., Goodman, N.: Multimodal generative models for scalable weakly- supervised learning. In:Advances in Neural Information Processing Systems (NeurIPS), pp. 5580–5590 (2018)

2018
[11]

In:Advances in Neural Information Processing Systems (NeurIPS), pp

van den Oord, A., Vinyals, O., Kavukcuoglu, K.: Neural discrete representation learning. In:Advances in Neural Information Processing Systems (NeurIPS), pp. 6306–6315 (2017)

2017
[12]

Daniel Greenfeld , Uri Shalit: Robust Learning with the Hilbert-Schmidt Indepen- dence Criterion
[13]

Categorical Reparameterization with Gumbel-Softmax

Jang, E., Gu, S., Poole, B.: Categorical reparameterization with Gumbel- Softmax. In:International Conference on Learning Representations (ICLR)(2017) arXiv:1611.01144

work page internal anchor Pith review arXiv 2017
[14]

Simidjievski, N., Bodnar, C., Tariq, I., Scherer, P., Andres Terre, H., Shams, Z., Jamnik, M., Liò, P.: Variational autoencoders for cancer data integration: design principles and computational practice.Bioinformatics35(24), 5465–5473 (2019)

2019
[15]

B., Lu, L., Garmire, L

Chaudhary, K., Poirion, O. B., Lu, L., Garmire, L. X.: Deep learning–based multi- omics integration robustly predicts survival in liver cancer.Bioinformatics34(12), 2159–2167 (2018)

2018
[16]

B., Chaudhary, K., Garmire, L

Poirion, O. B., Chaudhary, K., Garmire, L. X.: DeepProg: an ensemble of deep- learning and machine-learning models for prognosis prediction using multi-omics data.Bioinformatics37(8), 1121–1128 (2021)

2021
[17]

P., Greene, C

Way, G. P., Greene, C. S.: Extracting a biologically relevant latent space from can- cer transcriptomes with variational autoencoders.Cell Systems6(6), 1–13 (2018)

2018
[18]

Cheerla, A., Gevaert, O.: Deep learning with multimodal representation for pan- cancer prognosis prediction.Bioinformatics35(14), i446–i454 (2019)

2019
