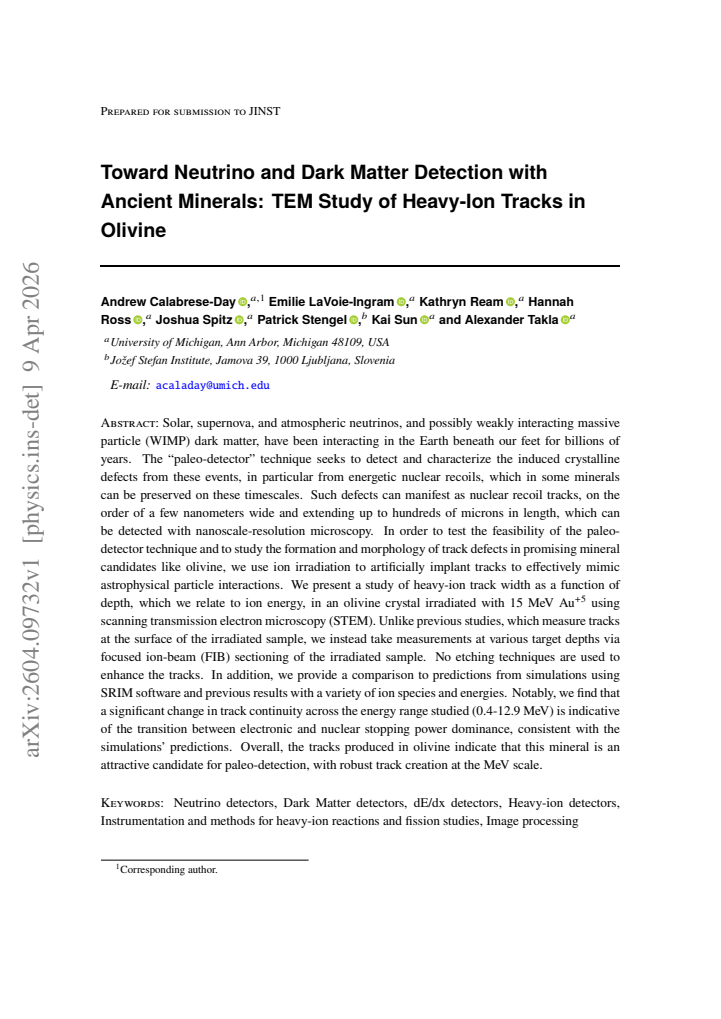

Toward Neutrino and Dark Matter Detection with Ancient Minerals: TEM Study of Heavy-Ion Tracks in Olivine

Andrew Calabrese-Day , Emilie LaVoie-Ingram , Kathryn Ream , Hannah Ross , Joshua Spitz , Patrick Stengel , Kai Sun , Alexander Takla
Authors on Pith no claims yet

Pith reviewed 2026-05-10 17:53 UTC · model grok-4.3

classification ⚛️ physics.ins-det astro-ph.IMhep-exhep-phnucl-ex
keywords olivinepaleo-detectorsheavy-ion irradiationnuclear recoil tracksneutrino detectiondark mattertransmission electron microscopystopping power
0
0 comments X

The pith

Heavy-ion tracks in olivine change continuity at the electronic-to-nuclear stopping transition, supporting paleo-detection of neutrinos and dark matter.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper tests olivine as a candidate mineral for paleo-detectors that could record ancient interactions with neutrinos and dark matter through preserved nuclear recoil tracks. By irradiating olivine with 15 MeV gold ions and examining the resulting tracks at different depths using scanning transmission electron microscopy after focused ion beam sectioning, the authors map track width and continuity as a function of ion energy. They find a clear shift in track appearance between 0.4 and 12.9 MeV that matches the expected change from electronic to nuclear stopping power dominance. This demonstrates robust track formation in olivine at MeV energies without needing etching, positioning the mineral as a viable material for detecting historical particle events over geological time.

Core claim

Olivine crystals irradiated with 15 MeV Au^{+5} ions produce heavy-ion tracks whose morphology, observed via depth-resolved STEM imaging, shows a significant change in continuity across energies from 0.4 to 12.9 MeV. This change indicates the transition between electronic and nuclear stopping power dominance and aligns with SRIM simulation predictions. The robust creation of these tracks at the MeV scale shows that olivine can preserve detectable crystalline defects from energetic nuclear recoils, making it an attractive candidate for the paleo-detector technique to study neutrinos and WIMP dark matter.

What carries the argument

Depth-resolved measurement of unetched heavy-ion tracks in olivine using focused ion beam sectioning and scanning transmission electron microscopy, which tracks the evolution of track continuity with decreasing ion energy from 12.9 MeV to 0.4 MeV.

If this is right

  • Ancient olivine samples could be examined to detect and characterize past neutrino interactions from solar, supernova, and atmospheric sources.
  • The approach provides a method to search for signals from weakly interacting massive particles in the form of preserved nuclear recoil tracks.
  • Track morphology in olivine can be directly compared to simulation predictions to interpret natural tracks.
  • The absence of etching simplifies the analysis of both lab-created and natural samples.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • Other abundant minerals could be tested similarly to expand the range of possible paleo-detector materials.
  • If validated in natural samples, this technique might allow reconstruction of the Earth's exposure to high-energy particles over billions of years.
  • Track features might eventually help differentiate between neutrino-induced recoils and those from dark matter candidates based on energy deposition patterns.

Load-bearing premise

Laboratory-created tracks from heavy ions in fresh olivine accurately mimic the formation, morphology, and long-term stability of tracks produced by natural astrophysical particles in ancient, geologically unaltered minerals.

What would settle it

Direct observation of similar track structures in natural olivine from sites with known exposure histories, or evidence that tracks anneal or become undetectable over millions to billions of years.

read the original abstract

Solar, supernova, and atmospheric neutrinos, and possibly weakly interacting massive particle (WIMP) dark matter, have been interacting in the Earth beneath our feet for billions of years. The ''paleo-detector'' technique seeks to detect and characterize the induced crystalline defects from these events, in particular from energetic nuclear recoils, which in some minerals can be preserved on these timescales. Such defects can manifest as nuclear recoil tracks, on the order of a few nanometers wide and extending up to hundreds of microns in length, which can be detected with nanoscale-resolution microscopy. In order to test the feasibility of the paleo-detector technique and to study the formation and morphology of track defects in promising mineral candidates like olivine, we use ion irradiation to artificially implant tracks to effectively mimic astrophysical particle interactions. We present a study of heavy-ion track width as a function of depth, which we relate to ion energy, in an olivine crystal irradiated with 15 MeV Au$^{+5}$ using scanning transmission electron microscopy (STEM). Unlike previous studies, which measure tracks at the surface of the irradiated sample, we instead take measurements at various target depths via focused ion-beam sectioning of the irradiated sample. No etching techniques are used to enhance the tracks. In addition, we provide a comparison to predictions from simulations using SRIM software and previous results with a variety of ion species and energies. Notably, we find that a significant change in track continuity across the energy range studied (0.4-12.9 MeV) is indicative of the transition between electronic and nuclear stopping power dominance, consistent with the simulations' predictions. Overall, the tracks produced in olivine indicate that this mineral is an attractive candidate for paleo-detection, with robust track creation at the MeV scale.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 2 minor

Summary. The manuscript reports an experimental study in which olivine crystals are irradiated with 15 MeV Au^{+5} ions to create artificial heavy-ion tracks. Using STEM imaging after FIB sectioning at multiple depths (corresponding to ion energies 0.4–12.9 MeV) and without chemical etching, the authors measure track properties, observe a change in track continuity, and compare the results to SRIM simulations. They conclude that the observed transition is consistent with the shift from electronic to nuclear stopping dominance and that olivine is therefore an attractive candidate mineral for paleo-detection of neutrinos and dark matter via preserved nuclear-recoil tracks.

Significance. If the central experimental findings hold, the work supplies direct, depth-resolved evidence of track formation in olivine under controlled heavy-ion bombardment, extending beyond prior surface-only measurements. The unetched STEM approach and explicit SRIM comparison constitute a clear methodological strength and provide a reproducible benchmark for this mineral. The result supports the broader paleo-detector concept by demonstrating robust track creation at the MeV scale, although the significance for actual astrophysical searches hinges on the untested extrapolation to lower-energy, geologically ancient recoils.

major comments (2)
  1. [Results section (0.4-12.9 MeV range)] Results section (description of the 0.4–12.9 MeV energy range and track continuity): the claim of a 'significant change in track continuity' is presented qualitatively; no quantitative metrics (track widths, continuity lengths, number of tracks examined, or uncertainties) are supplied, preventing independent assessment of the transition's statistical significance or its precise match to SRIM predictions.
  2. [Discussion] Discussion and conclusion: the assertion that olivine is 'an attractive candidate for paleo-detection' with 'robust track creation at the MeV scale' rests on the assumption that the morphology and long-term stability of these laboratory MeV-scale Au tracks are representative of the keV-scale nuclear recoils expected from neutrinos or WIMPs over geological timescales; no annealing, fading, or natural-sample comparison data are provided to justify the extrapolation.
minor comments (2)
  1. [Abstract] Abstract: the stated focus on 'track width as a function of depth' is not the primary result highlighted; a concise statement of the actual quantitative observables (continuity change) would improve clarity.
  2. [Methods] Methods: fluence, exact number of crystals examined, and explicit track-identification criteria are not detailed, which would aid reproducibility.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for their careful and constructive review of our manuscript. We address each major comment below with the strongest honest defense possible, and we have revised the manuscript accordingly where the comments identify clear gaps in quantitative detail or clarity of claims.

read point-by-point responses

  1. Referee: Results section (description of the 0.4–12.9 MeV energy range and track continuity): the claim of a 'significant change in track continuity' is presented qualitatively; no quantitative metrics (track widths, continuity lengths, number of tracks examined, or uncertainties) are supplied, preventing independent assessment of the transition's statistical significance or its precise match to SRIM predictions.

    Authors: We agree that the results section relies on a qualitative description of the observed change in track continuity. The STEM images at successive depths provide visual evidence of the transition from continuous to discontinuous tracks, consistent with the electronic-to-nuclear stopping crossover predicted by SRIM. However, to permit independent evaluation of statistical significance and quantitative agreement with simulations, the revised manuscript will include explicit metrics: measured track continuity lengths and widths as a function of depth (with uncertainties), the number of tracks analyzed per depth slice, and direct numerical comparison to the SRIM stopping-power curves. These additions will be placed in the results section alongside the existing figures. revision: yes

  2. Referee: Discussion and conclusion: the assertion that olivine is 'an attractive candidate for paleo-detection' with 'robust track creation at the MeV scale' rests on the assumption that the morphology and long-term stability of these laboratory MeV-scale Au tracks are representative of the keV-scale nuclear recoils expected from neutrinos or WIMPs over geological timescales; no annealing, fading, or natural-sample comparison data are provided to justify the extrapolation.

    Authors: The study demonstrates that olivine produces well-defined tracks under MeV heavy-ion irradiation and that the morphology changes in a manner consistent with the electronic-to-nuclear stopping transition. This directly supports the feasibility of track formation at the relevant energy scale for paleo-detection. We acknowledge that the manuscript does not contain new annealing, fading, or natural-sample data; such long-term stability information is drawn from the established literature on radiation damage in silicates. In the revised discussion we will (i) explicitly separate the demonstrated track-formation result from the extrapolation to keV recoils and geological times, (ii) cite the relevant prior work on track retention in olivine and similar minerals, and (iii) qualify the conclusion to reflect these assumptions and the need for future lower-energy studies. This keeps the claim grounded while preserving the manuscript’s central experimental contribution. revision: partial

Circularity Check

0 steps flagged

No circularity: direct experimental measurements validated against independent SRIM simulations

full rationale

The paper reports an experimental study in which olivine crystals are irradiated with 15 MeV Au ions, sectioned via FIB, and imaged with STEM to measure track width and continuity as a function of depth (corresponding to ion energy from 0.4-12.9 MeV). These observations are compared to stopping-power predictions generated by the publicly available, externally developed SRIM code. The central conclusion—that olivine shows robust track formation and is therefore an attractive paleo-detector candidate—follows directly from the measured track properties and the SRIM consistency check. No equations, fitted parameters, or self-citations are used to derive one result from another within the paper; the work contains no self-referential predictions, ansatzes smuggled via prior author work, or renaming of known results as new derivations. The derivation chain is therefore self-contained empirical validation rather than circular.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 0 invented entities

The feasibility conclusion rests primarily on the domain assumption that laboratory ion tracks faithfully simulate natural recoils and that SRIM provides a reliable benchmark for track formation in olivine; no free parameters or new entities are introduced.

axioms (1)
  • domain assumption SRIM software accurately models ion energy loss, stopping power regimes, and resulting track morphology in olivine for Au ions in the 0.4-12.9 MeV range.
    The paper states consistency with SRIM predictions but provides no independent experimental validation of the simulation for this specific mineral and ion combination.
