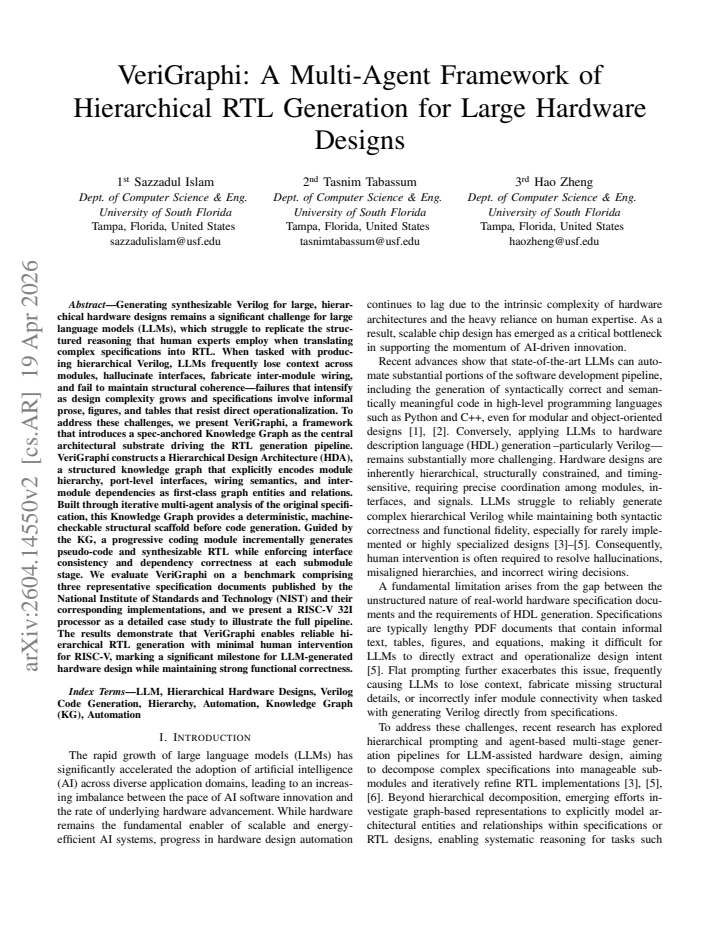

VeriGraphi: A Multi-Agent Framework of Hierarchical RTL Generation for Large Hardware Designs

Sazzadul Islam , Tasnim Tabassum , Hao Zheng This is my paper

Pith reviewed 2026-05-10 09:28 UTC · model grok-4.3

classification 💻 cs.AR cs.AIcs.LGcs.MAcs.PL

keywords RTL generationknowledge graphmulti-agent frameworkVerilogRISC-VLLM hardware designhierarchical design

0 comments

The pith

A knowledge graph built by multiple agents lets LLMs generate correct hierarchical RTL for large designs like RISC-V with little human help.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

Large language models often lose context and create invalid connections when asked to turn complex hardware specifications into multi-module Verilog code. VeriGraphi tackles this by first building a detailed, machine-checkable knowledge graph that records the full module hierarchy, ports, wiring rules, and dependencies. Multiple agents analyze the specification documents step by step to construct this graph from prose, figures, and tables. The graph then directs an incremental process that produces pseudo-code and then synthesizable RTL while checking consistency at every stage. If the method holds, it would allow reliable creation of substantial hardware designs such as processors with far less manual repair than direct LLM prompting.

Core claim

VeriGraphi introduces a spec-anchored Knowledge Graph, termed HDA, that explicitly encodes module hierarchy, port-level interfaces, wiring semantics, and inter-module dependencies. The graph is assembled through iterative multi-agent examination of informal specification documents. Guided by this deterministic scaffold, a progressive coding stage generates pseudo-code followed by synthesizable RTL while enforcing interface and dependency rules at each submodule. Evaluation on NIST benchmark specifications and a detailed RV32I RISC-V case study shows the pipeline produces functionally correct hierarchical designs with minimal human intervention.

What carries the argument

The spec-anchored Knowledge Graph (HDA), which acts as the central structural scaffold by representing hierarchy, interfaces, and dependencies in a form that can be checked before any code is written.

If this is right

Reliable hierarchical RTL generation becomes possible for RISC-V processors from natural-language specifications.
Strong functional correctness is maintained in the generated designs.
Human intervention drops because the knowledge graph supplies a fixed reference for all modules.
Interface consistency and dependency correctness are enforced automatically at each generation step.
Specifications containing mixed prose, figures, and tables can be processed into usable hardware descriptions.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

The same graph-first structure could be tested on hardware designs larger than the RV32I to determine scaling limits.
Because the intermediate graph is machine-checkable, it might be fed directly into existing formal verification tools to catch issues before RTL simulation.
The approach could be tried in related engineering tasks where loose documents must be turned into precise modular implementations.

Load-bearing premise

The multi-agent analysis of informal specifications, figures, and tables can produce a complete, accurate knowledge graph that contains no errors or omissions introduced by the language models.

What would settle it

If the RTL generated for the RV32I processor fails standard simulation or formal verification tests against the expected behavior described in the original specification, the claim of reliable generation would not hold.

Figures

Figures reproduced from arXiv: 2604.14550 by Hao Zheng, Sazzadul Islam, Tasnim Tabassum.

**Figure 1.** Figure 1: System Architecture. III. FRAMEWORK A. Overview To achieve an automated hardware design pipeline directly from raw specs, we propose a structured architecture, illustrated in [PITH_FULL_IMAGE:figures/full_fig_p003_1.png] view at source ↗

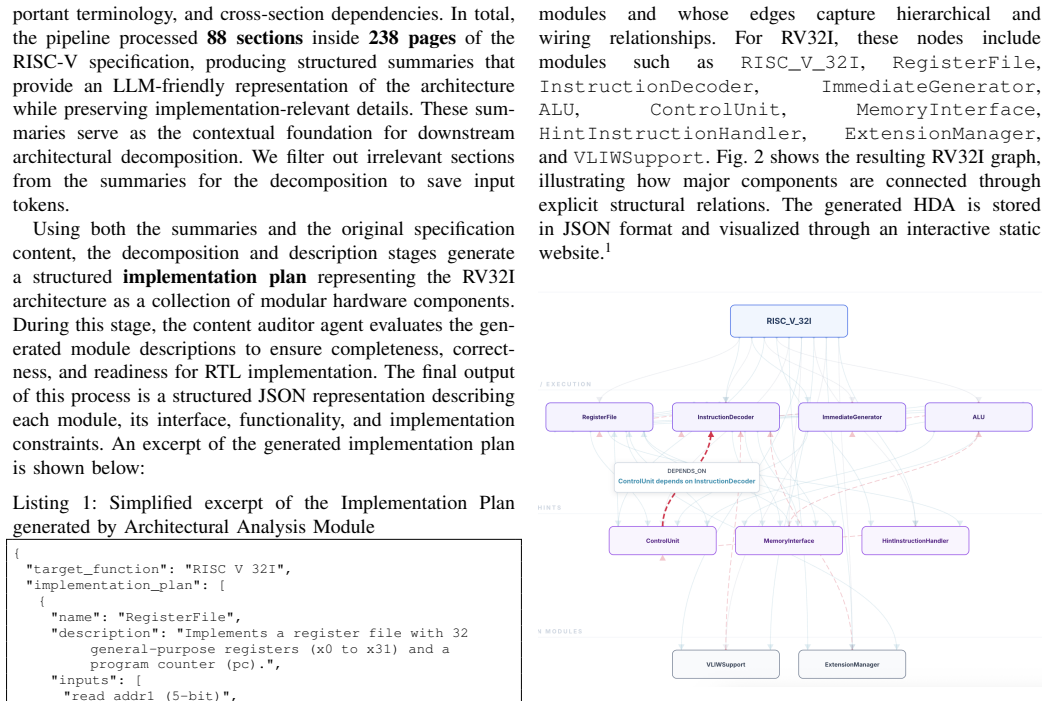

**Figure 2.** Figure 2: Hierarchical Design Architecture (HDA) for RV32I. [PITH_FULL_IMAGE:figures/full_fig_p007_2.png] view at source ↗
